二元体系与油层渗透率的匹配关系——以克拉玛依油田七中区克拉玛依组下亚组砾岩油藏为例

doi:10.7657/XJPG20200508

新疆石油地质 ›› 2020, Vol. 41 ›› Issue (5): 565-570.doi: 10.7657/XJPG20200508

二元体系与油层渗透率的匹配关系——以克拉玛依油田七中区克拉玛依组下亚组砾岩油藏为例

聂小斌¹(), 李织宏¹, 栾和鑫¹, 魏凯², 张莉伟², 王健²

1.中国石油新疆油田分公司 a.实验检测研究院;b.中国石油天然气集团公司砾岩油气藏勘探开发重点实验室;c.中国石油天然气集团公司油田化学重点实验室新疆油田分研究室,新疆克拉玛依 834000
2.西南石油大学油气藏地质及开发工程国家重点实验室,成都 610500

收稿日期:2020-01-24 修回日期:2020-05-18 出版日期:2020-10-01 发布日期:2020-10-10
作者简介:聂小斌（1968-）,男,重庆人,高级工程师,硕士,油气田开发,（Tel）0990-6886571（E-mail）nxb@petrochina.com.cn
基金资助:
国家油气重大专项(2016ZX05010-004);中国石油科技重大专项(2017E-04-06)

Investigation on How Binary System Matches with Reservoir Permeability: A Case Study of the Conglomerate Reservoir in Lower Karamay Formation in District Qizhong, Karamay Oilfield

NIE Xiaobin¹(), LI Zhihong¹, LUAN Huoxin¹, WEI Kai², ZHANG Liwei², WANG Jian²

1. PetroChina Xinjiang Oilfield Company, a.Research Institute of Exploration and Detection; b.Key Laboratory of Conglomerate Reservoir Exploration and Development; c.Xinjiang Branch, CNPC Key Laboratory of Oilfield Chemistry, Karamay, Xinjiang 834000, China
2. State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu, Sichuan 610500, China

Received:2020-01-24 Revised:2020-05-18 Online:2020-10-01 Published:2020-10-10

摘要/Abstract

摘要：

克拉玛依油田七中区油层气测渗透率主要分布在28.8~300.0 mD,渗透率级差大,部分区域存在高渗窜流通道。在二元体系驱先导试验过程中,由于对二元体系与储集层物性的匹配关系认识不清,部分井组油层堵塞,油井产液能力大幅下降,亟需确定二元体系与油层渗透率的匹配关系。针对扩大试验区的油藏特征,利用不同渗透率的岩心开展二元体系注入性实验,根据阻力系数、残余阻力系数和黏度损失率,进行注入性综合评价。结果表明,储集层气测渗透率不大于30.0 mD时,低分子量10~50 mPa·s、中—高分子量10~20 mPa·s的二元体系注入性好;气测渗透率为30.0~100.0 mD时,适合注入低—中分子量10~50 mPa·s、高分子量10~35 mPa·s的二元体系;气测渗透率为100.0~300.0 mD时,低—高分子量10~50 mPa·s的二元体系注入性皆宜。

关键词: 克拉玛依油田, 砾岩油藏, 二元体系, 聚合物, 表面活性剂, 分子量, 渗透率, 阻力系数, 残余阻力系数, 注入性评价

Abstract:

The reservoir permeability obtained from mud log in District Qizhong of Karamay oilfield is mainly distributed between 28.8 and 300 mD. The permeability contrast is large and channeling is serious in partial zones. Pilot tests on binary flooding found some wells blocked and the production capability reduced greatly, so it was urgent to understand how the binary flooding system can well match with the reservoir properties. Binary flooding experiments were performed on cores with different permeabilities, and the results were evaluated in resistance coefficient, residual resistance coefficient and viscosity loss rate. It is concluded that the binary systems with low or medium to high molecular weight (10 - 50 mPa·s and 10 - 20 mPa·s, respectively) are applicable for the reservoirs with the permeability not more than 30.0 mD, and those with low to medium (10 - 50 mPa·s) and high molecular weight (10 - 35 mPa·s) are applicable for the reservoir with the permeability of 30.0 to 100.0 mD, and those with low to high molecular weight (10 - 50 mPa·s) for the reservoir with the permeability of 100.0 to 300.0 mD.

Key words: Karamay oilfield, conglomerate oil reservoir, binary system, polymer, surfactant, molecular weight, permeability, resistance coefficient, residual resistance coefficient, injectivity evaluation

中图分类号:

TE357.46

聂小斌, 李织宏, 栾和鑫, 魏凯, 张莉伟, 王健. 二元体系与油层渗透率的匹配关系——以克拉玛依油田七中区克拉玛依组下亚组砾岩油藏为例[J]. 新疆石油地质, 2020, 41(5): 565-570.

NIE Xiaobin, LI Zhihong, LUAN Huoxin, WEI Kai, ZHANG Liwei, WANG Jian. Investigation on How Binary System Matches with Reservoir Permeability: A Case Study of the Conglomerate Reservoir in Lower Karamay Formation in District Qizhong, Karamay Oilfield[J]. Xinjiang Petroleum Geology, 2020, 41(5): 565-570.

图/表 7

图 1

图2

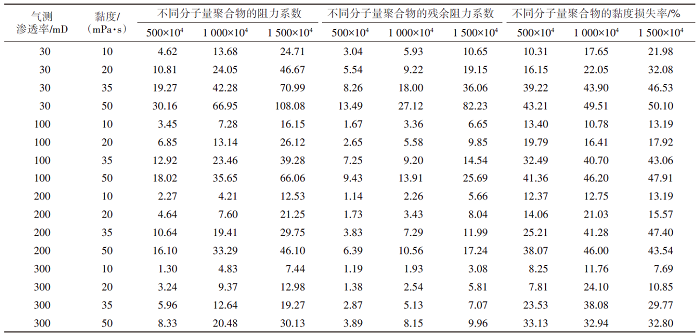

表1

图3

图 4

图5

图6

参考文献 19

[1]	廖广志, 王强, 王红庄, 等. 化学驱开发现状与前景展望[J]. 石油学报, 2017,38(2):196-207.
	LIAO Guangzhi, WANG Qiang, WANG Hongzhuang, et al. Chemical flooding development status and prospect[J]. Acta Petrolei Sinica, 2017,38(2):196-207.
[2]	牛金刚. 大庆油田聚合物驱提高采收率技术的实践与认识[J]. 大庆石油地质与开发, 2004,23(5):91-93.
	NIU Jin’gang. Practices and understanding of polymer flooding enhanced oil recovery technique in Daqing oilfield[J]. Petroleum Geology & Oilfield Development in Daqing, 2004,23(5):91-93.
[3]	程杰成, 廖广志, 杨振宇, 等. 大庆油田三元复合驱矿场试验综述[J]. 大庆石油地质与开发, 2001,20(2):46-49.
	CHENG Jiecheng, LIAO Guangzhi, YANG Zhenyu, et al. Pilot test of ASP flooding in Daqing oilfield[J]. Petroleum Geology & Oilfield Development in Daqing, 2001,20(2):46-49.
[4]	刘强. 锦16二元驱化学调控关键技术的研究与现场应用[J]. 精细石油化工进展, 2017,18(5):18-20.
	LIU Qiang. Research on key chemical control technology of binary flooding system and its field application in Jin 16 block[J]. Advances in Fine Petrochemicals, 2017,18(5):18-20.
[5]	邸胜杰, 吕迪, 程鸿雁, 等. 红北113复合体系驱油效率分析与评价[J]. 油气藏评价与开发, 2016,6(1):44-49.
	DI Shengjie, LYU Di, CHENG Hongyan, et al. Analysis and evaluation of displacement efficiency of Hongbei 113[J]. Reservoir Evaluation and Development , 2016,6(1):44-49.
[6]	王丽莉, 李文宏, 张永强, 等. 马岭北三区低渗透油藏二元驱室内实验研究[J]. 重庆科技学院学报(自然科学版), 2014,16(2):82-86.
	WANG Lili, LI Wenhong, ZHANG Yongqiang, et al. An experiment study on polymer-surfactant flooding for Bei3 region low permeability reservoir in Maling oilfield[J]. Journal of Chongqing University of Science and Technology(Natural Sciences Edition), 2014,16(2):82-86.
[7]	徐后伟, 王海明, 刘荣军, 等. 砾岩油藏聚合物驱储集层多参数精细评价及应用:以克拉玛依油田七东₁区克拉玛依组下亚组砾岩油藏为例[J]. 新疆石油地质, 2018,39(2):169-175.
	XU Houwei, WANG Haiming, LIU Rongjun, et al. Fine multiparameter evaluation for polymer flooding in conglomerate reservoirs and its application:a case study from lower Karamay formation in District Qidong-1,Karamay oilfield[J]. Xinjiang Petroleum Geology, 2018,39(2):169-175.
[8]	王成俊, 洪玲, 高瑞民, 等. 低渗透油藏提高采收率技术现状与挑战[J]. 非常规油气, 2018,5(3):102-108.
	WANG Chengjun, HONG Ling, GAO Ruimin, et al. Status-quo and challenges of enhanced oil recovery in low permeability reservoirs[J]. Unconventional Oil & Gas, 2018,5(3):102-108.
[9]	罗莉涛, 廖广志, 严文瀚, 等. 化学驱中聚合物水动力学尺寸及最优匹配注入研究[J]. 油田化学, 2016,33(1):125-136.
	LUO Litao, LIAO Guangzhi, YAN Wenhan, et al. Study on hydrodynamic size and optimal matching injection of polymer in the chemical flooding[J]. Oilfield Chemistry, 2016,33(1):125-136.
[10]	骆飞飞, 金萍, 钱川川, 等. 砾岩油藏二元复合驱注采特征及阶段效果研究:以克拉玛依油田七中区为例[J]. 西部探矿工程, 2015,27(6):23-26.
	LUO Feifei, JIN Ping, QIAN Chuanchuan, et al. Study on the characteristics and stage effects of binary combination flooding in conglomerate reservoir:using the Qizhong area,Karamay oilfield as an example[J]. West-China Exploration Engineering, 2015,27(6):23-26.
[11]	侯志. 低渗透油藏聚合物驱注入性以及有效性研究[D]. 成都:西南石油大学, 2018.
	HOU Zhi. Study on the injection and effective of polymer flooding in low permeability reservoirs[D]. Chengdu:Southwest Petroleum University, 2018.
[12]	任豪, 张作伟, 王健, 等. 聚合物微球加效体系性能及驱油效果[J]. 新疆石油地质, 2019,40(5):588-592.
	REN Hao, ZHANG Zuowei, WANG Jian, et al. Performance and oil displacement effect of polymer microsphere additive system[J]. Xinjiang Petroleum Geology, 2019,40(5):588-592.
[13]	黄斌. 变渗流阻力体系驱油提高采收率实验研究[D]. 黑龙江大庆:东北石油大学, 2013.
	HUANG Bin. Laboratory study on enhanced oil recovery process by oil displacement system with adjustable flowing resistance[D]. Daqing,Heilongjiang:Northeast Petroleum University, 2013.
[14]	赵凡琪. 砾岩油藏聚合物驱注入体系优化研究[D]. 成都:西南石油大学, 2018.
	ZHAO Fanqi. Optimization of polymer flooding injection system in conglomerate reservoir[D]. Chengdu:Southwest Petroleum University, 2018.
[15]	张冬玲, 李宜强, 鲍志东. 大庆中低渗油层聚合物驱可行性室内实验研究[J]. 油田化学, 2005,22(1):78-80.
	ZHANG Dongling, LI Yiqiang, BAO Zhidong. A laboratory experimental study of feasibility of polymer flood for middle-low permeability reservoirs in Daqing[J]. Oilfield Chemistry, 2005,22(1):78-80.
[16]	曹瑞波, 丁志红, 刘海龙, 等. 低渗透油层聚合物驱渗透率界限及驱油效果实验研究[J]. 大庆石油地质与开发, 2005,24(5):71-73.
	CAO Ruibo, DING Zhihong, LIU Hailong, et al. Experimental research on permeability limits and displacement characteristics of polymer flooding in low permeability oil layers[J]. Petroleum Geology & Oilfield Development in Daqing, 2005,24(5):71-73.
[17]	刘刚, 侯吉瑞, 邱首鹏, 等. 聚合物分子尺寸与砾岩油藏孔喉匹配关系[J]. 断块油气田, 2014,21(6):771-774.
	LIU Gang, HOU Jirui, QIU Shoupeng, et al. Matching relationship between polymer molecular size and pore-throat of conglomerate reservoir[J]. Fault-Block Oil & Gas Field, 2014,21(6):771-774.
[18]	严文瀚. 聚合物水动力尺寸及注入界限研究[D]. 河北廊坊:中国科学院研究生院(渗流流体力学研究所), 2015.
	YAN Wenhan. Study on hydrodynamic size and injectivity of polymer solution[D]. Langfang,Hebei:University of the Chinese Academy of Sciences (Institute of Porous Flow and Fluid Mechanics), 2015.
[19]	聂小斌, 娄清香, 吐尔逊·买尔当, 等. 砾岩油藏驱油聚合物相对分子质量的选择方法:以七东1区下克拉玛依亚组油藏为例[J]. 新疆石油地质, 2010,31(1):100-101.
	NIE Xiaobin, LOU Qingxiang, MAI Erdang, et al. Selection of relative molecular mass of polymers by polymer flooding process in conglomerate reservoir:an example from T₁k₁ of East District 7(1) in Karamay field[J]. Xinjiang Petroleum Geology, 2010,31(1):100-101.
