OVT-Domain Wide-Azimuth Seismic Forward Modeling of Glutenites in Dongying Sag

doi:10.7657/XJPG20240515

Abstract

Abstract:

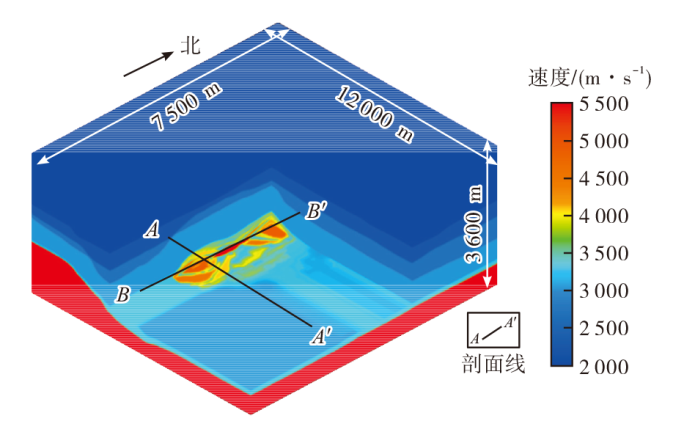

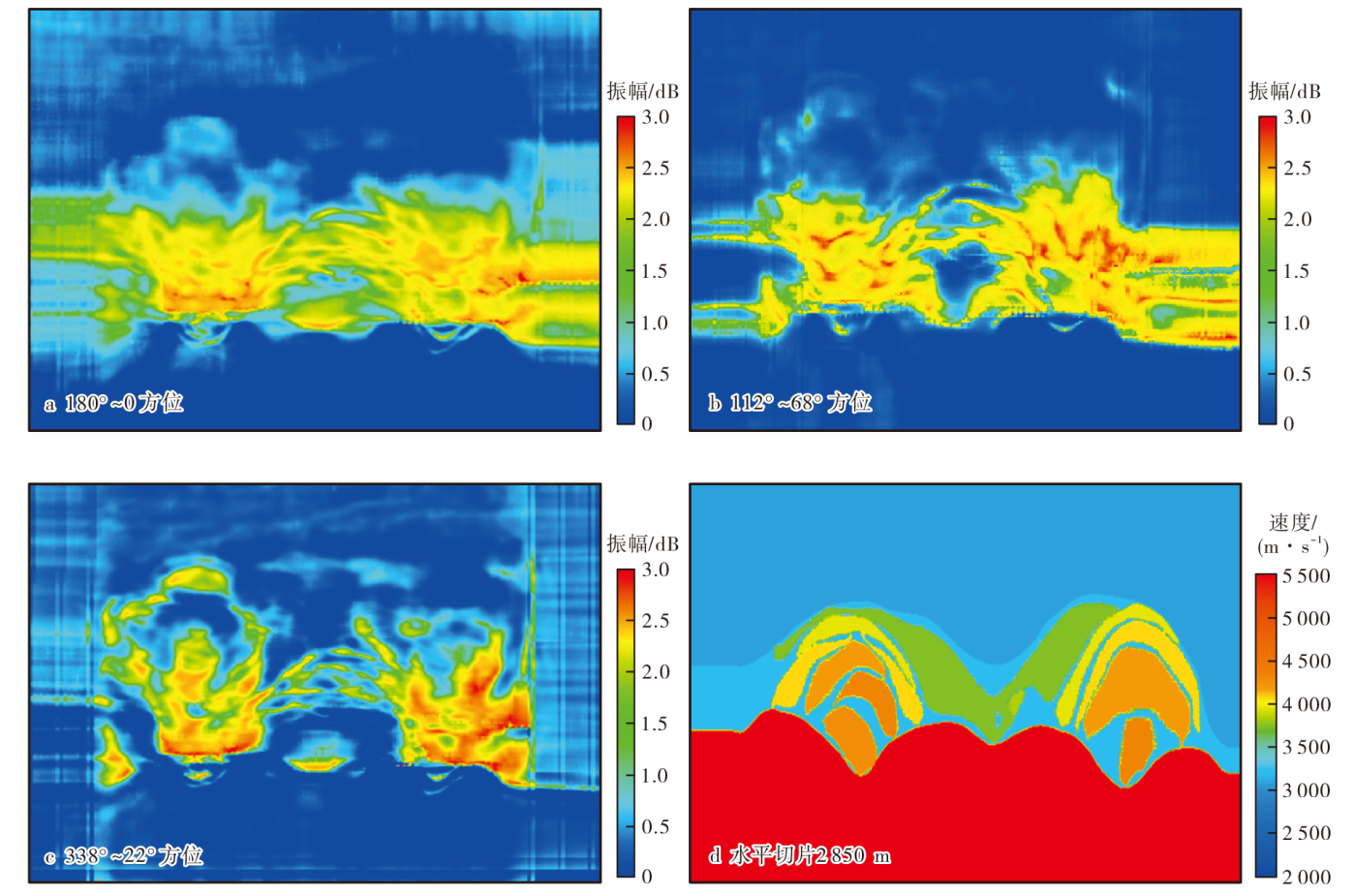

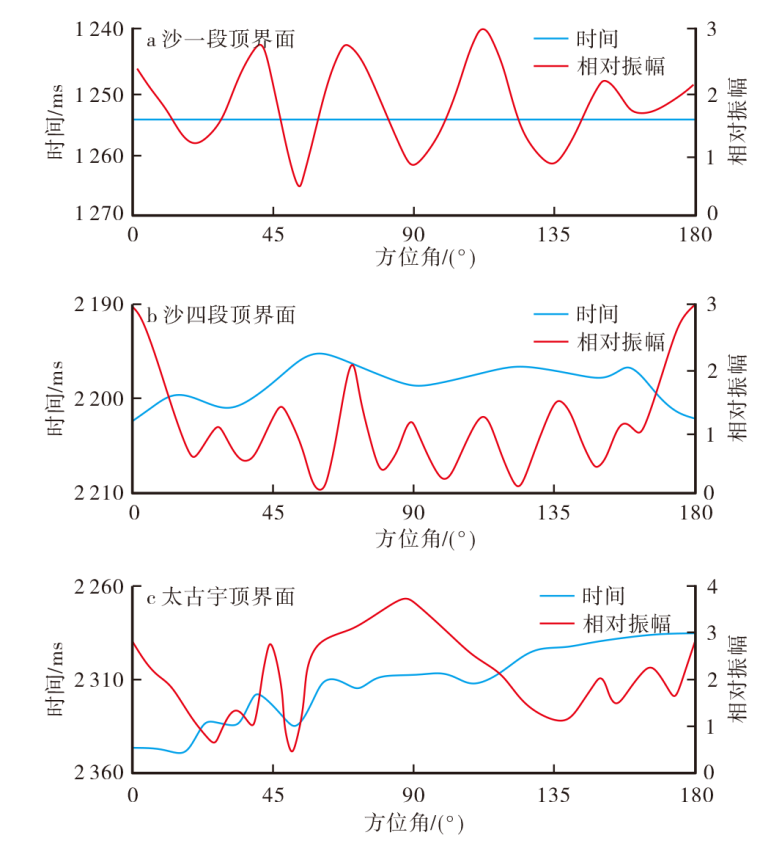

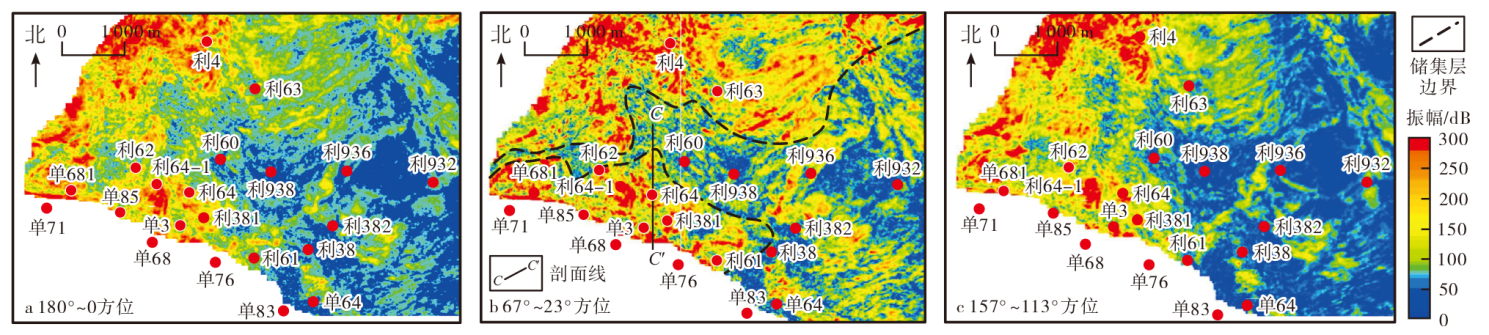

Considering the varying lithofacies and lithology of the proximal glutenites in the Dongying sag，a three-dimensional geological model of the glutenites was established for wide-azimuth seismic forward modeling. Using the simulated data cube，and through azimuthal stacking of gathers in OVT-domain，the effects of azimuth variation on parameters such as seismic travel time and amplitude were analyzed，and the relationships between azimuth/amplitude and favorable reservoirs were established. The results show that the variation in the sedimentary direction of the glutenites causes azimuth differences in seismic wave propagation，leading to azimuthal anisotropy in seismic reflections. The data cube obtained from azimuthal stacking at the azimuth perpendicular to the sedimentary boundaries is more sensitive to the responses of the top and internal boundaries of the glutenite，with stronger amplitudes. It more effectively reveals the contacts between glutenites of different periods，thereby facilitating the accurate identification of glutenite and fine prediction of favorable reservoir distribution. Wide-azimuth OVT-domain seismic data are proved effective in glutenite prediction，and have been successfully applied in predicting glutenite reservoirs in the steep slope zone of the northern Dongying sag，with the prediction results in good agreement with actual drilling results.

Key words: Dongying sag, steep slope zone, glutenite, OVT domain, wide-azimuth, seismic forward modeling, seismic attribute, anisotropy

CLC Number:

TE122

LOU Fengqin, YU Jingqiang, ZHANG Yunyin, LIU Haining, WU Mingrong, GUO Zhiyang. OVT-Domain Wide-Azimuth Seismic Forward Modeling of Glutenites in Dongying Sag[J]. Xinjiang Petroleum Geology, 2024, 45(5): 622-628.

Figures/Tables 8

Fig. 1.

Table 1.

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

References 25

[1]	印兴耀, 张洪学, 宗兆云. OVT数据域五维地震资料解释技术研究现状与进展[J]. 石油物探, 2018, 57(2):155-178. doi: 10.3969/j.issn.1000-1441.2018.02.001
	YIN Xingyao, ZHANG Hongxue, ZONG Zhaoyun. Research status and progress of 5D seismic data interpretation in OVT domain[J]. Geophysical Prospecting for Petroleum, 2018, 57(2):155-178. doi: 10.3969/j.issn.1000-1441.2018.02.001
[2]	裴家学. 宽方位地震资料在陆西凹陷勘探中的应用[J]. 大庆石油地质与开发, 2015, 34(5):146-150.
	PEI Jiaxue. Application of the wide azimuth seismic data in the exploration of Luxi sag[J]. Petroleum Geology & Oilfield Development in Daqing, 2015, 34(5):146-150.
[3]	王霞, 李丰, 张延庆, 等. 五维地震数据规则化及其在裂缝表征中的应用[J]. 石油地球物理勘探, 2019, 54(4):844-852.
	WANG Xia, LI Feng, ZHANG Yanqing, et al. 5D seismic data regularization and application in fracture characterization[J]. Oil Geophystical Prospecting, 2019, 54(4):844-852.
[4]	王斌, 尹路, 陈永波, 等. 基于OVT域资料的低渗透砂砾岩储集层预测[J]. 新疆石油地质, 2018, 39(1):104-108.
	WANG Bin, YIN Lu, CHEN Yongbo, et al. OVT domain-based prediction technology for low-permeability sandy-conglomerate reservoirs[J]. Xinjiang Petroleum Geology, 2018, 39(1):104-108.
[5]	张保庆, 周辉, 左黄金, 等. 宽方位地震资料处理技术及应用效果[J]. 石油地球物理勘探, 2011, 46(3):396-400.
	ZHANG Baoqing, ZHOU Hui, ZUO Huangjin, et al. Wide azimuth data processing techniques and their applications[J]. Oil Geophysical Prospecting, 2011, 46(3):396-400.
[6]	宁宏晓, 唐东磊, 皮红梅, 等. 国内陆上“两宽一高”地震勘探技术及发展[J]. 石油物探, 2019, 58(5):645-653. doi: 10.3969/j.issn.1000-1441.2019.05.002
	NING Hongxiao, TANG Donglei, PI Hongmei, et al. The technology and development of “WBH”seismic exploration in land,China[J]. Geophysical Prospecting for Petroleum, 2019, 58(5):645-653.
[7]	娄兵, 姚茂敏, 罗勇, 等. 高密度宽方位地震数据处理技术在玛湖凹陷的应用[J]. 新疆石油地质, 2015, 36(2):208-213.
	LOU Bing, YAO Maomin, LUO Yong, et al. Application of high density and wide azimuth seismic data processing technology in Mahu sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2015, 36(2):208-213.
[8]	刘依谋, 印兴耀, 张三元, 等. 宽方位地震勘探技术新进展[J]. 石油地球物理勘探, 2014, 49(3):596-610.
	LIU Yimou, YIN Xingyao, ZHANG Sanyuan, et al. Rencent advances in wide-azimuth seismic exploration[J]. Oil Geophysical Prospecting, 2014, 49(3):596-610.
[9]	袁刚, 王西文, 雍运动, 等. 宽方位数据的炮检距向量片域处理及偏移道集校平方法[J]. 石油物探, 2016, 55(1):84-90. doi: 10.3969/j.issn.1000-1441.2016.01.011
	YUAN Gang, WANG Xiwen, YONG Yundong, et al. Wide-azimuth data migration in OVT domain and OVG flattening[J]. Geophysical Prospecting for Petroleum, 2016, 55(1):84-90. doi: 10.3969/j.issn.1000-1441.2016.01.011
[10]	詹仕凡, 陈茂山, 李磊, 等. OVT域宽方位叠前地震属性分析方法[J]. 石油地球物理勘探, 2015, 50(5):956-966.
	ZHAN Shifan, CHEN Maoshan, LI Lei, et al. OVT-domain wide-azimuth prestack seismic attribute analysis[J]. Oil Geophysical Prospecting, 2015, 50(5):956-966.
[11]	孟阳, 许颖玉, 李静叶, 等. OVT域地震资料属性分析技术在断裂精细识别中的应用[J]. 石油地球物理勘探, 2018, 53(增刊2):289-294.
	MENG Yang, XU Yingyu, LI Jingye, et al. Fault indentification with OVT-domain seismic attribute analysis[J]. Oil Geophysical Prospecting, 2018, 53(Supp. 2):289-294.
[12]	王静涵. 地质目标导向的六维相位属性及在宽方位地震解释中的应用[D]. 北京: 中国石油大学(北京), 2020.
	WANG Jinghan. Geology-target-oriented high-dimensional phase attributes and application on the wide-azimuth seismic data[D]. Beijing: China University of Petroleum(Beijing), 2020.
[13]	刘鑫金, 宋国奇, 刘惠民, 等. 东营凹陷北部陡坡带砂砾岩油藏类型及序列模式[J]. 油气地质与采收率, 2012, 19(5):20-23.
	LIU Xinjin, SONG Guoqi, LIU Huimin, et al. Study of conglomerate reservior types and distribution in north slope zone,Dongying depression[J]. Petroleum Geology and Recovery Efficiency, 2012, 19(5):20-23.
[14]	秦志军, 操应长, 毛锐, 等. 玛湖凹陷乌尔禾组致密砂砾岩沸石特征及储集层识别[J]. 新疆石油地质, 2023, 44(2):136-143.
	QIN Zhijun, CAO Yingchang, MAO Rui, et al. Characteristics and identification of zeolite-bearing tight sandy conglomerate reservoirs in Wuerhe formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2023, 44(2):136-143.
[15]	林松辉, 王华, 王兴谋, 等. 断陷盆地陡坡带砂砾岩扇体地震反射特征[J]. 地质科技情报, 2005, 24(4):56-59.
	LIN Songhui, WANG Hua, WANG Xingmou, et al. Seismic reflection feature of glutenite fan in abrupt slope zone of rift-subsidence lake basin:A case in Dongying depression[J]. Geological Science and Technology Information, 2005, 24(4):56-59.
[16]	马丽娟, 何新贞, 孙明江, 等. 东营凹陷北部砂砾岩储层描述方法[J]. 石油物探, 2002, 41(3):354-358.
	MA Lijuan, HE Xinzhen, SUN Mingjiang, et al. Characterization of glutenite reserviors in the northern Dongying sag[J]. Geophysical Prospecting for Petroleum, 2002, 41(3):354-358.
[17]	吕焕泽, 邹妞妞, 蔡宁宁, 等. 玛湖凹陷北斜坡百口泉组碳酸盐胶结物形成机理及其地质意义[J]. 新疆石油地质, 2022, 43(5):554-562.
	LYU Huanze, ZOU Niuniu, CAI Ningning, et al. Formation mechanism and geological significance of carbonate cements in Baikouquan formation on northern slope of Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(5):554-562.
[18]	雷蕾, 韩宏伟, 于景强. 近岸水下扇沉积样式及地震响应特征新认识[J]. 石油地球物理勘探, 2019, 54(5):1151-1158.
	LEI Lei, HAN Hongwei, YU Jingqiang. New understanding of near-shore subaqueous fan sedimentary styles and its seismic responses[J]. Oil Geophysical Prospecting, 2019, 54(5):1151-1158.
[19]	宋建国, 刘励云, 周廷全. 陡坡带复杂地质模型的建立[J]. 石油地球物理勘探, 2008, 43(4):473-478.
	SONG Jianguo, LIU Liyun, ZHOU Tingquan. Buildup of complex geologic model of steep slope zone[J]. Oil Geophysical Prospecting, 2008, 43(4):473-478.
[20]	马涛, 王彦春, 李杨胜, 等. OVT属性分析方法在采集设计中的应用[J]. 石油地球物理勘探, 2019, 54(1):1-8.
	MA Tao, WANG Yanchun, LI Yangsheng, et al. Application of OVT attribute analysis in seismic acquisition[J]. Oil Geophysical Prospecting, 2019, 54(1):1-8.
[21]	毕义泉. 东营凹陷滨县凸起南坡砂砾岩体成因模式与成藏规律[J]. 石油大学学报(自然科学版), 2002, 26(4):12-15.
	BI Yiquan. Sandbody formation models and pool-forming regulations in the southern slope of Binxian prominence of Dongying sag[J]. Journal of the University of Petroleum,China (Edition of Natural Science), 2002, 26(4):12-15.
[22]	李宇志, 周肖肖, 隋风贵, 等. 东营凹陷民丰地区沙四段下亚段烃源岩特征[J]. 油气地质与采收率, 2023, 30(3):28-41.
	LI Yuzhi, ZHOU Xiaoxiao, SUI Fenggui, et al. Characteristics of source rock of Esx4 in Minfeng area,Dongying sag[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(3):28-41.
[23]	刘惠民, 杨怀宇, 张鹏飞, 等. 古湖泊水介质条件对混积岩相组合沉积的控制作用:以渤海湾盆地东营凹陷古近系沙河街组三段为例[J]. 石油与天然气地质, 2022, 43(2):297-306.
	LIU Huimin, YANG Huaiyu, ZHANG Pengfei, et al. Control effect of paleolacustrine water conditions on mixed lithofacies assemblages:A case study of the Palaeogene Es³,Dongying sag,Bohai Bay basin[J]. Oil & Gas Geology, 2022, 43(2):297-306.
[24]	王永诗, 巩建强, 陈冬霞, 等. 渤海湾盆地东营凹陷盐家地区深层砂砾岩油气藏相态演化及成藏过程[J]. 石油与天然气地质, 2023, 44(5):1159-1172.
	WANG Yongshi, GONG Jianqiang, CHEN Dongxia, et al. Phase evolution and accumulation mode of hydrocarbons in deep coarse-grained clastic reservoirs in the Yanjia area,Dongying sag,Bohai Bay basin[J]. Oil & Gas Geology, 2023, 44(5):1159-1172.
[25]	张元福, 王航, 朱孟高, 等. 东营凹陷利津洼陷沙四上亚段砂砾岩扇体沉积特征分析[J]. 地质科技情报, 2014, 33(5):59-65.
	ZHANG Yuanfu, WANG Hang, ZHU Menggao, et al. Sedimentary characteristics of glutenite fans of the upper submember of the fourth member of the Shahejie formation in th Lijin sag,Dongying depression[J]. Geological Science and Technology Information, 2014, 33(5):59-65.

项目	接收道数/ （道×道）	面元网格/ （m×m）	覆盖次数/ （次×次）	最大炮检距/m	横纵比	炮道密度/ 万道
正演模拟	64×672	12.50×6.25	16×33	5 767.60	0.98	675.84
S区块采集	32×260	12.50×12.50	8×26	3 825.29	0.63	133.12
