三塘湖盆地中—下侏罗统煤层甲烷风化带划分

doi:10.7657/XJPG20200302

摘要/Abstract

摘要：

以三塘湖盆地中、低煤阶煤层含气量和主要气体成分为基础,结合盆地构造、沉积及水文地质特征,对汉水泉凹陷和条湖凹陷煤层甲烷风化带进行了划分,并对库木苏凹陷、马朗凹陷、淖毛湖凹陷和苏鲁克凹陷煤层甲烷风化带进行了预测。结果表明,三塘湖盆地甲烷风化带深度为400~1 000 m. 由于受东北冲断隆起带的影响,三塘湖盆地北部甲烷风化带浅于南部。沉积方面,盆地东部淖毛湖凹陷、马朗凹陷和条湖凹陷深湖—半深湖和辫状河三角洲成煤环境优于盆地西部汉水泉凹陷和库木苏凹陷扇三角洲成煤环境,盆地东部甲烷风化带普遍浅于西部;水文地质方面,条湖凹陷和马朗凹陷中开启性局部滞留水文地质单元形成的甲烷风化带浅于其他凹陷封闭性弱径流水文地质单元的甲烷风化带。初步预测马朗凹陷北部为下一步煤层气勘探开发的优势区块,条湖凹陷北部为下一步煤系气勘探开发的优势区块。

关键词: 三塘湖盆地, 汉水泉凹陷, 条湖凹陷, 中—下侏罗统;, 甲烷风化带, 煤层气, 低煤阶

Abstract:

Based on the gas contents and main gas components of the middle and low rank coal seams in the Santanghu basin, and combined with the structure, sedimentation and hydrogeological characteristics of the basin, the methane weathering zones in the coal seams in Hanshuiquan sag and Tiaohu sag are divided, and the methane weathering zones in the coal seams of the Kumusu sag, Malang sag, Naomaohu sag and Suluke sag are predicted. The results show that the methane weathering zones in Santanghu basin are 400-1 000 m deep. The methane weathering zone in the northern part of the basin is shallower than that in the southern part due to the influence of the thrust uplift zone in the northeastern in Santanghu basin. The sedimentary environments of the coal seams of the deep-lake-semi-deep lake facies and the braided river delta facies in Naomaohu sag, Malang sag and Tiaohu sag in the eastern Santanghu basin are better than those of the fan delta facies in Hanshuiquan sag and Kumusu sag in the western Santanghu basin, causing the methane weathering zone in the eastern basin generally shallower than that in the western basin. The methane weathering zones representing open, locally retained hydrogeological units in Tiaohu sag and Malang sag are shallower than those representing close, weak runoff hydrogeological units in other sags. It is preliminarily predicted that the northern Malang sag is the target area for further coalbed methane exploration and development, and the northern Tiaohu sag is the target area for exploration and development of the coal measure gas.

Key words: Santanghu basin, Hanshuiquan sag, Tiaohu sag, Middle-Lower Jurassic, methane weathering zone, coalbed methane, low rank coal

中图分类号:

TE122.2

王琼, 杨曙光, 王刚, 许浩, 任鹏飞, 董文洋. 三塘湖盆地中—下侏罗统煤层甲烷风化带划分[J]. 新疆石油地质, 2020, 41(3): 261-268.

WANG Qiong, YANG Shuguang, WANG Gang, XU Hao, REN Pengfei, DONG Wenyang. Division of Methane Weathering Zones in the Middle and Lower Jurassic Coal Seams of Santanghu Basin[J]. Xinjiang Petroleum Geology, 2020, 41(3): 261-268.

图/表 8

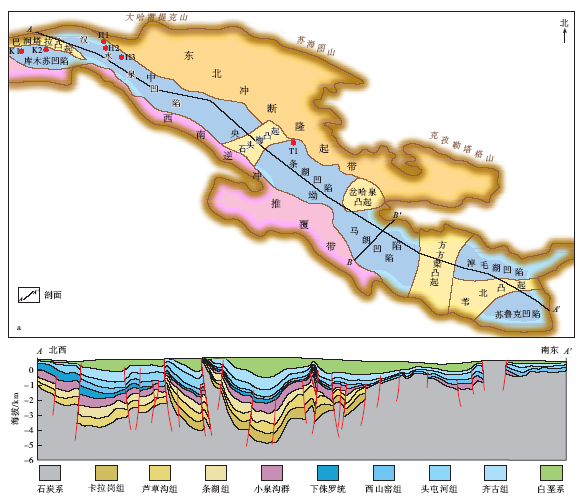

图1

表1

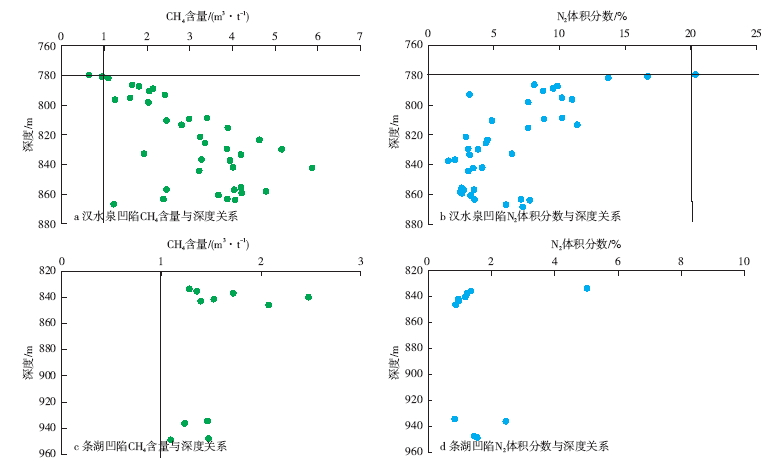

图2

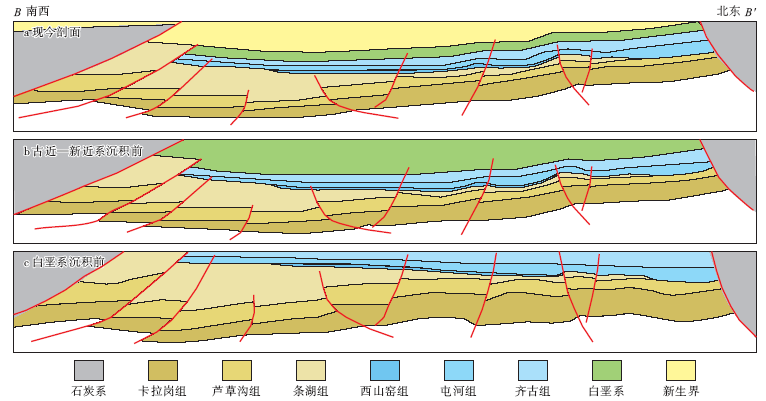

图3

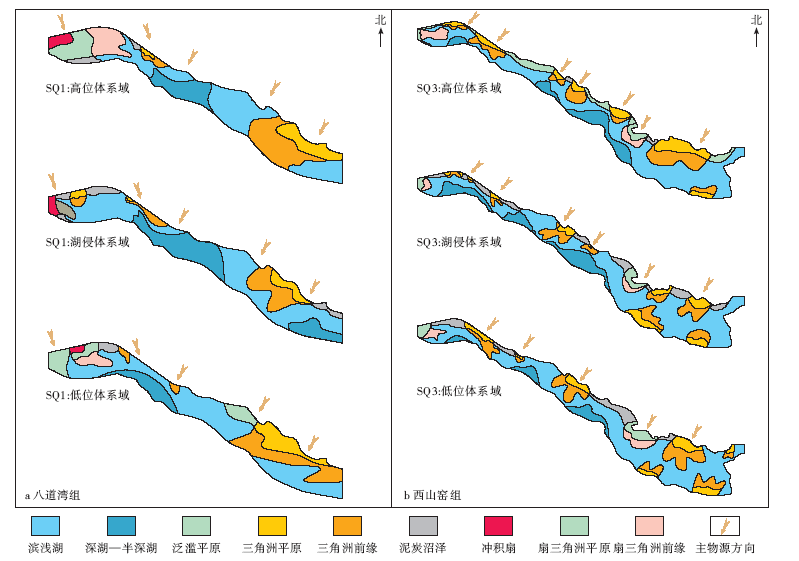

图4

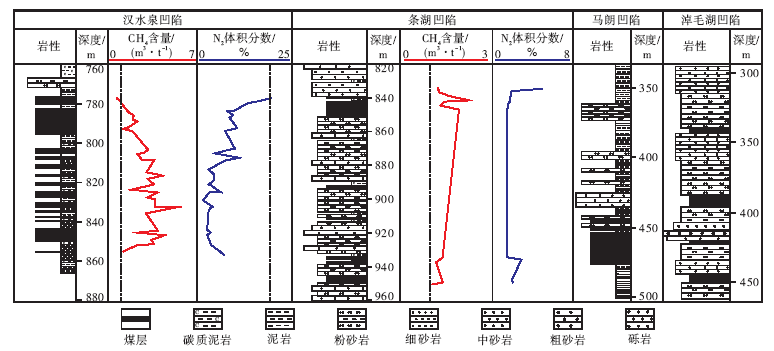

图5

参考文献 31

[1]	张君峰, 贾承造, 许浩 , 等. 三塘湖盆地侏罗系油藏中溶蚀对异常低压的控制作用[J]. 石油学报, 2009,30(1):33-37.
	ZHANG Junfeng, JIA Chengzao, XU Hao , et al. Controlling function of feldspar dissolution for abnormal low-pressure in Jurassic reservoir of Santanghu basin[J]. Acta Petrolei Sinica, 2009,30(1):33-37.
[2]	包建平, 马安来, 黄光辉 , 等. 三塘湖盆地原油地球化学特征及其成因类型[J]. 石油勘探与开发, 1999,26(4):25-29.
	BAO Jianping, MA Anlai, HUANG Guanghui , et al. The origin and geochemical characteristics of crude oils from Santanghu basin[J]. Petroleum Exploration and Development, 1999,26(4):25-29.
[3]	张国伟, 陶树, 汤达祯 , 等. 三塘湖盆地二叠系芦草沟组油页岩微量元素和稀土元素地球化学特征[J]. 煤炭学报, 2017,42(8):2 081-2 089.
	ZHANG Guowei, TAO Shu, TANG Dazhen , et al. Geochemical characteristics of trace elements and rare earth elements in Permian Lucaogou oil shale,Santanghu basin[J]. Journal of China Coal Society, 2017,42(8):2 081-2 089.
[4]	李新宁, 任继红, 辛铭 , 等. 三塘湖盆地二叠系芦草沟组二段源岩油可动烃探讨[J]. 新疆石油地质, 2017,38(3):296-301.
	LI Xinning, REN Jihong, XIN Ming , et al. Discussions on movable hydrocarbons in source rock oil in the second member of Permian[J]. Xinjiang Petroleum Geology, 2017,38(3):296-301.
[5]	PAUL C, FISHMAN N, TAO Wu , et al. Organic petrology and geochemistry of mudrocks from the lacustrine Lucaogou formation,Santanghu basin,northwest China:application to lake basin evolution[J]. International Journal of Coal Geology, 2016,168:20-34.
[6]	黄陆波, 吴翔, 坛俊颖 , 等. 新疆三塘湖煤田西部煤层煤质特征及分析[J]. 中国西部科技, 2010,9(26):53-54.
	HUANG Lubo, WU Xiang, TAN Junying , et al. Coal quality characteristics and analysis of western coal seam in Santanghu coalfield,Xinjiang[J]. Science and Technology of West China, 2010,9(26):53-54.
[7]	黄卫东, 李新宁, 李留中 , 等. 三塘湖盆地煤层气资源勘探前景分析[J]. 天然气地球科学, 2011,22(4):733-737.
	HUANG Weidong, LI Xinning, LI Liuzhong , et al. Prospect of coalbed methane exploration in Santanghu basin[J]. Natural Gas Geoscience, 2011,22(4):733-737.
[8]	吴斌 . 新疆三塘湖盆地控煤因素分析[D]. 西安:西安科技大学, 2015.
	WU Bin . Coal controlling factor analysis in Santanghu coalfield,Xinjiang province,NW China[D]. Xi’an:Xi’an University of Science and Technology, 2015.
[9]	俞启香 . 矿井瓦斯防治[M]. 江苏徐州: 中国矿业大学出版社, 1992.
	YU Qixiang. Prevention and control of mine gas[M]. Xuzhou, Jiangsu:China University of Mining and Technology Press, 1992.
[10]	马羚, 李杰, 徐胜林 , 等. 三塘湖盆地马朗凹陷西山窑组储层成岩作用类型及特征[J]. 石油实验地质, 2019,41(4):500-515.
	MA Ling, LI Jie, XU Shenglin , et al. Diagenesis types and characteristics of Xishanyao formation in Malang sag,Santanghu basin[J]. Petroleum Geology & Experiment, 2019,41(4):500-515.
[11]	梁辉, 李新宁, 常玉琴 . 条湖—马朗凹陷煤层气富集规律及开发潜力评价[J]. 中国煤层气, 2016,13(1):13-17.
	LIANG Hui, LI Xinning, CHANG Yuqin . CMB enrichment regularity and development potential evaluation in Tiaohu-Malang sag[J]. China Coalbed Methane, 2016,13(1):13-17.
[12]	冯烁, 何静, 吴斌 , 等. 三塘湖煤田西山窑组含煤地层沉积特征与聚煤规律[J]. 煤炭科学技术, 2018,46(2):45-55
	. FENG Shuo, HE Jing, WU Bin , et al. Sedimentary characteristics and coal accumulation law of coal bearing strata in Xishanyao formation of Santanghu coalfield[J]. Coal Science and Technology, 2018,46(2):45-55.
[13]	李志军, 李新宁, 梁辉 , 等. 吐哈和三塘湖盆地水文地质条件对低煤阶煤层气的影响[J]. 新疆石油地质, 2013,34(2):158-161.
	LI Zhijun, LI Xinning, LIANG Hui , et al. Effect of hydrogeological conditions on low-rank coalbed methane in Tuha and Santanghu basins[J]. Xinjiang Petroleum Geology, 2013,34(2):158-161.
[14]	宋岩, 柳少波, 赵孟军 , 等. 煤层气藏边界类型、成藏主控因素及富集区预测[J]. 天然气工业, 2009,29(10):5-9.
	SONG Yan, LIU Shaobo, ZHAO Mengjun , et al. Coalbed methane reservoir boundary type,main controlling factors of reservoir formation and prediction of enrichment area[J]. Natural Gas Industry, 2009,29(10):5-9.
[15]	韩兵, 张明, 刘旺博 . 二连盆地群低煤阶煤层气成藏模式:以霍林河盆地为例[J]. 煤田地质与勘探, 2012,40(1):24-28.
	HAN Bing, ZHANG Ming, LIU Wangbo . Coalbed methane reservoir-forming pattern of low rank coal in Erlian basin:with Huolinhe basin as an example[J]. Coal Geology & Exploration, 2012,40(1):24-28.
[16]	刘洪林, 李景明, 李贵中 , 等. 浅议我国低煤阶地区煤层气的成藏特点:从甲烷风化带的角度[J]. 天然气地球科学, 2007,18(1):125-133.
	LIU Honglin, LI Jingming, LI Guizhong , et al. Discussion on low rank coalbed methane between China and USA:from the methane oxidation zone[J]. Natural Gas Geoscience, 2007,18(1):125-133.
[17]	关旭同, 吴鉴, 魏凌云 , 等. 准噶尔盆地南缘建功煤矿剖面齐古组河流沉积与砂体构型[J]. 新疆石油地质, 2019,40(3):290-297.
	GUAN Xutong, WU Jian, WEI Lingyun , et al. Meandering river deposit and sand body architecture in Qigu formation of Jiangong coal mine section in the southern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 2019,40(3):290-297.
[18]	伍劲, 王波, 朱超 , 等. 库车坳陷东部下侏罗统煤系地层碎屑岩中长石溶蚀对储集层物性的影响[J]. 新疆石油地质, 2019,40(6):649-657.
	WU Jin, WANG Bo, ZHU Chao , et al. Influences of feldspar dissolution on reservoir physical properties of clastics in the Lower Jurassic coal measures,eastern Kuqa depression[J]. Xinjiang Petroleum Geology, 2019,40(6):649-657.
[19]	崔兆帮, 朱炎铭, 奚方喆 , 等. 河北大城地区煤层气风氧化带深度研究及其意义[J]. 煤炭技术, 2015,34(9):113-115.
	CUI Zhaobang, ZHU Yanming, XI Fangzhe , et al. Significance and research on depth of coalbed methane oxidation zone in Dacheng area of Hebei province[J]. Coal Technology, 2015,34(9):113-115.
[20]	中华人民共和国国土资源部. 煤层气资源/储量规范:DZ/T 0216-2010[S]. 北京:中国标准出版社, 2011.
	Ministry of Land and Resources of the People’s Republic of China. Specifications for coalbed methane resources/reserves:DZ/T 0216-2010[S]. Beijing:Standards Press of China, 2011.
[21]	叶欣, 陈纯芳, 姜文利 , 等. 我国低煤阶煤层气地质特征及最新进展[J]. 煤炭科学技术, 2009,37(8):111-115.
	YE Xin, CHEN Chunfang, JIANG Wenli , et al. Geological characteristics and new development progress of low rank seam coal bed methane in China[J]. Coal Science and Technology, 2009,37(8):111-115.
[22]	GOLDING S D, BOREHAM C J, ESTERLE J S . Stable isotope geochemistry of coal bed and shale gas and related production waters:a review[J]. International Journal of Coal Geology, 2013,120:24-40.
[23]	VALENTIM B, GUEDES A, RODRIGUES S , et al. Case study of igneous intrusion effects on coal nitrogen functionalities[J]. International Journal of Coal Geology, 2011,86:291-294.
[24]	邰浩 . 三塘湖盆地马朗凹陷侏罗系层序地层特征及其对储层的控制[D]. 山东青岛:山东科技大学, 2007.
	TAI Hao . Squence stratigraphic characteristics & its control to reservoir of Jurassic in Malang depression,Santanghu basin[D]. Qingdao, Shandong:Shandong University of Science and Technology, 2007.
[25]	王文霞, 何国貌, 陈宏亮 , 等. 三塘湖盆地侏罗系物源分析[J]. 吐哈油气, 2004,9(3):275-276.
	WANG Wenxia, HE Guomao, CHEN Hongliang , et al. Source analysis for Jurassic formation in Santanghu basin[J]. Tuha Oil & Gas, 2004,9(3):275-276.
[26]	杨斌, 郭翔, 刘洪彦 , 等. 三塘湖盆地马朗地区重矿物特征与物源分析[J]. 石油天然气学报, 2008,30(3):57-60.
	YANG Bin, GUO Xiang, LIU Hongyan , et al. Application of heavy minerals in the analysis of provenance in Santanghu basin[J]. Journal of Oil and Gas Technology, 2008,30(3):57-60.
[27]	冯烁 . 三塘湖盆地中-下侏罗统沉积演化及聚煤规律研究[D]. 乌鲁木齐:新疆大学, 2015.
	FENG Shuo . Sedimentary evolution and coal accumulation of the Lower and the Middle Jurassic in Santanghu basin[D]. Urumqi:Xinjiang University, 2015.
[28]	韩芳芳, 师德扬, 郑勇 , 等. 新疆三塘湖盆地汉水泉—库木苏水化学特征分析[J]. 西部探矿工程, 2016,28(5):67-70.
	HAN Fangfang, SHI Deyang, ZHENG Yong , et al. Analysis of hydrochemical characteristics of Hanshuiquan-Kumusu in Santanghu basin,Xinjiang[J]. West-China Exploration Engineering, 2016,28(5):67-70.
[29]	白铭, 李续续, 张静 , 等. 新疆三塘湖盆地地下水赋存控制因素分析[J]. 水文地质工程地质, 2015,2(1):47-52.
	BAI Ming, LI Xuxu, ZHANG Jing , et al. An analysis of the control factors of groundwater storage in the Santanghu basin of Xinjiang[J]. Hydrogeology & Engineering Geology, 2015,2(1):47-52.
[30]	师德扬, 韩芳芳, 杨承达 , 等. 三塘湖煤田区域地下水特征与开发利用保护分析[J]. 西部探矿工程, 2018,30(12):129-130.
	SHI Deyang, HAN Fangfang, YANG Chengda , et al. Analysis of groundwater characteristics and development,utilization and protection in Santanghu coalfield[J]. West-China Exploration Engineering, 2018,30(12):129-130.
[31]	田冲, 汤达祯, 周志军 , 等. 彬长矿区水文地质特征及其对煤层气的控制作用[J]. 煤田地质与勘探, 2012,40(1):43-46.
	TIAN Chong, TANG Dazhen, ZHOU Zhijun , et al. Hydrogeological characteristics and their control on coalbed methane in Binchang mining area[J]. Coal Geology & Exploration, 2012,40(1):43-46.

凹陷名称	井名	层位	埋深/m	煤层编号	含气量/ （m³·t^-1）	CH₄体积分数/ %	CO₂体积分数/ %	N₂体积分数/ %
库木苏凹陷	K1井	西山窑组	506.2~506.7	2#	0.10
			705.5~707.0	6#	0.07
			741.3~750.0	9#	1.38
			161.2~164.0	2#	0.09
	K2井	西山窑组	509.1~521.9	9#	0.12
			692.8~693.5	17#	1.24
			697.8~698.4	18#	1.48
汉水泉凹陷	H1井	八道湾组	779.3~798.2	27#	1.86	84.7	4.4	10.8
			808.4~810.5	28#	3.87	85.1	6.8	8.0
			812.9~825.6	29#	4.12	87.0	6.8	6.2
			829.2~837.4	30#	4.27	87.1	9.4	3.3
			841.6~844.4	31#	4.86	86.6	9.5	3.5
			855.2~858.4	32#	3.76	85.7	9.5	4.5
	H2井	八道湾组	883.2~886.6	26#	0.88	77.8	3.2	19.0
			887.5~902.5	27#	1.63	82.1	5.0	12.9
			908.7~914.6	28#	1.83	84.9	5.5	9.6
			916.8~929.1	29#	1.82	83.2	4.4	12.4
			930.5~938.9	30#	1.43	83.3	4.4	12.3
			939.2~943.1	31#	1.01	84.2	4.5	11.2
	H3井	八道湾组	972.4~974.4	27#	0.30
	H3井	八道湾组	1 065.3~1 069.4	33#	0.29
条湖凹陷	T1井	西山窑组	833.2~847.6	9#	1.82	85.2	1.6	13.2
			934.0~936.2	17#	1.70	81.7	2.5	24.6
			947.3~948.7	18#	1.59	81.2	1.5	17.3
			964.7~967.4	19#	1.36
