四棵树凹陷超深层裂谷盆地的厘定及油气勘探意义

doi:10.7657/XJPG20200103

摘要/Abstract

摘要：

准噶尔盆地南缘西段四棵树凹陷下部成藏组合获重大勘探突破,凹陷的深部构造、盆地结构和原型盆地备受关注。利用最新二维地震资料,解析凹陷深层地震反射和构造特征,厘定盆地性质,结合平衡剖面方法,恢复了盆地构造演化过程。研究表明,四棵树凹陷石炭系—新生界均有发育,由老至新地层展布范围逐渐扩大,厚度中心整体具有继承性。该凹陷具有裂谷盆地的断拗二元结构,以侏罗系底为界,其下为断陷结构,可见原型盆地的边界断层,沉积厚度大,范围小,发育火山—碎屑岩沉积组合;其上为拗陷结构,断层不发育,沉积厚度小,范围大,发育侏罗纪—白垩纪陆相碎屑沉积。结合区域构造演化史与局部地质结构特征,四棵树凹陷的演化可分为断陷和拗陷2个阶段,断陷阶段可能相对独立,拗陷阶段与准噶尔盆地主体连接为湖盆。高泉断裂属于裂谷盆地边界断裂之一,为同沉积正断层,持续活动,晚期遭受挤压反转。受裂谷盆地控制,断陷期二叠系—三叠系泥页岩和拗陷期侏罗系煤层,是四棵树凹陷超深层的重要烃源岩,油气勘探潜力大。

关键词: 准噶尔盆地, 四棵树凹陷, 古生代, 中生代, 三叠纪, 侏罗纪, 裂谷盆地, 下部成藏组合, 烃源岩

Abstract:

A major breakthrough in petroleum exploration has been made in the Sikeshu sag of the southern margin of Junggar basin and the deep geological structures, basin framework and prototype basin in the sag have attracted much attention. Based on the latest 2D seismic data, this paper analyzes the seismic reflection and structural characteristics of the deep strata in the Sikeshu sag, determines the prototype basin and restores the tectonic evolution process of the Sikeshu sag. The study results show that the Carboniferous-Cenozoic strata are widely developed in the Sikeshu sag and their thickness centers are inherited. The Sikeshu sag has a fault depression-depression structure. Taking the bottom of the Jurassic as the boundary, the structure under the boundary is a fault depression characterized by thick volcanic-clastic deposits with noted boundary faults of the prototype basin, whereas the structure above the boundary is a depression filled with terrestrial debris deposits of Jurassic-Cretaceous, which is characterized by undeveloped faults, wide distribution range and thin sedimentary thickness. Combined with regional tectonic evolution and local geological structure, the evolution of the Sikeshu sag can be divided into two stages, namely rift and depression. The Sikeshu sag might have a relatively independent tectonic-sedimentary evolution during the rift stage, and was connected with Junggar basin during the depression stage. This paper believes that the syndepositional Gaoquan fault as one of the boundary faults of the rift basin, was an active normal fault and reversed to a thrust fault in the late stage. The Permian-Triassic shales and Jurassic coal seams controlled by the rift basin are the main source rocks of the ultra-deep strata in the Sikeshu sag and have great petroleum exploration potenital.

Key words: Junggar basin, Sikeshu sag, Paleozoic, Mesozoic, Triassic, Jurassic, rift basin, lower reservoir-forming combination, source rock

中图分类号:

TE121.12

梁则亮, 庞志超, 冀冬生, 冯兴强, 吴林, 施辉. 四棵树凹陷超深层裂谷盆地的厘定及油气勘探意义[J]. 新疆石油地质, 2020, 41(1): 18-24.

LIANG Zeliang, PANG Zhichao, JI Dongsheng, FENG Xingqiang, WU Lin, SHI Hui. Discovery of Ultra-Deep Rift Basin and Its Petroleum Exploration Significance in Sikeshu Sag, Junggar Basin[J]. Xinjiang Petroleum Geology, 2020, 41(1): 18-24.

图/表 5

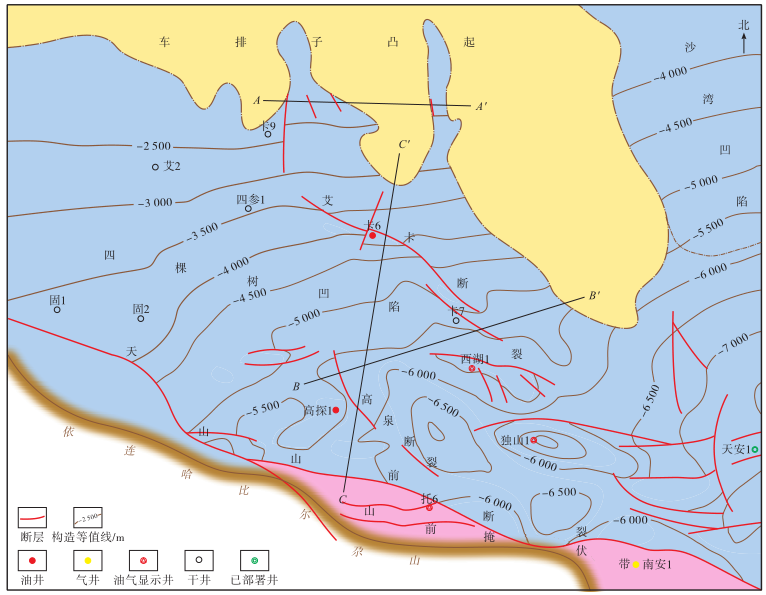

图1

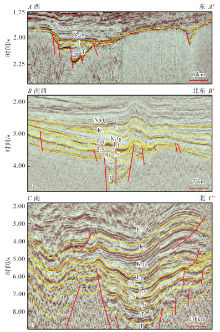

图2

图3

图4

图5

参考文献 20

[1]	HAN Y, ZHAO G . Final amalgamation of the Tianshan and Junggar orogenic collage in the southwestern central Asian orogenic belt:constraints on the closure of the Paleo-Asian ocean[J]. Earth-Science Reviews, 2018,186:129-152.
[2]	杨迪生, 肖立新, 阎桂华 , 等. 准噶尔盆地南缘四棵树凹陷构造特征与油气勘探[J]. 新疆石油地质, 2019,40(2):138-144.
	YANG Disheng, XIAO Lixin, YAN Guihua , et al. Structural characteristics and petroleum exploration in Sikeshu sag,southern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 2019,40(2):138-144.
[3]	王家林, 吴朝东, 朱文 , 等. 准噶尔盆地南缘二叠纪—三叠纪构造—沉积环境与原型盆地演化[J]. 古地理学报, 2016,18(4):643-660.
	WANG Jialin, WU Chaodong, ZHU Wen , et al. Tectonic-depositional environment and prototype basin evolution of the Permian-Triassic in southern Junggar basin[J]. Journal of Palaeogeography, 2016,18(4):643-660.
[4]	何登发, 陈新发, 张义杰 , 等. 准噶尔盆地油气富集规律[J]. 石油学报, 2004,25(3):1-10.
	HE Dengfa, CHEN Xinfa, ZHANG Yijie , et al. Enrichment characteristics of oil and gas in Junggar basin[J]. Acta Petrolei Sinica, 2004,25(3):1-10.
[5]	吴孔友, 查明, 王绪龙 , 等. 准噶尔盆地构造演化与动力学背景再认识[J]. 地球学报, 2005,26(3):217-222.
	WU Kongyou, ZHA Ming, WANG Xulong , et al. Further researches on the tectonic evolution and dynamic setting of the Junggar basin[J]. Acta Geoscientica Sinica, 2005,26(3):217-222.
[6]	方世虎, 贾承造, 郭召杰 . 准噶尔盆地二叠纪盆地属性的再认识及其构造意义[J]. 地学前缘, 2006,13(3):108-121.
	FANG Shihu, JIA Chengzao, GUO Zhaojie , et al. New view on the Permian evolution of the Junggar basin and its implications for tectonic evolution[J]. Earth Science Frontiers , 2006,13(3):108-121.
[7]	方世虎, 郭召杰, 张志诚 , 等. 中新生代天山及其两侧盆地性质与演化[J]. 北京大学学报 (自然科学版), 2004,40(6):886-897.
	FANG Shihu, GUO Zhaojie, ZHANG Zhicheng , et al. Discussion on Mesozoic-Cenozoic evolution of Tianshan and its adjacent basins[J]. Universitatis Pekinensis(Acta Scientiarum Naturalium), 2004,40(6):886-897.
[8]	何登发, 张磊, 吴松涛 , 等. 准噶尔盆地构造演化阶段及其特征[J]. 石油与天然气地质, 2018,39(5):845-861.
	HE Dengfa, ZHANG Lei, WU Songtao , et al. Tectonic evolution stages and features of the Junggar basin[J]. Oil & Gas Geology, 2018,39(5):845-861.
[9]	LIU Y, WANG X, WU K , et al. Late Carboniferous seismic and volcanic record in the northwestern margin of the Junggar basin:implication for the tectonic setting of the west Junggar[J]. Gondwana Research, 2019,71:49-75.
[10]	夏林圻, 夏祖春, 徐学义 , 等. 天山及邻区石炭纪—早二叠世裂谷火山岩岩石成因[J]. 西北地质, 2008,41(4):1-66.
	XIA Linqi, XIA Zuchun, XU Xueyi , et al. Petrogenesis of Caboniferous-Early Permian rift-related volcanic rocks in the Tianshan and its neighboring areas,northwestern China[J]. Northwestern Geology, 2008,41(4):1-66.
[11]	高俊, 龙灵利, 钱青 , 等 . 南天山: 晚古生代还是三叠纪碰撞造山带?[J]. 岩石学报, 2006,22(5):1 049-1 061.
	GAO Jun, LONG Lingli, QIAN Qing , et al. South Tianshan:a Late Paleozoic or a Triassic orogen?[J]. Acta Petrologica Sinica, 2006,22(5):1 049-1 061.
[12]	徐学义, 夏林圻, 张国伟 , 等. 下石炭统马鞍桥组在天山构造演化中的地位[J]. 新疆地质, 2002,20(4):338-341.
	XU Xueyi, XIA Linqi, ZHANG Guowei , et al. Maanqiao formation of Lower Carboniferous and its role in tectonic evolution of Tianshan mountains[J]. Xinjiang Geology, 2002,20(4):338-341.
[13]	唐勇, 王刚, 郑孟林 , 等. 新疆北部石炭纪盆地构造演化与油气成藏[J]. 地学前缘, 2015,22(3):241-253.
	TANG Yong, WANG Gang, ZHENG Mengling , et al. Carboniferous basin evolution and its hydrocarbon accumulation in the north of Xinjiang[J]. Earth Science Frontiers, 2015,22(3):241-253.
[14]	朱文, 吴朝东, 王家林 , 等. 准噶尔盆地四棵树凹陷三叠系物源及其构造意义[J]. 新疆石油地质, 2017,38(5):512-518.
	ZHU Wen, WU Chaodong, WANG Jialin , et al. Triassic provenance and its tectonic significance in Sikeshu sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2017,38(5):512-518.
[15]	孙岳, 陈正乐, 王永 , 等. 天山山脉中新生代差异隆升及其机制探讨[J]. 大地构造与成矿学, 2016,40(2):335-343.
	SUN Yue, CHEN Zhengle, WANG Yong , et al. Mechanisms of Meso-Cenozoic differential uplift of Tianshan mountains[J]. Geotectonica et Metallogenia, 2016,40(2):335-343.
[16]	高志勇, 周川闽, 冯佳睿 , 等. 中新生代天山隆升及其南北盆地分异与沉积环境演化[J]. 沉积学报, 2016,34(3):415-435.
	GAO Zhiyong, ZHOU Chuanmin, FENG Jiarui , et al. Relationship between the Tianshan mountains uplift and depositional environment evolution of the basins in Mesozoic-Cenozoic[J]. Acta Sedimentologica Sinica, 2016,34(3):415-435.
[17]	郭召杰, 张志诚, 吴朝东 , 等. 中—新生代天山隆升过程及其与准噶尔、阿尔泰山比较研究[J]. 地质学报, 2006,80(1):1-15.
	GUO Zhaojie, ZHANG Zhicheng, WU Chaodong , et al. The Mesozoic and Cenozoic exhumation history of Tianshan and comparative studies to the Junggar and Altai mountains[J]. Acta Geologica Sinica, 2006,80(1):1-15.
[18]	邓胜徽, 王思恩, 杨振宇 , 等. 新疆准噶尔盆地中、晚侏罗世多重地层研究[J]. 地球学报, 2015,36(5):559-574.
	DENG Shenghui, WANG Sien, YANG Zhenyu , et al. Comprehensive study of the Middle-Upper Jurassic strata in the Junggar basin,Xinjiang[J]. Acta Geoscientica Sinica, 2015,36(5):559-574.
[19]	FANG Yanan, WU Chaodong, GUO Zhaojie , et al. Provenance of the southern Junggar basin in the Jurassic:evidence from detrital zircon geochronology and depositional environments[J]. Sedimentary Geology, 2015,315:47-63.
[20]	XIANG Dunfeng, ZHANG Zhiyong, XIAO Wenjiao , et al. Episodic Meso-Cenozoic denudation of Chinese Tianshan:evidence from detrital apatite fission track and zircon U-Pb data,southern Junggar basin margin,NW China[J]. Journal of Asian Earth Sciences, 2019,175:199-212.
