车排子油田南部火山岩地质时代及成因

doi:10.7657/XJPG20220205

摘要/Abstract

摘要：

车排子油田南部石炭系主要为杏仁状玄武岩、玄武安山质集块岩、安山质角砾凝灰岩及少量玄武安山质角砾凝灰岩,为确定其地质时代,进行同位素和古生物样品分析,并与盆缘露头区石炭系对比。在C47井石炭系下部砂岩中获得丰富的孢粉化石,在C68井流纹质含角砾玻屑熔结凝灰岩中获得锆石U-Pb年龄为314.6±2.1 Ma,化石地质时代和同位素年龄均为晚石炭世,可与准噶尔盆地西北缘山前哈拉阿拉特组对比。火山岩总体为钙碱—拉斑系列,相对富Al₂O₃,具有弱的Eu正异常,强烈亏损Nb、Ta、Hf等高场强元素,相对富集Ba、Rb、K等大离子亲石元素,有较明显的Nb-Ta槽,其岩浆源区可能是受流体交代的尖晶石二辉橄榄岩亏损地幔,形成于俯冲相关的岛弧构造环境。车排子油田南部井区大断裂西北盘石炭系总体与阿腊德依克赛组可对比,东南盘火山岩地层可与西北缘山前哈拉阿拉特组对比。

关键词: 车排子油田, 石炭系, 哈拉阿拉特组, 火山岩, 岩性特征, 地质时代, 岩石成因

Abstract:

The Carboniferous in southern Chepaizi oilfield is mainly composed of amygdaloidal basalt, basaltic andesitic agglomerate, andesitic breccia tuff and a small amount of basaltic andesitic breccia tuff. In order to determine the geological age of these rocks, isotopic and biofossil analyses were carried out, and then the analytical results were compared with the Carboniferous rocks in the outcrop area in the basin margin. It is found that there are abundant sporopollen fossils in the bottom of the Carboniferous sandstone in Well C47, and the zircon U-Pb age of the rhyolitic breccia-bearing vitric tuff from Well C68 is 314.6±2.1 Ma, suggesting that both the geological age and isotopic age of the volcanic rock are Late Carboniferous, which are comparable to the Hala’alat formation in the piedmont at the northwestern margin of the Junggar basin. The volcanic rocks are generally calc-alkali-tholeiitic series and relatively rich in Al₂O₃, with a weak positive Eu anomaly. Moreover, the volcanic rocks are strongly short of high field-strength elements such as Nb, Ta, and Hf, and relatively rich in large ion lithophile elements such as Ba, Rb, and K. There exists an obvious Nb-Ta trough, and the magma source area may be the depleted mantle of spinel peridotite because of metasomatism, and formed in the subduction-related island arc tectonic environment. For the well blocks in southern Chepaizi oilfield, the Carboniferous in the northwest wall of the large fault can be compared with the Aladeyikesai formation, and the volcanic rock formation in the southeast wall can be correlated with the Hala’alat formation in the piedmont of the northwest margin.

Key words: Chepaizi oilfield, Carboniferous, Hala’alat formation, volcanic rock, lithological characteristic, geological age, petrogenesis

中图分类号:

TE121.34

王韬, 徐倩, 李永军, 孔玉梅, 郑孟林, 郭文建. 车排子油田南部火山岩地质时代及成因[J]. 新疆石油地质, 2022, 43(2): 160-168.

WANG Tao, XU Qian, LI Yongjun, KONG Yumei, ZHENG Menglin, GUO Wenjian. Geological Age and Petrogenesis of Volcanic Rocks in Southern Chepaizi Oilfield[J]. Xinjiang Petroleum Geology, 2022, 43(2): 160-168.

图/表 9

图1

表1

表2

图2

表3

C68井流纹质含角砾玻屑熔结凝灰岩LA-ICP-MS锆石U-Pb测试分析结果"

测点编号	同位素比值						同位素年龄/Ma						元素含量/10^-6		Th/U
测点编号	²⁰⁷Pb/²⁰⁶Pb	1σ₁	²⁰⁷Pb/²³⁵U	1σ₂	²⁰⁶Pb/²³⁸U	1σ₃	²⁰⁷Pb/²⁰⁶Pb	1σ₁	²⁰⁷Pb/²³⁵U	1σ₂	²⁰⁶Pb/²³⁸U	1σ₃	Th	U	Th/U
1	0.057 0	0.002 5	0.390 6	0.018 3	0.049 7	0.000 7	500.0	98	334.8	13	312.8	4	227.13	322.21	0.70
2	0.053 8	0.001 7	0.368 9	0.010 1	0.050 0	0.000 8	361.2	70	318.8	7	314.4	5	238.50	454.08	0.53
3	0.054 5	0.001 8	0.377 2	0.013 5	0.050 2	0.000 8	390.8	74	325.0	10	315.5	5	235.70	489.40	0.48
4	0.057 4	0.002 5	0.398 1	0.020 4	0.050 2	0.001 1	509.3	101	340.3	15	315.6	7	202.43	315.29	0.64
5	0.052 0	0.002 4	0.358 3	0.015 6	0.050 0	0.000 6	287.1	99	311.0	12	314.8	4	239.20	498.20	0.48
6	0.060 2	0.002 2	0.415 6	0.015 3	0.050 0	0.000 6	609.3	80	352.9	11	314.8	4	404.18	603.24	0.67
7	0.059 6	0.002 1	0.411 6	0.013 7	0.050 4	0.001 4	587.1	77	350.0	10	317.2	8	285.26	507.87	0.56
8	0.052 9	0.001 9	0.365 1	0.014 4	0.050 0	0.000 6	324.1	85	316.0	11	314.5	4	281.27	614.34	0.46
9	0.053 3	0.002 1	0.368 6	0.015 4	0.050 0	0.000 5	342.7	87	318.6	11	314.3	3	153.89	381.56	0.40
10	0.063 5	0.003 9	0.437 4	0.025 5	0.050 2	0.000 8	724.1	131	368.4	18	315.8	5	223.21	366.61	0.61
11	0.053 4	0.001 8	0.368 3	0.011 3	0.050 2	0.000 8	346.4	42	318.4	8	315.6	5	341.31	638.00	0.53
12	0.051 0	0.002 3	0.353 6	0.018 6	0.049 9	0.000 7	242.7	71	307.4	14	314.0	4	203.52	447.16	0.46
13	0.055 7	0.002 6	0.382 6	0.017 6	0.049 9	0.000 8	438.9	104	328.9	13	313.9	5	203.73	422.14	0.48
14	0.058 2	0.002 6	0.400 8	0.017 5	0.049 9	0.000 8	538.9	96	342.2	13	314.1	5	191.05	414.25	0.46
15	0.060 8	0.002 8	0.420 8	0.024 4	0.050 1	0.001 9	631.5	98	356.6	17	315.4	12	299.36	536.18	0.56
16	0.051 7	0.001 8	0.356 2	0.013 8	0.050 1	0.001 3	333.4	81	309.4	10	314.9	8	210.59	477.19	0.44
17	0.050 2	0.002 1	0.345 5	0.013 5	0.050 0	0.000 8	211.2	96	301.4	10	314.7	5	327.66	582.50	0.56
18	0.050 8	0.001 5	0.350 2	0.010 1	0.050 0	0.000 5	231.6	69	304.9	8	314.7	3	529.03	686.01	0.77
19	0.061 0	0.002 8	0.423 5	0.020 2	0.050 2	0.000 8	638.9	72	358.6	14	315.7	5	123.49	310.50	0.40
20	0.054 3	0.001 6	0.374 5	0.010 5	0.050 2	0.000 8	388.9	67	323.0	8	315.6	5	355.57	502.31	0.71
21	0.053 1	0.002 0	0.366 3	0.013 9	0.050 0	0.000 7	344.5	81	316.9	10	314.8	4	184.37	378.56	0.49
22	0.056 5	0.001 6	0.391 1	0.011 0	0.050 2	0.000 7	472.3	95	335.2	8	315.8	4	376.27	699.60	0.54
23	0.058 2	0.002 0	0.400 9	0.013 2	0.050 0	0.000 6	538.9	76	342.3	10	314.6	4	138.27	337.35	0.41
24	0.055 7	0.002 2	0.384 1	0.015 8	0.050 1	0.000 9	438.9	87	330.1	12	314.9	6	136.57	328.21	0.42
25	0.049 9	0.001 8	0.343 5	0.012 5	0.050 0	0.000 8	190.8	114	299.8	9	314.3	5	186.22	374.35	0.50

表3

图3

图4

图5

图6

参考文献 40

[1]	王兆雷. 车排子油田车47井区火山岩岩性岩相目标刻画及控藏因素研究[D]. 北京:中国石油大学(北京), 2016.
	WANG Zhaolei. The describe of lithology and facies of volcanic rocks and analysis of factors controlling volcanic reservoir in Che47 wellblock of Chepaizi area[D]. Beijing:China University of Petroleum (Beijing), 2016.
[2]	张辉, 岳欣欣, 朱颜, 等. 准噶尔盆地春光油田油藏特征及成藏模式[J]. 新疆石油地质, 2020, 41(4):379-387.
	ZHANG Hui, YUE Xinxin, ZHU Yan, et al. Reservoir characteristics and hydrocarbon accumulation model in Chunguang oilfield,Junggar basin[J]. Xinjiang Petroleum Geology, 2020, 41(4):379-387.
[3]	吴晓智, 齐雪峰, 唐勇, 等. 东西准噶尔火山岩成因类型与油气勘探方向[J]. 中国石油勘探, 2009, 14(1):9-17.
	WU Xiaozhi, QI Xuefeng, TANG Yong, et al. Genetic types and hydrocarbon exploration directions of volcanic rocks in eastern and western Junggar[J]. China Petroleum Exploration, 2009, 14(1):9-17.
[4]	宋明水, 赵乐强, 吴春文, 等. 准噶尔盆地车排子地区石炭系顶部风化壳结构及其控藏作用[J]. 石油与天然气地质, 2016, 37(3):313-321.
	SONG Mingshui, ZHAO Leqiang, WU Chunwen, et al. Structure and reservoir-controlling of top Carboniferous weathering crust in Chepaizi area,Junggar basin[J]. Oil & Gas Geology, 2016, 37(3):313-321.
[5]	赵乐强, 林会喜, 郭瑞超, 等. 准噶尔盆地车排子凸起区火山岩风化壳油藏油气运聚模式[J]. 合肥工业大学学报(自然科学版), 2018, 41(3):403-410.
	ZHAO Leqiang, LIN Huixi, GUO Ruichao, et al. Hydrocarbon migration and accumulation pattern of weathered volcanic layer reservoir in Chepaizi uplift of Junggar basin[J]. Journal of Hefei University of Technology(Natural Science), 2018, 41(3):403-410.
[6]	杨志冬, 张梦露, 张欣, 等. 准噶尔盆地车排子凸起火山岩储层特征及主控因素[J]. 云南大学学报(自然科学版), 2020, 42(3):507-514.
	YANG Zhidong, ZHANG Menglu, ZHANG Xin, et al. Characteristics and main controlling factors of igneous reservoirs in Chepaizi uplift,Junggar basin[J]. Journal of Yunnan University:Natural Sciences Edition, 2020, 42(3):507-514.
[7]	王林, 徐佑德, 张曰静, 等. 准噶尔盆地车排子凸起石炭系储层主控因素及发育模式[J]. 东北石油大学学报, 2020, 44(2):79-90.
	WANG Lin, XU Youde, ZHANG Yuejing, et al. Predominant factors and development mode of Carboniferous reservoir in Chepaizi uplift,Junggar basin[J]. Journal of Northeast Petroleum University, 2020, 44(2):79-90.
[8]	汪勇, 向奎, 马立群, 等. 车排子凸起石炭系火山岩储层测井综合评价[J]. 特种油气藏, 2018, 25(2):7-12.
	WANG Yong, XIANG Kui, MA Liqun, et al. Comprehensive logging evaluation of the Carboniferous volcanic reservoir in Chepaizi uplift[J]. Special Oil & Gas Reservoirs, 2018, 25(2):7-12.
[9]	李学良, 林会喜, 石好果, 等. 车排子地区石炭系火山岩储层发育特征及控制因素[J]. 西安石油大学学报(自然科学版), 2017, 32(6):1-9.
	LI Xueliang, LIN Huixi, SHI Haoguo, et al. Development characteristics and control factors of Carboniferous volcanic reservoir in Chepaizi area[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2017, 32(6):1-9.
[10]	赵亮. 准噶尔盆地车排子、哈山地区石炭系火成岩储层综合评价研究[D]. 山东青岛:中国石油大学(华东), 2017.
	ZHAO Liang. Research on the comprehensive evaluation of Carboniferous igneous rock reservoirs in Chepaizi and Hashan area in Junggar basin[D]. Qingdao,Shandong:China University of Petroleum (East China), 2017.
[11]	陈磊, 杨镱婷, 汪飞, 等. 准噶尔盆地勘探历程与启示[J]. 新疆石油地质, 2020, 41(5):505-518.
	CHEN Lei, YANG Yiting, WANG Fei, et al. Exploration history and enlightenment in Junggar basin[J]. Xinjiang Petroleum Geology, 2020, 41(5):505-518.
[12]	LI Ganyu, LI Yongjun, WANG Xuance, et al. Identifying Late Carboniferous sanukitoids in Hala’alate mountain,Northwest China:new constraint on the closing time of remnant ocean basin in West Junggar[J]. International Geology Review, 2016, 59(9):1 116-1 130. doi: 10.1080/00206814.2016.1193773
[13]	李甘雨, 李永军, 王冉, 等. 西准噶尔哈拉阿拉特山一带晚石炭世赞岐岩的发现及其地质意义[J]. 岩石学报, 2017, 33(1):16-30.
	LI Ganyu, LI Yongjun, WANG Ran, et al. The discovery and significance of Late Carboniferous sanukitoids in Hala’alate mountain,West Junggar[J]. Acta Petrologica Sinica, 2017, 33(1):16-30.
[14]	彭湘萍, 李永军, 李卫东, 等. 西准哈拉阿拉特山一带阿腊德依克赛组层序、化石组合及沉积环境[J]. 新疆地质, 2016, 34(3):297-301.
	PENG Xiangping, LI Yongjun, LI Weidong, et al. The stratigraphic sequence,fossil assemblage and sedimentary environment of Aladeyikesai formation in Hala’alate mountain,West Junggar[J]. Xinjiang Geology, 2016, 34(3):297-301.
[15]	向坤鹏. 新疆西准噶尔包古图-哈拉阿拉特山一带石炭纪沉积盆地分析及构造意义[D]. 西安:长安大学, 2015.
	XIANG Kunpeng. Carboniferous sedimentary basin analysis and tectonic significance in the Baogutu-Halaalate mountain,western Junggar,Xinjiang[D]. Xi’an:Chang’an University, 2015.
[16]	向坤鹏, 李永军, 李钊, 等. 新疆西准噶尔哈拉阿拉特山火山岩LA ICP-MS锆石U-Pb年龄、地球化学特征及意义[J]. 地质学报, 2015, 89(5):843-855.
	XIANG Kunpeng, LI Yongjun, LI Zhao, et al. LA-ICP-MS zircon age and geochemistry of the Aladeyikesai formation volcanic rocks in the Hala’alate mountain of West Junggar,Xinjiang,and their tectonic significance[J]. Acta Geologica Sinica, 2015, 89(5):843-855.
[17]	杨海波, 陈磊, 孔玉华. 准噶尔盆地构造单元划分新方案[J]. 新疆石油地质, 2004, 25(6):686-688.
	YANG Haibo, CHEN Lei, KONG Yuhua. A novel classification of structural units in Junggar basin[J]. Xinjiang Petroleum Geology, 2004, 25(6):686-688.
[18]	温雅茹. 车排子北部地区石炭系火山岩储集空间表征及有效性评价[D]. 山东青岛:中国石油大学(华东), 2016.
	WEN Yaru. Characterization and effectiveness evaluation on the Carboniferous volcanic reservoir spaces in the north of Chepaizi area[D]. Qingdao,Shandong:China University of Petroleum (East China), 2016.
[19]	梁宇生. 准噶尔盆地西部车排子凸起的地质结构及形成演化[D]. 北京:中国地质大学(北京), 2019.
	LIANG Yusheng. Geological structure,formation and evolution of Chepaizi high in western Junggar basin[D]. Beijing:China University of Geosciences (Beijing), 2019.
[20]	李永军, 李卫东, 杨高学, 等. 新疆东西准噶尔泥盆系-石炭系建组剖面及区域对比[M]. 北京: 地质出版社, 2021:163-291.
	LI Yongjun, LI Weidong, YANG Gaoxue, et al. Formation section and regional comparison of the Devonian-Carboniferous in the East and West Junggar,Xinjiang[M]. Beijing: Geological Publishing House, 2021:163-291.
[21]	李甘雨, 李永军, 向坤鹏, 等. 西准噶尔哈拉阿拉特组的重新厘定及区域对比[J]. 地层学杂志, 2016, 40(1):76-84.
	LI Ganyu, LI Yongjun, XIANG Kunpeng, et al. Revision and regional correlation of the Hala’alate formation in western Junggar basin[J]. Journal of Stratigraphy, 2016, 40(1):76-84.
[22]	ANDERSEN T. Correction of common lead in U-Pb analyses that do not report ²⁰⁴Pb[J]. Chemical Geology, 2002, 192(1):59-79. doi: 10.1016/S0009-2541(02)00195-X
[23]	RUBATTO D. Zircon trace element geochemistry:partitioning with garnet and the link between U-Pb ages and metamorphism[J]. Chemical Geology, 2002, 184(1):123-138. doi: 10.1016/S0009-2541(01)00355-2
[24]	WILSON M. Igneous petrogenesis[M]. London:Unwin Hyman, 1989.
[25]	LEBAS M J, LEMAITRE R W, STRECKELSEN A, et al. A Chemical classification of volcanic rocks based on the total alkali-silica diagram[J]. Joural Petrology, 1986, 27(3):745-750.
[26]	PECCERILLO A, TAYLOR S R. Geochemistry of eocene calc-alkaline volcanic rocks from the Kastamonu area,northern Turkey[J]. Contributions to Mineralogy and Petrology, 1976, 58(1):63-81. doi: 10.1007/BF00384745
[27]	SUN S S, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts:implications for mantle composition and processes[J]. Geological Society of London Special Publication, 1989, 42(1):313-345. doi: 10.1144/GSL.SP.1989.042.01.19
[28]	HOFMANN A W. Chemical differentiation of the Earth:the relationship between mantle,continental crust,and oceanic crust[J]. Earth and Planetary Science Letters, 1988, 90(3):297-314. doi: 10.1016/0012-821X(88)90132-X
[29]	HENDERSON P. General geochemical properties and abundances of the rare earth elements[M]. Developments in Geochemistry, 1984, 2:1-32.
[30]	PEARCE J A, PEATE D W. Tectonic implications of the composition of volcanic arc magmas[J]. Annual Review of Earth and Planetary Sciences, 1995, 23:251-285. doi: 10.1146/earth.1995.23.issue-1
[31]	GENG H Y, SUN M, YUAN C, et al. Geochemical and geochronological study of early Carboniferous volcanic rocks from the West Junggar:petrogenesis and tectonic implications[J]. Journal of Asian Earth Sciences, 2011, 42(5):854-866. doi: 10.1016/j.jseaes.2011.01.006
[32]	ZHAO J H, ZHOU M F. Geochemistry of Neoproterozoic mafic intrusions in the Panzhihua district (Sichuan province,SW China):implications for subduction-related metasomatism in the upper mantle[J]. Precambrian Research, 2007, 152:27-47. doi: 10.1016/j.precamres.2006.09.002
[33]	MÜNKER C. The isotope and trace element budget of the Cambrian Devil River Arc System,New Zealand:identification of four source components[J]. Journal of Petrology, 2000, 41(6):759-788. doi: 10.1093/petrology/41.6.759
[34]	SAJONA F G, BELLON H, MAURY R, et al. Magmatic response to abrupt changes in geodynamic settings:Pliocene-Quaternary calc-alkaline and Nb-enriched lavas from Mindanao (Philippines)[J]. Tectonophysics, 1994, 237(1-2):47-72. doi: 10.1016/0040-1951(94)90158-9
[35]	WOODHEAD J, HERGT J, DAVIDSON J. Hafnium isotope evidence for ‘conservative’ element mobility during subduction zone processes[J]. Earth and Planetary Science Letters, 2001, 192:331-346. doi: 10.1016/S0012-821X(01)00453-8
[36]	ZHAO J H, ZHOU M F. Secular evolution of the Neoproterozoic lithospheric mantle underneath the northern margin of the Yangtze block,South China[J]. Lithos:An International Journal of Mineralogy,Petrology,and Geochemistry, 2009, 107(314):152-168.
[37]	WOOD D A. A variably veined suboceanic upper mantle-genetic significance for mid-ocean ridge basalts from geochemical evidence[J]. Geology, 1979, 7(10):499-503.
[38]	李宏博. 峨眉山大火成岩省地幔柱动力学:基性岩墙群、地球化学及沉积地层学证据[D]. 北京:中国地质大学(北京), 2012.
	LI Hongbo. Mantle plume geodynamic significances of the Emeishan Large Igneous Province:evidence from mafic dykes,geochemistry and stratigraphic records[D]. Beijing:China University of Geosciences (Beijing), 2012.
[39]	MCKENZIE D, BICKLE M J. The volume and composition of melt generated by extension of the lithosphere[J]. Journal of Petrology, 1988, 29(3):625-679. doi: 10.1093/petrology/29.3.625
[40]	XU Y G, MA J L, FREY F A, et al. Role of lithosphere-asthenosphere interaction in the genesis of Quaternary alkali and tholeiitic basalts from Datong,western North China Craton[J]. Chemical Geology, 2005, 224(4):247-271. doi: 10.1016/j.chemgeo.2005.08.004

车排子北部地区^[18]	车排子凸起^[19]	车排子凸起（新疆油田）		本文划分方案^[20]
车排子北部地区^[18]	车排子凸起^[19]	2013	2019	本文划分方案^[20]
希贝库拉斯组（C₂x）	哈拉阿拉特组（C₂h）	库吉尔台组（C₂k）	希贝库拉斯组（C₁x）	阿腊德依克赛组（C₂a）
希贝库拉斯组（C₂x）	哈拉阿拉特组（C₂h）	库吉尔台组（C₂k）	希贝库拉斯组（C₁x）	哈拉阿拉特组（C₂h）
包古图组（C_1-2b）	希贝库拉斯组（C₁x）	莫老坝组（C₂m）	包古图组（C₁b）	成吉思汗山组（C₂c）
包古图组（C_1-2b）	包古图组（C₁b）	莫老坝组（C₂m）	包古图组（C₁b）	希贝库拉斯组（C₁x）
太勒古拉组（C₁t）	太勒古拉组（C₁t）	太勒古拉组（C₁t）	太勒古拉组（C₁t）	包古图组（C₁b）

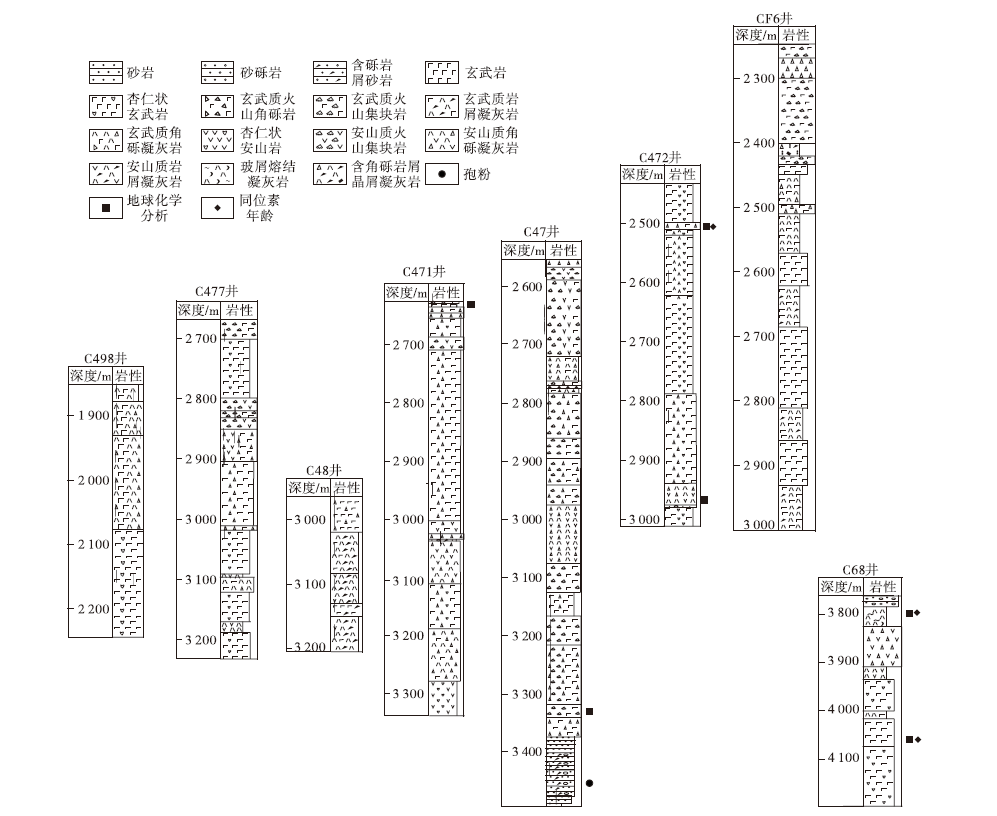

井名	石炭系深度/m	岩石组合	原划分方案	本文划分方案
CF13井	1 536—2 012	灰黑色含角砾玄武岩、玄武质火山角砾岩、玄武质角砾凝灰岩	包古图组	阿腊德依克赛组	上段
C26井	1 726—2 631	砾岩、含砾砂岩,夹少量岩屑砂岩、砂岩及泥岩夹层	石炭系	阿腊德依克赛组	下段
C498井	1 849—2 229	杏仁状玄武岩、玄武质角砾凝灰岩为主	石炭系	哈拉阿拉特组
C48井	2 967—3 200	安山质凝灰岩、玄武岩及玄武质角砾熔岩	石炭系
C477井	2 670—3 225	玄武质、安山质火山集块岩和火山角砾岩,中间夹薄层的凝灰岩	石炭系
C471井	2 621—3 332	杏仁状玄武岩、玄武质角砾熔岩、玄武安山质集块岩、安山质角砾凝灰岩、玄武质角砾凝灰岩	石炭系
C47井	3 370—3 490	灰色-灰黑色含碳砂岩、含砾岩屑砂岩	太勒古拉组
C47井	2 551—3 370	玄武质角砾熔岩、玄武质集块岩、安山质集块岩及少量玄武安山质角砾凝灰岩	太勒古拉组
C472井	2 434—3 010	气孔杏仁状玄武岩、灰绿色橄榄玄武质角砾熔岩、气孔杏仁状橄榄玄武岩、灰黑色蚀变安山质角砾凝灰岩、灰黑色含砾砂岩、灰黑色含砾泥岩	太勒古拉组
C68井	3 780—4 196	杏仁状玄武岩、安山质角砾熔岩、流纹质含角砾玻屑熔结凝灰岩及少量玄武质凝灰岩	太勒古拉组
