Genesis of Dolomitization of Permian Maokou Formation in Langzhong Area, Northeastern Sichuan Basin

doi:10.7657/XJPG20200201

Abstract

Abstract:

As an important oil and gas reservoir in Langzhong area of northeastern Sichuan basin, the second member of Permian Maokou formation is primarily composed of dolomite. There is no general understanding on dolomite genesis due to limited research literatures. Based on thin section authentication, cathodoluminescence analysis, quantitative analysis on inclusions and isotopes of carbon, oxygen and strontium, and combined with regional geological setting, the paper studies the petrologic and geochemical features of the dolomite in the second member of Maokou formation in Langzhong area, and discusses the genesis and significance of the dolomite. The results show that the dolomite in the study area is dominated by fine-medium crystalline, automorphic-semi-automorphic dolomite with relatively flat surface, which indicates the temperature of diagenetic environment was not high. The fine-medium crystalline dolomite in the study area is characterized by dark cathodoluminescence, low positive value of δ ¹³C and high negative value of δ ¹⁸O, ⁸⁷Sr/ ⁸⁶Sr slightly higher than that of the seawater of the same period, indicating a shallow burial and unobvious influences of high-temperature fluid. The fluid in the dolomitized rocks came from the seawater of the shallow-burial period, took grain-limestone as a carrier and then laminar and layered dolomite formed. Large scale reservoir spaces formed due to the dolomitization in the shallow-burial period, which is one of the most important diagenetic modes of carbonate reservoirs.

Key words: northeastern Sichuan basin, Langzhong area, Maokou formatin, dolomitization, geochemistry, reservoir genesis

CLC Number:

TE112.23

LI Rong, HU Hao, SHI Guoshan, XI Chengwei. Genesis of Dolomitization of Permian Maokou Formation in Langzhong Area, Northeastern Sichuan Basin[J]. Xinjiang Petroleum Geology, 2020, 41(2): 127-132.

Figures/Tables 6

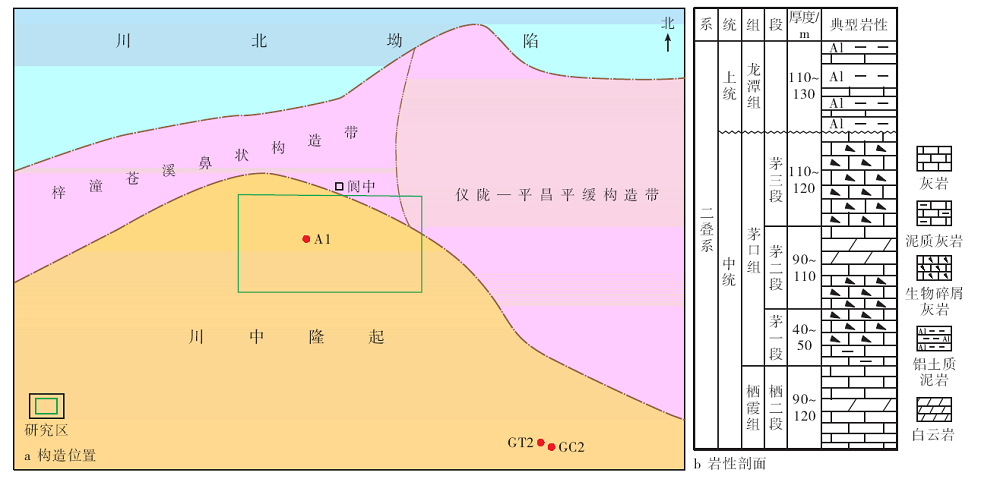

Fig. 1.

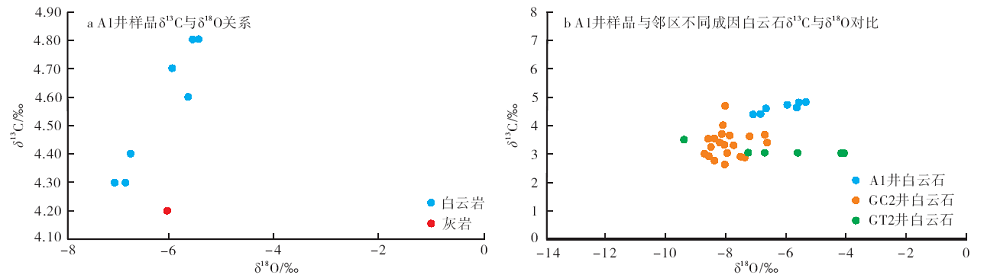

Fig. 2.

Fig. 3.

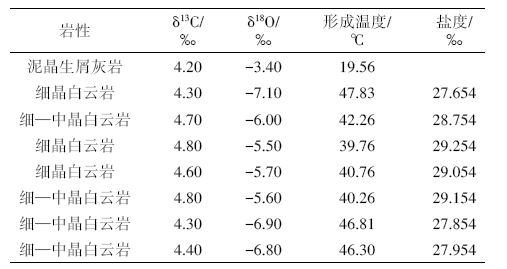

Table. 1

Fig. 4.

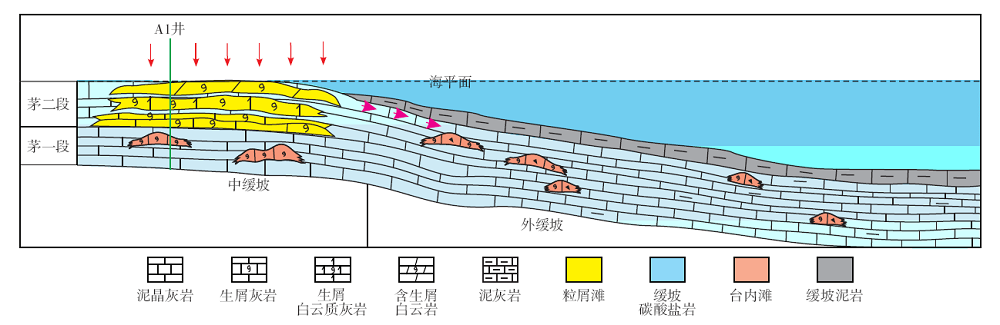

Fig. 5.

References 22

[1]	戴永定, 李菊英, 蒋协光 , 等. 四川盆地南部二叠系茅口组碳酸岩岩石学与储集性质[J]. 地质科学, 1978,13(3):203-219.
	DAI Yongding, LI Juying, JIANG Xieguang , et al. Petrography of carbonate rocks from the Permian Moukou formation and their reservoir properties in southern Sichuan basin[J]. Scientia Geologica Sinica, 1978,13(3):203-219.
[2]	廖小漫, 张本建, 徐后伟 , 等. 川西地区中二叠统储集层成岩作用[J]. 新疆石油地质, 2012,33(3):321-315.
	LIAO Xiaoman, ZHANG Benjian, XU Houwei , et al. Diagenesis of Middle Permian reservoir in western Sichuan[J]. Xinjiang Petroleum Geology, 2012,33(3):321-315.
[3]	陈轩, 赵文智, 张利萍 , 等. 川中地区中二叠统构造热液白云岩的发现及其勘探意义[J]. 石油学报, 2012,33(4):562-569.
	CHEN Xuan, ZHAO Wenzhi, ZHANG Liping , et al. Discovery and exploration significance of structure-controlled hydrothermal dolomites in the Middle Permian of the central Sichuan basin[J]. Acta Petrolei Sinica, 2012,33(4):562-569.
[4]	舒晓辉, 张军涛, 李国蓉 , 等. 四川盆地北部栖霞组—茅口组热液白云岩特征与成因[J]. 石油与天然气地质, 2012,33(3):447-448,458.
	SHU Xiaohui, ZHANG Juntao, LI Guorong , et al. Characteristics and genesis of hydrothermal dolomites of Qixia and Maokou formation in the northern Sichuan basin[J]. Oil & Gas Geology, 2012,33(3):447-448,458.
[5]	杨光, 汪华, 沈浩 , 等. 四川盆地中二叠统储层特征与勘探方向[J]. 天然气工业, 2015,35(7):10-16.
	YANG Guang, WANG Hua, SHEN Hao , et al. Characteristics and exploration prospects of Middle Permian reservoir in the Sichuan basin[J]. Natural Gas Industry, 2015,35(7):10-16.
[6]	汪华, 沈浩, 黄东 , 等. 四川盆地中二叠统热水白云岩成因及其分布[J]. 天然气工业, 2014,34(9):25-32.
	WANG Hua, SHEN Hao, HUANG Dong , et al. Origin and distribution of hydrothermal dolomites of the Middle Permian in the Sichuan basin[J]. Natural Gas Industry, 2014,34(9):25-32.
[7]	金振奎, 冯增昭 . 滇东—川西下二叠统白云岩的形成机理—玄武岩淋滤白云化[J]. 沉积学报, 1999,17(3):383-389.
	JIN Zhenkui, FENG Zengzhao . Origin of dolostones of Lower Permian in east Yunnan-west Sichuan:dolomitization through leaching of basalts[J]. Acta Sedimentologica Sinica, 1999,17(3):383-389.
[8]	李蓉, 胡昊, 许国明 , 等. 四川盆地西部坳陷雷四上亚段白云岩化作用对储集层的影响[J]. 新疆石油地质, 2017,38(2):149-154.
	LI Rong, HU Hao, XU Guoming , et al. Influences of dolomitization on reservoirs of upper T₂l₄ of Leikoupo formation in western depression,Sichuan basin[J]. Xinjiang Petroleum Geology, 2017,38(2):149-154.
[9]	王珏博, 谷一凡, 陶艳忠 , 等. 川中地区茅口组两期流体叠合控制下的白云石化模式[J]. 沉积学报, 2016,34(2):236-249.
	WANG Juebo, GU Yifan, TAO Yanzhong , et al. The model of dolomitization jointly controlled by two-episode fluids in Maokou formation in central Sichuan basin[J]. Acta Sedimentologica Sinica, 2016,34(2):236-249.
[10]	陈宗清 . 四川盆地中二叠统茅口组天然气勘探[J]. 中国石油勘探, 2007,12(5):1-11.
	CHEN Zongqing . Exploration for natural gas in Middle Permian Maokou formation of Sichuan basin[J]. China Petroleum Exploration, 2007,12(5):1-11.
[11]	兰叶芳, 黄树光, 任戍明 , 等. 黔西北毕节地区中二叠统碳酸盐岩成岩作用[J]. 新疆石油地质, 2018,39(5):507-516.
	LAN Yefang, HUANG Shuguang, REN Shuming , et al. Diagenesis of Middle Permian carbonate rocks in Bijie area,northwestern Guizhou[J]. Xinjiang Petroleum Geology, 2018,39(5):507-516.
[12]	VEIZER J . Strontium isotopes in seawater through time[J]. Geochimica et Cosmochimica Acta, 1989,53(11):141-167.
[13]	黄思静, 黄喻, 兰叶芳 , 等. 四川盆地东北部晚二叠世—早三叠世白云岩与同期海水锶同位素组成的对比研究[J]. 岩石学报, 2011,27(12):3831-3842.
	HUANG Sijing, HUANG Yu, LAN Yefang , et al. A comparative study on strontium isotope composition of dolomites and their coeval seawater in the Late Permian-Early Triassic,NE Sichuan basin[J]. Acta Petrologica Sinica, 2011,27(12):3 831-3 842.
[14]	黄思静 . 上扬子台地区晚古生代海相碳酸盐岩的碳、锶同位素研究[J]. 地质学报, 1997,71(1):45-53.
	HUANG Sijing . A study on carbon and strontium isotopes of Late Paleozoic carbonate rocks in Upper Yangtze platform[J]. Acta Geologica Sinica, 1997,71(1):45-53.
[15]	KORTE C, JASPER T, KOZURH W , et al. δ ¹⁸O and δ ¹³C of Permian brachiopods:arecord of seawater evolution and continental glaciation [J]. Palaeogeography,Palaeoclimatology,Palaeoecology, 2005,224:333-351.
[16]	陈荣坤 . 稳定碳同位素在碳酸盐岩成岩环境研究中的应用[J]. 沉积学报, 1994,12(4):11-21.
	CHEN Rongkun . Application of stable oxygen and carbon isotope in the research of carbonate diagenetic environment[J]. Acta Sedimentologica Sinica, 1994,12(4):11-21.
[17]	ALLANJ R, WINGGINSW D . Dolomite reservoirs:geochemical techniques for evaluating origin and distribution[M]. The American Association of Petroleum Geologists, 1993.
[18]	刘建强, 郑浩夫, 刘波 , 等. 川中地区中二叠统茅口组白云岩特征及成因机理[J]. 石油学报, 2017,38(4):386-398.
	LIU Jianqiang, ZHENG Haofu, LIU Bo , et al. Characteristics and genetic mechanism of the dolomite in the Middle Permian Maokou formation,central Sichuan area[J]. Acta Petrolei Sinica, 2017,38(4):386-398.
[19]	邵龙义, 窦建伟, 张鹏飞 . 西南地区晚二叠世氧、碳稳定同位素的古地理意义[J]. 地球化学, 1996,25(6):575-581.
	SHAO Longyi, DOU Jianwei, ZHANG Pengfei . Paleogeographic significances of carbon and oxygen isotopes in Late Permian rocks of southwest China[J]. Geochemica, 1996,25(6):575-581.
[20]	SHACKLETONN J, KENNETTJ P . Paleotemperature history of the Cenozoic and initiation of Antarctic glaciation:oxygen and carbon isotope analysis in DSDP sites 277,279 and 281[M] //KENNETT J P,HOUTZ R E. Initial reports of the deep sea drilling project. Washington D.C.:U.S. Government Printing Office, 1975: 743-755.
[21]	GIVEN R K, LOHMANN K C . Derivation of the original isotopic composition of Permian marine cements[J]. Journal of Sedimentary Research, 1985,55(3):430-439.
[22]	黄思静, QING Hairuo, 胡作维 , 等. 封闭系统中的白云石化作用及其石油地质学和矿床学意义:以四川盆地东北部三叠系飞仙关组碳酸盐岩为例[J]. 岩石学报, 2007,23(11):2 955-2 962.
	HUANG Sijing, QING Hairuo, HU Zuowei , et al. Closed-system dolomitization and the significance for petroleum and economic geology:an example from Feixianguan carbonates,Triassic,NE Sichuan basin of China[J]. Acta Petrologica Sinica, 2007,23(11):2 955-2 962.
