Modified Methods of Permeability Prediction for Tight Sandstone Reservoirs

doi:10.7657/XJPG20200313

Abstract

Abstract:

Tight sandstone reservoir is featured with tiny pore throat and complicated pore throat structure. The available models for reservoir permeability prediction are generally used for conventional sandstone or carbonate reservoirs, which cannot get good permeability prediction results of tight sandstone reservoirs. 10 core samples of tight sandstone obtained from Chang 6–Chang 8 members in Ordos basin are selected and the mineral compositions and pore throat structures of the samples are analyzed based on experiments of mineral analysis and SEM. On the basis of high-pressure mercury injection experiment, the paper modifies the parameters for 8 typical reservoir permeability prediction models, establishes modified methods suitable for permeability prediction of tight sandstone reservoirs and carries out model optimization and adaptability evaluation. The results show that the good prediction results for tight sandstone reservoirs can be obtained from the modified Pittman model, Winland model, Dastidar model and K-T model, but the prediction results from the modified Purcell model, Swanson model, Thomeer model and W-A model are relatively poor.

Key words: tight sandstone reservoir, high-pressure mercury injection, permeability prediction, Pittman model, Winland model, Dastidar model, K-T model, adaptability evaluation

CLC Number:

TE112.23

ZHAO Tianyi, NING Zhengfu, CHEN Gang, TIAN Lingyu, QIAO Hui, WANG Jiwei. Modified Methods of Permeability Prediction for Tight Sandstone Reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(3): 337-343.

Figures/Tables 7

Table 1

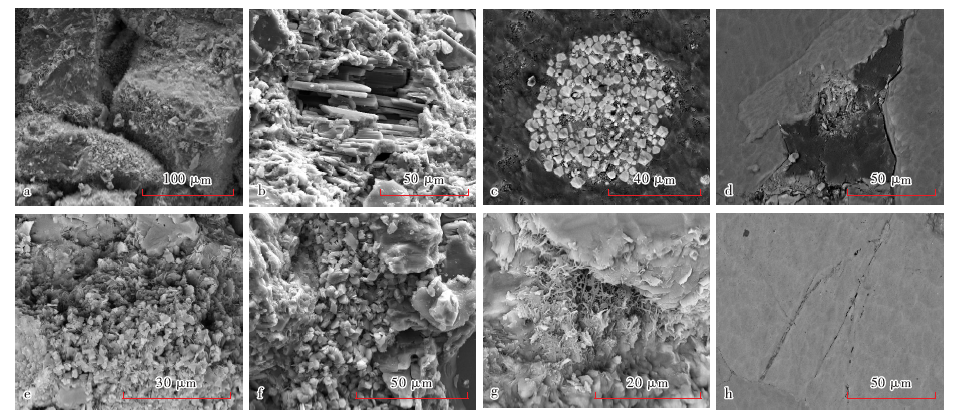

Fig. 1.

Table. 2

Conventional permeability prediction models"

模型名称	表达式
Purcell模型^[9]（1949年）	$K = F (σ cos θ) 2 ? 2 × 104 ∫ 0 100 d S Hg P c 2$	（1）式
Winland模型^[10]（1980年）	$lg r 35 = 0.732 + 0.588 lg K - 0.864 lg ?$	（2）式
Swanson模型^[11]（1981年）	$K = 399 S b P c A 1.691$	（3）式
Thomeer模型^[12,13]（1983年）	$K = 3.806 F - 1.3334 S b ∞ P d 2$	（4）式
W-A模型^[14]（1985年）	$K = 30.5 S b P c A 1.56$	（5）式
K-T模型^[7]（1987年）	$K = C 2 L Hmax 3 L c ? S LHmax$	（6）式
Pittman模型^[15]（1992年）	$lg r apex = - 0.117 + 0.475 lg K - 0.099 lg ?$	（7）式
Dastidar模型^[16]（2007年）	$lg K = - 2.51 + 3.06 lg ? + 1.64 lg r WGM$ ,其中 $r WGM = ∏ i = 1 n r i w i 1 ∑ i = 1 n w i$	（8）式

Table. 2

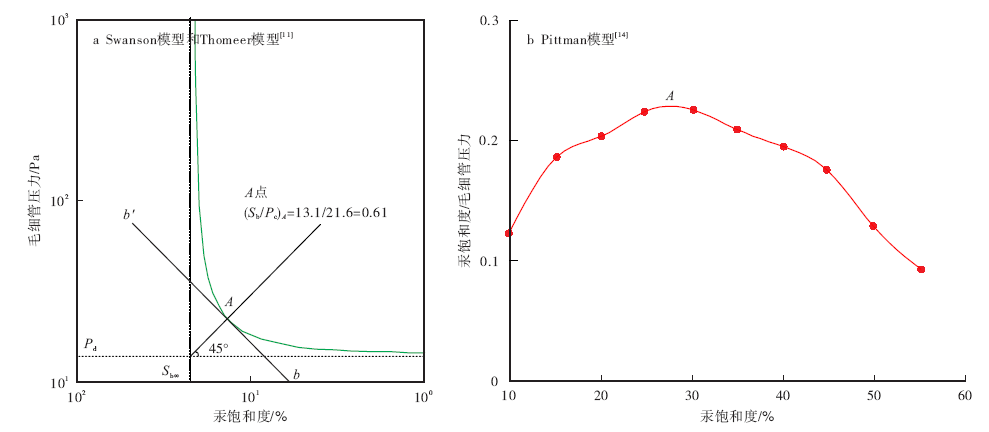

Fig. 2.

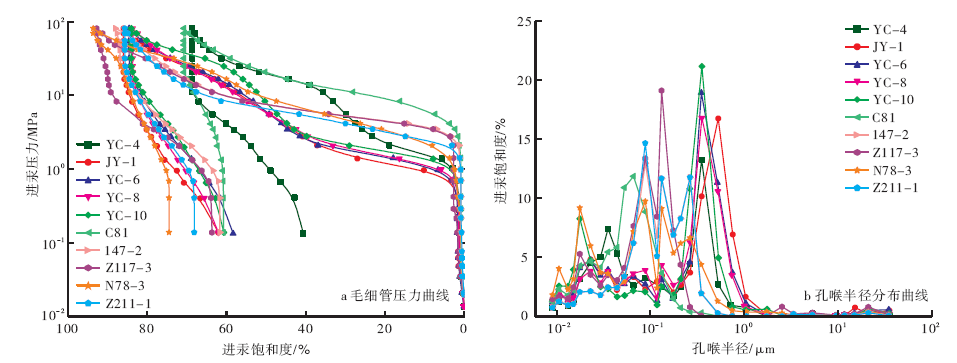

Fig. 3.

Table 3

Modified tight sandstone permeability prediction models"

模型名称	表达式	修正相关系数（ $R adj 2$ ）
Purcell模型^[9]（1949年）	$K = 0.00172 ∫ 0 100 d S Hg P c 2$	0.879
Winland模型^[10]（1980年）	$lg K = - 2.341 + 0.717 lg r 20 + 1.955 lg ?$	0.932
Swanson模型^[11]（1981年）	$K = 0.0184 S b P c A 1.084$	0.820
Thomeer模型^[12,13]（1983年）	$K = 4.080 × 10 - 6 S b ∞ P d 2$	0.795
W-A模型^[14]（1985年）	$K = 0.0133 S b P c A 1.204$	0.845
K-T模型^[7]（1987年）	$K = 0.00448 L Hmax 3 L c ? S LHmax$	0.922
Pittman模型^[15]（1992年）	$lg K = - 0.900 + 0.922 lg r apex + 0.792 lg ?$	0.968
Dastidar模型^[16]（2007年）	$lg K = - 2.038 + 1.053 lg r WGM + 2.306 lg ?$	0.933

Table 3

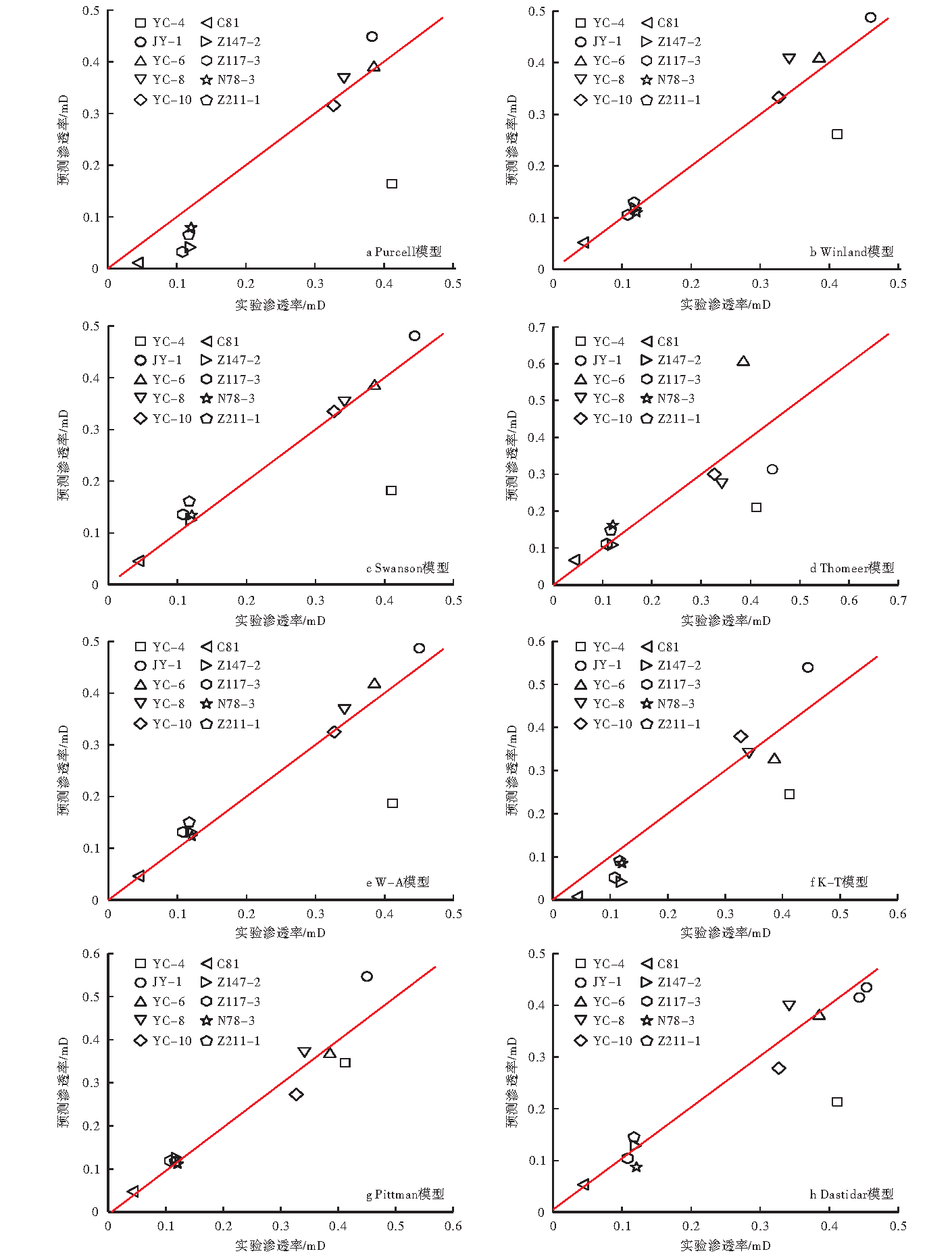

Fig. 4.

References 18
