Differentiated Hydrocarbon Enrichment Factors of Bedrock Gas Reservoir in Piedmont Belt of Altun Mountain, Qaidam Basin

doi:10.7657/XJPG20200403

Abstract

Abstract:

The bedrock gas reservoir whose formation is closely related to structural uplift and fault activity is mainly distributed in the piedmont belt of the basin margin and has the characteristics of differentiated hydrocarbon accumulation. Based on the systematic teasing of the main reservoir-forming factors of the bedrock reservoir in the piedmont belt of the Altun Mountain in Qaidam basin and combined with the exploration status worldwide, the paper summarizes the differentiated hydrocarbon accumulation in the bedrock reservoir. The study results show that there are four main factors controlling the formation of the bedrock reservoir in the piedmont area of Altun Mountain: 1.Several local hydrocarbon generating centers in Jurassic strata control the distribution and abundance of the bedrock gas reservoir in the piedmont zone. 2.There are three tectonic steps including uplift belt, slope belt and depression area in the piedmont belt, and the bedrock traps in the slope belt near hydrocarbon generating center are featured with the priority of oil and gas charging and good preservation, which are favorable for reservoir forming. 3.The distribution of high-quality bedrock reservoir in the piedmont belt which is controlled by multiple factors such as lithology of bedrock and intensity of weathering and leaching affects the local enrichment of the bedrock gas reservoir. 4.As a result of multistage tectonic activities, the formation period and activity intensity of the faults in the piedmont belt are different, which control the bedrock trap formation and differentiated hydrocarbon accumulation. It is concluded that the differences in source rock distribution, reservoir development, structural framework and fault activity jointly contribute to the differentiated hydrocarbon accumulation in the bedrock reservoir in the piedmont belt of Altun Mountain.

Key words: Qaidam basin, Altun Mountain, piedmont belt, bedrock gas reservoir, differentiated enrichment, reservoir forming factor

CLC Number:

TE122.1

SUN Xiujian, MA Feng, BAI Yadong, WANG Bo, GUAN Bin, LUO Na, WEI Shunke. Differentiated Hydrocarbon Enrichment Factors of Bedrock Gas Reservoir in Piedmont Belt of Altun Mountain, Qaidam Basin[J]. Xinjiang Petroleum Geology, 2020, 41(4): 394-401.

Figures/Tables 7

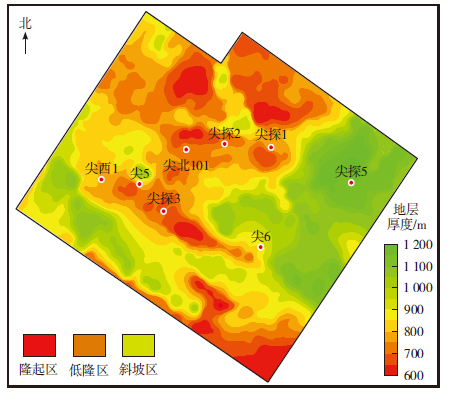

Fig. 1.

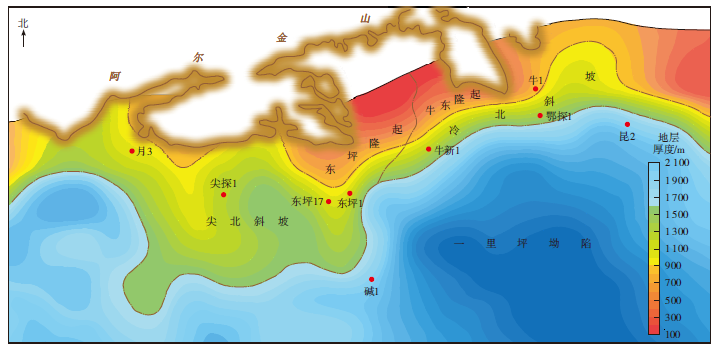

Fig. 2.

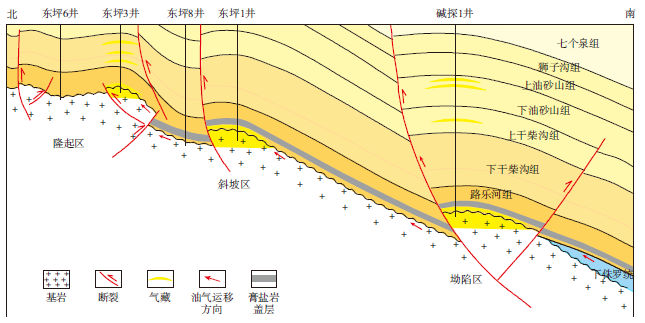

Fig. 3.

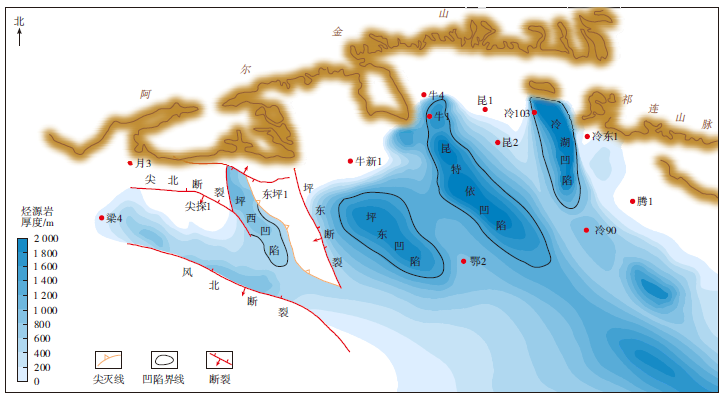

Fig. 4.

Fig. 5.

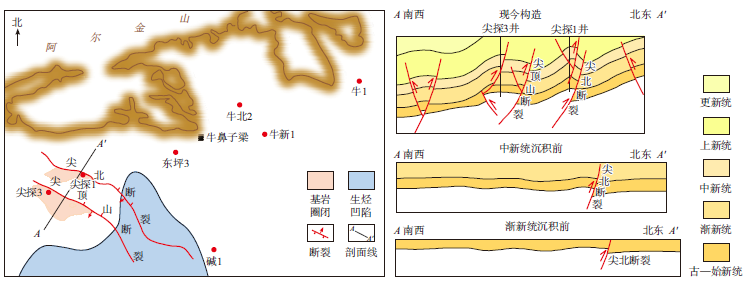

Fig. 6.

Table 1

References 23

[1]	吴伟涛, 高先志, 刘兴周, 等. 基岩油气藏的形成与分布[J]. 地质科技情报, 2014,33(1):106-113.
	WU Weitao, GAO Xianzhi, LIU Xingzhou, et al. Formation and distribution of basement rock reservoir[J]. Geological Science and Technology Information, 2014,33(1):106-113.
[2]	杜金虎. 松辽盆地中央古隆起带(北部)天然气成藏条件分析及勘探前景[J]. 中国石油勘探, 2017,22(5):5-18.
	DU Jinhu. Analysis of natural gas accumulation conditions and exploration perspective in the central paleo-uplift belt (north),Songliao basin[J]. China Petroleum Exploration, 2017,22(5):5-18.
[3]	杨迪生, 陈世加, 李林, 等. 克拉美丽气田油气成因及成藏特征[J]. 天然气工业, 2012,32(2):27-31.
	YANG Disheng, CHEN Shijia, LI Lin, et al. Hydrocarbon origins and their pooling characteristics of the Kelameili gas field[J]. Natural Gas Industry, 2012,32(2):27-31.
[4]	杨飞, 徐守余. 全球基岩油气藏分布及成藏规律[J]. 特种油气藏, 2011,18(1):7-11.
	YANG Fei, XU Shouyu. Global distribution and hydrocarbon accumulation pattern of basement reservoirs[J]. Special Oil & Gas Reservoirs, 2011,18(1):7-11.
[5]	曹正林, 魏志福, 张小军, 等. 柴达木盆地东坪地区油气源对比分析[J]. 岩性油气藏, 2013,25(3):17-20.
	CAO Zhenglin, WEI Zhifu, ZHANG Xiaojun, et al. Oil-gas source correlation in Dongping area,Qaidam basin[J]. Lithologic Reservoirs, 2013,25(3):17-20.
[6]	王云波, 李洪革, 沈亚, 等. 阿尔金山山前带东段构造特征与油气成藏的关系[J]. 石油地球物理勘探, 2015,50(1):156-161. doi: 10.13810/j.cnki.issn.1000-7210.2015.01.024
	WANG Yunbo, LI Hongge, SHEN Ya, et al. The relationship between structural features and hydrocarbon entrapment in the east part of Altyn tagh piedmont[J]. Oil Geophysical Prospecting, 2015,50(1):156-161.
[7]	康德江, 姜丽娜, 张金友. 中国西部叠合盆地油气多期成藏模式及勘探有效性[J]. 沉积学报, 2012,30(1):166-178.
	KANG Dejiang, JIANG Li’na, ZHANG Jinyou. The model of the multi-stage of oil-gas formation and exploration effectiveness in superimposed basins in western China[J]. Acta Sedimentologica Sinica, 2012,30(1):166-178.
[8]	吴伟涛, 高先志, 刘兴周, 等. 辽河坳陷变质岩潜山油气藏类型与成藏模式[J]. 西安石油大学学报(自然科学版), 2013,28(1):37-40.
	WU Weitao, GAO Xianzhi, LIU Xingzhou, et al. Types and accumulation modes of metamorphic buried hill reservoirs in Liaohe depression[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2013,28(1):37-40.
[9]	宋柏荣, 施玉华, 刘玉婷, 等. 辽河坳陷结晶基底岩性特征、含油性及测井识别[J]. 地质论评, 2017,63(2):427-440.
	SONG Bairong, SHI Yuhua, LIU Yuting, et al. Lithological characteristics,oil-bearing property and logging identification of the crystalline basement of Liaohe depression[J]. Geological Review, 2017,63(2):427-440.
[10]	牟敦山, 付广, 胡明. 徐深气田盖层封气有效性研究[J]. 沉积学报, 2011,29(1):158-163.
	MU Dunshan, FU Guang, HU Ming. Research on sealing gas effectiveness of cap rock in Xushen gasfield[J]. Acta Sedimentologica Sinica, 2011,29(1):158-163.
[11]	张道伟, 马达德, 陈琰, 等. 柴达木盆地油气地质研究新进展及勘探成果[J]. 新疆石油地质, 2019,40(5):505-512.
	ZHANG Daowei, MA Dade, CHEN Yan, et al. Research progress on oil and gas geology and exploration practice in Qaidam basin[J]. Xinjiang Petroleum Geology, 2019,40(5):505-512.
[12]	李晓光, 郭彦民, 蔡国刚, 等. 大民屯凹陷隐蔽型潜山成藏条件与勘探[J]. 石油勘探与开发, 2007,34(2):135-141.
	LI Xiaoguang, GUO Yanmin, CAI Guogang, et al. Subtle buried hill reservoir accumulation conditions and exploration in Damintun sag,Liaohe oilfield[J]. Petroleum Exploration and Development, 2007,34(2):135-141.
[13]	郑亚斌, 肖毓祥, 龚幸林, 等. 千米桥潜山油气储集成藏模式探讨[J]. 天然气地球科学, 2007,18(6):848-853.
	ZHENG Yabin, XIAO Yuxiang, GONG Xinglin, et al. Research on hydrocarbon accumulation pattern of Qianmiqiao buried hill,Dagang oilfield[J]. Natural Gas Geoscience, 2007,18(6):848-853.
[14]	马峰, 乐幸福, 王朴, 等. 柴达木盆地煤型气成藏条件及勘探领域[J]. 中国石油勘探, 2014,19(3):87-94.
	MA Feng, LE Xingfu, WANG Pu, et al. Accumulation conditions and exploration domain of coal-type gas in Qaidam basin[J]. China Petroleum Exploration, 2014,19(3):87-94.
[15]	徐国盛, 陈飞, 周兴怀, 等. 蓬莱9-1构造花岗岩古潜山大型油气田的成藏过程[J]. 成都理工大学学报(自然科学版), 2016,43(2):153-162.
	XU Guosheng, CHEN Fei, ZHOU Xinghuai, et al. Hydrocarbon accumulation process of large scale oil and gas field of granite buried hill in Penglai 9-1 structure,Bohai,China[J]. Journal of Chengdu University of Technology(Science & Technology Edition), 2016,43(2):153-162.
[16]	崔鑫, 李江海, 姜洪福, 等. 海拉尔盆地苏德尔特构造带火山岩基底储层特征及成藏模式[J]. 天然气地球科学, 2016,27(8):1 466-1 476.
	CUI Xin, LI Jianghai, JIANG Hongfu, et al. Characteristics of the volcanic basement reservoirs and its hydrocarbon accumulation mode in Sudeert structural belt,Hailar basin,China[J]. Natural Gas Geoscience, 2016,27(8):1 466-1 476.
[17]	伍劲, 高先志, 周伟, 等. 柴达木盆地东坪地区基岩风化壳与油气成藏[J]. 新疆石油地质, 2018,39(6):666-672.
	WU Jin, GAO Xianzhi, ZHOU Wei, et al. Base rock weathering crusts and petroleum accumulation in Dongping area,Qaidam basin[J]. Xinjiang Petroleum Geology, 2018,39(6):666-672.
[18]	黄保纲, 汪利兵, 赵春明, 等. JZS油田潜山裂缝储层形成机制及分布预测[J]. 石油与天然气地质, 2011,32(5):710-717. doi: 10.11743/ogg20110509
	HUANG Baogang, WANG Libing, ZHAO Chunming, et al. Formation mechanism and distribution of fractured buried hill reservoir in JZS oilfiled[J]. Oil & Gas Geology, 2011,32(5):710-717.
[19]	肖安成, 吴磊, 李洪革, 等. 阿尔金断裂新生代活动方式及其与柴达木盆地的耦合分析[J]. 岩石学报, 2013,29(8):2 826-2 836.
	XIAO Ancheng, WU Lei, LI Hongge, et al. Tectonic processes of the Cenozoic Altyn tagh fault and its coupling with the Qaidam basin,NW China[J]. Acta Petrologica Sinica, 2013,29(8):2 826-2 836.
[20]	付锁堂, 马达德, 陈琰, 等. 柴达木盆地阿尔金山前东段天然气勘探[J]. 中国石油勘探, 2015,20(6):1-13.
	FU Suotang, MA Dade, CHEN Yan, et al. Natural gas exploration in eastern segment of Alkin piedmont,northern Qaidam basin[J]. China Petroleum Exploration, 2015,20(6):1-13.
[21]	王云波, 谭伟, 吕继, 等. 阿尔金山前带燕山期断裂与油气成藏的关系[J]. 石油地球物理勘探, 2018,53(增刊1):287-292.
	WANG Yunbo, TAN Wei, LV Ji, et al. The relationship between hydrocarbon entrapment and Yanshanian faults in the Altyn tagh piedmont[J]. Oil Geophysical Prospecting, 2018,53(Supp.1):287-292.
[22]	王亚东, 郑建京, 孙国强, 等. 柴西北地区碎屑锆石裂变径迹年龄记录的阿尔金山早新生代隆升事件[J]. 吉林大学学报(地球科学版), 2015,45(5):1 447-1 459.
	WANG Yadong, ZHENG Jianjing, SUN Guoqiang, et al. Early Cenozoic Altyn mountains uplift recorded by detrital zircon fission track age in northwest Qaidam basin[J]. Journal of Jilin University(Earth Science Edition), 2015,45(5):1 447-1 459.
[23]	刘幼骐, 李建星, 岳乐平, 等. 晚新生代阿尔金山地区构造—地貌演化[J]. 矿产普查, 2018,9(9):1 758-1 766.
	LIU Youqi, LI Jianxing, YUE Leping, et al. Tectonic and geomorphic evolution in the Late Cenozoic in Altun mountain area[J]. Mineral Exploration, 2018,9(9):1 758-1 766.

地层				构造运动阶段	断裂活动期次	油气成藏期次	断裂活动对成藏的作用
界	系	统	组	构造运动阶段	断裂活动期次	油气成藏期次	断裂活动对成藏的作用
新生界	第四系	更新统	七个泉组	喜马拉雅运动阶段	喜马拉雅运动晚期	持续充注、多期成藏	二次成藏
	古近系	上新统	狮子沟组		喜马拉雅运动晚期		二次成藏
			上油砂山组		喜马拉雅运动中期		持续控藏
			下油砂山组
		中新统	上干柴沟组
		渐新统	下干柴沟组		喜马拉雅运动早期		控制圈闭及早期成藏
		古—始新统	路乐河组		喜马拉雅运动早期	未成藏	控制圈闭及早期成藏
中生界	侏罗系	下侏罗统	湖西山组	燕山运动阶段	印支—燕山运动期		控制烃源岩分布
中生界	三叠系			印支运动阶段	印支—燕山运动期		控制烃源岩分布
