Enhanced Oil Recovery by CO2 Huff-n-Puff in Tight Oil Reservoirs in Mazhong Block，Santanghu Basin

doi:10.7657/XJPG20230508

Abstract

Abstract:

The tight oil reservoirs in the MZ block of the Santanghu basin are characterized by medium-high porosity, ultra-low permeability, and high oil saturation. In the initial development stage, high production rate was achieved by virtue of volume fracturing in horizontal wells, but declined greatly. In the late stage, the reserves were effectively produced through water huff-n-puff. After years of development, the effect of water huff-n-puff became worse. The current recovery percent of reserves is only 5.6%. For further enhancing the oil recovery, CO₂ huff-n-puff experiments were conducted in five horizontal wells. The results show that CO₂ plays a pivotal role in enhancing recovery in tight oil reservoirs through the mechanisms such as swelling, energy augmentation, viscosity reduction, light component extraction, and fluid mobility improvement. The impact of CO₂ varies throughout the injection, soaking, and production stages, leading to alteration in crude oil properties. CO₂ can enhance oil recovery and also demonstrate a high storage rate, offering both economic and social benefits. CO₂ huff-n-puff is adaptable and promising for tight oil reservoir development.

Key words: Santanghu basin, MZ block, tight reservoir, CO₂ huff-n-puff, EOR, oil displacement, storage rate

CLC Number:

TE357

LI Shirui, ZHAO Kai, XU Jiangwei, Murzhaty ASKUR, XU Jinlu, ZHANG Xing. Enhanced Oil Recovery by CO₂ Huff-n-Puff in Tight Oil Reservoirs in Mazhong Block，Santanghu Basin[J]. Xinjiang Petroleum Geology, 2023, 44(5): 572-576.

Figures/Tables 6

Fig. 1.

Fig. 2.

Fig. 3.

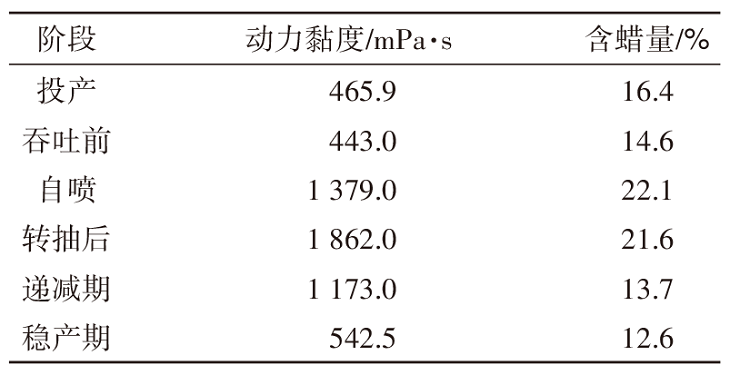

Table 1.

Fig. 4.

Fig. 5.

References 20

[1]	李登华, 刘卓亚, 张国生, 等. 中美致密油成藏条件、分布特征和开发现状对比与启示[J]. 天然气地球科学, 2017, 28(7):1126-1 138.
	LI Denghua, LIU Zhuoya, ZHANG Guosheng, et al. Comparison and revelation of tight oil accumulation conditions,distribution characteristics and development status between China and U.S.[J]. Natural Gas Geoscience, 2017, 28(7):1126-1 138.
[2]	肖汉敏, 罗永成, 赵新礼, 等. 水平井CO₂缝间驱替产能影响因素[J]. 新疆石油地质, 2022, 43(4):479-483.
	XIAO Hanmin, LUO Yongcheng, ZHAO Xinli, et al. Factors influencing productivity of horizontal wells with CO₂ inter-fracture flooding[J]. Xinjing Petroleum Geology, 2022, 43(4):479-483.
[3]	付京, 姚博文, 雷征东, 等. 北美超低渗致密油藏提高采收率技术现状[J]. 西南石油大学学报(自然科学版), 2021, 43(5):166-183. doi: 10.11885/j.issn.1674-5086.2021.02.04.01
	FU Jing, YAO Bowen, LEI Zhengdong, et al. Enhanced oil recovery of ultra-low permeability tight reservoirs in North America[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2021, 43(5):166-183.
[4]	钱坤, 杨胜来, 窦洪恩, 等. 特低渗油藏不同CO₂注入方式微观驱油特征[J]. 新疆石油地质, 2020, 41(2):204-208.
	QIAN Kun, YANG Shenglai, DOU Hongen, et al. Microscopic characteristics of oil displacement with different CO₂ injection modes in extra-low permeability reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(2):204-208.
[5]	胡永乐, 郝明强, 陈国利, 等. 中国CO₂驱油与埋存技术及实践[J]. 石油勘探与开发, 2019, 46(4):716-727. doi: 10.11698/PED.2019.04.10
	HU Yongle, HAO Mingqiang, CHEN Guoli, et al. Technologies and practice of CO₂ flooding and sequestration in China[J]. Petroleum Exploration and Development, 2019, 46(4):716-727.
[6]	钱坤, 杨胜来, 窦洪恩, 等. 注CO₂过程中流体性质变化及驱油机理实验研究[J]. 石油科学通报, 2019, 4(1):69-82.
	QIAN Kun, YANG Shenglai, DOU Hongen, et al. Interaction of the CO₂-oil system and displacement mechanisms during CO₂ flooding[J]. Petroleum Science Bulletin, 2019, 4(1):69-82.
[7]	曹绪龙, 吕广忠, 王杰, 等. 胜利油田CO₂驱油技术现状及下步研究方向[J]. 油气藏评价与开发, 2020, 10(3):51-59.
	CAO Xulong, LYU Guangzhong, WANG Jie, et al. Present situation and further research direction of CO₂ flooding technology in Shengli oilfield[J]. Reservoir Evaluation and Development, 2020, 10(3):51-59.
[8]	刘笑春, 黎晓茸, 杨飞涛, 等. 长庆姬塬油田黄3区CO₂驱对采出原油物性影响[J]. 油气藏评价与开发, 2019, 9(3):36-40.
	LIU Xiaochun, LI Xiaorong, YANG Feitao, et al. Effect of CO₂ flooding on physical properties of produced crude oil in Huang 3 block of Changqing oilfield[J]. Reservoir Evaluation and Development, 2019, 9(3):36-40.
[9]	李阳. 低渗透油藏CO₂驱提高采收率技术进展及展望[J]. 油气地质与采收率, 2020, 27(1):1-10.
	LI Yang. Technical advancement and prospect for CO₂ flooding enhanced oil recovery in low permeability reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(1):1-10.
[10]	杨勇. 胜利油田特低渗透油藏CO₂驱技术研究与实践[J]. 油气地质与采收率, 2020, 27(1):11-19.
	YANG Yong. Research and application of CO₂ flooding technology in extra-low permeability reservoirs of Shengli oilfield[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(1):11-19.
[11]	朗东江, 伦增珉, 吕成远, 等. 页岩油注二氧化碳提高采收率影响因素核磁共振实验[J]. 石油勘探与开发, 2021, 48(3):603-612.
	LANG Dongjiang, LUN Zengmin, LYU Chengyuan, et al. Nuclear magnetic resonance experimental study of CO₂ injection to enhance shale oil recovery[J]. Petroleum Exploration and Development, 2021, 48(3):603-612.
[12]	张东, 刘显太, 刘彦东, 等. CO₂驱合理注入量计算方法[J]. 油气地质与采收率, 2020, 27(1):107-112.
	ZHANG Dong, LIU Xiantai, LIU Yandong, et al. Calculation method of reasonable injection amount of CO₂ flooding[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(1):107-112.
[13]	张涛, 李德宁, 崔轶男, 等. 板桥油田特高含水期水平井CO₂吞吐参数优化及实施[J]. 油气藏评价与开发, 2019, 9(3):51-56.
	ZHANG Tao, LI Dening, CUI Yinan, et al. Optimization and implementation of CO₂ huff and puff parameters of horizontal wells in Banqiao oilfield during extra high water cut period[J]. Reservoir Evaluation and Development, 2019, 9(3):51-56.
[14]	聂法健, 毛洪超, 王庆, 等. 中原油田CO₂驱提高采收率技术及现场实践[J]. 油气地质与采收率, 2020, 27(1):146-151.
	NIE Fajian, MAO Hongchao, WANG Qing, et al. CO₂ flooding for enhanced oil recovery technology and field practice in Zhongyuan oilfield[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(1):146-151.
[15]	黄程, 霍丽如, 吴辰泓. 基于非常规油气开发的CO₂资源化利用技术进展及前景[J]. 非常规油气, 2022, 9(1):1-9.
	HUANG Cheng, HUO Liru, WU Chenhong. Progress and prospect of CO₂ resource utilization technology based on unconventional oil and gas development[J]. Unconventional Oil & Gas, 2022, 9(1):1-9.
[16]	施雷庭, 张玉龙, 叶仲斌, 等. 玛湖砂砾岩致密油藏水平井CO₂吞吐现场试验效果分析[J]. 油气藏评价与开发, 2021, 11(6):871-877.
	SHI Leiting, ZHANG Yulong, YE Zhongbin, et al. Field test effect analysis of CO₂huff and puff for EOR of horizontal wells in tight glutenite reservoir of Mahu oilfield[J]. Petroleum Reservoir Evaluation and Development, 2021, 11(6):871-877.
[17]	苏玉亮, 陈征, 唐梅荣, 等. 致密储层不同驱替方式下超临界CO₂蓄能返排效果实验研究[J]. 油气地质与采收率, 2020, 27(5):79-85.
	SU Yuliang, CHEN Zheng, TANG Meirong, et al. Experimental study of supercritical CO₂ storage flowback under different displacement methods in tight reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(5):79-85.
[18]	魏兵, 张翔, 刘江, 等. 致密油藏提高采收率现场试验进展和启示[J]. 新疆石油地质, 2021, 42(4):495-505.
	WEI Bing, ZHANG Xiang, LIU Jiang, et al. Progress and enlightenment of EOR field tests in tight oil reservoirs[J]. Xinjing Petroleum Geology, 2021, 42(4):495-505.
[19]	汤翔, 李宜强, 韩雪, 等. 致密油二氧化碳吞吐动态特征及影响因素[J]. 石油勘探与开发, 2021, 48(4):817-824. doi: 10.11698/PED.2021.04.14
	TANG Xiang, LI Yiqiang, HAN Xue, et al. Dynamic characteristics and influencing factors of CO₂ huff and puff in tight oil reservoirs[J]. Petroleum Exploration and Development, 2021, 48(4):817-824.
[20]	李士伦, 孙雷, 陈祖华, 等. 再论CO₂驱提高采收率油藏工程理念和开发模式的发展[J]. 油气藏评价与开发, 2020, 10(3):1-14.
	LI Shilun, SUN Lei, CHEN Zuhua, et al. Further discussion on reservoir engineering concept and development model of CO₂ flooding-EOR technology[J]. Reservoir Evaluation and Development, 2020, 10(3):1-14.
