High-Precision Seismic Imaging of Western Qiulitag Structural Belt in Kuqa Depression

doi:10.7657/XJPG20230516

Abstract

Abstract:

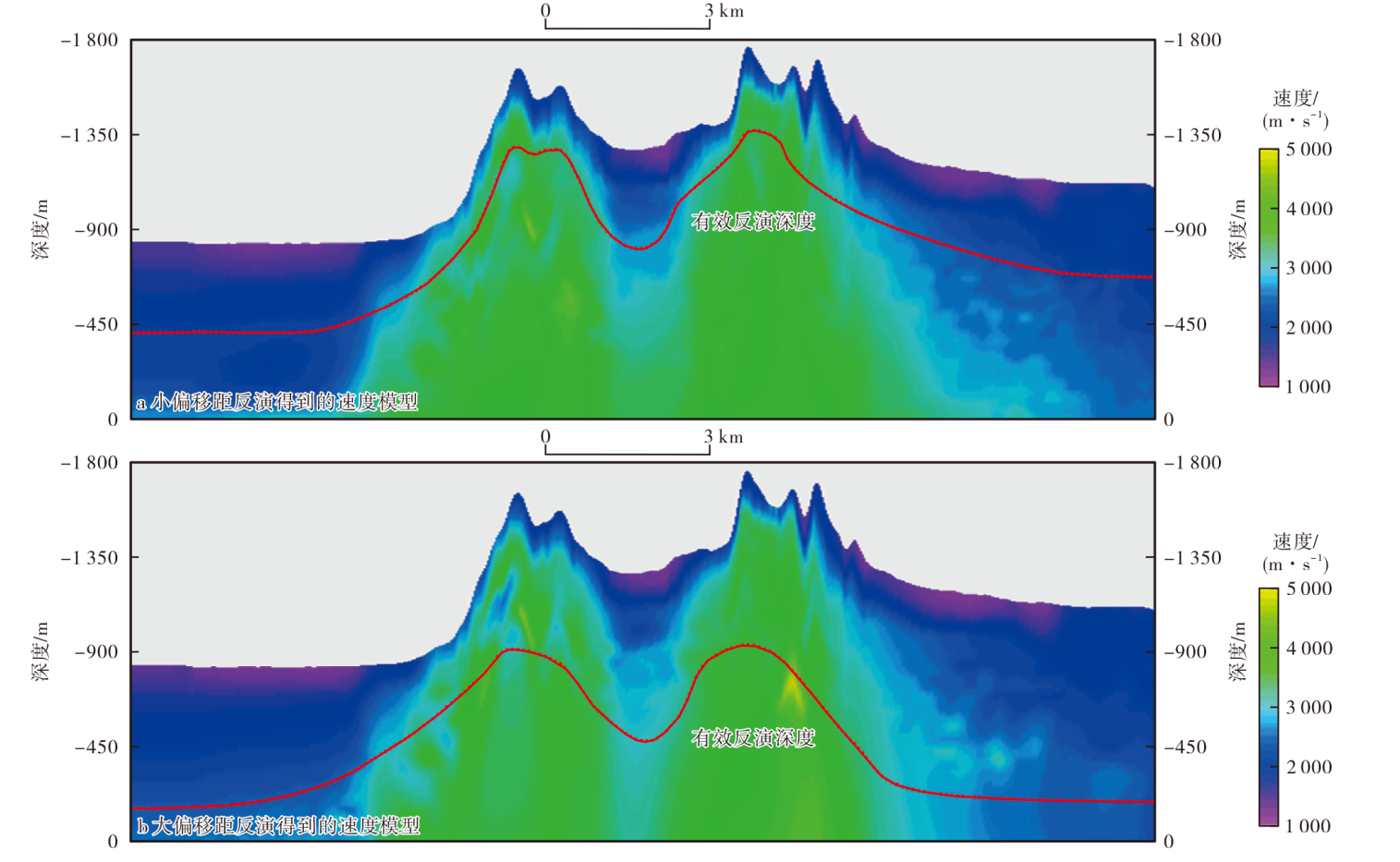

The western Qiulitag structural belt is an important successive area for oil and gas exploration in the Kuqa depression, Tarim basin. Its complex surface and underground geological conditions bring challenges to seismic survey. It has been less explored in the main structural belt, where the high steep structural features and complex fault systems cannot be depicted by using previous 2D (single-line and wide-line) seismic data. To address this problem, a combination of wide-frequency band, wide-azimuth and high-density 3D seismic survey and high-density cable 3D seismic survey is used to increase the effective folds in the complex, high, steep structural areas. The microlog-constrained shallow surface velocity modeling is conducted to improve the static correction accuracy in complex mountainous areas and thick gravel-covered piedmont areas. The six-division method for denoising is adopted to improve the signal-to-noise ratio of seismic data in inter-salt and pre-salt structures. The five-dimensional interpolation and regularization technique is applied to mitigate the impact of irregular observation system in mountainous areas on pre-stack depth migration imaging. Moreover, two-way wave reverse time-migration is performed to increase the migration imaging precision of highly steep formations. Through acquisition-processing integration and seismic-geological fusion, the seismic imaging precision in the western Qiulitag structural belt can be significantly improved.

Key words: western Qiulitag structural belt, wide-azimuth, wide frequency band, high-density, velocity model, denoising, five-dimensional interpolation, regularization, reverse time migration

CLC Number:

P631.443

ZHANG Xiangquan, GU Yongxing, LIU Jun, PEI Jiading, GU Xiaodi. High-Precision Seismic Imaging of Western Qiulitag Structural Belt in Kuqa Depression[J]. Xinjiang Petroleum Geology, 2023, 44(5): 626-633.

Figures/Tables 8

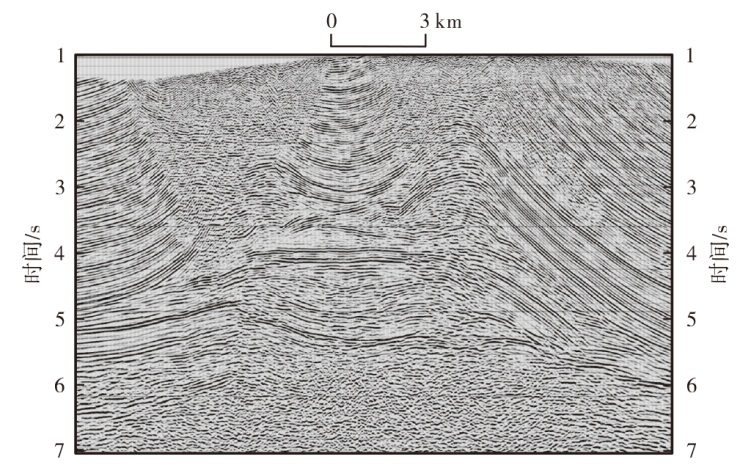

Fig. 1.

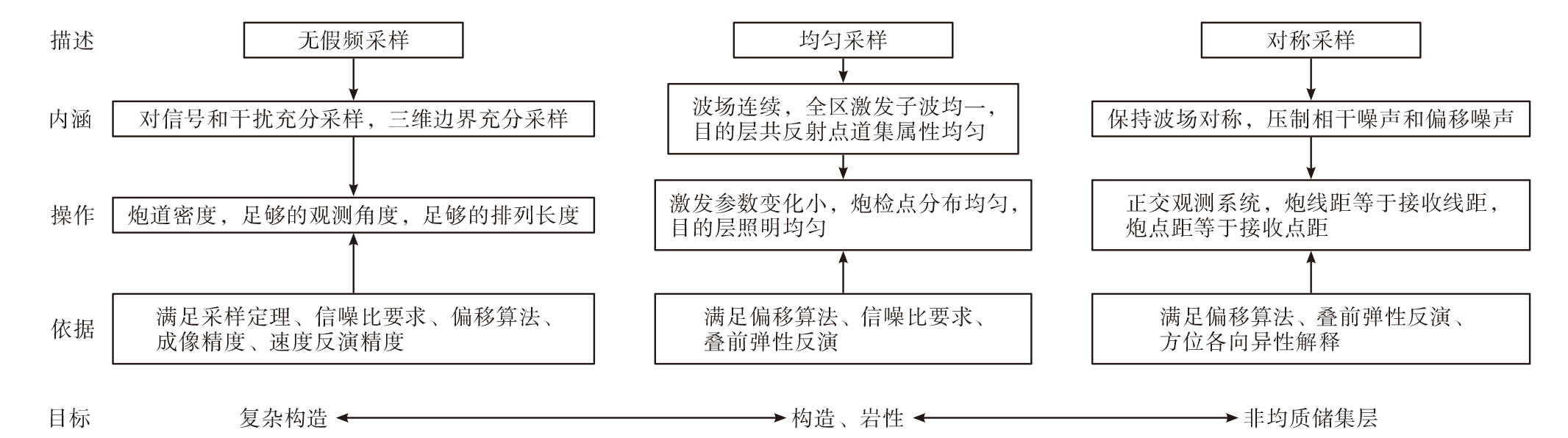

Fig. 2.

Fig. 3.

Fig. 4.

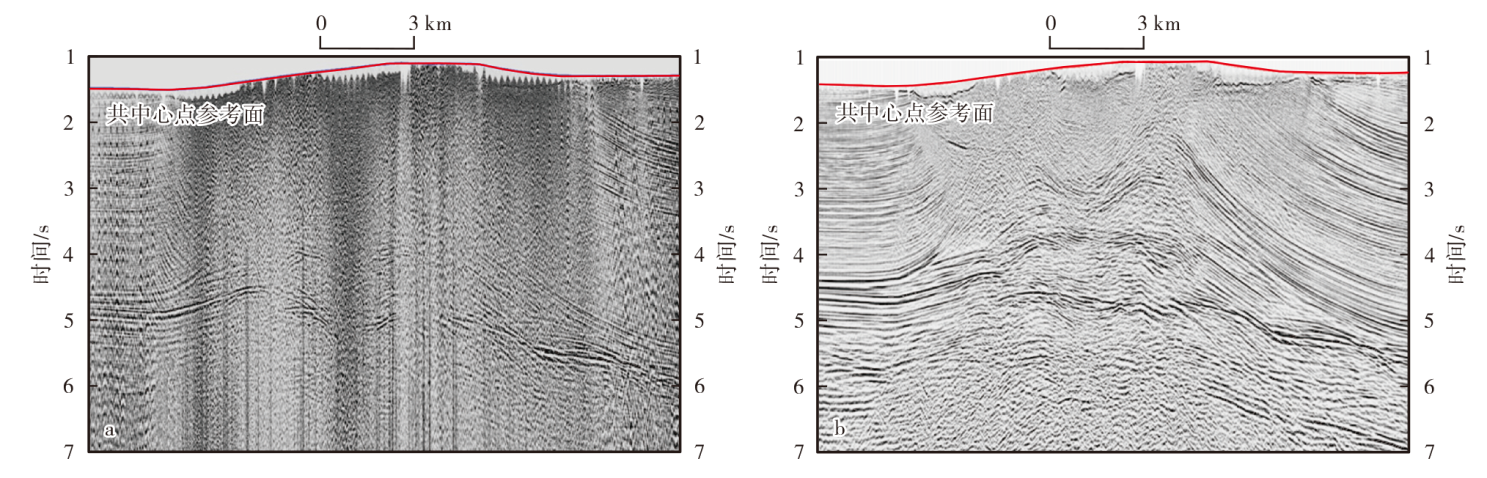

Fig. 5.

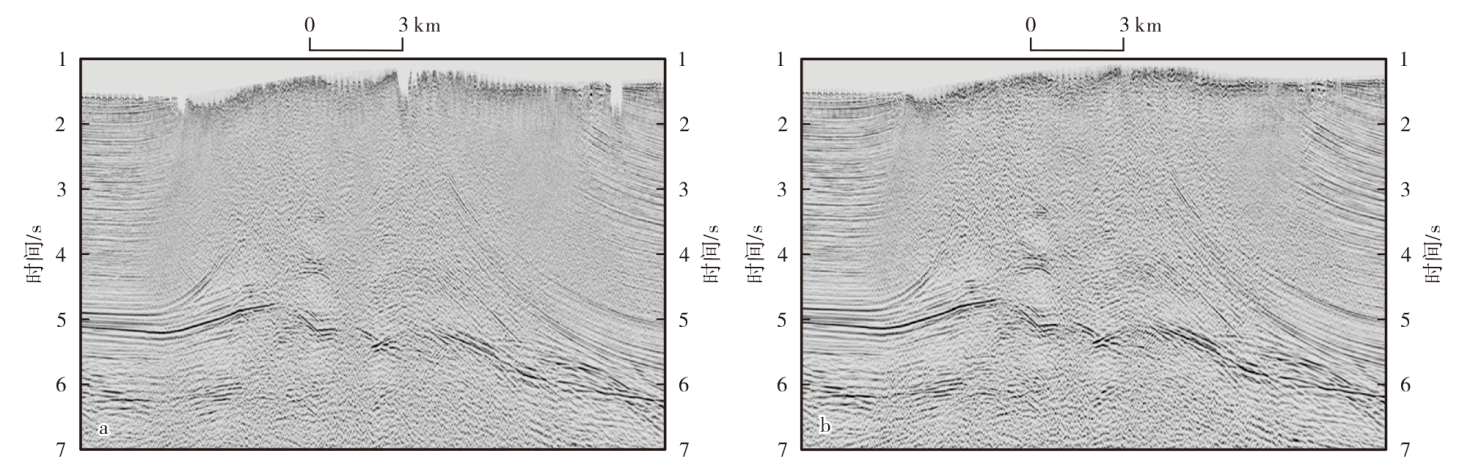

Fig. 6.

Fig. 7.

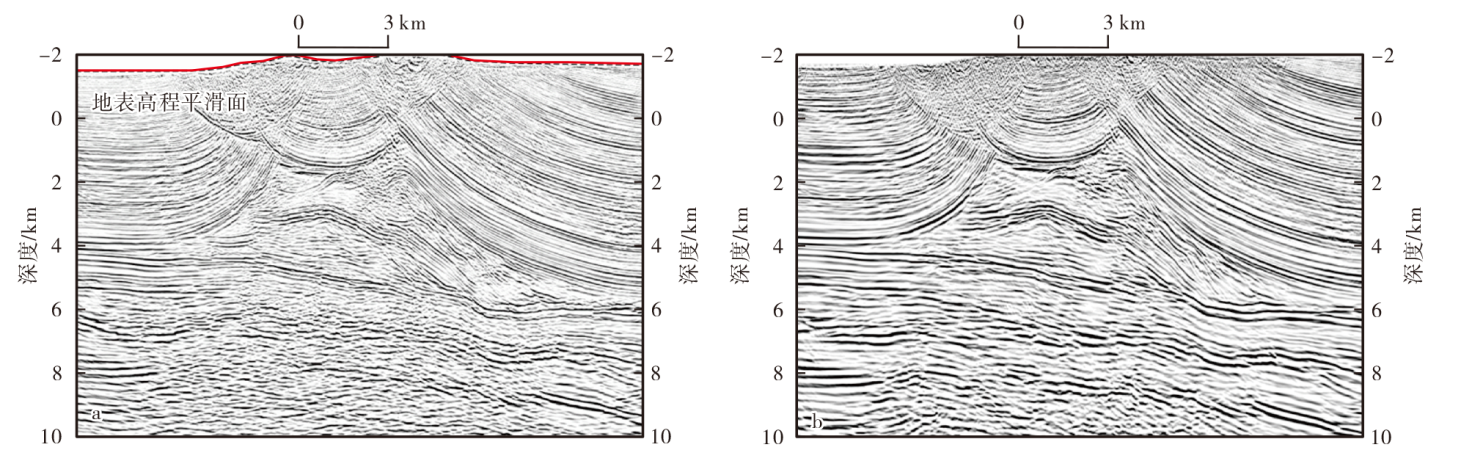

Fig. 8.

References 25

[1]	张坦, 齐育楷, 姚威, 等. 塔里木盆地库车坳陷南斜坡三叠系烃源岩热演化特征及油气地质意义[J]. 石油实验地质, 2022, 44(6):1018-1027.
	ZHANG Tan, QI Yukai, YAO Wei, et al. Thermal evolution characteristics of Triassic source rocks and their petroleum geological significance on the southern slope of Kuqa depression,Tarim basin[J]. Petroleum Geology & Experiment, 2022, 44(6):1018-1027.
[2]	易士威, 李明鹏, 范土芝, 等. 塔里木盆地库车坳陷克拉苏和东秋断层上盘勘探突破方向[J]. 石油与天然气地质, 2021, 42(2):309-324.
	YI Shiwei, LI Mingpeng, FAN Tuzhi, et al. Exploration directions on the Kelasu and East-Qiulitag fault hanging walls,Kuqa depression,Tarim basin[J]. Oil & Gas Geology, 2021, 42(2):309-324.
[3]	李宝帅. 库车坳陷克拉苏构造带深层致密砂岩气成藏机制[J]. 特种油气藏, 2021, 28(1):17-22.
	LI Baoshuai. Accumulation mechanism of deep tight sandstone gas reservoir in Kelasu structural belt,Kuqa depression[J]. Special Oil & Gas Reservoirs, 2021, 28(1):17-22.
[4]	蔡振忠, 徐珂, 张辉, 等. 基于地质工程一体化的超深井提速提产:以塔里木盆地库车坳陷为例[J]. 新疆石油地质, 2022, 43(2):206-213.
	CAI Zhenzhong, XU Ke, ZHANG Hui, et al. ROP improvement and production enhancement for ultra-deep wells based on geology-engineering integration:A case in Kuqa depression,Tarim basin[J]. Xinjiang Petroleum Geology, 2022, 43(2):206-213.
[5]	JONES L F. An introduction to:Velocity model building[M]. Netherland: European Association of Geoscientists & Engineers, 2010:105-123.
[6]	ALEIXO R, SCHLEICHER J. Time and depth remigratiom in elliptically anisotropic media using image-wawe propagation[J]. Geophysics, 2007, 72:11-15.
[7]	谷永兴. 库车坳陷复杂构造处理解释一体化研究[D]. 山东青岛: 中国石油大学(华东), 2010:33-42.
	GU Yongxing. Integrated research on processing and interpretation of complex structures in Kuqa depression[D]. Qingdao,Shandong: China University of Petroleum(East China), 2010:33-42.
[8]	周旭, 刘依谋, 王乃建, 等. 三维观测系统对复杂构造叠前成像效果的影响分析[J]. 油气藏评价与开发, 2015, 5(2):11-16.
	ZHOU Xu, LIU Yimou, WANG Naijian, et al. Analysis on influence of 3D geometry on prestack imaging of complex structures[J]. Reservoir Evaluation and Development, 2015, 5(2):11-16.
[9]	冯许魁, 朱斗星, 商国玺, 等. 库车前陆冲断带构造变形特征物理模拟[J]. 河南理工大学学报(自然科学版), 2015, 34(3):339-343.
	FENG Xukui, ZHU Douxing, SHANG Guoxi, et al. Physical modeling of the tectonic characteristics of foreland thrust belt in Kuqa[J]. Journal of Henan Polytechnic University(Natrual Science), 2015, 34(3):339-343.
[10]	曾庆才, 曾同生, 欧阳永林, 等. 盐下高陡构造成像技术:以塔里木盆地库车坳陷克深地区为例[J]. 石油勘探与开发, 2017, 44(6):871-879. doi: 10.11698/PED.2017.06.04
	ZENG Qingcai, ZENG Tongsheng, OUYANG Yonglin, et al. Subsalt high steep structure imaging technique:A case study of Keshen area in Kuqa depression,Tarim basin,NW China[J]. Petroleum Exploration and Development, 2017, 44(6):871-879.
[11]	方勇, 罗文山, 姜翠苹, 等. 库车山地地震资料层析静校正方法的应用[J]. 石油地球物理勘探, 2017, 52(增刊1):25-27.
	FANG Yong, LUO Wenshan, JIANG Cuiping, et al. Tomo-statics for Kuqa seismic data[J]. Oil Geophysical Prospecting, 2017, 52(Supp.1):25-27.
[12]	巫芙蓉, 郭海洋, 刁永波, 等. 塔里木盆地秋里塔格构造带双复杂构造地震处理技术[J]. 天然气工业, 2019, 39(4):28-36.
	WU Furong, GUO Haiyang, DIAO Yongbo, et al. Seismic processing technologies for double complex structures in the Qiulitage structural belt,Tarim basin[J]. Natural Gas Industry, 2019, 39(4):28-36.
[13]	吴超, 许安明, 尚江伟, 等. TTI各向异性叠前深度偏移技术在库车复杂山地的应用[J]. 新疆石油地质, 2019, 40(1):103-107.
	WU Chao, XU Anming, SHANG Jiangwei, et al. Application of TTI anisotropic prestack depth migration technology in complex mountain areas of Kuqa depression[J]. Xinjiang Petroleum Geology, 2019, 40(1):103-107.
[14]	王学军, 于宝利, 赵小辉, 等. 油气勘探中“两宽一高”技术问题的探讨与应用[J]. 中国石油勘探, 2015, 20(5):41-53.
	WANG Xuejun, YU Baoli, ZHAO Xiaohui, et al. Development and application of “2W1H” technique in oil and gas exploration[J]. China Petroleum Exploration, 2015, 20(5):41-53.
[15]	包燚, 陈志德, 王成, 等. 松辽盆地古龙页岩油保真宽频宽方位各向异性地震处理技术[J]. 大庆石油地质与开发, 2021, 40(5):106-120.
	BAO Yi, CHEN Zhide, WANG Cheng, et al. Seismic processing technology of fidelity broadband wide-azimuth anisotropy for Gulong shale oil in Songliao basin[J]. Petroleum Geology & Oilfield Development in Daqing, 2021, 40(5):106-120.
[16]	王孝, 刘文卿, 曾华会, 等. 复杂区分层约束近地表建模方法及应用[J]. 岩性油气藏, 2018, 30(5):68-73.
	WANG Xiao, LIU Wenqing, ZENG Huahui, et al. Stratified constrained near-surface model building method and its application in complex surface area[J]. Lithologic Reservoirs, 2018, 30(5):68-73.
[17]	韩淼, 白忠凯, 杨有星. 塔里木盆地西南坳陷山前带复杂地震资料“六分法”叠前去噪方法应用研究[J]. 地球物理学进展, 2016, 31(3):1088-1 094.
	HAN Miao, BAI Zhongkai, YANG Youxing. Application and study of six-division method of denoising prestack technology in complex seismic data processing for piedmont belt of southwest depreesion in Tarim basin[J]. Progress in Geophysics, 2016, 31(3):1088-1 094.
[18]	梁东辉. 基于傅里叶变换的地震数据规则化和插值[D]. 杭州: 浙江大学, 2015.
	LIANG Donghui. Seismic data normalization and interpolation based on Fourier transform[D]. Hangzhou: Zhejiang University, 2015.
[19]	崔永福, 郭念民, 吴国忱, 等. 不规则观测系统数据规则化及在相干噪声压制中的应用[J]. 石油物探, 2016, 55(4):524-532. doi: 10.3969/j.issn.1000-1441.2016.04.007
	CUI Yongfu, GUO Nianmin, WU Guochen, et al. Regularization of irregular geometry seismic data and its application in the coherent noise suppression[J]. Geophysical Prospecting for Petroleum, 2016, 55(4):524-532. doi: 10.3969/j.issn.1000-1441.2016.04.007
[20]	王伟, 陈双廷, 王宝彬, 等. 五维规则化技术研究与应用[J]. 石油地球物理勘探, 2017, 52(增刊1):28-33.
	WANG Wei, CHEN Shuangting, WANG Baobin, et al. Application of 5D regularization in seismic data processing[J]. Oil Geophysical Prospecting, 2017, 52 (Supp.1):28-33.
[21]	梁向豪, 李书君, 吴超, 等. 库车大北构造带三维叠前深度偏移处理解释技术[J]. 中国石油勘探, 2011, 16(5/6):8-13.
	LIANG Xianghao, LI Shujun, WU Chao, et al. 3D prestack depth processing and interpretation in Dabei structure belt,Kuqa depression[J]. China Petroleum Exploration, 2011, 16(5/6):8-13.
[22]	陈可洋, 杨微, 赵海波, 等. VSP逆时偏移技术及其成像效果[J]. 新疆石油地质, 2022, 43(5):617-623.
	CHEN Keyang, YANG Wei, ZHAO Haibo, et al. VSP reverse time migration technology and its imaging effect[J]. Xinjiang Petroleum Geology, 2022, 43(5):617-623.
[23]	熊晶璇, 贺振华, 刘鸿, 等. 山地复杂构造区叠前深度偏移初始层速度约束反演改进新方法[J]. 天然气工业, 2022, 42(5):47-55.
	XIONG Jingxuan, HE Zhenhua, LIU Hong, et al. An improved constrained initial layer velocity inversion method for pre-stack depth migration in mountainous complex structure areas[J]. Natural Gas Industry, 2022, 42(5):47-55.
[24]	曲英铭, 魏哲枫, 刘畅, 等. 面向高陡构造的黏声棱柱波逆时偏移[J]. 石油地球物理勘探, 2020, 55(4):793-803.
	QU Yingming, WEI Zhefeng, LIU Chang, et al. Viscoacoustic reverse time migration of prismatic wave for steeply dipped structures[J]. Oil Geophysical Prospecting, 2020, 55(4):793-803.
[25]	谢会文, 吴超, 徐振平, 等. TTI各向异性叠前深度偏移在高陡构造区应用[J]. 物探化探计算技术, 2013, 35(4):399-403.
	XIE Huiwen, WU Chao, XU Zhenping, et al. Application in precipitous structure area using the prestack depth migration in TTI media[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2013, 35(4):399-403.
