Layered Modeling Algorithms and Cases for Different Reservoir Development Stages

doi:10.7657/XJPG20240116

Abstract

Abstract:

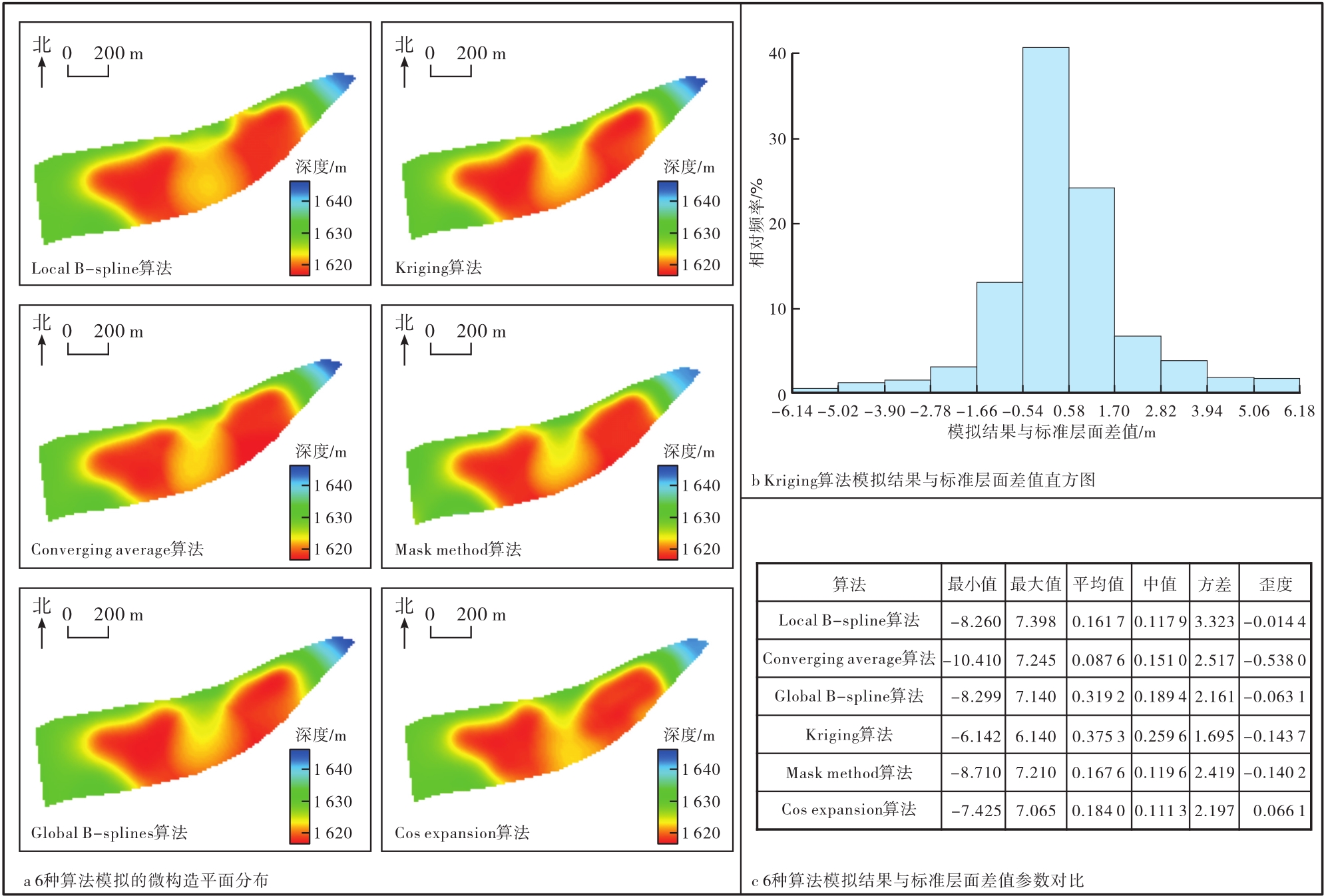

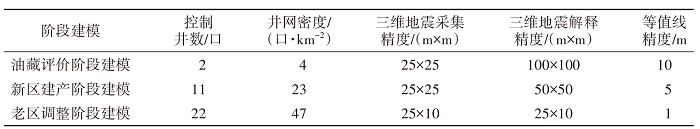

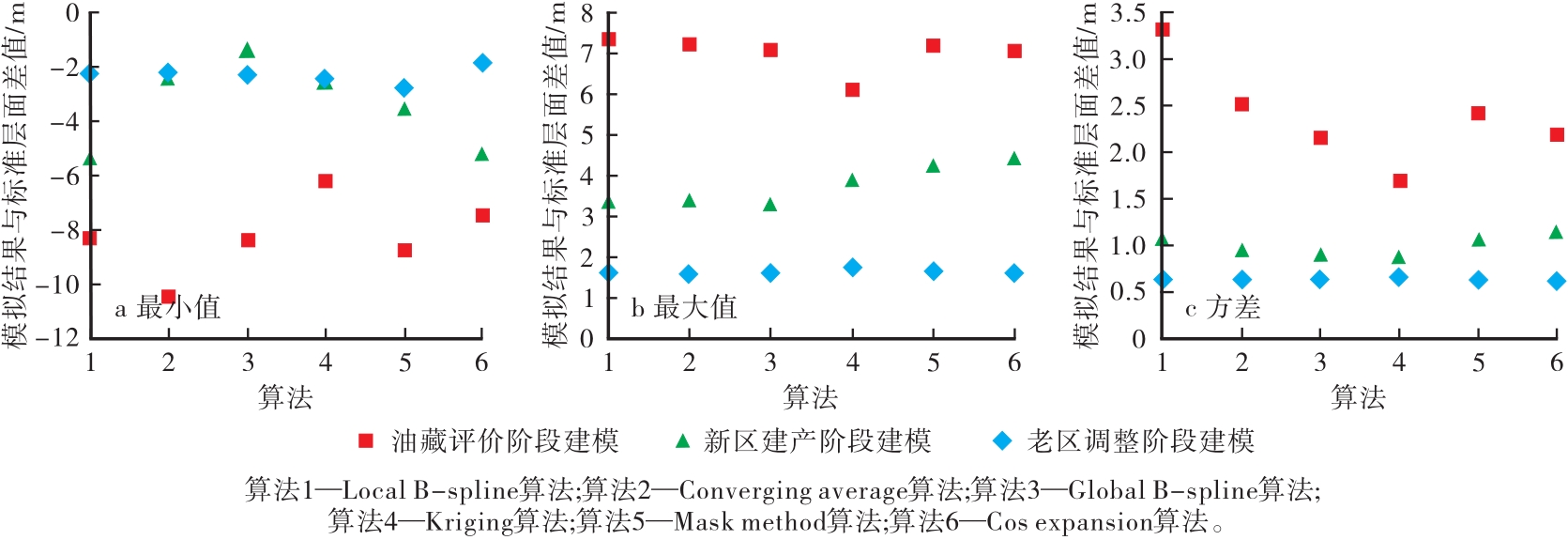

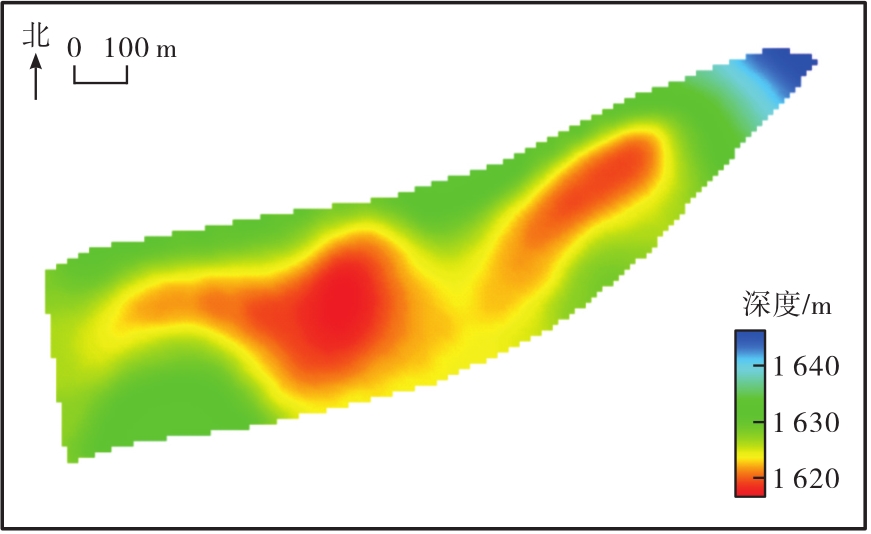

The simulation methods and model precision adopted for layered modeling in 3D geological modeling vary with reservoir characteristics and research purposes at different development stages. From the perspective of 3D geological modeling，the reservoir development can be divided into three stages: reservoir evaluation，new block development，and existing block adjustment. The layered modeling algorithms were analyzed and selected for the 5th fault block in Gangdong district 2. It is proposed that the Kriging algorithm should be used for modeling at the reservoir evaluation stage，with a grid resolution of 100 m × 100 m × 5.0 m；the Kriging or Global B-spline algorithm should be used for modeling at the new block development stage，with a grid resolution of 50 m × 50 m × 1.5 m；and the Local B-spline or Converging average algorithm should be used for modeling at the existing block adjustment stage，with a grid resolution of 10 m × 10 m × 0.5 m. This modeling approach can provide results in more coincidence with actual geological conditions and can meet requirements for reservoir research at each stage.

Key words: reservoir development, stage division, layered modeling, simulation algorithm, standard layer, reservoir evaluation, new block development, existing block adjustment

CLC Number:

TE122

ZUO Yi, SONG Jing, SHI Zhuoli, QIAO Jingxuan, ZU Xiuran, ZHENG Jie. Layered Modeling Algorithms and Cases for Different Reservoir Development Stages[J]. Xinjiang Petroleum Geology, 2024, 45(1): 118-125.

Figures/Tables 9

Table 1.

Fig. 1.

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

Fig. 8.

References 22

[1]	吕晓光. 数字油藏类比知识在开发全过程动态预测中的应用[J]. 大庆石油地质与开发, 2018, 37(1):76-82.
	LV Xiaoguang. Application of the digital reservoir analog knowledge in the dynamic prediction of the lifecycle production process[J]. Petroleum Geology & Oilfield Development in Daqing, 2018, 37(1):76-82.
[2]	贾爱林, 程立华. 数字化精细油藏描述程序方法[J]. 石油勘探与开发, 2010, 37(6):709-715.
	JIA Ailin, CHENG Lihua. The technique of digital detailed reservoir characterization[J]. Petroleum Exploration and Development, 2010, 37(6):709-715. doi: 10.1016/S1876-3804(11)60005-0
[3]	纪佑军, 程林松, 刘其成, 等. 超稠油油藏蒸汽与非凝析气驱油数字化实验[J]. 石油学报, 2010, 31(4):602-606. doi: 10.7623/syxb201004014
	JI Youjun, CHENG Linsong, LIU Qicheng, et al. Digital experiment on steam and in-condensable gas push for extra heavy oil reservoir[J]. Acta Petrolei Sinica, 2010, 31(4):602-606. doi: 10.7623/syxb201004014
[4]	高文君, 铁麒, 郑巍, 等. 水驱油藏见水后 Welge方程的确定及应用[J]. 新疆石油地质, 2022, 43(1):79-84.
	GAO Wenjun, TIE Qi, ZHENG We, et al. Determination and application of Welge equation for reservoirs after water breakthrough[J]. Xinjiang Petroleum Geology, 2022, 43(1):79-84.
[5]	但玲玲, 史长林, 文佳涛, 等. 多信息融合裂缝建模技术在碳酸盐岩双重介质油藏开发中的应用[J]. 油气地质与采收率, 2022, 29(1):46-52.
	DAN Lingling, SHI Changlin, WEN Jiatao, et al. Application of multi-information fusion modeling technology for fractures in dual-medium carbonate reservoir[J]. Petroleum Geology and Recovery Efficiency, 2022, 29(1):46-52.
[6]	方度, 贾倩. 油气藏描述基本内容及方法的几点认识[J]. 石油地质与工程, 2007, 21(6):43-46.
	FANG Du, JIA Qian. Some understandings on the basic contents and methods of reservoir description[J]. Petroleum Geology and Engineering, 2007, 21(6):43-46.
[7]	赵明元. 砂岩油田开发阶段划分问题的探讨[J]. 石油勘探与开发, 1986, 2:51-57.
	ZHAO Mingyuan. A discussion on the division of the stages in the sandstone oil field development[J]. Petroleum Exploration and Development, 1986, 2:51-57.
[8]	孙亮, 李勇, 李保柱. 中东地区碳酸盐岩油藏分类评价方法与注水开发对策[J]. 石油学报, 2022, 43(2):270-280. doi: 10.7623/syxb202202009
	SUN Liang, LI Yong, LI Baozhu. Classified evalution methods and waterflood development strategies for carbonate reservoirs in the Middle East[J]. Acta Petrolei Sinica, 2022, 43(2):270-280. doi: 10.7623/syxb202202009
[9]	裘亦楠. 石油开发地质方法论(一)[J]. 石油勘探与开发, 1996, 23(2):43-47.
	QIU Yinan. The methodology of petroleum development geology(Ⅰ)[J]. Petroleum Exploration and Development, 1996, 23(2):43-47.
[10]	童宪章. 天然水驱和人工注水油藏的统计规律探讨[J]. 石油勘探与开发, 1978, 5(6):38-67.
	TONG Xianzhang. Discussion on statistical law of natural water drive and artificial water injection reservoirs[J]. Petroleum Exploration and Development, 1978, 5(6):38-67.
[11]	王志章, 韩海英. 现代油藏描述关键技术[J]. 地学前缘(中国地质大学(北京);北京大学), 2011, 18(5):296-302.
	WANG Zhizhang, HAN Haiying. The key technologies of advanced characterization[J]. Earth Science Frontiers(China University of Geosciences(Beijing);Peking University), 2011, 18(5):296-302.
[12]	雷泽萱, 辛显康, 喻高明, 等. 基于数值模拟的油藏生产动态优化算法[J]. 新疆石油地质, 2022, 43(5):612-616.
	LEI Zexuan, XIN Xiankang, YU Gaoming, et al. Reservoir production performance optimization algorithm based on numerical simulation[J]. Xinjiang Petroleum Geology, 2022, 43(5):612-616.
[13]	李晓光, 陈永成, 李玉金, 等. 渤海湾盆地辽河坳陷油气勘探历程与启示[J]. 新疆石油地质, 2021, 42(3):291-301.
	LI Xiaoguang, CHEN Yongcheng, LI Yujin, et al. Petroleum exploration history and enlightenment of Liaohe depression in Bohai Bay basin[J]. Xinjiang Petroleum Geology, 2021, 42(3):291-301.
[14]	李俊飞, 霍春亮, 叶小明, 等. 渤海海域L油田砂质辫状河储层构型特征[J]. 油气地质与采收率, 2017, 24(6):49-53.
	LI Junfei, HUO Chunliang, YE Xiaoming. Internal architecture characteristics of sandy braided-river reservoirs in L oilfield,Bohai Bay basin[J]. Petroleum Geology and Recovery Efficiency, 2017, 24(6):49-53.
[15]	肖大坤, 胡光义, 范廷恩, 等. 现代曲流河沉积原型建模及构型级次特征探讨:以海拉尔河、潮白河为例[J]. 中国海上油气, 2018, 30(1):118-126.
	XIAO Dakun, HU Guangyi, FAN Ting’en, et al. Prototype model of modern fluvial deposits and discussion on architectural units:A case study of Hailar river and Chaobai river[J]. China Offshore Oil and Gas, 2018, 30(1):118-126.
[16]	芦凤明, 蔡明俊, 张阳, 等. 碎屑岩储层构型分级方案与研究方法探讨[J]. 岩性油气藏, 2020, 32(6):1-11.
	LU Fengming, CAI Mingjun, ZHANG Yang, et al. Discussion on architecture classification scheme and research methods of clastic reservoir[J]. Lithologic Reservoirs, 2020, 32(6):1-11.
[17]	胡光义, 范廷恩, 梁旭, 等. 河流相储层复合砂体构型概念体系、表征方法及其在渤海油田开发中的应用探索[J]. 中国海上油气, 2018, 30(1):90-98.
	HU Guangyi, FAN Ting’en, LIANG Xu, et al. Concept system and characterization method of compound sandbody architecture in fluvial reservoir and its application exploration in development of Bohai oilfield[J]. China Offshore Oil and Gas, 2018, 30(1):90-98.
[18]	吴胜和, 纪友亮, 岳大力, 等. 碎屑沉积地质体构型分级方案探讨[J]. 高校地质学报, 2013, 19(1):12-22.
	WU Shenghe, JI Youliang, YUE Dali, et al. Discussion on hierarchical scheme of architectural units in clastic deposits[J]. Geological Journal of China Universities, 2013, 19(1):12-22.
[19]	孟宪海, 杨钦, 李吉刚, 等. 基于层面结构的三维闭合地质区块构造算法[J]. 北京航空航天大学学报, 2005, 31(2):182-186.
	MENG Xianhai, YANG Qin, LI Jigang, et al. Construction of coherent 3D geological blocks from stratified geological structure[J]. Journal of Beijing University of Aeronautics and Astronautics, 2005, 31(2):182-186.
[20]	魏嘉, 唐杰, 岳承祺, 等. 三维地质构造建模技术研究[J]. 石油物探, 2008, 47(4):320-327.
	WEI Jia, TANG Jie, YUE Chengqi, et al. Study of 3-D geological structure model building[J]. Geophysical Prospecting for Petroleum, 2008, 47(4):320-327.
[21]	侯晓琳. 三维地质界面曲面建模关键算法[J]. 科学技术与工程, 2017, 17(26):239-244.
	HOU Xiaolin. The key algorithms of 3D geological interface modeling[J]. Science Technology and Engineering, 2017, 17(26):239-244.
[22]	张会卿, 王延奇, 李佩敬. 高频拓展处理技术在港东二区五断块的应用[J]. 石油地质与工程, 2015, 29(4):60-62.
	ZHANG Huiqing, WANG Yanqi, LI Peijing. Application of high frequency expanding technology in fault Block-5 of Gangdong II area[J]. Petroleum Geology and Engineering, 2015, 29(4):60-62.
