Genesis of Differential Bonding Between Zeolite Cements and Clastic Particles in Sandy Conglomerates in Shawan Sag，Junggar Basin

doi:10.7657/XJPG20240204

Abstract

Abstract:

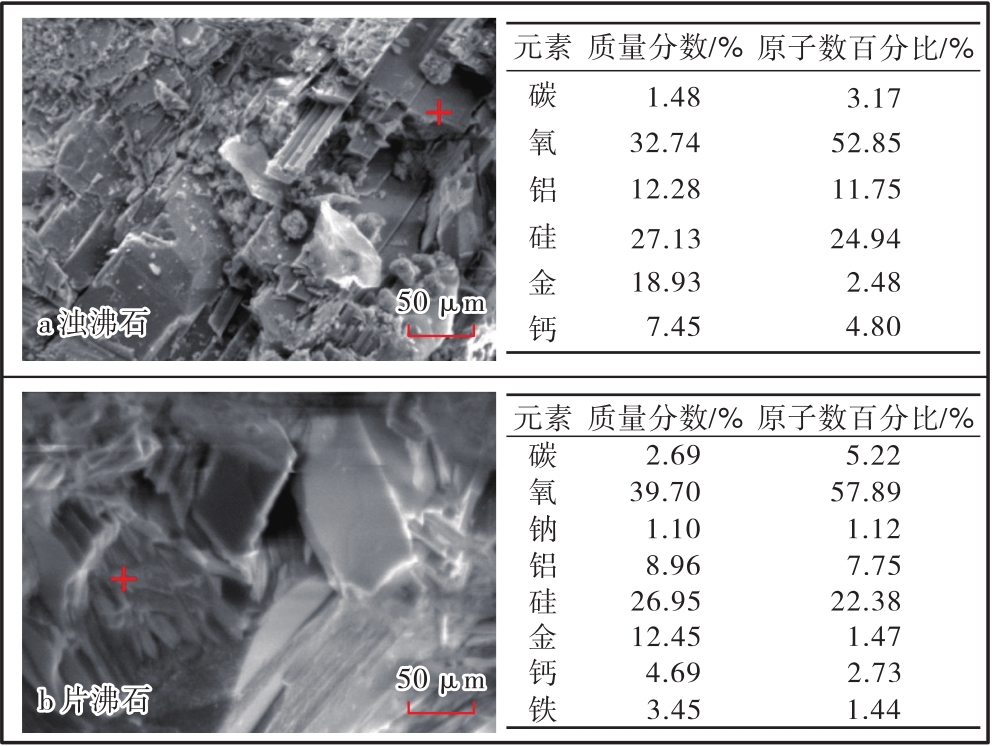

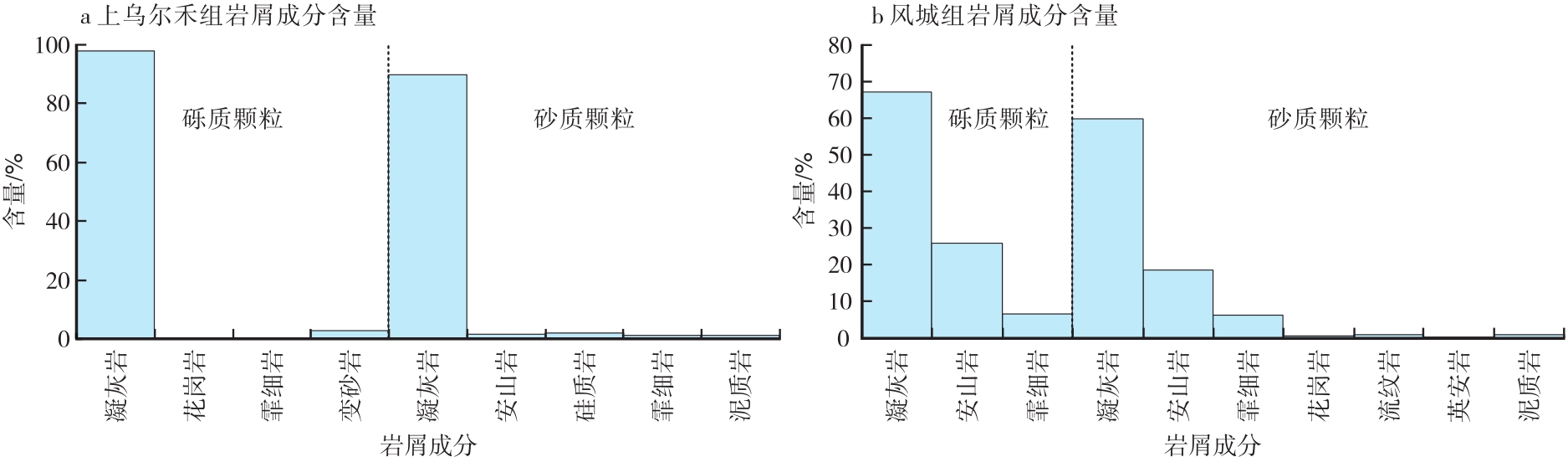

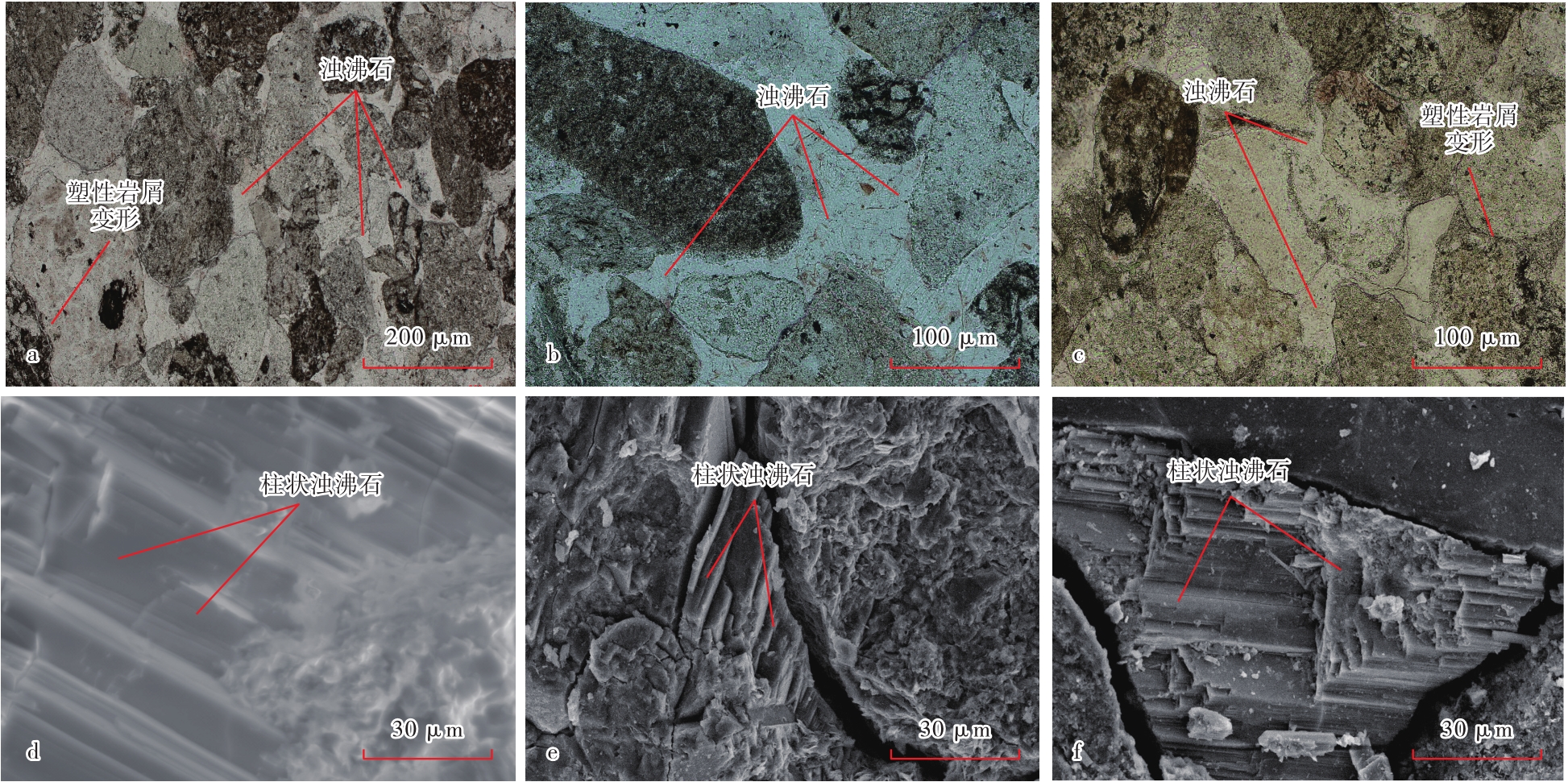

Through thin section and scanning electron microscopy （SEM） observations and energy spectrum analysis, the types and characteristics of zeolite cements in the Permian sandy conglomerate reservoirs in the Shawan sag of Junggar basin were identified, and the mechanism of differential bonding between zeolite cements and clastic particles was clarified. The results show that in the Upper Permian upper Wuerhe reservoirs, the plastic deformation of rock fragments and alkaline formation water result in strong bonding between laumontites and clastic particles and in the Lower Permian Fengcheng reservoirs, laumontites are lowly bonded with clastic particles under the conditions of abnormally high pressure, and acidic fluids, while heulandites are highly bonded with clastic particles due to their crystal characteristics. The differential bonding between zeolite cements and clastic particles in the upper Wuerhe and Fengcheng reservoirs are mainly related to rock composition, abnormal pressure, mineral type, crystal structure, and the degree of late diagenetic fluid alteration.

Key words: Shawan sag, Permian, upper Wuerhe formation, Fengcheng formation, zeolite cement, clastic particle, differential bonding, genesis analysis

CLC Number:

TE122

KUANG Hao, ZHOU Yuandong, LIU Hao, PAN Lang, ZHOU Runchi, WANG Junmin, TAN Xianfeng. Genesis of Differential Bonding Between Zeolite Cements and Clastic Particles in Sandy Conglomerates in Shawan Sag，Junggar Basin[J]. Xinjiang Petroleum Geology, 2024, 45(2): 163-171.

Figures/Tables 12

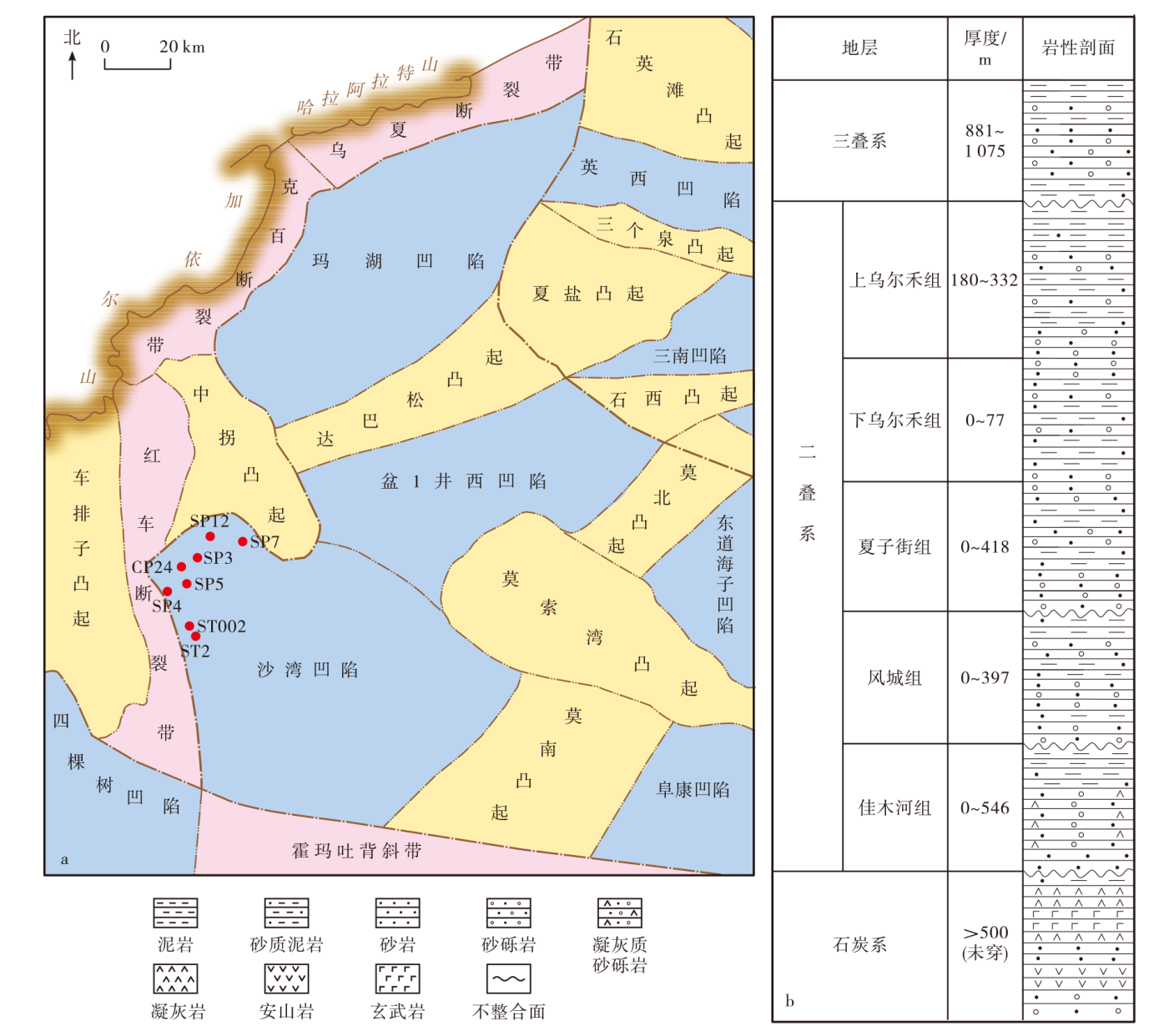

Fig. 1.

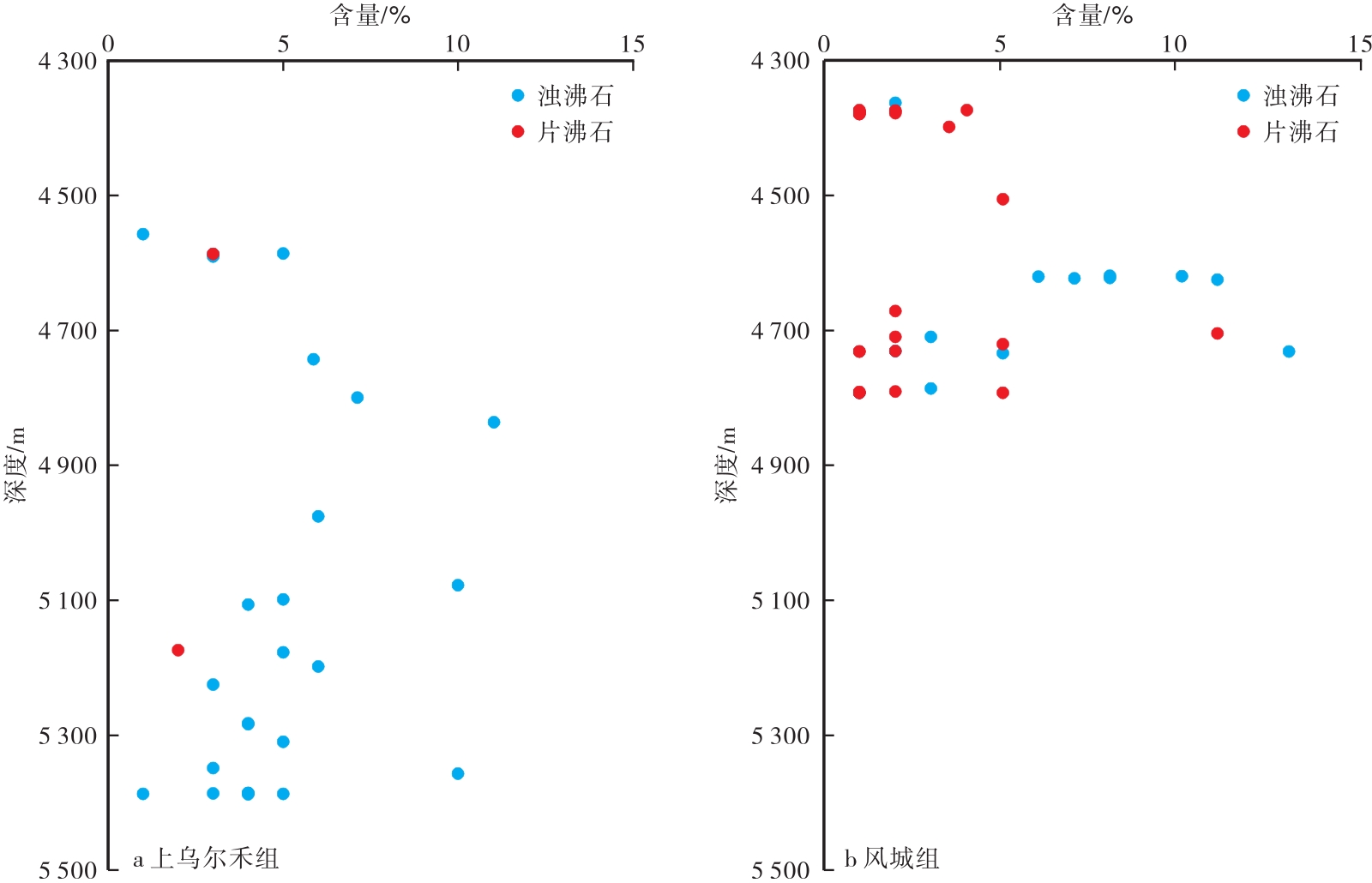

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

Table 1.

Fig. 8.

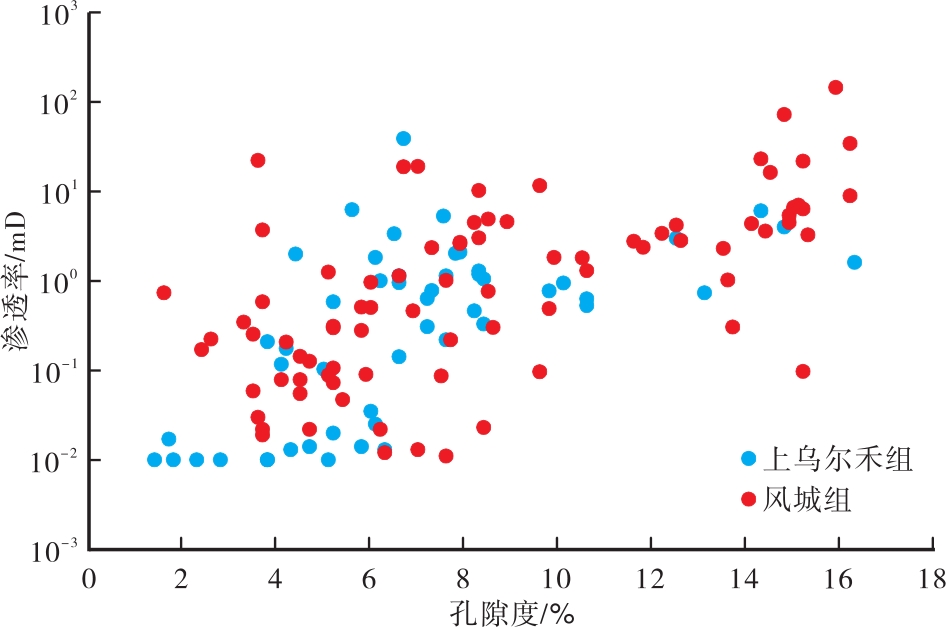

Fig. 9.

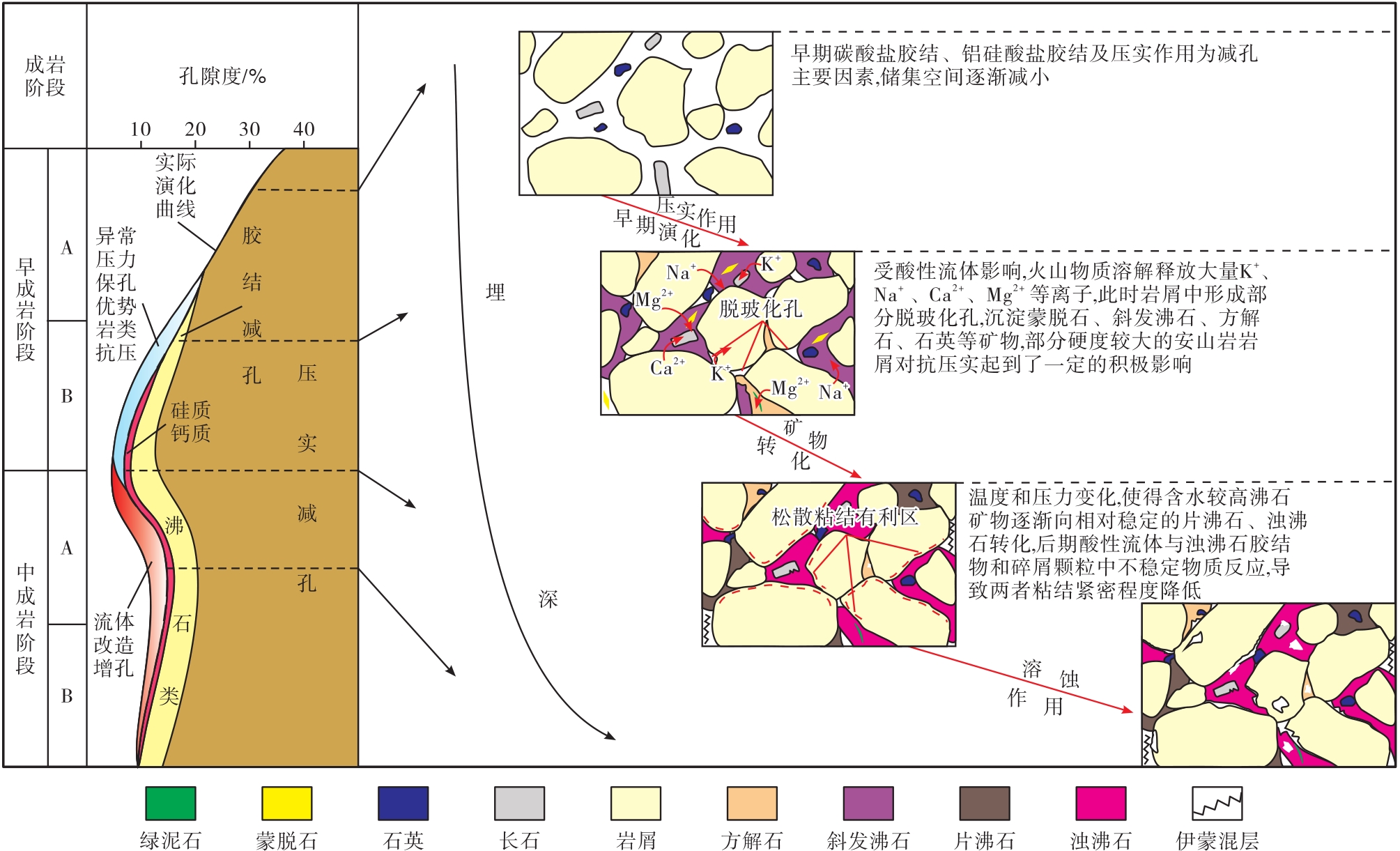

Fig. 10.

Table 2.

References 29

[1]	朱世发, 朱筱敏, 王绪龙, 等. 准噶尔盆地西北缘二叠系沸石矿物成岩作用及对油气的意义[J]. 中国科学:地球科学, 2011, 41(11):1602-1612.
	ZHU Shifa, ZHU Xiaomin, WANG Xulong, et al. Zeolite diagenesis and its control on petroleum reservoir quality of Permian in northwestern margin of Junggar basin,China[J]. Science China:Earth Sciences, 2011, 41(11):1602-1612.
[2]	朱世发, 朱筱敏, 吴冬, 等. 准噶尔盆地西北缘下二叠统油气储层中火山物质蚀变及控制因素[J]. 石油与天然气地质, 2014, 35(1):77-85.
	ZHU Shifa, ZHU Xiaomin, WU Dong, et al. Alteration of volcanics and its controlling factors in the Lower Permian reservoirs at northwestern margin of Junggar basin[J]. Oil & Gas Geology, 2014, 35(1):77-85.
[3]	KUANG Hao, LIU Hao, TAN Xianfeng, et al. Study on factors affecting the petrophysical properties of sandstone and conglomerate reservoirs of Baikouquan formation,Junggar basin front[J]. Frontiers in Earth Science, 2023, 11(1):1-12.
[4]	郭沫贞, 寿建峰, 徐洋, 等. 准噶尔盆地中拐—西北缘地区二叠系沸石胶结物分布与控制因素[J]. 石油学报, 2016, 37(6):695-705. doi: 10.7623/syxb201606001
	GUO Mozhen, SHOU Jianfeng, XU Yang, et al. Distribution and controlling factors of Permian zeolite cements in Zhongguai-northwest margin of Junggar basin[J]. Acta Petrolei Sinica, 2016, 37(6):695-705. doi: 10.7623/syxb201606001
[5]	赵海玲, 黄微, 王成, 等. 火山岩中脱玻化孔及其对储层的贡献[J]. 石油与天然气地质, 2009, 30(1):47-58.
	ZHAO Hailing, HUANG Wei, WANG Cheng, et al. Micropores from devitrification in volcanic rocks and their contribution to reservoirs[J]. Oil & Gas Geology, 2009, 30(1):47-58.
[6]	况昊, 周润驰, 王均民, 等. 玛湖凹陷与沙湾凹陷上乌尔禾组储集层差异及成因[J]. 新疆石油地质, 2023, 44(1):18-24.
	KUANG Hao, ZHOU Runchi, WANG Junmin, et al. Differences and genesis of upper Wuerhe formation reservoirs in Mahu sag and Shawan sag[J]. Xinjiang Petroleum Geology, 2023, 44(1):18-24.
[7]	马东旭, 许勇, 吕剑文, 等. 鄂尔多斯盆地临兴地区下石盒子组物源特征及其与储层关系[J]. 天然气地球科学, 2016, 27(7):1215-1224.
	MA Dongxu, XU Yong, LYU Jianwen, et al. Relationship between provenance and formation of lower Shihezi formation in Linxing area,Ordos basin,China[J]. Natural Gas Geoscience, 2016, 27(7):1215-1224.
[8]	田建锋, 高永利, 张蓬勃, 等. 鄂尔多斯盆地延长组伊利石包膜成因及其地质意义[J]. 岩性油气藏, 2022, 34(2):54-65.
	TIAN Jianfeng, GAO Yongli, ZHANG Pengbo, et al. Genesis and geological implication of illite coatings of Triassic Yanchang formation in Ordos basin[J]. Lithologic Reservoirs, 2022, 34(2):54-65.
[9]	黄立良, 王然, 邹阳, 等. 准噶尔盆地玛南斜坡区上二叠统上乌尔禾组连续型砂砾岩油藏群成藏特征[J]. 石油实验地质, 2022, 44(1):51-59.
	HUANG Liliang, WANG Ran, ZOU Yang, et al. Accumulation characteristics of continuous sand conglomerate reservoirs of Upper Permian upper Wuerhe formation in Manan slope area,Junggar basin[J]. Petroleum Geology & Experiment, 2022, 44(1):51-59.
[10]	李振华, 邱隆伟, 师政, 等. 准噶尔盆地中拐地区佳二段沸石类矿物成岩作用及其对油气成藏的意义[J]. 中国石油大学学报(自然科学版), 2014, 38(1):1-7.
	LI Zhenhua, QIU Longwei, SHI Zheng, et al. Diagenesis of zeolite minerals and its significance for hydrocarbon accumulation in the second member of Jiamuhe formation of Zhongguai area,Junggar basin[J]. Journal of China University of Petroleum(Edition of Natural Science), 2014, 38(1):1-7.
[11]	雷海艳, 樊顺, 鲜本忠, 等. 玛湖凹陷二叠系下乌尔禾组沸石成因及溶蚀机制[J]. 岩性油气藏, 2020, 32(5):102-112.
	LEI Haiyan, FAN Shun, XIAN Benzhong, et al. Genesis and corrosion mechanism of zeolite of lower Urhe formation of Permian in Mahu depression[J]. Lithologic Reservoirs, 2020, 32(5):102-112.
[12]	左如斯, 曾翔, 曹忠祥, 等. 沉积岩中沸石类矿物成岩演化特征及其意义[J]. 新疆石油地质, 2023, 44(5):543-553.
	ZUO Rusi, ZENG Xiang, CAO Zhongxiang, et al. Diagenetic evolution and its significance of zeolites in sedimentary rocks[J]. Xinjiang Petroleum Geology, 2023, 44(5):543-553.
[13]	连丽霞, 王剑, 马聪, 等. 准噶尔盆地西北缘沸石发育特征及成储机理初探:以玛南地区二叠系乌尔禾组为例[J]. 高校地质学报, 2021, 27(1):102-110.
	LIAN Lixia, WANG Jian, MA Cong, et al. Characteristics and formation mechanism of zeolite in the northwestern margin of Junggar basin:A case study of the Permian Urho formation in Manan area[J]. Geological Journal of China Universities, 2021, 27(1):102-110.
[14]	杨红霞, 陈雪昆, 田雨桐, 等. 玛湖凹陷斜坡区下乌尔禾组沸石类矿物形成机理[J]. 新疆石油地质, 2019, 40(6):658-665.
	YANG Hongxia, CHEN Xuekun, TIAN Yutong, et al. Forming mechanism of zeolites in lower Wuerhe formation in slope area of Mahu sag[J]. Xinjiang Petroleum Geology, 2019, 40(6):658-665.
[15]	吴和源, 唐勇, 孙玮, 等. 准噶尔盆地中拐凸起二叠系佳木河组砂砾岩沸石胶结特征及其成岩机制分析[J]. 岩石矿物学杂志, 2018, 37(1):75-86.
	WU Heyuan, TANG Yong, SUN Wei, et al. An analysis of the zeolite cement in sand-conglomerate and the diagenetic mechanism of Jiamuhe formation,Zhongguai area,Junggar basin[J]. Acta Petrologica et Mineralogica, 2018, 37(1):75-86.
[16]	孙靖, 郭旭光, 尤新才, 等. 准噶尔盆地深层—超深层致密碎屑岩储层特征及有效储层成因[J]. 地质学报, 2022, 96(7):2532-2546.
	SUN Jing, GUO Xuguang, YOU Xincai, et al. Characteristics and effective reservoir genesis of deep to ultra-deep tight clastic reservoir of Junggar basin,NW China[J]. Acta Geologica Sinica, 2022, 96(7):2532-2546.
[17]	李洋, 曹瀚曦. 准噶尔盆地阜东斜坡韭菜园子组储层特征及主控因素分析[J]. 能源与环保, 2022, 44(1):7-15.
	LI Yang, CAO Hanxi. Reservoir characteristics and main controlling factors analysis of Jiucaiyuanzi formation in Fudong slope of Junggar basin[J]. China Energy and Environmental Protection, 2022, 44(1):7-15.
[18]	王小军, 宋永, 郑孟林, 等. 准噶尔西部陆内盆地构造演化与油气聚集[J]. 地学前缘, 2022, 29(6):188-205. doi: 10.13745/j.esf.sf.2022.8.19
	WANG Xiaojun, SONG Yong, ZHENG Menglin, et al. Tectonic evolution of and hydrocarbon accumulation in the western Junggar basin[J]. Earth Science Frontiers, 2022, 29(6):188-205. doi: 10.13745/j.esf.sf.2022.8.19
[19]	李二庭, 靳军, 廖健德, 等. 准噶尔盆地沙湾凹陷周缘上古生界天然气地球化学特征及成因研究[J]. 特种油气藏, 2022, 29(1):15-22. doi: 10.3969/j.issn.1006-6535.2022.01.003
	LI Erting, JIN Jun, LIAO Jiande, et al. Study on geochemical characteristics and genesis of Upper Paleozoic natural gas in the perimeter of Shawan sag,Junggar basin[J]. Special Oil & Gas Reservoirs, 2022, 29(1):15-22.
[20]	杜世涛, 廖清志, 黄传松, 等. 准噶尔盆地侏罗系页岩气地质特征及勘探潜力区识别[J]. 非常规油气, 2022, 9(5):43-50.
	DU Shitao, LIAO Qingzhi, HUANG Chuansong, et al. Geological characteristics of Jurassic shale gas and identification of potential exploration areas in Junggar basin[J]. Unconventional Oil & Gas, 2022, 9(5):43-50.
[21]	KUANG Hao, MAO Zhenxing, ZHUO Xiaojing, et al. Dolomite origins of the carbonate successions from the Chihsia formation,south China:A case study from the Pingdingshan section[J]. Frontiers in Earth Science, 2022, 10(6):1-9.
[22]	段威, 罗程飞, 刘建章, 等. 莺歌海盆地LD区块地层超压对储层成岩作用的影响及其地质意义[J]. 地球科学:中国地质大学学报, 2015, 40(9):1517-1528.
	DUAN Wei, LUO Chengfei, LIU Jianzhang, et al. Effect of overpressure formation on reservoir diagenesis and its geological significance to LD block of Yinggehai basin[J]. Earth Sciences:Journal of China University of Geosciences, 2015, 40(9):1517-1528.
[23]	曾治平, 郝芳, 宋国奇, 等. 车镇凹陷套尔河洼陷古地层压力演化与油气幕式成藏[J]. 石油与天然气地质, 2010, 31(2):193-197.
	ZENG Zhiping, HAO Fang, SONG Guoqi, et al. Palaeo-formation pressure evolution and episodic hydrocarbon accumulation in Tao’erhe depression,Chezhen sag[J]. Oil & Gas Geology, 2010, 31(2):193-197.
[24]	杜栩, 郑红印, 焦秀琼. 异常压力与油气分布[J]. 地学前缘, 1995, 2(3/4):137-148.
	DU Xu, ZHENG Hongyin, JIAO Xiuqiong. Abnormal pressure and hydrocarbon accumulation[J]. Earth Science Frontiers, 1995, 2(3/4):137-148.
[25]	孟祥超, 陈扬, 谢义林, 等. 含浊沸石砂砾岩储层预测标准及潜在油气富集区优选:以玛湖凹陷东斜坡下乌尔禾组为例[J]. 东北石油大学学报, 2020, 44(3):1-13.
	MENG Xiangchao, CHEN Yang, XIE Yilin, et al. Prediction criteria of laumonite-bearing sand-conglomerate reservoirs and optimization of potential oil and gas accumulation areas:Taking P₂w formation in east slope of Mahu sag as an example[J]. Journal of Northeast Petroleum University, 2020, 44(3):1-13.
[26]	梁浩, 罗权生, 孔宏伟, 等. 三塘湖盆地火山岩中沸石的成因及其储层意义[J]. 沉积学报, 2011, 29(3):537-543.
	LIANG Hao, LUO Quansheng, KONG Hongwei, et al. Formation and distribution of zeolite in volcanic rock and its effect on reserviors in Santanghu basin[J]. Acta Sedimentologica Sinica, 2011, 29(3):537-543.
[27]	VOLTOLINI M, ARTIOLI G, MORET M. The dissolution of laumontite in acidic aqueous solutions:A controlled-temperature in situ atomic force microscopy study[J]. American Mineralogist, 2015, 97(1):150-158. doi: 10.2138/am.2012.3837
[28]	况昊, 王振奇, 瞿建华, 等. 白家海凸起—阜北斜坡中下侏罗统成岩演化特征[J]. 新疆石油地质, 2012, 33(2):159-161.
	KUANG Hao, WANG Zhenqi, QU Jianhua, et al. Diagenetic evolution of Middle-Lower Jurassic in Baijiahai swell-Fubei slope in Junggar basin[J]. Xinjiang Petroleum Geology, 2012, 33(2):159-161.
[29]	况昊, 余启奎, 薛坤林, 等. 四川盆地普光气田须家河组四段储集层特征[J]. 新疆石油地质, 2015, 36(2):164-168.
	KUANG Hao, YU Qikui, XUE Kunlin, et al. Characteristics of Xujiahe Member-4 reservoir of Upper Triassic in Puguang gas field,Sichuan basin[J]. Xinjiang Petroleum Geology, 2015, 36(2):164-168.

井名	井段/m	压力系数
SP3井	4 635.00—4 900.00	1.40~1.50
SP4井	4 332.00—4 600.00	1.40~1.50
SP5井	4 690.00—4 772.00	1.30~1.45
CP24井	4 538.00—4 935.65	1.30~1.40
SP7井	5 386.00—5 416.00	1.40~1.55

井名	层位	沸石类型	成分类型	压力系数	溶蚀类型及强度	粘结强弱程度
SP4井	风城组	片沸石	凝灰岩、安山岩	1.40~1.50	不稳定物质部分溶蚀，片沸石难溶	紧密粘结
SP5井	风城组	片沸石	凝灰岩、安山岩、霏细岩	1.40~1.50	不稳定物质部分溶蚀，片沸石难溶	紧密粘结
SP2井	上乌尔禾组	浊沸石	凝灰岩	1.80~1.90	不稳定物质及浊沸石部分溶蚀	中等紧密粘结
SP3井	风城组	浊沸石、片沸石	凝灰岩、安山岩	1.50~1.60	不稳定物质及浊沸石部分溶蚀，片沸石难溶	中等紧密粘结
ST001井	上乌尔禾组	浊沸石	凝灰岩	1.70~1.80	不稳定物质及浊沸石溶蚀明显	松散粘结
ST2井	风城组	浊沸石	凝灰岩、安山岩	1.40~1.50	不稳定物质及浊沸石溶蚀明显	松散粘结
CP24井	风城组	浊沸石、片沸石	凝灰岩、安山岩	1.20~1.30	不稳定物质及浊沸石溶蚀明显，片沸石难溶	松散粘结
