Identification and Productivity Prediction of High-Quality Reservoirs in the Metamorphic Buried Hills of the Bozhong 19-6 Structure

doi:10.7657/XJPG20250107

Abstract

Abstract:

In the Bozhong 19-6 structure, fractures serve as the primary flow channels and storage spaces in the metamorphic buried-hill reservoirs, significantly controlling the formation of high-quality reservoirs and well productivity. To accurately identify high-quality reservoirs in the Bozhong 19-6 structure and predict their productivity, fractures were quantitatively characterized using thin sections, imaging logs, and other data. Based on the division of vertical structural units within the buried-hill reservoirs, high-quality reservoirs in the target intervals were identified using conventional mud log, wireline and imaging logging data. The reservoirs were finely evaluated by introducing fracture development index and comprehensive index methods and then a comprehensive method for identifying high-quality reservoirs was established. By substituting the effective thickness and fracture parameters of the high-quality reservoir into productivity evaluation equation, the gas layer productivity of the target intervals was calculated and compared with the test results. It is found that the relative error between the predicted productivity index per meter and the actual productivity values is less than 15%, which indicates a high feasibility of this comprehensive evaluation method in identifying high-quality reservoirs in metamorphic buried hills. This study offers a guidance for oil and gas development in the metamorphic buried hills in the Bozhong 19-6 structure.

Key words: Bozhong 19-6 structure, metamorphic buried-hill reservoir, fracture characteristic, reservoir identification, productivity prediction

CLC Number:

TE122

TAN Zhongjian, GUO Kangliang, WU Liwei, ZHANG Guoqiang, LI Hongru, DENG Jinhui, BI Hongri. Identification and Productivity Prediction of High-Quality Reservoirs in the Metamorphic Buried Hills of the Bozhong 19-6 Structure[J]. Xinjiang Petroleum Geology, 2025, 46(1): 57-63.

Figures/Tables 8

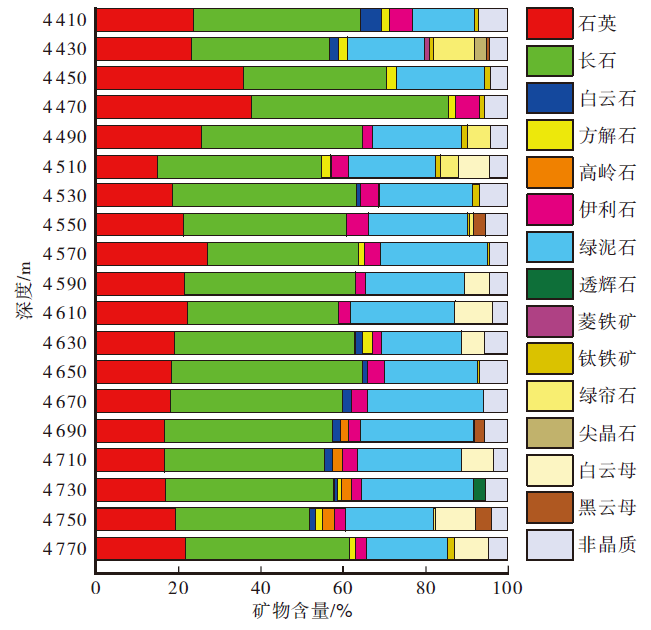

Fig. 1.

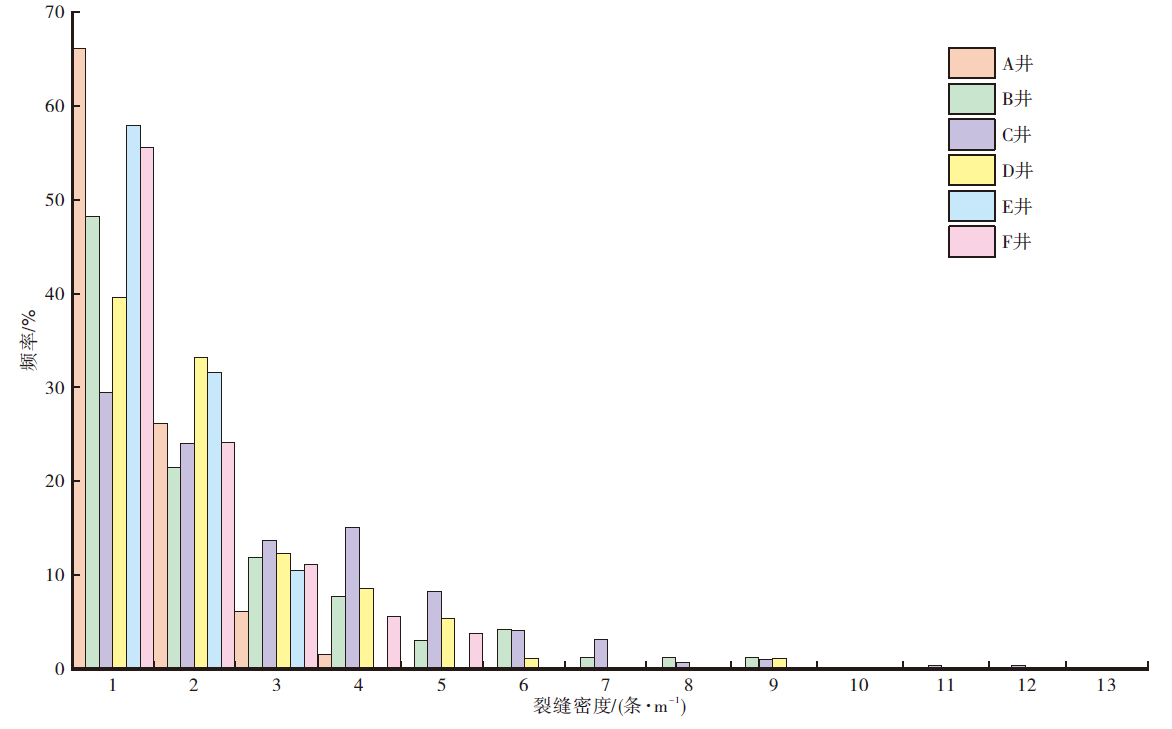

Fig. 2.

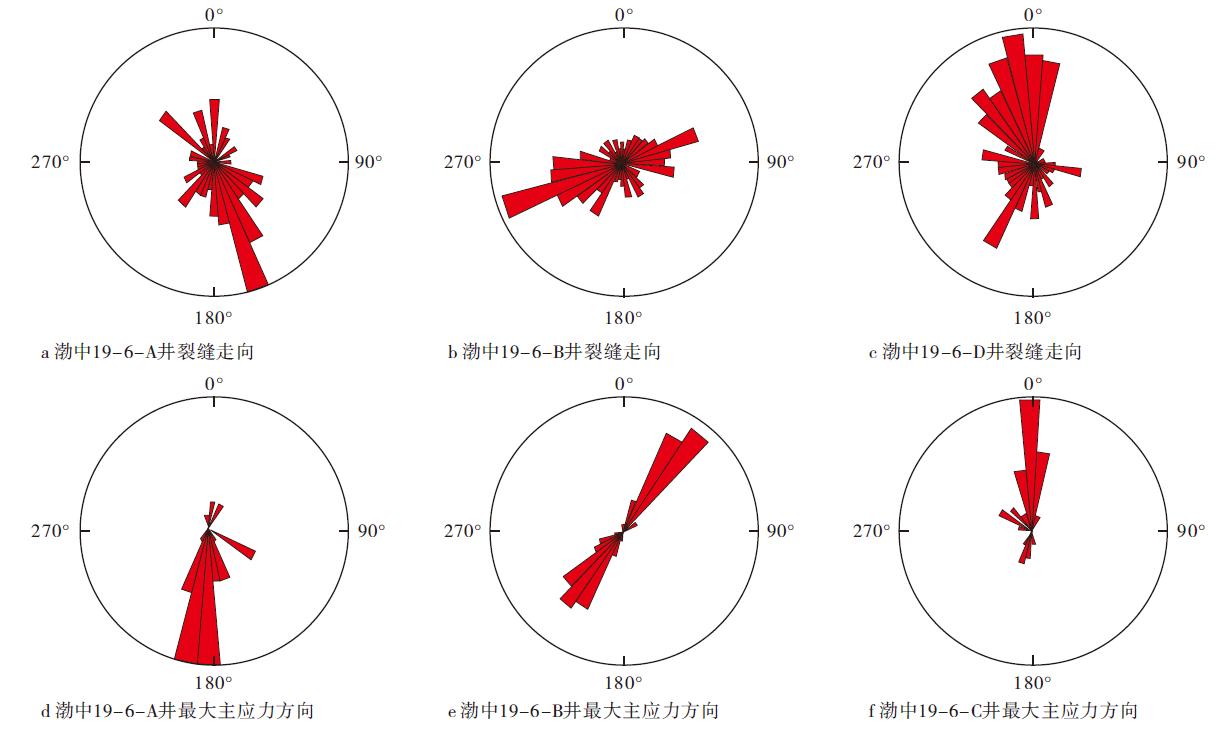

Fig. 3.

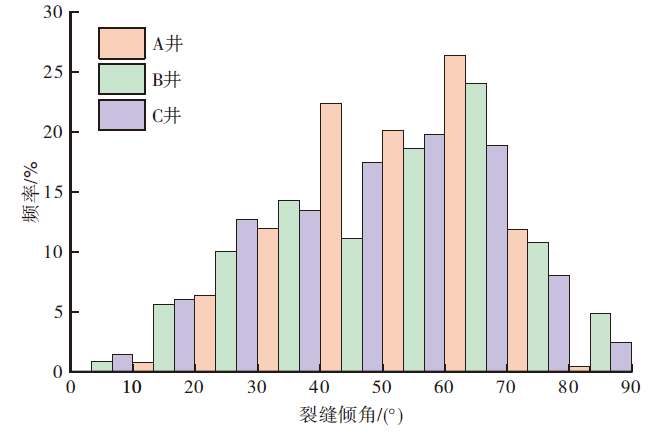

Fig. 4.

Fig. 5.

Table 1.

Table 2.

Table 3.

References 26

[1]	衣健, 李慧勇, 单玄龙, 等. 渤海湾盆地渤中凹陷太古宇变质岩潜山储集层垂向结构单元划分与识别[J]. 石油勘探与开发, 2022, 49(6):1107-1118. doi: 10.11698/PED.20220138
	YI Jian, LI Huiyong, SHAN Xuanlong, et al. Division and identification of vertical reservoir units in Archaeozoic metamorphic buried hill of Bozhong sag,Bohai Bay Basin,East China[J]. Petroleum Exploration and Development, 2022, 49(6):1107-1118.
[2]	廖新武, 谢润成, 周文, 等. 古地貌对渤海湾盆地B区块太古宇暴露型潜山变质岩风化带储层裂缝发育的影响[J]. 石油与天然气地质, 2023, 44(2):406-417.
	LIAO Xinwu, XIE Runcheng, ZHOU Wen, et al. The effects of paleogeomorphology on the development of fractures in reservoirs of weathering metamorphic zone in an exposed Archean burial hill,Block B,Bohai Bay Basin[J]. Oil & Gas Geology, 2023, 44(2):406-417.
[3]	叶涛, 牛成民, 王清斌, 等. 渤海湾盆地大型基岩潜山储层特征及其控制因素:以渤中19-6凝析气田为例[J]. 地质学报, 2021, 95(6):1889-1902.
	YE Tao, NIU Chengmin, WANG Qingbin, et al. Characteristics and controlling factors of large bedrock buried-hill reservoirs in the Bohai Bay Basin:A case study of the BZ19-6 condensate field[J]. Acta Geologica Sinica, 2021, 95(6):1889-1902.
[4]	徐长贵, 杜晓峰, 刘晓健, 等. 渤海海域太古界深埋变质岩潜山优质储集层形成机制与油气勘探意义[J]. 石油与天然气地质, 2020, 41(2):235-247.
	XU Changgui, DU Xiaofeng, LIU Xiaojian, et al. Formation mechanism of high-quality deep buried-hill reservoir of Archaean metamorphic rocks and its significance in petroleum exploration in Bohai Sea area[J]. Oil & Gas Geology, 2020, 41(2):235-247.
[5]	巫波, 杨文东, 吕晶, 等. 塔河油田缝洞型储集层类型综合识别[J]. 新疆石油地质, 2023, 44(2):238-244.
	WU Bo, YANG Wendong, LYU Jing, et al. Comprehensive identification of fractured-vuggy reservoirs in Tahe oilfield[J]. Xinjiang Petroleum Geology, 2023, 44(2):238-244.
[6]	李鸿儒, 谭忠健, 胡云, 等. 渤中凹陷西南环M构造太古界潜山油气藏流体类型随钻识别方法[J]. 油气地质与采收率, 2021, 28(5):22-31.
	LI Hongru, TAN Zhongjian, HU Yun, et al. Reservoir fluid type identification while drilling for Archaeozoic buried hill reservoir of M structure at southwest margin of Bozhong sag,Bohai Sea,East China[J]. Petroleum Geology and Recovery Efficiency, 2021, 28(5):22-31.
[7]	李辉, 谭忠健, 耿长喜, 等. 基于随钻录井工程参数的变质岩潜山储层物性预测方法及应用[J]. 特种油气藏, 2023, 30(6):10-15. doi: 10.3969/j.issn.1006-6535.2023.06.002
	LI Hui, TAN Zhongjian, GENG Changxi, et al. Physical properties prediction method and application of metamorphic buried-hill reservoirs based on parameters of mud logging engineering while drilling[J]. Special Oil & Gas Reservoirs, 2023, 30(6):10-15.
[8]	张峰, 罗少成, 李震, 等. 四川盆地茅口组岩溶缝洞型储层有效性测井评价[J]. 石油钻探技术, 2020, 48(6):116-122.
	ZHANG Feng, LUO Shaocheng, LI Zhen, et al. Logging evaluation on the effectiveness of karst fractured-vuggy reservoirs in the Maokou formation,Sichuan Basin[J]. Petroleum Drilling Techniques, 2020, 48(6):116-122.
[9]	张新涛, 曲希玉, 许鹏, 等. 渤海湾盆地深层砂砾岩储层孔-缝成因机制及演化特征:以渤中19-6构造古近系孔店组为例[J]. 石油与天然气地质, 2023, 44(3):707-719.
	ZHANG Xintao, QU Xiyu, XU Peng, et al. Genesis and evolution of pore-fractures in deep sandy conglomerate reservoirs in Bohai Bay Basin:Taking the Paleogene Kongdian formation in Bozhong 19-6 structure as an example[J]. Oil & Gas Geology, 2023, 44(3):707-719.
[10]	侯明才, 曹海洋, 李慧勇, 等. 渤海海域渤中19-6构造带深层潜山储层特征及其控制因素[J]. 天然气工业, 2019, 39(1):33-44.
	HOU Mingcai, CAO Haiyang, LI Huiyong, et al. Characteristics and controlling factors of deep buried-hill reservoirs in the BZ19-6 structural belt,Bohai Sea area[J]. Natural Gas Industry, 2019, 39(1):33-44.
[11]	张锐锋, 李拥军, 黄显华, 等. 巴彦河套盆地变质岩储层测井综合评价方法[J]. 大庆石油地质与开发, 2021, 40(6):133-143.
	ZHANG Ruifeng, LI Yongjun, HUANG Xianhua, et al. Comprehensive logging evaluation method for the metamorphic reservoir in Bayanhetao Basin[J]. Petroleum Geology & Oilfiled Development in Daqing, 2021, 40(6):133-143.
[12]	许鹏, 牛成民, 李慧勇, 等. 渤海湾盆地渤中凹陷西南部变质岩潜山裂缝型储层特征及主控因素[J]. 矿产勘查, 2022, 13(4):418-427.
	XU Peng, NIU Chengmin, LI Huiyong, et al. Characteristics and main controlling factors of natural gas fracture-related reservoir in Archen metamorphic rocks in southwest Bozhong sag,Bohai Bay Basin[J]. Mineral Exploration, 2022, 13(4):418-427.
[13]	刘国平, 董少群, 李洪楠, 等. 辽河盆地西部凹陷古潜山天然裂缝特征及其影响因素[J]. 石油与天然气地质, 2020, 41(3):525-533.
	LIU Guoping, DONG Shaoqun, LI Hongnan, et al. Characteristics of natural fractures and their influencing factors in the paleo-buried-hill reservoirs of the Western sag in the Liaohe Basin,China[J]. Oil & Gas Geology, 2020, 41(3):525-533.
[14]	童凯军, 赵春明, 吕坐彬, 等. 渤海变质岩潜山油藏储集层综合评价与裂缝表征[J]. 石油勘探与开发, 2012, 39(1):56-63.
	TONG Kaijun, ZHAO Chunming, LÜ Zuobin, et al. Reservoir evaluation and fracture characterization of the metamorphic buried hill reservoir in Bohai Bay[J]. Petroleum Exploration and Development, 2012, 39(1):56-63.
[15]	陈可洋, 周辉, 杨微, 等. 散射波波场在裂缝性储集层识别中的应用[J]. 新疆石油地质, 2024, 45(1):109-117.
	CHEN Keyang, ZHOU Hui, YANG Wei, et al. Application of scattered wave field in identifying fractured reservoirs[J]. Xinjiang Petroleum Geology, 2024, 45(1):109-117.
[16]	张建欣, 蒋裕强, 李景, 等. 裂缝性储层关键参数测井计算方法[J]. 西安科技大学学报, 2019, 39(6):999-1006.
	ZHANG Jianxin, JIANG Yuqiang, LI Jing, et al. Logging calculating methods of key parameters in fracture reservoir[J]. Journal of Xi’an University of Science and Technology, 2019, 39(6):999-1006.
[17]	张任风, 张占松, 张超谟, 等. 渤中19-6气田潜山变质岩储层类型特征与电成像测井识别[J]. 东北石油大学学报, 2019, 43(5):58-65.
	ZHANG Renfeng, ZHANG Zhansong, ZHANG Chaomo, et al. Reservoir type characteristics and identification by electrical imaging logging of buried hill in BZ19-6 gas field[J]. Journal of Northeast Petroleum University, 2019, 43(5):58-65.
[18]	黄继新, 彭仕宓, 王小军, 等. 成像测井资料在裂缝和地应力研究中的应用[J]. 石油学报, 2006, 27(6):65-69. doi: 10.7623/syxb200606017
	HUANG Jixin, PENG Shimi, WANG Xiaojun, et al. Applications of imaging logging data in the research of fracture and ground stress[J]. Acta Petrolei Sinica, 2006, 27(6):65-69. doi: 10.7623/syxb200606017
[19]	范洪军, 罗江华, 牛涛, 等. 渤中19-6凝析气田太古界潜山储层裂缝特征及低渗主控因素[J]. 中国海上油气, 2021, 33(4):85-93.
	FAN Hongjun, LUO Jianghua, NIU Tao, et al. Fracture characteristics and low permeability main controlling factors of Archean buried hill reservoirs in BZ19-6 condensate field[J]. China Offshore Oil and Gas, 2021, 33(4):85-93.
[20]	陆诗阔, 李冬冬. 变质岩储层岩性及裂缝测井识别方法研究进展[J]. 特种油气藏, 2016, 23(4):1-6.
	LU Shikuo, LI Dongdong. Advances in logging identification of lithology and fracture in metamorphic reservoir[J]. Special Oil & Gas Resevoirs, 2016, 23(4):1-6.
[21]	王双龙, 吕坐彬, 韩雪芳, 等. 气测资料在变质岩潜山裂缝有效性评价及水淹层识别中的应用[J]. 特种油气藏, 2020, 27(2):70-77.
	WANG Shuanglong, LYU Zuobin, HAN Xuefang, et al. Gas logging application in fracture evaluation and water-flooded zone identification in metamorphic buried-hill reservoir[J]. Special Oil & Gas Resevoirs, 2020, 27(2):70-77.
[22]	谭忠健, 邓津辉, 张国强, 等. 渤海海域变质岩潜山储层有效性录井综合评价技术[J]. 特种油气藏, 2023, 30(5):11-17. doi: 10.3969/j.issn.1006-6535.2023.05.002
	TAN Zhongjian, DENG Jinhui, ZHANG Guoqiang, et al. Comprehensive evaluation technology of metamorphic submarine reservoir effectiveness mud-logging in Bohai Sea area[J]. Special Oil & Gas Reservoirs, 2023, 30(5):11-17.
[23]	王杰, 胡晨光, 潘勇利, 等. 吉华1地区潜山变质岩储层裂缝发育特征及综合评价[J]. 地质科学, 2022, 57(2):463-477.
	WANG Jie, HU Chenguang, PAN Yongli, et al. Fracture development characteristics and comprehensive evaluation of buried hill metamorphic reservoir in Jihua 1 area[J]. Chinese Journal of Geology, 2022, 57(2):463-477.
[24]	田敏. 埕岛地区中生界储层岩性和裂缝测井识别应用[J]. 油气藏评价与开发, 2016, 6(3):13-18.
	TIAN Min. Lithology and fracture logging identification for Mesozonic reservoir in Chengdao area[J]. Reservoir Evaluation and Development, 2016, 6(3):13-18.
[25]	康凯, 赵林, 罗宪波, 等. 裂缝性潜山气藏产能评价新方法及其应用[J]. 中国海上油气, 2021, 33(3):100-106.
	KANG Kai, ZHAO Lin, LUO Xianbo, et al. A new productivity evaluation method for fractured buried hill gas reservoirs and its application[J]. China Offshore Oil and Gas, 2021, 33(3):100-106.
[26]	谭忠健, 胡云, 张国强, 等. 渤中19-6构造复杂储层流体评价及产能预测[J]. 石油钻采工艺, 2018, 40(6):764-774.
	TAN Zhongjian, HU Yun, ZHANG Guoqiang, et al. Fluid evaluation and productivity prediction on complex reservoirs in Bozhong 19-6 structure[J]. Oil Drilling & Production Technology, 2018, 40(6):764-774.

储集层类型	录井特征	常规测井特征	成像测井特征	阵列声波特征
裂缝-孔隙型储集层	钻时和地层可钻性指数降低，气测全烃值显著上升	低密度，高声波时差，高补偿中子，低电阻率	次生孔隙较发育，沿暗色正弦曲线见黑斑分布，成像图整体偏暗，孔隙度谱形态宽且居于右侧	各向异性不显著
孔隙-裂缝型储集层	钻时和地层可钻性指数降低，气测全烃值显著上升	低密度，高声波时差，高补偿中子，较低电阻率	裂缝较发育，有暗色正弦曲线显示，有黑斑分布，孔隙度谱形态较宽且居于中间	各向异性较显著
裂缝型储集层	钻时和地层可钻性指数降低，气测全烃值显著下降	较高密度，较低声波时差，较高电阻率	裂缝成组发育，有暗色正弦曲线显示，孔隙度谱形态窄且居于左侧	各向异性显著

储集层类型	录井特征	常规测井特征	裂缝发育指数	综合指数
优质储集层	地层可钻性指数较小；气测全烃值为高值	双侧向电阻率为正差异，电阻率出现高背景下低阻，声波时差和补偿中子较高，密度较小	<0.5	>0.3
无效储集层	地层可钻性指数较大；气测全烃值为低值	双侧向电阻率为负差异，电阻率为高阻，声波时差和补偿中子较低，密度较大	>0.5	<0.3

井名	裂缝密度/ （条·m^-1）	裂缝孔隙度/ %	储集层渗透率/ mD	米采气指数/ （m³·d^-1·MPa^-1·m^-1）
渤中19-6-D井（测试段1）	1.14	0.110	0.190 000	58.194
渤中19-6-D井（测试段2）	1.85	0.280	0.440 000	124.472
渤中19-6-B井	1.03	0.013	0.000 730	24.106
渤中19-6-E井	0.32	0.024	0.001 970	2.799
渤中19-6-C井	0.21	0.007	0.000 095	0
渤中19-6-F井	0.20	0.009		0
