Influences of Microstructural Differences on Acid Corrosive Damage to Carbonate Rocks

doi:10.7657/XJPG20210209

Abstract

Abstract:

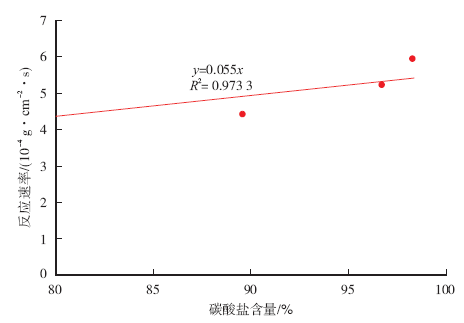

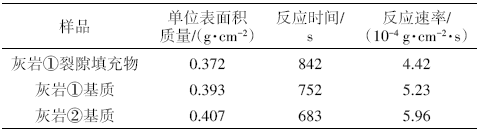

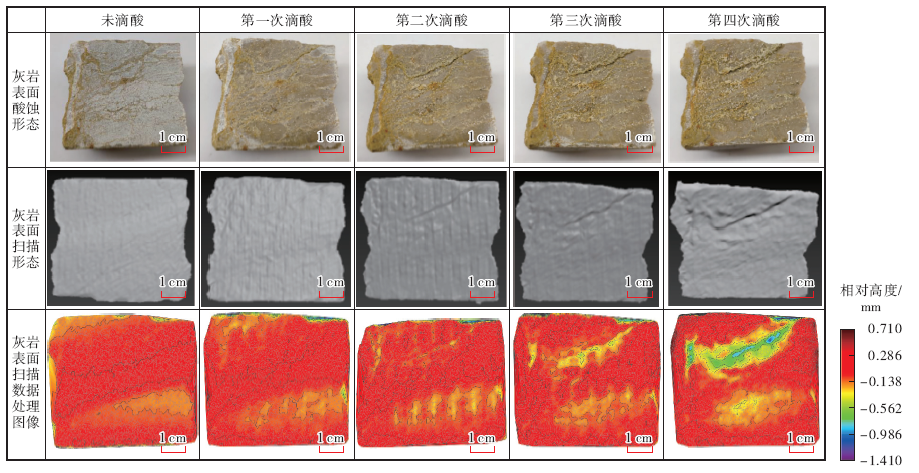

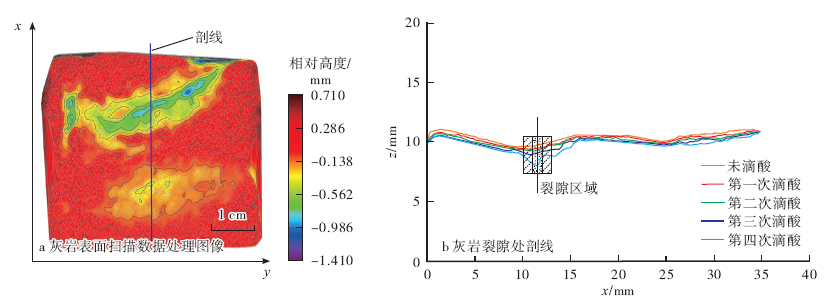

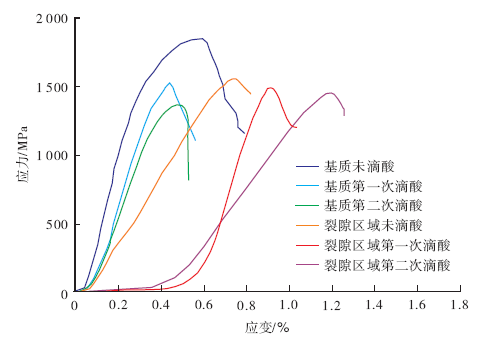

Experiments on acid-rock reaction rate, surface static corrosion and point-load mechanical strength were carried out to investigate the influences of mineral composition, microstructure and distribution of carbonate rock on acid-rock reaction rate, microstructure and mechanical strength. The results show that, at a constant mass fraction of HCL, the reaction rate between limestone and HCL is directly related to the carbonate content. The higher the carbonate content is, the faster the acid-rock reaction rate and the more intense the reaction will be. Since there are differences in the mineral compositions between the matrix in the fracture zone and the fillings in the fractures, the porosity of the matrix is quite different from that of the fractures, so that acid would erode the mineral compositions along the fractures, resulting in grooves. The damages to the matrix of limestone by acid can induce fractures and extend to natural fractures, and consequently local damage occurs. With the increase of the times of acid dropping, the mechanical damage coefficient of the matrix in limestone would be greater than that of the fracture zone, and the limestone matrix transforms from brittle to ductile.

Key words: carbonate rock, acid-rock reaction, microstructural difference, damage mechanism, limestone matrix, fracture zone

CLC Number:

TE311

LI Xinyong, WU Hengchuan, FANG Haoqing, LI Yongshou, MAO Haijun, HUANG Luyun. Influences of Microstructural Differences on Acid Corrosive Damage to Carbonate Rocks[J]. Xinjiang Petroleum Geology, 2021, 42(2): 188-193.

Figures/Tables 10

Table 1

Table 2

Fig. 1.

Fig. 2.

Fig. 3.

Table 3

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

References 20

[1]	李振华, 顾乔元, 张大鹏, 等. 塔里木油田碳酸盐岩油藏产量预测方法[J]. 新疆石油地质, 2019,40(5):583-587.
	LI Zhenhua, GU Qiaoyuan, ZHANG Dapeng, et al. Production prediction methods for carbonate reservoirs in Tarim oilfield[J]. Xinjiang Petroleum Geology, 2019,40(5):583-587.
[2]	江同文, 肖阳, 刘子龙, 等. 哈拉哈塘油田缝洞型油藏自流注水耦合计算模型[J]. 新疆石油地质, 2019,40(1):74-78.
	JIANG Tongwen, XIAO Yang, LIU Zilong, et al. A dumpflood coupling calculation model of fractured-vuggy reservoirs in Halahatang oilfield[J]. Xinjiang Petroleum Geology, 2019,40(1):74-78.
[3]	贺伟, 冯文光, 贺承祖. 碳酸盐岩储层酸蚀反应机理的实验研究[J]. 天然气勘探与开发, 2000,23(2):27-30.
	HE Wei, FENG Wenguang, HE Chengzu. Experimental study on acid erosion reaction mechanism of carbonate reservoir[J]. Natural Gas Exploration and Development, 2000,23(2):27-30.
[4]	丁梧秀, 冯夏庭. 化学腐蚀下灰岩力学效应的试验研究[J]. 岩石力学与工程学报, 2004,23(21):3 571-3 576.
	DING Wuxiu, FENG Xiating. Testing study on mechanical effect for limestone under chemical erosion[J]. Chinese Journal of Rock Mechanics and Engineering, 2004,23(21):3 571-3 576.
[5]	丁梧秀, 冯夏庭. 灰岩细观结构的化学损伤效应及化学损伤定量化研究方法探讨[J]. 岩石力学与工程学报, 2005,24(8):1 283-1 288.
	DING Wuxiu, FENG Xiating. Study on chemical damage effect and quantitative analysis method of meso-structure of limestone[J]. Chinese Journal of Rock Mechanics and Engineering, 2005,24(8):1 283-1 288.
[6]	丁梧秀, 冯夏庭. 化学腐蚀下裂隙岩石的损伤效应及断裂准则研究[J]. 岩土工程学报, 2009,31(6):899-904.
	DING Wuxiu, FENG Xiating. Damage effect and fracture criterion of rock with multi-preexisting cracks under chemical erosion[J]. Chinese Journal of Geotechnical Engineering, 2009,31(6):899-904.
[7]	何春明, 郭建春. 酸液对灰岩力学性质影响的机制研究[J]. 岩石力学与工程学报, 2013,32(增刊2):3 016-3 021.
	HE Chunming, GUO Jianchun. Mechanism study of acid on mechanical properties of limestone[J]. Chinese Journal of Rock Mechanics and Engineering, 2013,32(Supp.2):3 016-3 021.
[8]	HUNG K M, HILL A D, SEPEHRNOORI K. A mechanistic model of wormhole growth in carbonate matrix acidizing and acid fracturing[R]. SPE 16886, 1987.
[9]	DACCORD G, LENORMAND R. Fractal patterns from chemical dissolution[J]. Nature, 1987,325:41-43. doi: 10.1038/325041a0
[10]	HILL A D, ZHU Ding, WANG Yimei. The effect of wormholing on the fluid loss coefficient in acid fracturing[R]. SPE 27403, 1994.
[11]	BARTKO K M, NASR-EL-DIN H A, RAHIM Z, et al. Acid fracturing of a gas carbonate reservoir：the impact of acid type and lithology on fracture half length and width[R]. SPE 84130, 2003.
[12]	LANARO F. A random field model for surface roughness and aperture of rock fractures[J]. International Journal of Rock Mechanics & Mining Sciences, 2000,37(8):1 195-1 210. doi: 10.1016/S1365-1609(00)00052-6
[13]	NIERODE D E, WILLIAMS B B. Characteristics of acid reaction in limestone formations[J]. Socitey of Petroleum Engineers Journal, 1971,11:406-418.
[14]	吴霞, 伊向艺, 黄文强, 等. 酸蚀裂缝差异化刻蚀量化研究及影响因素探讨[J]. 钻井液与完井液, 2019,36(2):250-256.
	WU Xia, YI Xiangyi, HUANG Wenqiang, et al. Discussion on the quantitative study and impact factors of differentialized corrosion in fractures generated by acid corrosion[J]. Drilling Fluid & Completion Fluid, 2019,36(2):250-256.
[15]	李小刚, 杨兆中, 苏建政, 等. 酸压过程中多尺度酸岩反应特征实验研究[J]. 石油实验地质, 2010,32(5):504-508. doi: 10.11781/sysydz201005504
	LI Xiaogang, YANG Zhaozhong, SU Jianzheng, et al. Experimental study of multi-scale reaction between acid and rock in acid fracturing[J]. Petroleum Geology & Experiment, 2010,32(5):504-508.
[16]	周健, 陈勉, 金衍, 等. 压裂酸化中近缝区灰岩强度弱化效应实验研究[J]. 岩石力学与工程学报, 2007,26(1):206-210.
	ZHOU Jian, CHEN Mian, JIN Yan, et al. Experimental study on strength reduction effects of limestone near fracture area during acid fracturing[J]. Chinese Journal of Rock Mechanics and Engineering, 2007,26(1):206-210.
[17]	刘书源. 酸化压裂液作用下油页岩的损伤特性[D]. 长春:吉林大学, 2019.
	LIU Shuyuan. Damage properties of oil shale under acidizing fracturing fluid[D]. Changchun:Jilin University, 2019.
[18]	冯炜, 杨晨, 陶善浔, 等. 碳酸盐岩酸蚀裂缝表面形态特征的实验研究[J]. 岩性油气藏, 2020,32(3):166-172.
	FENG Wei, YANG Chen, TAO Shanxun, et al. Experimental study on the surface feature of acid-etched fractures in carbonate rocks[J]. Lithologic Reservoirs, 2020,32(3):166-172.
[19]	邓鹏, 杨春和, 郭印同, 等. 川东北碳酸盐岩酸化损伤及力学特性试验研究[J]. 地下空间与工程学报, 2019,15(3):708-718.
	DENG Peng, YANG Chunhe, GUO Yintong, et al. Experimental study on damage mechanical characteristics of carbonate rock with acid treatments in northeast Sichuan[J]. Chinese Journal of Underground Space and Engineering, 2019,15(3):708-718.
[20]	李春月, 王洋, 邓鹏, 等. 胶凝酸对顺北区块奥陶系碳酸盐岩力学特性的影响[J]. 新疆石油地质, 2018,39(6):689-695.
	LI Chunyue, WANG Yang, DENG Peng, et al. Influences of gelled acid on mechanical properties of the Ordovician carbonate rocks in Block Shunbei,Tahe oilfield[J]. Xinjiang Petroleum Geology, 2018,39(6):689-695.
