吉木萨尔凹陷芦草沟组页岩储集层裂缝成因及耦合关系

doi:10.7657/XJPG20210502

摘要/Abstract

摘要：

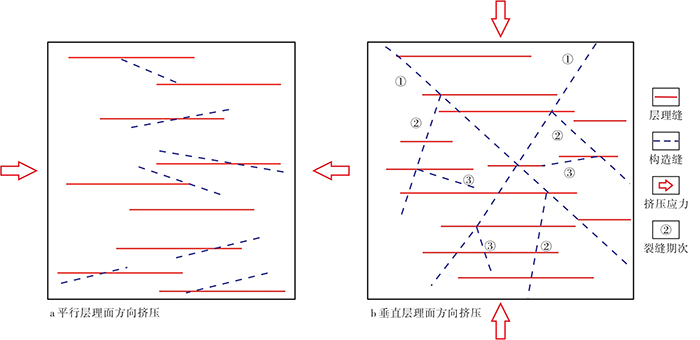

通过观察准噶尔盆地吉木萨尔凹陷芦草沟组页岩储集层的野外露头、岩心和薄片,结合成像测井资料,采用油气运移物理模拟实验、三轴压裂实验等方法,以岩石应力—应变曲线为依据,研究了微观尺度到宏观尺度的页岩储集层裂缝成因及耦合关系。研究结果表明,构造缝与层理缝相互耦合,可显著改善页岩储集层的物性;层理缝与构造缝形成过程中相互影响,发育层理缝的岩石受到垂直层理面的挤压时,易发生多期破裂形成层理缝与构造缝交织的裂缝系统,受到平行层理面的挤压时,会形成以层理缝为主的期次少的裂缝系统;构造缝与层理缝平行耦合对页岩储集层的渗透率无显著影响,构造缝与层理缝垂直耦合可使页岩储集层的渗透率明显升高。

关键词: 准噶尔盆地, 吉木萨尔凹陷, 芦草沟组, 页岩储集层, 层理缝, 构造缝, 裂缝成因, 耦合

Abstract:

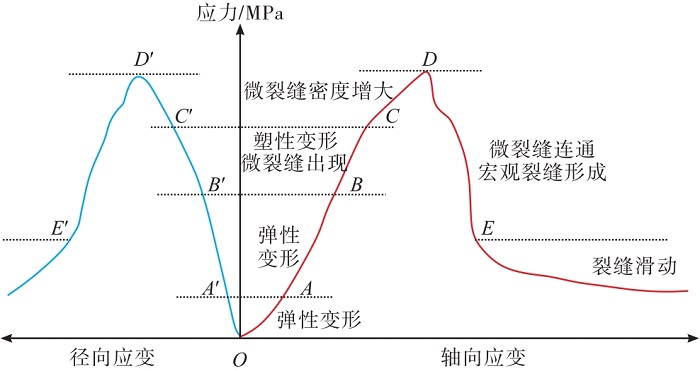

According to the data of outcrops, cores and thin sections of the shale reservoir of the Lucaogou formation in the Jimsar sag, Junggar basin, and considering the imaging logging data, physical simulation of oil and gas migration and triaxial rock fracturing experiment etc., we studied the genesis and coupling relationship of fractures in the shale reservoir in micro and macro scales based on the stress-strain curve. The results show that: (1) The mutual coupling of bedding fractures and structural fractures can greatly improve the physical properties of the shale reservoir; (2) Bedding fractures and structural fractures are influenced by each other during their devlopment. When the rock with bedding fractures is compressed in the direction vertical to the bedding plane, multi-stage fractures are likely to appear and form a fracture system with interlaced bedding fractures and structural fractures; when the rock is compressed in the direction parallel to the bedding plane, a fracture system with less stages may occur, which is mainly composed of bedding fractures; (3) The parallel coupling of structural fractures and bedding fractures has no significant impact on the permeability of the shale reservoir, while their vertical coupling can significantly increase the permeability of the shale reservoir.

Key words: Junggar basin, Jimsar sag, Lucaogou formation, shale reservoir, bedding fracture, structural fracture, fracture genesis, coupling

中图分类号:

TE122.2

梁成钢, 谢建勇, 陈依伟, 刘娟丽, 何永清, 赵军, 王伟, 王良哲. 吉木萨尔凹陷芦草沟组页岩储集层裂缝成因及耦合关系[J]. 新疆石油地质, 2021, 42(5): 521-528.

LIANG Chenggang, XIE Jianyong, CHEN Yiwei, LIU Juanli, HE Yongqing, ZHAO Jun, WANG Wei, WANG Liangzhe. Genesis and Coupling Relationship of Fractures in Shale Reservoir of Lucaogou Formation in Jimsar Sag, Junggar Basin[J]. Xinjiang Petroleum Geology, 2021, 42(5): 521-528.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 19

[1]	贾承造, 邹才能, 李建忠, 等. 中国致密油评价标准、主要类型、基本特征及资源前景[J]. 石油学报, 2012, 33(3):343-350.
	JIA Chengzao, ZOU Caineng, LI Jianzhong, et al. Assessment criteria,main types,basic features and resource prospects of the tight oil in China[J]. Acta Petrolei Sinica, 2012, 33(3):343-350.
[2]	宁云才, 钟敏, 魏漪, 等. 低油价下致密油资源开发现状及应对措施[J]. 中国矿业, 2017, 26(4):35-40.
	NING Yuncai, ZHONG Min, WEI Yi, et al. Research on the tight oil resources development present situation and countermeasures against low oil prices[J]. China Mining Magazine, 2017, 26(4):35-40.
[3]	丁超, 王佳玮. 准噶尔盆地吉木萨尔凹陷二叠系梧桐沟组沉积演化规律[J]. 中国石油勘探, 2015, 20(3):22-29.
	DING Chao, WANG Jiawei. Sedimentary development law of Permian Wutonggou formation in Jimsar sag of Junggar basin[J]. China Petroleum Exploration, 2015, 20(3):22-29.
[4]	周鹏. 新疆吉木萨尔凹陷二叠系芦草沟组致密油储层特征及储层评价[D]. 西安:西北大学, 2014.
	ZHOU Peng. Tight oil reservoir characteristics and evaluation of Permian Lucaogou formation in Jimusar sag,Xinjiang[D]. Xi’an:Northwest University, 2014.
[5]	吴俊军, 游利萍, 杨和山. 准噶尔盆地阜康断裂带构造演化与油气成藏[J]. 新疆石油地质, 2013, 34(1):36-40.
	WU Junjun, YOU Liping, YANG Heshan. Structural evolution and hydrocarbon accumulation of Fukang fault zone in Junggar basin[J]. Xinjiang Petroleum Geology, 2013, 34(1):36-40.
[6]	尤惠川, 任利生, 张玉梅. 新疆阜康—吉木萨尔断裂带的几何特征与活动性研究[J]. 地震地质, 2003, 25(3):375-384.
	YOU Huichuan, REN Lisheng, ZHANG Yumei. Structural geometry and activities of the Fukang-Jimsar fault zone,Xinjiang[J]. Seismology and Geology, 2003, 25(3):375-384.
[7]	贾曙光, 王军, 王玲玲, 等. 吉木萨尔凹陷芦草沟组页岩油甜点地震预测方法[J]. 新疆石油地质, 2020, 41(5):535-541.
	JIA Shuguang, WANG Jun, WANG Lingling, et al. Seismic prediction methods of shale oil sweet spots in Lucaogou formation of Jimsar sag[J]. Xinjiang Petroleum Geology, 2020, 41(5):535-541.
[8]	朱德宇, 罗群, 姜振学, 等. 吉木萨尔凹陷芦草沟组致密储集层裂缝特征及主控因素[J]. 新疆石油地质, 2019, 40(3):276-283.
	ZHU Deyu, LUO Qun, JIANG Zhenxue, et al. Fracture characteristics and main controlling factors of tight reservoirs in Lucaogou formation of Jimsar sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2019, 40(3):276-283.
[9]	王东营, 汤达祯, 苟明福, 等. 准噶尔南缘阜康地区芦草沟组油页岩地质特征[J]. 中国石油勘探, 2007, 12(6):18-22.
	WANG Dongying, TANG Dazhen, GOU Mingfu, et al. Oil-shale geology of Lucaogou formation in Fukang area on southern margin of Junggar basin[J]. China Petroleum Exploration, 2007, 12(6):18-22.
[10]	高智梁, 康永尚, 刘人和, 等. 准噶尔盆地南缘芦草沟组油页岩地质特征及主控因素[J]. 新疆地质, 2011, 29(2):189-193.
	GAO Zhiliang, KANG Yongshang, LIU Renhe, et al. Geological features and developmental controlling factors of Lucaogou oil shale in the southern margin of Junngar basin[J]. Xinjiang Geology, 2011, 29(2):189-193.
[11]	匡立春, 胡文瑄, 王绪龙, 等. 吉木萨尔凹陷芦草沟组致密油储层初步研究:岩性与孔隙特征分析[J]. 高校地质学报, 2013, 19(3):529-535.
	KUANG Lichun, HU Wenxuan, WANG Xulong, et al. Research of the tight oil reservoir in the Lucaogou formation in Jimusar sag:analysis of lithology and porosity characteristics[J]. Geological Journal of China Universities, 2013, 19(3):529-535.
[12]	曹元婷, 潘晓慧, 李菁, 等. 关于吉木萨尔凹陷页岩油的思考[J]. 新疆石油地质, 2020, 41(5):622-630.
	CAO Yuanting, PAN Xiaohui, LI Jing, et al. Discussion on shale oil in Jimsar sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2020, 41(5):622-630.
[13]	SCHMOKER J W, HESTER T C. Organic carbon in Bakken formation,United States portion of Williston basin[J]. AAPG Bulletin, 1983, 67(12):2 165-2 174.
[14]	MILLE B, PANEITZ J, MULLEN M, et al. The successful application of a compartmental completion technique used to isolate multiple hydraulic-fracture treatments in horizontal Bakken shale wells in north Dakota[R]. SPE 116469,2008.
[15]	ZENG Lianbo, JIANG Jianwei, YANG Yongli. Fractures in the low porosity and ultra-low permeability glutenite reservoirs:a case study of the Late Eocene Hetaoyuan formation in the Anpeng oilfield,Nanxiang basin,China[J]. Marine and Petroleum Geology, 2010, 27:1 642-1 650. doi: 10.1016/j.marpetgeo.2010.03.009
[16]	柳智利, 秦启荣, 王志萍, 等. 川西DY构造须家河组致密砂岩储层裂缝有效性分析[J]. 重庆科技学院学报(自然科学版), 2010, 12(5):38-41.
	LIU Zhili, QIN Qirong, WANG Zhiping, et al. Fracture validity analysis for Xujiahe dense sandstone formation in western Sichuan DY structure[J]. Journal of Chongqing University of Science and Technology(Natural Sciences Edition), 2010, 12(5):38-41.
[17]	朱琳琳, 刘晓峰, 王娜. 浅谈低渗透储层微裂缝[J]. 地下水, 2013, 35(1):115-118.
	ZHU Linlin, LIU Xiaofeng, WANG Na. Elementary discussion on the low permeability reservoir microfractures[J]. Ground Water, 2013, 35(1):115-118.
[18]	蔡美峰. 岩石力学与工程[M]. 北京: 科学出版社, 2013.
	CAI Meifeng. Rock mechanics and engineering[M]. Beijing: Science Press, 2013.
[19]	王瑞飞, 孙卫. 鄂尔多斯盆地姬塬油田上三叠统延长组超低渗透砂岩储层微裂缝研究[J]. 地质论评, 2009, 55(3):444-448.
	WANG Ruifei, SUN Wei. A study on micro cracks in super-low permeability sandstone reservoir of the Upper Triassic Yanchang formation in the Ordos basin[J]. Geological Review, 2009, 55(3):444-448.
