克拉玛依油田克75井区上乌尔禾组沉积特征及砂体连通性

doi:10.7657/XJPG20220406

摘要/Abstract

摘要：

准噶尔盆地克拉玛依油田克75井区上乌尔禾组非均质性强,连通性差异大,砂体展布特征与早期认识有较大差异,需对沉积相及砂体连通性进行研究,明确储集层展布规律。运用沉积学原理,探讨碎屑流与辫状水道共同控制的冲积扇各亚相4级构型要素特征及构型样式,分析各构型样式的沉积特征及其砂体连通性。研究结果表明：当扇根片流带相邻井的电性及沉积旋回特征较一致时,砂体连通性较好;当漫流砂体或漫流细粒沉积发育时,砂体连通性差,不易形成有效储集层。落实了克拉玛依油田克75井区1个Ⅰ类有利开发气藏区。

关键词: 准噶尔盆地, 克拉玛依油田, 上乌尔禾组, 非均质性, 储集层, 冲积扇, 沉积构型, 砂体连通性

Abstract:

The upper Wuerhe formation in Wellblock Ke 75 in Karamay oilfield, Junggar basin has strong heterogeneity and varying connectivity between adjacent wells, and the understanding of sand body distribution in the formation is greatly different from the previous one. It is necessary to study the sedimentary facies and sand body connectivity to clarify reservoir distribution. Taking the upper Wuerhe formation in the Wellblock Ke 75 as an example, the characteristics and styles of the 4th-order architectural elements for each subfacies belt of alluvial fan controlled by both debris flow and braided channel were discussed according to the principles of sedimentology, and the sedimentary characteristics and sand body connectivity of each architectural style were analyzed. The research shows that when the electrical properties and sedimentary cycle characteristics of neighboring wells in the sheet flow zone at fan root are consistent, the sand body connectivity is good, and when the cross flow sand bodies or cross flow fine-grained sediments are developed, the sand body connectivity is poor, leading to difficulties in forming effective reservoirs. The research confirmed a Class I favorable gas reservoir area in the Wellblock Ke 75 in Karamay oilfield.

Key words: Junggar basin, Karamay oilfield, upper Wuerhe formation, heterogeneity, reservoir, alluvial fan, sedimentary architecture, sand body connectivity

中图分类号:

TE122.21

刘念周, 李波, 张艺, 邬敏, 王泉, 苏航. 克拉玛依油田克75井区上乌尔禾组沉积特征及砂体连通性[J]. 新疆石油地质, 2022, 43(4): 417-424.

LIU Nianzhou, LI Bo, ZHANG Yi, WU Min, WANG Quan, SU Hang. Sedimentary Characteristics and Connectivity of Upper Wuerhe Formation in Wellblock Ke 75, Karamay Oilfield[J]. Xinjiang Petroleum Geology, 2022, 43(4): 417-424.

图/表 8

图1

表1

图2

图3

图4

图5

图6

图7

参考文献 25

[1]	冯有良, 胡素云, 李建忠, 等. 准噶尔盆地西北缘同沉积构造坡折对层序建造和岩性油气藏富集带的控制[J]. 岩性油气藏, 2018, 30(4):14-25.
	FENG Youliang, HU Suyun, LI Jianzhong, et al. Controls of syndepositional structural slope-break zones on sequence architecture and enrichment zones of lithologic reservoirs in northwestern margin of Junggar basin[J]. Lithologic Reservoirs, 2018, 30 (4):14-25.
[2]	代振龙, 范旭东, 白洪海, 等. 准噶尔盆地西北缘黑油山油砂露头区克拉玛依组储层特征[J]. 西部探矿工程, 2021, 33(7):123-127.
	DAI Zhenlong, FAN Xudong, BAI Honghai, et al. Reservoir characteristics of Karamay formation in Heiyoushan oil sand outcrop area on the northwest edge of Junggar basin[J]. Western Exploration Engineering, 2021, 33 (7):123-127.
[3]	王屿涛. 克75井区油气地化特征及成因分析[J]. 天然气工业, 1994, 14(6):12-17.
	WANG Yutao. Oil-gas geochemical features and genetic analysis in Ke-75 well area[J]. Natural Gas Industry, 1994, 14 (6):12-17.
[4]	雷德文, 吕焕通, 刘振宇, 等. 准噶尔盆地西北缘斜坡区冲积扇储集层预测与效果[J]. 新疆石油地质, 1998, 19(6):470-472.
	LEI Dewen, LV Huantong, LIU Zhenyu, et al. Prediction of alluvial fan reservoir on slope in northwestern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 1998, 19(6):470-472.
[5]	陈欢庆, 梁淑贤, 舒治睿, 等. 冲积扇砾岩储层构型特征及其对储层开发的控制作用:以准噶尔盆地西北缘某区克下组冲积扇储层为例[J]. 吉林大学学报(地球科学版), 2015, 45(1):13-24.
	CHEN Huanqing, LIANG Shuxian, SHU Zhirui, et al. Characteristics of conglomerate reservoir architecture of alluvial fan and its controlling effects to reservoir development:taking alluvial fan reservoir in some area of northwest margin of Junggar basin as an example[J]. Journal of Jilin University (Earth Science Edition), 2013, 45(1) :13-24.
[6]	唐海发, 贾爱林, 彭仕宓, 等. 洪积扇相储层沉积微相—岩石相随机模拟[J]. 中国石油大学学报, 2010, 34(3):12-17.
	TANG Haifa, JIA Ailin, PENG Shimi, et al. Stochastic modeling of sedimentary microfacies-lithofacies in proluvial fan reservoir[J]. Journal of China University of Petroleum, 2010, 34(3):12-17.
[7]	宫广胜, 高建. 洪积扇砂砾岩储层在基准面旋回控制下的小层对比[J]. 大庆石油地质与开发, 2011, 30(6):18-22.
	GONG Guangsheng, GAO Jian. Subzone correlation of the pluvial fan glutenite reservoirs controlled by datum-level cycle[J]. Petroleum Geology & Oilfield Development in Daqing, 2011, 30(6):18-22.
[8]	李晓峰, 彭仕宓, 唐海发, 等. 克拉玛依油田二中西八道湾组洪积扇沉积微相研究[J]. 新疆地质, 2008, 26(1):49-52.
	LI Xiaofeng, PENG Shimi, TANG Haifa, et al. The study of pluvial fan microfacies on Badaowan formation of Erzhongxi area in Karamay oil feild[J]. Xinjiang Geology, 2008, 26(1):49-52.
[9]	张代燕, 彭军, 王子强. 克拉玛依油田七中东区克下组沉积微相及演化[J]. 新疆地质, 2012, 30(1):67-72.
	ZHANG Daiyan, PENG Jun, WANG Ziqiang. Sedimentary microfacies and evolution of the lower Karamay formation in mid and east of 7th block,Karamay oilfield[J]. Xinjiang Geology, 2012, 30(1):67-72.
[10]	余浩杰, 马志欣, 张志刚, 等. 基于储层构型表征的辫状河地质知识库构建:以苏里格气田SX密井网区为例[J]. 大庆石油地质与开发, 2020, 39(2):1-8.
	YU Haojie, MA Zhixin, ZHANG Zhigang, et al. Establishment of the braided-river geological database based on the reservoir configuration characterization:taking dense well-pattern block SX in Sulige gas field as an example[J]. Petroleum Geology ＆ Oilfield Development in Daqing, 2020, 39(2):1-8.
[11]	MIALL A D. Architectural-element analysis:a new method of facies analysis applied to fluvial deposits[J]. Earth Science Review, 1985, 22(4):261-308. doi: 10.1016/0012-8252(85)90001-7
[12]	张纪易. 粗碎屑洪积扇的某些沉积特征和微相划分[J]. 沉积学报, 1985, 3(3):75-85.
	ZHANG Jiyi. Some depositional characteristics and microfacies subdivision of coarse clastic alluvial fans[J]. Acta Sedimentological Sinica, 1985, 3(3):75-85.
[13]	吴胜和, 伊振林, 许长福, 等. 新疆克拉玛依油田六中区三叠系克下组冲积扇高频基准面旋回与砂体分布型式研究[J]. 高校地质学报, 2008, 14(2):157-163.
	WU Shenghe, YI Zhenlin, XU Changfu, et al. High frequency base-level cycles of alluvial fan and distribution patterns of sandbodies of lower Karamay formation(Triassic)in middle 6^th district of Karamayi oilfield,Xinjiang[J]. Geological Journal of China Universities, 2008, 14(2):157-163.
[14]	吴胜和, 冯文杰, 印森林, 等. 冲积扇沉积构型研究进展[J]. 古地理学报, 2016, 18(4):497-512.
	WU Shenghe, FENG Wenjie, YIN Senlin, et al. Research advances in alluvial fan depositional architecture[J]. Journal of Palaeogeography, 2016, 18(4):497-512.
[15]	吴胜和, 范峥, 许长福, 等. 新疆克拉玛依油田三叠系克下组冲积扇内部构型[J]. 古地理学报, 2012, 14(3):331-340.
	WU Shenghe, FAN Zheng, XU Changfu, et al. Internal architecture of alluvial fan in the Triassic lower Karamay formation in Karamay oilfield,Xinjiang[J]. Journal of Palaeogeography, 2012, 14(3):331-340.
[16]	冯文杰, 吴胜和, 许长福, 等. 冲积扇储层窜流通道及其控制的剩余油分布模式:以克拉玛依油田一中区下克拉玛依组为例[J]. 石油学报, 2015, 36(7):858-870. doi: 10.7623/syxb201507010
	FENG Wenjie, WU Shenghe, XU Changfu, et al. Water flooding channel of alluvial fan reservoir and its controlling distribution pattern of remaining oil:a case study of Triassic lower Karamay formation,Yizhong area,Karamay oilfield,NW China[J]. Acta Petrolei Sinica, 2015, 36(7):858-870. doi: 10.7623/syxb201507010
[17]	印森林, 吴胜和, 冯文杰, 等. 冲积扇储集层内部隔夹层样式:以克拉玛依油田一中区克下组为例[J]. 石油勘探与开发, 2013, 40(6):757-763.
	YIN Senlin, WU Shenghe, FENG Wenjie, et al. Patterns of inter-layers in the alluvial fan reservoirs:a case study on Triassic lower Karamay formation,Yizhong area,Karamay oilfield,NW China[J]. Petroleum Exploration and Development, 2013, 40(6):757-763.
[18]	焦巧平, 高健, 侯加根, 等. 洪积扇相砂砾岩体储层构型研究方法探讨[J]. 地质科技情报, 2009, 28(6):57-63.
	JIAO Qiaoping, GAO Jian, HOU Jiagen, et al. Reservoir architecture of multiplex glutenite on alluvial fan[J]. Geological Science and Technology Information, 2009, 28 (6):57-63.
[19]	朱国华, 蒋宜勤, 李娴静. 克拉玛依油田中拐—五八区佳木河组火山岩储集层特征[J]. 新疆石油地质, 2008, 29(4):445-447.
	ZHU Guohua, JIANG Yiqin, LI Xianjing. The volcanic reservoir characteristics of Jiamuhe formation in Zhongguai-District 5-(8) area in Karamay oilfield[J]. Xinjiang Petroleum Geology, 2008, 29(4):445-447.
[20]	邹才能, 赵文智, 贾承造, 等. 中国沉积盆地火山岩油气藏形成与分布[J]. 石油勘探与开发, 2008, 35(3):257-271.
	ZOU Caineng, ZHAO Wenzhi, JIA Chengzao, et al. Formation and distribution of volcanic hydrocarbon reservoirs in sedimentary basins of China[J]. Petroleum Exploration and Development, 2008, 35(3):257-271. doi: 10.1016/S1876-3804(08)60071-3
[21]	能源, 谢会文, 孙太荣, 等. 克拉苏构造带克深段构造特征及其石油地质意义[J]. 中国石油勘探, 2013, 18(2):1-6.
	NENG Yuan, XIE Huiwen, SUN Tairong, et al. Structural characteristics of Keshen segmentation in Kelasu structural belt and its petroleum geological significance[J]. China Petroleum Exploration, 2013, 18(2):1-6.
[22]	罗权生, 徐君, 王加辉, 等. 台北凹陷第三系油气储层特征及影响因素[J]. 大庆石油地质与开发, 2006, 25(6):18-21.
	LUO Quansheng, XU Jun, WANG Jiahui, et al. Tertiary oil and gas reservoir features and affecting factors in Taibei sag[J]. Petroleum Geology＆Oilfield Development in Daqing, 2006, 25 (6):18-21.
[23]	高建, 马德胜, 侯加根, 等. 洪积扇砂砾岩储层岩石相渗流特征及剩余油分布规律[J]. 地质科技情报, 2011, 30(5):49-53.
	GAO Jian, MA Desheng, HOU Jiagen, et al. Flow mechanism and waterflooding characteristic of conglomerate lithofacies[J]. Geological Science and Technology Information, 2011, 30 (5):49-53.
[24]	印森林, 唐勇, 胡张明, 等. 构造活动对冲积扇及其油气成藏的控制作用:以准噶尔盆地西北缘二叠系—三叠系冲积扇为例[J]. 新疆石油地质, 2016, 37(4):391-400.
	YIN Senlin, TANG Yong, HU Zhangming, et al. Controls of tectonic activity on alluvial fan deposits and hydrocarbon accumulation:a case study of Permian and Triassic alluvial fans in northwestern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 2016, 37(4):391-400.
[25]	余宽宏, 金振奎, 李桂仔, 等. 准噶尔盆地克拉玛依油田三叠系克下组洪积砾岩特征及洪积扇演化[J]. 古地理学报, 2015, 17(2):143-159.
	YU Kuanhong, JIN Zhenkui, LI Guizi, et al. Conglomerate characteristics and alluvial fan evolution of the Triassic lower Karamay formation in Karamay oilfield,Junggar basin[J]. Journal of Paleogeography, 2015, 17(2):143-159.

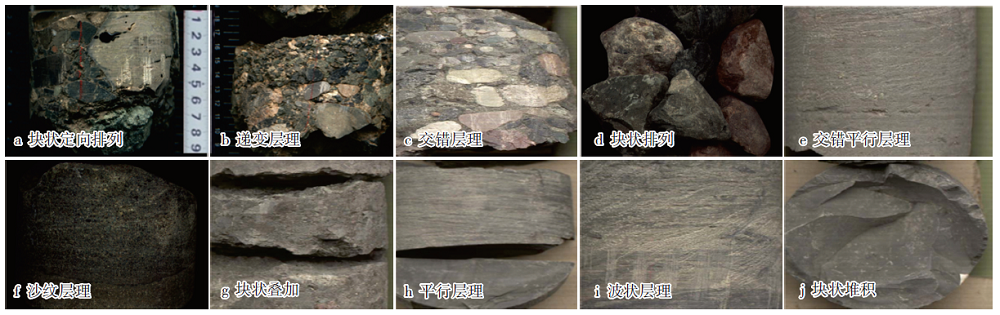

亚相	5级构型要素	4级单砂体构型要素	岩性	沉积构造
扇根	槽流带	槽流砂砾岩	粗—中砾岩、砂砾岩	块状定向排列
	片流带	片流砂砾岩	中—细砾岩、砂砾岩	递变层理
	漫洪带	漫洪砂体	中—细砂岩不等粒砂岩、含砾砂岩	交错层理
	漫洪带	漫洪细粒沉积	粉砂岩、含砾砂岩、砂质泥岩、泥岩	块状排列
扇中	辫流带	辫流水道砂体	砂砾岩、粗砂岩	交错层理、平行层理
	漫流带	漫流砂体	细砂岩、不等粒砂岩、含砾泥质砂岩	波状层理、沙纹层理
	漫流带	漫流细粒沉积	泥质粉砂岩、砂质泥岩、含砾泥岩、泥岩	块状叠加
扇缘	径流带	径流水道砂体	砂砾岩、中—细砂岩	交错层理、平行层理
	漫流带	漫流砂体	细砂岩、泥质砂岩	波状层理
	漫流带	漫流细粒沉积	泥质粉砂岩、泥岩	块状堆积
