中—低成熟度页岩油原位转化对储集层的改造能力

doi:10.7657/XJPG20230414

新疆石油地质 ›› 2023, Vol. 44 ›› Issue (4): 485-496.doi: 10.7657/XJPG20230414

中—低成熟度页岩油原位转化对储集层的改造能力

韦自健^1a^,^1b(), 盛家平^1a^,^1b^,²(), 张潇^1b^,^1c^,^1d^,^1e

1.中国石油大学（北京） a.非常规油气科学技术研究院;b.油气资源与探测国家重点实验室;c.理学院;d.煤层气研究中心;e.油气光学探测技术北京市重点实验室，北京 102249
2.德克萨斯理工大学Bob L. Herd石油工程系，美国德克萨斯州，拉伯克 43111

收稿日期:2022-10-02 修回日期:2022-12-07 出版日期:2023-08-01 发布日期:2023-08-01
通讯作者: 盛家平（1962-），男，江苏丹阳人，教授，博士，油气田开发，（Tel）15911146094（E-mail）shengjiaping@cup.edu.cn
作者简介:韦自健（1994-），男，山东东营人，博士研究生，油气田开发，（Tel）18810362967（E-mail）weizijianupc@163.com
基金资助:
国家自然科学基金(51974334)

Stimulation Capability of Low-Medium Maturity Shale Oil Reservoir During In-Situ Conversion

WEI Zijian^1a^,^1b(), SHENG Jiaping^1a^,^1b^,²(), ZHANG Xiao^1b^,^1c^,^1d^,^1e

1. China University of Petroleum (Beijing), a.Unconventional Petroleum Institute; b.State Key Laboratory of Oil and Gas Resources and Detection; c.College of Science; d.Coalbed Methane Research Center; e.Beijing Key Laboratory of Oil and Gas Optical Detection Technology, Beijing 102249, China
2. Bob L. Herd Department of Petroleum Engineering, Texas Tech University, Lubbock, Texas 43111, USA

Received:2022-10-02 Revised:2022-12-07 Online:2023-08-01 Published:2023-08-01

摘要/Abstract

摘要：

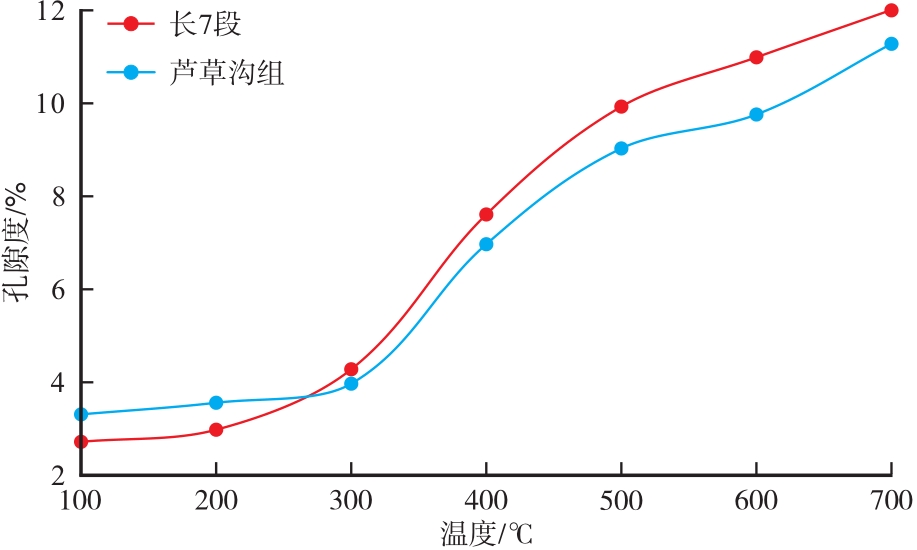

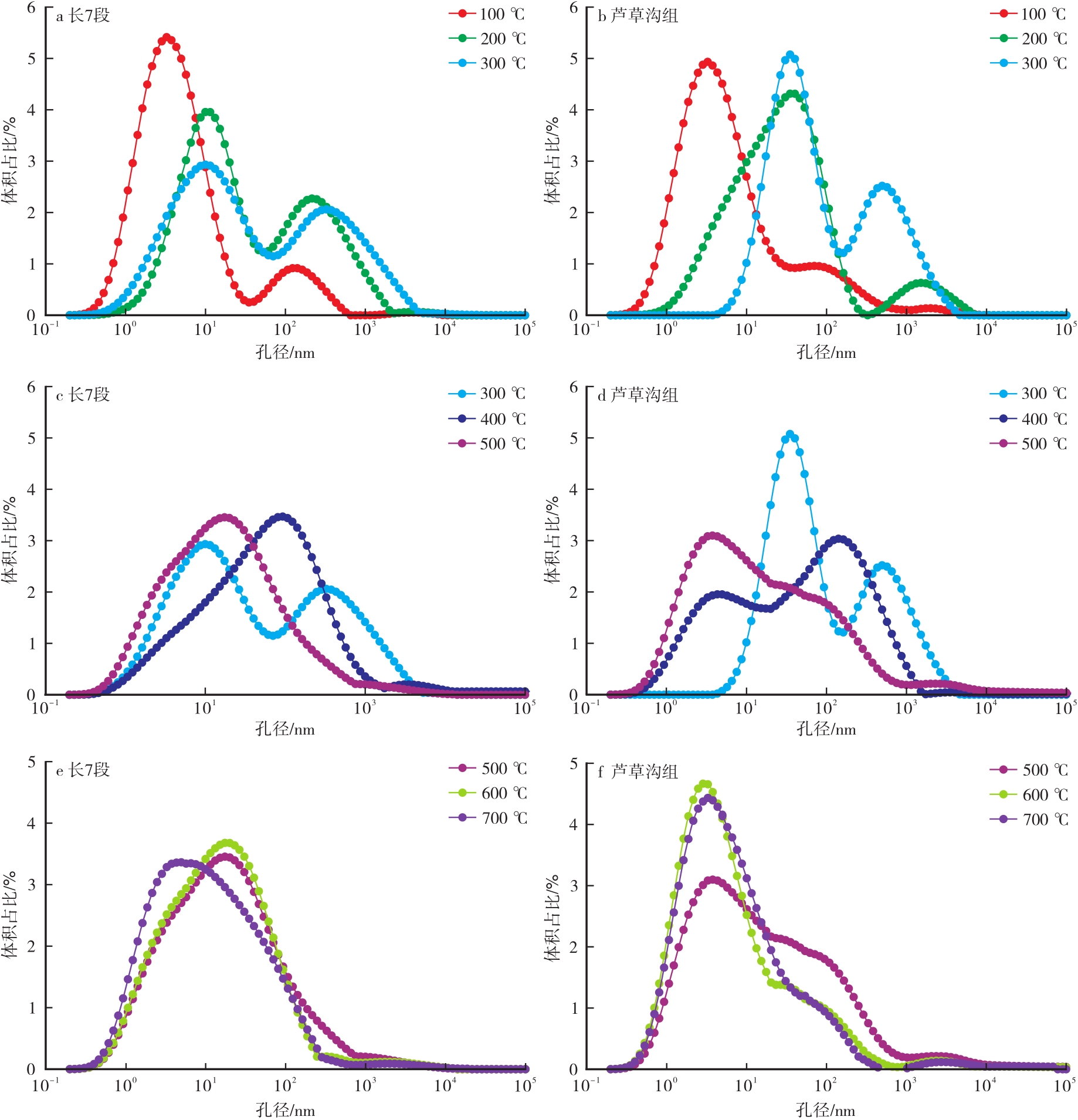

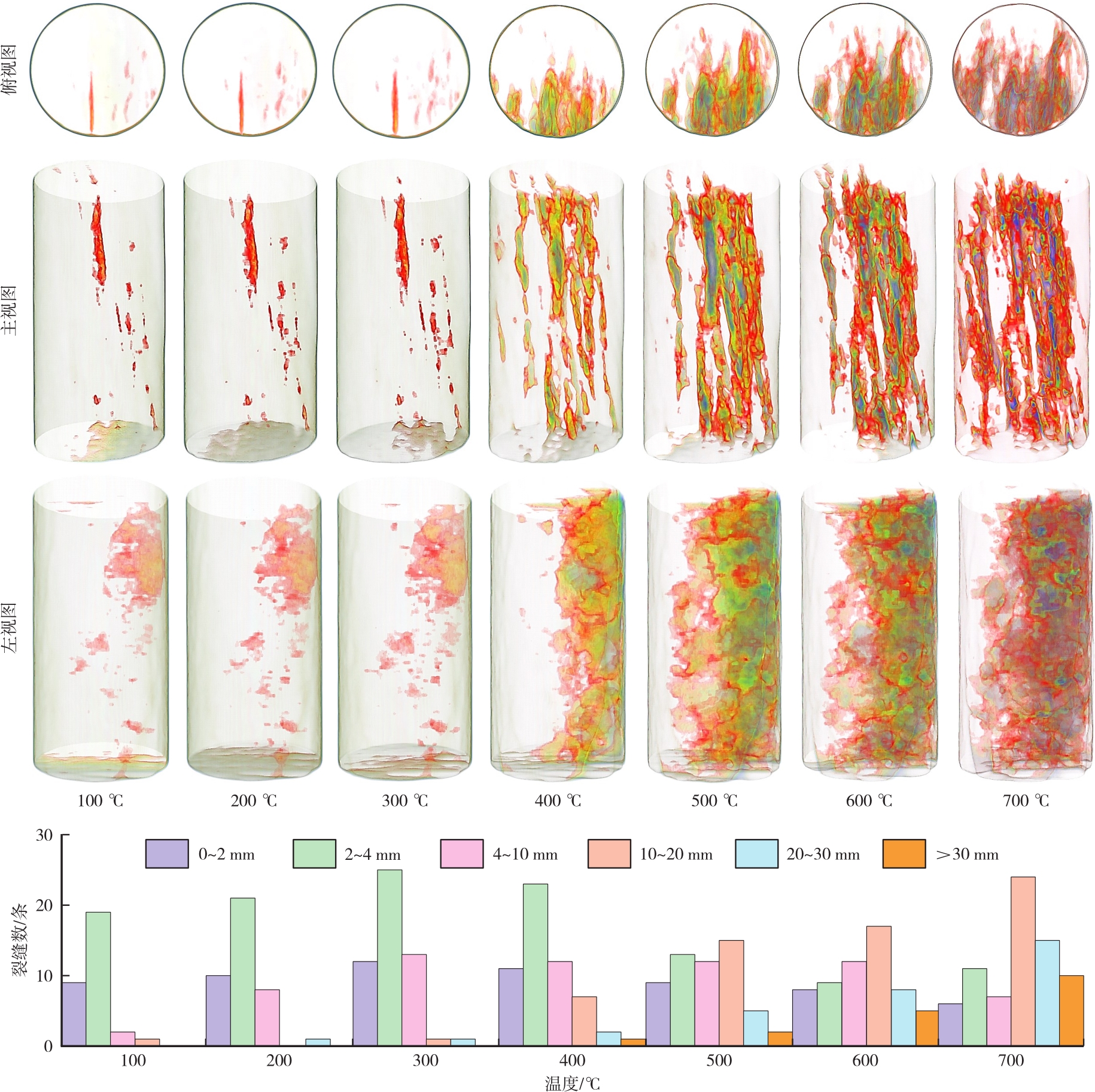

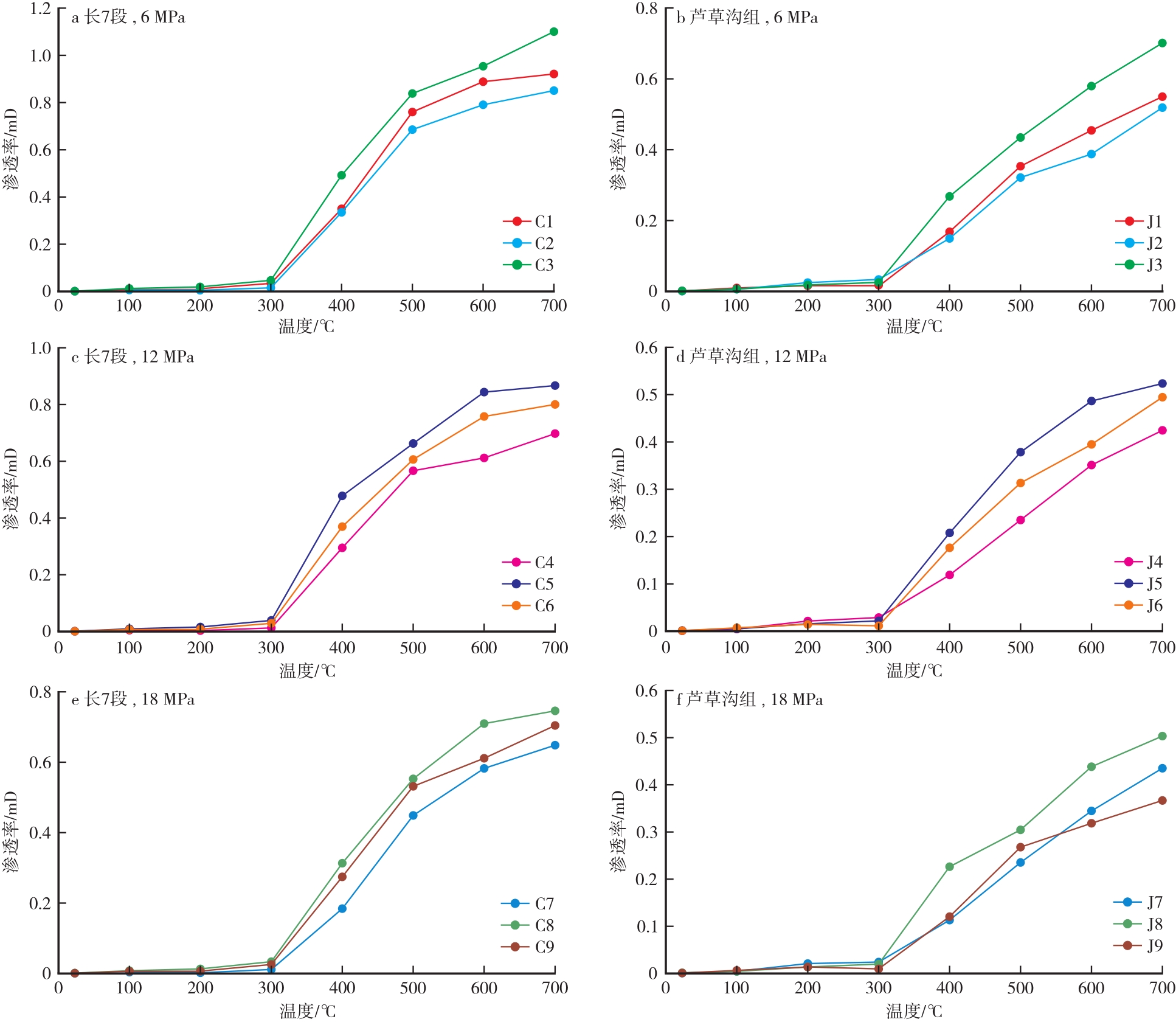

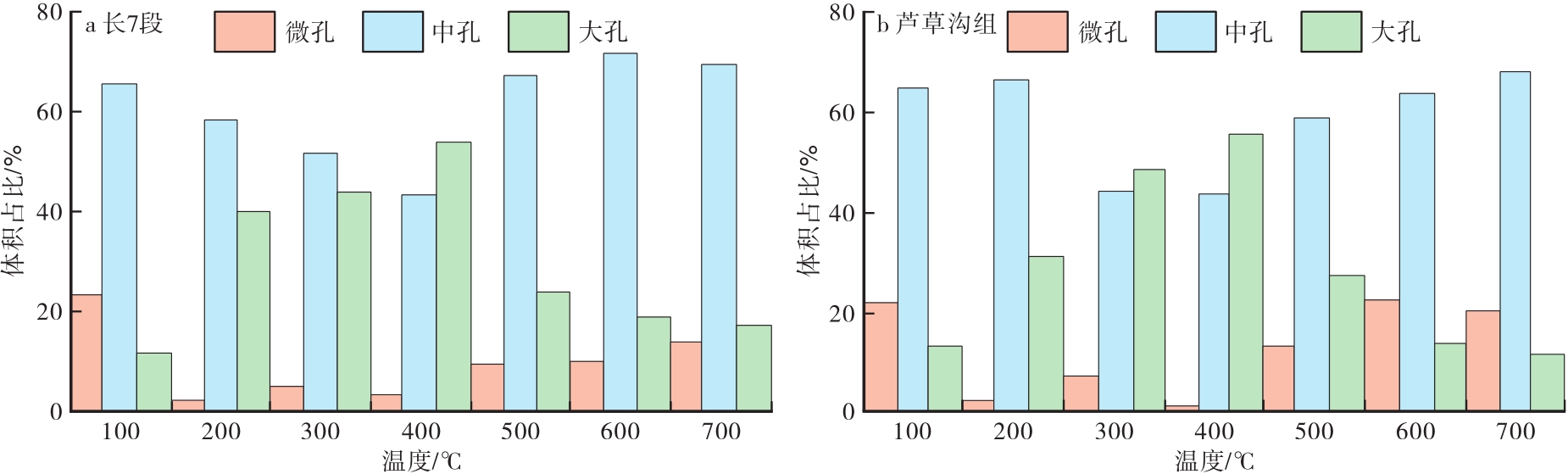

中国中—低成熟度页岩油资源丰富，原位转化潜力巨大。为评价中—低成熟度页岩油原位转化对储集层的改造能力，对鄂尔多斯盆地延长组长7段和准噶尔盆地吉木萨尔凹陷芦草沟组2种典型中—低成熟度页岩开展了原位加热实验。利用核磁共振测试、立式光学显微镜观测、计算机断层扫描和脉冲衰减气体渗透率测量等，实时监测了原位转化中纳米孔隙、热解裂缝以及孔隙度和渗透率在高温高压下的动态变化。干酪根热解引起的热解裂缝与生烃增压效应，是微观结构和储集层物性显著改善的关键。当温度超过400 ℃的阈值后，随着干酪根热解和烃类热膨胀，页岩内部裂缝网络的延伸度、密度、复杂性和连通性均显著提高，大量直径在2~50 nm的次生孔隙占据孔隙结构的主导地位。原位应力下，2种页岩孔隙度可分别增加至3.65倍和2.73倍，渗透率可分别增加至624.09倍和418.37倍。渗透率在高温阶段比低温阶段表现出更强的应力敏感性。原位应力越低，干酪根含量越高的页岩储集层，原位转化的改造能力越高，储集层热破裂和热增渗能力也越高。

关键词: 中—低成熟度页岩油, 原位转化, 储集层改造, 干酪根热解, 生烃增压, 应力敏性, 热破裂, 热增渗

Abstract:

In China, the abundant low-medium maturity shale oil resources present a huge potential for in-situ conversion. To evaluate the stimulation capability of low-medium maturity shale oil reservoir during in-situ conversion, in-situ heating experiments were conducted on the typical low-medium maturity shales from Chang 7 member of Yanchang formation in Ordos basin and Lucaogou formation of Jimsar sag in Junggar basin. By using techniques such as nuclear magnetic resonance testing, vertical optical microscopy observation, computerized tomography scanning, and pulse decay gas permeability measurement, the dynamic changes in nano-scale pores, thermal fractures, porosity and permeability under high-temperature and high-pressure conditions during in-situ conversion were monitored in a real-time manner. The kerogen pyrolysis-induced fractures and the hydrocarbon generation pressurization effect are key factors for significantly improving the microstructure and reservoir properties. Once the temperature exceeds the threshold (400°C), the extension, density, complexity and connectivity of fractures within the shale significantly increase due to kerogen pyrolysis and thermal expansion of hydrocarbons. Secondary pores with diameters ranging from 2 to 50 nm become dominant in the pore structure. Under in-situ stress, the porosities of the two types of shale can be increased by 3.65 and 2.73 times, respectively, while the permeability can be increased by 624.09 and 418.37 times, respectively. Permeability is more stress-sensitive in the high-temperature stage than in the low-temperature stage. Shale reservoir with lower in-situ stress and higher kerogen content exhibit higher stimulation capability and higher thermal fracturing and thermal permeability enhancement capabilities during in-situ conversion.

Key words: low-medium maturity shale oil, in-situ conversion, reservoir stimulation, kerogen pyrolysis, hydrocarbon generation pressurization, stress sensitivity, thermal fracturing, thermal permeability enhancement

中图分类号:

TE348

韦自健, 盛家平, 张潇. 中—低成熟度页岩油原位转化对储集层的改造能力[J]. 新疆石油地质, 2023, 44(4): 485-496.

WEI Zijian, SHENG Jiaping, ZHANG Xiao. Stimulation Capability of Low-Medium Maturity Shale Oil Reservoir During In-Situ Conversion[J]. Xinjiang Petroleum Geology, 2023, 44(4): 485-496.

图/表 13

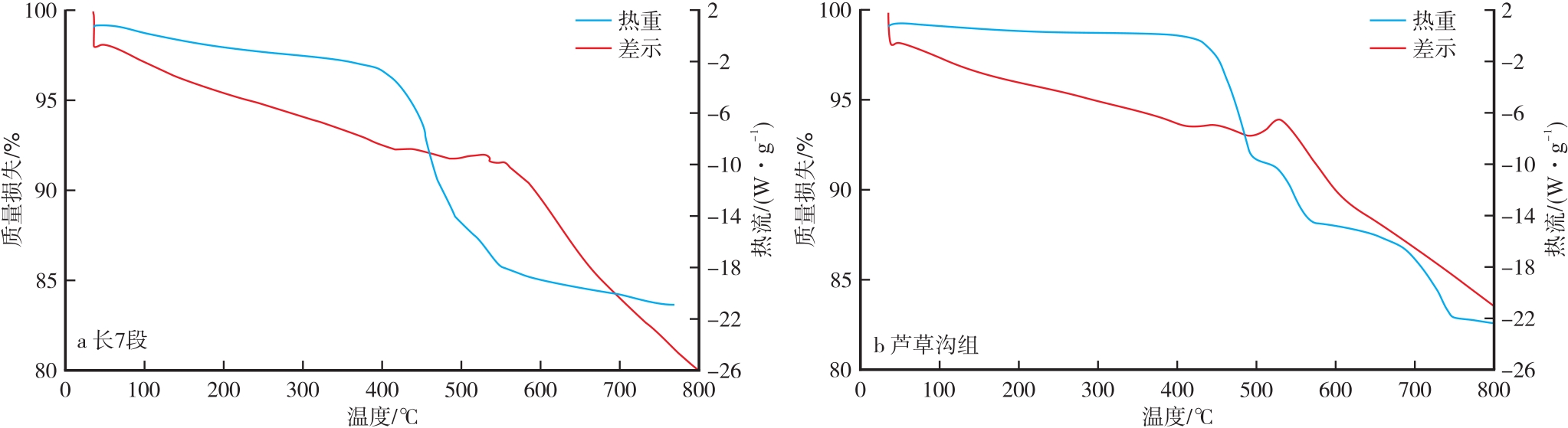

图1

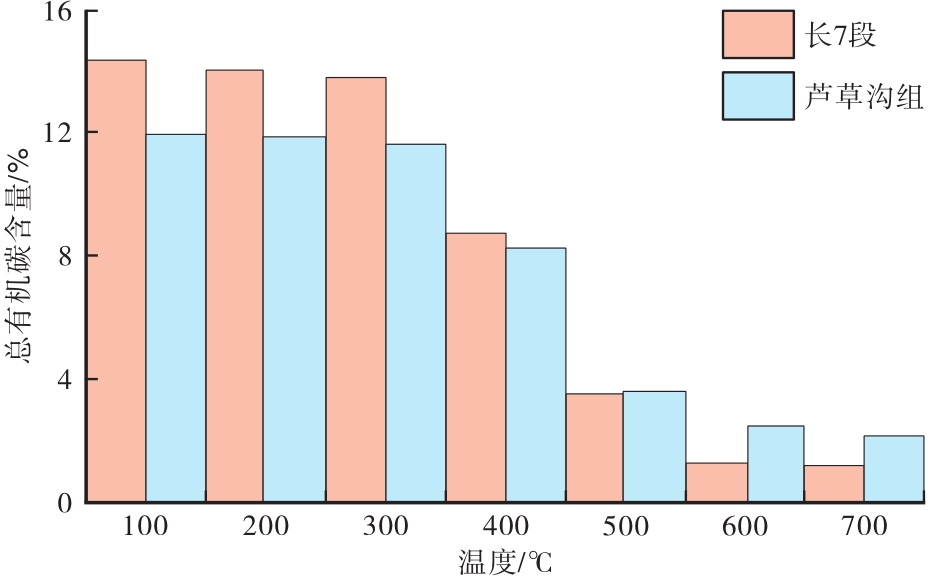

图2

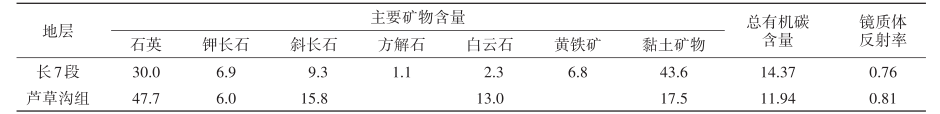

表1

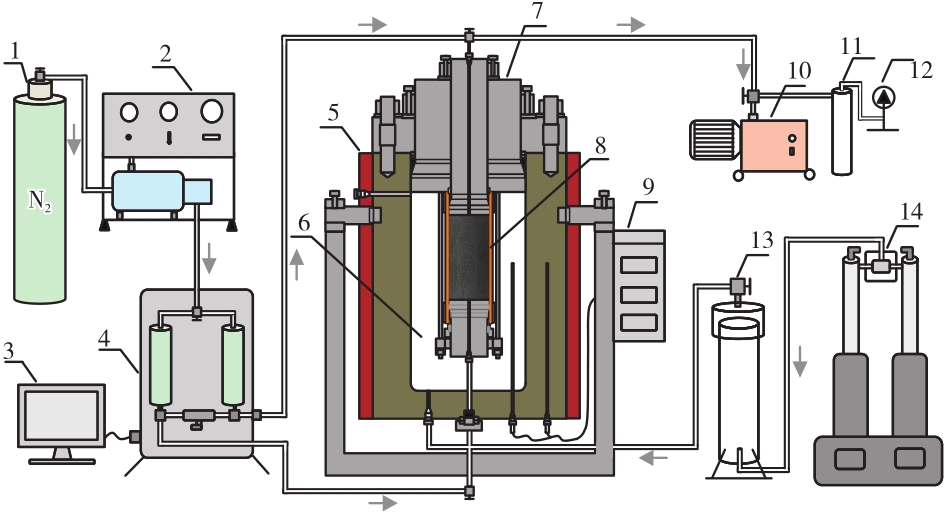

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 34

[1]	SHENG James. Enhanced oil recovery in shale and tight reservoirs[M]. Houston: Gulf Professional Publishing, 2019.
[2]	胡素云, 赵文智, 侯连华, 等. 中国陆相页岩油发展潜力与技术对策[J]. 石油勘探与开发, 2020, 47(4):819-828. doi: 10.11698/PED.2020.04.19
	HU Suyun, ZHAO Wenzhi, HOU Lianhua, et al. Development potential and technical strategy of continental shale oil in China[J]. Petroleum Exploration and Development, 2020, 47(4):819-828.
[3]	杜金虎, 胡素云, 庞正炼, 等. 中国陆相页岩油类型、潜力及前景[J]. 中国石油勘探, 2019, 24(5):560-568. doi: 10.3969/j.issn.1672-7703.2019.05.003
	DU Jinhu, HU Suyun, PANG Zhenglian, et al. The types,potentials and prospects of continental shale oil in China[J]. China Petroleum Exploration, 2019, 24(5):560-568. doi: 10.3969/j.issn.1672-7703.2019.05.003
[4]	赵文智, 胡素云, 侯连华. 页岩油地下原位转化的内涵与战略地位[J]. 石油勘探与开发, 2018, 45(4):537-545. doi: 10.11698/PED.2018.04.01
	ZHAO Wenzhi, HU Suyun, HOU Lianhua. Connotation and strategic role of in-situ conversion processing of shale oil underground in the onshore China[J]. Petroleum Exploration and Development, 2018, 45(4):537-545.
[5]	陈国辉, 蒋恕, 李醇, 等. 加热过程中页岩储层改质效果研究进展[J]. 石油与天然气地质, 2022, 43(2):286-296.
	CHEN Guohui, JIANG Shu, LI Chun, et al. Progress in shale reservoir upgrading through in-situ heating[J]. Oil & Gas Geology, 2022, 43(2):286-296.
[6]	ALPAK F O, VINK J C, GAO G, et al. Techniques for effective simulation,optimization,and uncertainty quantification of the in-situ upgrading process[J]. Journal of Unconventional Oil and Gas Resources, 2013, 3:1-14.
[7]	SAIF T, LIN Q, SINGH K, et al. Dynamic imaging of oil shale pyrolysis using synchrotron X‐ray microtomography[J]. Geophysical Research Letters, 2016, 43(13):6 799-6 807. doi: 10.1002/2016GL069279
[8]	BAI Fengtian, SUN Youhong, LIU Yumin, et al. Evaluation of the porous structure of Huadian oil shale during pyrolysis using multiple approaches[J]. Fuel, 2017, 187:1-8. doi: 10.1016/j.fuel.2016.09.012
[9]	常思阳. 松辽盆地油页岩加热过程储集物性特征研究[D]. 长春: 吉林大学, 2017.
	CHANG Siyang. Reservoir characteristics of oil shale during heating in Songliao basin[D]. Changchun: Jilin University, 2017.
[10]	刘志军. 温度作用下油页岩孔隙结构及渗透特征演化规律研究[D]. 太原: 太原理工大学, 2018.
	LIU Zhijun. Temperature dependence of evolution of pore structure and permeability characteristics of oil shale[D]. Taiyuan: Taiyuan University of Technology, 2018.
[11]	刘志军, 杨栋, 胡耀青, 等. 油页岩原位热解孔隙结构演化的低温氮吸附分析[J]. 西安科技大学学报, 2018, 38(5):737-742.
	LIU Zhijun, YANG Dong, HU Yaoqing, et al. Low temperature nitrogen adsorption analysis of pore structure evolution in in-situ pyrolysis of oil shale[J]. Journal of Xi’an University of Science and Technology, 2018, 38(5):737-742.
[12]	LIU Zhijun, YANG Dong, HU Yaoqing, et al. Influence of in situ pyrolysis on the evolution of pore structure of oil shale[J]. Energies, 2018, 11(4):755. doi: 10.3390/en11040755
[13]	耿毅德, 梁卫国, 刘剑, 等. 不同温压条件下油页岩孔裂隙结构演化试验研究[J]. 岩石力学与工程学报, 2018, 37(11):2 510-2 519.
	GENG Yide, LIANG Weiguo, LIU Jian, et al. Experimental study on the variation of pore and fracture structure of oil shale under different temperatures and pressures[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37(11):2 510-2 519.
[14]	GENG Yide, LIANG Weiguo, LIU Jian, et al. Evolution of pore and fracture structure of oil shale under high temperature and high pressure[J]. Energy & Fuels, 2017, 31(10):10 404-10 413. doi: 10.1021/acs.energyfuels.7b01071
[15]	董付科, 杨栋, 冯子军. 高温三轴应力下吉木萨尔油页岩渗透率演化规律[J]. 煤炭技术, 2017, 36(8):165-166.
	DONG Fuke, YANG Dong, FENG Zijun. Permeability evolution of Jimsar oil shale under high temperature and triaxial stresses[J]. Coal Technology, 2017, 36(8):165-166.
[16]	DONG Fuke, FENG Zong, YANG Dong, et al. Permeability evolution of pyrolytically-fractured oil shale under in situ conditions[J]. Energies, 2018, 11(11):3 033. doi: 10.3390/en11113033
[17]	王国营, 杨栋, 康志勤. 高温三轴应力作用下油页岩的渗透特征各向异性演化规律实验研究[J]. 岩石力学与工程学报, 2020, 39(6):1 129-1 141.
	WANG Guoying, YANG Dong, KANG Zhiqin. Experimental study on anisotropic permeability of oil shale under high temperature and triaxial stress[J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(6):1 129-1 141.
[18]	WANG Guoying, YANG Dong, ZHAO Yangsheng, et al. Experimental investigation on anisotropic permeability and its relationship with anisotropic thermal cracking of oil shale under high temperature and triaxial stress[J]. Applied Thermal Engineering, 2019, 146:718-725. doi: 10.1016/j.applthermaleng.2018.10.005
[19]	韦自健, 盛家平, 杨凌风. 耐高温岩芯夹持器以及岩芯温度追踪加热系统[P]. 中国, CN112153763B. 2021.07.02.
	WEI Zijian, SHENG Jiaping, YANG Lingfeng. High temperature resistant core holder and temperature tracking heating system[P]. China, CN112153763B. 2021.07.02.
[20]	LIU Dayong, LI Hengchao, ZHANG Can, et al. Experimental investigation of pore development of the Chang 7 member shale in the Ordos basin under semi-closed high-pressure pyrolysis[J]. Marine and Petroleum Geology, 2019, 99:17-26. doi: 10.1016/j.marpetgeo.2018.08.014
[21]	WU Songtao, YANG Zhi, ZHAI Xiufen, et al. An experimental study of organic matter,minerals and porosity evolution in shales within high-temperature and high-pressure constraints[J]. Marine and Petroleum Geology, 2019, 102:377-390. doi: 10.1016/j.marpetgeo.2018.12.014
[22]	DING Xiujian, QU Jiangxiu, IMIN A, et al. Organic matter origin and accumulation in tuffaceous shale of the Lower Permian Lucaogou formation,Jimsar sag[J]. Journal of Petroleum Science and Engineering, 2019, 179:696-706. doi: 10.1016/j.petrol.2019.05.004
[23]	袁伟. 鄂尔多斯盆地延长组长7段富有机质页岩形成机理[D]. 北京: 中国石油大学(北京), 2018.
	YUAN Wei. Formation mechanism of the organic-rich shales in the 7th member of Yanchang formation,Ordos basin[D]. Beijing: China University of Petroleum(Beijing), 2018.
[24]	曲长胜. 吉木萨尔凹陷二叠系芦草沟组富有机质混积岩特征及其形成环境[D]. 山东青岛: 中国石油大学(华东), 2017.
	QU Changsheng. Characteristics and depositional environment of organic-rich mixed sedimentary rocks in Permian Lucaogou formation,Jimusaer sag[D]. Qingdao,Shandong: China University of Petroleum (East China), 2017.
[25]	梁成钢, 谢建勇, 陈依伟, 等. 吉木萨尔凹陷芦草沟组页岩储集层裂缝成因及耦合关系[J]. 新疆石油地质, 2021, 42(5):521-528.
	LIANG Chenggang, XIE Jianyong, CHEN Yiwei, et al. Genesis and coupling relationship of fractures in shale reservoir of Lucaogou formation in Jimsar sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2021, 42(5):521-528.
[26]	KALJUVEE T, KEELMANN M, TRIKKEL A, et al. Thermooxidative decomposition of oil shales[J]. Journal of thermal analysis and calorimetry, 2011, 105(2):395-403. doi: 10.1007/s10973-010-1033-0
[27]	卢婷, 王鸣川, 马文礼, 等. 考虑多重应力敏感效应的页岩气藏压裂水平井试井模型[J]. 新疆石油地质, 2021, 42(6):741-748.
	LU Ting, WANG Mingchuan, MA Wenli, et al. Fractured horizontal well test model for shale gas reservoirs with considering multiple stress sensitive factors[J]. Xinjiang Petroleum Geology, 2021, 42(6):741-748.
[28]	KANG Yili, CHEN Mingjun, CHEN Zhanxin, et al. Investigation of formation heat treatment to enhance the multiscale gas transport ability of shale[J]. Journal of Natural Gas Science and Engineering, 2016, 35:265-275. doi: 10.1016/j.jngse.2016.08.058
[29]	MAHADEVAN J, SHARMA M M, YORTSOS Y C. Evaporative cleanup of water blocks in gas wells[J]. SPE Journal, 2007, 12(2):209-216. doi: 10.2118/94215-PA
[30]	SING K S W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (Recommendations 1984)[J]. Pure and Applied Chemistry, 1985, 57(4):603-619. doi: 10.1351/pac198557040603
[31]	GAVRILENKO P, GUEGUEN Y. Pressure dependence of permeability:A model for cracked rocks[J]. Geophysical Journal International, 1989, 98(1):159-172. doi: 10.1111/gji.1989.98.issue-1
[32]	WEI Zijian, SHENG J J. Study of thermally-induced enhancement in nanopores,microcracks,porosity and permeability of rocks from different ultra-low permeability reservoirs[J]. Journal of Petroleum Science and Engineering, 2022, 209:109896. doi: 10.1016/j.petrol.2021.109896
[33]	YANG D, ELSWORTH D, KANG Z Q, et al. Experiments on permeability evolution with temperature of oil shale[C]. In 46th US Rock Mechanics/Geomechanics Symposium. OnePetro, 2012.
[34]	LI Qingyou, HAN Xiangxin, LIU Qingqing, et al. Thermal decomposition of Huadian oil shale. Part 1. Critical Organic Intermediates[J]. Fuel, 2014, 121:109-116. doi: 10.1016/j.fuel.2013.12.046
