Development Characteristics and Model of Cili Longwang Karst Cave in Hunan Province

doi:10.7657/XJPG20220203

Abstract

Abstract:

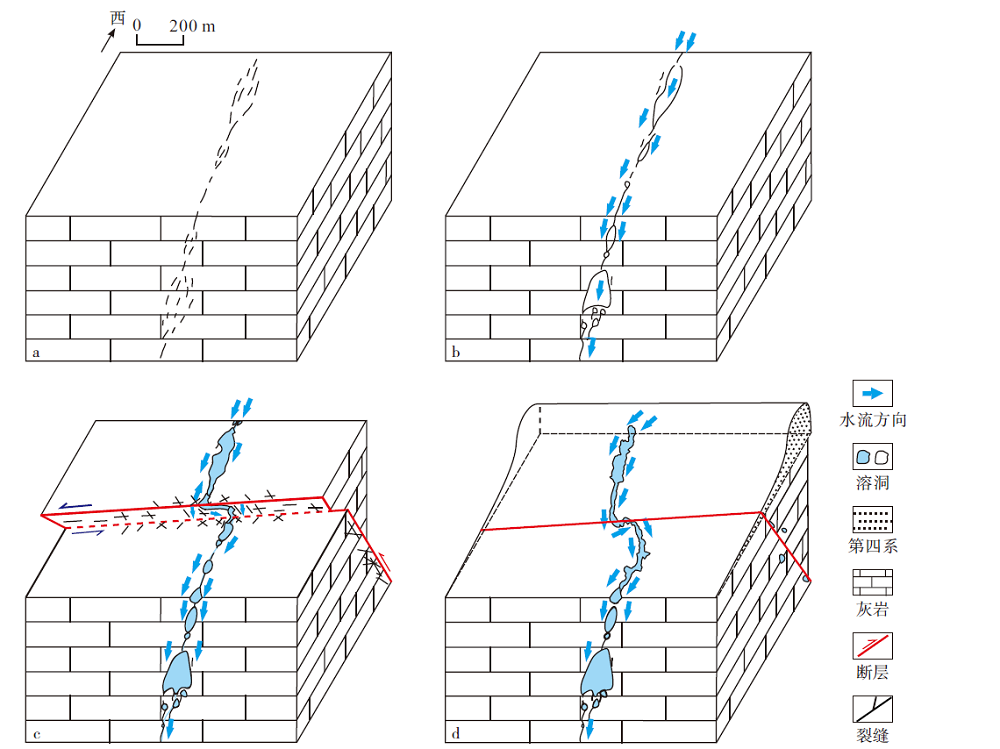

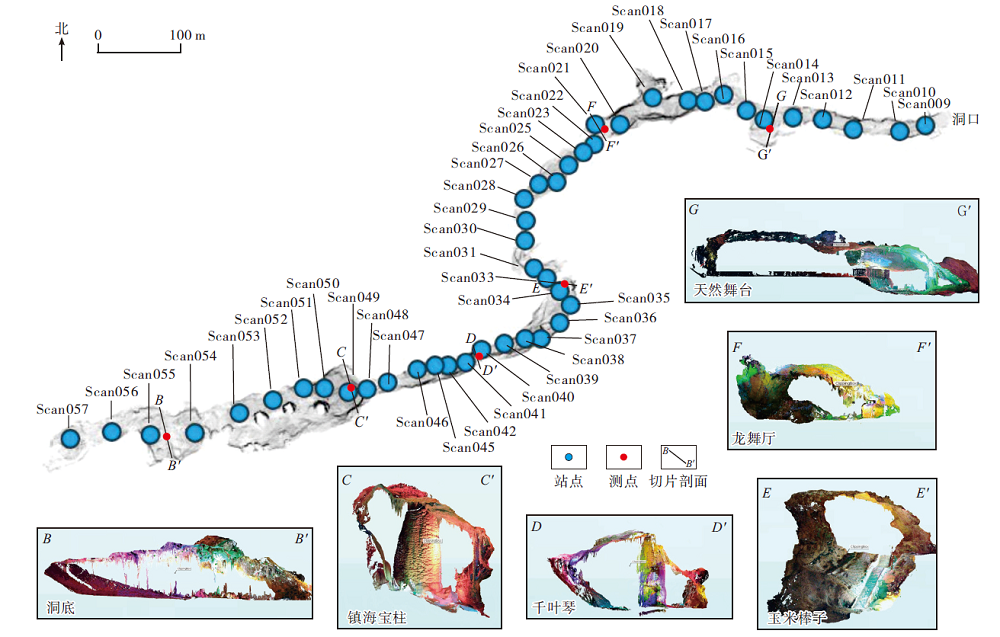

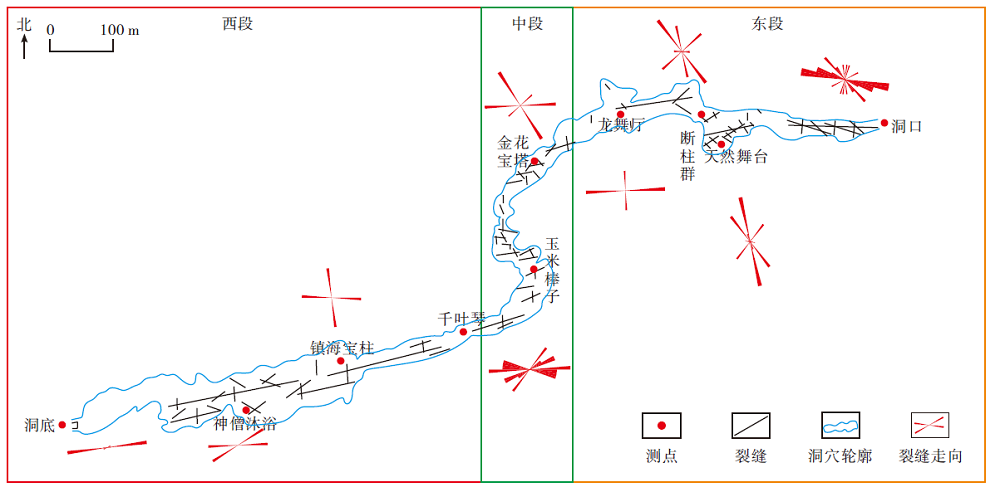

To study the development characteristics and model of the Longwang Cave in the Cili area of Hunan province, a 3D model is constructed by using manual survey and 3D laser scanning technology to characterize the structure of the karst cave. The Longwang Cave can be divided into three sections. The western section is NEE-SWW trending and filled with chemical cements. The middle section is NNE-SSW trending and filled with collapsed cements. The eastern section is nearly EW trending, and filled with chemical cements and flowing water deposits. As for the filling degree, the middle section shows the highest, the western section is higher, and the eastern section is the lowest. Controlled by a NEE-SWW trending fracture zone, the Longwang Cave is a typical fracture-controlled karst cave which has undergone four development stages. First, a NEE-SWW fracture zone was formed along the Sanguansi syncline. Then the rock was dissolved along the fracture zone by karst water from west to east, and an initial karst cave formed. Second, the initial karst cave was dislocated by NNW-SSE trending strike-slip thrust faults and then differential dissolution occured, that is, the western section was dissolved to a higher degree than the middle and eastern sections. Third, due to different numbers and scales of fractures, differential dissolution made the carst caves in the western section further expand, and the karst caves in the eastern section gradually connected together. The dissolution of the western section was higher than that of the eastern section. Finally, the middle section inherited the previous dissolution characteristics, so it is weaker than the eastern and western sections in dissolution. After the four stages above, the Longwang Cave shows its present structure.

Key words: Cili Longwang Cave, fracture-controlled karst cave, development characteristic, development model, 3D laser scanning technology, section, correlation, controlling factor

CLC Number:

P642.25

XU Xinyu, CHEN Qinghua, JI Dongsheng, CUI Youwei. Development Characteristics and Model of Cili Longwang Karst Cave in Hunan Province[J]. Xinjiang Petroleum Geology, 2022, 43(2): 145-152.

Figures/Tables 8

Fig. 1.

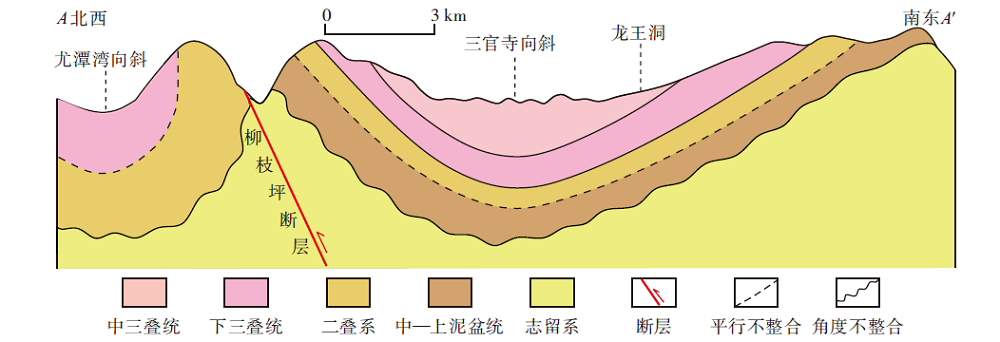

Fig. 2.

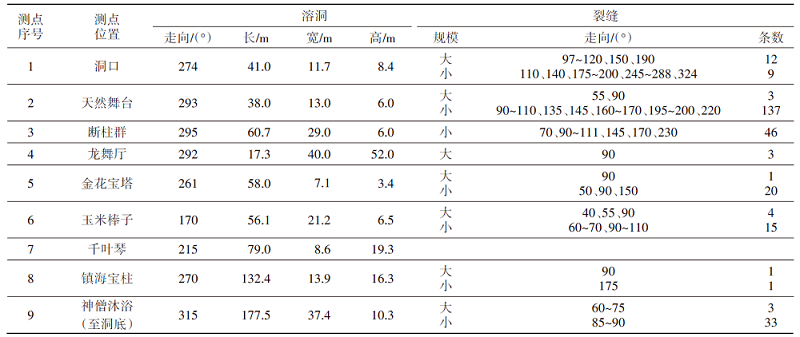

Table 1

Fig. 3.

Fig. 4.

Table 2

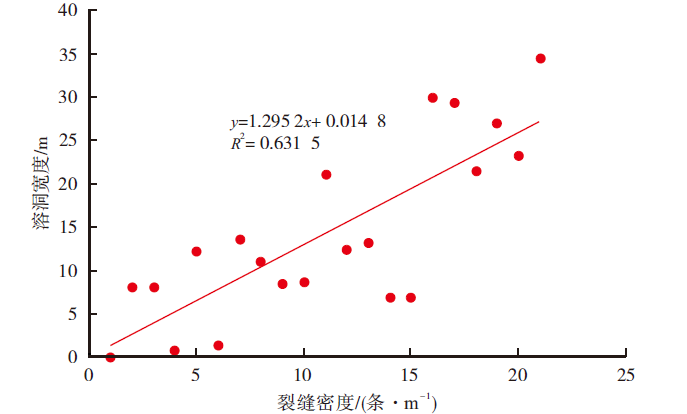

Fig. 5.

Fig. 6.

References 30

[1]	何登发, 马永生, 刘波, 等. 中国含油气盆地深层勘探的主要进展与科学问题[J]. 地学前缘, 2019, 26(1):1-12.
	HE Dengfa, MA Yongsheng, LIU Bo, et al. Main advances and key issues for deep-seated exploration in petroliferous basins in China[J]. Earth Science Frontiers, 2019, 26(1):1-12.
[2]	康玉柱. 塔里木盆地寒武-奥陶系古岩溶特征与油气分布[J]. 新疆石油地质, 2005, 26(5):472-480.
	KANG Yuzhu. Palaeokarst of Cambro-Ordovician and oil-gas distribution in Tarim basin[J]. Xinjiang Petroleum Geology, 2005, 26(5):472-480.
[3]	焦方正. 塔里木盆地顺北特深碳酸盐岩断溶体油气藏发现意义与前景[J]. 石油与天然气地质, 2018, 39(2):207-216.
	JIAO Fangzheng. Significance and prospect of ultra-deep carbonate fault-karst reservoirs in Shunbei area,Tarim basin[J]. Oil ＆ Gas Geology, 2018, 39(2):207-216.
[4]	云露. 顺北地区奥陶系超深断溶体油气成藏条件[J]. 新疆石油地质, 2021, 42(2):136-142.
	YUN Lu. Hydrocarbon accumulation of ultra-deep Ordovician fault-karst reservoirs in Shunbei area[J]. Xinjiang Petroleum Geology, 2021, 42(2):136-142.
[5]	韩俊, 况安鹏, 能源, 等. 顺北5号走滑断裂带纵向分层结构及其油气地质意义[J]. 新疆石油地质, 2021, 42(2):152-160.
	HAN Jun, KUANG Anpeng, NENG Yuan, et al. Vertical layered structure of Shunbei No.5 strike-slip fault zone and its significance on hydrocarbon accumulation[J]. Xinjiang Petroleum Geology, 2021, 42(2):152-160.
[6]	袁道先. 中国岩溶学[M]. 北京: 地质出版社, 1993:68-70.
	YUAN Daoxian. Chinese karst [M]. Beijing: Geological Publishing House, 1993:68-70
[7]	刘再华, WOLFGANG D. 岩溶作用动力学与环境[M]. 北京: 地质出版社, 2007:1-7.
	LIU Zaihua, WOLFGANG D. Karstification dynamics and environment [M]. Beijing: Geological Publishing House, 2007:1-7
[8]	任美锷. 岩溶学概论[M]. 北京: 商务印书馆, 1983:41-43.
	REN Meie. Introduction to karst[M]. Beijing: The Commercial Press, 1983:41-43
[9]	谭周地. 构造对岩溶的控制意义[J]. 吉林大学学报(地球科学版), 1978 (2):43-47.
	TAN Zhoudi. Significance of tectonic control on karst[J]. Journal of Jilin University (Earth Science Edition), 1978 (2):43-47.
[10]	乔占峰, 沈安江, 邹伟宏, 等. 断裂控制的非暴露型大气水岩溶作用模式:以塔北英买2构造奥陶系碳酸盐岩储层为例[J]. 地质学报, 2011, 85(12):2 070-2 083.
	QIAO Zhanfeng, SHEN Anjiang, ZOU Weihong, et al. A fault-controlled non-exposed meteoric karstification:a case study of Ordovician carbonate reservoir at structure YM2 in northern Tarim basin,Northwestern China[J]. Acta Geologica Sinica, 2011, 85(12):2 070-2 083.
[11]	KOSA E, HUNT D W. The effect of syndepositional deformation within the Upper Permian Capitan Platform on the speleogenesis and geomorphology of the Guadalupe Mountains,New Mexico,USA[J]. Geomorphology, 2006, 78(3/4):279-308. doi: 10.1016/j.geomorph.2006.01.038
[12]	商晓飞, 段太忠, 张文彪, 等. 断控岩溶主控的缝洞型碳酸盐岩内部溶蚀相带表征:以塔河油田10区奥陶系油藏为例[J]. 石油学报, 2020, 41(3):329-341.
	SHANG Xiaofei, DUAN Taizhong, ZHANG Wenbiao, et al. Characterization of dissolution facies belt in fracture-cavity carbonate rocks mainly controlled by fault-controlling karst:a case study of Ordovician reservoirs in the Block 10 of Tahe oilfield[J]. Acta Petrolei Sinica, 2020, 41(3):329-341.
[13]	廖涛, 侯加根, 陈利新, 等. 断裂对塔北地区哈拉哈塘油田奥陶系非暴露岩溶缝洞型储集层的控制作用[J]. 古地理学报, 2016, 18(2):221-235.
	LIAO Tao, HOU Jiagen, CHEN Lixin, et al. Fault controlling on non-exposed karst fracture-vug reservoirs of the Ordovician in Halahatang oilfield,northern Tarim basin[J]. Journal of Palaeogeography, 2016, 18(2):221-235.
[14]	李建伟. 拟建普朗铜矿尾矿库库区地质构造对岩溶发育的控制及工程影响[D]. 昆明:昆明理工大学, 2015.
	LI Jianwei. Control and engineering effects of proposed geological structure on karst development in Pulang copper mine tailings library[D]. Kunming:Kunming University of Science and Technology, 2015.
[15]	ENNES-SILVA R A, BEZERRA F, NOGUEIRA F, et al. Superposed folding and associated fracturing influence hypogene karst development in Neoproterozoic carbonates,São Francisco Craton,Brazil[J]. Tectonophysics, 2016, 666(1):244-259. doi: 10.1016/j.tecto.2015.11.006
[16]	SZXZYGIAL J, GOLICA M, HERCMAN H, et al. Geological constraints on cave development in the plateau-gorge karst of South China (Wulong,Chongqing)[J]. Geomorphology, 2018, 304(1):50-63. doi: 10.1016/j.geomorph.2017.12.033
[17]	陈长明. 湘西北边境喀斯特溶洞发育的地质因素[J]. 湖南师范大学自然科学学报, 1987, 10(1):97-104.
	CHEN Changming. The geology-factor of the development of the karst grotto on the borderland of Northwest Hunan[J]. Natural Science Journal of Hunan Normal University, 1987, 10(1):97-104.
[18]	郭建华, 朱美衡, 刘辰生, 等. 湖南桑植-石门复向斜走廊剖面构造特征分析[J]. 大地构造与成矿学, 2005, 29(2):215-222.
	GUO Jianhua, ZHU Meiheng, LIU Chensheng, et al. Structural characteristics of the corridor section in Sangzhi-Shimen synclinore[J]. Geotectonica et Metallogenia, 2005, 29(2):215-222.
[19]	魏方辉, 杨少辉, 赵伟, 等. 石门-桑植复向斜若干个不整合面特征及其对构造演化过程和盆地属性的启示[J]. 地层学杂志, 2018, 42(1):75-89.
	WEI Fanghui, YANG Shaohui, ZHAO Wei, et al. Late Early Paleozoic-Mesozoic stratigraphic unconformities in the Shimen-Sangzhi synclinorium and their implications for tectonic and basin evolution[J]. Journal of Stratigraphy, 2018, 42(1):75-89.
[20]	李茂秋. 向斜盆地区域动力水流模型[J]. 中国岩溶, 1985, 4(3):231-239.
	LI Maoqiu. Regional dynamic flow model in synclinal basin[J]. Carsologica Sinica, 1985, 4(3):231-239.
[21]	陈丽霞. 岩溶水文地质条件改变及其对水环境的影响:以贵州开阳磷矿马路坪矿为例[D]. 贵阳:贵州大学, 2009.
	CHEN Lixia. Karst hydrogeological condition change and its influence on water environment:a case study of Maluping mine of Guizhou Kaiyang phosphate mine[D]. Guiyang:Guizhou University, 2009.
[22]	高冠民, 窦秀英. 湖南自然地理[M]. 长沙: 湖南人民出版社, 1981:3-129.
	GAO Guanmin, DOU Xiuying. Physical geography of Hunan[M]. Changsha: Hunan People's Publishing House, 1981:3-129.
[23]	徐飞雄. 浅议湖南溶洞资源及其开发[J]. 经济地理, 1989, 9(4):283-287.
	XU Feixiong. Study on karst cave resources and their development in Hunan[J]. Economic Geography, 1989, 9(4):283-287.
[24]	李阳, 金强, 钟建华, 等. 塔河油田奥陶系岩溶分带及缝洞结构特征[J]. 石油学报, 2016, 37(3):289-298.
	LI Yang, JIN Qiang, ZHONG Jianhua, et al. Karst zonings and fracture-cave structure characteristics of Ordovician reservoirs in Tahe oilfield,Tarim basin[J]. Acta Petrolei Sinica, 2016, 37(3):289-298.
[25]	金强, 程付启, 田飞. 岩溶型碳酸盐岩储层中缝洞复合体及其油气地质意义[J]. 中国石油大学学报(自然科学版), 2017, 41(3):49-55.
	JIN Qiang, CHENG Fuqi, TIAN Fei. Identification of fracture-vug complex from karsted carbonates and its significance in petroleum geology[J]. Journal of China University of Petroleum (Edition of Natural Science), 2017, 41(3):49-55.
[26]	张冲. 大牛地气田奥陶系岩溶储层裂缝特征、成因及分布评价[D]. 成都:成都理工大学, 2015.
	ZHANG Chong. The fracture characteristics,causes and distribution evaluation of the Ordovician karst reservoir in Daniudi gas field[D]. Chengdu:Chengdu University of Technology, 2015.
[27]	陈国鑫. 缝洞型碳酸盐岩油藏典型缝洞组合注采规律研究[D]. 山东青岛:中国石油大学(华东), 2014.
	CHEN Guoxin. Injection-production laws research on typical fracture-vug combination in fracture-vuggy carbonate reservoir[D]. Qingdao,Shandong:China University of Petroleum (East China), 2014.
[28]	周进高, 邓红婴. 鄂尔多斯盆地奥陶系碳酸盐岩储层非均质性评价[J]. 海相油气地质, 2003, 8(1/2):68-73.
	ZHOU Jingao, DENG Hongying. Appraisement of inhomogenous Ordovician carbonate reservoirs in Ordos basin[J]. Marine Origin Petroleum Geology, 2003, 8(1/2):68-73.
[29]	陈琴芳, 胡志水. 川南下二叠统致密碳酸盐岩储集层裂缝系统孔隙(广义)类型[J]. 沉积学报, 1996, 14(2):144-150.
	CHEN Qinfang, HU Zhishui. General types of pores in Lower Permian carbonate storage fractures system in Southern Sichuan[J]. Acta Sedimentologica Sinica, 1996, 14(2):144-150.
[30]	程洪, 张杰, 张文彪. 断溶体储层类型识别、预测及发育模式探讨:以塔里木盆地塔河十区TH10421单元为例[J]. 石油与天然气地质, 2020, 41(5):996-1 003.
	CHENG Hong, ZHANG Jie, ZHANG Wenbiao. Discussion on identification,prediction and development pattern of faulted-karst carbonate reservoirs:a case study of TH10421 fracture-cavity unit in Block 10 of Tahe oilfield,Tarim basin[J]. Oil & Gas Geology, 2020, 41(5):996-1 003.

扫描站点	石钟乳数量/个	平均长度/m	扫描站点	石钟乳数量/个	平均长度/m
Scan011	4	3.56	Scan036	3	1.63
Scan012	5	4.39	Scan037	1	6.67
Scan013	11	3.19	Scan038	4	2.01
Scan014	2	2.32	Scan039	3	3.05
Scan015	5	1.99	Scan040	7	3.93
Scan016	10	3.18	Scan041	3	3.08
Scan017	4	3.45	Scan042	3	7.47
Scan018	3	3.75	Scan044	6	4.01
Scan019	7	3.74	Scan045	2	4.75
Scan020	10	1.90	Scan046	15	1.91
Scan021	5	3.10	Scan047	17	2.79
Scan022	0	0	Scan048	5	1.83
Scan023	0	0	Scan049	4	4.38
Scan025	5	3.45	Scan050	9	7.25
Scan027	8	2.58	Scan051	4	13.47
Scan028	2	1.49	Scan052	2	15.87
Scan029	2	0.77	Scan053	5	7.83
Scan030	3	0.82	Scan054	2	5.35
Scan031	7	1.37	Scan055	23	2.36
Scan033	7	1.43	Scan056	22	1.64
Scan034	2	1.62	Scan057	22	1.87
Scan035	1	5.17
