Productivity Prediction in Different Stages of Collaborative Construction of Underground Gas Storage and Gas Flooding

doi:10.7657/XJPG20220513

Abstract

Abstract:

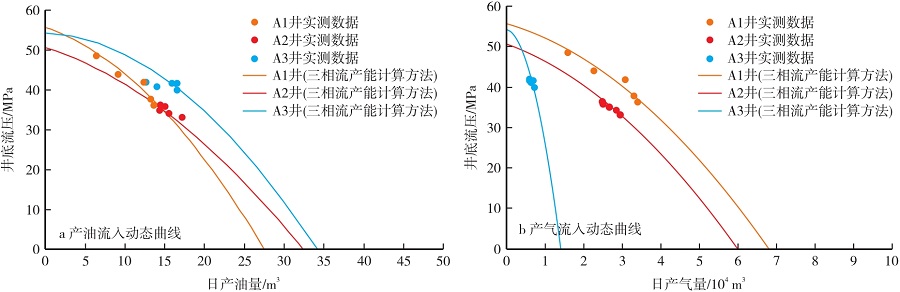

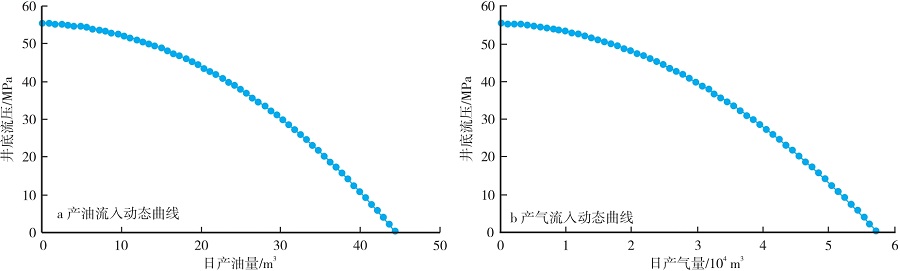

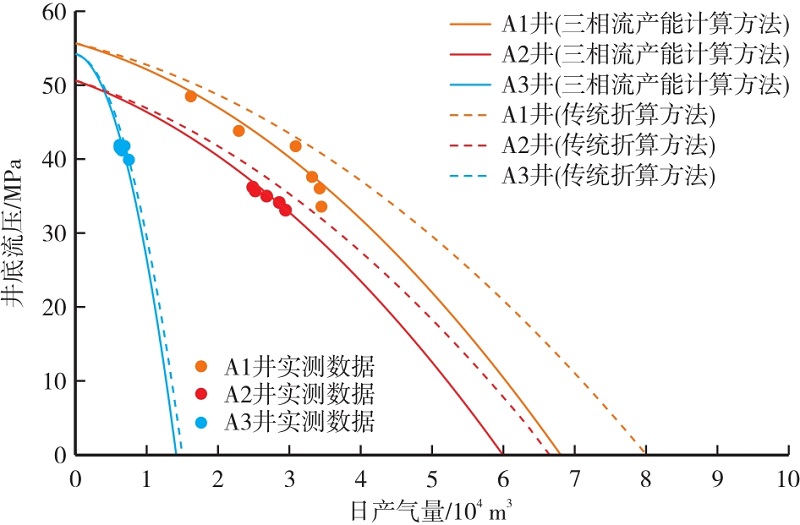

In different stages of the collaborative construction of underground gas storage (UGS) and gas flooding, the produced gas-oil ratio (GOR) varies greatly, and the complex oil, gas and water three-phase flow occurs in several stages. Currently, the multiphase productivity of UGS is generally calculated by converting oil production to gas equivalent, which produces relatively large errors. On the basis of the three-phase flow differential equation, the three-phase pseudo pressures of oil, gas and water were introduced, and a three-phase flow productivity calculation method considering the influence of high-speed non-Darcy flow of gas was established. With the help of this method, the oil phase productivity equation, gas phase productivity equation, and inflow performance relationship (IPR) curve in gas flooding stage, collaborative construction stage, and UGS stage were obtained and then compared with production data. The results show that the productivity calculated by the three-phase flow productivity calculation method is less than 6.16% in each of the three stages. When the production pressure difference is small, the calculation results from the traditional conversion method and the three-phase flow productivity calculation method are close. However, with the progress of construction, the error of the traditional conversion method becomes larger. The three-phase flow productivity calculation method is simple, accurate, and operable. It is of guiding significance for predicting the productivities in different stages of collaborative construction of UGS and gas flooding.

Key words: collaborative UGS, gas flooding, three-phase flow, productivity equation, pseudo pressure, inflow performance relationship curve

CLC Number:

TE319

YIN Fuguo, CHENG Shiqing, HUANG Lan, ZHANG Jianye, FAN Jiawei, ZHANG Liang. Productivity Prediction in Different Stages of Collaborative Construction of Underground Gas Storage and Gas Flooding[J]. Xinjiang Petroleum Geology, 2022, 43(5): 600-605.

Figures/Tables 6

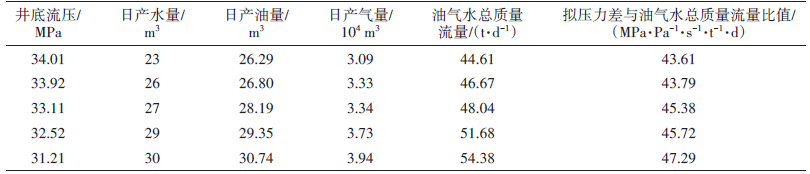

Table 1.

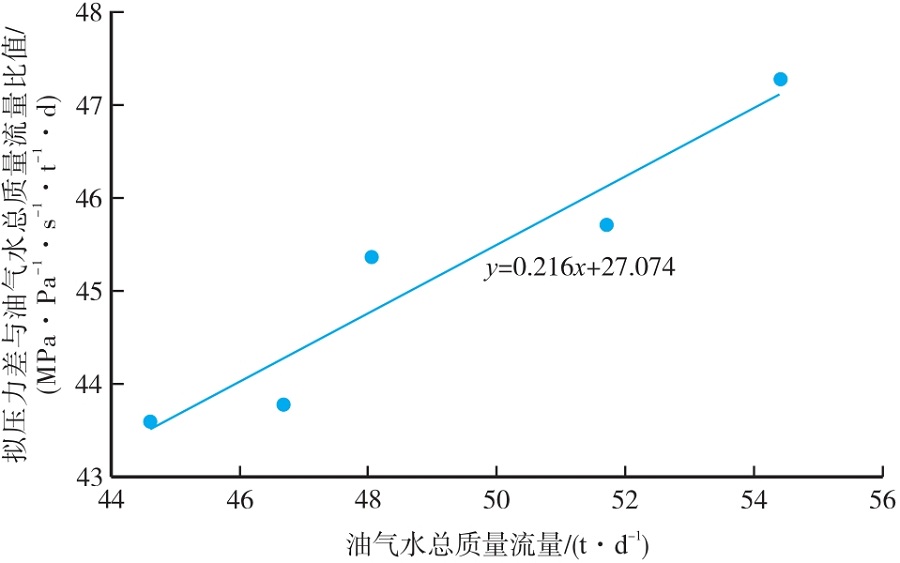

Fig. 1.

Fig. 2.

Fig. 3.

Table 2.

Fig. 4.

References 19

[1]	丁国生. 全球地下储气库的发展趋势与驱动力[J]. 天然气工业, 2010, 30(8):59-61.
	DING Guosheng. Developing trend and motives for global underground gas storage[J]. Natural Gas Industry, 2010, 30(8):59-61.
[2]	王泉, 陈超, 李道清, 等. 基于有效渗透率的单井增产潜力定量评价:以新疆H储气库为例[J]. 新疆石油地质, 2020, 41(4):450-456.
	WANG Quan, CHEN Chao, LI Daoqing, et al. Quantitative evaluation of well yield-increasing potential based on effective permeability:a case of H gas storage in Xinjiang[J]. Xinjiang Petroleum Geology, 2020, 41(4):450-456.
[3]	丁国生, 李春, 王皆明, 等. 中国地下储气库现状及技术发展方向[J]. 天然气工业, 2015, 35(11):107-112.
	DING Guosheng, LI Chun, WANG Jieming, et al. The status quo and technical development direction of underground gas storages in China[J]. Natural Gas Industry, 2015, 35(11):107-112.
[4]	江同文, 王锦芳, 王正茂, 等. 地下储气库与天然气驱油协同建设实践与认识[J]. 天然气工业, 2021, 41(9):66-74.
	JIANG Tongwen, WANG Jinfang, WANG Zhengmao, et al. Practice and understanding of collaborative construction of underground gas storage and natural gas flooding[J]. Natural Gas Industry, 2021, 41(9):66-74.
[5]	COFFIN P, LEBAS G. Converting the Pecorade oil field into an underground gas storage[J]. SPE Projects,Facilities & Construction, 2008, 3(1):1-6.
[6]	VOGEL J V. Inflow performance relationships for solution:gas drive wells[J]. Journal of Petroleum Technology, 1968, 20(1):83-92. doi: 10.2118/1476-PA
[7]	阳小平, 程林松, 何学良, 等. 地下储气库多周期运行注采气能力预测方法[J]. 天然气工业, 2013, 33(4):96-99.
	YANG Xiaoping, CHENG Linsong, HE Xueliang, et al. A prediction method for multistage injection and recovery capacity of underground gas storage[J]. Natural Gas Industry, 2013, 33(4):96-99.
[8]	郭树文, 周芙蓉, 王晓冬. IPR发展与应用[J]. 油气井测试, 2001, 10(5):7-9.
	GUO Shuwen, ZHOU Furong, WANG Xiaodong. Development and applications of inflow performance relationship[J]. Well Testing, 2001, 10(5):7-9.
[9]	WIGGINS M L. Generalized inflow performance relationships for three-phase flow[R]. SPE 25458-MS, 1993.
[10]	杨雷, 黄诚, 舒能益, 等. 溶解气驱油藏油气多相试井分析方法研究[J]. 西南石油学院学报, 2001, 23(6):28-30.
	YANG Lei, HUANG Cheng, SHU Nengyi, et al. Analysis of multiphase well test for solution gas-drive reservoirs[J]. Journal of Southwest Petroleum Institute, 2001, 23(6):28-30.
[11]	BEHMANESH H, MATTAR L, THOMPSON J M, et al. Treatment of rate-transient analysis during boundary-dominated flow[J]. SPE Journal, 2018, 23(4):1 145-1 165. doi: 10.2118/189967-PA
[12]	程时清, 谢林峰, 李相方, 等. 产水凝析气井三相流产能方程[J]. 天然气工业, 2004, 24(12):99-101.
	CHENG Shiqing, XIE Linfeng, LI Xiangfang, et al. Productivity equation of 3-phase flow for water-producing condensate wells[J]. Natural Gas Industry, 2004, 24(12):99-101.
[13]	程时清, 李菊花, 李相方, 等. 用物质平衡-二项式产能方程计算气井动态储量[J]. 新疆石油地质, 2005, 26(2):181-182.
	CHENG Shiqing, LI Juhua, LI Xiangfang, et al. Estimation of gas well dynamic reserves by integration of material balance equation with binomial productivity equation[J]. Xinjiang Petroleum Geology, 2005, 26(2):181-182.
[14]	周航. 多相流产能评价方法及其应用研究[D]. 西安: 西安石油大学, 2013.
	ZHOU Hang. Research of multiphase flow productivity evaluation method and its application[D]. Xi’an: Xi’an Shiyou University, 2013.
[15]	石德佩, 李相方, 刘一江. 考虑相变的凝析气井产能方程[J]. 石油钻采工艺, 2006, 28(4):68-70.
	SHI Depei, LI Xiangfang, LIU Yijiang. Deliverability equation study of gas condensate well considering phase change[J]. Oil Drilling & Production Technology, 2006, 28(4):68-70.
[16]	王皆明, 姜凤光. 地下储气库注采动态预测模型[J]. 天然气工业, 2009, 29(2):108-110.
	WANG Jieming, JIANG Fengguang. A prediction model on dynamic injection and production for underground gas storages[J]. Natural Gas Industry, 2009, 29(2):108-110.
[17]	胡文革. 顺北油气田断溶体油藏油井产能评价新方法[J]. 新疆石油地质, 2021, 42(2):168-172.
	HU Wenge. A new method for evaluating the productivity of oil wells in fault-karst reservoirs in Shunbei oil & gas field[J]. Xinjiang Petroleum Geology, 2021, 42(2):168-172.
[18]	江同文, 王正茂, 王锦芳. 天然气顶部重力驱油储气一体化建库技术[J]. 石油勘探与开发, 2021, 48(5):1 061-1 068.
	JIANG Tongwen, WANG Zhengmao, WANG Jinfang. Integrated construction technology for natural gas gravity drive and underground gas storage[J]. Petroleum Exploration and Development, 2021, 48(5):1 061-1 068.
[19]	赫恩杰, 张丽华, 吴江辉. 凝析气井动态分析方法及应用[J]. 断块油气田, 1996, 3(4):32-37.
	HE Enjie, ZHANG Lihua, WU Jianghui. A method of condensate well performance analysis and its application[J]. Fault-Block Oil & Gas Field, 1996, 3(4):32-37.

井名	井底流压/ MPa	实测日产油量/m³	计算日产油量/m³	日产油量误差/%	实测日产气量/10⁴ m³	计算日产气量/10⁴ m³	日产气量误差/%
A1井	48.62	6.39	6.28	1.72	1.59	1.55	2.51
	44.01	9.14	9.07	0.76	2.28	2.24	1.75
	41.92	12.33	11.86	3.81	3.08	2.79	6.16
	37.81	13.23	13.26	0.22	3.31	3.28	0.90
	36.21	13.61	13.96	2.57	3.40	3.45	1.47
A2井	36.41	40.01	41.92	4.55	2.47	2.58	4.30
	35.92	41.33	42.23	2.13	2.50	2.62	4.55
	35.11	42.43	42.54	0.26	2.66	2.75	3.44
	34.32	43.11	43.35	0.56	2.84	2.82	0.88
	33.21	48.23	47.16	2.26	2.93	3.06	3.90
A3井	42.21	12.68	12.32	2.94	0.61	0.59	1.80
	41.82	15.87	15.64	1.49	0.63	0.61	1.82
	41.31	16.00	15.95	0.29	0.65	0.62	5.19
	40.92	16.52	16.27	1.53	0.68	0.64	4.91
	40.21	16.91	16.58	1.93	0.73	0.69	4.86
