A Method for Predicting Hydrocarbon Accumulation Period Under Source-Fault-Caprock Configuration and Its Application

doi:10.7657/XJPG20240102

Abstract

Abstract:

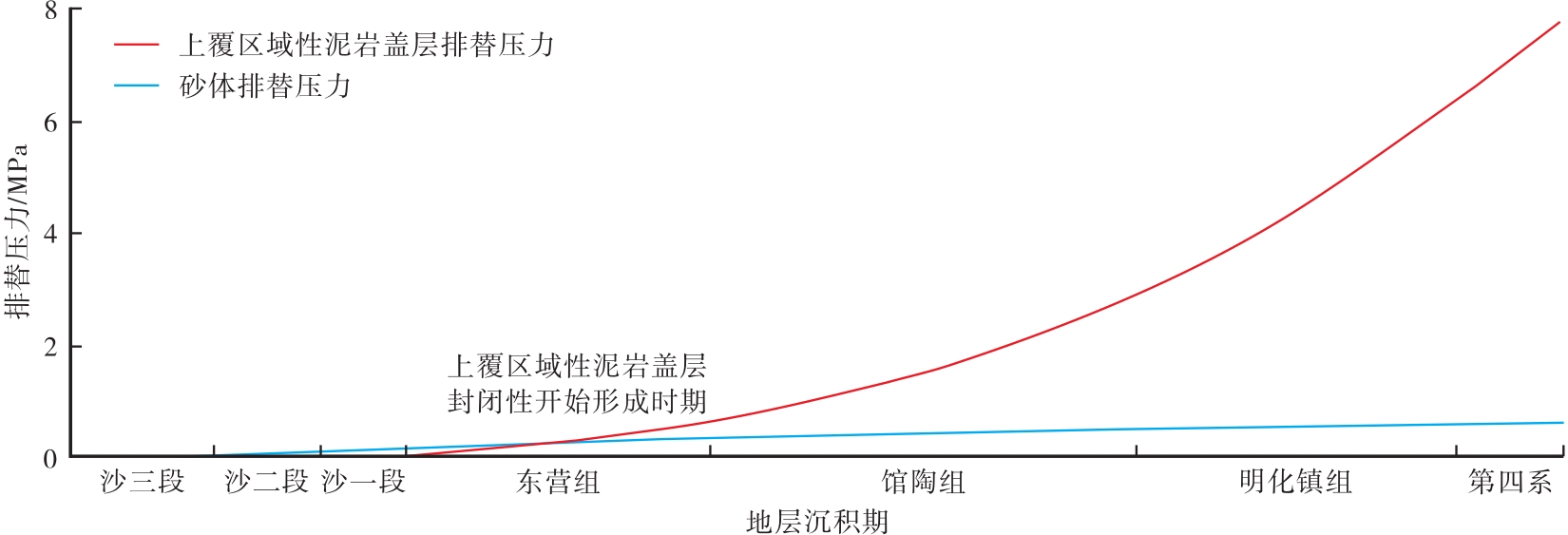

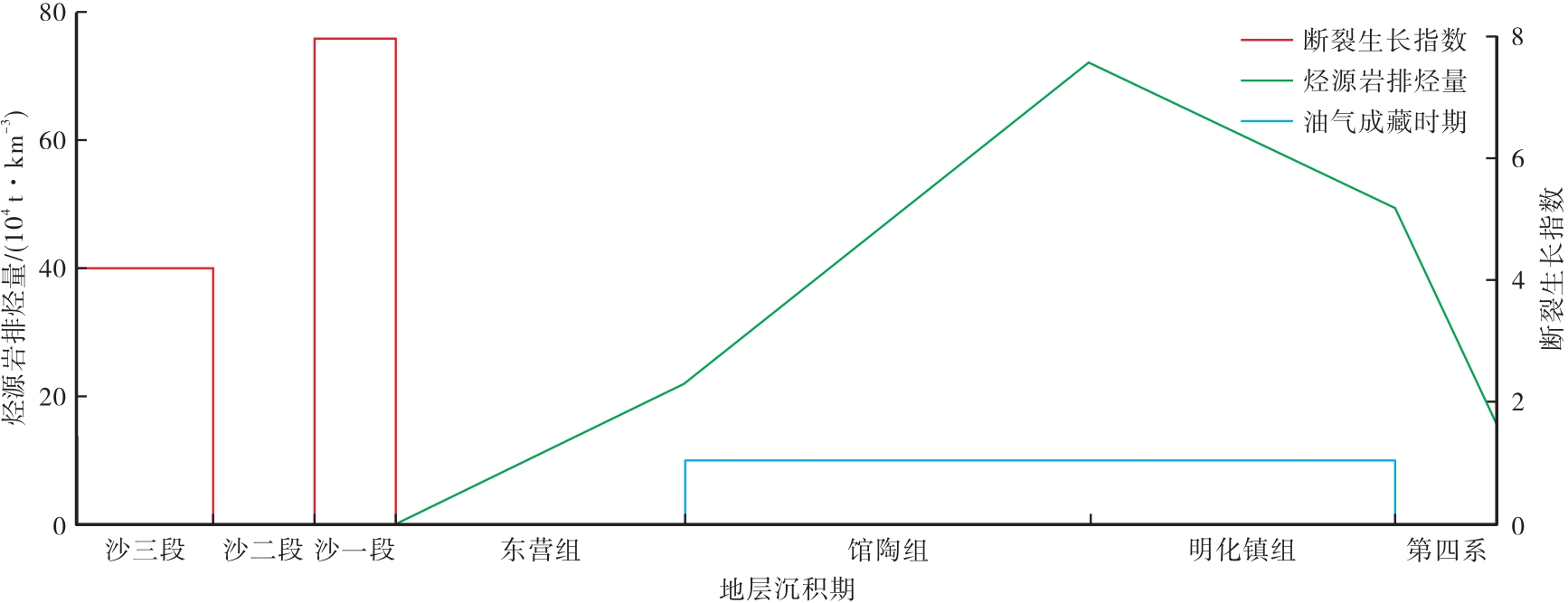

To determine hydrocarbon enrichment degree around the faults connecting oil and source rocks in petroliferous basins，based on the study of source rock-fault-caprock configuration，and the hydrocarbon accumulation mechanism，a method for predicting hydrocarbon accumulation period under source-fault-caprock configuration was established，which considers the activity period of the fault connecting oil and source rocks，the hydrocarbon expulsion period of source rock，and the formation period of mudstone caprock. The method was applied to predict the hydrocarbon accumulation period in the lower Sha 1 member within the Qikou sag of the Bohai Bay basin. The results show that during the deposition period of the Guantao formation-Minghuazhen formation，the source rock in Sha 3 member expelled hydrocarbons，the Nandagang fault was opened，and the regional mudstone caprock in the middle Sha 1 member was formed. The source rock，fault and caprock were configured well for a long period，which allowed the hydrocarbons expelled from the source rock in Sha 3 member to effectively accumulate in the lower Sha 1 member. The prediction results are consistent with the exploration results.

Key words: Bohai Bay basin, Qikou sag, Shahejie formation, source rock, fault connecting oil and source rock, caprock sealing, hydrocarbon accumulation

CLC Number:

TE122.1

CONG Yan. A Method for Predicting Hydrocarbon Accumulation Period Under Source-Fault-Caprock Configuration and Its Application[J]. Xinjiang Petroleum Geology, 2024, 45(1): 13-18.

Figures/Tables 6

Fig. 1.

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

References 18

[1]	付广, 梁木桂, 邹倩, 等. 源断盖时间匹配有效性的研究方法及其应用[J]. 中国石油大学学报(自然科学版), 2020, 44(1):25-33.
	FU Guang, LIANG Mugui, ZOU Qian, et al. Research method and its application to effectiveness of time matching of source-fault-caprock[J]. Journal of China University of Petroleum (Edition of Natural Science), 2020, 44(1):25-33.
[2]	宋建阳, 付广, 厉娜, 等. 源断时空匹配关系及其对油气运聚的控制作用[J]. 特种油气藏, 2015, 22(4):42-46.
	SONG Jianyang, FU Guang, LI Na, et al. Space - time matching relationship between source and fracture as well as its control on hydrocarbon migration and accumulation[J]. Special Oil & Gas Reservoirs, 2015, 22(4):42-46.
[3]	魏军, 严宝年, 杜文博, 等. 酒泉盆地长沙岭构造带下沟组一段油藏圈闭特征及形成机理[J]. 新疆石油地质, 2022, 43(4):379-386.
	WEI Jun, YAN Baonian, DU Wenbo, et al. Characteristics and formation mechanism of traps in K₁g₁ reservoir in Changshaling structural zone, Jiuquan basin[J]. Xinjiang Petroleum Geology, 2022, 43(4):379-386.
[4]	肖雷. 源断时空配置输导油气有效性研究[J]. 断块油气田, 2019, 26(3):294-298.
	XIAO Lei. Effectiveness of oil and gas transporting by spatial-temporal matching of source-fault[J]. Fault-Block Oil & Gas Field, 2019, 26(3):294-298.
[5]	付广, 董金梦, 彭万涛. 断盖配置渗漏与封闭转换时期的确定方法及其应用[J]. 沉积学报, 2020, 38(4):868-875.
	FU Guang, DONG Jinmeng, PENG Wantao. Determination method and application for the conversion period of fault-caprock configuration leakage and sealing[J]. Acta Sedimentologica Sinica, 2020, 38(4):868-875.
[6]	曹思佳, 许凤鸣, 孙显义, 等. 断裂致泥岩盖层封闭形成期滞后程度的预测方法及其应用[J]. 天然气工业, 2021, 41(6):37-43.
	CAO Sijia, XU Fengming, SUN Xianyi, et al. A method for predicting the fault induced lag degree of seal formation time of mudstone cap rocks and its application[J]. Natural Gas Industry, 2021, 41(6):37-43.
[7]	袁红旗, 曹文瑞, 于英华, 等. 断盖配置渗漏油气时期确定方法及其应用[J]. 地质论评, 2021, 67(2):420-428.
	YUAN Hongqi, CAO Wenrui, YU Yinghua, et al. Determination method and application of leakage period for oil and gas of fault-caprock configuration[J]. Geological Review, 2021, 67(2):420-428.
[8]	梁木桂, 付广, 董金梦, 等. 被盖层分隔储层油源断裂输导油气有效时期厘定方法及其应用[J]. 工程科学学报, 2022, 44(8):1425-1432.
	LIANG Mugui, FU Guang, DONG Jinmeng, et al. Determination method and its application of effective period for transporting oil and gas by the oil source fault of reservoir separated by caprock[J]. Chinese Journal of Engineering, 2022, 44(8):1425-1432.
[9]	付广, 梁木桂. 断裂输导向遮挡油气转换时期厘定方法及其应用[J]. 地质学报, 2022, 96(2):691-698.
	FU Guang, LIANG Mugui. Determination method and its application of the conversion period from fault transport to obstruction oil and gas[J]. Acta Geologica Sinica, 2022, 96(2):691-698. doi: 10.1111/acgs.v96.2
[10]	陈刚, 戴俊生, 叶兴树, 等. 生长指数与断层落差的对比研究[J]. 西南石油大学学报, 2007, 29(3):20-23.
	CHEN Gang, DAI Junsheng, YE Xingshu, et al. A Comparison of the fault growth index with fault throw[J]. Journal of Southwest Petroleum University, 2007, 29(3):20-23.
[11]	王冰洁, 何生, 倪军娥, 等. 板桥凹陷钱圈地区主干断裂活动性分析[J]. 岩性油气藏, 2008, 20(1):75-82.
	WANG Bingjie, HE Sheng, NI Jun’e, et al. Activity analysis of main faults in Qianquan area,Banqiao sag[J]. Lithologic Reservoirs, 2008, 20(1):75-82.
[12]	赵勇, 戴俊生. 应用落差分析研究生长断层[J]. 石油勘探与开发, 2003, 30(3):13-15.
	ZHAO Yong, DAI Junsheng. Identification of growth fault by fault fall analysis[J]. Petroleum Exploration and Development, 2003, 30(3):13-15.
[13]	范柏江, 董月霞, 庞雄奇. 有效源岩的精确厘定及其排烃量:以南堡凹陷为例[J]. 中南大学学报(自然科学版), 2012, 43(1):229-237.
	FAN Bojiang, DONG Yuexia, PANG Xiongqi. Establishment of effective source rock and hydrocarbon expulsion quantity:Taking Nanpu sag for example[J]. Journal of Central South University(Science and Technology), 2012, 43(1):229-237.
[14]	吴国平, 苏江玉, 成实, 等. 基于自然伽马测井信号的维纳滤波法求取泥质含量[J]. 地球科学:中国地质大学学报, 2008, 33(4):572-576.
	WU Guoping, SU Jiangyu, CHENG Shi, et al. A method for obtaining shaliness using Wiener filtering based on logging data natural gamma ray[J]. Earth Science:Journal of China University of Geosciences, 2008, 33(4):572-576. doi: 10.3799/dqkx.2008.072
[15]	谭开俊, 卫平生, 吕锡敏. 地层古厚度定量恢复方法研究及应用:以准噶尔盆地陆东地区为例[J]. 天然气工业, 2005, 25(10):25-28.
	TAN Kaijun, WEI Pingsheng, LYU Ximin. Research on quantitative resumption method of stratum paleothickness and its application:Taking Ludong area in Zhunge’er basin as an example[J]. Natural Gas Industry, 2005, 25(10):25-28.
[16]	张宗峰, 查明, 高长海. 大港油田埕北断阶区油气成藏期次[J]. 油气地质与采收率, 2009, 16(4):44-46.
	ZHANG Zongfeng, ZHA Ming, GAO Changhai. Determination of the times and stages of hydrocarbon reservoir formation in Chengbei fault terrace zone in the Dagang oilfield[J]. Petroleum Geology and Recovery Efficiency, 2009, 16(4):44-46.
[17]	蒋有录, 苏圣民, 刘华, 等. 渤海湾盆地油气成藏期差异性及其主控因素[J]. 石油与天然气地质, 2021, 42(6):1255-1264.
	JIANG Youlu, SU Shengmin, LIU Hua, et al. Differences in hydrocarbon accumulation stages and main controlling factors in the Bohai Bay basin[J]. Oil & Gas Geology, 2021, 42(6):1255-1264.
[18]	史集建, 李丽丽, 付广, 等. 盖层内断层垂向封闭性定量评价方法及应用[J]. 吉林大学学报(地球科学版), 2012, 42(增刊2):162-170.
	SHI Jijian, LI Lili, FU Guang, et al. Quantitative evaluation method and application of vertical sealing property of faults in caprock[J]. Journal of Jilin University (Earth Science Edition), 2012, 42(Supp.2):162-170.
