Research Progress and Trend of Ultra-Deep Strike-Slip Fault-Controlled Hydrocarbon Reservoirs in Tarim Basin

doi:10.7657/XJPG20240401

Abstract

Abstract:

Ultra-deep strike-slip fault-controlled hydrocarbon reservoirs have been discovered as a new frontier for exploration and development in the Tarim basin. However, the complexity of these reservoirs poses a significant challenge for profitable development, necessitating enhanced foundational geological research. The strike-slip fault-controlled hydrocarbon reservoirs are commonly characterized by strong heterogeneity, intricate reservoir and fluid distribution, significant variations in hydrocarbon production, and low recovery. The great differences in faulting, reservoir characteristics, hydrocarbon accumulation, and fluid dynamics of these reservoirs between different areas present a series of exploration and development challenges. A series of models for strike-slip fault zones of different genesis and their controls on reservoirs have been established, and the mechanisms of reservoir formation along strike-slip fault zones including combined reservoir control by microfacies, strike-slip fault and dissolution, and contiguous, differential and extensive development have been revealed. Furthermore, the strike-slip fault-controlled reservoir models with “source-fault-reservoir-caprock coupling” and “small reservoir but large field” are constructed, unveiling the mechanisms of the hydrocarbon accumulation and preservation of ultra-deep strike-slip fault-controlled reservoirs. This research breaks through the limitations in theory that weak strike-slip faults in cratonic basins are difficult to form large-scale strike-slip fault-controlled reservoirs and large oil/gas fields. Finally, the genesis of large-scale strike-slip fault systems, the differential reservoir formation mechanisms within strike-slip fault zones, and the hydrocarbon enrichment patterns in cratonic basins have been clarified.

Key words: Tarim basin, ultra-deep stratum, strike-slip fault, fault-controlled hydrocarbon reservoir, cratonic basin, hydrocarbon accumulation model

CLC Number:

TE122

WANG Qinghua, CAI Zhenzhong, ZHANG Yintao, WU Guanghui, XIE Zhou, WAN Xiaoguo, TANG Hao. Research Progress and Trend of Ultra-Deep Strike-Slip Fault-Controlled Hydrocarbon Reservoirs in Tarim Basin[J]. Xinjiang Petroleum Geology, 2024, 45(4): 379-386.

Figures/Tables 6

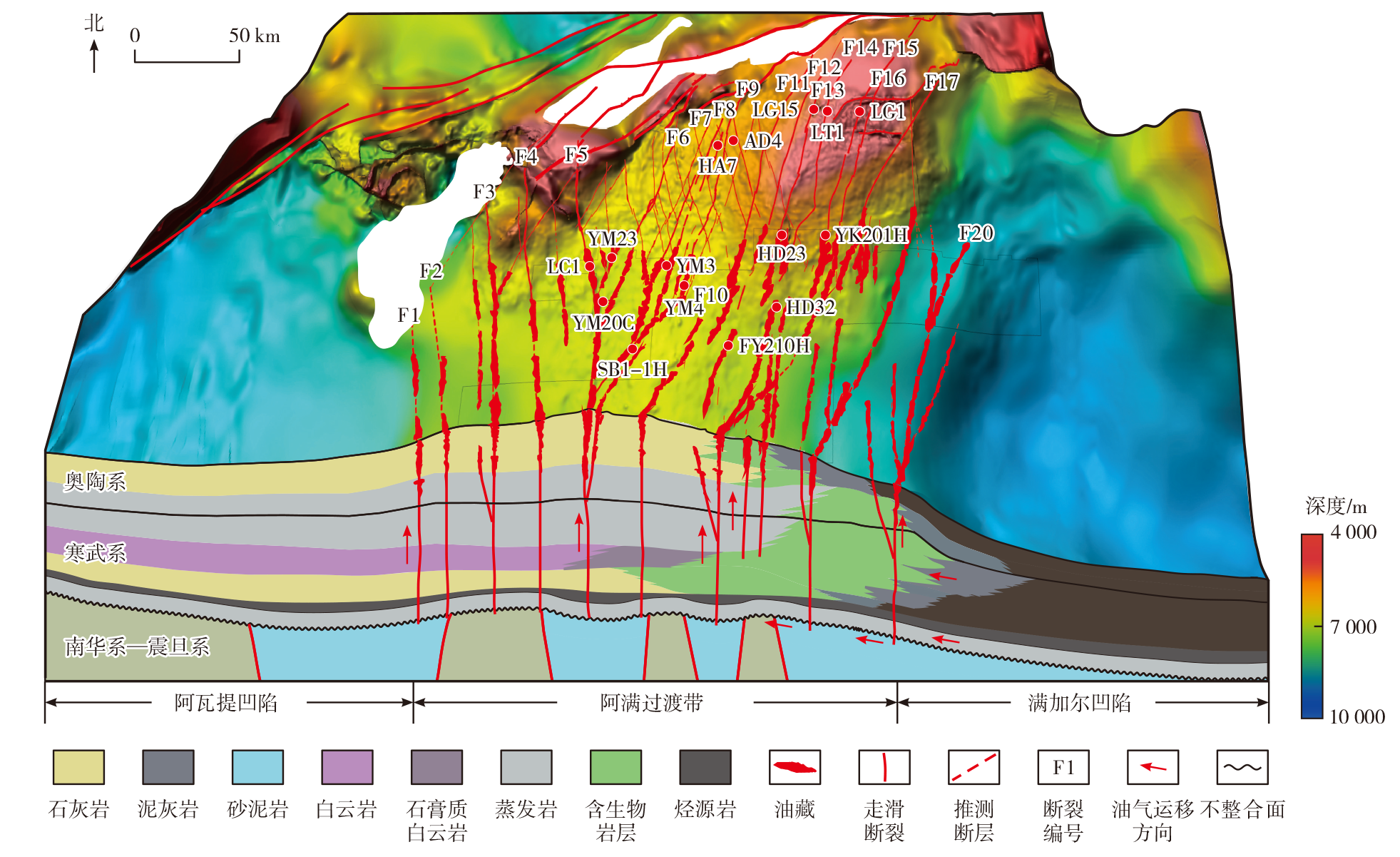

Fig. 1.

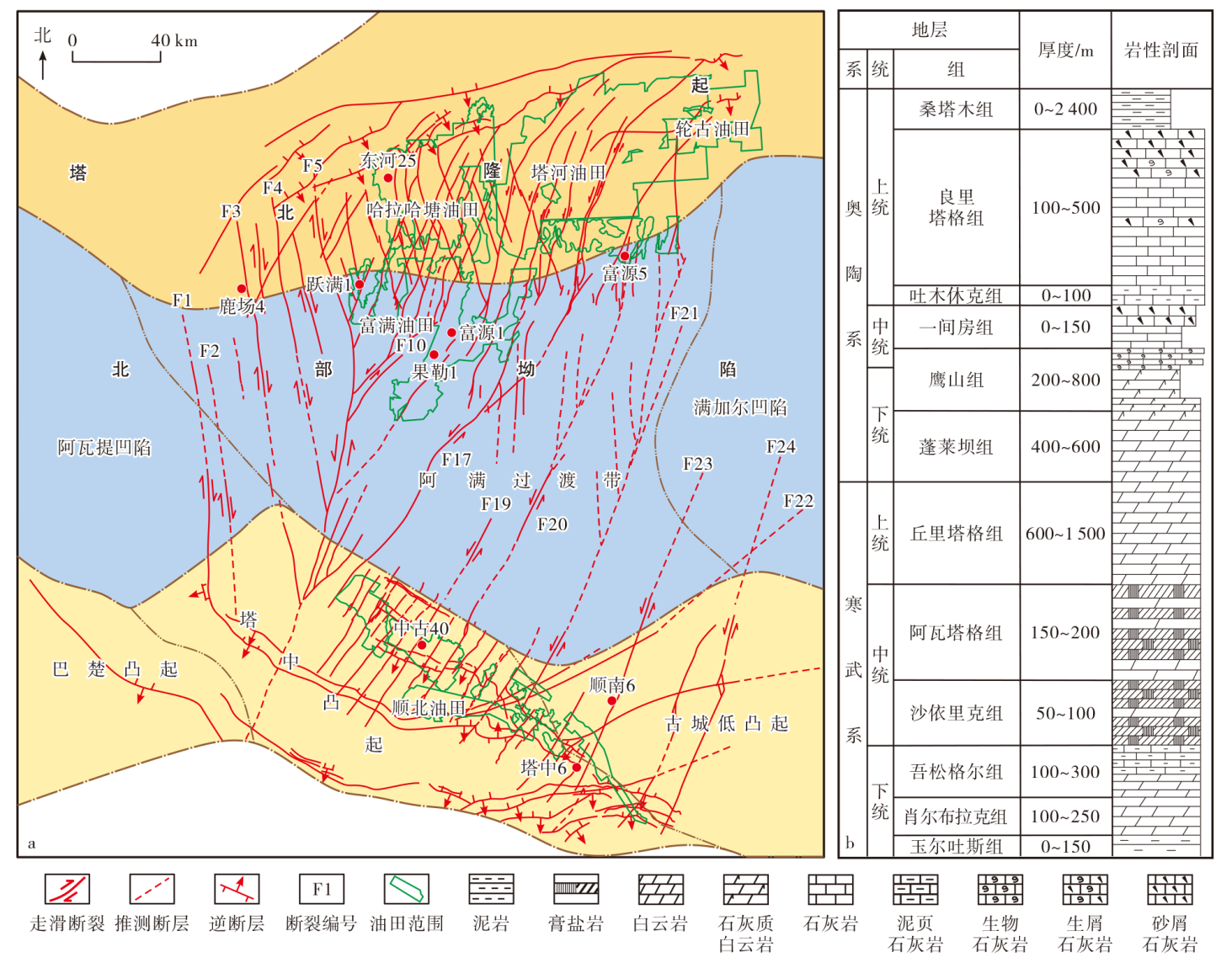

Fig. 2.

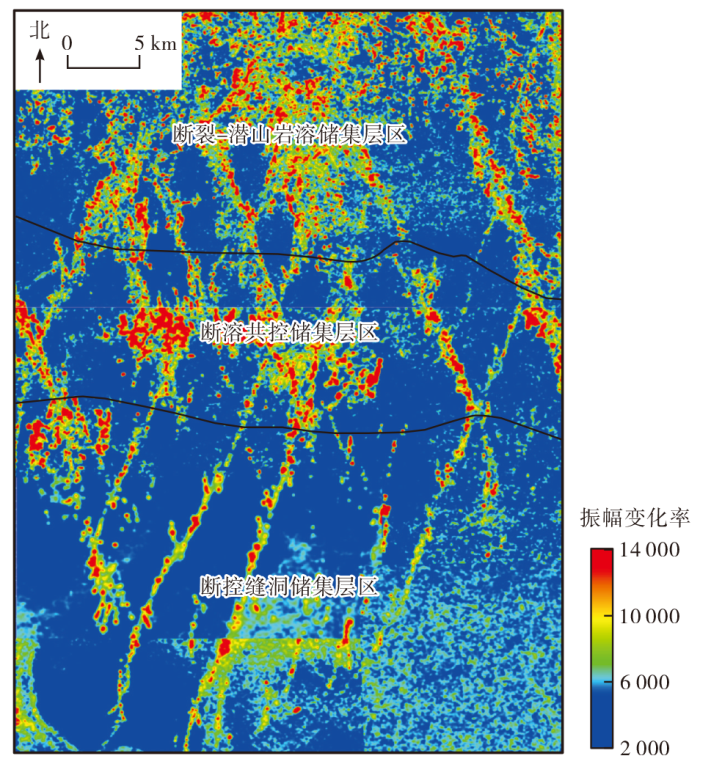

Fig. 3.

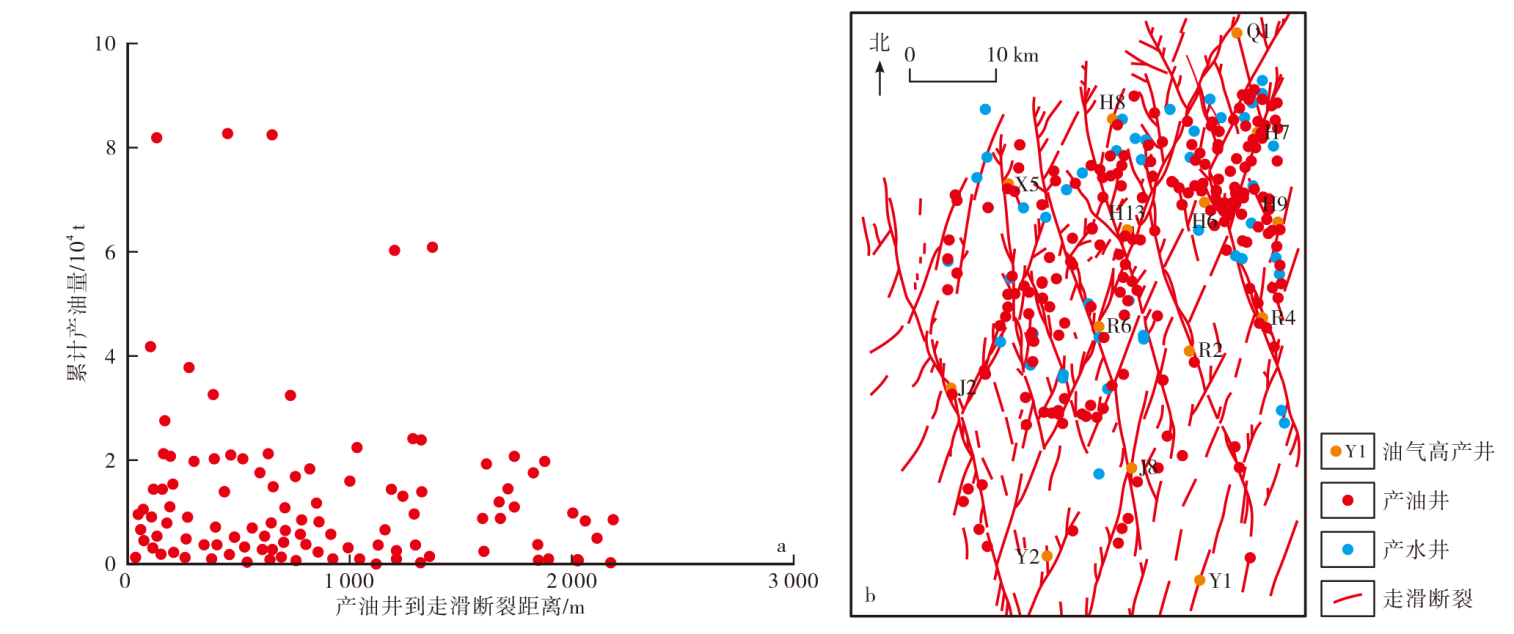

Fig. 4.

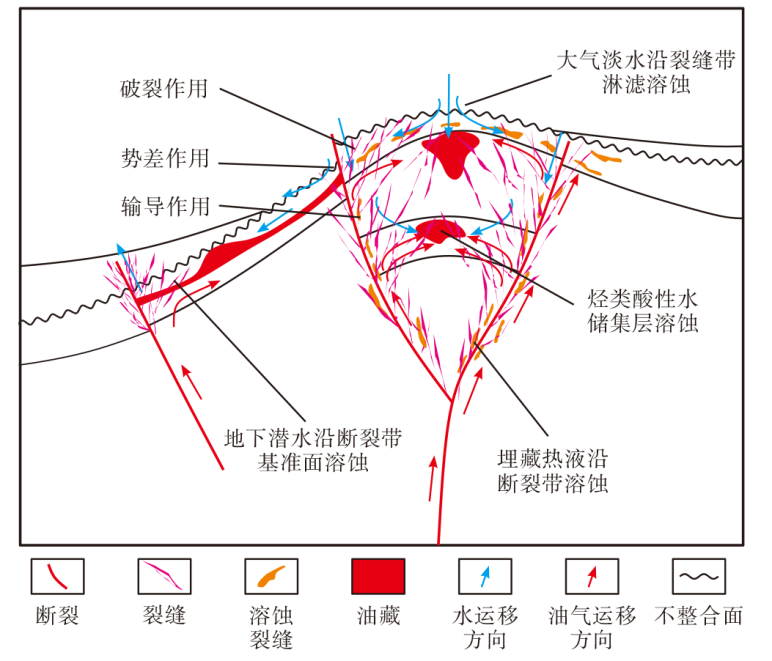

Fig. 5.

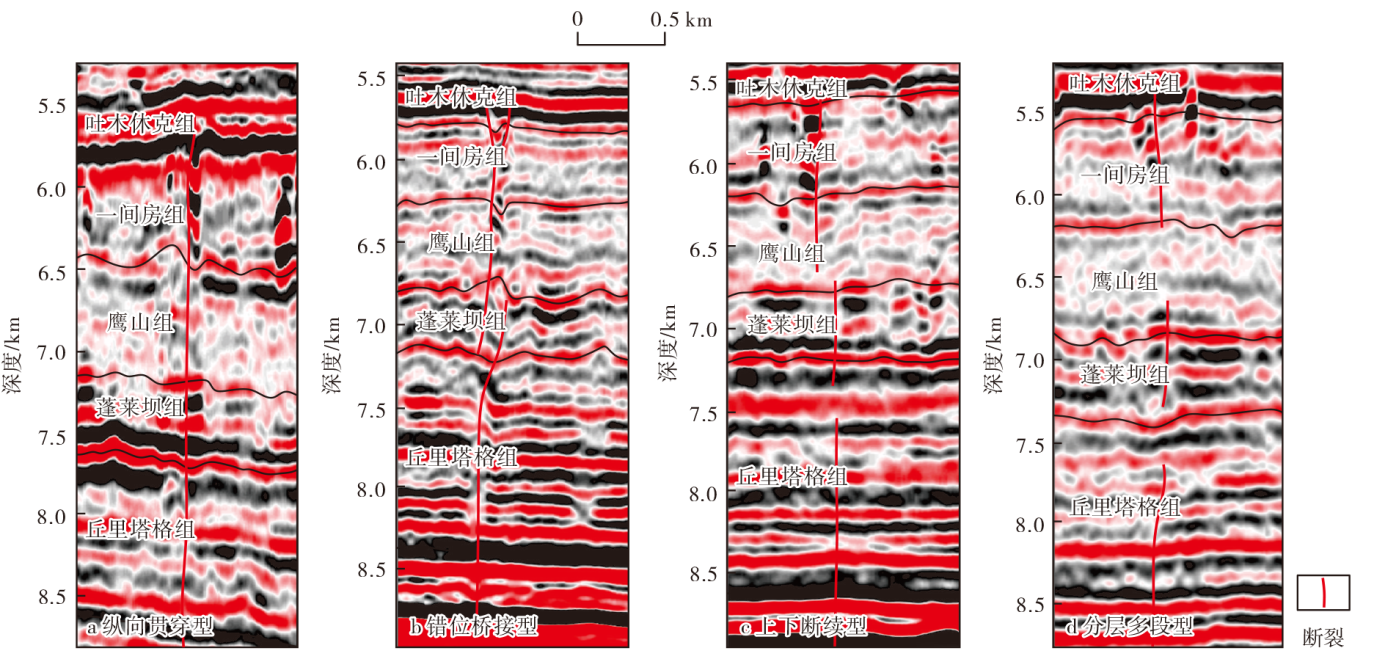

Fig. 6.

References 26

[1]	邹才能, 翟光明, 张光亚, 等. 全球常规-非常规油气形成分布、资源潜力及趋势预测[J]. 石油勘探与开发, 2015, 42(1):13-25.
	ZOU Caineng, ZHAI Guangming, ZHANG Guangya, et al. Formation,distribution,potential and prediction of global conventional and unconventional hydrocarbon resources[J]. Petroleum Exploration and Development, 2015, 42(1):13-25.
[2]	张光亚, 马锋, 梁英波, 等. 全球深层油气勘探领域及理论技术进展[J]. 石油学报, 2015, 36(9):1156-1166. doi: 10.7623/syxb201509015
	ZHANG Guangya, MA Feng, LIANG Yingbo, et al. Domain and theory-technology progress of global deep oil & gas exploration[J]. Acta Petrolei Sinica, 2015, 36(9):1156-1166. doi: 10.7623/syxb201509015
[3]	田军, 王清华, 杨海军, 等. 塔里木盆地油气勘探历程与启示[J]. 新疆石油地质, 2021, 42(3):272-282.
	TIAN Jun, WANG Qinghua, YANG Haijun, et al. Petroleum exploration history and enlightenment in Tarim basin[J]. Xinjiang Petroleum Geology, 2021, 42(3):272-282.
[4]	汪洋, 张哨楠, 刘永立. 塔里木盆地塔河油田走滑断裂活动对油气成藏的控制作用:以托甫39断裂带为例[J]. 石油实验地质, 2022, 44(3):394-401.
	WANG Yang, ZHANG Shaonan, LIU Yongli. Controls of strike-slip fault activities on hydrocarbon accumulation in Tahe oilfield,Tarim basin:A case study of TP 39 fault zone[J]. Petroleum Geology & Experiment, 2022, 44(3):394-401.
[5]	康玉柱. 全球沉积盆地的类型及演化特征[J]. 天然气工业, 2014, 34(4):10-18.
	KANG Yuzhu. Types and evolution characteristics of global sedimentary basins[J]. Natural Gas Industry, 2014, 34(4):10-18.
[6]	王清华, 杨海军, 汪如军, 等. 塔里木盆地超深层走滑断裂断控大油气田的勘探发现与技术创新[J]. 中国石油勘探, 2021, 26(4):58-71.
	WANG Qinghua, YANG Haijun, WANG Rujun, et al. Discovery and exploration technology of fault-controlled large oil and gas fields of ultra-deep formation in strike slip fault zone in Tarim basin[J]. China Petroleum Exploration, 2021, 26(4):58-71.
[7]	马永生, 蔡勋育, 云露, 等. 塔里木盆地顺北超深层碳酸盐岩油气田勘探开发实践与理论技术进展[J]. 石油勘探与开发, 2022, 49(1):1-17. doi: 10.11698/PED.2022.01.01
	MA Yongsheng, CAI Xunyu, YUN Lu, et al. Practice and theoretical and technical progress in exploration and development of Shunbei ultra-deep carbonate oil and gas field,Tarim basin,NW China[J]. Petroleum Exploration and Development, 2022, 49(1):1-17.
[8]	陈平, 能源, 吴鲜, 等. 塔里木盆地顺北5号走滑断裂带分层分段特征及构造演化[J]. 新疆石油地质, 2023, 44(1):33-42.
	CHEN Ping, NENG Yuan, WU Xian, et al. Stratification and segmentation characteristics and tectonic evolution of Shunbei No.5 strike-slip fault zone in Tarim basin[J]. Xinjiang Petroleum Geology, 2023, 44(1):33-42.
[9]	鲁新便, 胡文革, 汪彦, 等. 塔河地区碳酸盐岩断溶体油藏特征与开发实践[J]. 石油与天然气地质, 2015, 36(3):347-355.
	LU Xinbian, HU Wenge, WANG Yan, et al. Characteristics and development practice of fault-karst carbonate reservoirs in Tahe area,Tarim basin[J]. Oil & Gas Geology, 2015, 36(3):347-355.
[10]	云露. 顺北地区奥陶系超深断溶体油气成藏条件[J]. 新疆石油地质, 2021, 42(2):136-142.
	YUN Lu. Hydrocarbon accumulation of ultra-deep Ordovician fault-karst reservoirs in Shunbei area[J]. Xinjiang Petroleum Geology, 2021, 42(2):136-142.
[11]	田军, 杨海军, 朱永峰, 等. 塔里木盆地富满油田成藏地质条件及勘探开发关键技术[J]. 石油学报, 2021, 42(8):971-985. doi: 10.7623/syxb202108001
	TIAN Jun, YANG Haijun, ZHU Yongfeng, et al. Geological conditions for hydrocarbon accumulation and key technologies for exploration and development in Fuman oilfield,Tarim basin[J]. Acta Petrolei Sinica, 2021, 42(8):971-985.
[12]	宋刚, 李海英, 叶宁, 等. 塔里木盆地顺托果勒低隆起顺北4号走滑断裂带成岩流体类型及活动特征[J]. 石油实验地质, 2022, 44(4):603-612.
	SONG Gang, LI Haiying, YE Ning, et al. Types and features of diagenetic fluids in Shunbei No.4 strike-slip fault zone in Shuntuoguole low uplift,Tarim basin[J]. Petroleum Geology & Experiment, 2022, 44(4):603-612.
[13]	WANG Qinghua, ZHANG Yintao, XIE Zhou, et al. The advancement and challenges of seismic techniques for ultra-deep carbonate reservoir exploitation in the Tarim basin of northwestern China[J]. Energies, 2022,15:7653.
[14]	贾承造. 中国塔里木盆地构造特征与油气[M]. 北京: 石油工业出版社,1997.
	JIA Chengzao. Tectonic characteristics and petroleum,Tarim basin,China[M]. Beijing: Petroleum Industry Press,1997.
[15]	杜金虎, 王招明, 李启明, 等. 塔里木盆地寒武—奥陶系碳酸盐岩油气勘探[M]. 北京: 石油工业出版社, 2010.
	DU Jinhu, WANG Zhaoming, LI Qiming, et al. Oil and gas exploration of Cambrian-Ordovician carbonate in Tarim basin[M]. Beijing: Petroleum Industry Press, 2010.
[16]	邬光辉, 庞雄奇, 李启明, 等. 克拉通碳酸盐岩构造与油气:以塔里木盆地为例[M]. 北京: 科学出版社, 2016.
	WU Guanghui, PANG Xiongqi, LI Qiming, et al. The structural characteristics of carbonate recks and their effects on hydrocarbon exploration in craton basin:A case study of the Tarim basin[M]. Beijing: Science Press, 2016.
[17]	张红波, 周雨双, 沙旭光, 等. 塔里木盆地顺北5号走滑断裂隆起段发育特征与演化机制[J]. 石油与天然气地质, 2023, 44(2):321-334.
	ZHANG Hongbo, ZHOU Yushuang, SHA Xuguang, et al. Development characteristics and evolution mechanism of the uplifted segment of the No.5 strike-slip fault zone in Shunbei area,Tarim basin[J]. Oil & Gas Geology, 2023, 44(2):321-334.
[18]	代兰, 邬光辉, 陈鑫, 等. 共轭走滑断裂形成演化的控制因素及物理模拟实验[J]. 新疆石油地质, 2023, 44(1):43-50.
	DAI Lan, WU Guanghui, CHEN Xin, et al. Controlling factors and physical simulation experiments on formation and evolution of conjugate strike-slip faults[J]. Xinjiang Petroleum Geology, 2023, 44(1):43-50.
[19]	杨率, 邬光辉, 朱永峰, 等. 塔里木盆地北部地区超深断控油藏关键成藏期[J]. 石油勘探与开发, 2022, 49(2):249-261. doi: 10.11698/PED.2022.02.04
	YANG Shuai, WU Guanghui, ZHU Yongfeng, et al. Key oil accumulation periods of ultra-deep fault-controlled oil reservoir in northern Tarim basin,NW China[J]. Petroleum Exploration and Development, 2022, 49(2):249-261.
[20]	WU Guanghui, ZHAO Kuanzhi, QU Haizhou, et al. Permeability distribution and scaling in multi-stages carbonate damage zones:Insight from strike-slip fault zones in the Tarim basin,NW China[J]. Marine and Petroleum Geology, 2020,114:104208.
[21]	邬光辉, 张韬, 朱永峰, 等. 碳酸盐岩断裂破碎带结构、分布与发育机制[J]. 地质科学, 2020, 55(1):68-80.
	WU Guanghui, ZHANG Tao, ZHU Yongfeng, et al. The architecture,distribution and growth of carbonate fault damage zone[J]. Chinese Journal of Geology, 2020, 55(1):68-80.
[22]	SUN Chong, SHEN Fuxiao, WEN Zhang, et al. Seismic analysis of fault damage zones in the northern Tarim basin(NW China):Implications for growth of ultra-deep fractured reservoirs[J]. Journal of Asian Earth Sciences, 2023,255:105778.
[23]	YANG Peng, WU Guanghui, NURIEL P, et al. In situ LA-ICPMS U‑Pb dating and geochemical characterization of fault-zone calcite in the central Tarim basin,northwest China:Implications for fluid circulation and fault reactivation[J]. Chemical Geology, 2021,568:120125.
[24]	WEI Duan, GAO Zhiqian, ZHANG Liangliang, et al. Application of blocky calcite vein LA-MC-ICP-MS U-Pb dating and geochemical analysis to the study of tectonic-fault-fluid evolutionary history of the Tabei uplift,Tarim basin[J]. Sedimentary Geology, 2023,453:106425.
[25]	朱光有, 孙崇浩, 赵斌, 等. 7000m以深超深层古老缝洞型碳酸盐岩油气储层形成、评价技术与保存下限[J]. 天然气地球科学, 2020, 31(5):587-601.
	ZHU Guangyou, SUN Chonghao, ZHAO Bin, et al. Formation, evaluation technology and preservation lower limit of ultra-deep ancient fracture-cavity carbonate reservoirs below 7000m[J]. Natural Gas Geoscience, 2020, 31(5):587-601.
[26]	陈强路, 马中良, 黎茂稳, 等. 塔里木盆地北部奥陶系超深层液态烃演化与保存机制:来自模拟实验的证据[J]. 地学前缘, 2023, 30(6):329-340. doi: 10.13745/j.esf.sf.2023.2.13
	CHEN Qianglu, MA Zhongliang, LI Maowen, et al. Mechanisms of liquid hydrocarbon evolution and preservation in ultra-deep Ordovician reservoirs,northern Tarim basin:Insights from laboratory simulation experiments[J]. Earth Science Frontiers, 2023, 30(6):329-340. doi: 10.13745/j.esf.sf.2023.2.13
