Coupling Relationship Between Densification Process and Hydrocarbon Charging Timing in Sandstone Reservoirs of Badaowan Formation in Qigu Fault-Fold Belt, Junggar Basin

doi:10.7657/XJPG20200108

Abstract

Abstract:

To reveal the relationship between densification process and hydrocarbon charging in the tight sandstone reservoir of the Lower Jurassic Badaowan formation in the Qigu fault-fold belt of the southern margin of Junggar basin, the diagenetic history of the sandstone reservoir in Badaowan formation is studied on the basis of casting thin section observation, X-ray diffraction, field emission-SEM and fluid inclusion analysis. The paper integrates the hydrocarbon generation and expulsion history of source rocks, stratigraphic burial history and thermal history simulation to restore the densification process and pore evolution history of the sandstone reservoir, and discusses the influences of the relationship between sandstone reservoir densification and hydrocarbon charging timing on reservoir type by combining with hydrocarbon charging history. The study results show that 4 diagenetic facies of the tight sandstone in Badaowan formation can be identified such as quartz secondary enlargement-dissolution, matrix-strong compaction, carbonate mineral cementation and authigenic clay mineral cementation, among which the porosity and permeability of quartz secondary enlargement-dissolution facies are relatively good. The desification of the reservoir is caused by high content of matrix, serious carbonate mineral cementation, limited dissolution and pore plugged by authigenic clay minerals. Moreover, the tight sandstone of Badaowan formation in Qigu fault-fold belt which belongs to the reservoir of “hydrocarbon accumulation after reservoir densification” experienced 3 periods of oil and gas charging—during the period Ⅰ, most sandstone reservoir had been densified before low maturity oil charging; during the period Ⅱ and Ⅲ, low maturity oil and high maturity oil migrated along the Qigu fault, charged and finally accumulated in the tight sandstone under overpressure. At the end of Neogene, the core of the Qigu anticline began to denudate, resulting in the significant reduction of residual pressure and the loss of hydrocarbon. After structural reformation the paleo-reservoirs became small-scaled tight reservoirs. The hydrocarbon accumulation process indicates that the traps located in the high positions of Qigu anticline and in the second row and third row of structural belts have great potential for oil and gas exploration.

Key words: Junggar basin, Qigu fault-fold belt, Badaowan formation, tight sandstone, reservoir, diagenetic evolution, hydrocarbon charging

CLC Number:

TE112.23

YANG Disheng, YAN Guihua, ZHOU Tianqi, LI Yan. Coupling Relationship Between Densification Process and Hydrocarbon Charging Timing in Sandstone Reservoirs of Badaowan Formation in Qigu Fault-Fold Belt, Junggar Basin[J]. Xinjiang Petroleum Geology, 2020, 41(1): 55-66.

Figures/Tables 12

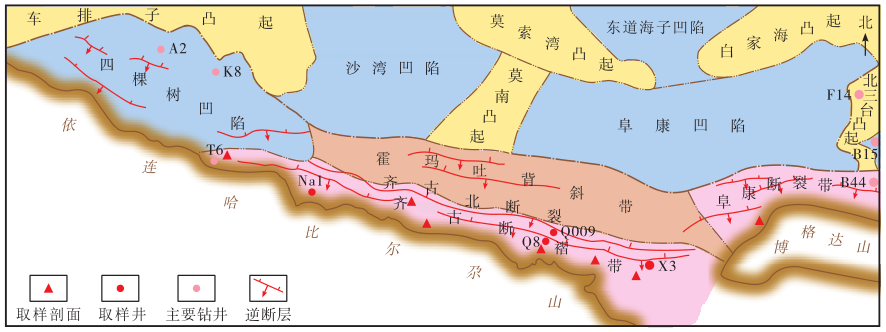

Fig. 1.

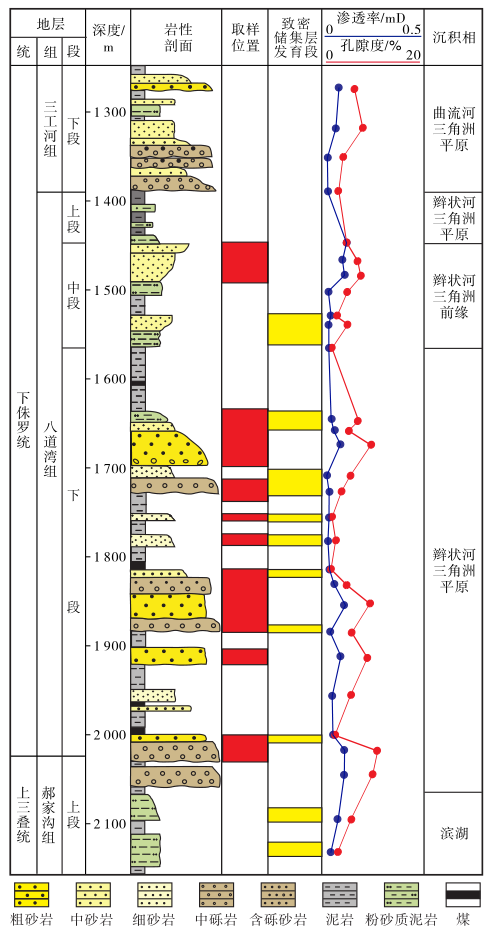

Fig. 2.

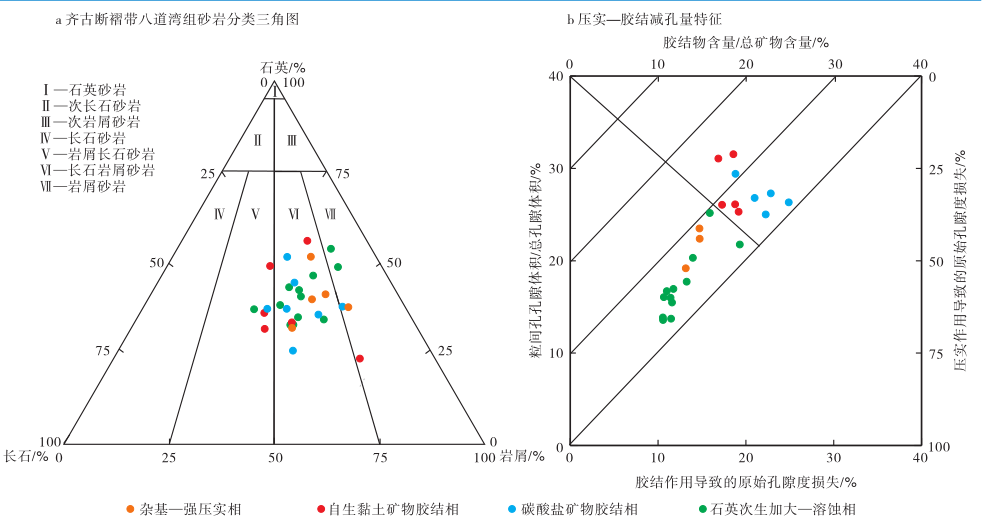

Fig. 3.

Table 1

Fig. 4.

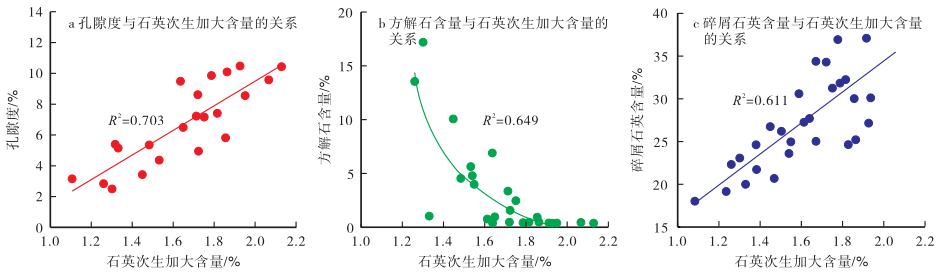

Fig. 5.

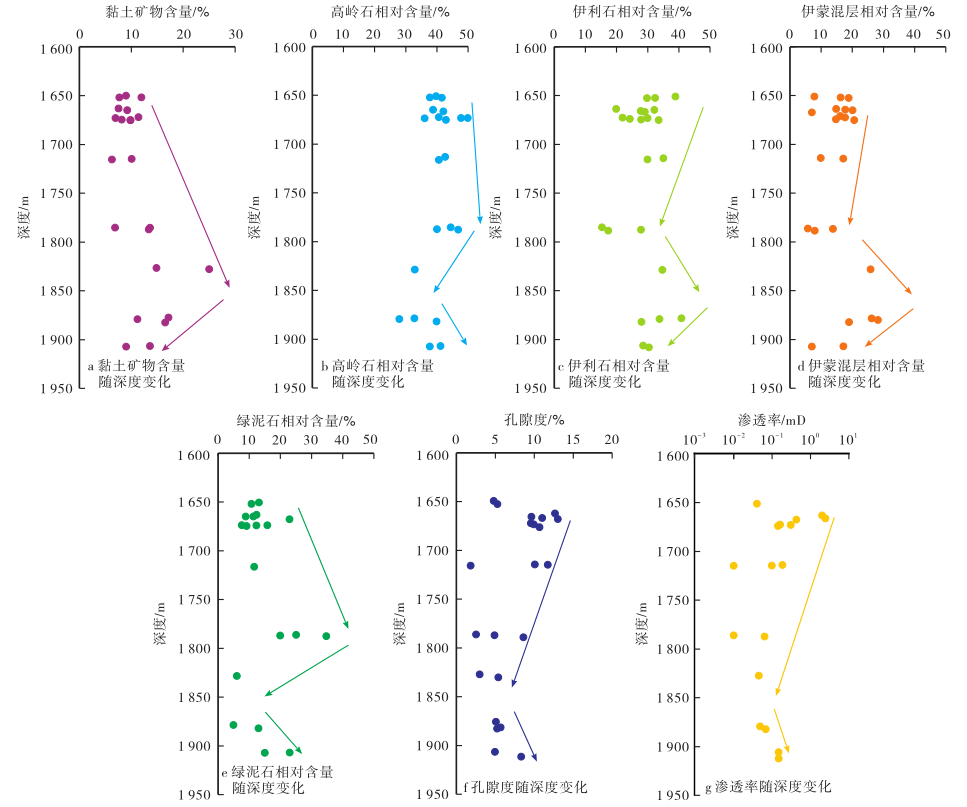

Fig. 6.

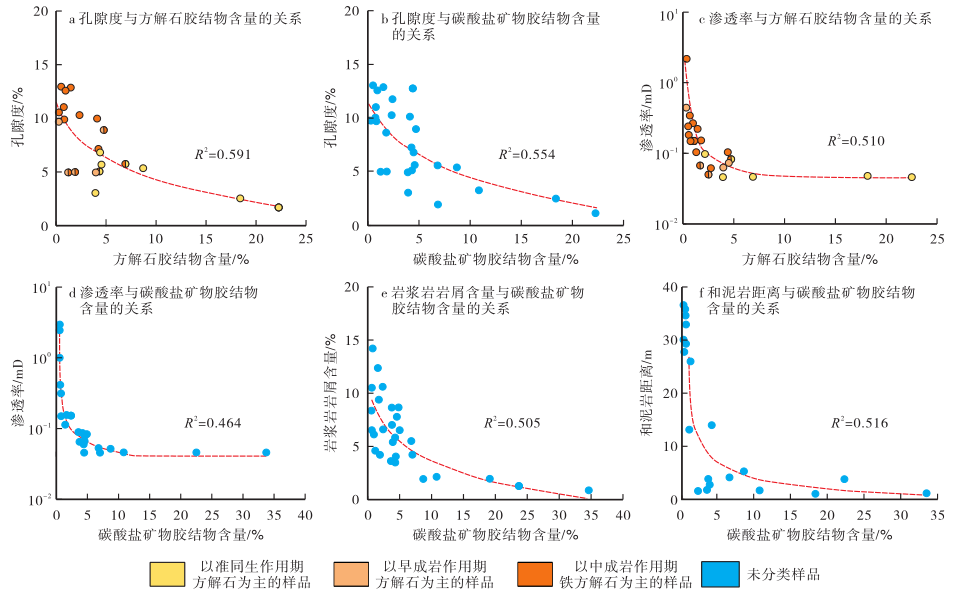

Fig. 7.

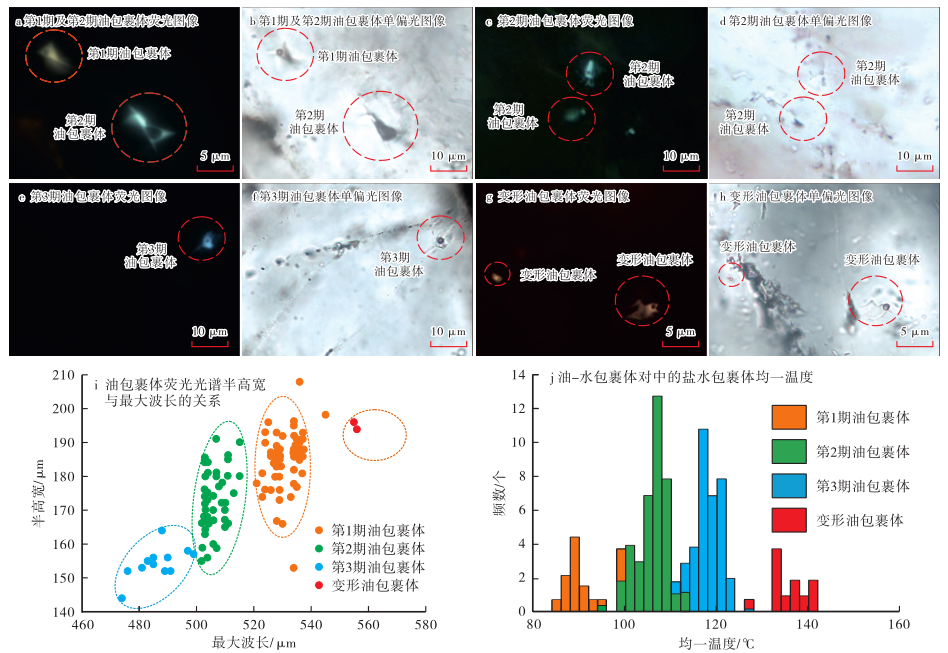

Fig. 8.

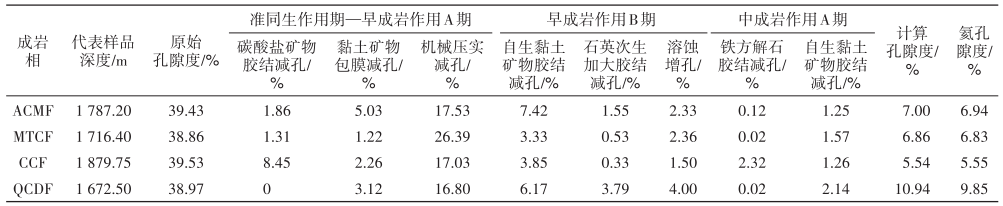

Table 2

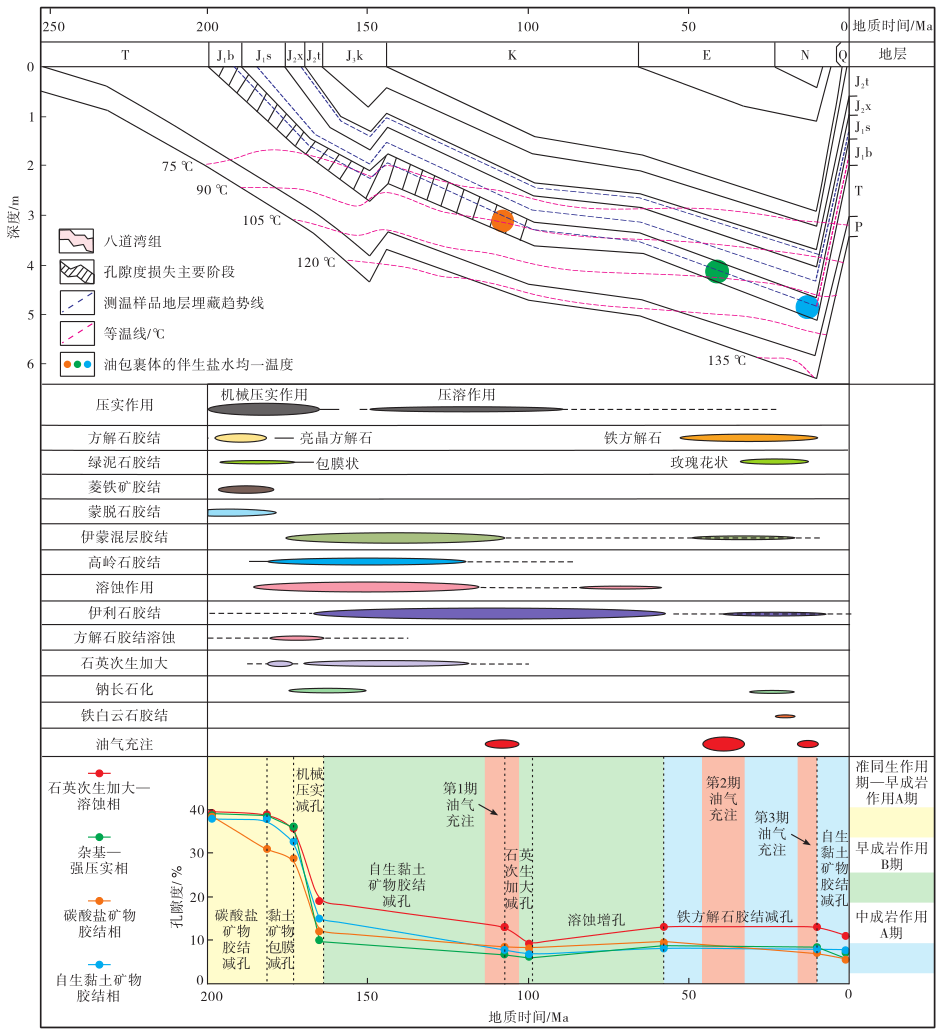

Fig. 9.

Fig. 10.

References 36

[1]	郭召杰, 吴朝东, 张志诚 , 等. 准噶尔盆地南缘构造控藏作用及大型油气藏勘探方向浅析[J]. 高校地质学报, 2011,17(2):185-195.
	GUO Zhaojie, WU Chaodong, ZHANG Zhicheng , et al. Tectonic control on hydrocarbon accumulation and prospect for large oil-gas field exploration in the southern Junggar basin[J]. Geological Journal of China Universities, 2011,17(2):185-195.
[2]	杜金虎, 支东明, 李建忠 , 等. 准噶尔盆地南缘高探1井重大发现及下组合勘探前景展望[J]. 石油勘探与开发, 2019,46(2):205-215.
	DU Jinhu, ZHI Dongming, LI Jianzhong , et al. Major breakthrough of Well Gaotan 1 and exploration prospects of lower assemblage in southern margin of Junggar basin,NW China[J]. Petroleum Exploration and Development, 2019,46(2):205-215.
[3]	鲁雪松, 赵孟军, 陈竹新 , 等. 准噶尔盆地南缘齐古油田油气成藏再认识及勘探启示[J]. 石油学报, 2019,40(9):1 045-1 058.
	LU Xuesong, ZHAO Mengjun, CHEN Zhuxin , et al. Recognition of hydrocarbon accumulation in Qigu oilfield and implications for exploration in the southern margin of Junggar basin[J]. Acta Petrolei Sinica, 2019,40(9):1 045-1 058.
[4]	邵雨 . 准噶尔盆地南缘深层下组合侏罗系油气成藏研究[J]. 高校地质学报, 2013,19(1):86-94.
	SHAO Yu . Hydrocarbon accumulation of the Jurassic deeply-buried lower assemblage in the southern Junggar basin[J]. Geological Journal of China Universities, 2013,19(1):86-94.
[5]	牛斌, 魏璞, 张顺存 , 等. 准噶尔盆地石西地区侏罗系八道湾组储层特征及主控因素分析[J]. 沉积与特提斯地质, 2017,37(2):77-87.
	NIU Bin, WEI Pu, ZHANG Shuncun , et al. Characteristics and controlling factors of the reservoir rocks from the Jurassic Badaowan formation in the Shixi region,Junggar basin,Xinjiang[J]. Sedimentary Geology and Tethyan Geology, 2017,37(2):77-87.
[6]	肖雄飞 . 准噶尔盆地北缘春晖油田侏罗系八道湾组湿地扇沉积及成藏效应[J]. 古地理学报, 2013,15(1):113-123.
	XIAO Xiongfei . Sedimentology and accumulation effect of humid fan of the Jurassic Badaowan formation in Chunhui oilfield,northern margin of Junggar basin[J]. Journal of Palaeogeography, 2013,15(1):113-123.
[7]	马文礼 . 准噶尔盆地车排子周缘八道湾组沉积演化与有利储层预测[D]. 北京:中国石油大学( 北京), 2016.
	MA Wenli . Sedimentary environment evolution and reservoir prediction of the Jurassic Badaowan formation in the Chepaizi uplift and its periphery,Junggar basin[D]. Beijing:China University of Petroleum ( Beijing), 2016.
[8]	单祥, 徐洋, 唐勇 , 等. 莫北—莫索湾地区八道湾组储集层成岩作用及其对储集层物性的影响[J]. 新疆石油地质, 2015,36(4):401-408.
	SHAN Xiang, XU Yang, TANG Yong , et al. Diagenesis and effect on physical property of Lower Jurassic Badaowan formation in Mobei-Mosuowan area,Junggar basin[J]. Xinjiang Petroleum Geology, 2015,36(4):401-408.
[9]	金振奎, 王兆峰, 顾军锋 , 等. 准噶尔盆地东部台13井区八道湾组水流及砂体延伸方向[J]. 新疆石油地质, 2010,31(4):356-357.
	JIN Zhenkui, WANG Zhaofeng, GU Junfeng , et al. Paleocurrent and sands extending directions of Badaowan formation in Well Tai-13 area in eastern Junggar basin[J]. Xinjiang Petroleum Geology, 2010,31(4):356-357.
[10]	张健, 李天明, 陈能贵 , 等. 准噶尔盆地南缘西部侏罗—白垩系储层发育特征及分布[J]. 新疆地质, 2012,30(1):62-66.
	ZHANG Jian, LI Tianming, CHEN Nenggui , et al. The development characteristics and distribution of reservoir in Jurassic and Cretaceous in western part of south margin of Junggar basin[J]. Xinjiang Geology, 2012,30(1):62-66.
[11]	孙靖, 薛晶晶, 曾德龙 , 等. 准噶尔盆地腹部深层八道湾组致密储层特征及主控因素[J]. 东北石油大学学报, 2017,41(1):1-10.
	SUN Jing, XUE Jingjing, ZENG Delong , et al. Deep tight reservoir characteristics and main controlling factors of Badaowan formation in the central Junggar basin[J]. Journal of Northeast Petroleum University, 2017,41(1):1-10.
[12]	杨贵前, 杜社宽, 梁爽 . 准噶尔盆地中拐凸起侏罗系八道湾组储层特征及控制因素[J]. 天然气地球科学, 2017,28(11):1 689-1 698.
	YANG Guiqian, DU Shekuan, LIANG Shuang . Reservoir characteristics and controlling factors of the Jurassic Badaowan formation in Zhongguai uplift,Junggar basin[J]. Natural Gas Geoscience, 2017,28(11):1 689-1 698.
[13]	周天琪, 吴朝东, 袁波 , 等. 准噶尔盆地南缘侏罗系重矿物特征及其物源指示意义[J]. 石油勘探与开发, 2019,46(1):65-78.
	ZHOU Tianqi, WU Chaodong, YUAN Bo , et al. New insights into multiple provenances evolution of the Jurassic from heavy minerals characteristics in southern Junggar basin,NW China[J]. Petroleum Exploration and Development, 2019,46(1):65-78.
[14]	WANG Jialin, WU Chaodong, LI Zhuang , et al. Whole-rock geochemistry and zircon Hf isotope of Late Carboniferous-Triassic sediments in the Bogda region,NW China:clues for provenance and tectonic setting[J]. Geological Journal, 2018: 1-25.
[15]	FANG Yanan, WU Chaodong, GUO Zhaojie , et al. Provenance of the southern Junggar basin in the Jurassic:evidence from detrital zircon geochronology and depositional environments[J]. Sedimentary Geology, 2015,315:47-63.
[16]	王斌, 孙卫, 白云云 , 等. 鄂尔多斯盆地姬塬地区长6₁段致密砂岩储集层成岩作用与孔隙演化[J]. 新疆石油地质, 2018,39(4):430-438.
	WANG Bin, SUN Wei, BAI Yunyun , et al. Diagenesis and pore evolution of tight sandstone reservoir of Chang 6₁ member in Jiyuan area,Ordos basin[J]. Xinjiang Petroleum Geology, 2018,39(4):430-438.
[17]	DUTTONS P, LOUCKS R G . Diagenetic controls on evolution of porosity and permeability in Lower Tertiary Wilcox sandstones from shallow to ultra deep (200-6 700 m) burial,Gulf of Mexico basin,USA[J]. Marine and Petroleum Geology, 2010,27(1):69-81.
[18]	南红丽, 蔡李梅, 叶素娟 , 等. 川西坳陷沙溪庙组储集层致密化与天然气成藏耦合关系[J]. 新疆石油地质, 2018,39(4):439-445.
	NAN Hongli, CAI Limei, YE Sujuan , et al. Coupling relationship between reservoir densification and natural gas accumulation in Shaximiao formation in western Sichuan depression[J]. Xinjiang Petroleum Geology, 2018,39(4):439-445.
[19]	LAI Jin, WANG Guiwen, WANG Shuchen , et al. Origin and distribution of carbonate cement in tight sandstones:the Upper Triassic Yanchang formation Chang 8 oil layer in west Ordos basin,China[J]. Geofluids, 2017,( 6):1-13.
[20]	HENARES S, BLOEMSMAM R, DONSELAAR M E , et al. The role of detrital anhydrite in diagenesis of aeolian sandstones (Upper Rotliegend,the Netherlands):implications for reservoir-quality prediction[J]. Sedimentary Geology, 2014,314:60-74.
[21]	NABAWY B S, GÉRAUD Y, ROCHETTE P ,et al. Pore-throat characterization in highly porous and permeable sandstones[J]. AAPG Bulletin, 2009,93(6):719-739.
[22]	DESBOIS G, URAIJ L, KUKLA P A , et al. High-resolution 3D fabric and porosity model in a tight gas sandstone reservoir:a new approach to investigate microstructures from mm-to nm-scale combining argon beam cross-sectioning and SEM imaging[J]. Journal of Petroleum Science and Engineering, 2011,78(2):243-257.
[23]	BJØRLYKKE K . Relationships between depositional environments,burial history and rock properties. Some principal aspects of diagenetic process in sedimentary basins[J]. Sedimentary Geology, 2014,301:1-14.
[24]	MORAD S, AL-RAMADAN K, KETZER J M , et al. The impact of diagenesis on the heterogeneity of sandstone reservoirs:a review of the role of depositional facies and sequence stratigraphy[J]. AAPG Bulletin, 2010,94(8):1 267-1 309.
[25]	DOWEYP J, HODGSON D M, WORDEN R H . Pre-requisites,processes,and prediction of chlorite grain coatings in petroleum reservoirs:a review of subsurface examples[J]. Marine and Petroleum Geology, 2012,32(1):63-75.
[26]	SCHMIT T M, FERNANDES C P, WOLF F G , et al. Characterization of Brazilian tight gas sandstones relating permeability and angstrom-to micron-scale pore structures[J]. Journal of Natural Gas Science and Engineering, 2015,27:785-807.
[27]	鲁雪松, 赵孟军, 刘可禹 , 等. 库车前陆盆地深层高效致密砂岩气藏形成条件与机理[J]. 石油学报, 2018,39(4):365-378.
	LU Xuesong, ZHAO Mengjun, LIU Keyu , et al. Forming condition and mechanism of highly effective deep tight sandstone gas reservoir in Kuqa foreland basin[J]. Acta Petrolei Sinica, 2018,39(4):365-378.
[28]	韩守华, 李娴静, 陈能贵 , 等. 准噶尔盆地南缘中段下组合储层特征及控制因素分析[J]. 沉积与特提斯地质, 2012,32(4):52-58.
	HAN Shouhua, LI Xianjing, CHEN Nenggui , et al. Hydrocarbon reservoirs and their controlling factors in the lower associations of the middle part of southern Junggar basin,Xinjiang[J]. Sedimentary Geology and Tethyan Geology, 2012,32(4):52-58.
[29]	HU Hanwen, TIAN Xiaoru, ZHANG Jian , et al. The diagenetic and tectonic significance of hydrocarbon accumulation in the southern Junggar basin,NW China[J]. Geological Journal, 2018,53(6):2 795-2 809.
[30]	郭继刚, 王绪龙, 庞雄奇 , 等. 准噶尔盆地南缘中下侏罗统烃源岩评价及排烃特征[J]. 中国矿业大学学报, 2013,42(4):595-605.
	GUO Jigang, WANG Xulong, PANG Xiongqi , et al. Evaluation and hydrocarbon expulsion characteristics of the Middle-Lower Jurassic source rock in the southern margin of Junggar basin[J]. Journal of China University of Mining & Technology, 2013,42(4):595-605.
[31]	DOU Wenchao, LIU Luofu, WU Kangjun , et al. Diagenetic heterogeneity,pore throats characteristic and their effects on reservoir quality of the Upper Triassic tight sandstones of Yanchang formation in Ordos basin,China[J]. Marine and Petroleum Geology, 2018,98:243-257.
[32]	胡瀚文, 张元元, 卓勤功 , 等, 准噶尔盆地南缘下组合油气成藏过程:以齐古油田为例[J]. 天然气地球科学, 2019,30(4):456-467.
	HU Hanwen, ZHANG Yuanyuan, ZHUO Qingong , et al. Hydrocarbon charging history of the lower petroleum system in the southern Junggar basin:case study of the Qigu oil field[J]. Natural Gas Geoscience, 2019,30(4):456-467.
[33]	吴海生, 郑孟林, 何文军 , 等. 准噶尔盆地腹部地层压力异常特征与控制因素[J]. 石油与天然气地质, 2017,38(6):1 135-1 146.
	WU Haisheng, ZHENG Menglin, HE Wenjun , et al. Formation pressure anomalies and controlling factors in central Junggar basin[J]. Oil & Gas Geology, 2017,38(6):1 135-1 146.
[34]	FATHY D, WAGREICH M, GIER S , et al. Maastrichtian oil shale deposition on the southern Tethys margin,Egypt:insights into greenhouse climate and paleoceanography[J]. Palaeogeography,Palaeoclimatology,Palaeoecology, 2018,505:18-32.
[35]	解巧明 . 包裹体热力学与数值模拟恢复出的古流体压力及对油气成藏的影响[D]. 西安:西北大学, 2018.
	XIE Qiaoming . Fluid inclusions thermodynamics and numerical simulation and its effects on hydrocarbon accumulation in:a case study of Hutubi-Fukang area,the southern margin of Junggar basin[D]. Xi’an:Northwest University, 2018.
[36]	刘伟 . 准噶尔盆地南缘下组合异常高压形成机制及其演化特征[D]. 西安:西安石油大学, 2019.
	LIU Wei . Formation mechanism and evolution characteristics of the lower anomalous high pressure in the southern margin of the Junggar basin[D]. Xi’an:Xi’an Petroleum University, 2019.

成岩相	碎屑组分平均含量/%							碳酸盐矿物胶结物平均含量/%			自生黏土矿物平均含量/%				杂基平均含量/%	物性参数平均值
	石英		长石		岩屑			菱铁矿	方解石	铁方解石	伊利石	伊蒙混层	高岭石	绿泥石		孔隙度/%	渗透率/mD
	碎屑石英	石英胶结	钾长石	斜长石	沉积岩岩屑	岩浆岩岩屑	变质岩岩屑	菱铁矿	方解石	铁方解石	伊利石	伊蒙混层	高岭石	绿泥石		孔隙度/%	渗透率/mD
杂基—强压实相	30.05	1.63	3.11	11.02	21.37	5.57	2.36	0	1.47	2.24	5.47	2.56	5.43	1.46	10.97	8.85	0.11
碳酸盐矿物胶结相	26.27	1.49	5.06	11.88	18.01	5.13	2.32	5.72	10.39	3.28	2.69	1.50	3.97	1.71	8.43	3.89	0.05
石英次生加大—溶蚀相	30.57	2.79	2.58	14.62	16.80	8.55	1.70	0.86	0.89	0.24	2.43	1.54	3.63	1.02	3.77	10.93	0.78
自生黏土矿物胶结相	26.67	1.92	4.04	14.26	17.40	6.48	1.27	1.21	2.87	0.40	6.16	2.23	6.47	2.45	7.78	6.95	0.08
