Sedimentary Sequence and Depositional Environment Evolution of Upper Jurassic-Lower Cretaceous Strata in the Southern Margin of Junggar Basin

doi:10.7657/XJPG20200109

Abstract

Abstract:

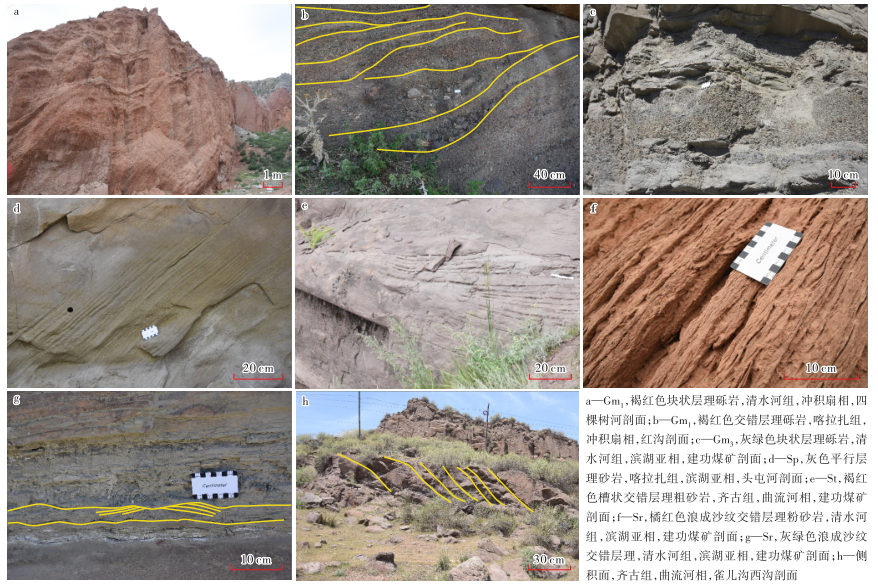

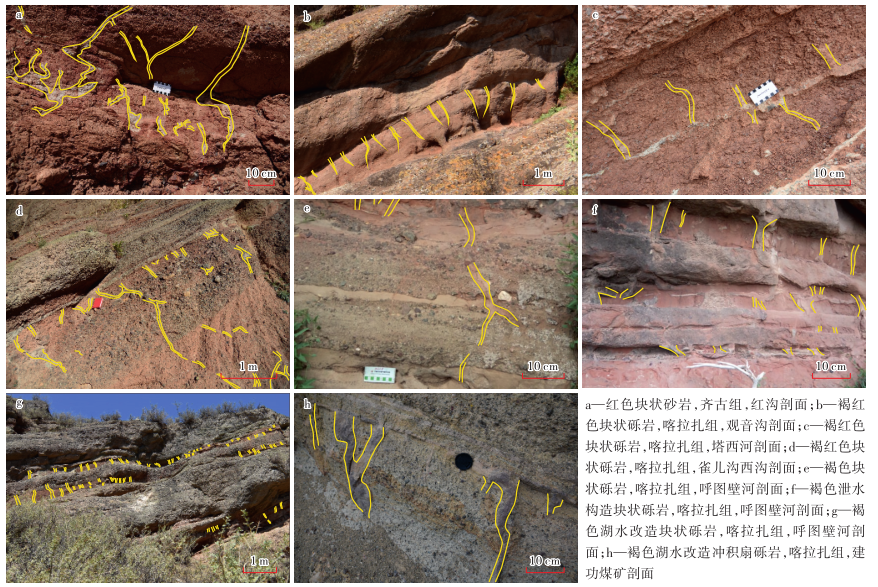

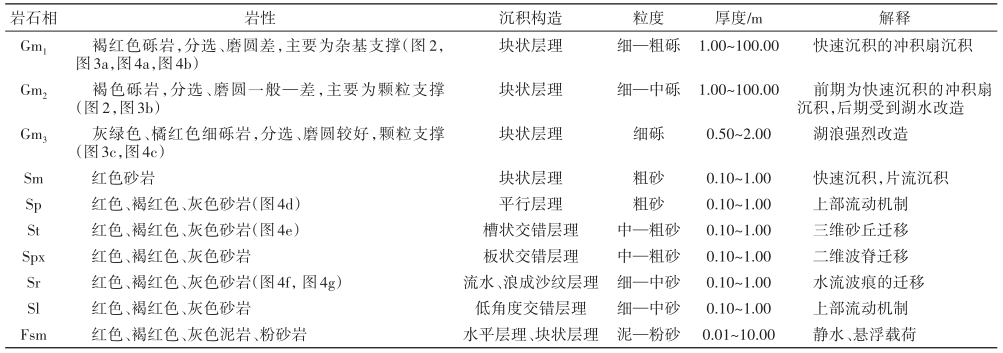

The sedimentary facies of the Upper Jurassic-Lower Cretaceous strata in the southern margin of Junggar basin can be divided into meandering river, alluvial fan, alluvial fan transformed by lake and shallow lake facies. According to the architecture element analysis, 10 main lithofacies is classified, among which polymictic Gm₁ supported by matrix is massive maroon conglomerate with fine-coarse grain size, poor sorting and roundness; polymictic Gm₂ supported by grain is massive brown conglomerate with fine-medium grain size, moderate-poor sorting and roundness; Gm₃ supported by grain is massive greyish green or orange fine conglomerate with good sorting and roundness. Some seismite structures were developed during the depositional periods of Gm₁ and Gm₂. During the Middle to Late Jurassic, the climate was arid, structural activities were active in the northern Tianshan, the basin was filled rapidly and the accommodation space reduced and meandering river deposits were developed in the Upper Jurassic Qigu formation. Under the influence of the rapid closure of the Mongol-Okhotsk Ocean, the extensional tectonic setting evolved to a local compressive setting, structural activities in the northern Tianshan continued, the basin contracted, the accomodation space reduced, and the boundary of the basin withdrew from the central Tianshan to northern Tianshan. During the deposition period of the Upper Jurassic Kalazha formation, brownish red fluvial fan sediments were widely developed in the southern margin of Junggar basin and the filling of the Jurassic basin ended. During the deposition period of the Lower Cretaceous Qingshuihe formation, the Mongolia-Okhotsk Ocean closed, the tectonic setting became stable, the basin expanded and the accommodation space increased, large-scale rapid lake transgression occured, the climate became humid, then fluvial fan deposits were developed in the southern margin, followed by shallow lake deposits, greyish green or orange lacustrine conglomerate and fine deposits, indicating the beginning of the filling of a Cretaceous basin.

Key words: Junggar basin, Jurassic, Cretaceous, basin-range evolution, seismite structure, depositional environment evolution, Qigu forma- tion, Kalazha formation, Qingshuihe formation

CLC Number:

TE111.3

GUAN Xutong, WU Chaodong, WU Jian, ZHOU Jiaquan, JIAO Yue, ZHOU Rong, YU Qingsen. Sedimentary Sequence and Depositional Environment Evolution of Upper Jurassic-Lower Cretaceous Strata in the Southern Margin of Junggar Basin[J]. Xinjiang Petroleum Geology, 2020, 41(1): 67-79.

Figures/Tables 15

Fig. 1.

Table 1

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

Fig. 8.

Fig. 9.

Fig. 10.

Fig.11.

Fig. 12.

Fig. 13.

Fig. 14.

References 37

[1]	董树文, 张岳桥, 李海龙 , 等. “燕山运动”与东亚大陆晚中生代多板块汇聚构造:纪念“燕山运动”90周年[J]. 中国科学:地球科学, 2019,49(6):913-938.
	DONG Shuwen, ZHANG Yueqiao, LI Hailong , et al. The Yanshan orogeny and Late Mesozoic multi-plate convergence in East Asia:commemorating 90th years of the “Yanshan orogeny”[J]. Science China:Earth Sciences, 2019,49(6):913-938.
[2]	DONG Shuwen, ZHANG Yueqiao, ZHANG Fuqin , et al. Late Jurassic-Early Cretaceous continental convergence and intracontinental orogenesis in East Asia:a synjournal of the Yanshan revolution[J]. Journal of Asian Earth Sciences, 2015,114:750-770.
[3]	黄始琪, 董树文, 胡健民 , 等. 蒙古-鄂霍次克构造带的形成与演化[J]. 地质学报, 2016,90(9):2 192-2 205.
	HUANG Shiqi, DONG Shuwen, HU Jianmin , et al. The formation and tectonic evolution of the Mongol-Okhotsk belt[J]. Acta Geologica Sinica, 2016,90(9):2 192-2 205.
[4]	FANG Yanan, WU Chaodong, WANG Yizhe , et al. Stratigraphic and sedimentary characteristics of the Upper Jurassic-Lower Cretaceous strata in the Junggar basin,Central Asia:tectonic and climate implications[J]. Journal of Asian Earth Sciences, 2016,129:294-308.
[5]	YANG Yongtai, GUO Zhixin, SONG Chuanchun , et al. A short-lived but significant Mongol-Okhotsk collisional orogeny in Latest Jurassic-Earliest Cretaceous[J]. Gondwana Research, 2015,28(3):1 096-1 116.
[6]	王陆新 . 准噶尔盆地南缘喀拉扎组沉积特征及其构造指示意义[D]. 北京:北京大学, 2013.
	WANG Luxin . Sedimentary characteristics and tectonic significance of Kalazha formation in the southern margin of Junggar basin[D]. Beijing:Peking University, 2013.
[7]	单新, 于兴河, 李胜利 , 等. 准南水磨沟侏罗系喀拉扎组冲积扇沉积模式[J]. 中国矿业大学学报, 2014,43(2):262-270.
	SHAN Xin, YU Xinghe, LI Shengli , et al. The depositional characteristics and model of Kalazha formation in Shuimogou profile,Junggar basin[J]. Journal of China University of Mining & Technology, 2014,43(2):262-270.
[8]	方世虎, 郭召杰, 宋岩 , 等. 准噶尔盆地南缘侏罗纪沉积相演化与盆地格局[J]. 古地理学报, 2005,7(3):347-356.
	FANG Shihu, GUO Zhaojie, SONG Yan , et al. Sedimentary facies evolution and basin pattern of the Jurassic in southern margin area of Junggar basin[J]. Journal of Palaegeography, 2005,7(3):347-356.
[9]	HENDRIX M S . Sedimentary record and climatic implications of recurrent deformation in the Tian Shan:evidence from Mesozoic strata of the north Tarim,south Junggar,and Turpan basins,northwest China[J]. Geological Society of America Bulletin, 1992,104:53-79.
[10]	GRAVE J D, MICHAEL M B, PETER V D H . Distant effects of India-Eurasia convergence and Mesozoic intracontinental deformation in Central Asia:constraints from apatite fission-track thermochronology[J]. Journal of Asian Earth Sciences, 2007,29(2/3):188-204.
[11]	JOLIVET M, BOURQUIN S, HEILBRONN G , et al. The Upper Jurassic-Lower Cretaceous alluvial-fan deposits of the Kalaza formation (Central Asia):tectonic pulse or increased aridity?[J]. Geological Society, 2017,427:491-521.
[12]	杨迪生, 肖立新, 阎桂华 , 等. 准噶尔盆地南缘四棵树凹陷构造特征与油气勘探[J]. 新疆石油地质, 2019,40(2):138-144.
	YANG Disheng, XIAO Lixin, YAN Guihua , et al. Structural characteristics and petroleum exploration in Sikeshu sag,southern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 2019,40(2):138-144.
[13]	杨勇, 陈世悦, 王桂萍 , 等. 准噶尔盆地南缘雀儿沟剖面白垩系地层特征及沉积环境[J]. 油气地质与采收率, 2012,19(3):34-37.
	YANG Yong, CHEN Shiyue, WANG Guiping , et al. Formation characteristics and sedimentary environment analysis on Cretaceous of Queergou section,Junggar basin[J]. Petroleum Geology and Recovery Efficiency, 2012,19(3):34-37.
[14]	宋俊杰, 王振奇, 邹国亮 , 等. 准噶尔盆地南缘露头区白垩系清水河组浊积岩的发现及其意义[J]. 科学技术与工程, 2015,15(3):47-51.
	SONG Junjie, WANG Zhenqi, ZOU Guoliang , et al. Discovery and its implication of turbidite in Cretaceous Qingshuihe formation in the southern margin outcrop of Junggar basin[J]. Science Technology and Engineering, 2015,15(3):47-51.
[15]	蔡忠贤, 陈发景, 贾振远 . 准噶尔盆地的类型和构造演化[J]. 地学前缘, 2000,7(4):431-440.
	CAI Zhongxian, CHEN Fajing, JIA Zhenyuan . Types and tectonic evolution of Junggar basin[J]. Earth Science Frontiers, 2000,7(4):431-440.
[16]	陈新, 卢华复, 舒良树 , 等. 准噶尔盆地构造演化分析新进展[J]. 高校地质学报, 2002,8(3):257-267.
	CHEN Xin, LU Huafu, SHU Liangshu , et al. Study on tectonic evolution of Junggar basin[J]. Geological Journal of China Universities, 2002,8(3):257-267.
[17]	张功成, 陈新发, 刘楼军 , 等. 准噶尔盆地结构构造与油气田分布[J]. 石油学报, 1999,20(1):21-26.
	ZHANG Gongcheng, CHEN Xinfa, LIU Loujun , et al. The tectonic evolution,architecture and petroleum distribution in the Zhungaer basin in China[J]. Acta Petrolei Sinica, 1999,20(1):21-26.
[18]	李忠权, 陈更生, 张寿庭 . 新疆准噶尔盆地南缘拉张伸展动力学环境的探讨[J]. 高校地质学报, 1998,4(1):74-79.
	LI Zhongquan, CHEN Gengsheng, ZHANG Shouting . Discussion on the extensional dynamic setting in the south margin border of Junggar basin,Xinjiang,China[J]. Geological Journal of China Universities, 1998,4(1):74-79.
[19]	刘和甫, 汪泽成, 熊保贤 , 等. 中国中西部中、新生代前陆盆地与挤压造山带耦合分析[J]. 地学前缘, 2000,7(3):55-72.
	LIU Hefu, WANG Zecheng, XIONG Baoxian , et al. Coupling analysis of Mesozoic-Cenozoic foreland basin and mountain system in central and western China[J]. Earth Science Frontiers, 2000,7(3):55-72.
[20]	吴朝东, 全书进, 郭召杰 , 等. 新疆侏罗纪原型盆地类型[J]. 新疆地质, 2004,22(1):56-63.
	WU Chaodong, QUAN Shujin, GUO Zhaojie , et al. The prototype basins in Xinjiang,western China[J]. Xinjiang Geology, 2004,22(1):56-63.
[21]	WANG Yanjun, JIA Dong, PAN Jianguo , et al. Multiple-phase tectonic superposition and reworking in the Junggar basin of northwestern China:implications for deep-seated petroleum exploration[J]. AAPG Bulletin, 2018,102(8):1 489-1 521.
[22]	方世虎, 郭召杰, 张志诚 , 等. 中新生代天山及其两侧盆地性质与演化[J]. 北京大学学报(自然科学版), 2004,40(6):886-897.
	FANG Shihu, GUO Zhaojie, ZHANG Zhicheng , et al. Discussion on Mesozoic-Cenozoic evolution of Tian Shan and its adjacent basins[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2004,40(6):886-897.
[23]	辜延容 . 准噶尔盆地南缘构造特征与油气分布[D]. 成都:成都理工大学, 2015.
	GU Yanrong . The structure feature and oil-gas distribution in southern margin of the Junggar basin[D]. Chengdu:Chengdu University of Technology, 2015.
[24]	蔡土赐 . 新疆维吾尔自治区岩石地层[M]. 武汉: 中国地质大学出版社, 1999.
	CAI Tuci. Lithostratigraphy of Xinjiang Uygur Autonomous region[M]. Wuhan: China University of Geosciences Press, 1999.
[25]	ANDREW D M . Architectural-element analysis:a new method of facies analysis applied to fluvial deposits[J]. Earth Science Reviews, 1985,22(4):261-308.
[26]	姜在兴 . 沉积学[M]. 北京: 石油工业出版社, 2003.
	JIANG Zaixing. Sedimentology[M]. Beijing: Petroleum Industry Press, 2003.
[27]	关旭同, 吴鉴, 魏凌云 , 等. 准噶尔盆地南缘建功煤矿剖面齐古组河流沉积与砂体构型[J]. 新疆石油地质, 2019,40(3):290-297.
	GUAN Xutong, WU Jian, WEI Lingyun , et al. Meandering river deposit and sand body architecture in Qigu formation of Jiangong coal mine section in the southern margin of Junggar basin[J]. Xinjiang Petroleum Geology, 2019,40(3):290-297.
[28]	NICHOLS G . Sedimentology and stratigraphy[M]. Oxford:Wiley, 2003.
[29]	READING H G . Sedimentary environments:processes,facies and stratigraphy[M]. Oxford:Blackwell, 1996.
[30]	朱筱敏 . 沉积岩石学[M]. 北京: 石油工业出版社, 2008.
	ZHU Xiaomin. Sedimentary rocks[M]. Beijing: Petroleum Industry Press, 2008.
[31]	况军 . 准噶尔盆地南缘侏罗系地质剖面图集[M]. 北京: 石油工业出版社, 2014.
	KUANG Jun. Atlas of Jurassic geology section of the southern margin of Junggar basin[M]. Beijing: Petroleum Industry Press, 2014.
[32]	杨烨, 何中波 . 准噶尔盆地中新生代古气候演化特征及对砂岩型铀成矿作用的制约[J]. 世界核地质科学, 2016,33(3):140-145.
	YANG Ye, HE Zhongbo . Characteristics of Mesozoic-Cenozoic paleoclimate evolution and its constrain on mineralization of sandstone type uranium deposit in Junggar basin,Xinjiang,China[J]. World Nuclear Geoscience, 2016,33(3):140-145.
[33]	LI Shunli, YU Xinghe, TAN Chengpeng , et al. Jurassic sedimentary evolution of southern Junggar basin:implication for palaeoclimate changes in northern Xinjiang Uygur Autonomous region,China[J]. Journal of Palaeogeography, 2014,3(2):145-161.
[34]	房亚男, 吴朝东, 王熠哲 , 等. 准噶尔盆地南缘中-下侏罗统浅水三角洲类型及其构造和气候指示意义[J]. 中国科学:技术科学, 2016,46(7):737-756.
	FANG Yanan, WU Chaodong, WANG Yizhe , et al. Lower to Middle Jurassic shallow-water delta types in the southern Junggar basin and implications for the tectonic and climate[J]. Scientia Sinica:Technologica, 2016,46(7):737-756.
[35]	FANG Yanan, WU Chaodong, GUO Zhaojie , et al. Provenance of the southern Junggar basin in the Jurassic:evidence from detrital zircon geochronology and depositional environments[J]. Sedimentary Geology, 2015,315:47-63.
[36]	FANG Yannan, WU Chaodong, WANG Yizhe , et al. Topographic evolution of the Tianshan mountains and their relation to the Junggar and Turpan basins,Central Asia,from the Permian to the Neogene[J]. Gondwana Research, 2019,75:47-67.
[37]	王熠哲, 吴朝东, 马健 , 等. 准噶尔盆地白垩纪—新近纪地层颜色韵律与古环境和古气候演化[J]. 古地理学报, 2019,21(3):451-468.
	WANG Yizhe, WU Chaodong, MA Jian , et al. Strata color rhythm of the Cretaceous-Neogene and evolution of palaeoenvironment and palaeoclimate in Junggar basin[J]. Journal of Paleogeography, 2019,21(3):451-468.
