Water Injection Development Strategies for the Reservoirs of Xishanyao Formation in

doi:10.7657/XJPG20200613

Abstract

Abstract:

The reservoirs of Xishanyao formation in Niujuanhu block of Santanghu oilfield are sandstone reservoirs with the characteristics of low permeability, low pressure and low mobility. In the early stage of development, there were problems such as poor water injection effects, low production of oil wells, and etc. In order to improve development effects of water injection, through the analysis of production performance statistics and the study on reservoir engineering and simulation methods, the technical and strategic limits for water injection were redefined, and the moderately advanced water injection was implemented. Meanwhile, reasonable well patterns and well spacing were discussed, the adjustment and the infilling in well patterns were implemented, and the favorable areas were depicted to prepare for rolling production. After the implementation of a series of strategies, the water injection development status for the reservoirs of Xishanyao formation in Niujuanhu block has gradually become better. At present, the reservoir pressure stays stable, the water content is controlled within 55%, and the natural decline rate of oil production drops to about 10%. The oil production remains stable and the maximum oil production rate can reach as high as 1.04%, which is still above 0.70% currently. It is predicted that the oil recovery rates of the southern and eastern areas of the reservoir in Xishanyao formation in the Niujuanhu block are 24.5% and 18.1%, respectively, both of which are higher than 18.0% calibrated in the development plan.

Key words: Santanghu oilfield, Niujuanhu block, Xishanyao formation, sandstone reservoir, advanced water injection, water injection intensity, layered water injection, well pattern infilling, rolling production

CLC Number:

TE341

PAN Youjun, XIE Jun, MENG Pengfei, YANG Zhen, YANG Yongxia. Water Injection Development Strategies for the Reservoirs of Xishanyao Formation in[J]. Xinjiang Petroleum Geology, 2020, 41(6): 721-728.

Figures/Tables 8

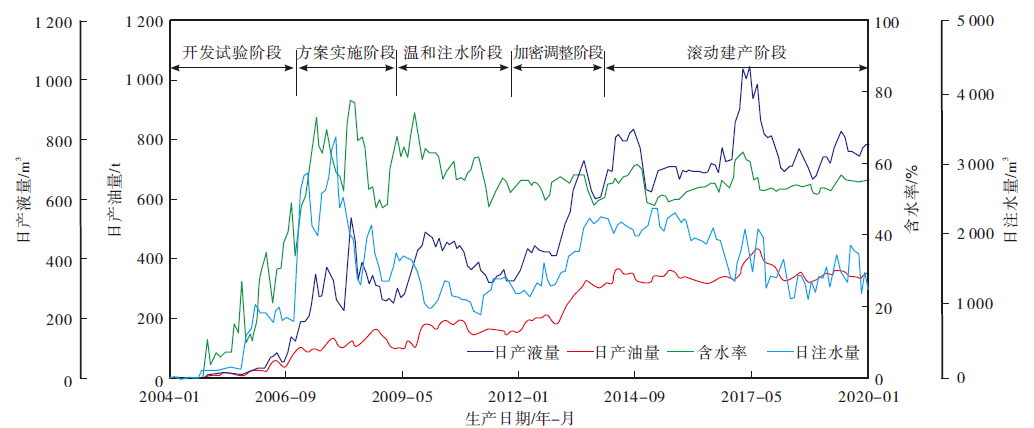

Fig. 1.

Fig. 2.

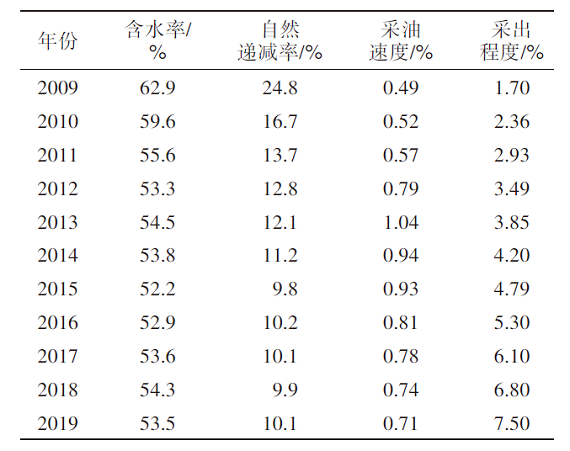

Table 1

Fig. 3.

Fig. 4.

Fig. 5.

Table 2

Table 3

References 22

[1]	崔英怀, 于家义, 吴美娥, 等. “三低”复杂油藏开发技术对策研究[J]. 石油天然气学报, 2010,32(5):287-290.
	CUI Yinghuai, YU Jiayi, WU Mei’e, et al. “Three low”complex reservoir development technology countermeasure research[J]. Journal of Oil and Gas Technology, 2010,32(5):287-290.
[2]	ISLAM M R, FAROUQ A S M. New scaling criteria for chemical flooding experiment[J]. Journal of Canadian Petroleum Technology, 1990,29(1):29-36.
[3]	刘长宇, 丛立春, 龙增伟, 等. 低渗裂缝性薄层储层改造技术研究[J]. 钻采工艺, 2008,31(5):73-75.
	LIU Changyu, CONG Lichun, LONG Zengwei, et al. Research on hydraulic fracturing technology in thin fractured layers with low permeability[J]. Drilling & Production Technology, 2008,31(5):73-75.
[4]	董凤玲, 周华东, 李志萱, 等. 卫42断块特低渗油藏挖潜调整研究[J]. 岩性油气藏, 2013,25(5):113-122.
	DONG Fengling, ZHOU Huadong, LI Zhixuan, et al. Study on the potential tapping and adjusting of ultra-low permeability reservoir in Wei 42 block[J]. Lithologic Reservoirs, 2013,25(5):113-122.
[5]	潘有军, 徐赢, 吴美娥, 等. 牛圈湖区块西山窑组油藏含水上升规律及控水对策研究[J]. 岩性油气藏, 2014,26(5):113-118.
	PAN Youjun, XU Ying, WU Mei’e, et al. Water cut rising rules and water control countermeasures of reservoir of Xishanyao formation in Niuquanhu block[J]. Lithologic Reservoirs, 2014,26(5):113-118.
[6]	徐赢, 覃新平, 吴迪, 等. 基于模型地震反演储层预测技术的应用:以牛圈湖油田西山窑组为例[J]. 岩性油气藏, 2012,24(4):85-89.
	XU Ying, QIN Xinping, WU Di, et al. Application of seismic inversion technique based on model to reservoir prediction:a case study from Xishanyao formation in Niuquanhu oilfield[J]. Lithologic Reservoirs, 2012,24(4):85-89.
[7]	文静, 张娜, 姚孟多, 等. 牛圈湖油田西山窑Ⅱ砂组沉积特征及有利区预测[J]. 特种油气藏, 2017,24(5):21-26.
	WEN Jing, ZHANG Na, YAO Mengduo, et al. Depositional features of sand group Ⅱ in Xishanyao formation and prediction of favorable regions in Niujuanhu oilfield[J]. Special Oil & Gas Reservoirs, 2017,24(5):21-26.
[8]	李亮, 胡建国, 阎纪辉. 超前注水是低渗透油田开发的重要途径:以长庆油田三叠系延长组油藏为例[J]. 新疆石油地质, 2001,22(3):232-234.
	LI Liang, HU Jianguo, YAN Jihui. Advance water injection :an important appraoch for development of low permeability pools[J]. Xinjiang Petroleum Geology, 2001,22(3):232-234.
[9]	罗阳俊. 牛圈湖油田西山窑油藏超前注水开发机理研究[D]. 黑龙江大庆:东北石油大学, 2011: 38-43.
	LUO Yangjun. Development mechanism research of advanced water-injection of Jurassic Xishanyao reservoir in Niujuanhu oilfield[D]. Daqing, Heilongjiang:Northeast Petroleum University, 2011: 38-43.
[10]	余东合. 低渗透油藏重复压裂机理研究及现场应用[J]. 油气井测试, 2008,17(2):45-46.
	YU Donghe. Study on multiple fracturing mechanism in low permeability pool and its field application[J]. Well Testing, 2008,17(2):45-46.
[11]	陈远林, 郭建春. 重复压裂技术研究[J]. 中国西部油气地质, 2006,2(4):457-460.
	CHEN Yuanlin, GUO Jianchun. Study of the multiple fracturing technique[J]. West China Petroleum Geosciences, 2006,2(4):457-460.
[12]	谭良柏, 昌伦杰, 孙玉国, 等. 泡沫酸化解堵技术在东河1-10H井的应用[J]. 新疆石油地质, 2019,40(3):376-378.
	TAN Liangbo, CHANG Lunjie, SUN Yuguo, et al. Application of foam acidizing and plugging removal technology in Well Donghe 1-10H[J]. Xinjiang Petroleum Geology, 2019,40(3):376-378.
[13]	钟银. 低压低渗超低流度油藏解堵技术研究与应用[J]. 中国石油和化工标准与质量, 2006,2(10):135-136.
	ZHONG Yin. Research and application of plugging removal technology for low-pressure,low-permeability and ultra-low mobility reservoirs[J]. China Petroleum and Chemical Standard and Quality, 2006,2(10):135-136.
[14]	汪全林, 廖新武, 赵秀娟, 等. 低渗油藏水平井注水合理井距研究[J]. 新疆石油地质, 2012,33(6):727-729.
	WANG Quanlin, LIAO Xinwu, ZHAO Xiujuan, et al. Study on reasonable well spacing of horizontal well in low permeability reservoir by water drive process[J]. Xinjiang Petroleum Geology, 2012,33(6):727-729.
[15]	董雪梅, 徐怀民, 马吾提汗·马迪娜, 等. 彩9 井区西山窑组特低渗油藏高含水期加密调整试验[J]. 新疆石油地质, 2014,35(5):558-561.
	DONG Xuemei, XU Huaimin, MAWUTIHAN Madina, et al. Well infill adjustment test of Xishanyao ultra-low permeability reservoir in high water cut stage in Wellblock Cai-9 of Cainan oilfield,Junggar basin[J]. Xinjiang Petroleum Geology, 2014,35(5):558-561.
[16]	何贤科, 陈程. 低渗透油层有效动用的注采井距计算方法[J]. 新疆石油地质, 2006,27(2):216-218.
	HE Xianke, CHEN Cheng. The calculating method for effectively producing injection-production well spacing of low permeability reservoirs[J]. Xinjiang Petroleum Geology, 2006,27(2):216-218.
[17]	束青林, 郭迎春, 孙志刚, 等. 特低渗透油藏渗流机理研究及应用[J]. 油气地质与采收率, 2016,23(5):58-64.
	SHU Qinglin, GUO Yingchun, SUN Zhigang, et al. Research and application of percolation mechanism in extra-low permeability oil reservoir[J]. Petroleum Geology and Recovery Efficiency, 2016,23(5):58-64.
[18]	田文博, 杨正明, 徐轩, 等. 特低渗透裂缝性油藏矩形井网优化实验研究[J]. 特种油气藏, 2013,20(2):121-125.
	TIAN Wenbo, YANG Zhengming, XU Xuan, et al. Experimental study on the optimization of rectangular well pattern for extremely low permeability fracture reservoirs[J]. Special Oil & Gas Reservoirs, 2013,20(2):121-125.
[19]	聂海峰, 谭蓓, 谢爽, 等. 应用矢量井网优化小型油藏注水井位[J]. 岩性油气藏, 2013,25(3):123-126.
	NIE Haifeng, TAN Bei, XIE Shuang, et al. Applying vector well pattern to optimize the flooding well site of small reservoir[J]. Lithologic Reservoirs, 2013,25(3):123-126.
[20]	霍进, 桑林翔, 石国新, 等. 低渗高饱和岩性油藏高效开发技术:以石南21井区为例[J]. 新疆石油地质, 2011,32(6):624-626.
	HUO Jin, SANG Linxiang, SHI Guoxin, et al. Research on efficient development technology for lithologic reservoir with low permeability and high saturation:an example from Shinan-21 wellblock[J]. Xinjiang Petroleum Geology, 2011,32(6):624-626.
[21]	楚天祥. 牛圈湖油田“三低”砂岩油藏注水开发技术研究[D]. 黑龙江大庆:东北石油大学, 2017: 42-50.
	CHU Tianxiang. The research of the waterflood development technology of “three lows” sandstone reservoir in Niujuanhu oilfield[D]. Daqing, Heilongjiang:Northeast Petroleum University, 2017: 42-50.
[22]	赵继勇, 熊维亮, 范伟, 等. 特低渗透油藏提高采收率驱油体系筛选及应用[J]. 新疆石油地质, 2019,40(6):721-724.
	ZHAO Jiyong, XIONG Weiliang, FAN Wei, et al. Selection and application of oil displacement system for EOR in extra-low permeability reservoirs[J]. Xinjiang Petroleum Geology, 2019,40(6):721-724.

开发阶段	开发技术	注水理念	压力系数	注水强度/ [m³·（d^-1·m^-1）]	注水量/ （m³·d^-1）	注采比	注水方式	注水压力/MPa	增产方式
开发初期	超前注水、提升压力、压裂投产	强化注水	1.00~1.40	3.0~6.0	50~100	5.0~10.0	未避射油干层, 笼统注水	大部分井超破压注水	注水见效
优化调整	超前注水、提升压力、压裂投产	温和注水	1.00	1.5~2.5	10~30	1.5~3.0	避射油干层, 实施分注	严格控制超破压注水	注水见效、重复（转向）压裂、热化学解堵
