Genesis of Calcareous Sandy Conglomerate of Baikouquan Formation in Well XIA72 Fault Block, Mabei Oilfield

doi:10.7657/XJPG20220404

Abstract

Abstract:

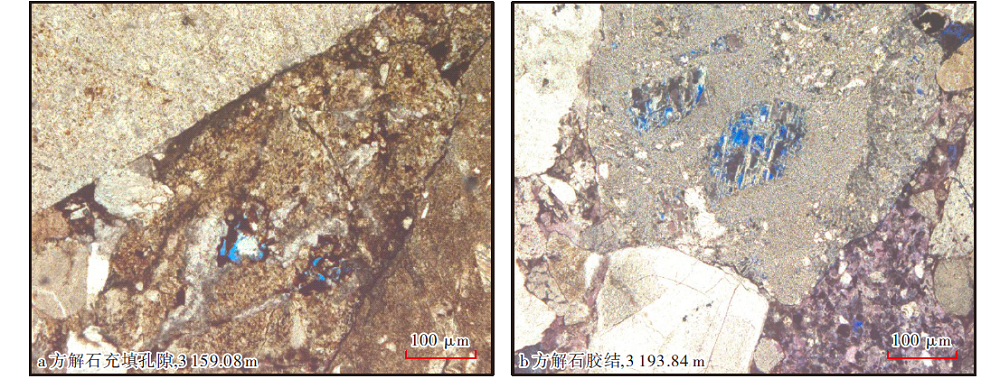

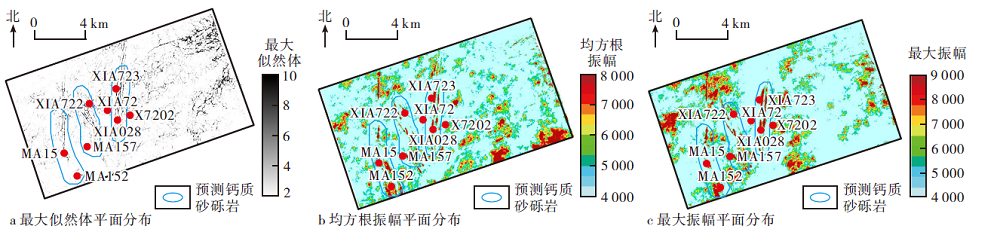

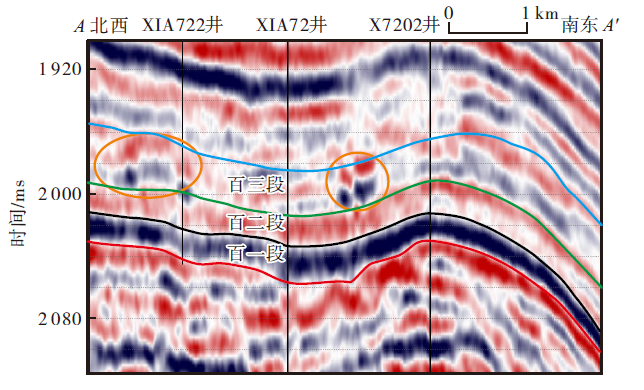

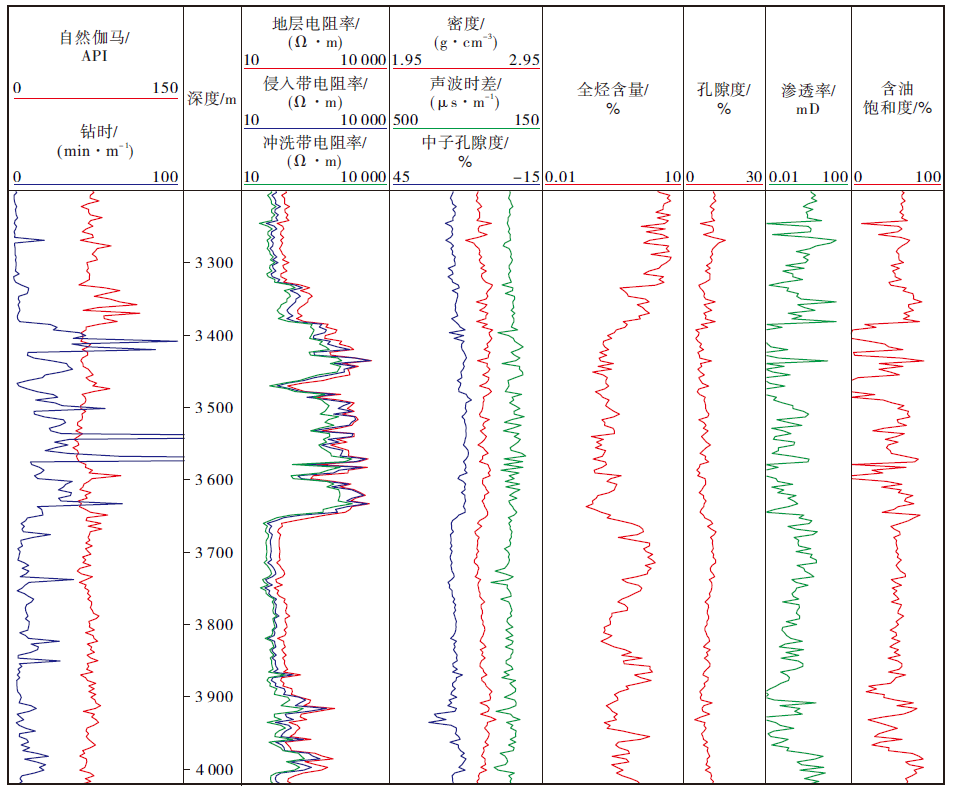

Calcareous sandy conglomerate was encountered in multiple wells in the oil layers of the Lower Triassic Baikouquan formation in Well XIA72 fault block, MA131 well block, Mabei oilfield, gas logging result shows that the total hydrocarbon content is low, and the physical and oil-bearing properties of reservoirs are poor, which affects the oil layer drilling rate and the later horizontal well deployment. According to the core, logging and seismic data, the genesis, identification and distribution of calcareous sandy conglomerate in the Baikouquan formation, Well XIA72 fault block were discussed. The results show that the calcareous cement in the calcareous sandy conglomerate in the study area was formed in the late diagenetic stage, and it has a destructive effect on the reservoir. The distribution of the calcareous sandy conglomerate is mainly controlled by sedimentary facies and early faults, with the logging responses characterized by high resistivity, high density and low interval transit time, which are reflected as “bright spots” on the seismic section. The distribution of the calcareous sandy conglomerate in the study area was predicted by means of the maximum likelihood system, root mean square amplitude and maximum amplitude, among which the last one can accurately reflect the distribution. The calcareous sandy conglomerate in the study area is found in massive distribution controlled by sedimentary microfacies and NW trending banded distribution controlled by faults. According to the prediction results, the deployment of 27 horizontal wells was optimized.

Key words: Junggar basin, Mahu sag, Mabei oilfield, Baikouquan formation, calcareous sandy conglomerate, logging response, seismic attribute

CLC Number:

TE112.221

WU Shunwei, XIA Xueling, ZHU Shijie. Genesis of Calcareous Sandy Conglomerate of Baikouquan Formation in Well XIA72 Fault Block, Mabei Oilfield[J]. Xinjiang Petroleum Geology, 2022, 43(4): 404-409.

Figures/Tables 6

Fig. 1.

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Table 1.

References 18

[1]	陈秀艳, 王剑, 张立平, 等. 塔里木盆地哈拉哈塘地区石炭系东河砂岩段碳酸盐胶结物沉积特征及其成因[J]. 吉林大学学报(地球科学版), 2020, 50(2):509-517.
	CHEN Xiuyan, WANG Jian, ZHANG Liping, et al. Sedimentary characteristics and genesis of carbonate cements in Carboniferous Donghe sandstone member,Hanilcatam area of Tarim basin[J]. Journal of Jilin University(Earth Science Edition), 2020, 50(2):509-517.
[2]	张永旺, 曾溅辉, 高霞, 等. 东营凹陷古近系储层碳酸盐胶结物分布特征及主控因素[J]. 吉林大学学报(地球科学版), 2009, 39(1):16-22.
	ZHANG Yongwang, ZENG Jianhui, GAO Xia, et al. Distribution characteristics and main controlling factors of carbonate cements in the Paleogene reservoirs in Dongying depression[J]. Journal of Jilin University(Earth Science Edition), 2009, 39(1):16-22.
[3]	张立强, 罗晓容. 准噶尔盆地高压带碳酸盐胶结层的分布及特征[J]. 石油实验地质, 2011, 33(4):388-391.
	ZHANG Liqiang, LUO Xiaorong. Distribution and charactreistics of carbonate cements in overpressure zone of Junggar basin[J]. Petroleum Geology & Experiment, 2011, 33(4):388-391.
[4]	孙致学, 孙治雷, 鲁洪江, 等. 砂岩储集层中碳酸盐胶结物特征:以鄂尔多斯盆地中南部延长组为例[J]. 石油勘探与开发, 2010, 37(5):543-551.
	SUN Zhixue, SUN Zhilei, LU Hongjiang, et al. Characteristics of carbonate cements in sandstone reservoirs:a case from Yanchang formation,middle and southern Ordos basin,China[J]. Petroleum Exploration and Development, 2010, 37(5):543-551. doi: 10.1016/S1876-3804(10)60054-7
[5]	刘丽红, 黄思静, 王春连, 等. 碳酸盐岩中方解石胶结物的阴极发光环带与微量元素构成的关系:以塔河油田奥陶系碳酸[J]. 海相油气地质, 2010, 15(1):55-60.
	LIU Lihong, HUANG Sijing, WANG Chunlian, et al. Cathodoluminescence zonal texture of calcite cement in carbonate rock and its relationship with trace element composition:a case of Ordovician carbonate rock of Tahe oilfield,Tarim basin[J]. Marine Origin Petroleum Geology, 2010, 15(1):55-60.
[6]	王芙蓉, 何生, 何治亮, 等. 准噶尔盆地腹部永进地区砂岩储层中碳酸盐胶结物特征及其成因意义[J]. 岩石矿物学杂志, 2009, 28(2):169-178.
	WANG Furong, HE Sheng, HE Zhiliang, et al. Characteristics and genetic mechanism of carbonate cement in sandstone reservoirs of Yongjin area in central Junggar basin[J]. Acta Petrologica et Mineralogica, 2009, 28(2):169-178.
[7]	韩雪芳, 刘宗宾, 李云鹏, 等. 辽东湾海域古近系沙河街组钙质砂岩成因机制和控制作用[J]. 油气地质与采收率, 2018, 25(5):65-71.
	HAN Xuefang, LIU Zongbin, LI Yunpeng, et al. Genetic mechanism and controlling factors of calcareous sandstone of the Paleogene Shahejie formation,Liaodong gulf[J]. Petroleum Geology and Recovery Efficiency, 2018, 25(5):65-71.
[8]	谭先锋, 蒋威, 吴康军, 等. 陆相碎屑岩中钙质胶结物沉淀机制及油气储集意义:来自济阳坳陷孔店组和川西须家河组的对比研究[J]. 石油实验地质, 2016, 38(3):293-302.
	TAN Xianfeng, JIANG Wei, WU Kangjun, et al. Sedimentation mechanism and petroleum significance of calcareous cements in continental clastic rocks:comparison between the Kongdian formation in the Jiyang depression and the Xujiahe formation in the western Sichuan basin[J]. Petroleum Geology & Experiment, 2016, 38(3):293-302.
[9]	张立强, 李秀国. 准噶尔盆地南缘安集海河组砂岩碳酸盐胶结物特征[J]. 油气地质与采收率, 2011, 18(5):6-8.
	ZHANG Liqiang, LI Xiuguo. Calcite cements in Paleogene sandstone of Anjihaihe formation,Junggar basin[J]. Petroleum Geology and Recovery Efficiency, 2011, 18(5):6-8.
[10]	郭宏莉, 王大锐. 塔里木油气区砂岩储集层碳酸盐胶结物的同位素组成与成因分析[J]. 石油勘探与开发, 1999, 26(3):31-32.
	GUO Hongli, WANG Darui. Stable isotopic composition and origin analysis of the carbonate cements within sandstone reservoirs of Tarim oil-gas bearing area[J]. Petroleum Exploration and Development, 1999, 26(3):31-32.
[11]	CHOWDHURY A H, NOBLE J P A. Origin, distribution and significance of carbonate cements in the Albert formation reservoir sandstones,New Brunswick,Canada[J]. Marine and Petroleum Geology, 1996, 13(7):837-846. doi: 10.1016/0264-8172(96)00002-5
[12]	沃克马·施密特, 戴维·A·麦克唐纳. 砂岩成岩过程中的次生储集孔隙[M]. 陈荷立,汤锡元,译. 北京: 石油工业出版社, 1982:272-276.
	SCHMIDT V, MCDONALD D A. Secondary reservoir pores in sandstone during diagenesis[M]. Translated by CHEN HeliTANG Xiyuan. Beijing: Petroleum Industry Press, 1982:272-276.
[13]	朱宁, 操应长, 葸克来, 等. 砂砾岩储层成岩作用与物性演化:以玛湖凹陷北斜坡区三叠系百口泉组为例[J]. 中国矿业大学学报, 2019, 48(5):1102-1118.
	ZHU Ning, CAO Yingchang, XI Kelai, et al. Diagenesis and physical properties evolution of sandy conglomerate reservoirs:a case study of Triassic Baikouquan formation in northern slope zone of Mahu depression[J]. Journal of China University of Mining & Technology, 2019, 48(5):1102-1118.
[14]	印兴耀, 韩文功, 李振春, 等. 地震技术新进展[M]. 北京: 石油大学出版社, 2006:58-60.
	YIN Xingyao, HAN Wengong, LI Zhenchun, et al. New progress in seismic technology[M]. Beijing: Petroleum Industry Press, 2006:58-60.
[15]	张远银, 孙赞东, 杨海军, 等. 基于纯纵波地震资料的碳酸盐岩储集层识别[J]. 新疆石油地质, 2020, 41(5):505-611.
	ZHANG Yuanyin, SUN Zandong, YANG Haijun, et al. Carbonate reservoir identification based on pure P-wave data[J]. Xinjiang Petroleum Geology, 2020, 41(5):505-611.
[16]	刘军, 李伟, 龚伟, 等. 顺北地区超深断控储集体地震识别与描述[J]. 新疆石油地质, 2021, 42(2):238-245.
	LIU Jun, LI Wei, GONG Wei, et al. Seismic identification and description of ultra-deep fault-controlled reservoirs in Shunbei area[J]. Xinjiang Petroleum Geology, 2021, 42(2):238-245.
[17]	马德波, 赵一民, 张银涛, 等. 最大似然属性在断裂识别中的应用:以塔里木盆地哈拉哈塘地区热瓦普区块奥陶系走滑断裂的识别为例[J]. 天然气地球科学, 2018, 29(6):817-825.
	MA Debo, ZHAO Yimin, ZHANG Yintao, et al. Application of maximum likelihood attribute to fault identification:a case study of Rewapu block in Halahatang area,Tarim basin,NW China[J]. Natural Gas Geoscience, 2018, 29(6):817-825.
[18]	赵玉红, 任云鹏, 侯磊, 等. 地震属性对云质岩储层识别的探讨[J]. 工程球物理学报, 2013, 10(6):891-895.
	ZHAO Yuhong, REN Yunpeng, HOU Lei, et al. Discussion on seismic attributes of dolomitic rock reservoir identification[J]. Chinese Journal of Engineering Geophysics, 2013, 10(6):891-895.

井名	钻遇层位	钻遇顶深/m	钻遇底深/m	钻遇长度/m	测井解释含油性
MaHW1146井	百三二小层	3 165.0	3 374.7	209.7	非油层
MaHW1147井	百三二小层	3 043.0	3 486.0	443.0	非油层
MaHW1144井	百三二小层	3 269.1	3 459.3	190.2	非油层
		3 739.6	3 795.0	55.4	非油层
		3 825.5	3 871.6	46.1	非油层
MaHW1114井	百三二小层	3 162.6	3 331.8	169.2	非油层
MaHW1114井	百三二小层	3 567.3	3 632.1	64.8	非油层
MaHW1145井	百三二小层	3 329.9	3 650.8	320.9	非油层
MaHW1145井	百三二小层	3 891.5	4 004.9	113.4	非油层
MaHW1143井	百三二小层	3 436.7	3 542.7	106.0	非油层
MaHW1143井	百三二小层	3 550.1	3 688.6	138.5	非油层
MaHW1142井	百三二小层	3 670.9	3 851.2	180.3	非油层
MaHW1142井	百三二小层	3 886.7	4 062.2	175.5	非油层
MaHW1177井	百三二小层	3 673.2	3 724.8	51.6	非油层
MaHW1177井	百三二小层	4 058.7	4 102.5	43.8	非油层
MaHW1179井	百三三小层	3 170.7	3 224.5	53.8	非油层
		3 250.9	3 295.8	44.9	非油层
		3 611.5	3 650.4	38.9	非油层
MaHW1176井	百三三小层	3 856.8	3 935.5	78.7	非油层
MaHW1176井	百三三小层	4 244.9	4 297.6	52.7	非油层
