Characterization of Hydraulic Fractures in Tight Conglomerate Reservoirs in Baikouquan Formation，Mabei Slope

doi:10.7657/XJPG20230207

Abstract

Abstract:

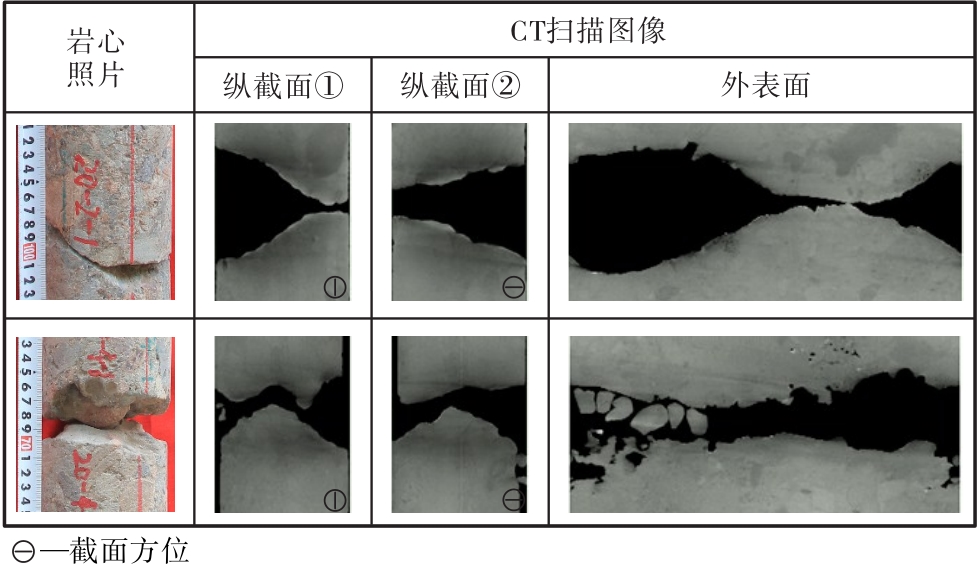

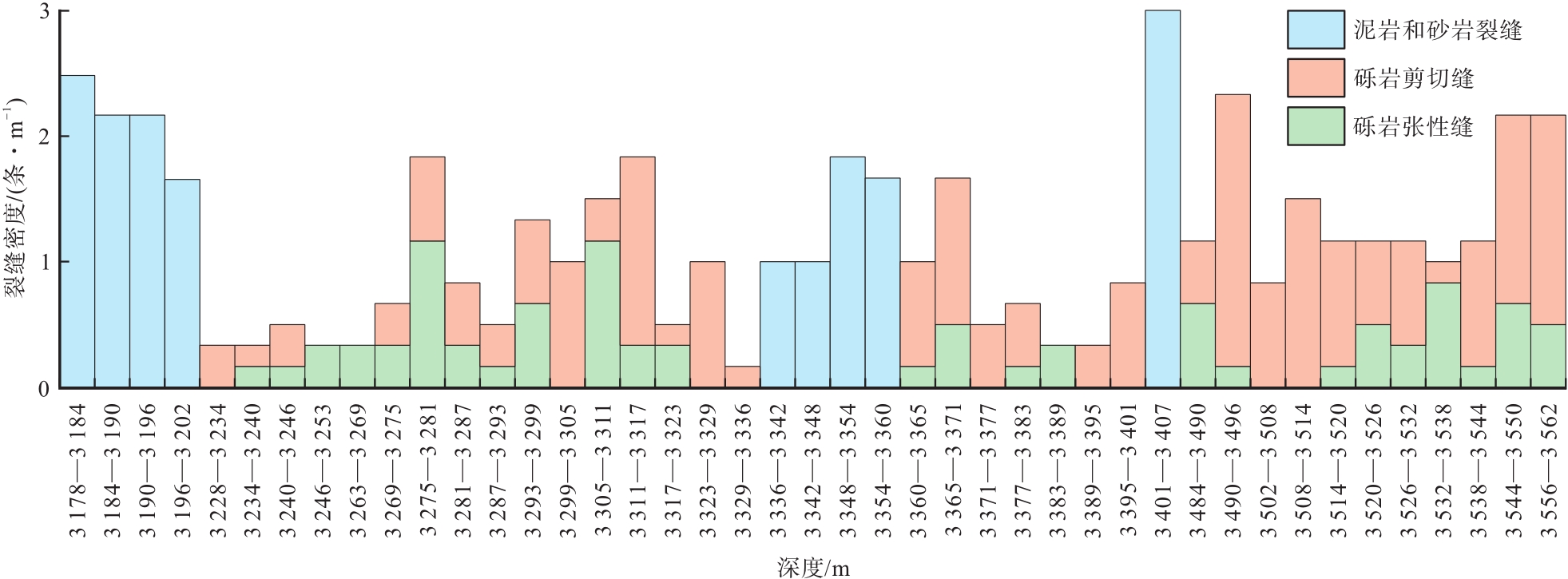

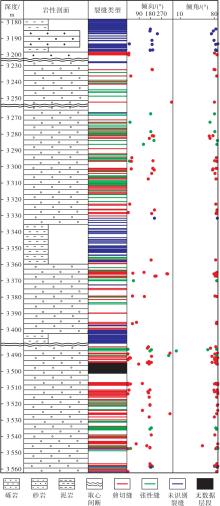

Hydraulic fracturing is a main technique for developing oil and gas in tight conglomerate reservoirs. Currently，hydraulic fractures are mainly studied by means of physical experiments and numerical simulation. The study results can provide a theoretical basis for optimization of development plans，but they are not verified with field data，bringing great uncertainties to the design of stimulation measures. In order to describe the shape of hydraulic fractures for confirming the effective stimulation in tight conglomerate reservoirs，a coring well was drilled on the north slope of Mahu sag for obtaining hydraulic fractures. Based on the observation and analysis of the tight conglomerate cores，the shape，occurrence，and density of hydraulic fractures were characterized by using the core，image logging and CT scanning data. It is found that the tight conglomerate is characterized by large grain size，poor sorting，grain support，and strong heterogeneity. A total of 335 hydraulic fractures were identified in the core with the length of 323 m. Principal fractures propagate in the direction perpendicular to the wellbore; branch fractures are few and nearly perpendicular to the main fractures; crushed zones and asymmetrical double-wing fractures are observed in some intervals. The fractures propagate in two modes: gravel bypassing and gravel penetrating，which are formed due to tension and shear action，respectively，and are thus classified as tensional fractures and shear fractures. The tensional fractures and shear fractures are consistent in occurrence，both with a high dip angle close to 90° and a nearly south-north trending. The density of shear fractures is generally greater than that of tensional fractures.

Key words: Mabei slope, Baikouquan formation, tight conglomerate, hydraulic fracture, fracture characterization, fracture shape, occurrence, density

CLC Number:

TE357.1

LI Xiangyang, JI Hancheng, BIAN Tengfei, CHEN Liang, CHEN Liang, GUO Xinshu, LI Mengkai. Characterization of Hydraulic Fractures in Tight Conglomerate Reservoirs in Baikouquan Formation，Mabei Slope[J]. Xinjiang Petroleum Geology, 2023, 44(2): 178-183.

Figures/Tables 4

References 22

[1]	李宁, 张士诚, 马新仿, 等. 砂砾岩储层水力裂缝扩展规律试验研究[J]. 岩石力学与工程学报, 2017, 36(10):2 383-2 392.
	LI Ning, ZHANG Shicheng, MA Xinfang, et al. Experimental study on the propagation mechanism of hydraulic fracture in glutenite formations[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36(10):2 383-2 392.
[2]	何其胜, 王贵君. 砂砾岩水压致裂机理及数值仿真研究[J]. 三峡大学学报(自然科学版), 2020, 42(6):45-49.
	HE Qisheng, WANG Guijun. Mechanism and numerical simulation of hydraulic cracking of sand and gravel[J]. Journal of China Three Gorges University(Natural Sciences), 2020, 42(6):45-49.
[3]	余佩蓉, 郑国庆, 孙福泰, 等. 玛湖凹陷风城组页岩油藏水平井压裂裂缝扩展模拟[J]. 新疆石油地质, 2022, 43(6):750-756.
	YU Peirong, ZHENG Guoqing, SUN Futai, et al. Simulation on fracture propagation during hydraulic fracturing in horizontal wells in shale reservoirs of Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):750-756.
[4]	于江龙, 陈刚, 吴俊军, 等. 玛湖凹陷风城组页岩油地质工程甜点地震预测方法及应用[J]. 新疆石油地质, 2022, 43(6):757-766.
	YU Jianglong, CHEN Gang, WU Junjun, et al. Seismic prediction method of geological and engineering shale oil sweet spots and its application in Fengcheng formation of Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):757-766.
[5]	CHEN Beibei, XU Bin, LI Biao, et al. Understanding the performance of hydraulically fractured wells in the laumontite-rich tight glutenite formation[J]. Journal of Petroleum Science and Engineering, 2020, 185:106 600.
[6]	俞天喜, 袁峰, 周培尧, 等. 玛南斜坡上乌尔禾组颗粒支撑砾岩裂缝扩展形态[J]. 新疆石油地质, 2021, 42(1):53-62.
	YU Tianxi, YUAN Feng, ZHOU Peiyao, et al. Fracture propagating shapes in gravel-supported conglomerate reservoirs of upper Wuerhe formation on Manan slope,Mahu sag[J]. Xinjiang Petroleum Geology, 2021, 42(1):53-62.
[7]	张红静, 徐康泰, 刘立冬, 等. 非稳态渗流下砂砾岩水力裂缝扩展数值模拟[J]. 石油钻采工艺, 2017, 39(6):751-755.
	ZHANG Hongjing, XU Kangtai, LIU Lidong, et al. Numerical simulation on hydraulic fracture propagation in glutenite under the effect of unsteady seepage[J]. Oil Drilling & Production Technology, 2017, 39(6):751-755.
[8]	李连崇, 李根, 孟庆民, 等. 砂砾岩水力压裂裂缝扩展规律的数值模拟分析[J]. 岩土力学, 2013, 34(5):1 501-1 507.
	LI Lianchong, LI Gen, MENG Qingmin, et al. Numerical simulation of propagation of hydraulic fractures in glutenite formation[J]. Rock and Soil Mechanics, 2013, 34(5):1 501-1 507.
[9]	马东东, 罗宇杰, 胡大伟, 等. 粒径分选性与围压对砂砾岩水力压裂破裂影响机制研究[J]. 岩石力学与工程学报, 2020, 39(11):2 264-2 273.
	MA Dongdong, LUO Yujie, HU Dawei, et al. Effects of particle size sorting and confining pressure on hydraulic fracturing mechanism of glutenite rock[J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(11):2 264-2 273.
[10]	ZOU Yushi, ZHANG Shicheng, MA Xinfang, et al. Numerical investigation of hydraulic fracture network propagation in naturally fractured shale formations[J]. Journal of Structural Geology, 2016, 84:1-13. doi: 10.1016/j.jsg.2016.01.004
[11]	张子麟, 陈勇, 张全胜, 等. 致密砂砾岩压裂裂缝遇砾扩展模式的数值模拟研究[J]. 油气地质与采收率, 2019, 26(4):132-138.
	ZHANG Zilin, CHEN Yong, ZHANG Quansheng, et al. Numerical simulation on propagation mode of hydraulic fracture approaching gravels in tight glutenite[J]. Petroleum Geology and Recovery Efficiency, 2019, 26(4):132-138.
[12]	董卓鑫, 张辉, 艾池, 等. 砂砾岩压裂中砾石对水力裂缝扩展影响机理研究[J]. 钻采工艺, 2021, 44(4):57-62. doi: 10.3969/J. ISSN.1006-768X.2021.04.14
	DONG Zhuoxin, ZHANG Hui, AI Chi, et al. Research on mechanism of influence of gravel on hydraulic crack growth in glutenite fracturing[J]. Drilling & Production Technology, 2021, 44(4):57-62.
[13]	GALE J F W, ELLIOTT S J, LAUBACH S E. Hydraulic fractures in core from stimulated reservoirs:core fracture description of HFTS slant core,Midland basin,West Texas[C]. Houston: Unconventional Resources Technology Conference, 2018.
[14]	JU Yang, LIU Peng, CHEN Jialiang, et al. CDEM-based analysis of the 3D initiation and propagation of hydrofracturing cracks in heterogeneous glutenites[J]. Journal of Natural Gas Science and Engineering, 2016, 35:614-623. doi: 10.1016/j.jngse.2016.09.011
[15]	LIU Peng, JU Yang, RANJITH P G, et al. Experimental investigation of the effects of heterogeneity and geostress difference on the 3D growth and distribution of hydrofracturing cracks in unconventional reservoir rocks[J]. Journal of Natural Gas Science and Engineering, 2016, 35:541-554. doi: 10.1016/j.jngse.2016.08.071
[16]	孟庆民, 张士诚, 郭先敏, 等. 砂砾岩水力裂缝扩展规律初探[J]. 石油天然气学报, 2010, 32(4):119-123.
	MENG Qingmin, ZHANG Shicheng, GUO Xianmin, et al. A primary investigation on propagation mechanism for hydraulic fractures in glutenite formation[J]. Journal of Oil and Gas Technology, 2010, 32(4):119-123.
[17]	董少群, 吕文雅, 夏东领, 等. 致密砂岩储层多尺度裂缝三维地质建模方法[J]. 石油与天然气地质, 2020, 41(3):627-637.
	DONG Shaoqun, LYU Wenya, XIA Dongling, et al. An approach to 3D geological modeling of multi-scaled fractures in tight sandstone reservoirs[J]. Oil & Gas Geology, 2020, 41(3):627-637.
[18]	朱海燕, 徐鑫勤, 钟安海, 等. 深层页岩油水平井密切割裂缝均衡扩展数值模拟:以胜利油田YYP1井为例[J]. 石油与天然气地质, 2022, 43(1):229-240.
	ZHU Haiyan, XU Xinqin, ZHONG Anhai, et al. Numerical simulation of evenly propagating hydraulic fractures with smaller cluster spacing in the horizontal Well YYP1 for deep shale oil in the Shengli oilfield[J]. Oil & Gas Geology, 2022, 43(1):229-240.
[19]	张丰收, 吴建发, 黄浩勇, 等. 提高深层页岩裂缝扩展复杂程度的工艺参数优化[J]. 天然气工业, 2021, 41(1):125-135.
	ZHANG Fengshou, WU Jianfa, HUANG Haoyong, et al. Technological parameter optimization for improving the complexity of hydraulic fractures in deep shale reservoirs[J]. Natural Gas Industry, 2021, 41(1):125-135.
[20]	曾联波, 吕鹏, 屈雪峰, 等. 致密低渗透储层多尺度裂缝及其形成地质条件[J]. 石油与天然气地质, 2020, 41(3):449-454.
	ZENG Lianbo, LYU Peng, QU Xuefeng, et al. Multi-scale fractures in tight sandstone reservoirs with low permeability and geological conditions of their development[J]. Oil & Gas Geology, 2020, 41(3):449-454.
[21]	肖阳, 刘守昱, 何永志, 等. 致密砂岩裂缝性气藏缝网压裂裂缝复杂程度评价方法[J]. 特种油气藏, 2022, 29(2):157-163.
	XIAO Yang, LIU Shouyu, HE Yongzhi, et al. Evaluation method of fracture complexity of fracture network fracturing for tight sandstone fractured gas reservoir[J]. Special Oil & Gas Reservoirs, 2022, 29(2):157-163.
[22]	李国欣, 覃建华, 鲜成钢, 等. 致密砾岩油田高效开发理论认识、关键技术与实践:以准噶尔盆地玛湖油田为例[J]. 石油勘探与开发, 2020, 47(6):1 185-1 197.
	LI Guoxin, QIN Jianhua, XIAN Chenggang, et al. Theoretical understandings,key technologies and practices of tight conglomerate oilfield efficient development:a case study of the Mahu oilfield,Junggar basin,NW China[J]. Petroleum Exploration and Development, 2020, 47(6):1 185-1 197.
