Simulation on Fracture Propagation During Hydraulic Fracturing in Horizontal Wells in Shale Reservoirs of Fengcheng Formation，Mahu Sag

doi:10.7657/XJPG20220613

Abstract

Abstract:

Hydraulic fracturing is an effective method for developing the shale reservoirs in the Permian Fengcheng formation in the Mahu sag，but the propagation characteristics of hydraulic fractures are unclear. Maye-1H，a typical horizontal well in this area，suffered from difficulties in fracturing initiation and sand addition. Thus，it is urgent to carry out hydraulic fracturing simulation to clarify the impacts of natural fractures，rock mechanical properties，and operation parameters on fracturing effect. According to the actual operation parameters such as pump pressure，fracturing fluid displacement and added sand volume in Well Maye-1H，a 2D hydraulic fracture propagation model and a 3D hydraulic fracturing model were established by using Abaqus software and Petrel software，and then numerical simulation on hydraulic fracture propagation was performed. The results show that the fracturing effect is closely related to natural fractures. The lower the tensile strength of the rock where natural fractures are developed，the easier the hydraulic fractures tend to be captured by the natural fractures. When the Young’s modulus in the fractured interval is relatively large，the hydraulic fractures formed are small in width，and most of them propagate and slip along the natural fracture trend，making it difficult to add sand. When the Young’s modulus in the fractured interval is relatively small，the hydraulic fractures formed are large in width，and they can directly pass through the natural fractures，making sand adding relatively easy.

Key words: Mahu sag, Fengcheng formation, shale reservoir, horizontal well, hydraulic fracture, fracture propagation, numerical simulation

CLC Number:

TE357

YU Peirong, ZHENG Guoqing, SUN Futai, WANG Zhenlin. Simulation on Fracture Propagation During Hydraulic Fracturing in Horizontal Wells in Shale Reservoirs of Fengcheng Formation，Mahu Sag[J]. Xinjiang Petroleum Geology, 2022, 43(6): 750-756.

Figures/Tables 7

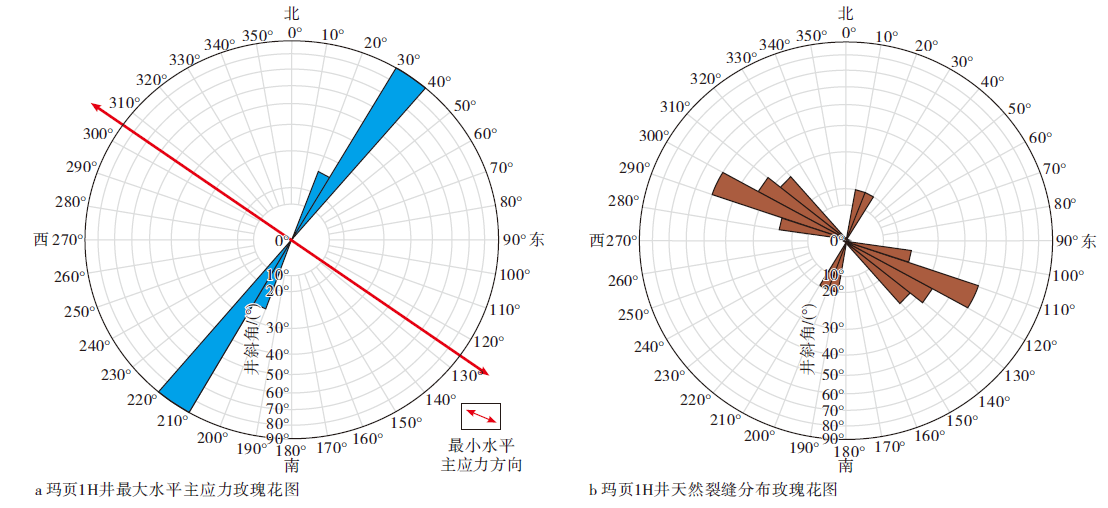

Fig. 1.

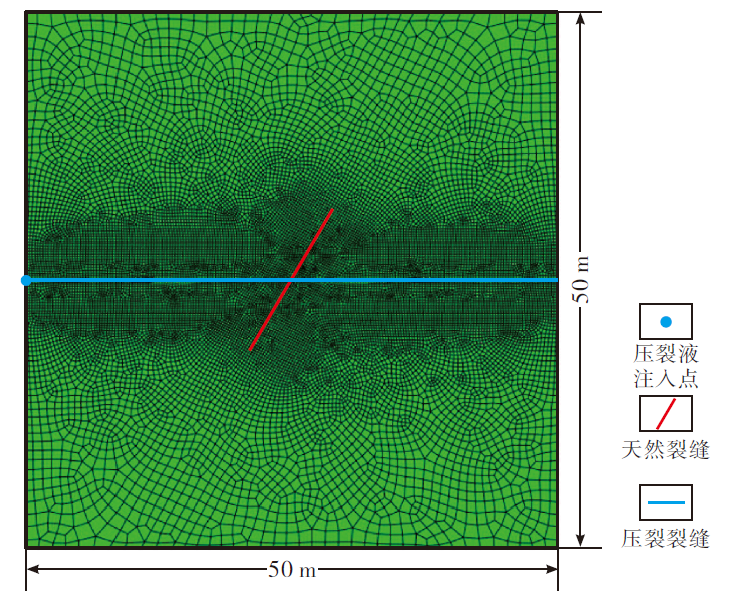

Fig. 2.

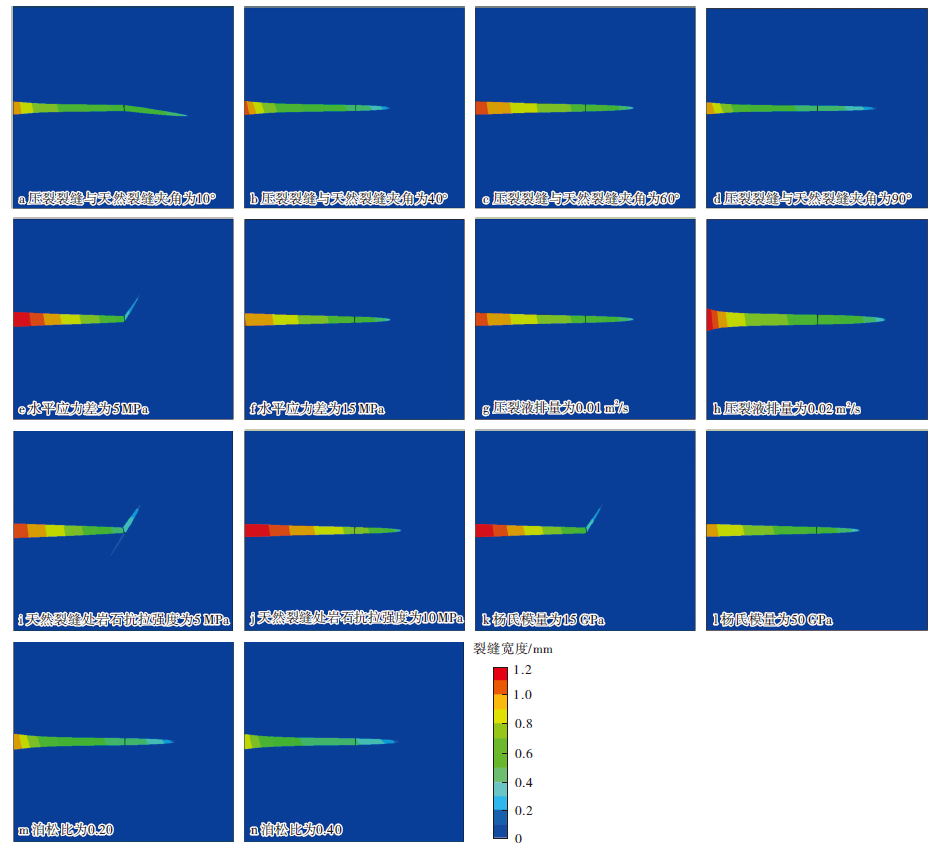

Fig. 3.

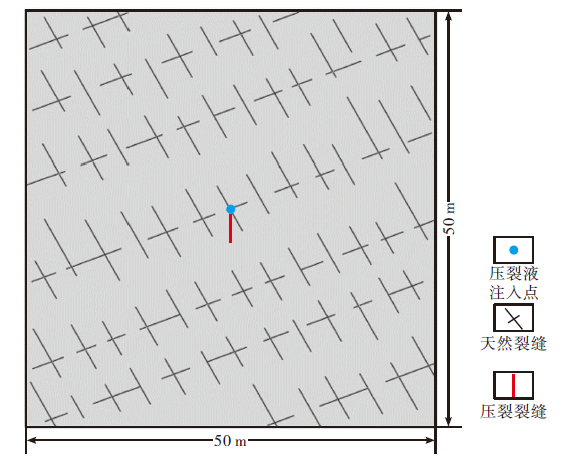

Fig. 4.

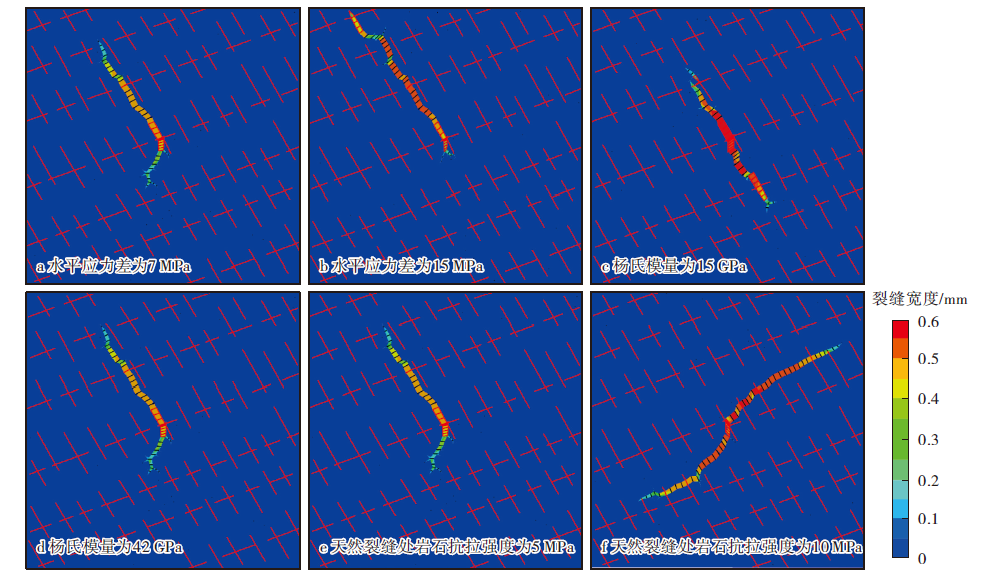

Fig. 5.

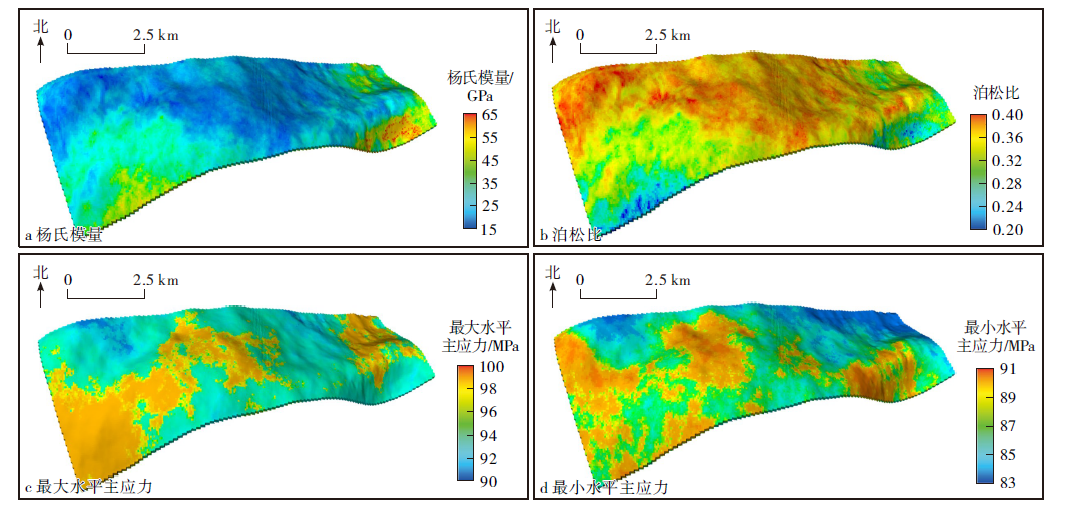

Fig. 6.

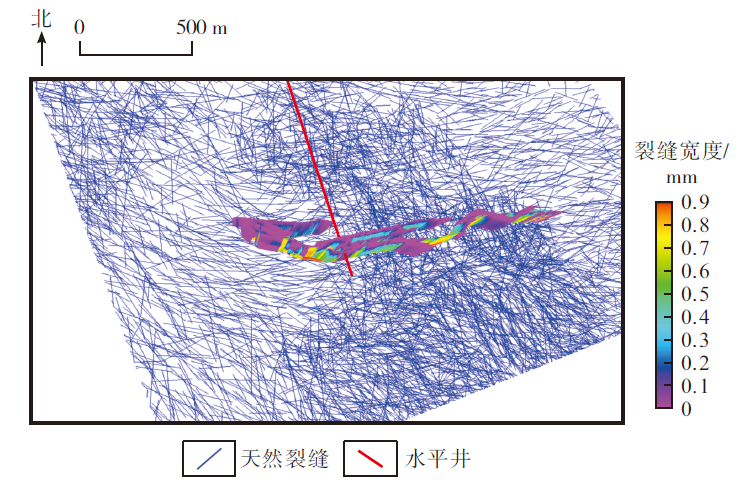

Fig. 7.

References 32

[1]	何文军, 钱永新, 赵毅, 等. 玛湖凹陷风城组全油气系统勘探启示[J]. 新疆石油地质, 2021, 42(6):641-655.
	HE Wenjun, QIAN Yongxin, ZHAO Yi, et al. Exploration implications of total petroleum system in Fengcheng formation,Mahu sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2021, 42(6):641-655.
[2]	唐勇, 曹剑, 何文军, 等. 从玛湖大油区发现看全油气系统地质理论发展趋势[J]. 新疆石油地质, 2021, 42(1):1-9.
	TANG Yong, CAO Jian, HE Wenjun, et al. Development tendency of geological theory of total petroleum system:insights from the discovery of Mahu large oil province[J]. Xinjiang Petroleum Geology, 2021, 42(1):1-9.
[3]	赵志恒, 郑有成, 范宇, 等. 页岩储集层水平井段内多簇压裂技术应用现状及认识[J]. 新疆石油地质, 2020, 41(4):499-504.
	ZHAO Zhiheng, ZHENG Youcheng, FAN Yu, et al. Application and cognition of multi-cluster fracturing technology in horizontal wells in shale reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(4):499-504.
[4]	李亚龙, 刘先贵, 胡志明, 等. 页岩储层压裂缝网模拟研究进展[J]. 石油地球物理勘探, 2019, 54(2):480-492.
	LI Yalong, LIU Xiangui, HU Zhiming, et al. Research progress on fracture network simulation in shale reservoirs[J]. Oil Geophysical Prospeting, 2019, 54(2):480-492.
[5]	WANG Zhenlin, GUO Xuyang, ZHENG Guoqing, et al. Effects of parent well spacing on the poroelastic behaviors in the infill zone in shale oil reservoirs:a case study in Jimsar shale oil,China[J]. Energy Science & Engineering, 2022, 10:1043-1 054.
[6]	ZHI Dongming, GUO Xuyang, WANG Wei, et al. Fracturing and production analysis of the efficacy of hydraulic fracture stage reduction in the improvement of cost-effectiveness in shale oil development:a case study of Jimsar shale oil,China[J]. Energy Science & Engineering, 2021, 9:1337-1 348.
[7]	郭旭洋, 金衍, 黄雷, 等. 页岩油气藏水平井井间干扰研究现状和讨论[J]. 石油钻采工艺, 2021, 43(3):348-367.
	GUO Xuyang, JIN Yan, HUANG Lei, et al. Research status and discussion of horizontal well interference in shale oil and gas reservoirs[J]. Oil Drilling & Production Technology, 2021, 43(3):348-367.
[8]	OLSON J E. Predicting fracture swarms:the influence of subcritical crack growth and the crack-tip process zone on joint spacing in rock[J]. Geological Society of London Specical Publications, 2004, 231:73-87.
[9]	赵金洲, 李勇明, 王松, 等. 天然裂缝影响下的复杂压裂裂缝网络模拟[J]. 天然气工业, 2014, 34(1):68-73.
	ZHAO Jinzhou, LI Yongming, WANG Song, et al. Simulation of a complex fracture network influenced by natural fractures[J]. Natural Gas Industry, 2014, 34(1):68-73.
[10]	HUNSWECK M J, SHEN Yongxing, LEW A J. A finite element approach to the simulation of hydraulic fractures with lag[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2013, 37:993-1 015. doi: 10.1002/nag.1131
[11]	WANGEN M. Finite element modelling of hydraulic fracturing in 3D[J]. Computational Geosciences, 2013, 17:647-659. doi: 10.1007/s10596-013-9346-2
[12]	BELYTSCHKO T, BLACK T. Elastic crack growth in finite elements with minimal remeshing[J]. International Journal for Numerical Methods in Engineering, 1999, 45:601-620. doi: 10.1002/(SICI)1097-0207(19990620)45:5<601::AID-NME598>3.0.CO;2-S
[13]	SHI Fang, WANG Xiaolong, LIU Chuang, et al. An XFEM-based method with reduction technique for modeling hydraulic fracture propagation in formations containing frictional natural fractures[J]. Engineering Fracture Mechanics, 2017, 173:64-90. doi: 10.1016/j.engfracmech.2017.01.025
[14]	龙敏. 非常规储层定向压裂水力裂缝起裂及扩展规律研究[D]. 黑龙江大庆: 东北石油大学, 2021.
	LONG Min. Study on initiation and propagation of oriented fracturing hydraulic fracture for unconventional reservoir[D]. Daqing,Heilongjiang: Northeast Petroleum University, 2021.
[15]	刘金龙. 基于ABAQUS平台的水力压裂裂缝扩展模拟研究[D]. 西安: 西安石油大学, 2020.
	LIU Jinlong. Simulation study on fracture propagation of hydraulic fracturing based on ABAQUS platform[D]. Xi’an: Xi’an Shiyou University, 2020.
[16]	白凯华. 基于ABAQUS的低渗透储层水力压裂数值模拟研究[D]. 西安: 西安石油大学, 2019.
	BAI Kaihua. Numerical simulation of hydraulic fracturing in low permeability reservoir based on ABAQUS[D]. Xi’an: Xi’an Shiyou University, 2019.
[17]	朱海燕, 徐鑫勤, 钟安海, 等. 深层页岩油水平井密切割裂缝均衡扩展数值模拟:以胜利油田YYP1井为例[J]. 石油与天然气地质, 2022, 43(1):229-240.
	ZHU Haiyan, XU Xinqin, ZHONG Anhai, et al. Numerical simulation of evenly propagating hydraulic fractures with smaller cluster spacing in the horizontal well YYP1 for deep shale oil in the Shengli oilfield[J]. Oil & Gas Geology, 2022, 43(1):229-240.
[18]	王硕, 覃建华, 杨新平, 等. 玛湖地区致密砾岩人工裂缝垂向延伸机理应力模拟[J]. 新疆石油地质, 2020, 41(2):193-198.
	WANG Shuo, QIN Jianhua, YANG Xinping, et al. Stress simulation of vetical hydraulic fracture propagation mechanism in tight conglomerate reseriors of Mahu area[J]. Xinjiang Petroleum Geology, 2020, 41(2):193-198.
[19]	XU Wenyue, THIERCELIN M, WALTON L. Characterization of hydraulically-induced shale fracture network using an analytical/semi-analytical model[R]. SPE 124697,2009.
[20]	李玉梅, 吕炜, 宋杰, 等. 层理性页岩气储层复杂网络裂缝数值模拟研究[J]. 石油钻探技术, 2016, 44(4):108-113.
	LI Yumei, LYU Wei, SONG Jie, et al. Numerical simulation study on the complex network fractures of stratified shale gas reservoirs[J]. Petroleum Drilling Techniques, 2016, 44(4):108-113.
[21]	WENG X, KRESSE O, COHEN C, et al. Modeling of hydraulic-fracture-network propagation in a naturally fractured formation[J]. SPE Production & Operations, 2011, 26(4):368-380.
[22]	CIPOLLA C, WENG X, MACK M, et al. Integrating microseismic mapping and complex fracture modeling to characterize fracture complexity[R]. SPE 140185,2011.
[23]	侯贵廷. 裂缝的分形分析方法[J]. 应用基础与工程科学学报, 1994, 2(4):299-305.
	HOU Guiting. Fractal analysis of fractures[J]. Journal of Basic Science and Engineering, 1994, 2(4):299-305.
[24]	尚校森, 丁云宏, 卢拥军, 等. 一种页岩体积压裂复杂裂缝的量化表征[J]. 石油与天然气地质, 2017, 38(1):189-196.
	SHANG Xiaosen, DING Yunhong, LU Yongjun, et al. Quantitative characterization of complex fractures after volume fracturing in shale[J]. Oil & Gas Geology, 2017, 38(1):189-196.
[25]	白雨, 汪飞, 牛志杰, 等. 准噶尔盆地玛湖凹陷二叠系风城组烃源岩生烃动力学特征[J]. 岩性油气藏, 2022, 34(4):116-127.
	BAI Yu, WANG Fei, NIU Zhijie, et al. Hydrocarbon generation kinetics of source rocks of Permian Fengcheng formation in Mahu sag,Junggar basin[J]. Lithologic Reservoirs, 2022, 34(4):116-127.
[26]	支东明, 唐勇, 郑孟林, 等. 准噶尔盆地玛湖凹陷风城组页岩油藏地质特征与成藏控制因素[J]. 中国石油勘探, 2019, 24(5):615-623. doi: 10.3969/j.issn.1672-7703.2019.05.008
	ZHI Dongming, TANG Yong, ZHENG Menglin, et al. Geological characteristics and accumulation controlling factors of shale reservoirs in Fengcheng formation,Mahu sag,Junggar basin[J]. China Petroleum Exploration, 2019, 24(5):615-623. doi: 10.3969/j.issn.1672-7703.2019.05.008
[27]	杨帆, 孟鑫, 王先虎, 等. 玛页1井风城组页岩微观孔隙特征及其影响因素[J]. 新疆石油地质, 2022, 43(1):1-10.
	YANG Fan, MENG Xin, WANG Xianhu, et al. Micro-pore characteristics and influencing factors of Fengcheng formation shale in Well Maye-1[J]. Xinjiang Petroleum Geology, 2022, 43(1):1-10.
[28]	蒋庆平, 邹正银, 孔垂显, 等. 砾岩三维缝网扩展及影响因素分析:以玛湖凹陷南斜坡上乌尔禾组为例[J]. 科学技术与工程, 2021, 21(17):7074-7 083.
	JIANG Qingping, ZOU Zhengyin, KONG Chuixian, et al. Analysis of 3D fracture network expansion and influencing factors of conglomerate:a case study of the Shangwuerhe formation on the southern slope of Mahu depression[J]. Science Technology and Engineering, 2021, 21(17):7074-7 083.
[29]	向传刚, 迟博. 基于岩石力学及压裂施工参数计算的复杂缝网建模[J]. 大庆石油地质与开发, 2018, 37(5):153-159.
	XIANG Chuangang, CHI Bo. Modeling of the complex network based on the rock mechanics and fracturing operation parameter calculation[J]. Petroleum Geology & Oilfield Development in Daqing, 2018, 37(5):153-159.
[30]	战雕, 邵振鹏, 曾丽, 等. 柴达木盆地东坪气田基岩储层裂缝建模方法研究[J]. 西南石油大学学报(自然科学版), 2019, 41(3):71-79.
	ZHAN Diao, SHAO Zhenpeng, ZENG Li, et al. A study on fracture modelling of the bedrock reservoir in Dongping gas field,Qaidam basin[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2019, 41(3):71-79.
[31]	向伟. 基于井震结合的储层裂缝建模及应用[D]. 成都: 成都理工大学, 2020.
	XIANG Wei. Reservoir fracture modeling and application based on well-seismic combination[D]. Chengdu: Chengdu University of Technology, 2020.
[32]	舒红林, 王利芝, 尹开贵, 等. 地质工程一体化实施过程中的页岩气藏地质建模[J]. 中国石油勘探, 2020, 25(2):84-95. doi: 10.3969/j.issn.1672-7703.2020.02.009
	SHU Honglin, WANG Lizhi, YIN Kaigui, et al. Geological modeling of shale gas reservoir during the implementation process of geology-engineering integration[J]. China Petroleum Exploration, 2020, 25(2):84-95. doi: 10.3969/j.issn.1672-7703.2020.02.009
