Application of Logging Data Wavelet Transform and Pseudo-Imaging to Fine Division of Deep Barrier/Interlayer

doi:10.7657/XJPG20240514

Abstract

Abstract:

Barrier/interlayer is a key factor that significantly affects fluid flow and controls the distribution of oil and water, and it serves as a crucial evidence for understanding the distribution of remaining oil. Barrier/interlayer in deep strata is difficult to identify due to the high coring cost, large depth error in logging data, low resolution of conventional logging curves, and ambiguous signals from thin interbeds. Through core analysis of key wells, the logging curves sensitive to barrier/interlayer and their response characteristics were identified. By employing wavelet decomposition and reconstruction, the conventional sensitive logging curves were processed with high resolution, which reduced the smoothing effect of adjacent layers and highlighted the logging response characteristics of thin layer interfaces, making thin layer identification resolution enhanced by nearly 100%. By integrating the vector pattern of formation dip and pseudo-imaging characteristics of barrier/interlayer, a method for identifying and dividing deep barrier/interlayer was established. Actual applications demonstrate that this method allows for precise identification of barrier/interlayer, with a much higher capability than conventional methods. This method yields an accuracy of layer correlation between wells increased by 38%, elucidating the issue of inclined oil-water contact and providing remaining oil distribution.

Key words: logging data, deep barrier/interlayer, wavelet transform, formation dip, pseudo-imaging, oil-water contact

CLC Number:

TE19

SHAO Cairui, WANG Meng, CHANG Lunjie, WANG Kaiyu, ZHANG Fuming, WANG Chao. Application of Logging Data Wavelet Transform and Pseudo-Imaging to Fine Division of Deep Barrier/Interlayer[J]. Xinjiang Petroleum Geology, 2024, 45(5): 611-621.

Figures/Tables 9

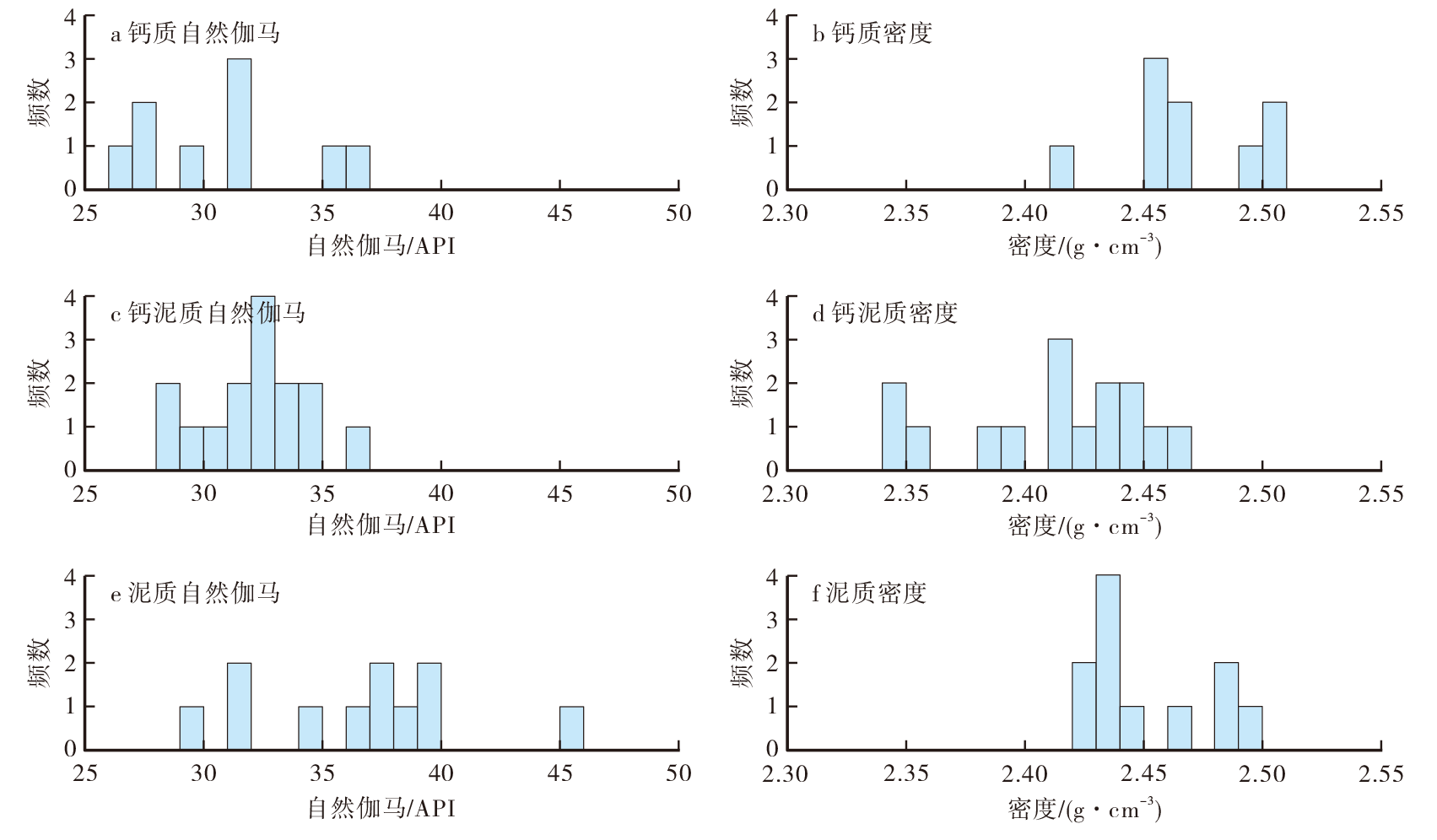

Fig. 1.

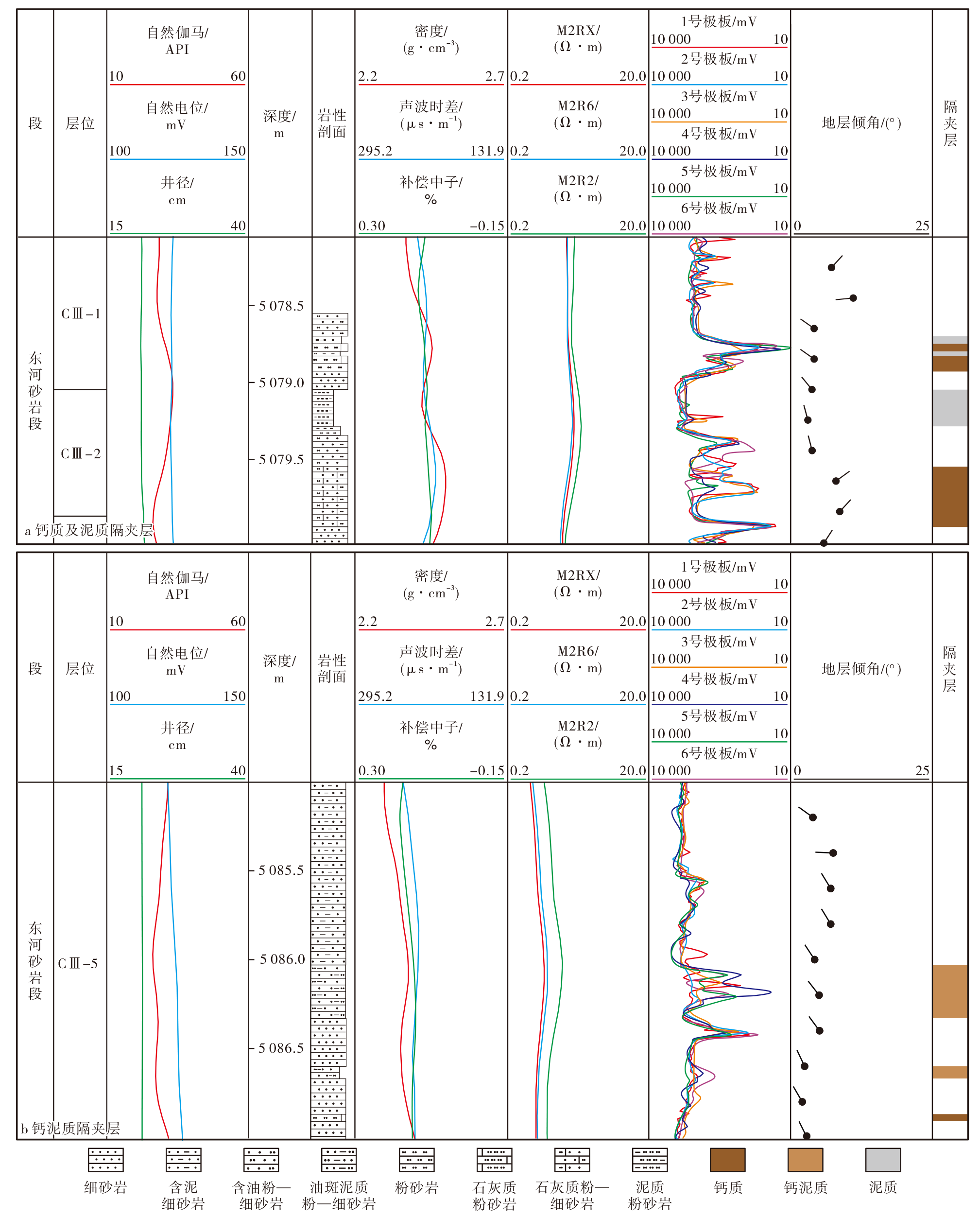

Fig. 2.

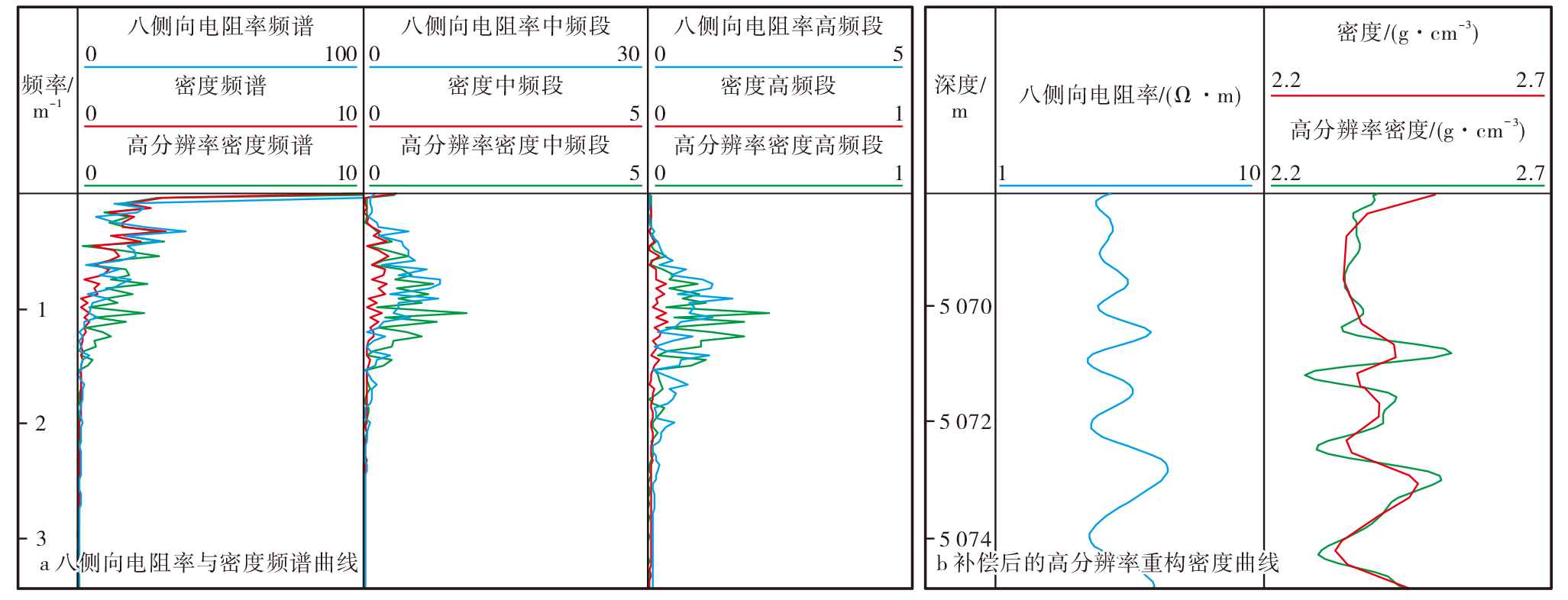

Fig. 3.

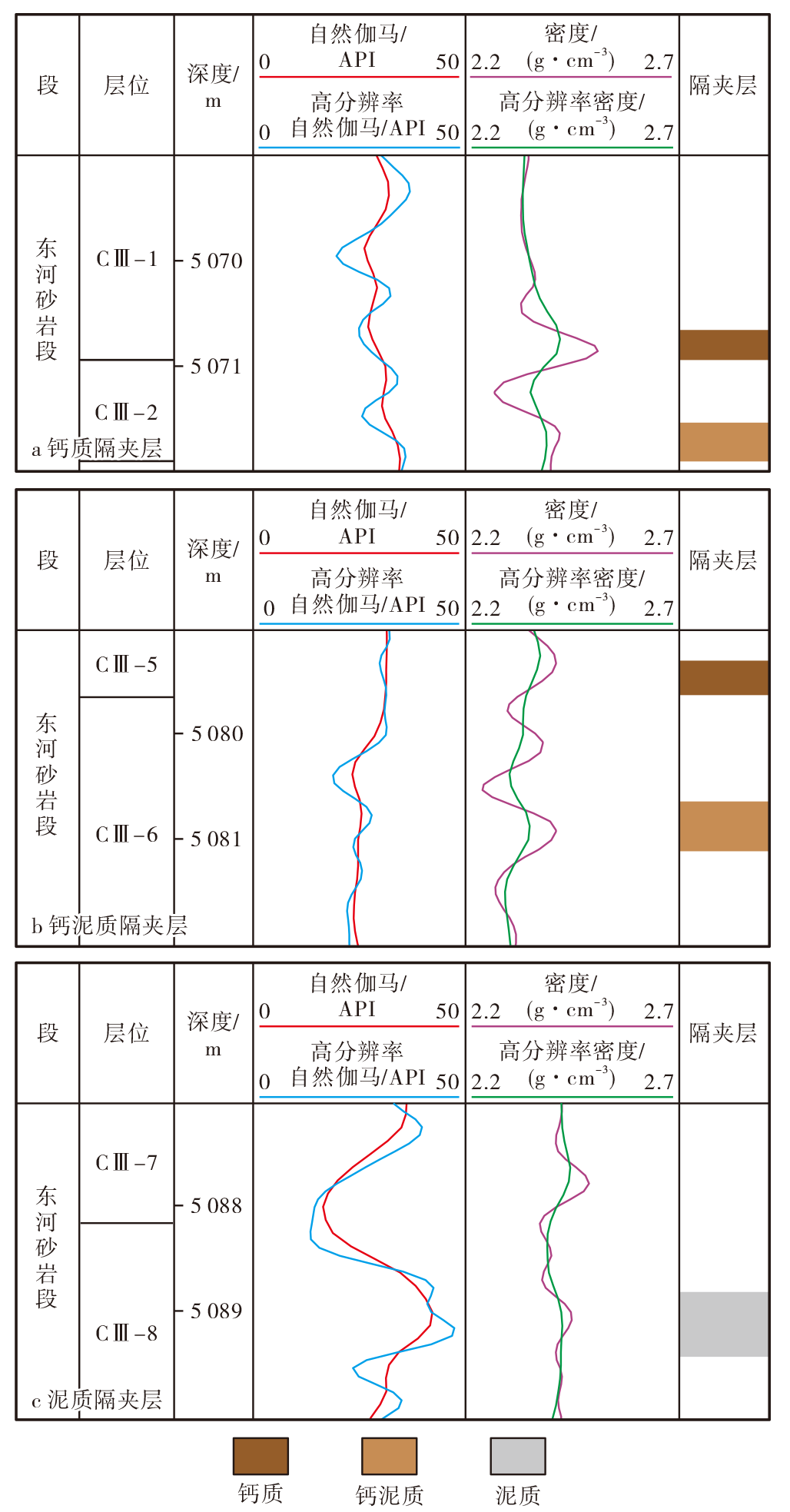

Fig. 4.

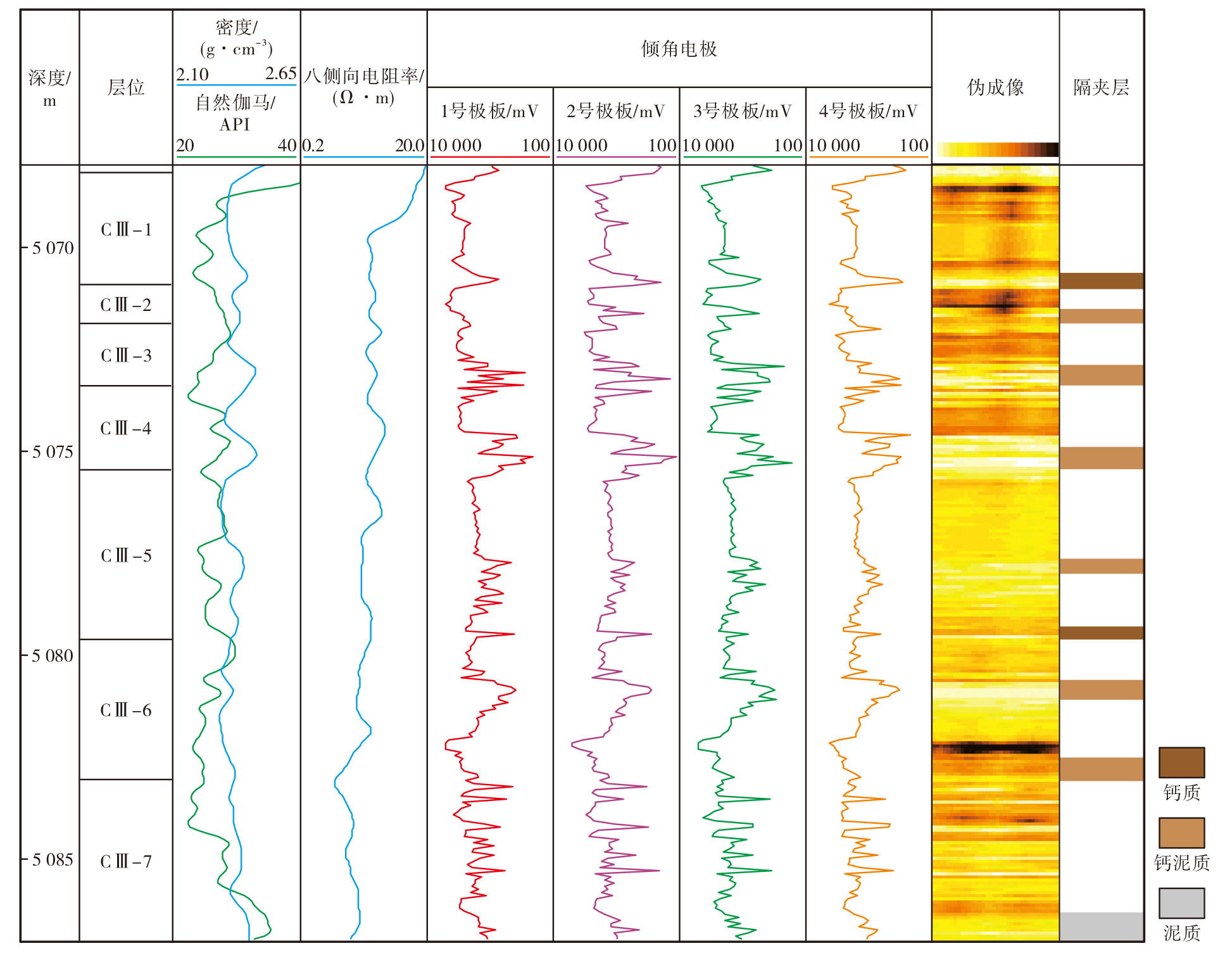

Fig. 5.

Table 1.

Fig. 6.

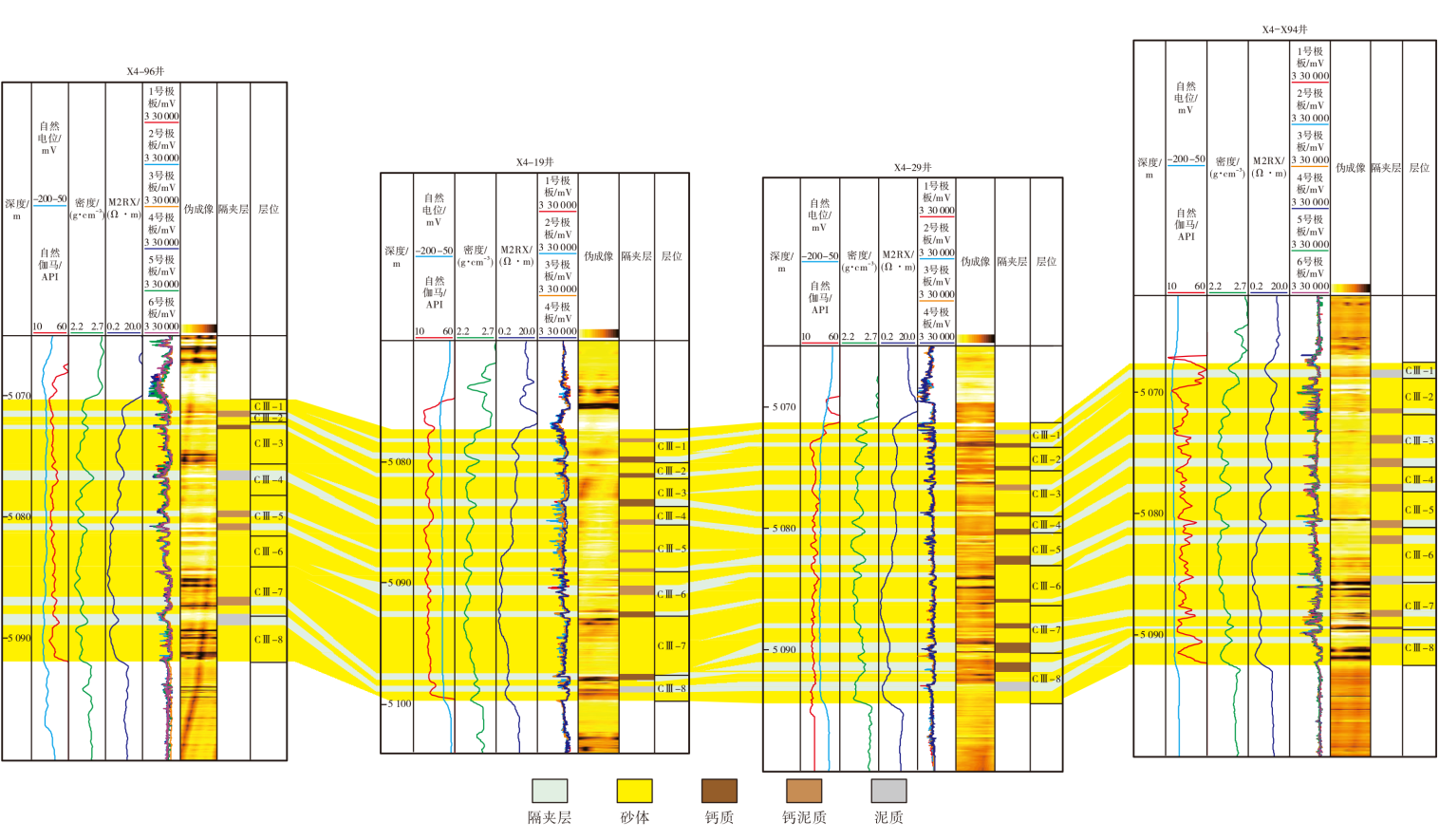

Fig. 7.

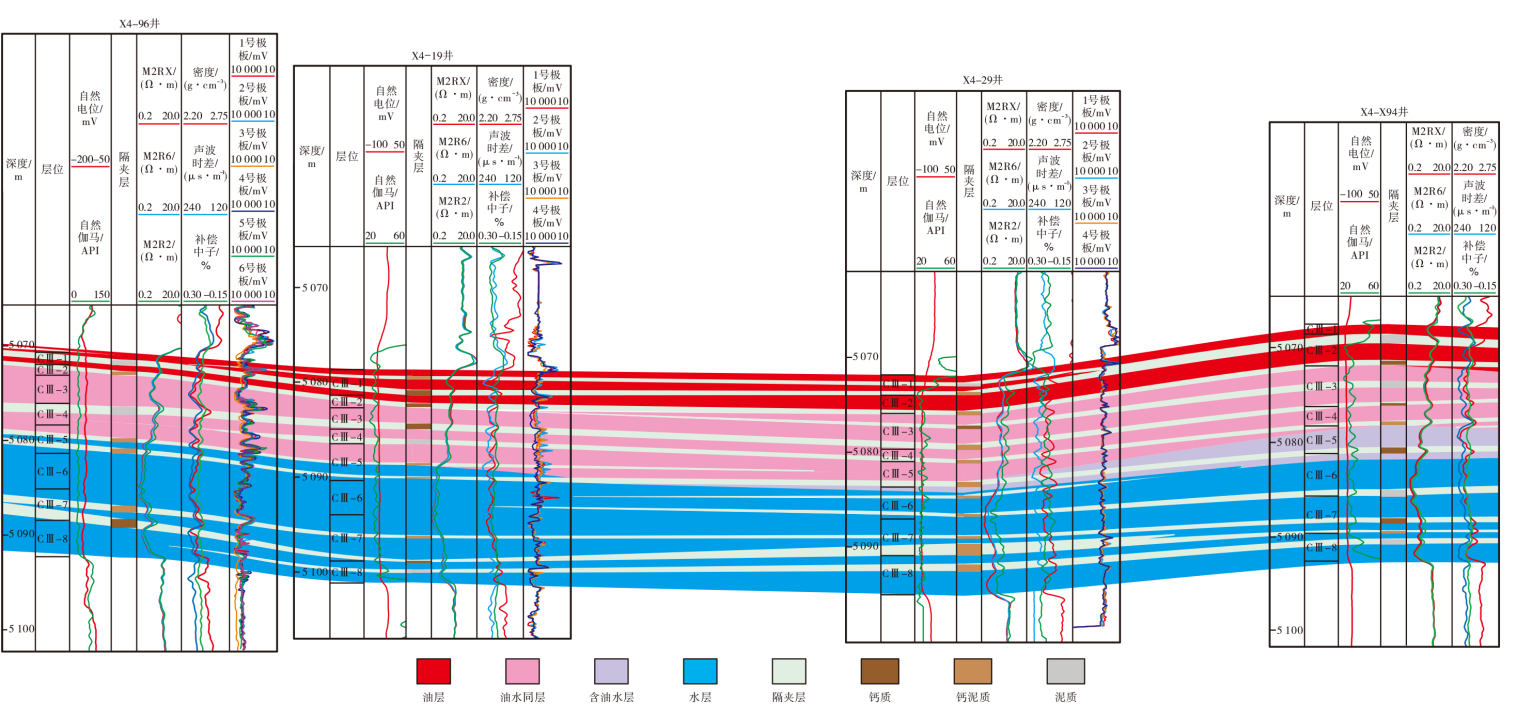

Fig. 8.

References 31

[1]	张春雨, 陈世加, 朱星丞, 等. 源-储间隔夹层的分类、特征及其对陆相致密储层油气富集的控制作用[J]. 石油学报, 2024, 45(2):358-373. doi: 10.7623/syxb202402003
	ZHANG Chunyu, CHEN Shijia, ZHU Xingcheng, et al. Classification and characteristics of source-reservoir interlayer and its controlling effect on oil-gas enrichment in continental tight reservoir[J]. Acta Petrolei Sinica, 2024, 45(2):358-374. doi: 10.7623/syxb202402003
[2]	李航, 李胜利, 周练武, 等. 辫状河储集层隔夹层成因及其对剩余油的影响:以大港油田刘官庄地区馆陶组三段Ⅱ砂组为例[J]. 新疆石油地质, 2024, 45(1):94-101.
	LI Hang, LI Shengli, ZHOU Lianwu, et al. Genesis of barriers/interlayers in braided-river reservoirs and its controls on remaining oil distribution:A case of N₁gⅡ3 in Liuguanzhuang area of Dagang oilfield[J]. Xinjiang Petroleum Geology, 2024, 45(1):94-101.
[3]	余义常, 宋新民, 林敏捷, 等. 伊拉克H油田Mishrif组下段隔夹层特征及开发策略[J]. 中国石油大学学报(自然科学版), 2023, 47(2):1-12.
	YU Yichang, SONG Xinmin, LIN Minjie, et al. Characteristics and development strategies of interlayers in the lower member of Mishrif formation in H oilfield,Iraq[J]. Journal of China University of Petroleum (Edition of Natural Science), 2023, 47(2):1-12.
[4]	张吉, 张烈辉, 胡书勇, 等. 陆相碎屑岩储层隔夹层成因、特征及其识别[J]. 测井技术, 2003, 27(3):221-224.
	ZHANG Ji, ZHANG Liehui, HU Shuyong, et al. The genesis and characteristics and identification of intercalations in non-marine reservoir of clastic rock[J]. Well Logging Technology, 2003, 27(3):221-224.
[5]	崔建, 李海东, 冯建松, 等. 辫状河储层隔夹层特征及其对剩余油分布的影响[J]. 特种油气藏, 2013, 20(4):26-30.
	CUI Jian, LI Haidong, FENG Jiansong, et al. Barrier-beds and inter-beds characteristics and their effects on remaining oil distribution in braided river reservoirs:A case study of the Ng IV oil unit in shallow north Gaoshangpu oilfield[J]. Special Oil & Gas Reservoirs, 2013, 20(4):26-30.
[6]	杨勇. 剩余油分布规律影响因素分析研究[J]. 石油天然气学报, 2009, 31(1):100-103.
	YANG Yong. Analysis on the influential factors of remaining oil distribution rules[J]. Journal of Oil and Gas Technology, 2009, 31(1):100-103.
[7]	陈袁, 周飞, 王伟伟, 等. 巨厚层均质砂岩储集层渗流屏障特征及分布规律[J]. 新疆石油地质, 2019, 40(1):91-97.
	CHEN Yuan, ZHOU Fei, WANG Weiwei, et al. Characteristics and distribution of seepage barrier in massive homogeneous sandstone reservoirs[J]. Xinjiang Petroleum Geology, 2019, 40(1):91-97.
[8]	张君劼, 于兴河, 章彤, 等. 滴12井区八道湾组扇三角洲隔夹层对注采效果的影响[J]. 新疆石油地质, 2013, 34(5):548-551.
	ZHANG Junjie, YU Xinghe, ZHANG Tong, et al. The interlayers and effect on injection-production ralationship in fan delta of Badaowan formation,Di-12 well area in Cainan oilfield[J]. Xinjiang Petroleum Geology, 2013, 34(5):548-551.
[9]	乔占峰, 孙圆辉, 曹鹏, 等. 巨厚灰岩油藏中隔夹层与高渗层成因与发育规律:以伊拉克H油田Mishrif组为例[J]. 海相油气地质, 2022, 27(1):71-83.
	QIAO Zhanfeng, SUN Yuanhui, CAO Peng, et al. Genesis and development law of barrier and baffles and high permeable streak in the massive bioclastic reservoir:A case study of the Upper Cretaceous Mishrif formation in H oilfield,Iraq[J]. Marine Origin Petroleum Geology, 2022, 27(1):71-83.
[10]	孙恩慧, 杨东东, 杨威, 等. 隔夹层参数对底水油藏注水效果影响数值模拟研究:以渤海A油藏为例[J]. 石油地质与工程, 2020, 34(3):71-75.
	SUN Enhui, YANG Dongdong, YANG Wei, et al. Numerical simulation study of the effect of interlayer parameters on water injection in bottom water reservoir:By taking A oil reservoir in Bohai as an example[J]. Petroleum Geology and Engineering, 2020, 34(3):71-75.
[11]	鞠颢, 程超, 苏畅. Marr小波变换分频技术在隔夹层识别中的应用[J]. 长江大学学报(自然科学版), 2022, 19(3):46-56.
	JU Hao, CHENG Chao, SU Chang. Application of Marr wavelet transform frequency division technology in intercalated stratum identification[J]. Journal of Yangtze University (Natural Science Edition), 2022, 19(3):46-56.
[12]	ZHANG Zhenglong, WANG Jianli, LI Jiu, et al. A subtle method for depicting single sand layer in thin sand-shale interbed with deep burial:A case study from Bohai Bay,China[R]. Tianjin, China: First SEG International Meeting for Applied Geoscience & Energy, 2021:1051-1055.
[13]	LIU Wei, WANG Zheng, CAO Siyuan. Identification of thin-bed tuning and gas charged reservoir based on seismic spectral decomposition[R]. Doha,The State of Qatar:20th World Petroleum Congress, 2011.
[14]	ZHANG X, HAN R, LI Q, et al. The thin-bed reservoir prediction based on high-precision seismic inversion[R]. Muscat,Oman:SPE 218535-MS, 2024.
[15]	杨帆, 廖茂杰, 王谦, 等. 利用测井资料识别隔夹层:以塔中4油田为例[J]. 工程地球物理学报, 2014, 11(4):487-492.
	YANG Fan, LIAO Maojie, WANG Qian, et al. The use of logging data in identifying the interlayer in Tazhong oilfiled 4[J]. Chinese Journal of Engineering Geophysics, 2014, 11(4):487-492.
[16]	ZHANG Liying, LI Ruixue, DENG Hucheng, et al. Identification,distribution characteristics,and effects on production of interlayers in carbonate reservoirs:A case study from the Cretaceous Mishrif formation in Halfaya oilfield,Iraq[J]. Journal of Petroleum Science and Engineering, 2021, 202:108571.
[17]	陈雁, 焦世祥, 程超, 等. 基于自编码器的半监督隔夹层识别方法[J]. 特种油气藏, 2021, 28(1):86-91. doi: 10.3969/j.issn.1006-6535.2021.01.012
	CHEN Yan, JIAO Shixiang, CHENG Chao, et al. Semi-supervised interlayer identification method based on self-encoder[J]. Special Oil & Gas Reservoirs, 2021, 28(1):86-91.
[18]	瞿子易, 罗鑫, 谢润成, 等. 小波神经网络在隔夹层研究中的应用[J]. 石油天然气学报, 2009, 31(4):265-268.
	QU Ziyi, LUO Xin, XIE Runcheng, et al. Application of WNN in the studies of interbeds[J]. Journal of Oil and Gas Technology, 2009, 31(4):265-268.
[19]	徐樟有, 熊琦华. 一种定量研究薄泥质夹层分布特征的方法[J]. 石油大学学报(自然科学版), 1992, 16(3):8-14.
	XU Zhangyou, XIONG Qihua. A method for quantitative studying distribution of thin muddy intercalation[J]. Journal of the University of Petroleum,China, 1992, 16(3):8-14.
[20]	NUGROHO C, BOUCHOU R, GHIOCA M, et al. The use of advanced logging technologies to identify the hidden hydrocarbons in an interbedded sandstone-shale reservoir[R]. Kuala Lumpur, Malaysia: Offshore Technology Conference Asia, 2018.
[21]	SANYAL A, KUMAR S, AWADH A A, et al. Integrated formation evaluation using high resolution sedimentary and facies analysis an aid for field development:A case study from north Kuwait[R]. SPE 195043-MS, 2019.
[22]	GAO Jianshen, JIANG Liming, LIU Yanping, et al. Review and analysis on the development and applications of electrical imaging logging in oil-based mud[J]. Journal of Applied Geophysics, 2019, 171:103872.
[23]	黄涛, 秦瑞宝, 余杰, 等. 加拿大油砂隔夹层测井评价[R]. 中国成都: 2020油气田勘探与开发国际会议, 2020.
	HUANG Tao, QIN Ruibao, YU Jie, et al. Logging evaluation of oil sands interlayer in Canada[R]. Chengdu,China: 2020 International Field Exploration and Development Conference, 2020:1846-1856.
[24]	汪宏年, 李舟波. 用分辨率匹配技术提高测井曲线垂直分辨率[J]. 石油地球物理勘探, 1993, 28(6):647-656.
	WANG Hongnian, LI Zhoubo. Improving the vertical resolution of log data by resolution match method[J]. Oil Geophysical Prospecting, 1993, 28(6):647-656.
[25]	安丰全, 唐炼, 牛华, 等. 利用常规测井资料进行薄层评价[J]. 石油学报, 1994, 15(4):1-8. doi: 10.7623/syxb199404001
	AN Fengquan, TANG Lian, NIU Hua, et al. Thin-bed evaluation with conventional well logs[J]. Acta Petrolei Sinica, 1994, 15(4):1-8. doi: 10.7623/syxb199404001
[26]	潘葆芝, 李舟波, 汪宏年. 提高测井曲线纵向分辨率的方法[J]. 长春地质学院学报, 1997, 27(2):197-201.
	PAN Baozhi, LI Zhoubo, WANG Hongnian. Methods to improve the longitudinal resolution of logging curves[J]. Journal of Changchun University of Earth Sciences, 1997, 27(2):197-201.
[27]	焦翠华, 李洪奇, 李冰, 等. 小波分析在提高声波测井曲线纵向分辨率中的应用[J]. 测井技术, 1999, 23(1):15-18.
	JIAO Cuihua, LI Hongqi, LI Bing, et al. Application of wavelet transform to enhancing the vertical resolution of acoustic log[J]. Well Logging Technology, 1999, 23(1):15-18.
[28]	赵军龙, 李新胜. 基于小波分析的精细地层划分对比在庄9井区的应用[J]. 煤田地质与勘探, 2009, 37(4):68-71.
	ZHAO Junlong, LI Xinsheng. Application of fine stratigraphic division and comparison based on wavelet analysis in Zhuang 9 block[J]. Coal Geology & Exploration, 2009, 37(4):68-71.
[29]	邵才瑞, 李洪奇, 张福明, 等. 用测井曲线自动划分层序地层研究[J]. 地层学杂志, 2004, 28(4):321-325.
	SHAO Cairui, LI Hongqi, ZHANG Fuming, et al. Research on the division of sequence stratigraphy automatically using well logs[J]. Journal of Stratigraphy, 2004, 28(4):321-325.
[30]	徐海, 王光付, 孙建芳, 等. 基于尺度-频率的小波微幅构造识别方法与应用:以南美厄瓜多尔X区块为例[J]. 油气地质与采收率, 2023, 30(4):98-105.
	XU Hai, WANG Guangfu, SUN Jianfang, et al. Identification method and application of micro-structure based on scale-frequency wavelet in Block X of Ecuador,south America[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(4):98-105.
[31]	练章贵, 卞万江, 韩涛, 等. 哈得4CⅢ油藏隔夹层控制倾斜油水界面成因数值模拟[J]. 新疆石油地质, 2022, 43(2):177-182.
	LIAN Zhanggui, BIAN Wanjiang, HAN Tao, et al. Numerical simulation on tilted OWC controlled by interlayers in Hade 4CⅢ reservoir[J]. Xinjiang Petroleum Geology, 2022, 43(2):177-182.

隔夹层类型	自然伽马/ API	密度/ （g·cm^-3）	深电阻率/ （Ω·m）	常规与地层倾角	伪成像
钙质	<36	>2.45	>0.9	高电阻率，高密度，低自然伽马，倾角电极曲线高阻尖峰，倾角矢量变化大、模式不稳定	白—黄白亮色条带
钙泥质	<36	<2.45	>0.8	电极曲线高阻，绿模式
泥质	>36	2.42~2.50	>0.7	高自然伽马，电阻率偏大，电极曲线小幅度低导高阻，绿模式	黄—褐暗色条带
