基于纯纵波地震资料的碳酸盐岩储集层识别

doi:10.7657/XJPG20200515

新疆石油地质 ›› 2020, Vol. 41 ›› Issue (5): 605-611.doi: 10.7657/XJPG20200515

基于纯纵波地震资料的碳酸盐岩储集层识别

张远银¹^,²(), 孙赞东², 杨海军³, 韩剑发³, 张敬霆⁴

1.中国地质调查局油气资源调查中心,北京 100083
2.中国石油大学（北京）地球物理学院,北京 102249
3.中国石油塔里木油田分公司勘探开发研究院,新疆库尔勒 841000
4.中国石油大港油田分公司井下作业公司,天津 300283

收稿日期:2019-12-10 修回日期:2020-05-26 出版日期:2020-10-01 发布日期:2020-10-10
作者简介:张远银（1986-）,男,四川绵阳人,高级工程师,博士,地球物理勘探,（Tel）010-64998654（E-mail）yuanyinshou@163.com
基金资助:
中国地质调查局二级项目(DD20190106);中国地质调查局二级项目(DD20190708);中国地质调查局二级项目(DD20190090);中国地质调查局二级项目(DD20189602)

Carbonate Reservoir Identification Based on Pure P-Wave Data

ZHANG Yuanyin¹^,²(), SUN Zandong², YANG Haijun³, HAN Jianfa³, ZHANG Jingting⁴

1. Oil and Gas Survey, China Geological Survey, Beijing 100083, China
2. School of Geophysics, China University of Petroleum, Beijing 102249, China
3. Research Institute of Exploration and Development, Tarim Oilfield Company, PetroChina, Korla, Xinjiang 841000, China
4. Downhole Operation Company, Dagang Oilfield Company, PetroChina, Tianjin 300283, China

Received:2019-12-10 Revised:2020-05-26 Online:2020-10-01 Published:2020-10-10

摘要/Abstract

摘要：

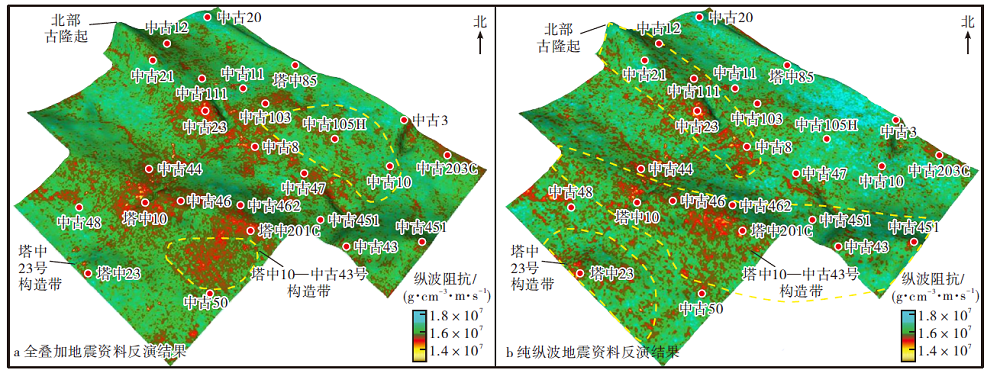

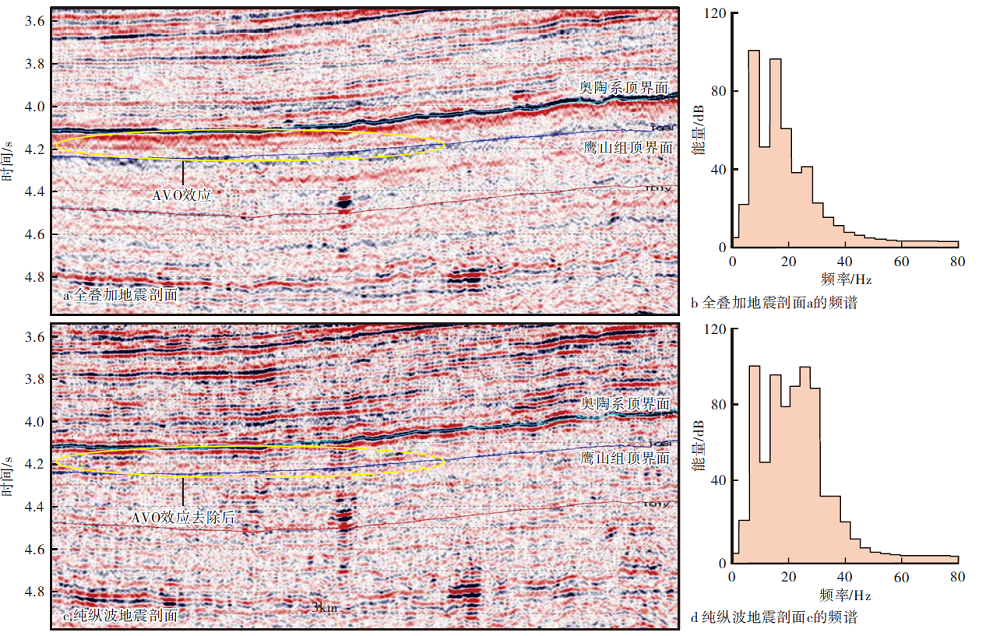

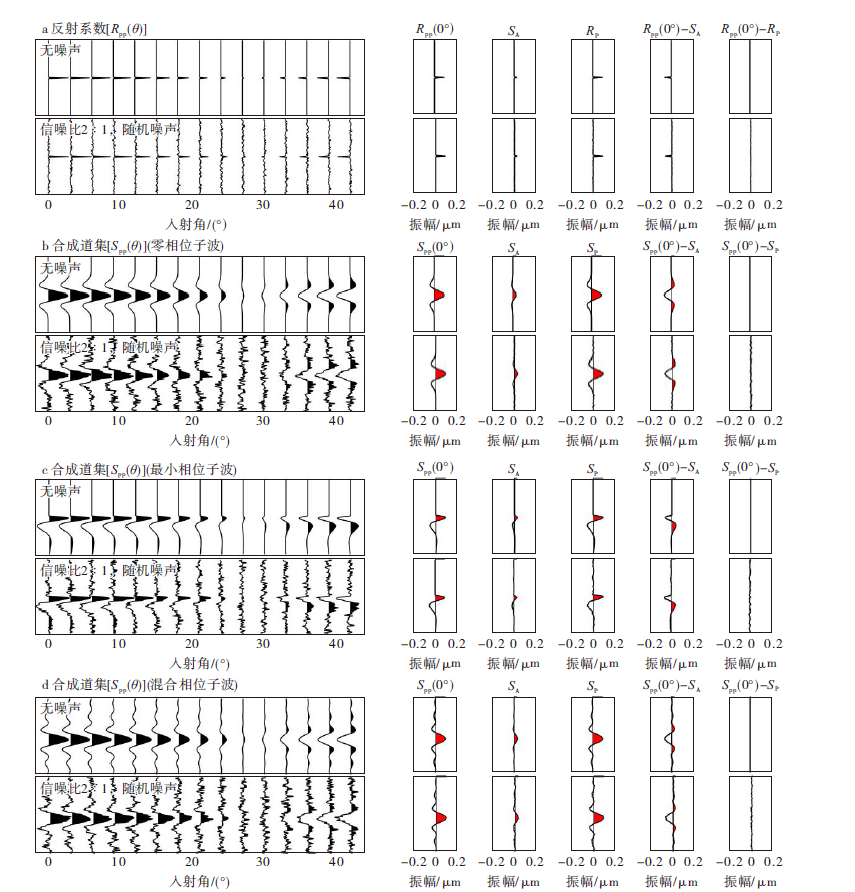

针对塔里木盆地古喀斯特型碳酸盐岩储集层埋深大、非均质性强、地震资料品质要求高的特点,引入叠前反演获得纯纵波地震资料,代替全叠加地震资料,以提高波阻抗反演及储集层预测精度。数值模拟结果表明：与理论零偏移距地震资料相比,计算的纯纵波地震资料误差几乎为零,而全叠加地震资料会因地震子波类型、入射角度范围、地层界面性质等的不同产生误差。塔中油田中古8井区碳酸盐岩目标层纯纵波地震资料主频提高了8 Hz,储集层预测结果与钻井吻合率提高了7.39%,为塔里木盆地碳酸盐岩储集层预测提供了切实可行的方案。

关键词: 塔里木盆地, 中古8井区, 碳酸盐岩, 储集层预测, 叠前反演, 纯纵波地震资料

Abstract:

Regarding the characteristics of large burial depth and strong heterogeneity of the paleokarst carbonate reservoir in the Tarim basin, the pure P-wave data calculated from pre-stack inversion are introduced to replace the traditional full-stack seismic data so that the accuracy of wave impedance inversion and reservoir prediction can be improved. The numerical modeling results suggest that compared with the theoretical zero-offset data, the computed pure P-wave data have negligible errors, while the traditional full-stack data inevitably contain errors that might associated with different factors, i.e., wavelet, incidence angle range and reflection boundary. The field data comparison in the Wellblock ZG8, Tazhong area shows that when the dominant frequency of P-wave in target carbonate strata has been improved by 8 Hz, the fitting rate of reservoir prediction result with actual drilling result can be increased by 7.39%, which provides practical methods and corresponding standards for the reservoir prediction in the carbonate reservoirs in Tarim basin.

Key words: Tarim basin, Wellblock ZG8, carbonate rock, reservoir prediction, pre-stack inversion, pure P-wave data

中图分类号:

TE112.24

张远银, 孙赞东, 杨海军, 韩剑发, 张敬霆. 基于纯纵波地震资料的碳酸盐岩储集层识别[J]. 新疆石油地质, 2020, 41(5): 605-611.

ZHANG Yuanyin, SUN Zandong, YANG Haijun, HAN Jianfa, ZHANG Jingting. Carbonate Reservoir Identification Based on Pure P-Wave Data[J]. Xinjiang Petroleum Geology, 2020, 41(5): 605-611.

图/表 8

图1

表1

图2

图3

图4

图5

图6

图7

参考文献 20

[1]	刘坤岩, 马丽娟, 邬兴威, 等. 塔河奥陶系薄层状孔洞储集体定量预测方法研究[J]. 地球物理学进展, 2017,32(4):1 614-1 620.
	LIU Kunyan, MA Lijuan, WU Xingwei, et al. Quantitative predication of flaggy reservoir of Ordovician formation in Tahe oilfield[J]. Progress in Geophysics, 2017,32(4):1 614-1 620.
[2]	李鹏飞, 崔德育, 田浩男, 等. 塔里木盆地塔北地区X区块断溶体刻画方法与效果[J]. 石油地球物理勘探, 2017,52(增刊1):189-194.
	LI Pengfei, CUI Deyu, TIAN Haonan, et al. Fault-karst carbonate reservoir description with Geoeast interpretation sub-system in the Tabei area,Tarim basin[J]. Oil Geophysical Prospecting, 2017,52(Supp.1):189-194.
[3]	ZHANG Yuanyin, SUN Zandong, YANG Haijun, et al. Pre-stack inversion for caved carbonate reservoir prediction:a case study from Tarim basin,China[J]. Petroleum Science, 2011,8(4):415-421. doi: 10.1007/s12182-011-0159-4
[4]	徐红霞, 沈春光, 李斌, 等. 多属性分析技术在碳酸盐岩断溶体预测中的应用[J]. 石油地球物理勘探, 2017,52(增刊1):158-163.
	XU Hongxia, SHEN Chunguang, LI Bin, et al. Fault-karst carbonate reservoir prediction with comprehensive multi-attribute analysis[J]. Oil Geophysical Prospecting, 2017,52(Supp.1):158-163.
[5]	张远银, 孙赞东, 唐志远, 等. 基于AVO反演的溶蚀孔洞型碳酸盐岩储层预测[J]. 石油地球物理勘探, 2013,48(1):109-113.
	ZHANG Yuanyin, SUN Zandong, TANG Zhiyuan, et al. Caved carbonate reservoir prediction based on AVO inversion[J]. Oil Geophysical Prospecting, 2013,48(1):109-113.
[6]	ZHANG Yuanyin, SUN Zandong, FAN Chunyan. An iterative AVO inversion workflow for S-wave improvement[R]. London,England:75th EAGE Conference and Exhibition Incorporating EAGE, 2011.
[7]	HAN Jianfa, SUN Zandong, ZHANG Xinchao, et al. Integrated identification for complex reservoir based on pure P-wave data and post-stack data[R]. San Antonio,USA:SEG Conference & Exhibition, 2013.
[8]	ZHANG Yuanyin, JIN Zhijun, SUN Zandong, et al. The comparison between full-stack data and pure P-wave data on deeply buried Ordovician paleokarst reservoir prediction[J]. Earth Science Research, 2016,5(1):57-66.
[9]	田军. 塔里木盆地油气勘探成果与勘探方向[J]. 新疆石油地质, 2019,40(1):1-11.
	TIAN Jun. Petroleum exploration achievements and future targets of Tarim basin[J]. Xinjiang Petroleum Geology, 2019,40(1):1-11.
[10]	LOUCKS R. Paleocave carbonate reservoirs:origins,burial-depth modifications,spatial complexity,and reservoir implications[J]. AAPG Bulletin, 1999,83(11):1 795-1 834.
[11]	SUN Zandong, WANG Haiyang, LIU Zhiyuan, et al. The theory and application of DEM-Gassmann rock physics model for complex carbonate reservoirs[J]. The Leading Edge, 2012,31(2):152-158. doi: 10.1190/1.3686912
[12]	杨子川, 刘军, 陈黎, 等. 顺南地区奥陶系碳酸盐岩储层地震识别与评价[J]. 石油物探, 2017,56(2):280-287.
	YANG Zichuan, LIU Jun, CHEN Li, et al. Seismic identification and evaluation of Ordovician carbonate reservoir in Shunnan area[J]. Geophysicial Prospecting for Petroleum, 2017,56(2):280-287.
[13]	孙东, 杨丽莎, 陈娟, 等. 塔里木盆地深层碳酸盐岩储集层地震响应特征[J]. 新疆石油地质, 2018,39(6):633-642.
	SUN Dong, YANG Lisha, CHEN Juan, et al. Seismic response characteristics of fractured-vuggy reservoirs in deep carbonate horizons of Tarim basin[J]. Xinjiang Petroleum Geology, 2018,39(6):633-642.
[14]	王光付. 碳酸盐岩溶洞型储层综合识别及预测方法[J]. 石油学报, 2008,29(1):47-51.
	WANG Guangfu. Integrative identification and prediction methods for carbonate rock cave reservoir[J]. Acta Petrolei Sinica, 2008,29(1):47-51.
[15]	YANG Haijun, XUE Fengjun, PAN Wenqing, et al. Seismic description of kasrt topography and caves of Ordovician carbonate reservoirs,Lungu area,Tarim basin,west China[R]. Huston,USA:80th SEG,Expanded Abstract, 2010: 1 256-1 260.
[16]	ZHANG Yuanyin, SUN Zandong, FAN Chunyan, et al. Data conditioning for pre-stack inversion:a case study from Xingma area,Liaohe oilfield,China[R]. Vienna,Austria:73rd EAGE Conference and Exhibition Incorporating, 2011.
[17]	吕修祥, 张艳萍, 焦伟伟, 等. 断裂活动对塔中地区鹰山组碳酸盐岩储集层的影响[J]. 新疆石油地质, 2011,32(3):244-249.
	LV Xiuxiang, ZHANG Yanping, JIAO Weiwei, et al. Effect of fault activity on carbonate reservoir of Yingshan formation in Tazhong area,Tarim basin[J]. Xinjiang Petroleum Geology, 2011,32(3):244-249.
[18]	韩剑发, 梅廉夫, 杨海军, 等. 塔里木盆地塔中地区奥陶系碳酸盐岩礁滩复合体油气来源与运聚成藏研究[J]. 天然气地球科学, 2007,18(3):426-435.
	HAN Jianfa, MEI Lianfu, YANG Haijun, et al. The study of hydrocarbon origin,transport and accumulation in Tazhong area,Tarim basin[J]. Natural Gas Geoscience, 2007,18(3):426-435.
[19]	韩剑发, 周锦明, 敬兵, 等. 塔中北斜坡鹰山组碳酸盐岩缝洞储集层预测及成藏规律[J]. 新疆石油地质, 2011,32(3):281-284.
	HAN Jianfa, ZHOU Jinming, JING Bing, et al. Prediction of carbonate fractured-vuggy reservoir and hydrocarbon accumulation pattern of Yingshan formation of Lower Ordovician in north slope of Tazhong area,Tarim basin[J]. Xinjiang Petroleum Geology, 2011,32(3):281-284.
[20]	张远银, 孙赞东, 杨海军, 等. 中古8井区孔洞型碳酸盐岩储集层流体地震预测[J]. 新疆石油地质, 2019,40(5):610-614.
	ZHANG Yuanyin, SUN Zandong, YANG Haijun, et al. Seismic fluid prediction in caved carbonate reservoirs in Wellblock ZG8,Tarim basin[J]. Xinjiang Petroleum Geology, 2019,40(5):610-614.
