准噶尔盆地玛南地区上乌尔禾组储集层伤害机理

doi:10.7657/XJPG20220116

摘要/Abstract

摘要：

准噶尔盆地玛湖凹陷玛南地区二叠系上乌尔禾组砾岩储集层岩心极易泡散,不易评价破胶压裂液对储集层的伤害,无法确定造成储集层伤害的主控因素。应用X射线显微CT技术对岩心样品进行连续扫描,重建岩心三维孔隙变化;应用球棍模型和阈值分割法,表征岩心不同截面上的孔隙变化。结果表明,储集层被破胶压裂液伤害后,平均孔隙半径减小了42.1%,平均喉道半径减小了32.7%,平均喉道长度减小了19.1%,平均孔喉比减小了45.3%,孔隙度和渗透率分别降低了7.7%和33.8%,岩心在破胶压裂液驱替伤害后孔隙度和渗透率均降低,渗透率变化较大。破胶压裂液与储集层的相互作用,是造成储集层伤害的主要原因,而黏土矿物中的蒙脱石水化膨胀、微粒运移等是造成储集层伤害的具体因素。

关键词: 准噶尔盆地, 玛湖凹陷, 玛南地区, 玛湖1井区, 上乌尔禾组, 砾岩, 破胶压裂液, 储集层伤害, 黏土矿物

Abstract:

The core of the conglomerate reservoir from upper Wuerhe formation of Permian is very easy to break after immersed in fluids, so that it is difficult to evaluate how gel-breaking fracturing fluid damages the reservoir, and it is impossible to determine the factors controlling reservoir damage in the southern Mahu area, Junggar basin. This study used X-ray Micro-CT technology to scan core samples and reconstructed the three-dimensional pore structure, and then characterized the pore changes on different sections by the ball-stick model and the threshold segmentation method. The results show that, after the reservoir was damaged by gel-breaking fracturing fluid, the average pore radius, average throat radius, average throat length, average pore-to-throat ratio, porosity and permeability were reduced by 42.1%, 32.7%, 19.1%, 45.3%, 7.7% and 33.8%, respectively. After fractured by gel-breaking fracturing fluid, the reservoir was damaged, resulting in reduced porosity and permeability, especially a significant change in permeability. Swelling montmorillonite in the clay minerals and particle migration are the factors that can cause damage to the reservoir, and the interaction between gel-breaking fracturing fluid and the reservoir is the primary factor causing reservoir damage.

Key words: Junggar basin, Mahu sag, southern Mahu area, Wellblock Mahu-1, upper Wuerhe formation, conglomerate, gel-breaking fracturing fluid, reservoir damage, clay mineral

中图分类号:

TE258

周伟, 沈秀伦, 寇根, 魏云, 蒋官澄, 杨丽丽, 张远凯. 准噶尔盆地玛南地区上乌尔禾组储集层伤害机理[J]. 新疆石油地质, 2022, 43(1): 107-114.

ZHOU Wei, SHEN Xiulun, KOU Gen, WEI Yun, JIANG Guancheng, YANG Lili, ZHANG Yuankai. Reservoir Damage Mechanism for Upper Wuerhe Formation in Southern Mahu Area, Junggar Basin[J]. Xinjiang Petroleum Geology, 2022, 43(1): 107-114.

图/表 8

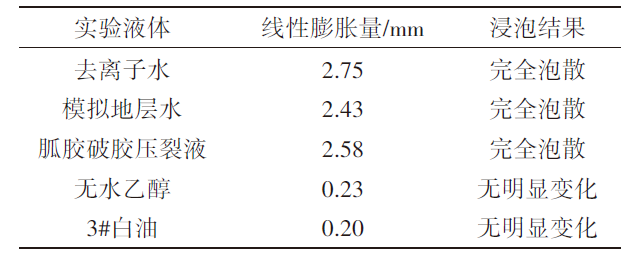

表1

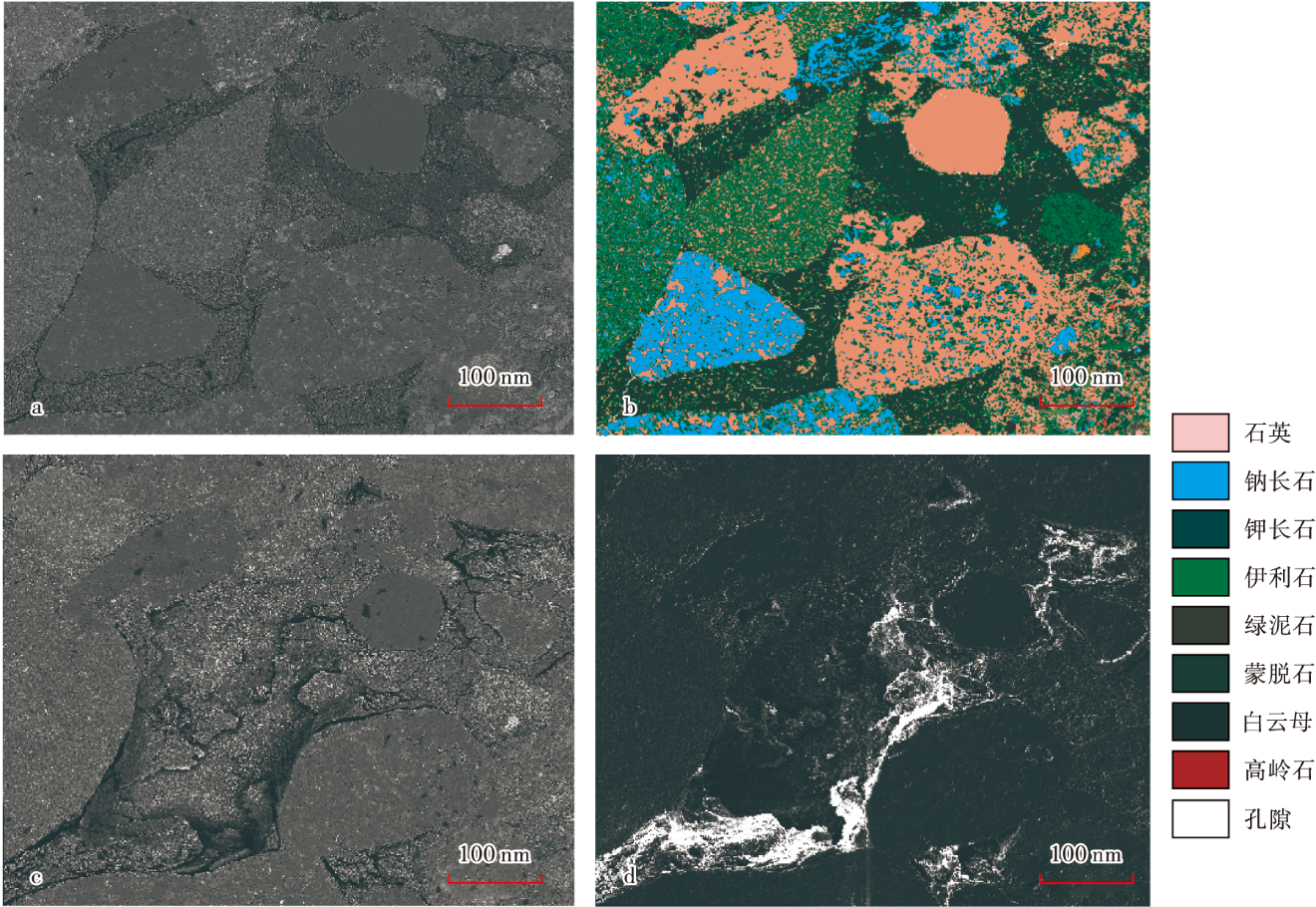

图1

图2

图3

图4

图5

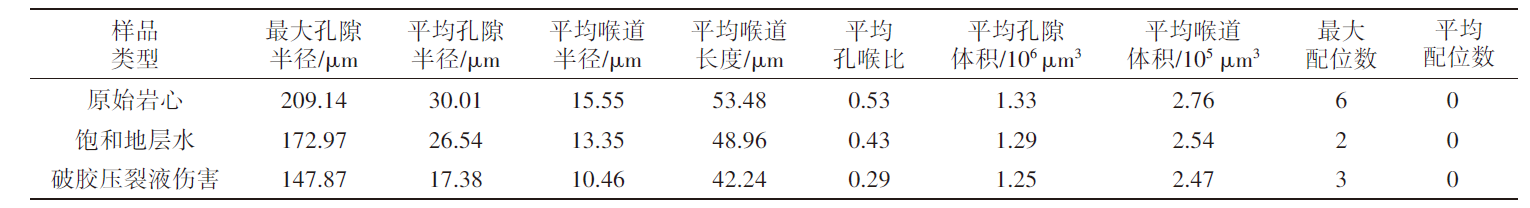

表2

图6
