苏里格气田盒8段辫状河储集层构型空间展布

doi:10.7657/XJPG20230203

摘要/Abstract

摘要：

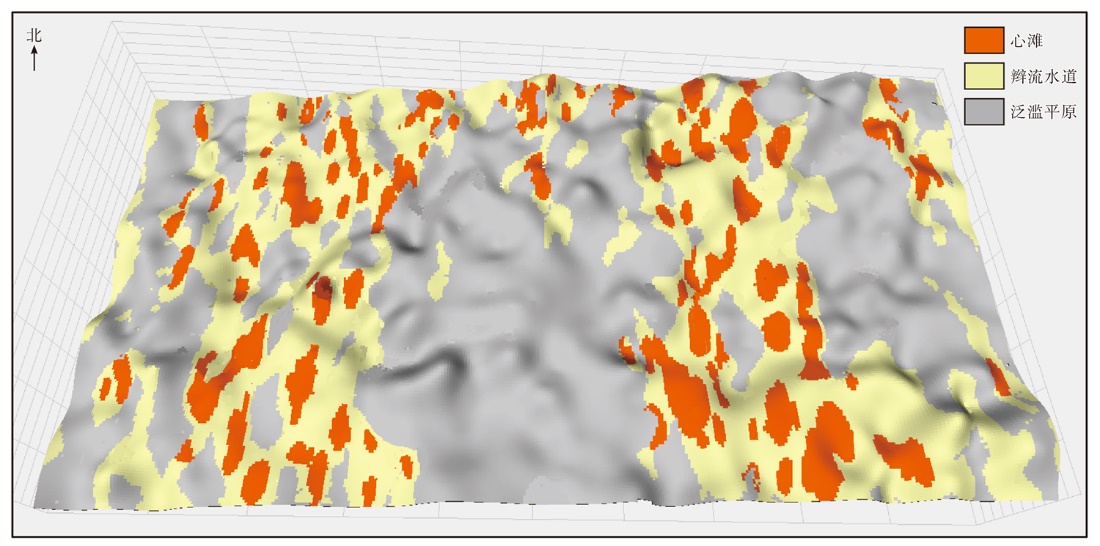

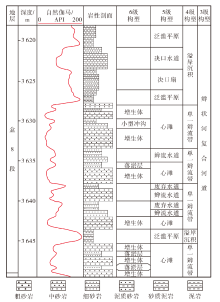

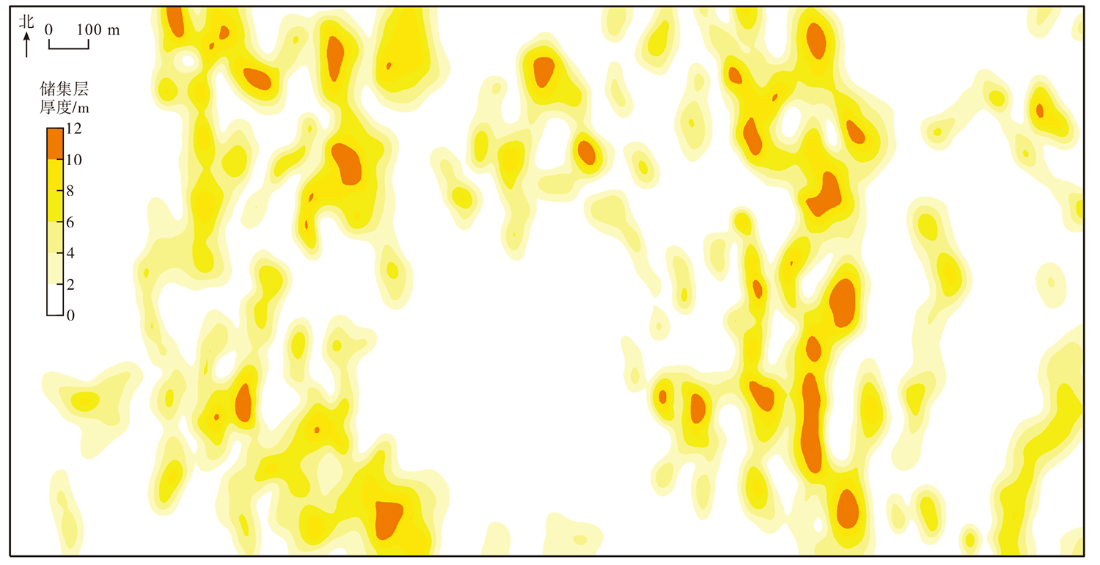

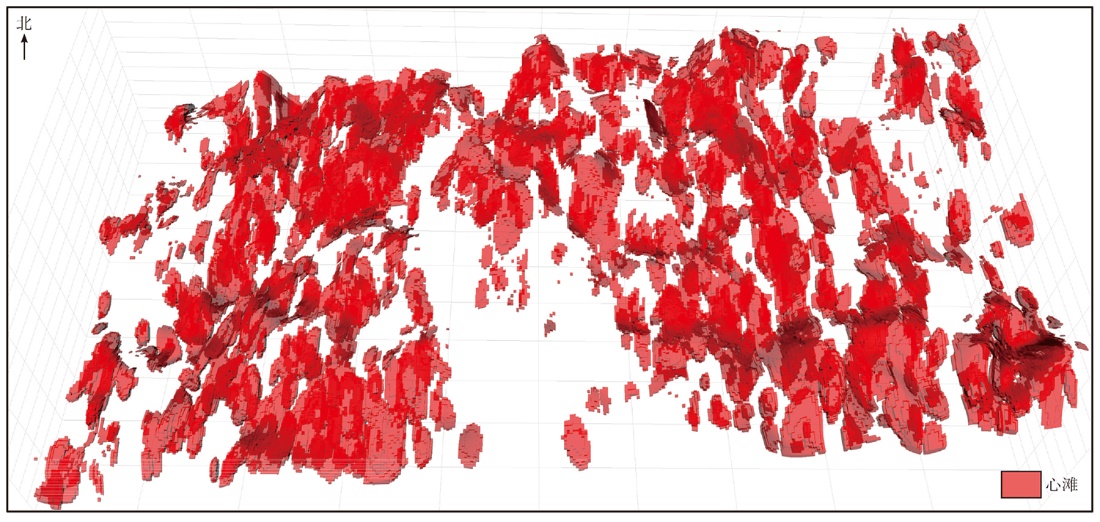

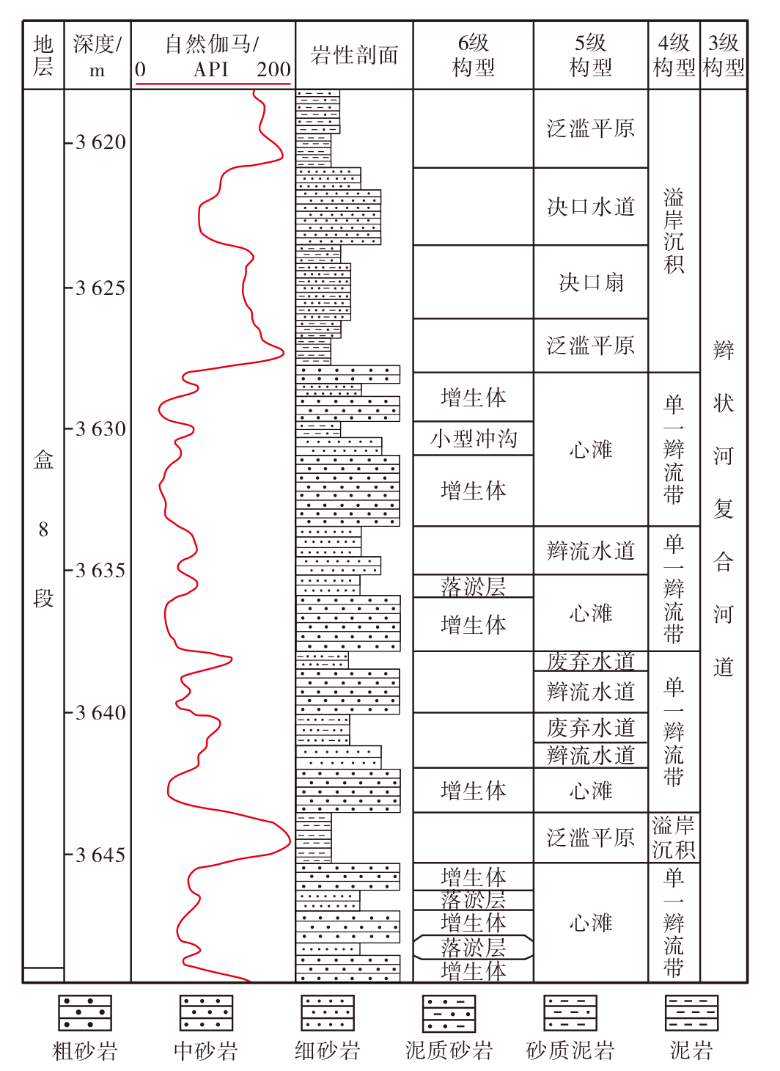

为确定苏里格气田盒8段多期叠置辫状河致密砂岩储集层构型和空间展布，利用测井和岩心资料，参照现代河流，确定了研究区辫状河储集层的构型划分方案，分级次精细解剖了储集层构型单元；利用基于象元法和基于目标法联合模拟，建立了包含多级构型单元的辫状河储集层构型三维模型，精细刻画了不同类型储集层构型的空间展布。研究区盒8段储集层为多期辫状河道砂体垂向和侧向切割叠置形成，单一辫流带内心滩呈透镜状，内部被不连续的落淤层分隔，辫流水道环绕心滩分布。依据三维模型，储集层可分为不同级次构型体，其中有利储集层为盒8₄小层，主要分布在研究区东部和西部南北向展布的两大辫流带内，优质砂体在辫流带内部呈透镜状分布。研究结果应用于水平井部署和地质导向，钻探结果与模型预测符合率高。

关键词: 鄂尔多斯盆地, 苏里格气田, 石盒子组, 盒8段, 辫状河, 储集层, 构型单元, 心滩砂体

Abstract:

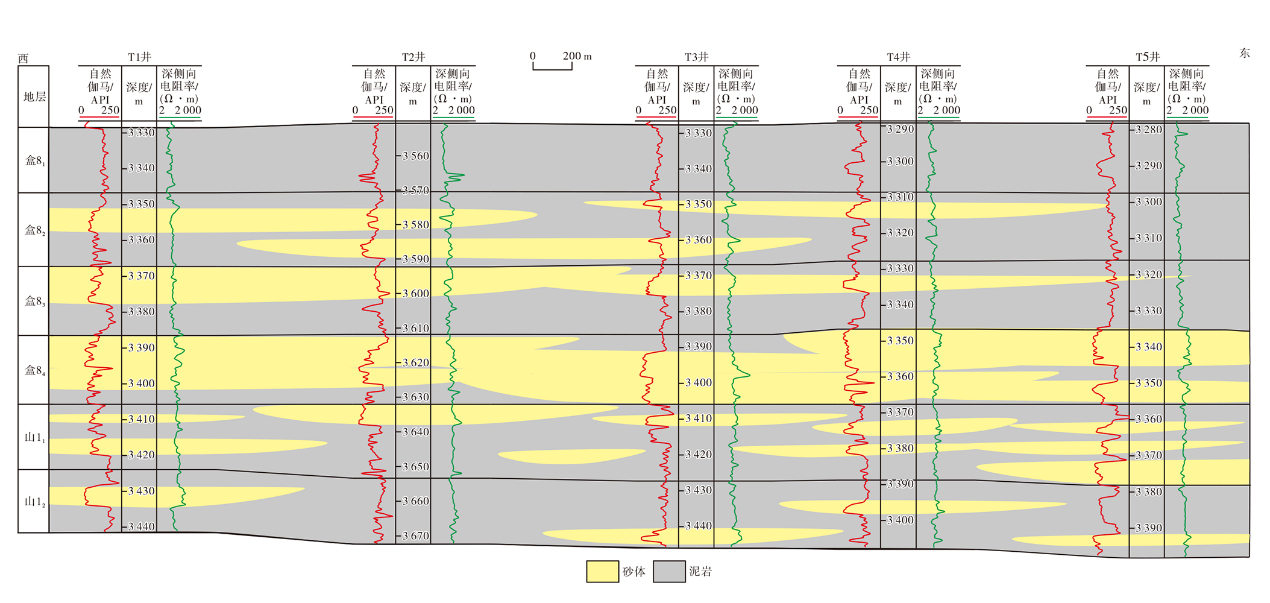

In order to determine the spatial distribution of the architectures of the multi-stage superimposed braided-river tight sandstone reservoirs in the He 8 member, Sulige gas field, by using well logging and core data and referring to modern rivers, the architecture division scheme of the braided river reservoirs in the study area was determined, and the reservoir architecture units were dissected hierarchically. Through the joint simulation based on pixel and target methods, a 3D architecture model of the braided river reservoir including multi-level architecture units was established to finely depict the spatial distribution of different reservoir architectures. The reservoirs in the He 8 member formed due to the vertical or lateral cutting and stacking of multi-phase sand bodies of braided channel. The mid-channel bar of a single braided belt appears in form of lens. The interior of mid-channel bar is separated by discontinuous fall-siltseam, and the braided channels are distributed around the mid-channel bar. According to the 3D architecture model, the reservoir can be divided into different hierarchical architectures, among which the favorable reservoir interval is He 8₄ sublayer which is mainly distributed in two major braided belts extending north-south in the east and west of the study area, and high-quality sand bodies are distributed in a lenticular shape inside the braided belt. The research results were applied to horizontal well deployment and geosteering drilling, and the drilling results show a high coincidence rate with model predictions.

Key words: Ordos basin, Sulige gas field, Shihezi formation, He 8 member, braided river, reservoir, architecture unit, mid-channel bar sandbody

中图分类号:

TE122.2

刘金库, 胡杨, 伍燚. 苏里格气田盒8段辫状河储集层构型空间展布[J]. 新疆石油地质, 2023, 44(2): 144-150.

LIU Jinku, HU Yang, WU Yi. Spatial Distribution of Architectures of Braided River Reservoirs in He 8 Member, Sulige Gas Field[J]. Xinjiang Petroleum Geology, 2023, 44(2): 144-150.

图/表 6

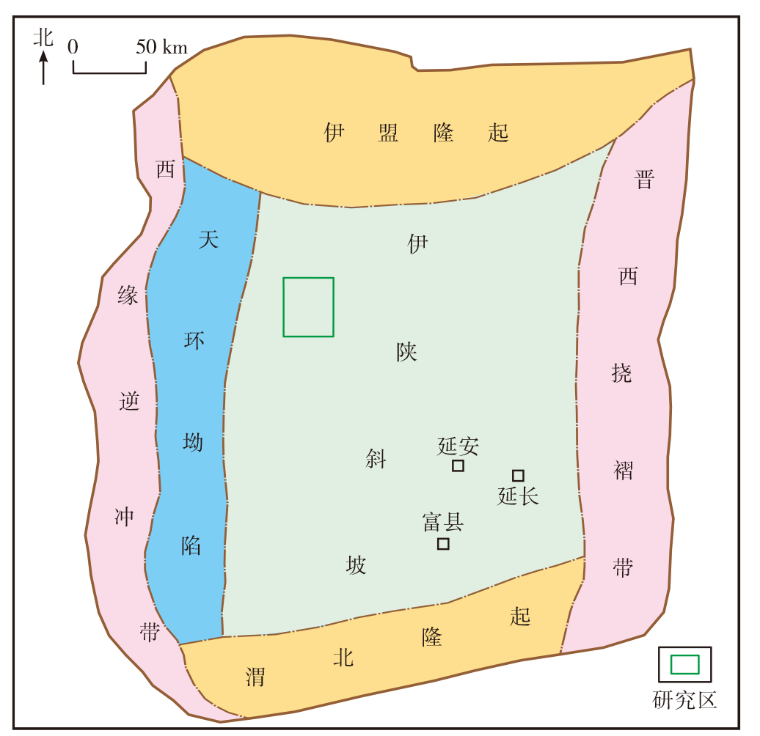

图1

图2

图3

图4

图5

图6

参考文献 22

[1]	马志欣, 张吉, 薛雯, 等. 一种辫状河心滩砂体构型解剖新方法[J]. 天然气工业, 2018, 38(7):16-22.
	MA Zhixin, ZHANG Ji, XUE Wen, et al. A new architecture characterization method for braided river channel bar sandbody[J]. Natural Gas Industry, 2018, 38(7):16-22.
[2]	李进步, 刘子豪, 徐振华, 等. 苏里格气田岩石相控制的致密砂岩储层质量差异机理[J]. 特种油气藏, 2021, 28(1):10-17.
	LI Jinbu, LIU Zihao, XU Zhenhua, et al. Quality difference mechanism of tight sandstone reservoir controlled by lithofacies in Sulige gasfield[J]. Special Oil & Gas Reservoirs, 2021, 28(1):10-17.
[3]	吴胜和, 纪友亮, 岳大力, 等. 碎屑沉积地质体构型分级方案探讨[J]. 高校地质学报, 2013, 19(1):12-22.
	WU Shenghe, JI Youliang, YUE Dali, et al. Discussion on hierarchical scheme of architectural units in clastic deposits[J]. Geological Journal of China Universities, 2013, 19(1):12-22.
[4]	薛培华. 河流点坝相储层模式概论[M]. 北京: 石油工业出版社, 1991.
	XUE Peihua. An introduction to reservoir models of point bar facies[M]. Beijing: Petroleum Industry Press, 1991.
[5]	余浩杰, 马志欣, 张志刚, 等. 基于储层构型表征的辫状河地质知识库构建:以苏里格气田SX密井网区为例[J]. 大庆石油地质与开发, 2020, 39(2):1-8.
	YU Haojie, MA Zhixin, ZHANG Zhigang, et al. Establishment of the braided-river geological database based on the reservoir configuration characterization:taking dense well-pattern Block SX in Sulige gas field as an example[J]. Petroleum Geology & Oilfield Development in Daqing, 2020, 39(2):1-8.
[6]	闫高原, 张军建, 路冠文, 等. 沁水盆地太原组—山西组页岩孔隙分形特征[J]. 新疆石油地质, 2021, 42(5):548-553.
	YAN Gaoyuan, ZHANG Junjian, LU Guanwen, et al. Fractal characteristics of shale pores from Taiyuan formation to Shanxi formation in Qinshui basin[J]. Xinjiang Petroleum Geology, 2021, 42(5):548-553.
[7]	金振奎, 杨有星, 尚建林, 等. 辫状河砂体构型及定量参数研究:以阜康、柳林和延安地区辫状河露头为例[J]. 天然气地球科学, 2014, 25(3):311-317.
	JIN Zhenkui, YANG Youxing, SHANG Jianlin, et al. Sandbody architecture and quantitative parameters of single channel sandbodies of braided river:cases from outcrops of braided river in Fukang,Liulin and Yan’an areas[J]. Natural Gas Geoscience, 2014, 25(3):311-317.
[8]	张吉, 马志欣, 王文胜, 等. 辫状河储层构型单元解剖及有效砂体分布规律[J]. 特种油气藏, 2017, 24(2):1-5.
	ZHANG Ji, MA Zhixin, WANG Wensheng, et al. Dissection of structural units of braided river reservoirs and distribution of effective sandstone formations[J]. Special Oil & Gas Reservoirs, 2017, 24(2):1-5.
[9]	杨华, 魏新善. 鄂尔多斯盆地苏里格地区天然气勘探新进展[J]. 天然气工业, 2007, 27(12):6-11.
	YANG Hua, WEI Xinshan. New progress achieved by natural gas exploration in Sulige area[J]. Natural Gas Industry, 2007, 27(12):6-11.
[10]	张金亮. 河流沉积相类型及相模式[J]. 新疆石油地质, 2019, 40(2):244-252.
	ZHANG Jinliang. Fluvial facies styles and their sedimentary facies models[J]. Xinjiang Petroleum Geology, 2019, 40(2):244-252.
[11]	吴小军, 苏海斌, 张士杰, 等. 砂砾质辫状河储层构型解剖及层次建模:以新疆油田重32井区齐古组油藏为例[J]. 沉积学报, 2020, 38(5):933-945.
	WU Xiaojun, SU Haibin, ZHANG Shijie, et al. Architecture anatomy and hierarchical modeling of sand-gravel braided river reservoirs:a case study of Zhong 32 wells area,Qigu formation reservoir,Fengcheng oilfield[J]. Acta Sedimentologica Sinica, 2020, 38(5):933-945.
[12]	胡光义, 陈飞, 范廷恩, 等. 基于复合砂体构型样式的河流相储层细分对比方法[J]. 大庆石油地质与开发, 2017, 36(2):13-17.
	HU Guangyi, CHEN Fei, FAN Ting’en, et al. Subdividing and comparing method of the fluvial facies reservoirs based on the complex sandbody architectures[J]. Petroleum Geology & Oilfield Development in Daqing, 2017, 36(2):13-17.
[13]	龙明, 许亚南, 刘彦成, 等. 砂质辫状河储层构型对流体运动的控制作用[J]. 特种油气藏, 2019, 26(1):116-121.
	LONG Ming, XU Yanan, LIU Yancheng, et al. Effect of sandy braided river reservoir configuration on fluid migration[J]. Special Oil & Gas Reservoirs, 2019, 26(1):116-121.
[14]	肖正录, 陈世加, 廖建波, 等. 河道构型单元及其对油藏的控制作用:以鄂尔多斯盆地华庆地区长8段储集层为例[J]. 新疆石油地质, 2018, 39(5):524-529.
	XIAO Zhenglu, CHEN Shijia, LIAO Jiaobo, et al. Channel architecture element and its controls on hydrocarbon accumulation:a case study from Chang-8 member in Huaqing area,Ordos basin[J]. Xinjiang Petroleum Geology, 2018, 39(5):524-529.
[15]	李俊飞. 辫状河储层单砂体刻画及剩余油分布[J]. 复杂油气藏, 2021, 14(4):65-68.
	LI Junfei. Characterization of single sandbody and remaining oil distribution in braided river reservoir[J]. Complex Hydrocarbon Reservoirs, 2021, 14(4):65-68.
[16]	陈彬滔, 于兴河, 王天齐, 等. 砂质辫状河岩相与构型特征:以山西大同盆地中侏罗统云冈组露头为例[J]. 石油与天然气地质, 2015, 36(1):111-117.
	CHEN Bintao, YU Xinghe, WANG Tianqi, et al. Lithofacies and architectural characteristics of sandy braided river deposits:a case from outcrops of the Middle Jurassic Yungang formation in the Datong basin,Shanxi province[J]. Oil & Gas Geology, 2015, 36(1):111-117.
[17]	吴泽民, 柯先启, 张攀, 等. 鄂尔多斯盆地姬塬地区长9段砂体构型[J]. 新疆石油地质, 2022, 43(3):294-309.
	WU Zemin, KE Xianqi, ZHANG Pan, et al. Sand body architecture of Chang 9 member in Jiyuan area,Ordos basin[J]. Xinjiang Petroleum Geology, 2022, 43(3):294-309.
[18]	赵忠军, 李进步, 马志欣, 等. 苏36-11提高采收率试验区辫状河储集层构型单元定量表征[J]. 新疆石油地质, 2017, 38(1):55-61.
	ZHAO Zhongjun, LI Jinbu, MA Zhixin, et al. Quantitative characterization of architecture units for braided river reservoir in Su36-11 EOR test area[J]. Xinjiang Petroleum Geology, 2017, 38(1):55-61.
[19]	梁卫卫, 党海龙, 崔鹏兴, 等. 三维地质建模技术在致密砂岩油藏水平井开发中的应用:以鄂尔多斯盆地S区块为例[J]. 新疆石油地质, 2020, 41(5):616-621.
	LIANG Weiwei, DANG Hailong, CUI Pengxing, et al. Application of 3D geological modeling in horizontal well development of tight sandstone oil reservoirs:a case study of Block S in Ordos basin[J]. Xinjiang Petroleum Geology, 2020, 41(5):616-621.
[20]	吴涛, 付斌. 多点地质统计学在苏里格气田地质建模的应用[J]. 地质与勘探, 2016, 52(5):985-991.
	WU Tao, FU Bin. Application of the multiple-point method to geological modeling in the Sulige gas field[J]. Geology and Exploration, 2016, 52(5):985-991.
[21]	李辉, 林承焰, 马存飞, 等. 基于地质模式约束的致密砂岩储层断缝体地质建模[J]. 大庆石油地质与开发, 2021, 40(1):38-46.
	LI Hui, LIN Chengyan, MA Cunfei, et al. Geological modeling of the fault-fracture body in the tight sandstone reservoir based on the geological model constraint[J]. Petroleum Geology & Oilfield Development in Daqing, 2021, 40(1):38-46.
[22]	杨志会, 赵海波, 黄勇, 等. 地震信息约束的三维建模技术及其在松辽盆地古龙页岩油地质工程一体化中的应用[J]. 大庆石油地质与开发, 2022, 41(3):103-111.
	YANG Zhihui, ZHAO Haibo, HUANG Yong, et al. Application of seismic-constrained 3D modeling technology in geoscience and engineering integration of Gulong shale oil in Songliao basin[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(3):103-111.
