准噶尔盆地东部隆起石钱滩凹陷石钱滩组层序划分

doi:10.7657/XJPG20230302

摘要/Abstract

摘要：

为建立石钱滩凹陷上石炭统石钱滩组标准剖面，给凹陷内井下地层划分对比及油气勘探提供依据，以野外调查为重点，利用地质探槽，根据岩性特征、沉积建造、接触关系、标志层、生物化石等综合分析，进行石钱滩组层序划分和沉积相恢复及区域地层对比。石钱滩组由洪积扇（扇三角洲）沉积开始，经扇前湖泊沉积，于海湾潟湖沉积结束，构成3次海侵退积型层序，可划分为3段。下段下部为砾岩和砂砾岩，夹砂岩和粉砂岩，中部为中—细砾岩、杂砂岩与泥岩和粉砂质泥岩互层，上部为粉砂质泥岩、泥岩夹砂岩和粉砂岩；中段下部为砾岩、含砾砂岩和砂岩，夹粉砂岩，上部为钙质粉砂质泥岩、泥岩、粉砂岩和泥质灰岩；上段下部为砾岩、砂岩与粉砂岩和粉砂质泥岩互层，中部为紫褐色、砖红色泥岩和泥质粉砂岩，夹含砾粗砂岩和砾岩，上部为深灰色泥岩和粉砂质泥岩夹灰岩。宏观上为下段、中段及上段上部为深灰色，上段下部为浅褐—砖红色，各段均为正粒序。扇前沼泽—海湾潟湖相暗色泥岩为有利烃源岩，扇中、扇端砂岩和砾岩为储集层，生储配置好，油气地质条件优越。

关键词: 准噶尔盆地, 东部隆起, 石钱滩凹陷, 上石炭统, 石钱滩组, 地层层序, 沉积相, 地层划分

Abstract:

In order to establish a standard section of the Upper Carboniferous Shiqiantan formation in the Shiqiantan sag on the eastern uplift of the Junggar basin, and to provide a basis for the division and correlation of the subsurface strata and for the oil and gas exploration in the sag, field survey was carried out. By using geological coastean, and through comprehensive analysis on lithological characteristics, sedimentary formations, contact relationships, marker beds, and paleontological fossils, the sequence division, sedimentary facies restoration, and regional stratigraphic correlation were completed for the Shiqiantan formation. The Shiqiantan formation underwent the deposition of alluvial fan (fan delta), pre-fan lake and bay lagoon, forming three transgression-retrogradation sequences. The Shiqiantan formation can be divided into three members. The lower member is composed of conglomerate and sandy conglomerate intercalated with sandstone and siltstone in the lower part, medium-fine grained conglomerate, graywacke, and interbeds of mudstone and silty mudstone in the middle part, and silty mudstone and mudstone intercalated with sandstone and siltstone in the upper part. The middle member is composed of conglomerate, pebbly sandstone and sandstone intercalated with siltstone in the lower part, and calcareous silty mudstone, mudstone, siltstone and argillaceous limestone in the upper part. The upper member is composed of conglomerate, sandstone and interbeds of siltstone and silty mudstone in the lower part, purple-brown and brick-red mudstone and argillaceous siltstone intercalated with gravel-bearing gritstone and conglomerate in the middle part, and dark grey mudstone and silty mudstone intercalated with limestone in the upper part. Macroscopically, the lower member, middle member, and the upper part of the upper member are dark grey, and the lower part of the upper member is light brown to brick-red; all members are normally graded. The dark mudstones of pre-fan swamp-bay lagoon facies are favorable source rocks, while the sandstones and conglomerates of mid-fan and fan-apex facies are reservoir rocks. The good source-reservoir assemblage suggests favorable petroleum geology conditions.

Key words: Junggar basin, eastern uplift, Shiqiantan sag, Upper Carboniferous, Shiqiantan formation, stratigraphic sequence, sedimentary facies, stratigraphic division

中图分类号:

TE121.34

康积伦, 付国斌, 韩成, 梁辉, 马强, 梁桂宾, 陈高潮. 准噶尔盆地东部隆起石钱滩凹陷石钱滩组层序划分[J]. 新疆石油地质, 2023, 44(3): 265-276.

KANG Jilun, FU Guobin, HAN Cheng, LIANG Hui, MA Qiang, LIANG Guibin, CHEN Gaochao. Sequence Division of Shiqiantan Formation in Shiqiantan Sag on Eastern Uplift of Junggar Basin[J]. Xinjiang Petroleum Geology, 2023, 44(3): 265-276.

图/表 8

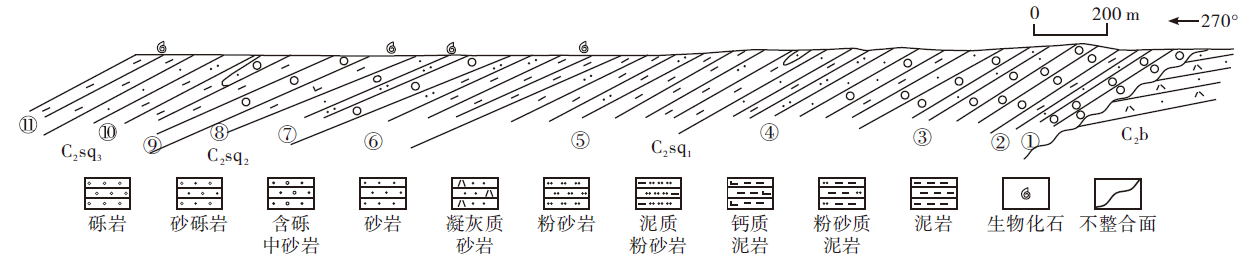

图1

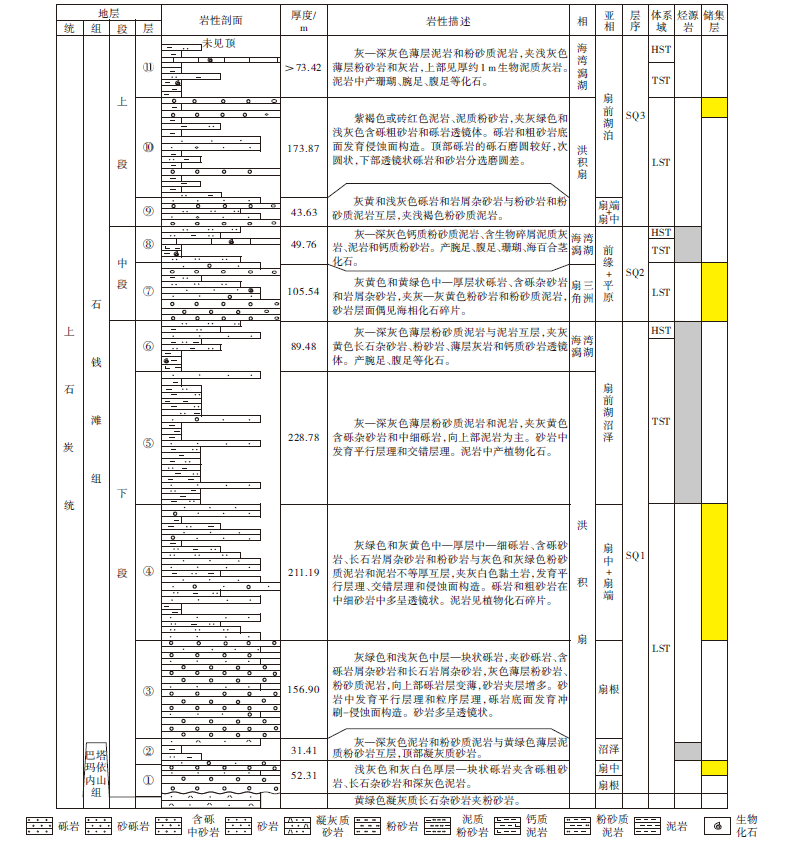

图2

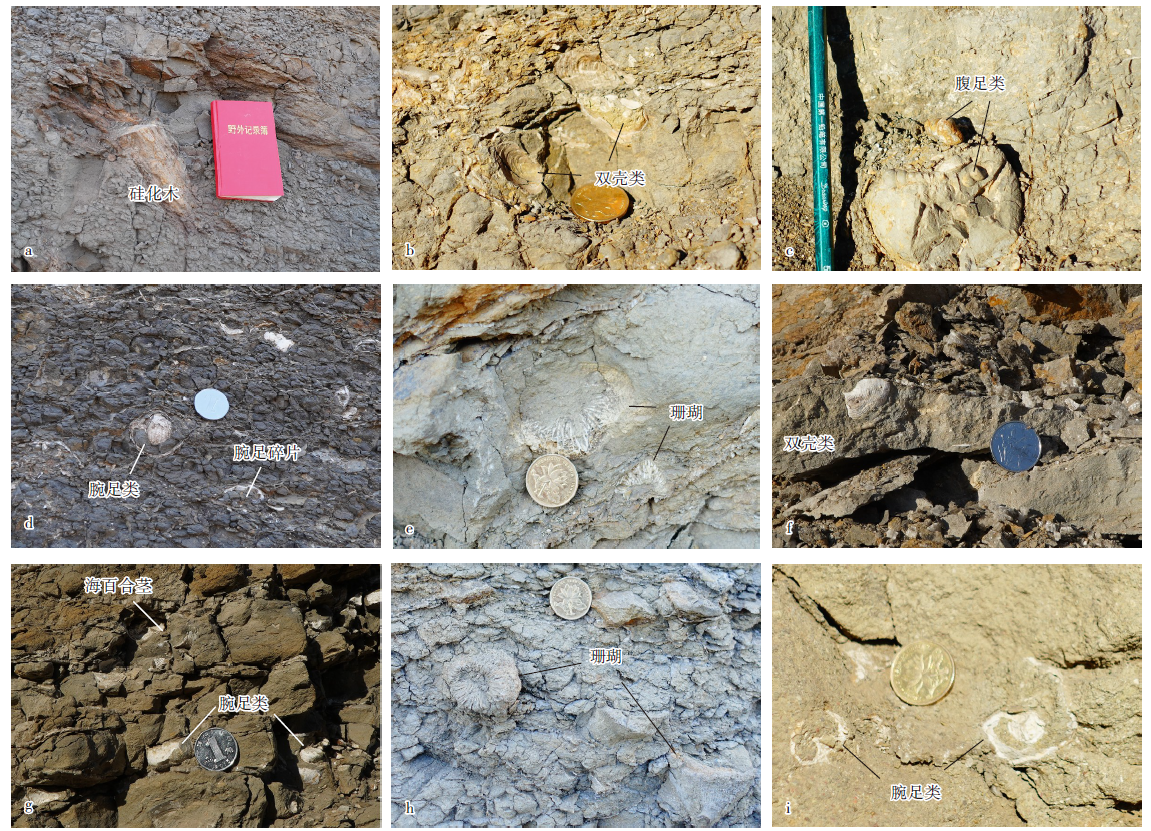

图3

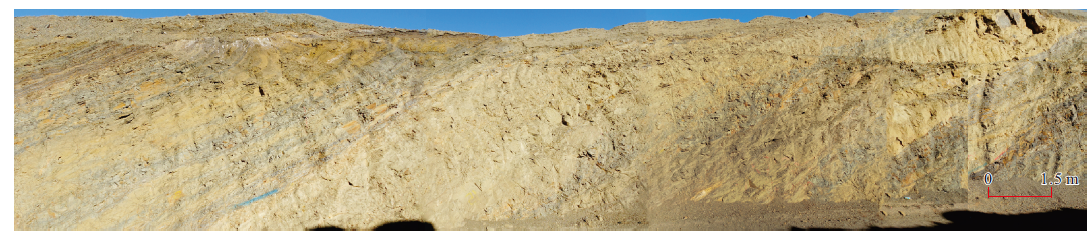

图4

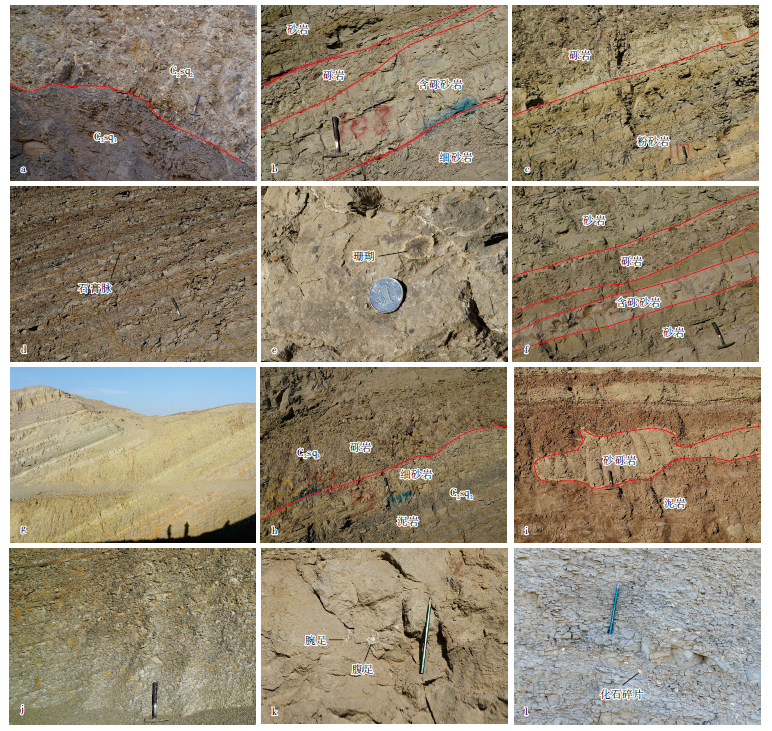

图5

图6

图7

图8

参考文献 23

[1]	赵治信, 杨河新, 朱希梅, 等. 新疆克拉麦里山石钱滩组牙形石及其时代[J]. 微体古生物学报, 1986, 3(2):193-203.
	ZHAO Zhixin, YANG Hexin, ZHU Ximei, et al. Conodonts from the Shiqiantan formation in Karamaili mountains,Xinjiang and their age[J]. Acta Micropaleontology, 1986, 3(2):193-203.
[2]	朱荣. 新疆东准噶尔克拉美丽地区胜利沟剖面石钱滩组有孔虫化石[J]. 新疆石油地质, 1986, 7(1):53-58.
	ZHU Rong. Foraminifera fossils from the Shiqiantan formation in the Shengligou section,Kelamei area,east Junggar,Xinjiang[J]. Xinjiang Petroleum Geology, 1986, 7(1):53-58.
[3]	王治平, 冯庆来. 新疆准噶尔石钱滩组的生物群沉积环境及生物区系特征[J]. 地球科学:中国地质大学学报, 1992, 17(3):281-288.
	WANG Zhiping, FENG Qinglai. Biota sedimentary environment and biota characteristics of the Shiqiantan formation in Junggar,Xinjiang[J]. Earth Science:Journal of China University of Geosciences, 1992, 17(3):281-288.
[4]	徐学义, 何世平, 王洪亮, 等. 中国西北部地质概论[M]. 北京: 科学出版社, 2006.
	XU Xueyi, HE Shiping, WANG Hongliang, et al. An introduction to geology of northwest China[M]. Beijing: Science Press, 2006.
[5]	唐勇, 雷德文, 曹剑, 等. 准噶尔盆地二叠系全油气系统与源内天然气勘探新领域[J]. 新疆石油地质, 2022, 43(6):654-662.
	TANG Yong, LEI Dewen, CAO Jian, et al. Total petroleum system and inner-source natural gas exploration in Permian strata of Junggar basin[J]. Xinjiang Petroleum Geology, 2022, 43(6):654-662.
[6]	郑孟林, 田爱军, 杨彤远. 准噶尔盆地东部地区构造演化与油气聚集[J]. 石油与天然气地质, 2018, 39(5):908-917.
	ZHENG Menglin, TIAN Aijun, YANG Tongyuan. Structural evolution and hydrocarbon accumulation in the eastern Junggar basin[J]. Oil & Gas Geology, 2018, 39(5):908-917.
[7]	李艳平, 邹红亮, 李雷, 等. 准噶尔盆地东道海子凹陷上乌尔禾组油气勘探思路及发现[J]. 新疆石油地质, 2022, 43(2):127-134.
	LI Yanping, ZOU Hongliang, LI Lei, et al. Petroleum exploration ideas and discoveries in upper Wuerhe formation,Dongdaohaizi sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2022, 43(2):127-134.
[8]	吴晓智, 丁靖, 夏兰, 等. 准噶尔盆地陆梁隆起带构造演化特征与油气聚集[J]. 新疆石油地质, 2012, 33(3):277-279.
	WU Xiaozhi, DING Jing, XIA Lan, et al. Structural evolution and hydrocarbon accumulation in Luliang uplift in Junggar basin[J]. Xinjiang Petroleum Geology, 2012, 33(3):277-279.
[9]	戴金星. 中国煤成大气田及气源[M]. 北京: 科学出版社, 2014:266-285.
	DAI Jinxing. Giant coal derived gas fields and their gas source in China[M]. Beijing: Science Press, 2014:266-285.
[10]	胡自龙, 卞保力, 刘海磊, 等. 准噶尔盆地大井地区天然气成因、来源与成藏过程[J]. 天然气地球科学, 2019, 30(6):850-859.
	HU Zilong, BIAN Baoli, LIU Hailei, et al. Genetic types,origins and accumulation process of natural gases from Dajing area,Junggar basin[J]. Natural Gas Geoscience, 2019, 30(6):850-859.
[11]	GONG D Y, LI J Y, Ablimit. IMIN, et al. Geochemical characteristics of natural gases related to Late Paleozoic coal measures in China[J]. Marine and Petroleum Geology, 2018, 96:474-500. doi: 10.1016/j.marpetgeo.2018.06.017
[12]	李林, 陈世家, 杨迪生, 等. 准噶尔盆地滴水泉凹陷石炭系烃源岩生烃能力分析[J]. 中国石油大学学报(自然科学版), 2013, 37 (4):52-58.
	LI Lin, CHEN Shijia, YANG Disheng, et al. Hydrocarbon generation capacity analysis of Carboniferous source rocks in Dishuiquan sag of Junggar basin[J]. Journal of China University of Petroleum(Edition of Natural Science), 2013, 37 (4):52-58.
[13]	王屿涛, 陈克迅. 准噶尔盆地东部五彩湾-大井地区生油层特[J]. 新疆石油地质, 1989, 10(1):73-79.
	WANG Yutao, CHEN Kexun. Source characteristics and evaluation of Wucaiwan-Dajing area in eastern Junggar basin[J]. Xinjiang Petroleum Geology, 1989, 10(1):73-79.
[14]	曹倩, 江兴歌, 朱建辉, 等. 准噶尔盆地东部石炭系烃源岩演化模拟[J]. 石油实验地质, 2012, 34(3):314-318.
	CAO Qian, JIANG Xingge, ZHU Jianhui, et al. Source rock evaluation in carboniferous,eastern Junggar basin[J]. Petroleum Geology & Experiment, 2012, 34(3):314-318.
[15]	赵应成, 谭开俊, 王鹏, 等. 准东地区石炭系烃源岩特征及分布规律[J]. 天然气地球科学, 2011, 22(5):753-759.
	ZHAO Yingcheng, TAN Kaijun, WANG Peng, et al. Geochemical characteristics of carboniferous source rock distribution in the eastern part of Junggar basin[J]. Natural Gas Geoscience, 2011, 22(5):753-759.
[16]	王淑芳, 邹才能, 侯连华, 等. 准噶尔盆地东部石炭系火山岩气藏石油地质特征及有利勘探方向分析[J]. 地学前沿, 2013, 20(2):226-236.
	WANG Shufang, ZOU Caineng, HOU Lianhua, et al. Petroleum geological characteristics of accumulation in Carboniferous volcanics and prospect for gas exploration,eastern Junggar basin[J]. Earth Science Frontiers, 2013, 20(2):226-236.
[17]	王绪龙, 支东明, 王屿涛, 等. 准噶尔盆地烃源岩与油气地球化学特征[M]. 北京: 石油工业出版社, 2013.
	WANG Xulong, ZHI Dongming, WANG Yutao, et al. Organic geochemistry of source rocks and hydrocarbons in the Junggar basin[M]. Beijing: Petroleum Industry Press, 2013.
[18]	陈军, 陈静, 李娜, 等. 准噶尔盆地东部石炭系天然气勘探潜力[J]. 天然气地球科学, 2020, 31(7):952-961.
	CHEN Jun, CHEN Jing, LI Na, et al. The exploration potential of Carboniferous natural gas in the eastern Junggar basin[J]. Natural Gas Geoscience, 2020, 31(7):952-961.
[19]	唐勇, 侯章帅, 王霞田, 等. 准噶尔盆地石炭纪—二叠纪地层对比框架新进展[J]. 地质论评, 2002, 68(2):385-407.
	TANG Yong, HOU Zhangshuai, WANG Xiatian, et al. Progress of the Carboniferous and Permian stratigraphic framework and correlation of the Junggar basin,Xinjiang,northwest China[J]. Geological Review, 2002, 68(2):385-407.
[20]	陈业全, 王伟锋. 准噶尔盆地构造演化与油气成藏特征[J]. 石油大学学报(自然科学版), 2004, 28(3):4-8.
	CHEN Yequan, WANG Weifeng. Structural evolution and pool-forming in Junggar basin(Edition of Natural Science)[J]. Journal of the University of Petroleum,China, 2004, 28(3):4-8.
[21]	何登发, 张磊, 吴松涛, 等. 准噶尔盆地构造演化阶段及其特征[J]. 石油与天然气地质, 2018, 39(5):845-861.
	HE Dengfa, ZHANG Lei, WU Songtao, et al. Tectonic evolution stages and features of the Junggar basin[J]. Oil & Gas Geology, 2018, 39(5):845-861.
[22]	张义杰, 齐雪峰, 程显胜, 等. 准噶尔盆地晚石炭世和二叠纪沉积环境[J]. 新疆石油地质, 2007, 28(6):673-675.
	ZHANG Yijie, QI Xuefeng, CHENG Xiansheng, et al. Approach to sedimentary environment of Late Carboniferous-Permian in Junggar basin[J]. Xinjiang Petroleum Geology, 2007, 28(6):673-675.
[23]	沈扬, 李晓剑, 贾凡建, 等. 准噶尔西北缘风城期构造沉积格局及源岩分布[J]. 特种油气藏, 2015, 22(4):16-20.
	SHEN Yang, LI Xiaojian, JIA Fanjian, et al. Structural sedimentary pattern and source rock distribution of Fengcheng formation at north-western margin of the Junggar basin[J]. Special Oil & Gas Reservoirs, 2015, 22(4):16-20.
