玛湖凹陷风城组碱性矿物特征及天然碱测井评价

doi:10.7657/XJPG20230604

新疆石油地质 ›› 2023, Vol. 44 ›› Issue (6): 667-673.doi: 10.7657/XJPG20230604

玛湖凹陷风城组碱性矿物特征及天然碱测井评价

毛锐¹(), 赵磊², 申子明¹, 罗兴平¹, 陈山河¹, 冯程³()

1.中国石油新疆油田分公司勘探开发研究院，新疆克拉玛依 834000
2.中国石油大学（北京）地球物理学院，北京 102249
3.中国石油大学（北京）克拉玛依校区石油学院，新疆克拉玛依 834000

收稿日期:2023-02-03 修回日期:2023-04-06 出版日期:2023-12-01 发布日期:2023-11-29
通讯作者: 冯程（1988-），男，四川遂宁人，教授，博士，测井评价，（Tel）0990-6633524（Email）fcvip0808@126.com
作者简介:毛锐（1989-），男，新疆克拉玛依人，高级工程师，硕士，测井评价，（Tel）0990-6245748（Email）mrui@petrochina.com
基金资助:
国家自然科学基金(42004089);国家自然科学基金(42364007);新疆维吾尔自治区自然科学基金(2021D01E22);克拉玛依市创新环境建设计划（创新人才）项目(20212022hjcxrc0033)

Characteristics of Alkaline Minerals and Logging Evaluation of Trona in Fengcheng Formation of Mahu Sag

MAO Rui¹(), ZHAO Lei², SHEN Ziming¹, LUO Xingping¹, CHEN Shanhe¹, FENG Cheng³()

1. Research Institute of Exploration and Development, Xinjiang Oilfield Company, PetroChina, Karamay, Xinjiang 834000, China
2. School of Geophysics, China University of Petroleum, Beijing 102249, China
3. School of Petroleum, Karamay Campus, China University of Petroleum, Karamay, Xinjiang 834000, China

Received:2023-02-03 Revised:2023-04-06 Online:2023-12-01 Published:2023-11-29

摘要/Abstract

摘要：

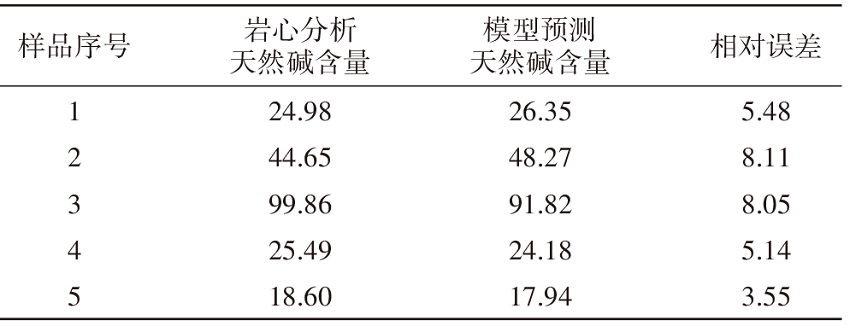

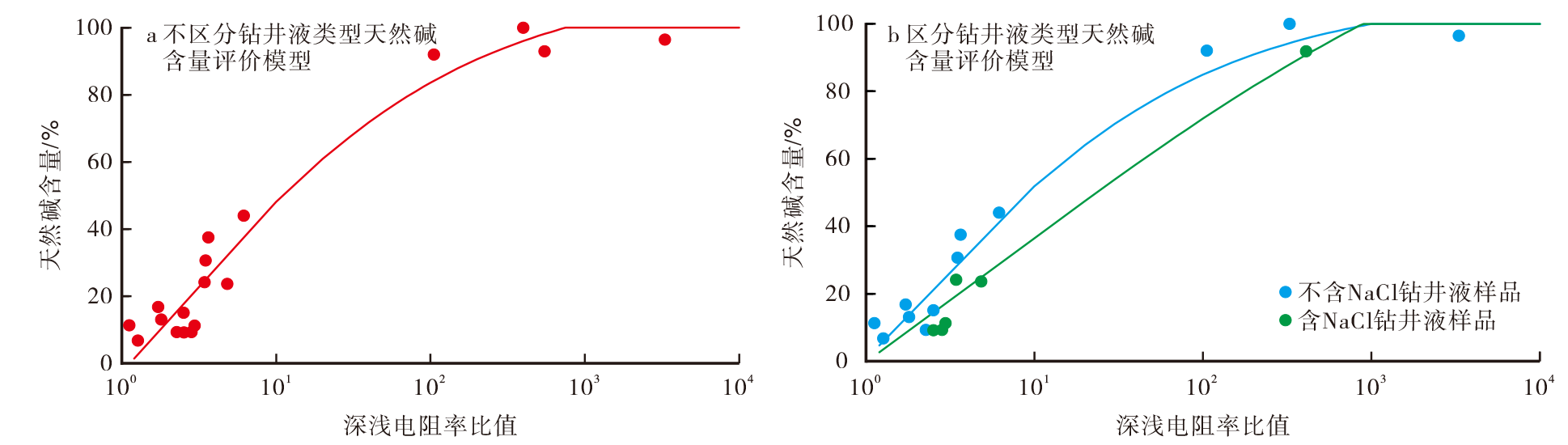

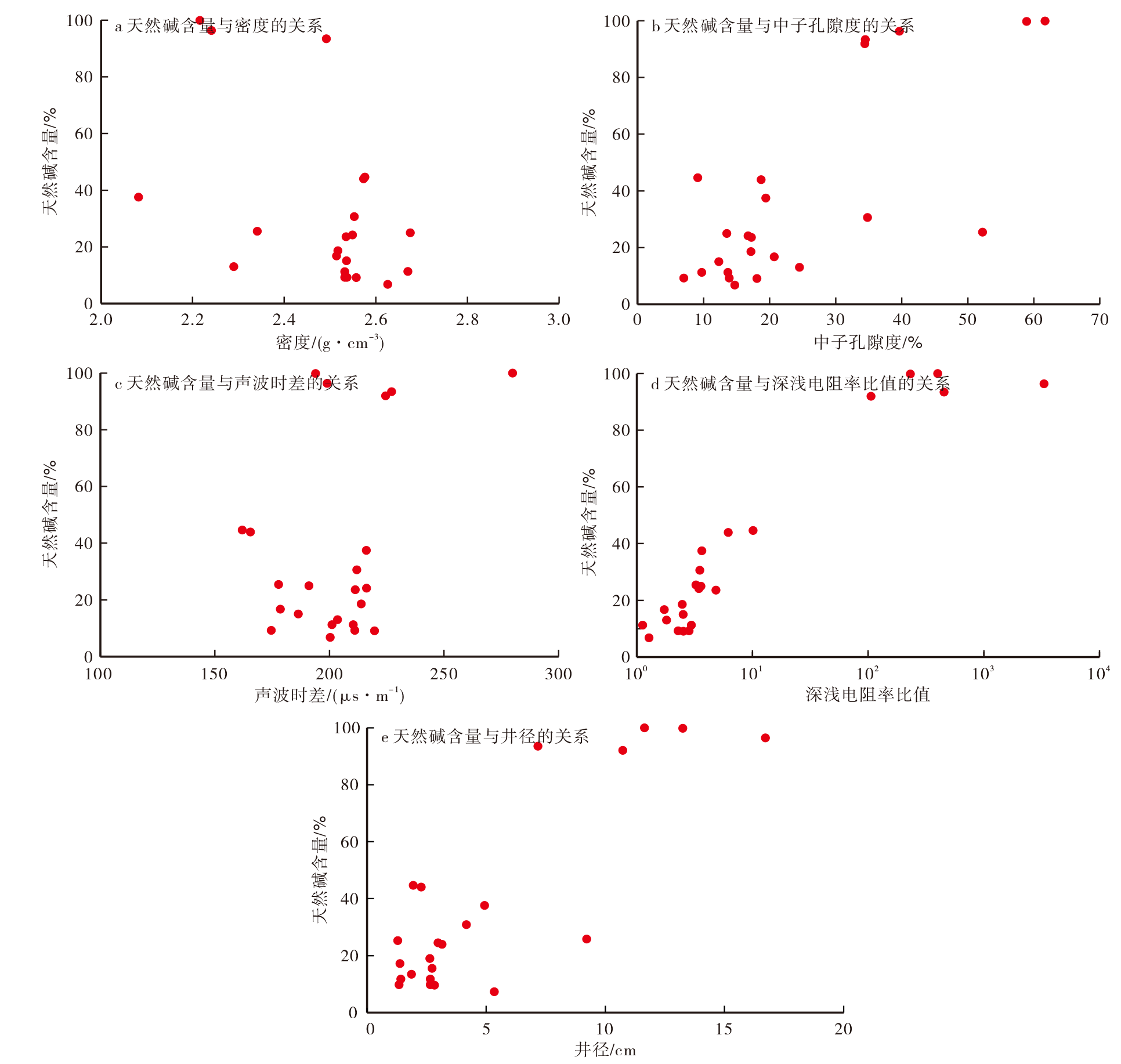

准噶尔盆地玛湖凹陷风城组为碱湖相沉积。靠近碱湖中心发育大量碱性矿物，碱性矿物中天然碱为主要矿物类型，而天然碱作为重要的工业资源具有较大的开发价值。目前，主要采用交会图法对天然碱层段进行定性评价，需要建立天然碱的定量评价方法。根据岩心分析和薄片鉴定资料，结合前人研究成果，将风城组碱性矿物分为天然碱、碳钠钙石、碳钠镁石和硅硼钠石4类，并总结了4类碱性矿物的物理性质以及对储集层物性、含油性的影响。分析了天然碱含量对测井响应特征的影响，并利用深浅电阻率比值建立了天然碱含量预测模型。经过未参与建模的岩心资料的验证，模型预测天然碱含量与岩心分析天然碱含量吻合度较高，平均相对误差为5.67%，满足了矿物含量精确计算的要求。最后，基于11口井的天然碱测井评价结果，明确了玛湖凹陷风城组天然碱分布。研究成果可为天然碱资源评价提供理论和技术支撑。

关键词: 玛湖凹陷, 风城组, 碱性矿物, 测井响应特征, 天然碱, 测井评价, 物性, 含油性

Abstract:

The Fengcheng formation of the Mahu sag in the Junggar basin is primarily composed of alkaline lake sediments. A large number of alkaline minerals are developed near the center of the alkaline lake. As a major type in these alkaline minerals, trona is an important industrial resource worthy of development. Currently, the trona intervals are mainly qualitatively evaluated by using the crossplot method, and a quantitative evaluation method is required. Based on core analysis and thin-section identification on alkaline minerals, together with previous research findings, the alkaline minerals in the Fengcheng formation are classified into four categories: trona, shortite; huntite, and searlesite, and their physical properties and impacts on both reservoir properties and oil-bearing property are identified. The influence of trona content on logging responses is analyzed, and a predictive model for trona content is developed by using the deep-to-shallow resistivity ratio. Core data uninvolved in the modeling are used for verifying the predictive model. It is found that the trona content predicted by the model and the trona content measured in the sample are in good agreement, with an average relative error of 5.67%, meeting the requirements for precise mineral content calculations. Finally, based on the logging evaluation results of trona content from eleven wells, the distribution of trona in the Fengcheng formation is clarified. The research results may provide a theoretical and technical support for trona resource evaluation.

Key words: Mahu sag, Fengcheng formation, alkaline mineral, logging response, trona, logging evaluation, physical property, oil-bearing Property

中图分类号:

P631

毛锐, 赵磊, 申子明, 罗兴平, 陈山河, 冯程. 玛湖凹陷风城组碱性矿物特征及天然碱测井评价[J]. 新疆石油地质, 2023, 44(6): 667-673.

MAO Rui, ZHAO Lei, SHEN Ziming, LUO Xingping, CHEN Shanhe, FENG Cheng. Characteristics of Alkaline Minerals and Logging Evaluation of Trona in Fengcheng Formation of Mahu Sag[J]. Xinjiang Petroleum Geology, 2023, 44(6): 667-673.

图/表 9

图1

图2

表1

图3

图4

图5

表2

图6

图7

参考文献 23

[1]	王家枢. 国外碱矿床简介[J]. 化工地质, 1980, 2(1):49-61.
	WANG Jiashu. Brief introduction of alkali deposits abroad[J]. Geology of Chemical Minerals, 1980, 2(1):49-61.
[2]	陈建立. 泌阳凹陷碱矿床地质特征、成因及成矿预测:以安棚碱矿床为例[J]. 地质找矿论丛, 2013, 28(3):393-400.
	CHEN Jianli. Geological characteristics,genesis and ore prediction of natural soda deposit in Biyang depression:Taking Anpeng trona deposit as an example[J]. Contributions to Geology and Mineral Resources Research, 2013, 28(3):393-400.
[3]	陈小军, 罗顺社, 张建坤, 等. 安棚地区天然碱矿沉积特征及成因研究[J]. 沉积与特提斯地质, 2009, 29(3):42-46.
	CHEN Xiaojun, LUO Shunshe, ZHANG Jiankun, et al. Deposition and genesis of the trona deposits in the Anpeng region,Henan[J]. Sedimentary Geology and Tethyan Geology, 2009, 29(3):42-46.
[4]	柴茂嘉, 王超. 测井综合解释技术在碱矿勘查中的应用[J]. 中州煤炭, 2012, 34(5):33-36.
	CHAI Maojia, WANG Chao. Application of comprehensive interpretation via log data in alkali ore exploration[J]. Zhongzhou Coal, 2012, 34(5):33-36.
[5]	王力宝, 厚刚福, 卞保力, 等. 现代碱湖对玛湖凹陷风城组沉积环境的启示[J]. 沉积学报, 2020, 38(5):913-922.
	WANG Libao, HOU Gangfu, BIAN Baoli, et al. The role of modern alkaline lakes in explaining the sedimentary environment of the Fengcheng formation,Mahu depression[J]. Acta Sedimentologica Sinica, 2020, 38(5):913-922.
[6]	曹剑, 雷德文, 李玉文, 等. 古老碱湖优质烃源岩:准噶尔盆地下二叠统风城组[J]. 石油学报, 2015, 36(7):781-790. doi: 10.7623/syxb201507002
	CAO Jian, LEI Dewen, LI Yuwen, et al. Ancient high-quality alkaline lacustrine source rocks discovered in the Lower Permian Fengcheng formation,Junggar basin[J]. Acta Petrolei Sinica, 2015, 36(7):781-790. doi: 10.7623/syxb201507002
[7]	毛锐, 申子明, 张浩, 等. 基于岩性扫描测井的混积岩岩性识别:以玛湖凹陷风城组为例[J]. 新疆石油地质, 2022, 43(6):743-749.
	MAO Rui, SHEN Ziming, ZHANG Hao, et al. Lithology identification for diamictite based on lithology scan logging:A case study on Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):743-749.
[8]	张志杰, 袁选俊, 汪梦诗, 等. 准噶尔盆地玛湖凹陷二叠系风城组碱湖沉积特征与古环境演化[J]. 石油勘探与开发, 2018, 45(6):972-984. doi: 10.11698/PED.2018.06.05
	ZHANG Zhijie, YUAN Xuanjun, WANG Mengshi, et al. Alkaline-lacustrine deposition and paleoenvironmental evolution in Permian Fengcheng formation at the Mahu sag,Junggar basin,NW China[J]. Petroleum Exploration and Development, 2018, 45(6):972-984.
[9]	余宽宏, 操应长, 邱隆伟, 等. 准噶尔盆地玛湖凹陷下二叠统风城组含碱层段韵律特征及成因[J]. 古地理学报, 2016, 18(6):1012-1029.
	YU Kuanhong, CAO Yingchang, QIU Longwei, et al. Characteristics of alkaline layer cycles and origin of the Lower Permian Fengcheng formation in Mahu sag,Junggar basin[J]. Journal of Palaeogeography, 2016, 18(6):1012-1029.
[10]	李威, 张元元, 倪敏婕, 等. 准噶尔盆地玛湖凹陷下二叠统古老碱湖成因探究:来自全球碱湖沉积的启示[J]. 地质学报, 2020, 94(6):1839-1852.
	LI Wei, ZHANG Yuanyuan, NI Minjie, et al. Genesis of alkaline lacustrine deposits in the Lower Permian Fengcheng formation of the Mahu sag,northwestern Junggar basin:Insights from a comparison with the worldwide alkaline lacustrine deposits[J]. Acta Geologica Sinica, 2020, 94(6):1839-1852.
[11]	何海清, 唐勇, 邹志文, 等. 准噶尔盆地中央坳陷西部风城组岩相古地理及油气勘探[J]. 新疆石油地质, 2022, 43(6):640-653.
	HE Haiqing, TANG Yong, ZOU Zhiwen, et al. Lithofacies paleogeography and petroleum exploration of Fengcheng formation in western Central depression of Junggar basin[J]. Xinjiang Petroleum Geology, 2022, 43(6):640-653.
[12]	蒋宜勤, 文华国, 祁利祺, 等. 准噶尔盆地乌尔禾地区二叠系风城组盐类矿物和成因分析[J]. 矿物岩石, 2012, 32(2):105-114.
	JIANG Yiqin, WEN Huaguo, QI Liqi, et al. Salt minerals and their genesis of the Permian Fengcheng formation in Urho area,Junggar basin[J]. Journal of Mineralogy and Petrology, 2012, 32(2):105-114.
[13]	唐勇, 郑孟林, 王霞田, 等. 准噶尔盆地玛湖凹陷风城组烃源岩沉积古环境[J]. 天然气地球科学, 2022, 33(5):677-692.
	ZHENG Menglin, WANG Xiatian, et al. Sedimentary paleoenvironment of source rocks of Fengcheng formation in Mahu sag,Junggar basin[J]. Natural Gas Geoscience, 2022, 33(5):677-692.
[14]	秦志军, 陈丽华, 李玉文, 等. 准噶尔盆地玛湖凹陷下二叠统风城组碱湖古沉积背景[J]. 新疆石油地质, 2016, 37(1):1-6.
	QIN Zhijun, CHEN Lihua, LI Yuwen, et al. Paleo-sedimentary setting of the Lower Permian Fengcheng alkali lake in Mahu sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2016, 37(1):1-6.
[15]	杜世涛, 廖清志, 黄传松, 等. 准噶尔盆地侏罗系页岩气地质特征及勘探潜力区识别[J]. 非常规油气, 2022, 9(5):43-50.
	DU Shitao, LIAO Qingzhi, HUANG Chuansong, et al. Geological characteristics of Jurassic shale gas and identification of potential exploration areas in Junggar basin[J]. Unconventional Oil & Gas, 2022, 9(5):43-50.
[16]	张元元, 李威, 唐文斌. 玛湖凹陷风城组碱湖烃源岩发育的构造背景和形成环境[J]. 新疆石油地质, 2018, 39(1):48-54.
	ZHANG Yuanyuan, LI Wei, TANG Wenbin. Tectonic setting and environment of alkaline lacustrine source rocks in the Lower Permian Fengcheng formation of Mahu sag[J]. Xinjiang Petroleum Geology, 2018, 39(1):48-54.
[17]	杨清堂. 我国首次发现的碳氢钠石[J]. 岩石矿物学杂志, 1987, 6(1):87-91.
	YANG Qingtang. Wegscheiderite (Na₂CO₃·3NaHCO₃),a saline mineral,first found in China[J]. Acta Petrologica et Mineralogica, 1987, 6(1):87-91.
[18]	LARSEN E S, HICKS W B. Searlesite,a new mineral[J]. Journal of the Washington Academy of Sciences, 1914, 4(14):397-398.
[19]	李玉堂, 袁标, 刘成林, 等. 国内水硅硼钠石的首次发现[J]. 岩石矿物学杂志, 1990, 9(2):170-174.
	LI Yutang, YUAN Biao, LIU Chenglin, et al. Searlesite discovered for the first time in China[J]. Acta Petrologica et Mineralogica, 1990, 9(2):170-174.
[20]	孙玉善. 我国西部地区首次发现硅硼钠石[J]. 新疆石油地质, 1992, 13(4):320-321.
	SUN Yushan. The first discovery of dawsonite in western China[J]. Xinjiang Petroleum Geology, 1992, 13(4):320-321.
[21]	王小军, 王婷婷, 曹剑. 玛湖凹陷风城组碱湖烃源岩基本特征及其高效生烃[J]. 新疆石油地质, 2018, 39(1):9-15.
	WANG Xiaojun, WANG Tingting, CAO Jian. Basic characteristics and highly efficient hydrocarbon generation of alkaline lacustrine source rocks in Fengcheng formation of Mahu sag[J]. Xinjiang Petroleum Geology, 2018, 39(1):9-15.
[22]	宇振昆. 准噶尔盆地玛湖凹陷二叠系风城组碱湖成岩作用及其对油气的影响[D]. 西安: 长安大学, 2021.
	YU Zhenkun. Alkaline lake diagenesis and its influence on oil and gas of the Permian Fengcheng formation in the Mahu depression, Junggar basin,China[D]. Xi’an: Chang’an University, 2021.
[23]	田孝茹, 张元元, 卓勤功, 等. 准噶尔盆地玛湖凹陷下二叠统风城组致密油充注特征:碱性矿物中的流体包裹体证据[J]. 石油学报, 2019, 40(6):646-659. doi: 10.7623/syxb201906002
	TIAN Xiaoru, ZHANG Yuanyuan, ZHUO Qingong, et al. Tight oil charging characteristics of the Lower Permian Fengcheng formation in Mahu sag,Junggar basin:Evidence from fluid inclusions in alkaline minerals[J]. Acta Petrolei Sinica, 2019, 40(6):646-659. doi: 10.7623/syxb201906002
