考虑封存机理的低渗透油藏CO2驱油与封存注采参数敏感性分析

doi:10.7657/XJPG20240610

摘要/Abstract

摘要：

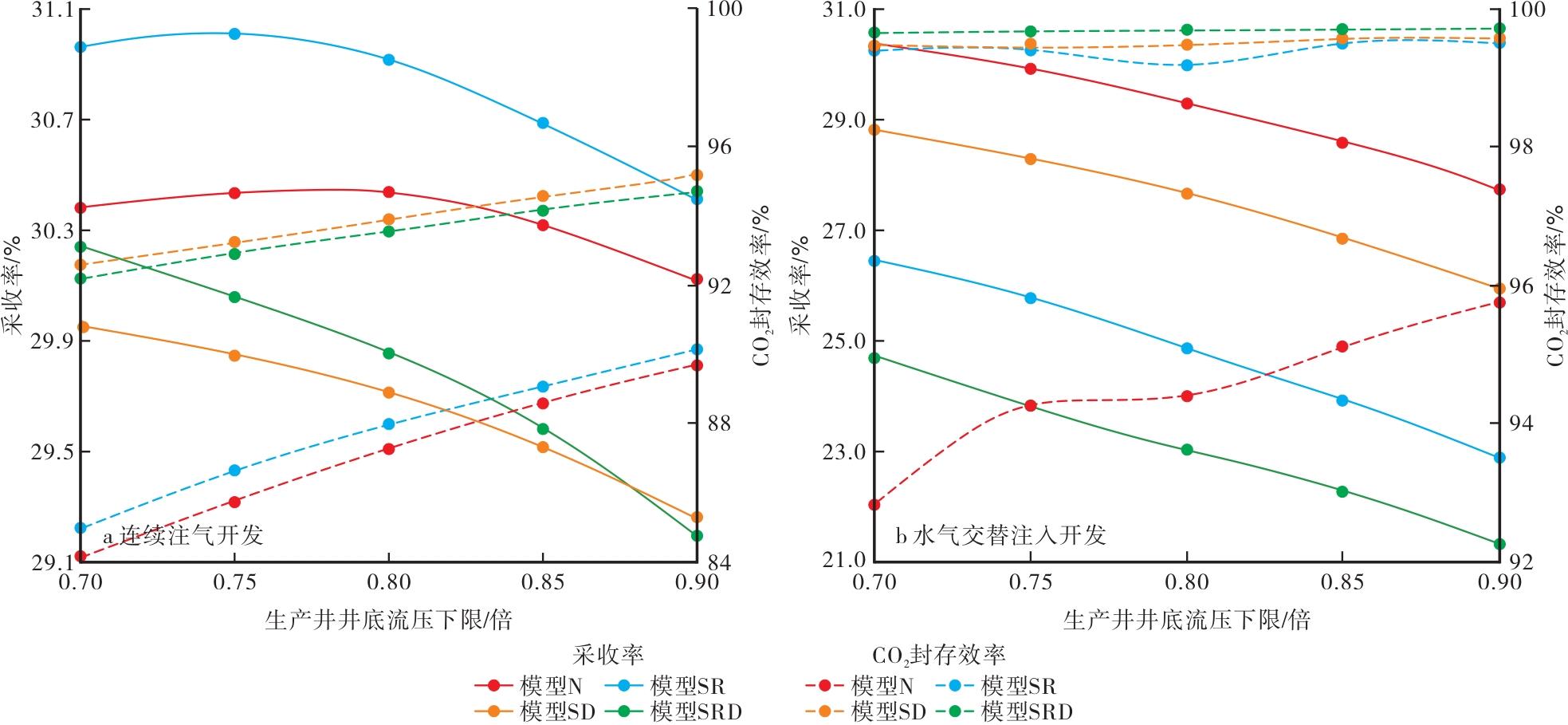

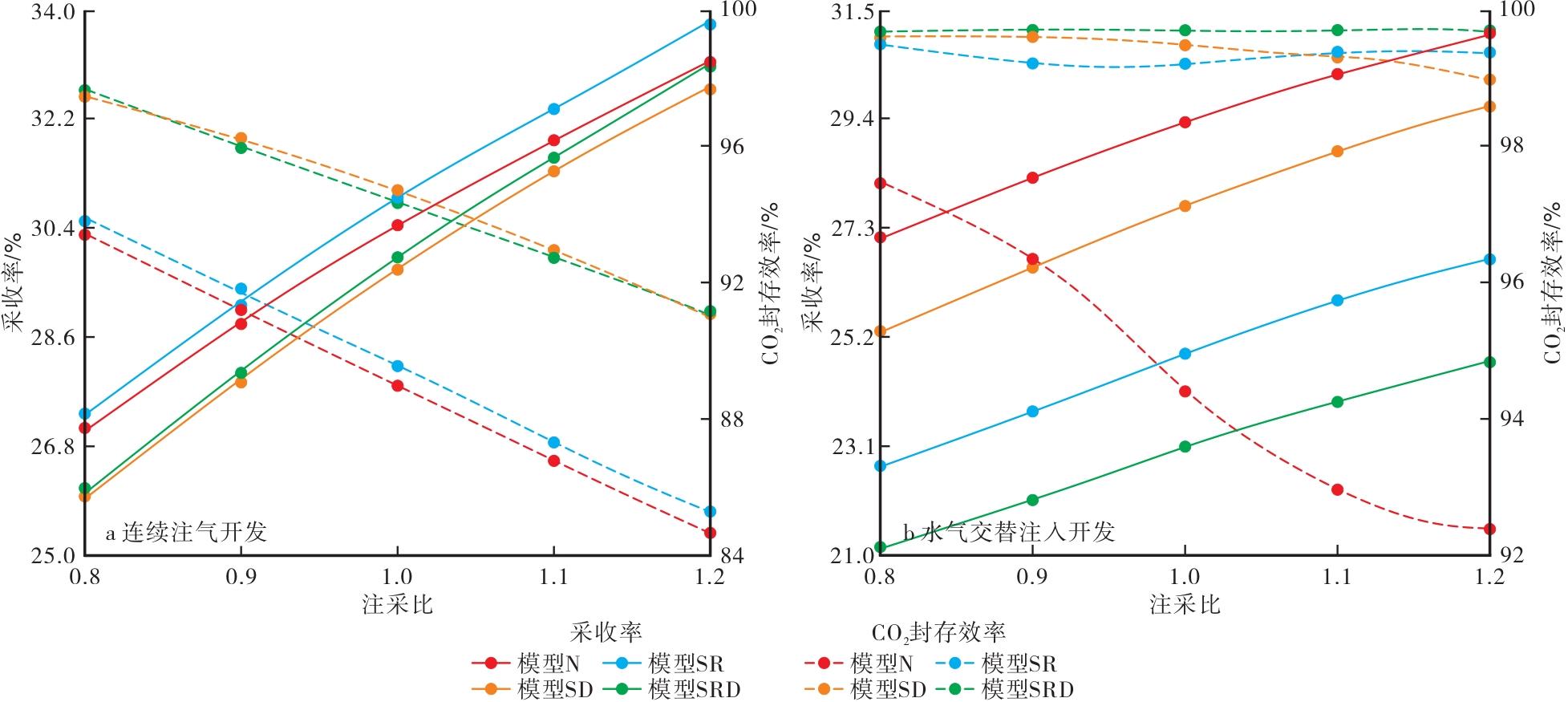

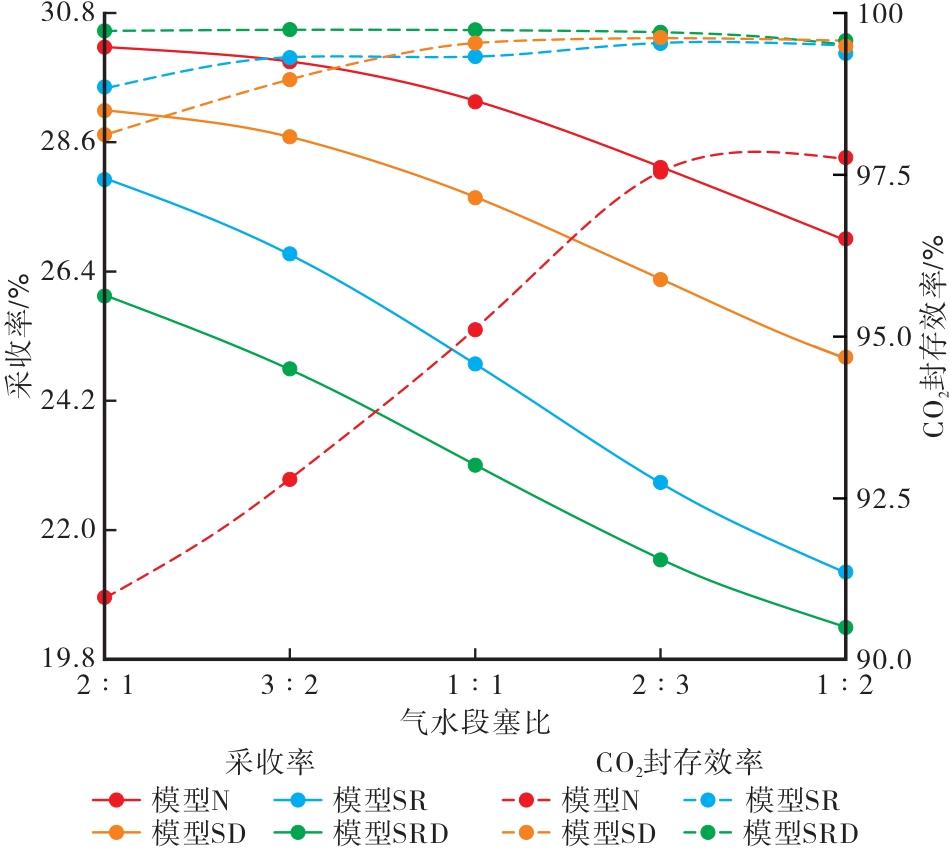

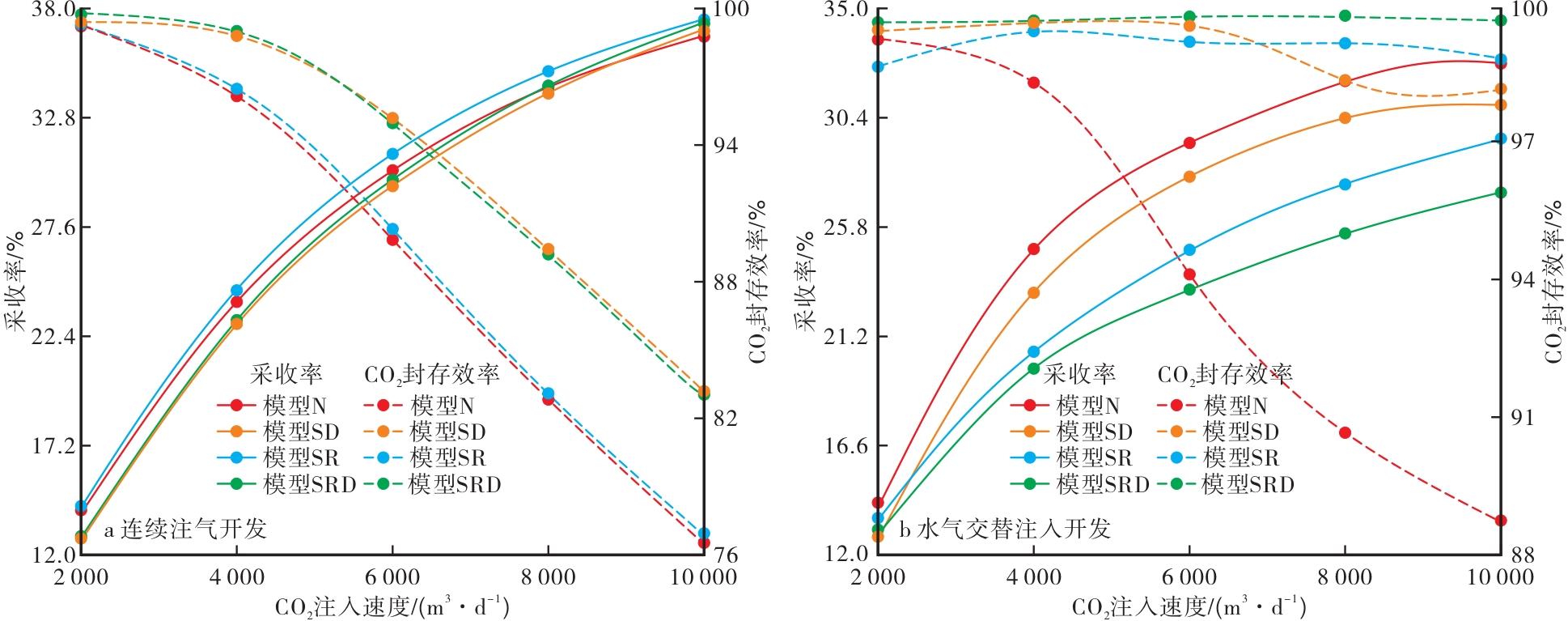

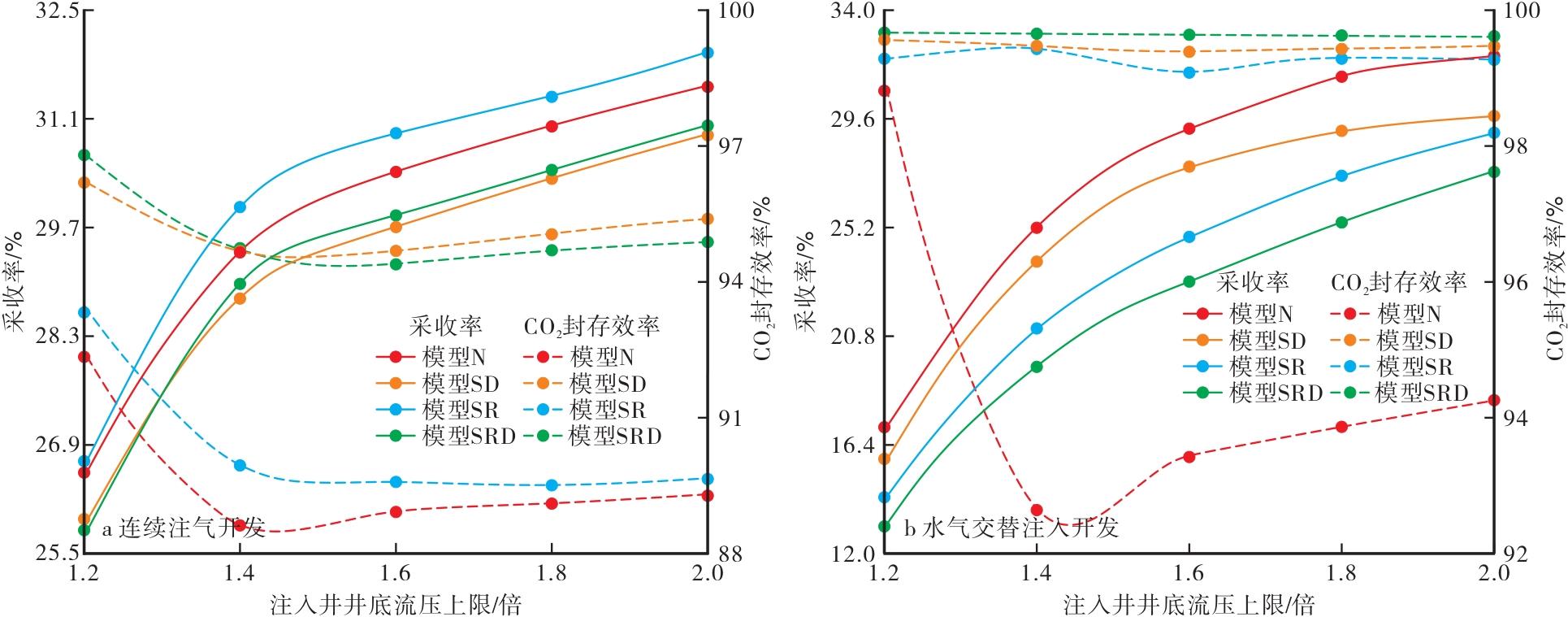

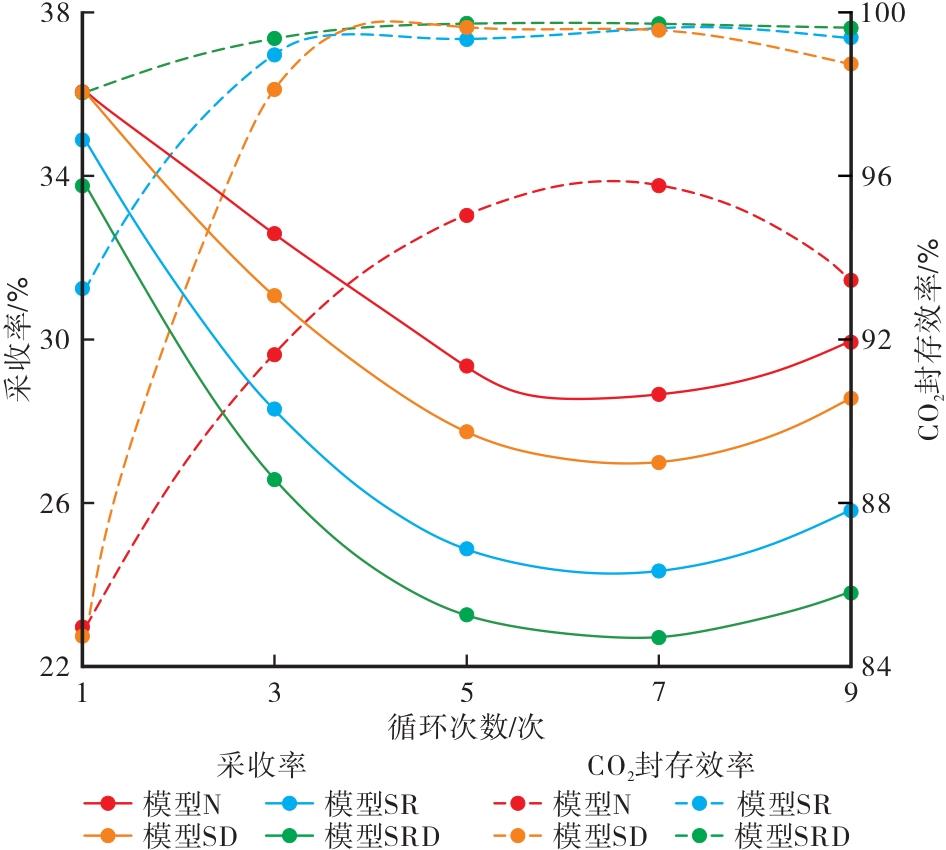

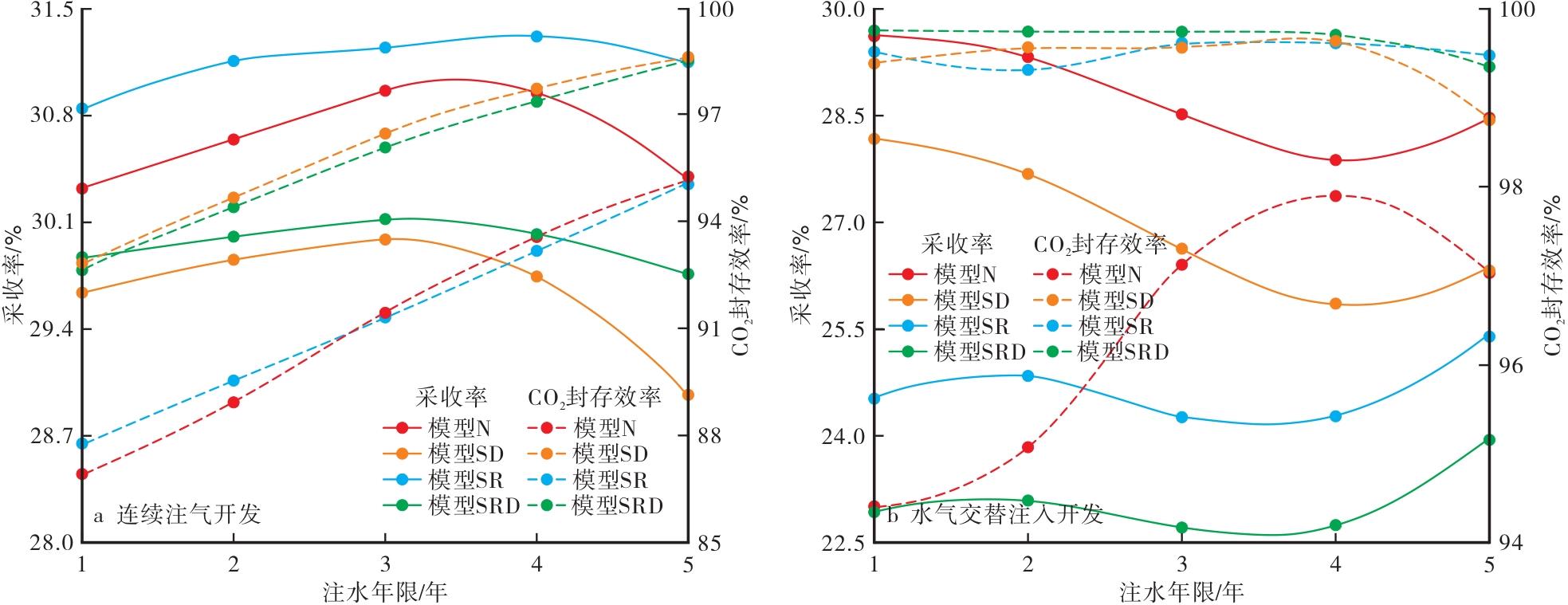

低渗透油藏采用CO₂驱油，既可以提高油气采收率，又能实现CO₂地质封存。基于CO₂封存机理，采用数值模拟方法，建立了考虑CO₂构造封存、束缚封存和溶解封存的驱油与封存机理模型，研究在连续注气开发和水气交替注入开发下，不同注采参数（注水年限、CO₂注入速度、注采比、生产井井底流压下限、注入井井底流压上限、循环次数和气水段塞比）对低渗透油藏CO₂驱油采收率与CO₂封存效率的敏感性。结果表明：CO₂封存机理会对CO₂驱油以及CO₂封存造成很大的影响。连续注气开发时，CO₂束缚封存有利于驱油，但对CO₂封存影响不大；CO₂溶解封存不利于CO₂驱油，但是有利于CO₂封存。水气交替注入开发时，CO₂封存机理不利于CO₂驱油，但是对CO₂封存有促进作用。研究结果可揭示不同CO₂注入方式下，封存机理对驱油与封存的影响规律。

关键词: 低渗透油藏, CO₂驱油, CO₂封存, 封存机理, 连续注气开发, 水气交替注入开发, 提高采收率, 数值模拟

Abstract:

In low-permeability reservoirs, CO₂ flooding can enhance oil recovery and achieve CO₂ geological storage. Based on the CO₂ storage mechanisms, by using a numerical simulation method, a CO₂ EOR and storage model considering CO₂ structural storage, residual storage, and dissolution storage mechanisms was established. This model was used to analyze the sensitivity of injection-production parameters (e.g. water injection period, CO₂ injection rate, injection-production ratio, lower limit of bottomhole flowing pressure in production wells, upper limit of bottomhole flowing pressure in injection wells, number of cycles, and gas-to-water slug ratio) on CO₂ EOR and CO₂ storage efficiency in low-permeability reservoirs under continuous gas injection and water-alternating-gas (WAG) injection modes. The results demonstrate that CO₂ storage mechanisms have significant impacts on both CO₂ EOR and CO₂ storage. Under the mode of continuous gas injection, CO₂ residual storage aids CO₂ EOR but has minimal effect on CO₂ storage, while dissolution storage hinders CO₂ EOR but benefits CO₂ storage. Under the mode of WAG injection, the storage mechanisms are less favorable for CO₂ EOR but promote CO₂ storage. These findings reveal the influences of storage mechanisms on CO₂ EOR and storage under different injection modes.

Key words: low-permeability reservoir, CO₂ EOR, CO₂ storage, storage mechanism, continuous gas injection, WAG injection, enhanced oil recovery, numerical simulation

中图分类号:

TE348
TE357

李远铎, 丁帅伟, 张蒙, 许川, 樊纹宇, 屈传超. 考虑封存机理的低渗透油藏CO₂驱油与封存注采参数敏感性分析[J]. 新疆石油地质, 2024, 45(6): 711-718.

LI Yuanduo, DING Shuaiwei, ZHANG Meng, XU Chuan, FAN Wenyu, QU Chuanchao. Sensitivity Analysis on Injection-Production Parameters for CO₂ EOR and Storage in Low-Permeability Reservoirs Considering Storage Mechanism[J]. Xinjiang Petroleum Geology, 2024, 45(6): 711-718.

图/表 10

表1

表2

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 33

[1]	胡文瑞, 魏漪, 鲍敬伟. 中国低渗透油气藏开发理论与技术进展[J]. 石油勘探与开发, 2018, 45(4):646-656. doi: 10.11698/PED.2018.04.10
	HU Wenrui, WEI Yi, BAO Jingwei. Development of the theory and technology for low permeability reservoirs in China[J]. Petroleum Exploration and Development, 2018, 45(4):646-656.
[2]	魏一鸣, 余碧莹, 唐葆君, 等. 中国碳达峰碳中和时间表与路线图研究[J]. 北京理工大学学报(社会科学版), 2022, 24(4):13-26.
	WEI Yiming, YU Biying, TANG Baojun, et al. Roadmap for achieving China’s carbon peak and carbon neutrality pathway[J]. Journal of Beijing Institute of Technology(Social Sciences Edition), 2022, 24(4):13-26.
[3]	魏一鸣, 余碧莹, 唐葆君, 等. 中国碳达峰碳中和路径优化方法[J]. 北京理工大学学报(社会科学版), 2022, 24(4):1-12.
	WEI Yiming, YU Biying, TANG Baojun, et al. Optimization method for China’s carbon peak and carbon neutrality roadmap[J]. Journal of Beijing Institute of Technology(Social Sciences Edition), 2022, 24(4):1-12.
[4]	常毓文, 冯乃超. “双碳”目标下油气行业发展对策[J]. 新疆石油地质, 2022, 43(2):235-240.
	CHANG Yuwen, FENG Naichao. Development countermeasures for oil and gas industry under the background of “Carbon Peaking and Carbon Neutrality”[J]. Xinjiang Petroleum Geology, 2022, 43(2):235-240.
[5]	康宇龙, 汪心雯, 李超跃, 等. 化子坪长6储层长岩心CO₂驱替实验及数值模拟评价[J]. 地球学报, 2024, 45(2):243-251.
	KANG Yulong, WANG Xinwen, LI Chaoyue, et al. Long core testing and numerical simulation investigations of CO₂-EOR and geological storage in the 6^th section of the Yanchang formation in the Huaziping oil reservoir[J]. Acta Geoscientica Sinica, 2024, 45(2):243-251.
[6]	丁帅伟, 张蒙, 李远铎, 等. 致密油藏CO₂吞吐驱油和封存注采参数敏感性分析:以鄂尔多斯盆地延长组长7段致密油藏典型储集层为例[J]. 新疆石油地质, 2024, 45(2):181-188.
	DING Shuaiwei, ZHANG Meng, LI Yuanduo, et al. Sensitivity analysis of injection-production parameters for CO₂ huff-n-puff flooding and storage in tight oil reservoirs:A case from typical tight reservoirs of Chang 7 member,Ordos basin[J]. Xinjiang Petroleum Geology, 2024, 45(2):181-188.
[7]	郭红强, 杜敏, 姚健, 等. 延长低渗透油藏CO₂驱油参数优化数值模拟研究[J]. 非常规油气, 2024, 11(1):78-84.
	GUO Hongqiang, DU Min, YAO Jian, et al. Numerical simulation study on optimization of CO₂ flooding parameters in Yanchang low permeability reservoir[J]. Unconventional Oil & Gas, 2024, 11(1):78-84.
[8]	罗亚南, 蒋坤卿, 黄思浩, 等. 地热水回灌耦合CO₂地质封存数值模拟[J]. 新能源进展, 2024, 12(3):313-322.
	LUO Yanan, JIANG Kunqing, HUANG Sihao, et al. Numerical simulation of geothermal water recharge coupled with CO₂ geological storage[J]. Advances in New and Renewable Energy, 2024, 12(3):313-322.
[9]	MALIK Q M, ISLAM M R. CO₂ injection in the Weyburn field of Canada:Optimization of enhanced oil recovery and greenhouse gas storage with horizontal wells[R]. SPE 59327,2000.
[10]	郭朝斌, 张可霓, 鲁维丰, 等. 滞后现象对CO₂深部咸水层地质封存的影响[J]. 水文地质工程地质, 2014, 41(2):91-97.
	GUO Chaobin, ZHANG Keni, LU Weifeng, et al. Influence of hysteretic phenomena on the process of CO₂ injection into deep saline aquifers[J]. Hydrogeology & Engineering Geology, 2014, 41(2):91-97.
[11]	KALRA S, TIAN Wei, WU Xingru. A numerical simulation study of CO₂ injection for enhancing hydrocarbon recovery and sequestration in liquid-rich shales[J]. Petroleum Science, 2018, 15(1):103-115.
[12]	陈秀林, 王秀宇, 许昌民, 等. 基于核磁共振与微观数值模拟的CO₂埋存形态及分布特征研究[J]. 油气藏评价与开发, 2023, 13(3):296-304.
	CHEN Xiulin, WANG Xiuyu, XU Changmin, et al. CO₂ sequestration morphology and distribution characteristics based on NMR technology and microscopic numerical simulation[J]. Petroleum Reservoir Evaluation and Development, 2023, 13(3):296-304.
[13]	罗瑜, 母若愚, 张婷婷, 等. 罗家寨气田CO₂地质封存数值模拟研究[J]. 新能源进展, 2024, 12(2):201-208.
	LUO Yu, MU Ruoyu, ZHANG Tingting, et al. Numerical simulation of CO₂ geological storage in Luojiazhai gas reservoir[J]. Advances in New and Renewable Energy, 2024, 12(2):201-208.
[14]	宗师, 刘世奇, 徐辉, 等. 苏北盆地层状盐穴储气库CO₂封存数值模拟研究[J]. 煤田地质与勘探, 2023, 51(3):27-36.
	ZONG Shi, LIU Shiqi, XU Hui, et al. Numerical simulation of CO₂ storage in bedded salt rock storage cavern in Subei basin[J]. Coal Geology & Exploration, 2023, 51(3):27-36.
[15]	李兆敏, 孙晓娜, 鹿腾, 等. 二氧化碳在毛8块稠油油藏热采中的作用机理[J]. 特种油气藏, 2013, 20(5):122-124.
	LI Zhaomin, SUN Xiaona, LU Teng, et al. Study on CO₂ mechanism in heavy oil thermal recovery for the Mao 8 block[J]. Special Oil & Gas Reservoirs, 2013, 20(5):122-124.
[16]	鞠斌山, 于金彪, 吕广忠, 等. 低渗透油藏CO₂驱油数值模拟方法与应用[J]. 油气地质与采收率, 2020, 27(1):126-133.
	JU Binshan, YU Jinbiao, LÜ Guangzhong, et al. Numerical simulation method and application of CO₂ flooding in low permeability reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(1):126-133.
[17]	黄磊, 贾英, 全一平, 等. CO₂驱替沥青质原油长岩芯实验及数值模拟[J]. 西南石油大学学报(自然科学版), 2012, 34(4):135-140.
	HUANG Lei, JIA Ying, QUAN Yiping, et al. The long core experiment and numerical simulation research on asphaltic oil with CO₂ flooding[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2012, 34(4):135-140.
[18]	程丽平, 易建新, 李迪迪, 等. 盐水层中注水促进超临界CO₂溶解的数值模拟[J]. 安全与环境学报, 2017, 17(1):309-314.
	CHENG Liping, YI Jianxin, LI Didi, et al. Numerical study for enhancing the dissolution of the supercritical CO₂ by water injection into the saline aquifer[J]. Journal of Safety and Environment, 2017, 17(1):309-314.
[19]	张莉. 中国石化东部老油田提高采收率技术进展及攻关方向[J]. 石油与天然气地质, 2022, 43(3):717-723.
	ZHANG Li. Progress and research direction of EOR technology in eastern mature oilfields of Sinopec[J]. Oil & Gas Geology, 2022, 43(3):717-723.
[20]	唐良睿, 贾英, 严谨, 等. 枯竭气藏CO₂埋存潜力计算方法研究[J]. 油气藏评价与开发, 2021, 11(6):858-863.
	TANG Liangrui, JIA Ying, YAN Jin, et al. Study on calculation method of CO₂ storage potential in depleted gas reservoir[J]. Petroleum Reservoir Evaluation and Development, 2021, 11(6):858-863.
[21]	刘旭东, 桑树勋, 周效志, 等. 基于煤储层三维非均质地质模型的CO₂-ECBM数值模拟研究[J]. 煤炭学报, 2023, 48(7):2773-2790.
	LIU Xudong, SANG Shuxun, ZHOU Xiaozhi, et al. Numerical simulation of CO₂-ECBM based on 3D heterogenerous geological model[J]. Journal of China Coal Society, 2023, 48(7):2773-2790.
[22]	王长权. 油藏中CO₂驱油与地质埋存机理[D]. 成都: 西南石油大学, 2013.
	WANG Changquan. CO₂ flooding and geological storage mechanism in oil reservoir[D]. Chengdu: Southwest Petroleum University, 2013.
[23]	MACKAY E J. Modelling the injectivity,migration and trapping of CO₂ in carbon capture and storage(CCS)[M]. Woodhead Publishing, 2013.
[24]	SAADATPOOR E, BRYANT S L, SEPEHRNOORI K. New trapping mechanism in carbon sequestration[J]. Transport in Porous Media, 2010, 82(1):3-17.
[25]	ZHANG Yi, KOGURE T, NISHIZAWA O, et al. Different flow behavior between 1-to-1 displacement and co-injection of CO₂ and brine in Berea sandstone:Insights from laboratory experiments with X-ray CT imaging[J]. International Journal of Greenhouse Gas Control, 2017, 66:76-84.
[26]	KILLOUGH J E. Reservoir simulation with history-dependent saturation functions[J]. Society of Petroleum Engineers Journal, 1976, 16(1):37-48.
[27]	AGARTAN E, TREVISAN L, CIHAN A, et al. Experimental study on effects of geologic heterogeneity in enhancing dissolution trapping of supercritical CO₂[J]. Water Resources Research, 2015, 51(3):1635-1648.
[28]	BACHU S, ADAMS J J. Sequestration of CO₂ in geological media in response to climate change:Capacity of deep saline aquifers to sequester CO₂ in solution[J]. Energy Conversion and Management, 2003, 44(20):3151-3175.
[29]	KUMAR A, OZAH R, NOH M, et al. Reservoir simulation of CO₂ storage in deep saline aquifers[J]. SPE Journal, 2005, 10(3):336-348.
[30]	MCGRAIL B P, SCHAEF H T, HO A M, et al. Potential for carbon dioxide sequestration in flood basalts[J]. Journal of Geophysical Research, 2006, 111:B12201.
[31]	ZHANG Liang, REN Shaoran, ZHANG Yin, et al. CO₂ storage in saline aquifers:Design of a demonstration project to dispose CO₂ associated with natural gas fields in South China Sea[R]. SPE 133975-MS, 2010.
[32]	ZHANG Dongxiao, SONG Juan. Mechanisms for geological carbon sequestration[J]. Procedia IUTAM, 2014, 10:319-327.
[33]	KAMALI F, CINAR Y. Co-optimizing enhanced oil recovery and CO₂ storage by simultaneous water and CO₂ injection[J]. Energy Exploration & Exploitation, 2014, 32(2):281-300.

CO₂封存机理	作用机制	表征方法	参数来源
构造封存	气水重力差异	通过PR3方程建立三维油藏组分模拟模型	原油高压物性相态拟合实验
束缚封存	相渗滞后、毛细管力滞后	通过Killough模型建立相渗滞后曲线以及毛细管力滞后曲线	油气水相渗驱替曲线
溶解封存	CO₂溶解、CO₂扩散	通过Duan模型建立CO₂溶解度模型及实验获得CO₂扩散系数	地层水矿化度、CO₂扩散系数实验

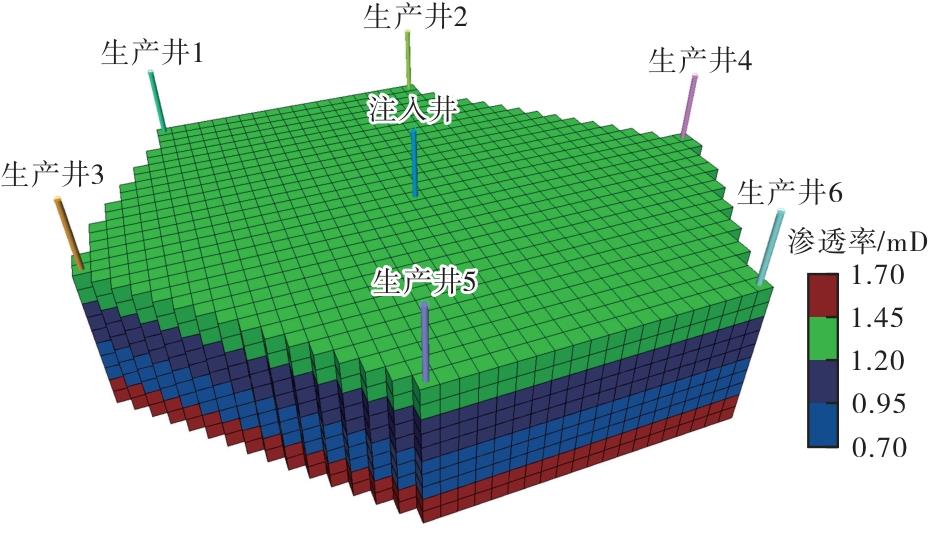

研究区层位	数值模型层位	平均孔隙度/ %	平均渗透率/ mD
长61 2小层	1—2	7.34	1.21
长62 2小层	3—5	6.98	0.90
长63 2小层	6—8	6.94	0.96
长64 2小层	9—10	7.79	1.55
