低渗透底水油藏底部注水方法及应用

doi:10.7657/XJPG20250315

摘要/Abstract

摘要：

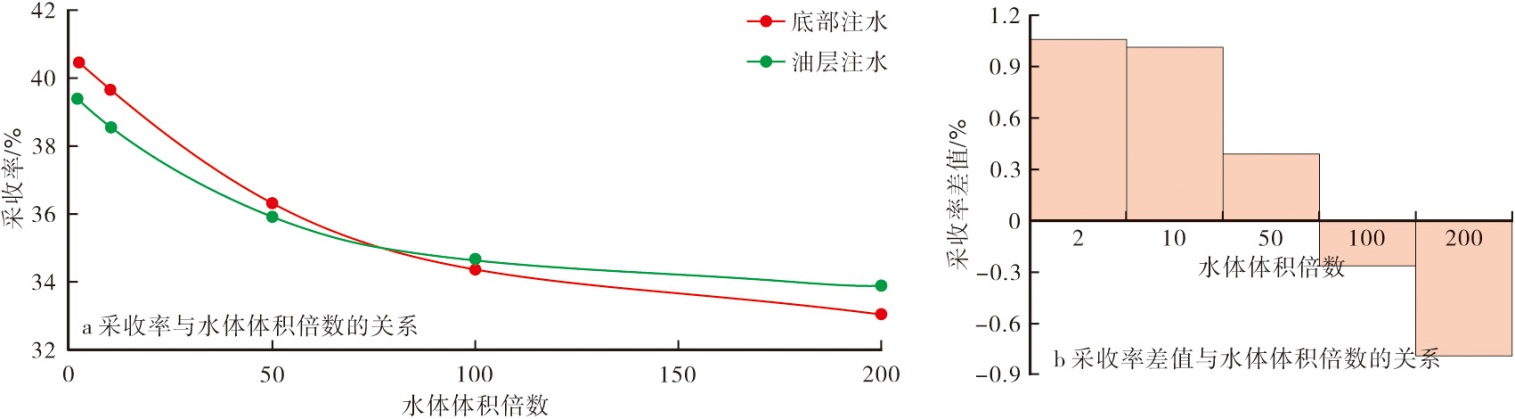

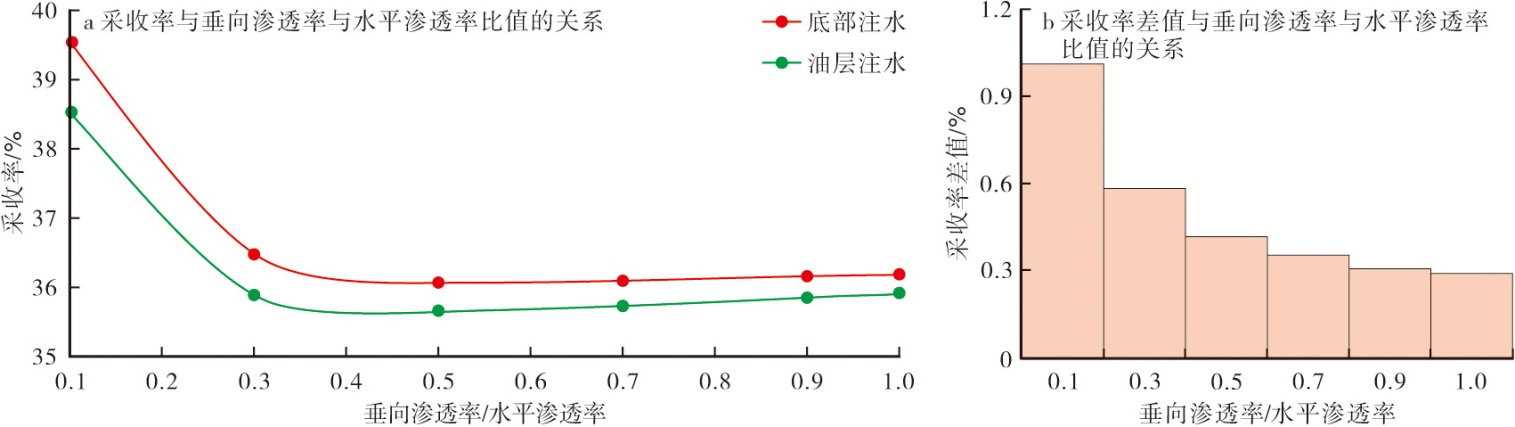

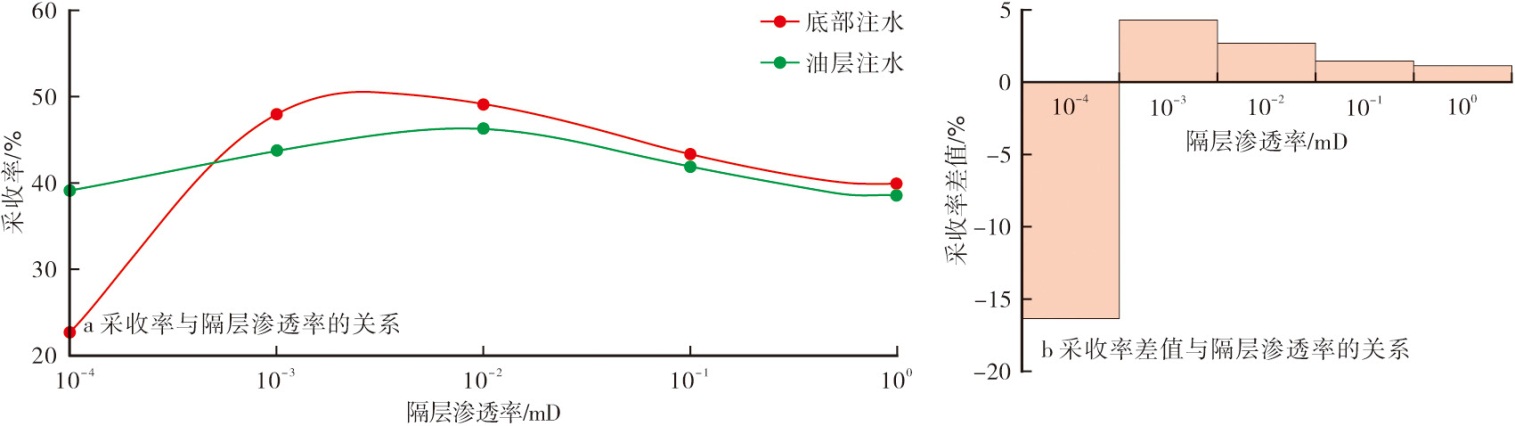

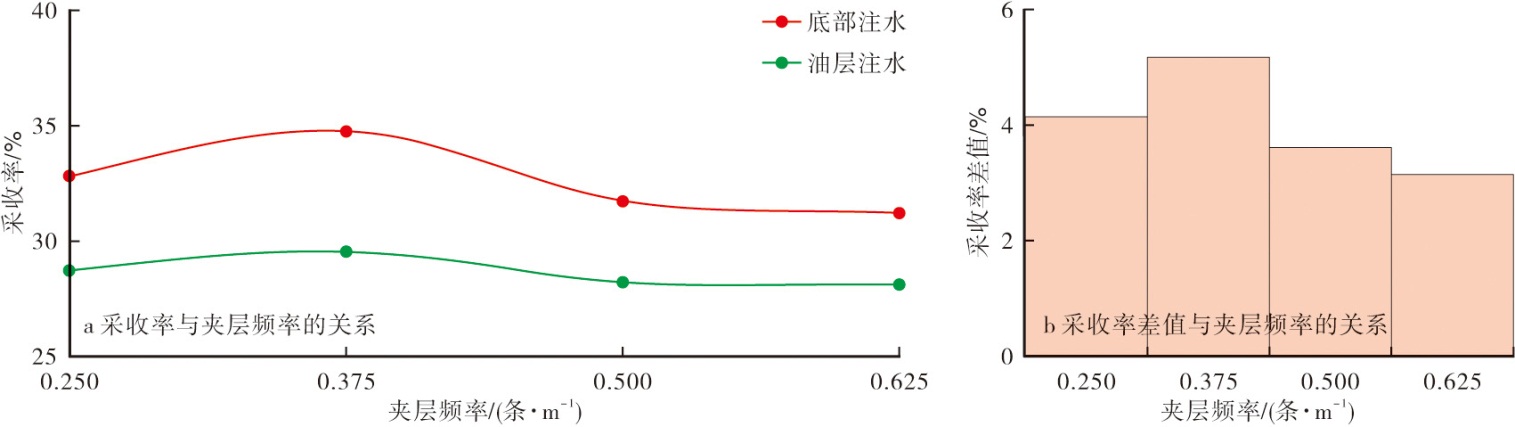

鄂尔多斯盆地侏罗系底水油藏天然能量不足、压力系数低、渗透率低、储集层非均质性强，采用常规注水开发含水率上升快、采收率低，为提高该类油藏开发效果，提出了底部注水理念。从底水能量、渗透率各向异性、隔层渗透率、夹层频率和沉积韵律5个影响底水油藏开发效果的因素入手，采用油藏数值模拟，对比油层注水和底部注水采收率的差异。结果表明，底部注水开发可有效增大底水能量，实现油水界面均匀抬升，大幅延长中—低含水采油期，较油层注水最终采收率提高10%以上。

关键词: 鄂尔多斯盆地, 侏罗系, 低渗透底水油藏, 数值模拟, 注水部位, 底部注水, 提高采收率

Abstract:

The Jurassic bottom-water reservoirs in the Ordos Basin suffer from insufficient natural energy, low pressure coefficient, low permeability, and strong reservoir heterogeneity, and they exhibit a rapid rise in water cut and low recovery when developed by conventional water injection process. To improve the development effects of such reservoirs, the concept of bottom water injection was proposed. In respect of five key factors influencing the development effects of bottom-water reservoirs, i.e. bottom-water energy, permeability anisotropy, barrier permeability, interlayer frequency, and sedimentary rhythm, oil-layer water injection and bottom water injection were compared for recovery by using reservoir numerical simulation. The results indicate that bottom water injection effectively enhances bottom water energy, facilitates uniform elevation of the oil-water contact, and significantly extends oil production period with medium-low water-cut. Compared with oil-layer water injection, bottom water injection improves ultimate oil recovery by more than 10%.

Key words: Ordos Basin, Jurassic, low-permeability bottom-water reservoir, numerical simulation, injection position, bottom water injection, enhanced oil recovery

中图分类号:

TE348

宋鹏, 张心罡, 杨卫国, 王楠, 石坚, 谢启超, 段文豪. 低渗透底水油藏底部注水方法及应用[J]. 新疆石油地质, 2025, 46(3): 375-381.

SONG Peng, ZHANG Xingang, YANG Weiguo, WANG Nan, SHI Jian, XIE Qichao, DUAN Wenhao. Bottom Water Injection Method and Its Application in Low-Permeability Bottom-Water Reservoirs[J]. Xinjiang Petroleum Geology, 2025, 46(3): 375-381.

图/表 9

图1

图2

图3

图4

图5

表1

图6

图7

图8

参考文献 24

[1]	袁士义, 王强. 中国油田开发主体技术新进展与展望[J]. 石油勘探与开发, 2018, 45(4):657-668. doi: 10.11698/PED.2018.04.11
	YUAN Shiyi, WANG Qiang. New progress and prospect of oilfields development technologies in China[J]. Petroleum Exploration and Development, 2018, 45(4):657-668. doi: 10.11698/PED.2018.04.11
[2]	李永宗, 叶红霞, 李博, 等. 姬塬油田东部侏罗系油藏水淹特征及开发技术探讨[R]. 银川: 第十六届宁夏青年科学家论坛石化专题论坛, 2020.
	LI Yongzong, YE Hongxia, LI Bo, et al. Discussion on water flooding characteristics and development technology of Jurassic reservoir in eastern Jiyuan oilfield[R]. Yinchuan:The 16th Ningxia Young Scientists Forum Petrochemical Thematic Forum, 2020.
[3]	王怀高. 姬塬油田铁边城侏罗系边底水油藏优化注水及高效开发技术研究[D]. 西安: 西安石油大学, 2014.
	WANG Huaigao. The study on improving singele well production in Chang4+5 reservoir of the Xue26 area[D]. Xi’an: Xi’an Shiyou University, 2014.
[4]	赵虹, 党犇, 党永潮, 等. 鄂尔多斯盆地安塞志丹地区侏罗系延安组下部组合沉积演化及其对油气的控制[J]. 西北大学学报(自然科学版), 2020, 50(3):490-500.
	ZHAO Hong, DANG Ben, DANG Yongchao, et al. Depositional system and its evolution of the lower Yan’an formation Jurassic in Ansai district,Ordos Basin[J]. Journal of Northwest University(Natural Science Edition), 2020, 50(3):490-500.
[5]	王永宏, 韩永林, 蒲磊, 等. 一种低渗透小规模底水油藏不同井型注采转换的开发方法:北京,202211604546.9[P]. 2024-06-14.
	WANG Yonghong, HAN Yonglin, PU Lei, et al. A development method for injection-production conversion of different well types in low permeability and small-scale bottom water reservoirs:BeiJing, 202211604546.9[P]. 2024-06-14.
[6]	艾小凡, 张景皓, 陈静. 丰富川高含水特低渗油藏注水优化技术[J]. 辽宁石油化工大学学报, 2020, 40(3):52-56.
	AI Xiaofan, ZHANG Jinghao, CHEN Jing. Water injection optimization technology in high water cut period of ultra-low permeability reservoir in Fengfuchuan oilfield[J]. Journal of Liaoning Shihua University, 2020, 40(3):52-56.
[7]	胡俊杰, 马珍福, 邵现振, 等. 底水稠油油藏润湿性对水锥回升的影响[J]. 油田化学, 2022, 39(4):644-650.
	HU Junjie, MA Zhenfu, SHAO Xianzhen, et al. Effect of wettability on water cone in bottom water reservoir[J]. Oilfield Chemistry, 2022, 39(4):644-650.
[8]	MUSKAT M, WYCKOFF R D. An approximate theory of water-coing in oil production[J]. Tansactions of the AIME, 1935, 114(1):144-163.
[9]	程晓军, 易斌, 邓勇, 等. 底水油藏水平井临界产量计算新方法[J]. 新疆石油地质, 2011, 32(1):60-62.
	CHENG Xiaojun, YI Bin, DENG Yong, et al. New method for calculation of critical production of horizontal well in bottom water reservoir[J]. Xinjiang Petroleum Geology, 2011, 32(1):60-62.
[10]	刘峰, 陈军斌, 李红正, 等. 联合隔板理论和井底循环排液技术开发底水油藏新模型[J]. 断块油气田, 2021, 28(4):546-549.
	LIU Feng, CHEN Junbin, LI Hongzheng, et al. A new model of combining improved barrier theory and DWL technology for bottom water reservoir development[J]. Fault-Block Oil & Gas Field, 2021, 28(4):546-549.
[11]	侯君, 程林松. 常规底水油藏水锥高度计算方法研究[J]. 西安石油大学学报(自然科学版), 2006, 21(3):23-26.
	HOU Jun, CHENG Linsong. Calculation method for the water cone height of bottom-water reservoir[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2006, 21(3):23-26.
[12]	朱丽娜, 张艺钟, 张茂林, 等. 一种气顶底水油藏平均地层压力计算新方法[J]. 油气地质与采收率, 2023, 30(5):139-146.
	ZHU Lina, ZHANG Yizhong, ZHANG Maolin, et al. A new method for calculating average formation pressure of gas cap and bottom water reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(5):139-146.
[13]	任岚, 蒋豪, 赵金洲, 等. 考虑井筒变形的深层射孔井岩石破裂压力计算模型[J]. 大庆石油地质与开发, 2022, 41(6):64-73.
	REN Lan, JIANG Hao, ZHAO Jinzhou, et al. Calculation model of breakdown pressure in deep perforated wells considering wellbore deformation[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(6):64-73.
[14]	喻高明, 凌建军, 蒋明煊, 等. 砂岩底水油藏开采机理及开发策略[J]. 石油学报, 1997, 18(2):61-65. doi: 10.7623/syxb199702010
	YU Gaoming, LING Jianjun, JIANG Mingxuan, et al. Production mechanism and development tactics on sandstone reservoirs with bottom water[J]. Acta Petrolei Sinica, 1997, 18(2):61-65. doi: 10.7623/syxb199702010
[15]	刘道杰, 田中敬, 孙彦春, 等. 渗透率级差对底水油藏剩余油分布规律影响[J]. 特种油气藏, 2013, 20(3):82-85.
	LIU Daojie, TIAN Zhongjing, SUN Yanchun, et al. Study on the effect of permeability ratio of a reservoir with bottom water on residual oil distribution regularity[J]. Special Oil & Gas Reservoirs, 2013, 20(3):82-85.
[16]	郑海妮, 李雪, 李根, 等. 夹层抑制砂岩油藏底水锥进影响因素分析[J]. 新疆地质, 2013, 31(增刊):44-49.
	ZHENG Haini, LI Xue, LI Gen, et al. The influencing factors analysis on interlayer controlling bottom water coning in sandstone reservoirs[J]. Xinjiang Geology, 2013,31(Supp.):44-49.
[17]	王玥, 陈小凡, 邹利军, 等. 带夹层底水油藏油井底水锥进影响因素分析[J]. 油气藏评价与开发, 2013, 3(6):24-27.
	WANG Yue, CHEN Xiaofan, ZOU Lijun, et al. Analysis on oil wells bottom water coning influence factors of bottom water reservoir with interlayer[J]. Reservoir Evaluation and Development, 2013, 3(6):24-27.
[18]	王福林. 底水油藏底水锥进及人工隔层稳油控水机理研究[D]. 黑龙江大庆: 大庆石油学院, 2011.
	WANG Fulin. Research on water coning and artificial interlayer control coning to enhance oil recovery mechanism of bottom water reservior[D]. Daqing,Heilongjiang: Daqing Petroleum Institute, 2011.
[19]	李根, 郑海妮, 李雪, 等. 底水砂岩油藏夹层抑制水平井底水锥进作用研究:以塔河油田三叠系砂岩底水油藏的水平井为例[J]. 石油天然气学报, 2013, 35(8):127-132.
	LI Gen, ZHENG Haini, LI Xue, et al. Controlling of bottom water coning in horizontal wells in sandstone reservoirs with bottom water:By taking the Triassic horizontal wells in sandstone reservoirs with bottom water of Tahe oilfield for example[J]. Journal of Oil and Gas Technology, 2013, 35(8):127-132.
[20]	王攀, 曹宗, 陈浩, 等. 底水油藏底水分布规律及射孔参数优化:以周长油田延安组油藏为例[J]. 非常规油气, 2024, 11(3):139-148.
	WANG Pan, CAO Zong, CHEN Hao, et al. Research on bottom water distribution law and parameter optimization of bottom water reservoir:A case of Yan’an formation reservoir in Zhouchang oilfield[J]. Unconventional Oil & Gas, 2024, 11(3):139-148.
[21]	蒲万芬, 靳星, 唐晓东, 等. 基于BP神经网络的低渗透底水油藏油井见水模式预测模型[J]. 新疆石油天然气, 2024, 20(2):37-47.
	PU Wanfen, JIN Xing, TANG Xiaodong, et al. Prediction model of water breakthrough patterns of low-permeability bottom water reservoirs based on BP neural network[J]. Xinjiang Oil & Gas, 2024, 20(2):37-47.
[22]	刘丽娜, 曹飞, 刘学利, 等. 塔河油田块状底水砂岩油藏开发特征及挖潜对策[J]. 新疆石油地质, 2023, 44(4):450-455.
	LIU Lina, CAO Fei, LIU Xueli, et al. Development characteristics and potential tapping strategies of massive sandstone reservoirs with bottom water in Tahe oilfield[J]. Xinjiang Petroleum Geology, 2023, 44(4):450-455.
[23]	唐波涛, 曾冀, 陈伟华, 等. 川中秋林地区致密砂岩水平井多簇射孔优化设计方法及应用效果[J]. 油气藏评价与开发, 2022, 12(2):337-344.
	TANG Botao, ZENG Ji, CHEN Weihua, et al. Multi cluster perforation optimization design method and its application effect of tight sandstone horizontal wells in Qiulin area,central Sichuan[J]. Petroleum Reservoir Evaluation and Development, 2022, 12(2):337-344.
[24]	陈小东, 王进, 宋鹏, 等. 姬塬油田黄3区长8超低渗油层CO₂驱埋实验[J]. 新疆石油地质, 2023, 44(5):592-597.
	CHEN Xiaodong, WANG Jin, SONG Peng, et al. Experimental study on CO₂ flooding and storage in Chang 8 ultra-low permeability reservoir in District Huang 3,Jiyuan oilfield[J]. Xinjiang Petroleum Geology, 2023, 44(5):592-597.

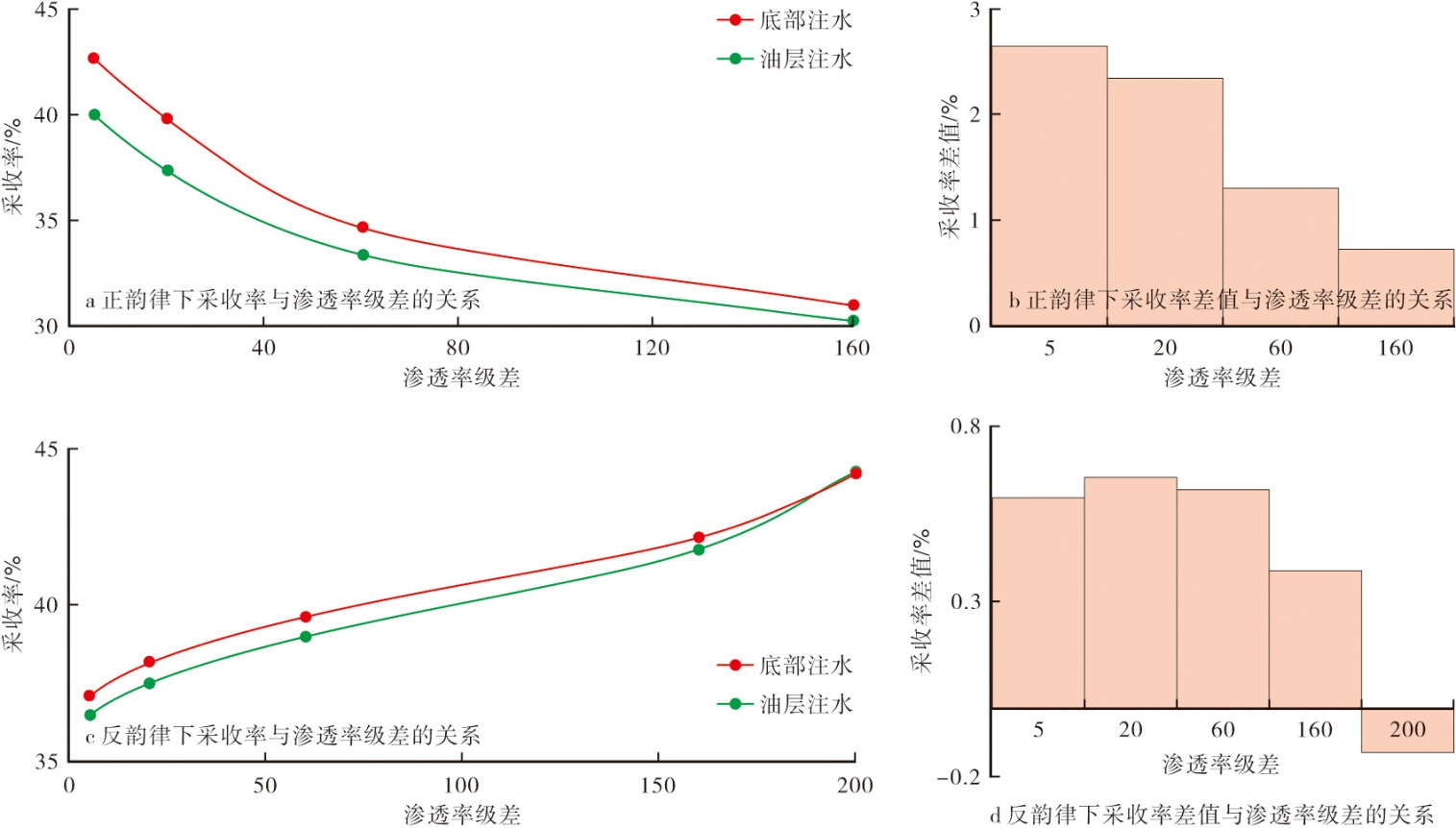

韵律类型	渗透率/mD
韵律类型	5倍级差	20倍级差	60倍级差	160倍级差	200倍级差
正韵律	6.30	1.80	0.60	0.24	0.19
	12.60	10.30	9.50	9.60	9.60
	19.00	19.00	19.00	19.00	19.00
	25.20	27.40	27.20	28.50	28.50
	31.50	36.00	36.00	37.76	37.81
反韵律	31.50	36.00	36.00	37.76	37.81
	25.20	27.40	27.20	28.50	28.50
	19.00	19.00	19.00	19.00	19.00
	12.60	10.30	9.50	9.60	9.60
	6.30	1.80	0.60	0.24	0.19
