考虑出砂影响的榆37储气库合理注采参数设计

doi:10.7657/XJPG20260107

新疆石油地质 ›› 2026, Vol. 47 ›› Issue (1): 64-73.doi: 10.7657/XJPG20260107

考虑出砂影响的榆37储气库合理注采参数设计

王萍¹^,²(), 卫永晟¹^,²(), 郭燕妮³, 汤诗棋⁴, 黄海¹^,², 屈展¹^,², 王亮¹^,², 何雅文⁵

1.西安石油大学石油工程学院，西安 710065
2.陕西省油气井及储层渗流与岩石力学重点实验室，西安 710065
3.陕西延长石油国际能源化工有限公司，西安 710077
4.中国石油新疆油田分公司勘探开发研究院，新疆克拉玛依 834000
5.中国石油西部钻探工程有限公司玉门钻井分公司，甘肃酒泉 735000

收稿日期:2024-10-25 出版日期:2026-02-01 发布日期:2026-01-23
通讯作者: 卫永晟 E-mail:wp8230@xsyu.edu.cn;wys_sygc_xsyu@163.com
作者简介:王萍（1978-），女，河南南阳人，教授，博士，钻井工程与岩石力学，（Tel）18091190869（Email）wp8230@xsyu.edu.cn
基金资助:
国家自然科学基金(52474043);国家自然科学基金(52274007);陕西省教育厅科研计划项目(22JS028);杰出青年科学基金(2022JC-37)

Design of Reasonable Injection and Production Parameters for the Yu-37 Gas Storage Considering Sand Production

WANG Ping¹^,²(), WEI Yongsheng¹^,²(), GUO Yanni³, TANG Shiqi⁴, HUANG Hai¹^,², QU Zhan¹^,², WANG Liang¹^,², HE Yawen⁵

1. School of Petroleum Engineering, Xi’an Shiyou University, Xi’an, Shaanxi 710065, China
2. Shaanxi Provincial Key Laboratory of Oil and Gas Well and Reservoir Seepage and Rock Mechanics, Xi’an, Shaanxi 710065, China
3. Shaanxi Yanchang Petroleum International Energy & Chemical Co., Ltd., Xi’an, Shaanxi 710077, China
4. Research Institute of Exploration and Development, Xinjiang Oilfield Company, PetroChina, Karamay, Xinjiang 834000, China
5. Yumen Drilling Company, Xibu Drilling Engineering Company Limited, CNPC, Jiuquan, Gansu 735000, China

Received:2024-10-25 Online:2026-02-01 Published:2026-01-23
Contact: WEI Yongsheng E-mail:wp8230@xsyu.edu.cn;wys_sygc_xsyu@163.com

摘要/Abstract

摘要：

储气库注采井反复高强度注采，储集层频繁应力变化，易引发出砂，威胁储气库稳定运行。以鄂尔多斯盆地榆37储气库为例，运用节点分析法，考虑支撑剂运移的临界流速模型，结合地层出砂预测的临界出砂压差模型及临界冲蚀流量模型，明确榆37储气库注采井的合理注采区间，确保储气库在极限生产状态下的运行安全。结果表明：通过对储集层裂缝中支撑剂进行受力分析，建立裂缝中支撑剂启动的临界流速模型，计算出当注入速率与采出速率分别为10.89 m/s和8.19 m/s时，支撑剂达到临界启动流速；考虑3种限制性模型，对节点分析法进行改进，计算出榆43-1井安全运行的合理注采区间，分别为1.79×10⁴~6.53×10⁴ m³/d和2.82×10⁴~6.35×10⁴ m³/d；在安全的前提下，计算出榆37储气库10口井的合理注采区间。

关键词: 榆37储气库, 储气库出砂, 节点分析法, 支撑剂启动, 临界流速, 临界出砂压差, 冲蚀流量

Abstract:

Repeated high-intensity injection and production in wells of a gas-storage lead to frequent stress changes in the reservoirs, which may trigger sand production to threaten the stable operation of the gas storage. Taking the Yu-37 gas storage in the Ordos Basin as an example, the nodal analysis method was used, together with the critical flow velocity model for proppant migration, as well as the critical sand production pressure difference model for sand production prediction and the critical erosion flow model, to define the reasonable injection and production rates of wells for ensuring the operation safety of the Yu-37 gas storage under the extreme production state. According to the calculation using the critical flow velocity model for initiation of proppant migration in the fractures, which was established through the stress analysis of the proppant in the reservoir fractures, the proppant reaches its critical flow velocity for initiation of migration when the injection and production rates are 10.89 m/s and 8.19 m/s, respectively. Three restrictive models are used to modify the nodal analysis method, the reasonable injection and production rates of Well Yu 43-1 are determined to be (1.79-6.53)×10⁴ m³/d and (2.82-6.35)×10⁴ m³/d, respectively. Given the safety limits, the reasonable injection and production rates of 10 wells at the Yu-37 gas storage are defined.

Key words: Yu-37 gas storage, sand production, nodal analysis method, initiation of proppant migration, critical flow velocity, critical production pressure difference, erosion flow rate

中图分类号:

TE822

王萍, 卫永晟, 郭燕妮, 汤诗棋, 黄海, 屈展, 王亮, 何雅文. 考虑出砂影响的榆37储气库合理注采参数设计[J]. 新疆石油地质, 2026, 47(1): 64-73.

WANG Ping, WEI Yongsheng, GUO Yanni, TANG Shiqi, HUANG Hai, QU Zhan, WANG Liang, HE Yawen. Design of Reasonable Injection and Production Parameters for the Yu-37 Gas Storage Considering Sand Production[J]. Xinjiang Petroleum Geology, 2026, 47(1): 64-73.

图/表 11

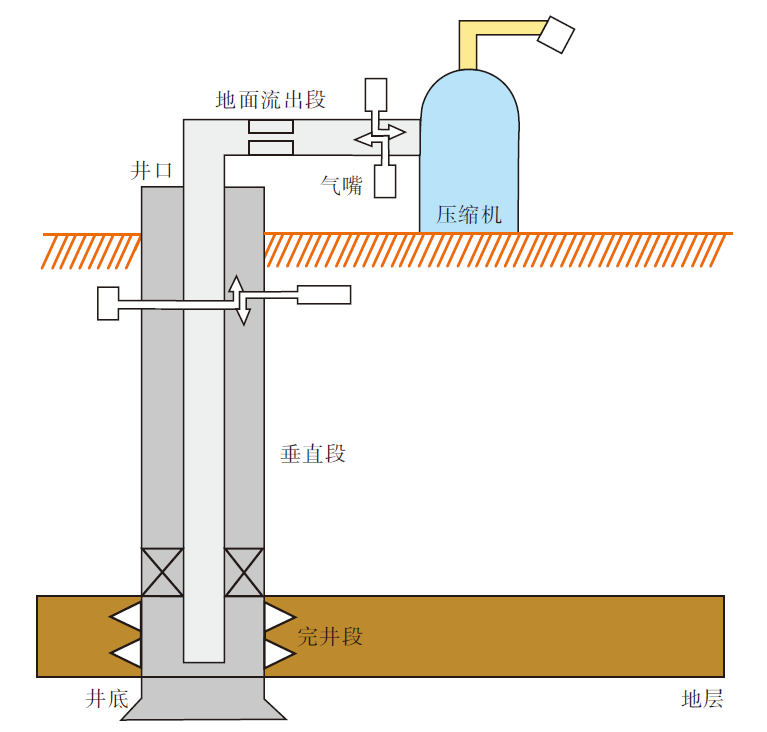

图1

表1

图2

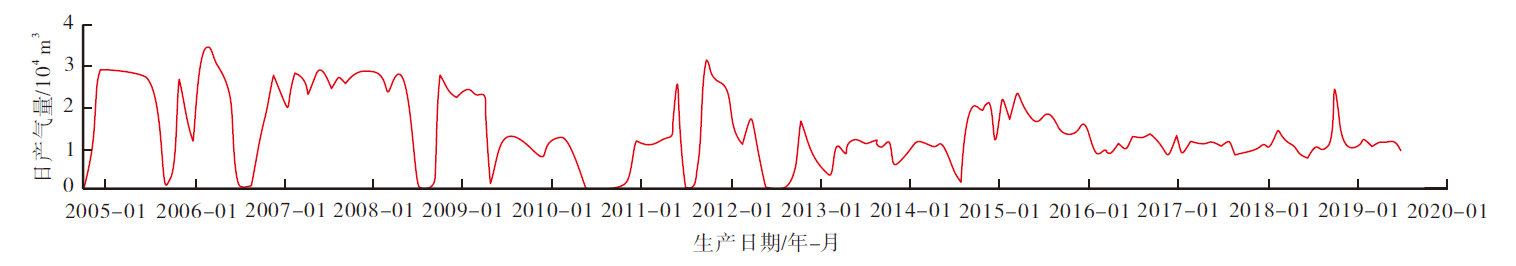

图3

图4

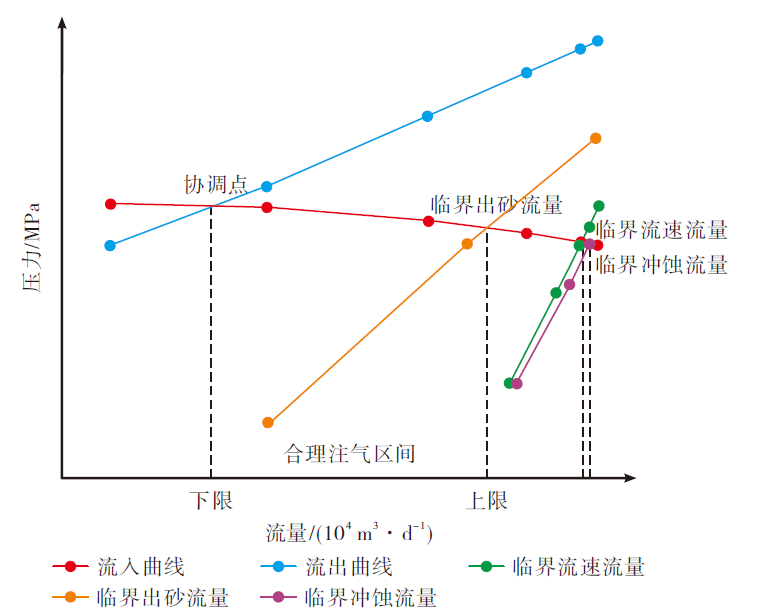

图5

表2

图6

表3

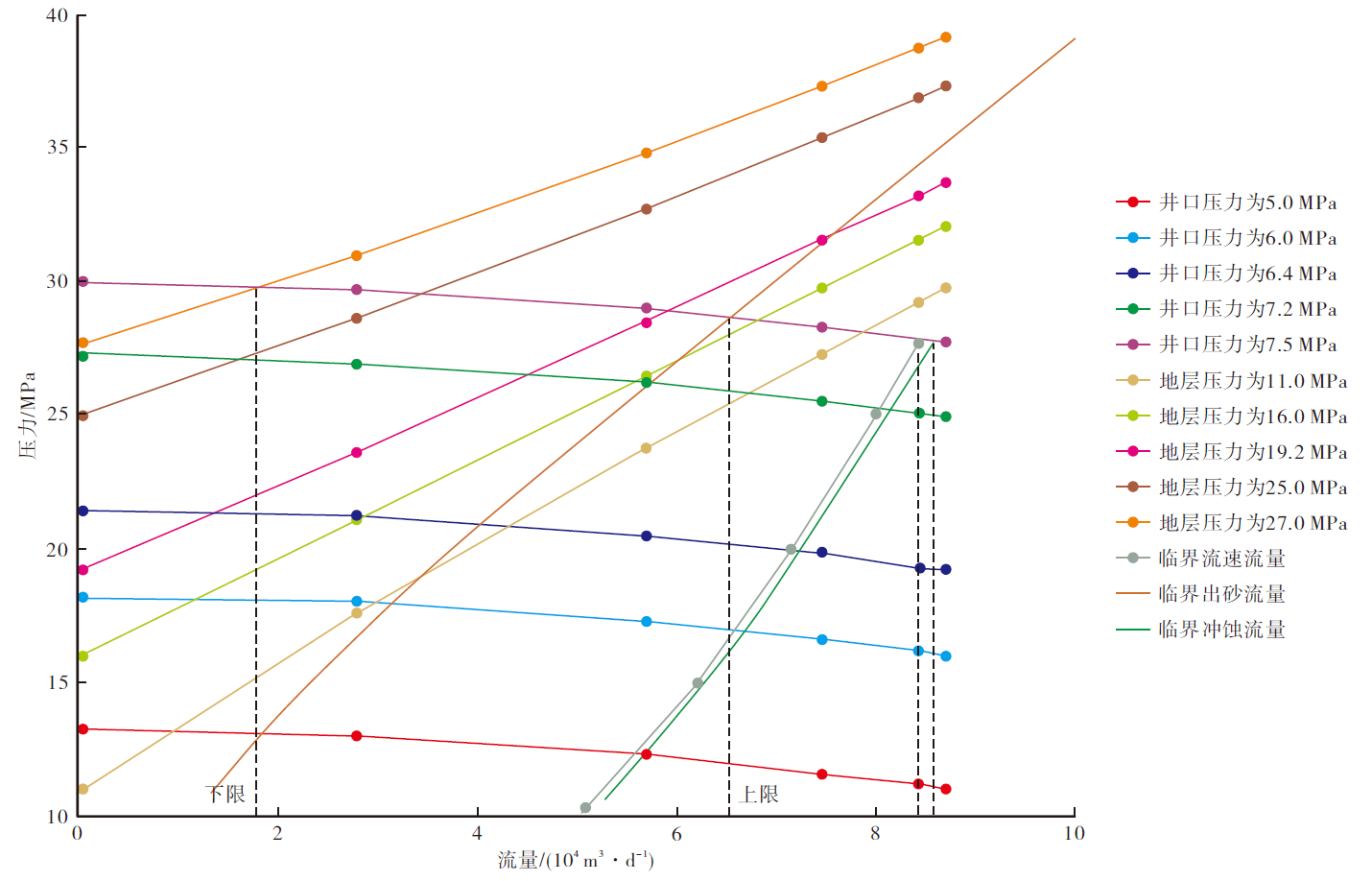

图7

表4

参考文献 39

[1]	张建国, 程远方, 崔红英. 裸眼完井出砂预测模型的建立[J]. 石油钻探技术, 1999, 27(6):39-41.
	ZHANG Jianguo, CHENG Yuanfang, CUI Hongying. Establishment of sand production prediction model for open hole completion[J]. Petroleum Drilling Techniques, 1999, 27(6):39-41.
[2]	曾流芳, 刘建军. 裸眼井出砂预测模型的解析分析[J]. 石油钻采工艺, 2002, 24(6):42-44.
	ZENG Liufang, LIU Jianjun. Analytical analysis of sand production model of open-hole completion well[J]. Oil Drilling & Production Technology, 2002, 24(6):42-44.
[3]	董长银, 张启汉, 饶鹏. 气井系统出砂预测模型研究及应用[J]. 天然气工业, 2005, 25(9):98-100.
	DONG Changyin, ZHANG Qihan, RAO Peng. Model of systematic sanding prediction and its application for gas wells[J]. Natural Gas Industry, 2005, 25(9):98-100.
[4]	张华宾, 余豪毅, 王来贵, 等. 沉渣颗粒影响下盐穴储气库变形破坏热力耦合分析[J]. 天然气工业, 2024, 44(12):137-150.
	ZHANG Huabin, YU Haoyi, WANG Laigui, et al. Thermo-mechanical coupling analysis of deformation and failure of salt cavern UGS under the influence of sediment particles[J]. Natural Gas Industry, 2024, 44(12):137-150.
[5]	闫萍, 靳叶军, 袁雪花, 等. 储气库运行上限压力的确定方法及在板中北储气库的应用[J]. 特种油气藏, 2024, 31(4):81-88.
	YAN Ping, JIN Yejun, YUAN Xuehua, et al. Method of determining the upper limit pressure of gas storage operation and its application in the Banzhongbei gas storage[J]. Special Oil & Gas Reservoirs, 2024, 31(4):81-88.
[6]	WEINGARTEN J S, PERKINS T K. Prediction of sand production in gas wells:Methods and Gulf of Mexico case studies[J]. Journal of Petroleum Technology, 1995, 47(7):596-600. doi: 10.2118/24797-PA
[7]	AIGERIM R, THORNTON C, AMANBEK Y, et al. Numerical simulations of sand production in oil wells using the CFD-DEM-IBM approach[J]. Journal of Petroleum Science and Engineering, 2022, 208:109529. doi: 10.1016/j.petrol.2021.109529
[8]	CUI Yifei, NOURI A, CHAN D, et al. A new approach to DEM simulation of sand production[J]. Journal of Petroleum Science and Engineering, 2016, 147:56-67. doi: 10.1016/j.petrol.2016.05.007
[9]	ZIVAR D, SHAD S, FOROOZESH J, et al. Experimental study of sand production and permeability enhancement of unconsolidated rocks under different stress conditions[J]. Journal of Petroleum Science and Engineering, 2019, 181:106238. doi: 10.1016/j.petrol.2019.106238
[10]	RANJITH P G, PERERA M S A, PERERA W K G, et al. Sand production during the extrusion of hydrocarbons from geological formations:A review[J]. Journal of Petroleum Science and Engineering, 2014, 124:72-82. doi: 10.1016/j.petrol.2014.10.017
[11]	王泉, 陈超, 哈斯亚提·萨依提, 等. 基于压力监测的水平井临界出砂预警模型:以新疆H储气库为例[J]. 新疆石油地质, 2022, 43(2):214-220.
	WANG Quan, CHEN Chao, Hasyati SAYITI, et al. Early warning model for critical sand production in horizontal wells based on pressure monitoring:A case of H gas storage in Xinjiang[J]. Xinjiang Petroleum Geology, 2022, 43(2):214-220.
[12]	王彬, 陈超, 李道清, 等. 新疆H型储气库注采气能力评价方法[J]. 特种油气藏, 2015, 22(5):78-81.
	WANG Bin, CHEN Chao, LI Daoqing, et al. A method for assessing the gas injection-production capacity of H-shaped UGS in Xinjiang oilfield[J]. Special Oil & Gas Reservoirs, 2015, 22(5):78-81.
[13]	廖伟, 罗双涵, 胡书勇, 等. 气藏型储气库出砂规律研究的新方法[J]. 西南石油大学学报(自然科学版), 2023, 45(3):119-130. doi: 10.11885/j.issn.1674-5086.2021.10.19.03
	LIAO Wei, LUO Shuanghan, HU Shuyong, et al. A new method for the study of sand production in gas reservoir storage[J]. Journal of Southwest Petroleum University(Natural Science Edition), 2023, 45(3):119-130.
[14]	董长银, 陈琛, 周博, 等. 油气藏型储气库出砂机理及防砂技术现状与发展趋势展望[J]. 石油钻采工艺, 2022, 44(1):43-55.
	DONG Changyin, CHEN Chen, ZHOU Bo, et al. Sand production mechanism and sand control technology status and prospect of oil-gas reservoir type gas storage[J]. Oil Drilling & Production Technology, 2022, 44(1):43-55.
[15]	郭建春, 唐堂, 张涛, 等. 深层页岩压裂多级裂缝内支撑剂运移与分布规律[J]. 天然气工业, 2024, 44(7):1-11.
	GUO Jianchun, TANG Tang, ZHANG Tao, et al. Migration and distribution laws of proppant in multi-scale fractures during deep shale fracturing[J]. Natural Gas Industry, 2024, 44(7):1-11.
[16]	黄海, 郑永, 王毅, 等. 粗糙壁面压裂裂缝内支撑剂运移铺置特征[J]. 石油勘探与开发, 2024, 51(2):399-408. doi: 10.11698/PED.20230545
	HUANG Hai, ZHENG Yong, WANG Yi, et al. Characteristies of proppant transport and placement within rough hydraulic fractures[J]. Petroleum Exploration and Development, 2019, 51(2):399-408.
[17]	崔传智, 李景林, 吴忠维, 等. 复杂裂缝内支撑剂铺置规律及有效支撑面积[J]. 科学技术与工程, 2023, 23(30):12926-12935.
	CUI Chuanzhi, LI Jinglin, WU Zhongwei, et al. Proppant placement and effective supporting area in complex fractures[J]. Science Technology and Engineering, 2023, 23(30):12926-12935.
[18]	蔺小博, 黄杰, 袁征, 等. 考虑支撑剂嵌入和地层砂运移的支撑剂指数法[J]. 科学技术与工程, 2024, 24(9):3675-3682.
	LIN Xiaobo, HUANG Jie, YUAN Zheng, et al. Proppant index method considering proppant embedment and formation sand migration[J]. Science Technology and Engineering, 2019, 24(9):3675-3682.
[19]	刘善勇, 尹彪, 楼一珊, 等. 粗糙裂缝内支撑剂运移与展布规律数值模拟[J]. 石油钻探技术, 2024, 52(4):104-109.
	LIU Shanyong, YIN Biao, LOU Yishan, et al. Numerical simulation of migration and placement law of proppants in rough fractures[J]. Petroleum Drilling Technioues, 2024, 52(4):104-109.
[20]	WANG Ping, GU Tianli, GAO Zhanwu, et al. Stability evaluation of proppant in fractures of gas storage in Yulin gas field[J]. Advances in Civil Engineering, 2022,2044561.
[21]	李士伦. 天然气工程[M]. 北京: 石油工业出版社, 2008.
	LI Shilun. Natural Gas Engineering[M]. Beijing: Petroleum Industry Press, 2008.
[22]	赫文昊, 魏虎, 和向楠, 等. 考虑应力敏感的致密气藏动态产能方程及应用[J]. 非常规油气, 2021, 8(4):55-61.
	HE Wenhao, WEI Hu, HE Xiangnan, et al. Establishment and application of tight gas dynamic productivity equation considering stress sensitivity[J]. Unconventional Oil & Gas, 2021, 8(4):55-61.
[23]	DHARMANANDA K. Underground gas storage:Issues beneath the surface[R]. SPE 88491,2004.
[24]	梁涛, 郭肖, 付德奎, 等. R油藏改建地下储气库单井注采能力分析[J]. 西南石油大学学报, 2007, 29(6):157-160.
	LIANG Tao, GUO Xiao, FU Dekui, et al. Single-well injection/ recovery capability of an underground gas storage rebuilt from R oil reservoir[J]. Journal of Southwest Petroleum University, 2007, 29(6):157-160.
[25]	汪雄雄, 樊莲莲, 刘双全, 等. 榆林南地下储气库注采井完井管柱的优化设计[J]. 天然气工业, 2014, 34(1):92-96.
	WANG Xiongxiong, FAN Lianlian, LIU Shuangquan, et al. An optimal design of completion string of an injection and production well in the Yulinnan underground gas storage[J]. Natural Gas Industry, 2014, 34(1):92-96.
[26]	王海燕. 考虑多因素影响的储气库气井注采能力优化[J]. 大庆石油地质与开发, 2019, 38(3):54-58.
	WANG Haiyan. Optimization of the injection-production capacity of the gas storage well considering the influences of the multiple factors[J]. Petroleum Geology & Oilﬁeld Development in Daqing, 2019, 38(3):54-58.
[27]	谭羽非, 林涛. 凝析气藏地下储气库单井注采能力分析[J]. 油气储运, 2008, 27(3):27-29.
	TAN Yufei, LIN Tao. Analysis on the single-well capacity of injection/withdrawal in underground gas storage reservoir[J]. Oil & Gas Storage, 2008, 27(3):27-29.
[28]	廖伟, 胡书勇, 罗海涛, 等. 考虑出砂影响的地下储气库极限调峰能力评价:以准噶尔盆地H储气库为例[J]. 天然气工业, 2023, 43(10):125-131.
	LIAO Wei, HU Shuyong, LUO Haitao, et al. Evaluation of UGS’s maximum peak shaving capacity considering sand production:A case study of the H underground gas storage in the Junggar Basin[J]. Natural Gas Industry, 2019, 43(10):125-131.
[29]	王景芹, 朱振锐, 高纯良, 等. 朝阳沟油田储气库注采井油管尺寸优选[J]. 特种油气藏, 2013, 20(2):90-92.
	WANG Jingqin, ZHU Zhenrui, GAO Chunliang, et al. Optimal selection of tubing size of injection & production wells in Chaoyanggou oilfield gas storage[J]. Special Oil & Gas Reservoirs, 2013, 20(2):90-92.
[30]	于刚, 杜京蔚, 邹晓燕, 等. 华北储气库注采气井管柱优选研究[J]. 天然气地球科学, 2013, 24(5):1086-1090. doi: 10.11764/j.issn.1672-1926.2013.05.1086
	YU Gang, DU Jingwei, ZOU Xiaoyan, et al. Tubing string optimization study of Huabei gas storage[J]. Natural Gas Geoscience, 2013, 24(5):1086-1090. doi: 10.11764/j.issn.1672-1926.2013.05.1086
[31]	舒萍, 高涛, 朱思南. 火山岩气藏改建地下储气库注采能力[J]. 大庆石油地质与开发, 2015, 34(6):48-53.
	SHU Ping, GAO Tao, ZHU Sinan. Injection and production capacities for the volcanic gas reservoir converted into underground gas storage[J]. Petroleum Geology & Oilfield Development in Daqing, 2015, 34(6):48-53.
[32]	TUREYEN O I, KARAALIOGLU H, SATMAN A. Effect of the wellbore conditions on the performance of underground gas-storage reservoirs[R]. SPE 59737,2000.
[33]	BAGCI A S, OZTURK B. Performance analysis of horizontal wells for underground gas storage in depleted gas fields[R]. SPE 111102,2007.
[34]	王彦利, 陈小凡, 邓生辉, 等. 疏松砂岩临界出砂压差的计算方法研究及应用[J]. 西南石油大学学报(自然科学版), 2009, 31(1):78-80. doi: 10.3863/j.issn.1674-5086.2009.01.019
	WANG Yanli, CHEN Xiaofan, DENG Shenghui, et al. The calculation method study and application of the critical sand production pressure diffrence in loose sandstone[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2009, 31(1):78-80.
[35]	NOURI A, VAZIRI H, KURU E, et al. A comparison of two sanding criteria in physical and numerical modeling of sand production[J]. Journal of Petroleum Science and Engineering, 2006, 50:55-70. doi: 10.1016/j.petrol.2005.10.003
[36]	陈军军, 杨兴利, 辛毅超, 等. 鄂尔多斯盆地延长油田双河西区块长6油藏开发参数[J]. 新疆石油地质, 2024, 45(5):552-559.
	CHEN Junjun, YANG Xingli, XIN Yichao, et al. Development parameters of Chang 6 reservoir in Shuanghexi block of Yanchang oilfield,Ordos Basin[J]. Xinjiang Petroleum Geology, 2024, 45(5):552-559.
[37]	马志欣, 李进步, 付斌, 等. 苏里格气田二叠系山西组曲流河储集层岩相与构型[J]. 新疆石油地质, 2025, 46(3):280-287.
	MA Zhixin, LI Jinbu, FU Bin, et al. Lithofacies and architecture of meandering river reservoirs in Permian Shanxi formation,Sulige gas field[J]. Xinjiang Petroleum Geology, 2025, 46(3):280-287.
[38]	赵霏, 王令波, 吴鹏, 等. 鄂尔多斯盆地临兴中区盒7—盒8段有效储层物性下限及主控因素[J]. 特种油气藏, 2024, 31(2):66-75. doi: 10.3969/j.issn.1006-6535.2024.02.008
	ZHAO Fei, WANG Lingbo, WU Peng, et al. Lower limit and main controlling factors of effective reservoir physical properties in He7-He8 members,central Linxing area,Ordos Basin[J]. Special Oil & Gas Reservoirs, 2024, 31(2):66-75.
[39]	于洲, 范立勇, 任军峰, 等. 鄂尔多斯盆地寒武系—奥陶系天然气成藏模式及有利勘探区[J]. 天然气工业, 2024, 44(8):44-57.
	YU Zhou, FAN Liyong, REN Junfeng, et al. Natural gas accumulation models and favorable exploration areas of the Cambrian-Ordovician in the Ordos Basin[J]. Natural Gas Industry, 2024, 44(8):44-57.

地层压力	地层指数法临界出砂压差	出砂临界状态计算法临界出砂压差	Vaziri模型临界出砂压差
11.0	18.915	8.865	8.229
16.0	19.514	12.461	10.878
19.2	19.977	17.215	12.326
25.0	20.191	22.562	14.568
27.7	20.894	27.358	15.473

地层压力/MPa	井底流压/MPa	井口压力/MPa	临界流速/（m·s^-1）	临界流速流量/（10⁴ m³·d^-1）	临界出砂流量/（10⁴ m³·d^-1）	临界冲蚀流量/（10⁴ m³·d^-1）	最小合理采气量/（10⁴ m³·d^-1）	最大安全采气量/（10⁴ m³·d^-1）
11.0	6.87	1.9	2.95	1.77	1.74	1.75	1.16	1.74
16.0	11.98	2.5	4.39	3.31	3.27	3.31	1.73	3.27
20.0	16.03	2.9	5.89	4.51	4.64	4.53	2.12	4.51
25.5	21.60	3.3	7.59	5.86	6.67	5.91	2.39	5.86
27.7	23.88	3.5	8.19	6.35	7.40	6.41	2.82	6.35

地层压力/ MPa	井底流压/ MPa	井口压力/ MPa	临界流速/ （m·s^-1）	临界流速流量/ （10⁴ m³·d^-1）	临界出砂流量/ （10⁴ m³·d^-1）	临界冲蚀流量/ （10⁴ m³·d^-1）	最小合理注气量/ （10⁴ m³·d^-1）	最大安全注气量/ （10⁴ m³·d^-1）
11.0	13.16	5.0	7.24	5.60	1.85	5.69	0.92	1.85
16.0	18.14	6.0	8.51	6.58	3.15	6.69	1.71	3.15
19.2	21.31	6.4	9.23	7.15	4.04	7.26	1.35	4.04
25.5	27.12	7.2	10.41	8.07	5.74	8.19	1.66	5.74
27.7	29.78	7.5	10.89	8.45	6.53	8.58	1.79	6.53

井名	最大采气量/ （10⁴ m³·d^-1）	最小采气量/ （10⁴ m³·d^-1）	最大注气量/ （10⁴ m³·d^-1）	最小注气量/ （10⁴ m³·d^-1）
陕152井	24.32	14.78	6.21	2.58
榆42-0井	10.34	6.91	3.64	1.92
榆42-1井	96.70	64.29	42.13	21.67
榆43-2井	7.02	4.71	2.51	1.09
榆43-3井	24.06	15.24	4.57	1.68
榆44-1井	16.31	10.86	2.98	2.14
榆44-2井	10.41	6.89	3.77	2.03
榆44-3井	9.14	6.63	3.43	2.07
榆44-3B井	42.63	27.61	7.48	4.64
榆45-3井	18.14	11.44	8.01	5.04
