热烃协同作用下新疆浅层稠油拟启动压力梯度模型

doi:10.7657/XJPG20260108

摘要/Abstract

摘要：

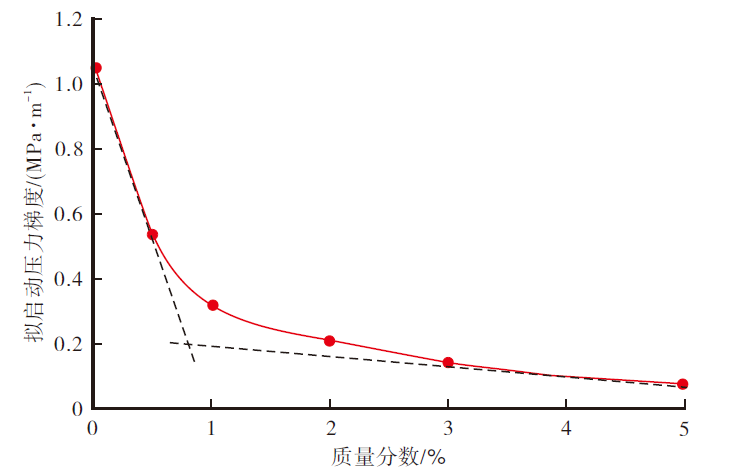

新疆油田J230区块高温蒸汽吞吐开发造成地层剩余稠油黏度升高，启动压力差异大，流体窜流严重，轻烃溶剂的加入可有效降低稠油拟启动压力梯度。通过黏温和流变测试，对比加入轻烃溶剂前后稠油的黏温曲线和流变性能，通过流动实验，确定稠油流度和拟启动压力梯度间的关系，建立溶剂辅助蒸汽开发的拟启动压力梯度模型。研究表明：轻烃溶剂降黏和热降黏协同效应可提升降黏效应；轻烃溶剂可改善稠油流动能力，在40 ℃下加入质量分数为5.0%的轻烃溶剂时，稠油的拟启动压力梯度与稠油在70 ℃时的拟启动压力梯度相当；烃类加入后可减少稠油的不可动用量，拟启动压力梯度图版显示加入轻烃溶剂质量分数为0.5%、2.0%和5.0%时，不可动用量减少了39.13%、70.56%和87.14%，降黏剂的加入能够减少蒸汽用量，有效降低稠油的拟启动压力，抑制窜流现象的发生。

关键词: 稠油, 溶剂辅助蒸汽驱, 拟启动压力梯度, 热烃协同作用, 流变性, 轻烃溶剂

Abstract:

The high-temperature steam huff-and-puff in the J230 block of Xinjiang oilfield has led to an increased viscosity in residual heavy oil in the formation, significant differences in threshold pressure, and severe fluid channeling. Adding light hydrocarbon solvent can effectively reduce heavy oil threshold pressure gradient. In this paper, viscosity-temperature and rheological tests were conducted to compare the viscosity-temperature curves and rheological properties of heavy oil before and after the addition of light hydrocarbon solvent, and flow experiments were performed to clarify the relationship between the mobility of heavy oil and the pseudo threshold pressure gradient. Finally, a pseudo threshold pressure gradient model for solvent-assisted steam flooding was established. The study shows that the synergy between viscosity reduction by heat and viscosity reduction by light hydrocarbon solvent （or heat-hydrocarbon synergy in brief） allows for an improved performance. Light hydrocarbon solvent can modify the flow capacity of heavy oil. Adding 5%（mass fraction） light hydrocarbon solvent at 40℃ yields a pseudo threshold pressure gradient of heavy oil comparable to that at 70℃. Addition of light hydrocarbon solvent can reduce the quantity of immovable heavy oil. As shown in the pseudo threshold pressure gradient diagram, when the mass fraction of light hydrocarbon solvent added is 0.5%, 2.0%, and 5.0%, the quantity of immovable heavy oil is reduced by 39.13%, 70.56%, and 87.14%, respectively. Addition of the light hydrocarbon solvent can reduce steam consumption, thereby effectively lowering the pseudo threshold pressure of heavy oil, and thus suppressing fluid channeling.

Key words: heavy oil, solvent-assisted steam flooding, pseudo threshold pressure gradient, heat-hydrocarbon synergy, rheological property, light hydrocarbon solvent

中图分类号:

TE348

李启航, 颜永何, 木合塔尔, 王志章, 李宜强, 陈文浩, 袁朝野. 热烃协同作用下新疆浅层稠油拟启动压力梯度模型[J]. 新疆石油地质, 2026, 47(1): 74-80.

LI Qihang, YAN Yonghe, Muhetar , WANG Zhizhang, LI Yiqiang, CHEN Wenhao, YUAN Chaoye. Pseudo Threshold Pressure Gradient Model for Shallow Heavy Oil Reservoirs in Xinjiang Oilfield Under the Heat-Hydrocarbon Synergy[J]. Xinjiang Petroleum Geology, 2026, 47(1): 74-80.

图/表 8

表1

图1

图2

图3

图4

图5

图6

图7

参考文献 25

[1]	刘慧卿, 东晓虎. 稠油热复合开发提高采收率技术现状与趋势[J]. 石油科学通报, 2022, 7(2):174-184.
	LIU Huiqing, DONG Xiaohu. Current status and future trends of hybrid thermal EOR processes in heavy oil reservoirs[J]. Petroleum Science Bulletin, 2022, 7(2):174-184.
[2]	LIU Zuodong, WANG Hongjun, BLACKBOURN G, et al. Heavy oils and oil sands:Global distribution and resource assessment[J]. Acta Geologica Sinica, 2019, 93(1):199-212.
[3]	孙焕泉, 刘慧卿, 王海涛, 等. 中国稠油热采开发技术与发展方向[J]. 石油学报, 2022, 43(11):1664-1674. doi: 10.7623/syxb202211013
	SUN Huanquan, LIU Huiqing, WANG Haitao, et al. Development technology and direction of thermal recovery of heavy oil in China[J]. Acta Petrolei Sinica, 2022, 43(11):1664-1674. doi: 10.7623/syxb202211013
[4]	DONG Xiaohui, LIU Huiqing, WANG Qing, et al. Non-Newtonian flow characterization of heavy crude oil in porous media[J]. Journal of Petroleum Exploration and Production Technology, 2013, 3:43-53. doi: 10.1007/s13202-012-0043-9
[5]	吕晓光, 李伟. 多层砂岩油田热采油藏管理提高采收率[J]. 新疆石油地质, 2024, 45(1):65-71.
	LYU Xiaoguang, LI Wei. Thermally recovered reservoir management and EOR for a multi-layered sandstone oilfield[J]. Xinjiang Petroleum Geology, 2024, 45(1):65-71.
[6]	ALVARADO V, MANRIQUE E. Enhanced oil recovery:An update review[J]. Energies, 2010, 3:1529-1575. doi: 10.3390/en3091529
[7]	魏鸿坤, 王健, 许天寒, 等. CO₂对稠油油藏的物性调控及辅助蒸汽驱提高采收率[J]. 新疆石油地质, 2024, 45(2):221-227.
	WEI Hongkun, WANG Jian, XU Tianhan, et al. Regulation of CO₂ on physical properties of heavy oil reservoir and EOR of CO₂-assisted steam flooding[J]. Xinjiang Petroleum Geology, 2024, 45(2):221-227.
[8]	宋涛, 李宜强, 吕小龙, 等. 稠油油藏烟道气辅助蒸汽驱机理及效果[J]. 新疆石油地质, 2025, 46(5):606-613.
	SONG Tao, LI Yiqiang, LYU Xiaolong, et al. Mechanism and performance of flue gas-assisted steam flooding in heavy oil reservoirs[J]. Xinjiang Petroleum Geology, 2025, 46(5):606-613.
[9]	DONG Xiaohu, LIU Huiqing, CHEN Zhangxin, et al. Enhanced oil recovery techniques for heavy oil and oilsands reservoirs after steam injection[J]. Applied Energy, 2019, 239:1190-1211. doi: 10.1016/j.apenergy.2019.01.244
[10]	ARDALI M, BARRUFET M A, MAMORA D D, et al. A critical review of hybrid steam-solvent processes to recover heavy oil[R]. SPE 159257,2012.
[11]	黄婷, 宁正福, 刘慧卿, 等. 组分影响稠油渗流特征实验研究[J]. 科学技术与工程, 2013, 13(23):6851-6854.
	HUANG Ting, NING Zhengfu, LIU Huiqing, et al. Experiment investigation on mobility characteristics of different components of heavy oil[J]. Science Technology and Engineering, 2013, 13(23):6851-6854.
[12]	吴永彬, 刘雪琦, 杜宣, 等. 超稠油油藏溶剂辅助重力泄油机理物理模拟实验[J]. 石油勘探与开发, 2020, 47(4):765-771. doi: 10.11698/PED.2020.04.13
	WU Yongbin, LIU Xueqi, DU Xuan, et al. Scaled physical experiments on drainage mechanisms of solvent-expanded SAGD in super-heavy oil reservoirs[J]. Petroleum Exploration and Development, 2020, 47(4):765-771.
[13]	曹涵, 李宜强, 刘哲宇, 等. 多因素作用下的稠油流动界限试验[J]. 中国石油大学学报(自然科学版), 2023, 47(6):104-110.
	CAO Han, LI Yiqiang, LIU Zheyu, et al. Experiment study on flow boundary of heavy oils with multiple influence factors[J]. Journal of China University of Petroleum(Edition of Natural Science), 2023, 47(6):104-110.
[14]	孙建芳. 胜利油区稠油非达西渗流启动压力梯度研究[J]. 油气地质与采收率, 2010, 17(6):74-77.
	SUN Jianfang. Threshold pressure gradient study on non-Newtonian flow of heavy oil reservoirs in Shengli oilfield[J]. Petroleum Geology and Recovery Efficiency, 2010, 17(6):74-77.
[15]	张戈, 邢振华, 张伟, 等. 低流度稠油油藏启动机制及主控因素实验研究[J]. 西安石油大学学报(自然科学版), 2023, 38(2):77-83.
	ZHANG Ge, XING Zhenhua, ZHANG Wei, et al. Experimental study on start-up mechanism and main controlling factors of low-mobility heavy oil reservoir[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2023, 38(2):77-83.
[16]	李生华, 刘晨光, 梁文杰, 等. 从石油溶液到碳质中间相:Ⅰ. 石油胶体溶液及其理论尝析[J]. 石油学报(石油加工), 1995, 11(1):55-60.
	LI Shenghua, LIU Chenguang, LIANG Wenjie, et al. From petroleum solution to carbonaceous mesophase:Ⅰ. Trial analyses of petroleum colloid configuration and its theories[J]. Acta Petrolei Sinica (Petroleum Processing Section), 1995, 11(1):55-60.
[17]	苏铁军, 郑延成. 稠油族组成与粘度关联研究[J]. 长江大学学报(自科版) 理工卷, 2007, 4(1):60-62.
	SU Tiejun, ZHENG Yancheng. Correlations between heavy oil composition and its viscosity[J]. Journal of Yangtze University(Natural Science Edition), 2007, 4(1):60-62.
[18]	TANG Xiaoli, DUAN Wenmeng, XU Ke, et al. Three-dimensional network gel structure and viscosity reduction mechanism of heavy oil[J]. Colloids and Surfaces A:Physicochemical and Engineering Aspects, 2022, 653:130060. doi: 10.1016/j.colsurfa.2022.130060
[19]	ALCAZAR-VARA L A, GARCIA-MARTINEZ J A, BUENROSTRO-GONZALEZE E. Effect of asphaltenes on equilibrium and rheological properties of waxy model systems[J]. Fuel, 2012, 93:200-212. doi: 10.1016/j.fuel.2011.10.038
[20]	CHEN Yafei, PU Wanfen, LI Yibo, et al. A novel insight into the viscosity-temperature characteristic by the comparison of Tahe ordinary- and ultra-heavy oils[J]. Energy & Fuels, 2018, 32(12):12308-12318. doi: 10.1021/acs.energyfuels.8b03091
[21]	WU Yongbin, LI Xiuluan, SHEN Dehuang, et al. Solvent-assisted start-up of SAGD in shallow heavy oil reservoirs[R]. SPE 174604,2015.
[22]	张鸿. 超稠油黏温及流变特性室内实验研究[J]. 重庆科技学院学报(自然科学版), 2020, 22(4):40-44.
	ZHANG Hong. Laboratory experimental study on viscosity-temperature and rheological properties of super heavy oil[J]. Journal of Chongqing University of Science and Technology(Natural Sciences Edition), 2020, 22(4):40-44.
[23]	张阳, 安高峰, 蒋琪, 等. 稠油化学降黏剂研究进展与发展趋势[J]. 特种油气藏, 2024, 31(1):9-19. doi: 10.3969/j.issn.1006-6535.2024.01.002
	ZHANG Yang, AN Gaofeng, JIANG Qi, et al. Research progress and development trend of heavy oil chemical viscosity reducing agent[J]. Special Oil & Gas Reservoirs, 2024, 31(1):9-19.
[24]	户昶昊. 低黏原油辅助气体吞吐稠油开采技术室内实验和技术界限[J]. 特种油气藏, 2024, 31(1):48-56. doi: 10.3969/j.issn.1006-6535.2024.01.006
	HU Changhao. Indoor experiment and technical boundary of heavy reservoir with gas huff and puff assisted by low-viscosity oil injection[J]. Special Oil & Gas Reservoirs, 2024, 31(1):48-56.
[25]	张代燕, 彭军, 谷艳玲, 等. 稠油油藏启动压力梯度实验[J]. 新疆石油地质, 2012, 33(2):201-204.
	ZHANG Daiyan, PENG Jun, GU Yanling, et al. Experimental study on threshold pressure gradient of heavy oil reservoir[J]. Xinjiang Petroleum Geology, 2012, 33(2):201-204.

区块	阳离子含量			阴离子含量				总矿化度
区块	K⁺+Na⁺	Mg²⁺	Ca²⁺	Cl^-	SO2+4	HCO- 3	CO2-3	总矿化度
J230区块	3 425.32	43.52	106.91	1 783.34	237.47	1 791.80	101.63	7 489.99
