Geometry of Hydraulic Fractures in Fractured Horizontal Wells in Shale Reservoirs of Jimsar Sag，Junggar Basin

doi:10.7657/XJPG20240110

Abstract

Abstract:

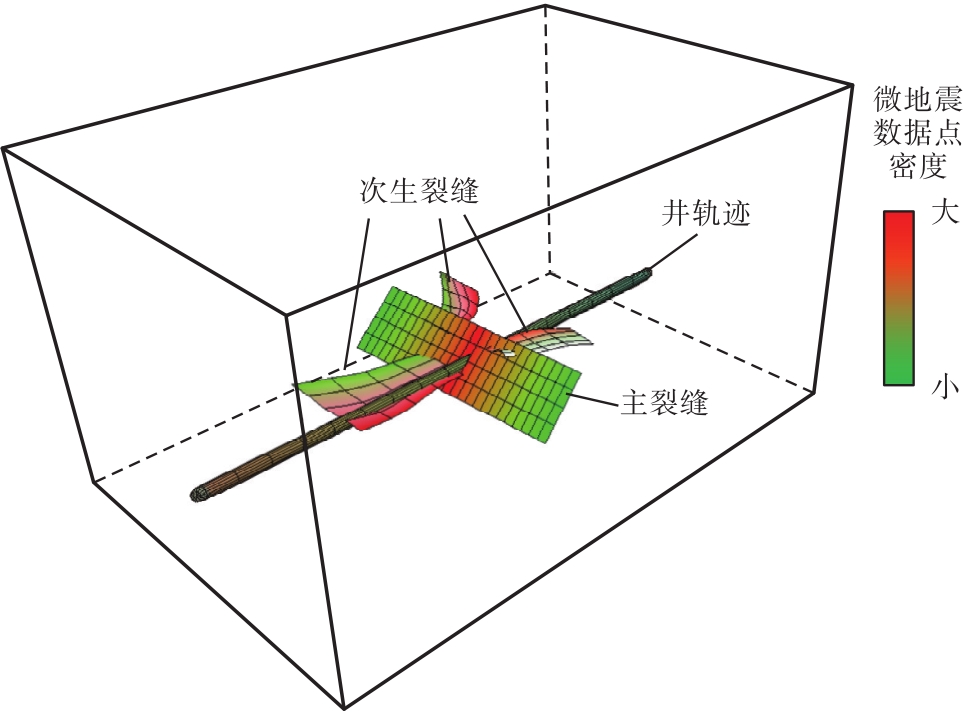

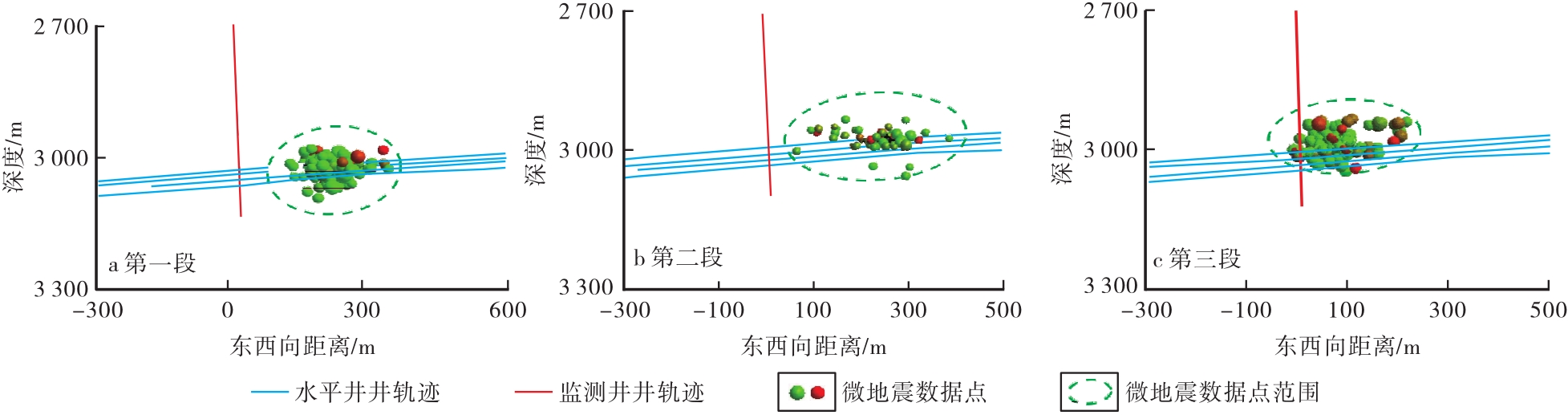

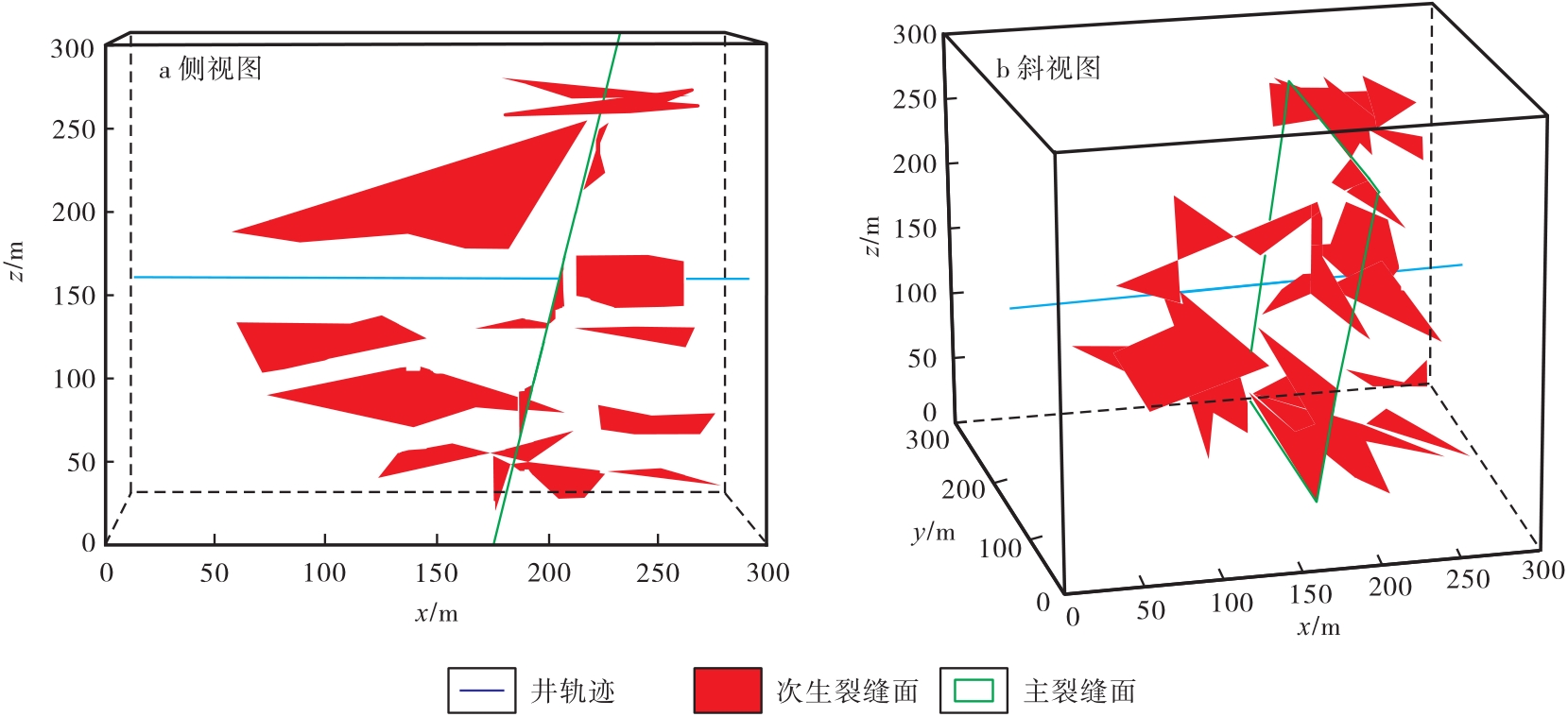

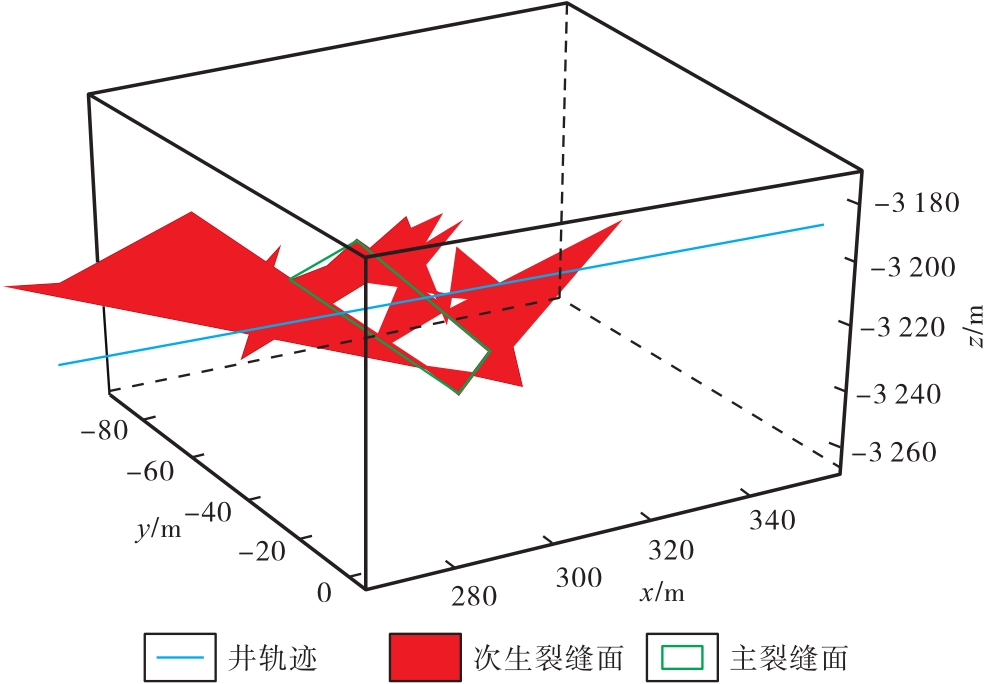

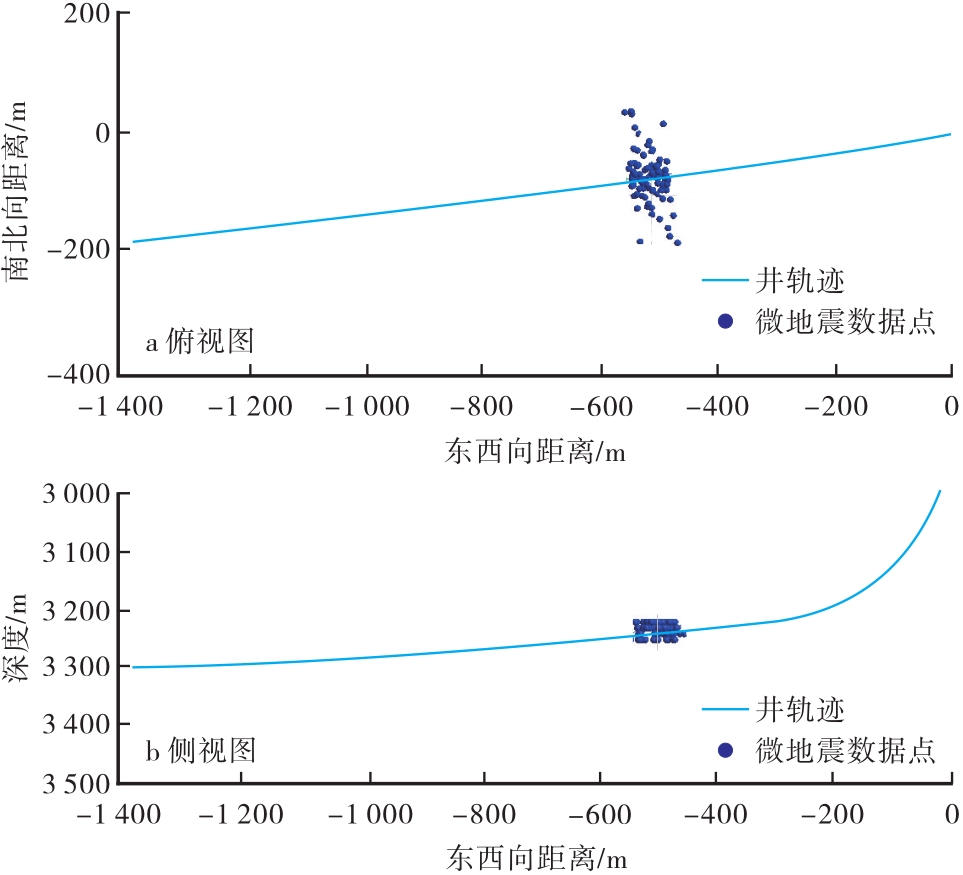

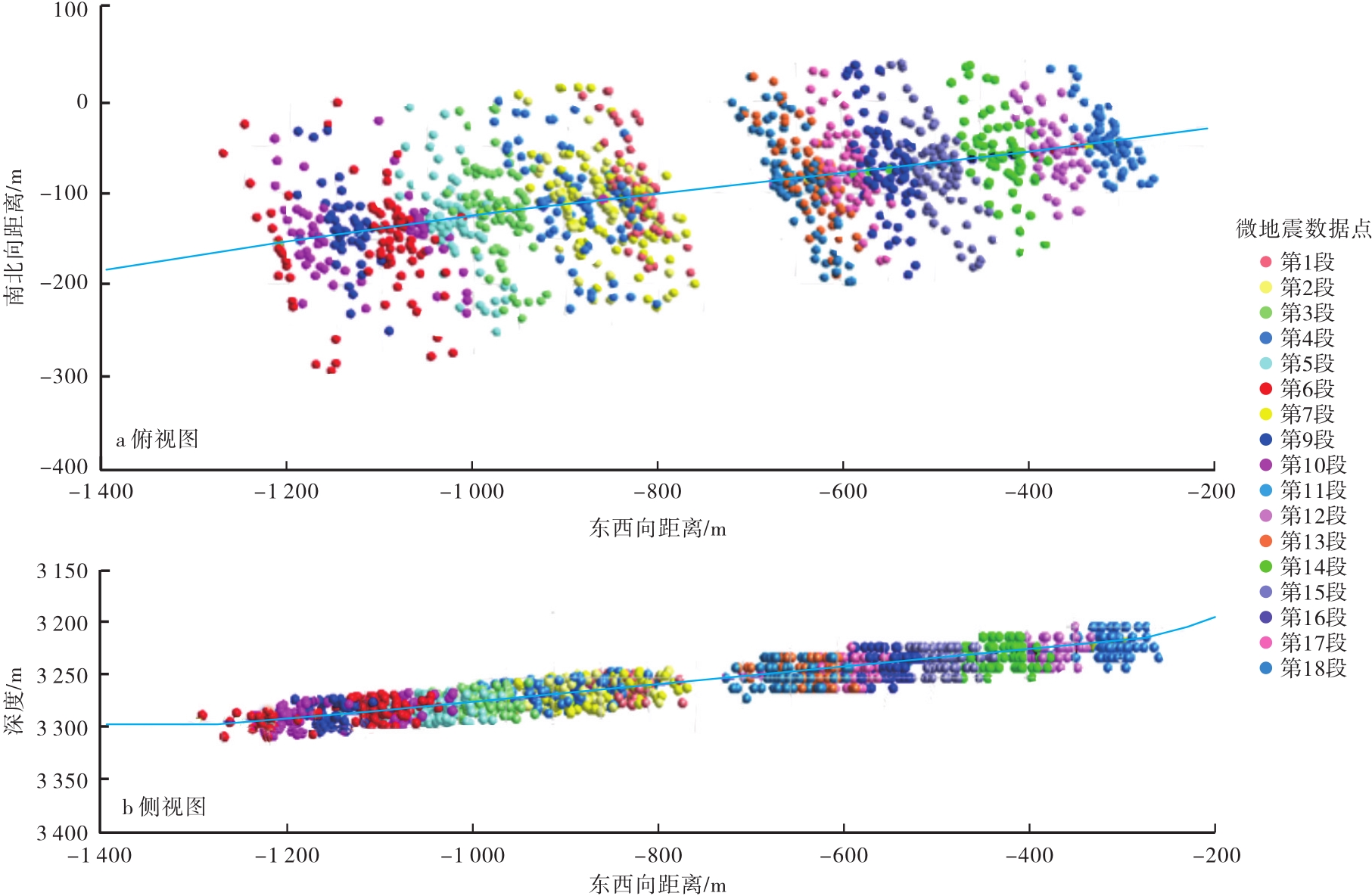

The side-view images of microseismic monitoring in horizontal wells in the shale reservoirs in the Jimsar sag of Junggar basin and in the southern Sichuan basin exhibit a phenomenon that the density and extent of the data points parallel to bedding direction are much greater than those perpendicular to the bedding direction. This phenomenon contradicts the hydraulic fracture interpretation results from conventional processing. However，there is no clear explanation for this phenomenon in terms of 3D geometry of hydraulic fractures. A method of microseismic inversion was established，and the inversion results were reconstructed to obtain 3D geometry of the fractures induced by horizontal well hydraulic fracturing in shale reservoirs. Finally，the fracture geometry and the microseismic inversion method were verified through physical simulation experiments on fracturing under true triaxial stress. The results show that the fractures from inversion primarily exhibit a geometrical pattern of one main fracture intersecting with multiple secondary fractures in three dimensional space. Combining with the results of fracturing physical simulation experiments under true triaxial stress，it is found that the hydraulic fractures are horizontally and vertically intersected. The results of acoustic emission experiments and the fracture geometry presented after true-triaxial fracturing physical simulation of outcrop samples from the Jimsar sag validate that the microseismic inversion method is reliable and the fractures induced by horizontal well hydraulic fracturing in shale reservoirs are complex.

Key words: Junggar basin, Jimsar sag, shale, horizontal well, reservoir, microseismic, hydraulic fracturing, fracture geometry

CLC Number:

TE357

FANG Zheng, CHEN Mian, WANG Su, LI Jiacheng, LYU Jiaxin, YU Yanbo, JIAO Jibo. Geometry of Hydraulic Fractures in Fractured Horizontal Wells in Shale Reservoirs of Jimsar Sag，Junggar Basin[J]. Xinjiang Petroleum Geology, 2024, 45(1): 72-80.

Figures/Tables 13

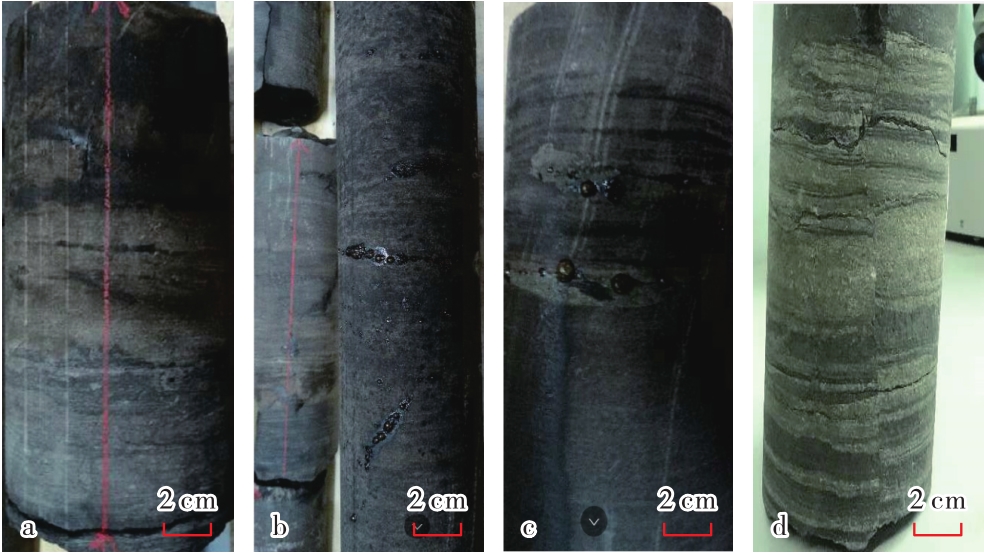

Fig. 1.

Fig. 2.

Fig. 3.

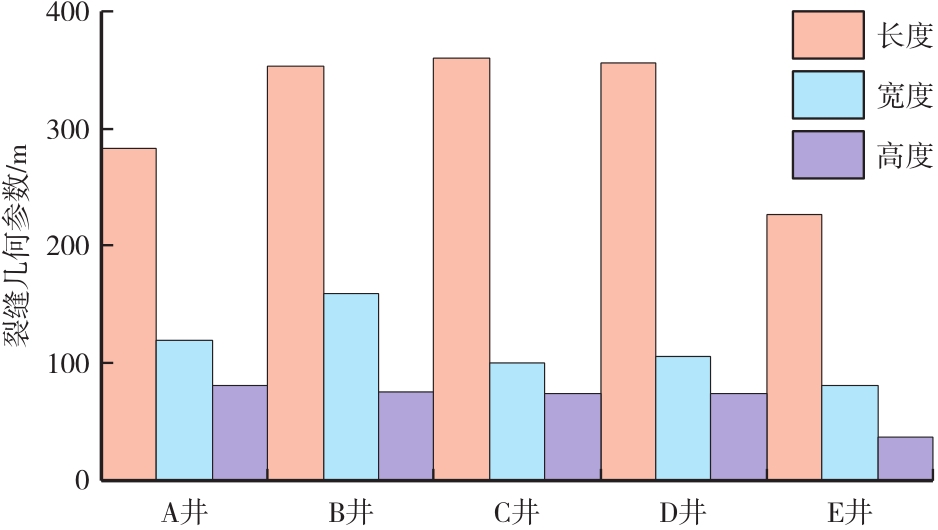

Fig. 4.

Fig. 5.

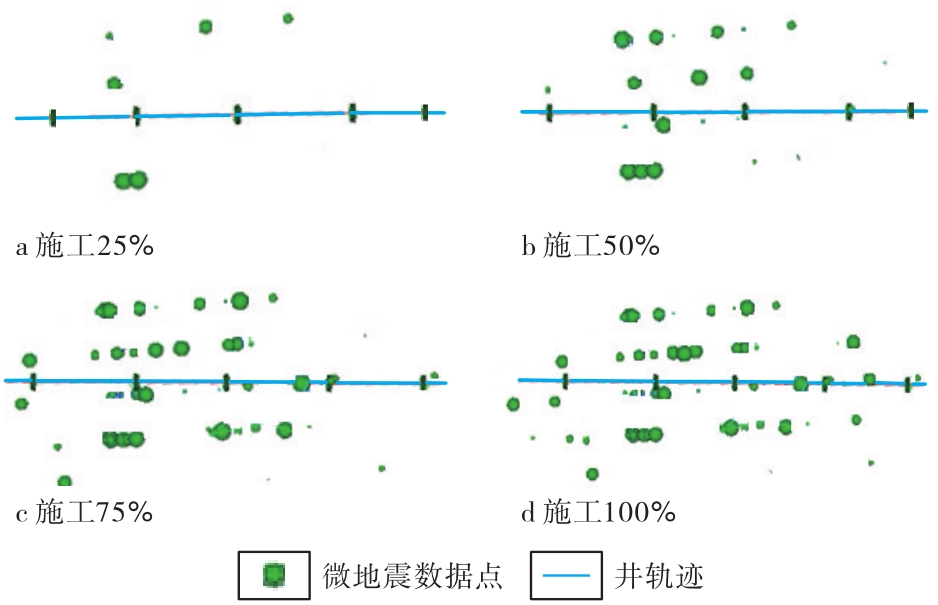

Fig. 6.

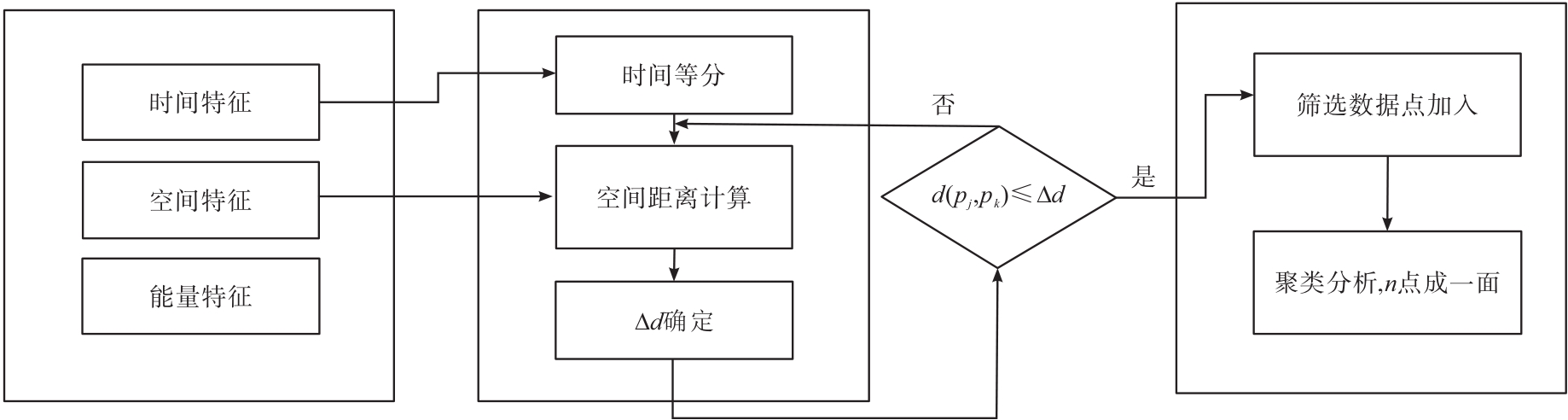

Fig. 7.

Fig. 8.

Fig. 9.

Fig. 10.

Table 1.

Fig. 11.

Fig. 12.

References 31

[1]	李颖涛, 杨国旗, 冯洋, 等. 基于井中微地震监测方法的压裂效果评价:以延安探区YP5-1井为例[J]. 非常规油气, 2022, 9(6):114-120.
	LI Yingtao, YANG Guoqi, FENG Yang, et al. Fracturing effect evaluation based on borehole microseismic monitoring method:Take Well YP5-1 in Yan’an exploration area as an example[J]. Unconventional Oil & Gas, 2022, 9(6):114-120.
[2]	CIPOLLA C L, WILLIAMS M J, WENG Xiaowei, et al. Hydraulic fracture monitoring to reservoir simulation:Maximizing value[R]. SPE 133877, 2010.
[3]	AGARWAL K, MAYERHOFER M J, WARPINSKI N R. Impact of geomechanics on microseismicity[R]. SPE 152835, 2012.
[4]	余佩蓉, 郑国庆, 孙福泰, 等. 玛湖凹陷风城组页岩油藏水平井压裂裂缝扩展模拟[J]. 新疆石油地质, 2022, 43(6):750-756.
	YU Peirong, ZHENG Guoqing, SUN Futai, et al. Simulation on fracture propagation during hydraulic fracturing in horizontal wells in shale reservoirs of Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):750-756.
[5]	刘向君, 王小军, 赵保伟, 等. 砂砾岩储集层水力压裂裂缝扩展规律与可压性评价[J]. 新疆石油地质, 2023, 44(2):169-177.
	LIU Xiangjun, WANG Xiaojun, ZHAO Baowei, et al. Propagation of hydraulic fractures and fracability evaluation of sandy conglomerate reservoirs[J]. Xinjiang Petroleum Geology, 2023, 44(2):169-177.
[6]	董鹏, 陈志明, 于伟. 压裂后页岩油藏多裂缝直井产能模型:以鄂尔多斯盆地页岩油井为例[J]. 大庆石油地质与开发, 2022, 41(1):155-165.
	DONG Peng, CHEN Zhiming, YU Wei. Study on productivity model for multiple‐fracture vertical well in shale oil reservoirs after fractured:A case of shale oil wells in Ordos basin[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(1):155-165.
[7]	王瑞, 张瑞超, 贾潇, 等. 致密及页岩气藏气井分段压裂返排优化模型与分析[J]. 非常规油气, 2023, 10(5):97-103.
	WANG Rui, ZHANG Ruichao, JIA Xiao, et al. Staged fracturing flowback optimization method for horizontal wells in tight and shale gas reservoirs[J]. Unconventional Oil & Gas, 2023, 10(5):97-103.
[8]	李向阳, 季汉成, 卞腾飞, 等. 玛北斜坡百口泉组致密砾岩水力压裂裂缝表征[J]. 新疆石油地质, 2023, 44(2):178-183.
	LI Xiangyang, JI Hancheng, BIAN Tengfei, et al. Characterization of hydraulic fractures in tight conglomerate reservoirs in Baikouquan formation,Mabei slope[J]. Xinjiang Petroleum Geology, 2023, 44(2):178-183.
[9]	FJAER E, HOLT R M, HORSRUD P, et al. Petroleum related rock mechanics[M]. 2nd ed. Amsterdam: Elsevier, 2008.
[10]	孙焕泉. 水平井开发技术[M]. 北京: 石油工业出版社, 2012.
	SUN Huanquan. Horizontal well development technology[M]. Beijing: Petroleum Industry Press, 2012.
[11]	石林, 史璨, 田中兰, 等. 中石油页岩气开发中的几个岩石力学问题[J]. 石油科学通报, 2019, 4(3):223-232.
	SHI Lin, SHI Can, TIAN Zhonglan, et al. Several rock mechanics problems in the development of shale gas in PetroChina[J]. Petroleum Science Bulletin, 2019, 4(3):223-232.
[12]	韦世明, 金衍, 考佳玮, 等. 钻井—压裂—生产全过程储层应力演化与加密井压裂优化[J]. 石油学报, 2022, 43(9):1305-1314. doi: 10.7623/syxb202209009
	WEI Shiming, JIN Yan, KAO Jiawei, et al. Reservoir stress evolution and fracture optimization of infill wells during the drilling-fracturing-production process[J]. Acta Petrolei Sinica, 2022, 43(9):1305-1314. doi: 10.7623/syxb202209009
[13]	WEI Shiming, KAO Jiawei, JIN Yan, et al. A discontinuous discrete fracture model for coupled flow and geomechanics based on FEM[J]. Journal of Petroleum Science and Engineering, 2021, 204:108677. doi: 10.1016/j.petrol.2021.108677
[14]	石林, 张鲲鹏, 慕立俊. 页岩油储层压裂改造技术问题的讨论[J]. 石油科学通报, 2020, 5(4):496-511.
	SHI Lin, ZHANG Kunpeng, MU Lijun. Discussion of hydraulic fracturing technical issues in shale oil reservoirs[J]. Petroleum Science Bulletin, 2020, 5(4):496-511.
[15]	WEI Shiming, JIN Yan, WANG Shiguo, et al. A framework to obtain the formulas of the conductivity and aperture of rough fractures under thermo-hydro-mechanical conditions[J]. Journal of Petroleum Science and Engineering, 2022, 208:109354. doi: 10.1016/j.petrol.2021.109354
[16]	SALISHCHEV M V, SHIRNEN A A, KHAMADALIEV D M, et al. Logging,well testing and microseismic fracture geometry investigations:Mistakes,lessons learnt and challenges[R]. SPE 202060-MS, 2020.
[17]	GALE J F W, ELLIOTT S J, RYSAK B G, et al. Fracture description of the HFTS-2 slant core,Delaware basin,west Texas[C]. Unconventional Resources Technology Conference, 2021:1122-1133.
[18]	CAI M, KAISER P K, MARTIN C D. Quantification of rock mass damage in underground excavations from microseismic event monitoring[J]. International Journal of Rock Mechanics and Mining Sciences, 2001, 38(8):1135-1145.
[19]	WILLIAMS-STROUD S, OZGEN C, BILLINGSLEY R L. Methods to calibrate low-amplitude surface monitoring microseismic results via integration of geology,production data,and reservoir simulation[J]. CSEG Recorder, 2012, 37(8):32-38.
[20]	赵争光, 秦月霜, 杨瑞召. 地面微地震监测致密砂岩储层水力裂缝[J]. 地球物理学进展, 2014, 29(5):2136-2139.
	ZHAO Zhengguang, QIN Yueshuang, YANG Ruizhao. Hydraulic fracture mapping for a tight sands reservoir by surface based microseismic monitoring[J]. Progress in Geophysics, 2014, 29(5):2136-2139.
[21]	张云银, 刘海宁, 李红梅, 等. 应用微地震监测数据估算储层压裂改造体积[J]. 石油地球物理勘探, 2017, 52(2):309-314.
	ZHANG Yunyin, LIU Haining, LI Hongmei, et al. Reservoir fracturing volume estimation with microseismic monitoring data[J]. Oil Geophysical Prospecting, 2017, 52(2):309-314.
[22]	刘星, 金衍, 林伯韬, 等. 利用微地震事件重构三维缝网[J]. 石油地球物理勘探, 2019, 54(1):102-111.
	LIU Xing, JIN Yan, LIN Botao, et al. A 3D fracture network reconstruction method based on microseismic events[J]. Oil Geophysical Prospecting, 2019, 54(1):102-111.
[23]	ZHU Quanjie, YU Feng, CAI Ming, et al. Interpretation of the extent of hydraulic fracturing for rockburst prevention using microseismic monitoring data[J]. Journal of Natural Gas Science and Engineering, 2017, 38:107-119. doi: 10.1016/j.jngse.2016.12.034
[24]	MAXWELL S C. Comparative microseismic interpretation of hydraulic fractures[R]. SPE 162782-MS, 2012.
[25]	OYE V, ROTH M. Automated seismic event location for hydrocarbon reservoirs[J]. Computers & Geosciences, 2003, 29(7):851-863. doi: 10.1016/S0098-3004(03)00088-8
[26]	张娜玲. 基于微地震监测的油井压裂裂缝成像算法研究[D]. 长春: 吉林大学, 2010.
	ZHANG Naling. Research on the image algorithms of the fracture of the microseismic monitoring oil well[D]. Changchun: Jilin University, 2010.
[27]	文成哲, 刘财, 鹿琪, 等. 微震记录的空间自相关法误差特性分析[J]. 地球物理学进展, 2010, 25(2):439-446.
	WEN Chengzhe, LIU Cai, LU Qi, et al. An analysis on bias using the SPAC method in records of microtremors[J]. Progress in Geophysics, 2010, 25(2):439-446.
[28]	尹陈, 刘鸿, 李亚林, 等. 微地震监测定位精度分析[J]. 地球物理学进展, 2013, 28(2):800-807.
	YIN Chen, LIU Hong, LI Yalin, et al. The precision analysis of the microseismic location[J]. Progress in Geophysics, 2013, 28(2):800-807.
[29]	RATERMAN K T, LIU Y, WARREN L. Analysis of a drained rock volume:An Eagle Ford example[C]. Denver, Colorado: Unconventional Resources Technology Conference, 2019:4106-4125.
[30]	徐烽淋, 陈乔, 朱洪林, 等. 页岩层理结构对超声波特性响应分析及应用[J]. 石油勘探与开发, 2019, 46(1):79-88. doi: 10.11698/PED.2019.01.07
	XU Fenglin, CHEN Qiao, ZHU Honglin, et al. Response analysis of shale bedding structure to ultrasonic characteristics and its application[J]. Petroleum Exploration and Development, 2019, 46(1):79-88.
[31]	孙龙德, 刘合, 何文渊, 等. 大庆古龙页岩油重大科学问题与研究路径探析[J]. 石油勘探与开发, 2021, 48(3):453-463. doi: 10.11698/PED.2021.03.02
	SUN Longde, LIU He, HE Wenyuan, et al. An analysis of major scientific problems and research paths of Gulong shale oil in Daqing oilfield,NE China[J]. Petroleum Exploration and Development, 2021, 48(3):453-463.

基本力学参数	数值	压裂实验参数	数值
弹性模量/GPa	29.95	水平地应力差/MPa	8
泊松比	0.23	最大水平主应力/MPa	26
单轴抗压强度/MPa	23.97	最小水平主应力/MPa	18
单轴抗拉强度/MPa	1.64	上覆应力/MPa	28
渗透率/mD	0.11	排量/（mL·min^-1）	30
孔隙度/%	6.45
