3D Geological Simulation of Hydraulic Fracture Propagation and Frac-Hit Prevention in Horizontal Shale Gas Wells

doi:10.7657/XJPG20230611

Abstract

Abstract:

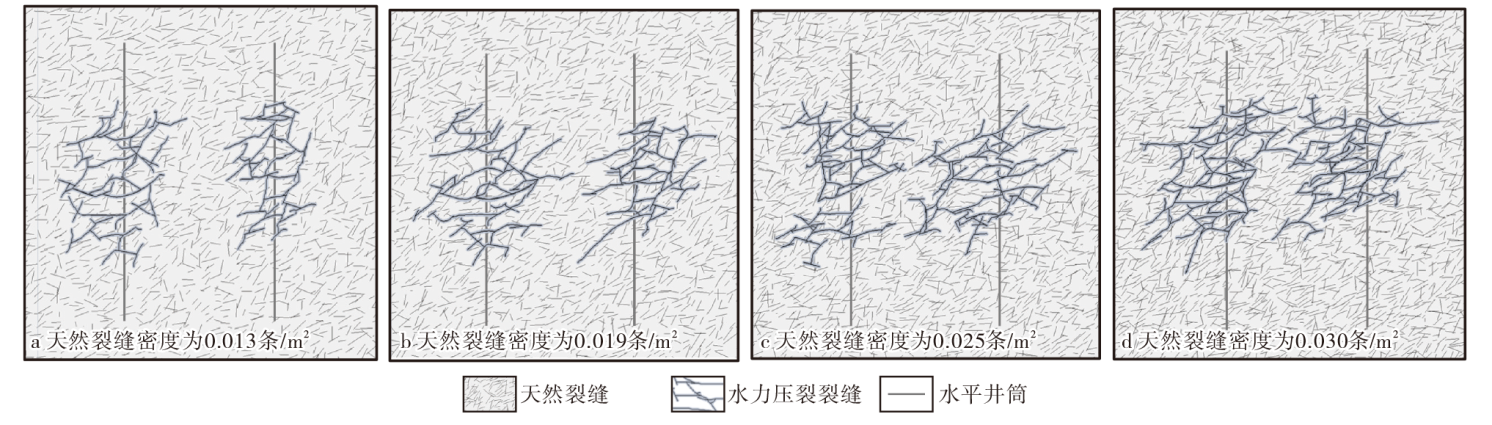

In the Sichuan basin, most of horizontal shale gas wells are stimulated by subdivided fracturing with large-stage and multi-cluster. Large-scale operations at high displacement and well infilling are often associated with severe inter-well interferences, leading to a decrease in well productivity. Optimizing stimulation treatments and well completion strategies and understanding the hydraulic fracture propagation rules are crucial to reducing the risk of inter-well frac-hit. Based on a 3D geomechanical model and with consideration to reservoir heterogeneity, in-situ stress anisotropy, interaction between fractures, and fracture network distribution, hydraulic fracture propagation and frac-hit prevention were simulated for two adjacent horizontal wells. The results show that large horizontal stress difference, natural fracture density and fluid intensity, or small approach angle and cluster spacing, may induce a high risk of frac-hit.

Key words: Sichuan basin, shale gas, 3D geomechanical model, fracture propagation, numerical simulation, horizontal well, frac-hit, inter-well interference, hydraulic fracturing

CLC Number:

TE357

WANG Ting, WANG Jie, JIANG Houshun, XU Hualei, YAO Ziyi, NAN Chong. 3D Geological Simulation of Hydraulic Fracture Propagation and Frac-Hit Prevention in Horizontal Shale Gas Wells[J]. Xinjiang Petroleum Geology, 2023, 44(6): 720-728.

Figures/Tables 10

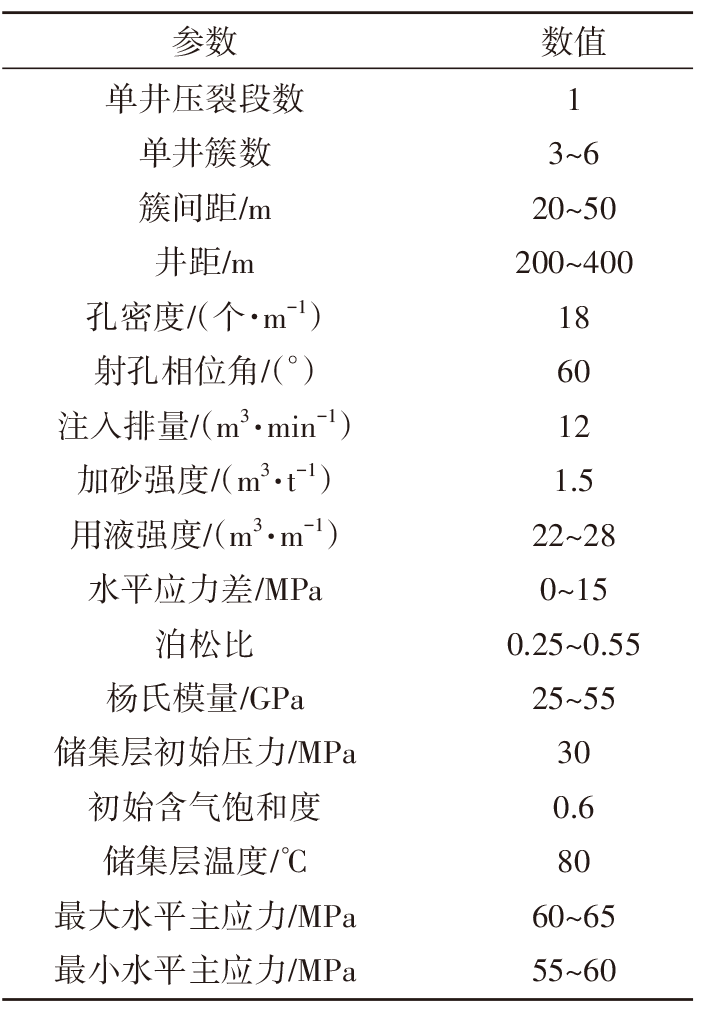

Table 1.

Fig. 1.

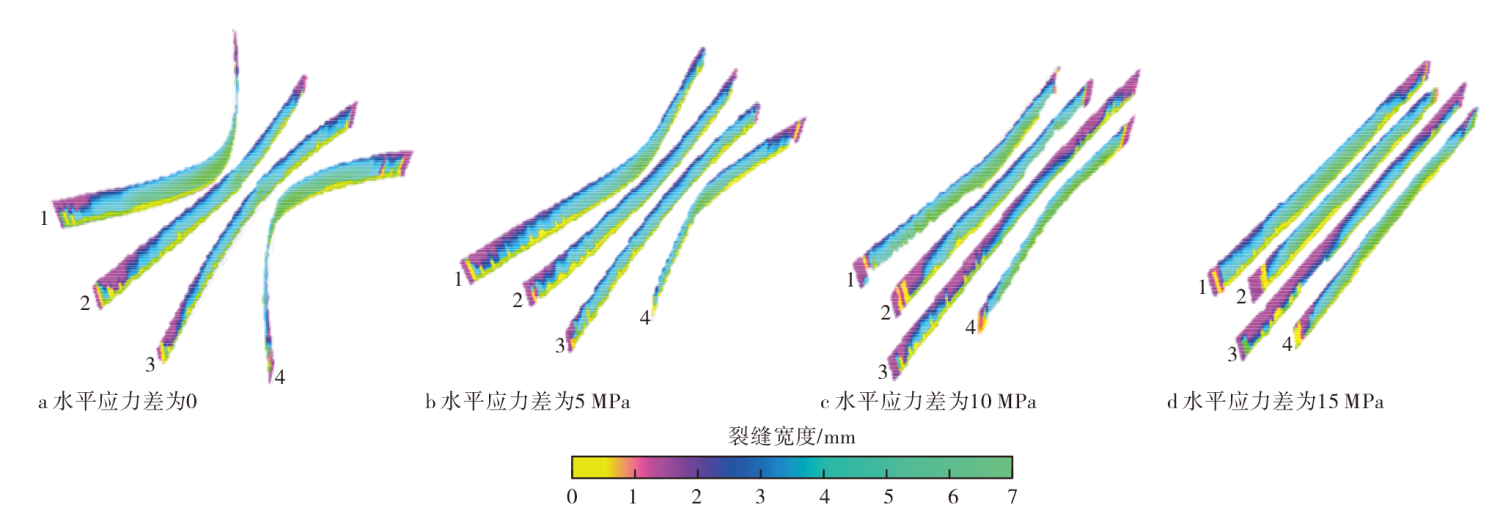

Fig. 2.

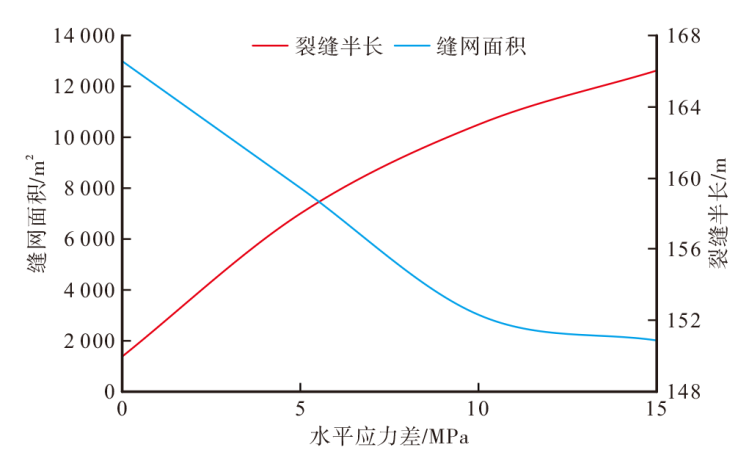

Fig. 3.

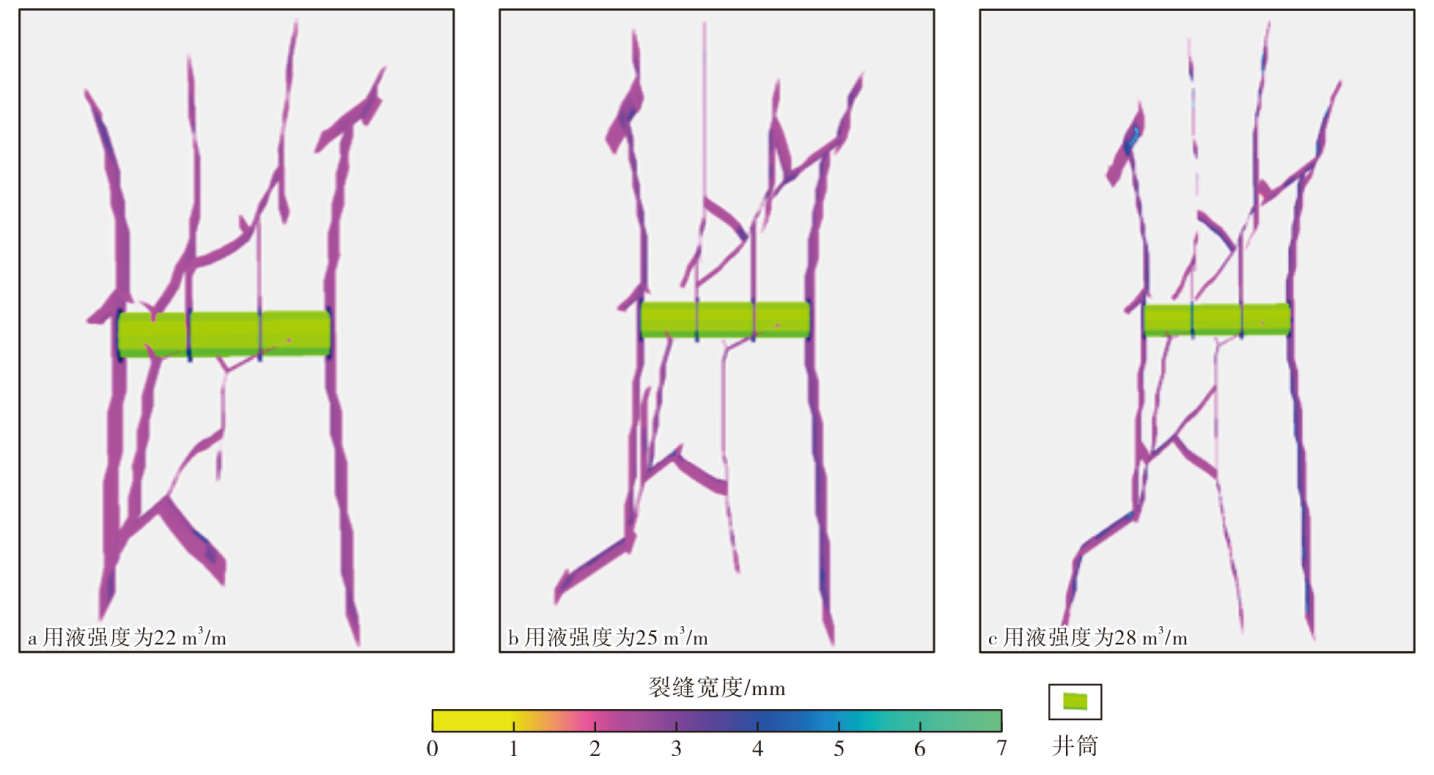

Fig. 4.

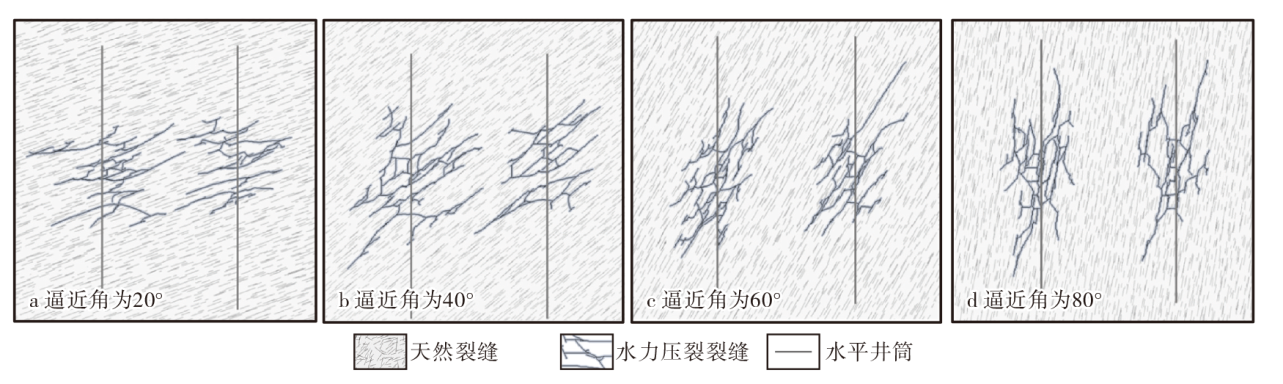

Fig. 5.

Table 2.

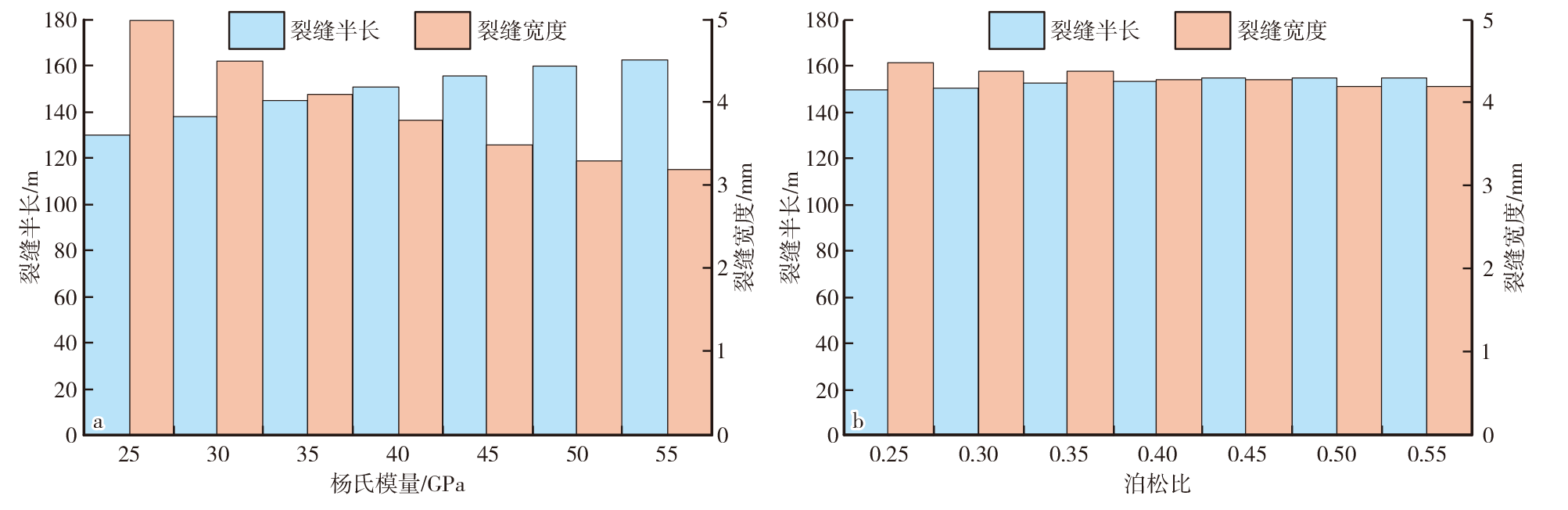

Fig. 6.

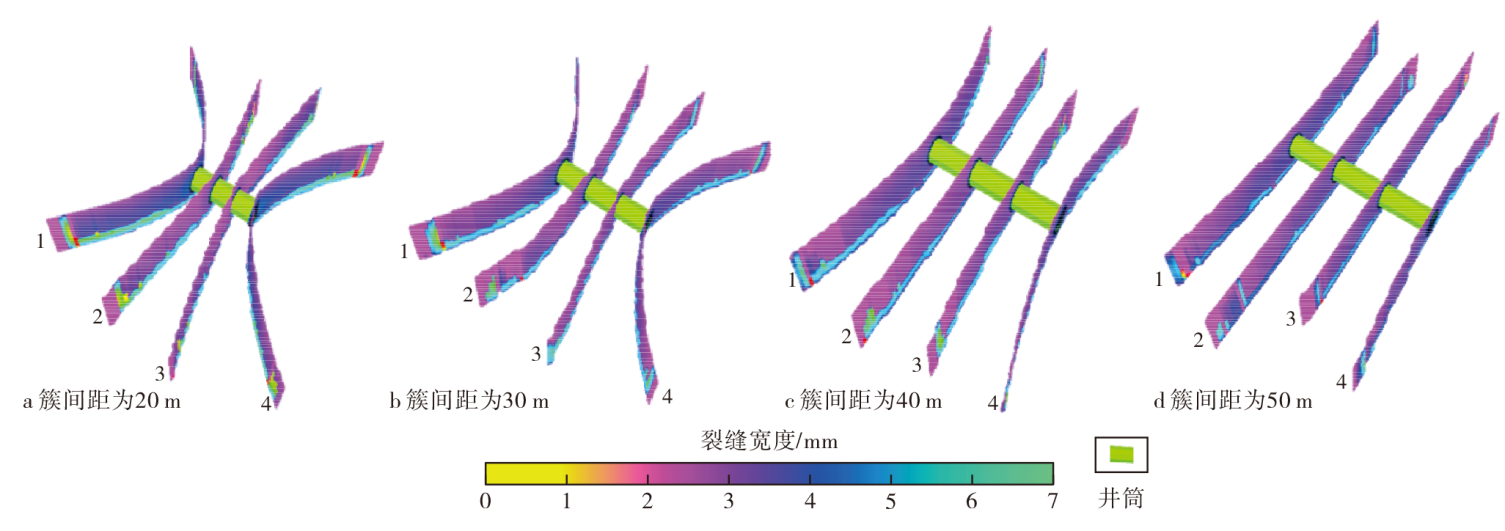

Fig. 7.

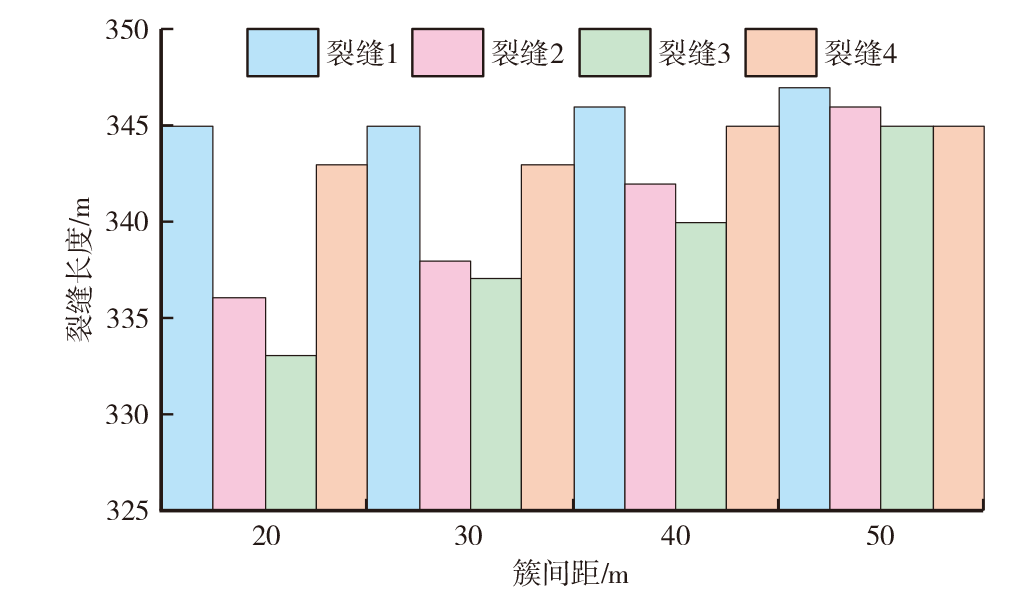

Fig. 8.

References 29

[1]	赵文智, 贾爱林, 位云生, 等. 中国页岩气勘探开发进展及发展展望[J]. 中国石油勘探, 2020, 25(1):31-44. doi: 10.3969/j.issn.1672-7703.2020.01.004
	ZHAO Wenzhi, JIA Ailin, WEI Yunsheng, et al. Progress in shale gas exploration in China and prospects for future development[J]. China Petroleum Exploration, 2020, 25(1):31-44. doi: 10.3969/j.issn.1672-7703.2020.01.004
[2]	郎岳, 张金川, 王焕第, 等. 页岩气地质评价智能化的应用与展望[J]. 大庆石油地质与开发, 2022, 41(1):166-174.
	LANG Yue, ZHANG Jinchuan, WANG Huandi, et al. Application and prospect of intelligent geological evaluation of shale gas[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(1):166-174.
[3]	周庆凡. 页岩油气资源评价基本问题的讨论[J]. 石油与天然气地质, 2022, 43(1):26-33.
	ZHOU Qingfan. Discussion on key issues of shale oil/gas resource assessment[J]. Oil & Gas Geology, 2022, 43(1):26-33.
[4]	郭少斌, 王子龙, 马啸. 中国重点地区二叠系海陆过渡相页岩气勘探前景[J]. 石油实验地质, 2021, 43(3):377-385.
	GUO Shaobin, WANG Zilong, MA Xiao. Exploration prospect of shale gas with Permian transitional facies of some key areas in China[J]. Petroleum Geology & Experiment, 2021, 43(3):377-385.
[5]	王飞, 吴宝成, 廖凯, 等. 从闷井压力反演页岩油水平井压裂裂缝参数和地层压力[J]. 新疆石油地质, 2022, 43(5):624-629.
	WANG Fei, WU Baocheng, LIAO Kai, et al. Inversion of fracture parameters and formation pressure for fractured horizontal wells in shale oil reservoir based on soaking pressure[J]. Xinjiang Petroleum Geology, 2022, 43(5):624-629.
[6]	何乐, 袁灿明, 龚蔚. 页岩气井间压窜影响因素分析和防窜对策[J]. 油气藏评价与开发, 2020, 10(5):63-69.
	HE Le, YUAN Canming, GONG Wei. Influencing factors and preventing measures of intra-well frac hit in shale gas[J]. Reservoir Evaluation and Development, 2020, 10(5):63-69.
[7]	余佩蓉, 郑国庆, 孙福泰, 等. 玛湖凹陷风城组页岩油藏水平井压裂裂缝扩展模拟[J]. 新疆石油地质, 2022, 43(6):750-756.
	YU Peirong, ZHENG Guoqing, SUN Futai, et al. Simulation on fracture propagation during hydraulic fracturing in horizontal wells in shale reservoirs of Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):750-756.
[8]	陈昊枢, 廖新维, 高敬善, 等. 一种页岩油藏多段压裂水平井试井分析方法[J]. 新疆石油地质, 2019, 40(3):357-364.
	CHEN Haoshu, LIAO Xinwei, GAO Jingshan, et al. A well test analysis method for multi-stage fractured horizontal wells in shale oil reservoirs[J]. Xinjiang Petroleum Geology, 2019, 40(3):357-364.
[9]	王瑞, 张瑞超, 贾潇, 等. 致密及页岩气藏气井分段压裂返排优化模型与分析[J]. 非常规油气, 2023, 10(5):97-103.
	WANG Rui, ZHANG Ruichao, JIA Xiao, et al. Staged fracturing flowback optimization method for horizontal wells in tight and shale gas reservoirs[J]. Unconventional Oil & Gas, 2023, 10(5):97-103.
[10]	赵志恒, 郑有成, 范宇, 等. 页岩储集层水平井段内多簇压裂技术应用现状及认识[J]. 新疆石油地质, 2020, 41(4):499-504.
	ZHAO Zhiheng, ZHENG Youcheng, FAN Yu, et al. Application and cognition of multi-cluster fracturing technology in horizontal wells in shale reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(4):499-504.
[11]	承宁, 郭旭洋, 魏璞, 等. 水平井分段分簇压裂缝间干扰和段间干扰建模:以昌吉油田吉7 井区八道湾组油藏为例[J]. 新疆石油地质, 2021, 42(4):437-443.
	CHENG Ning, GUO Xuyang, WEI Pu, et al. Inter-fracture and inter-section interference modeling for staged and clustered fracturing stimulation in horizontal wells:A case study on reservoirs of Badaowan formation in Wellblock Ji 7 in Changji oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(4):437-443.
[12]	宋毅, 林然, 黄浩勇, 等. 深层页岩气水平井压裂异步起裂裂缝延伸模拟与调控[J]. 大庆石油地质与开发, 2022, 41(5):145-152.
	SONG Yi, LIN Ran, HUANG Haoyong, et al. Simulation and control of fractures asynchronous initiation-propagation of horizontal well fracturing for deep shale gas[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(5):145-152.
[13]	朱海燕, 徐鑫勤, 钟安海, 等. 深层页岩油水平井密切割裂缝均衡扩展数值模拟:以胜利油田YYP1井为例[J]. 石油与天然气地质, 2022, 43(1):229-240.
	ZHU Haiyan, XU Xinqin, ZHONG Anhai, et al. Numerical simulation of evenly propagating hydraulic fractures with smaller cluster spacing in the horizontal Well YYP1 for deep shale oil in the Shengli oilfield[J]. Oil & Gas Geology, 2022, 43(1):229-240.
[14]	苗娟, 何旭晟, 王栋, 等. 水平井精细分段深度酸化压裂技术研究与应用[J]. 特种油气藏, 2022, 29(2):141-148. doi: 10.3969/j.issn.1006-6535.2022.02.021
	MIAO Juan, HE Xusheng, WANG Dong, et al. Study and application of fine segmented deep acid fracturing technology for horizontal wells[J]. Special Oil & Gas Reservoirs, 2022, 29(2):141-148.
[15]	王萌, 杨胜来, 旷年杰, 等. 低渗油藏穿层压裂水平井非线性渗流产能模型[J]. 非常规油气, 2023, 10(2):43-48.
	WANG Meng, YANG Shenglai, KUANG Nianjie, et al. Nonlinear percolation productivity model of fractured horizontal well in low permeability reservoir[J]. Unconventional Oil & Gas, 2023, 10(2):43-48.
[16]	刘文锋, 张旭阳, 张小栓, 等. 致密油多段压裂水平井产能预测方法[J]. 新疆石油地质, 2019, 40(6):731-735.
	LIU Wenfeng, ZHANG Xuyang, ZHANG Xiaoshuan, et al. A practical method to predict productivity of multistage fractured horizontal well in tight oil reservoirs[J]. Xinjiang Petroleum Geology, 2019, 40(6):731-735.
[17]	郭建春, 路千里, 何佑伟. 页岩气压裂的几个关键问题与探索[J]. 天然气工业, 2022, 42(8):148-161.
	GUO Jianchun, LU Qianli, HE Youwei. Key issues and explorations in shale gas fracturing[J]. Natural Gas Industry, 2022, 42(8):148-161.
[18]	蒲晓, 郭大立, 兰天, 等. 低渗透油藏转向压裂产能预测及影响因素[J]. 新疆石油地质, 2021, 42(1):76-80.
	PU Xiao, GUO Dali, LAN Tian, et al. Productivity prediction and influencing factors of low permeability reservoirs after steering fracturing stimulation[J]. Xinjiang Petroleum Geology, 2021, 42(1):76-80.
[19]	BEUGELSDIJK L J L, PATER C J, SATO K. Experimental hydraulic fracture propagation in a multi-fractured medium[R]. SPE 59419-MS, 2000.
[20]	PANKAJ P, SHUKLA P, KAVOUSI P, et al. Integrated well interference modeling reveals optimized well completion and spacing in the Marcellus shale[R]. Dallas,Texas,USA: SPE Annual Technical Conference and Exhibition, 2018.
[21]	林彦兵, 胡艾国, 陈付虎, 等. 红河油田水平井压窜原因分析及防窜对策建议[J]. 油气藏评价与开发, 2013, 3(4):56-61.
	LIN Yanbing, HU Aiguo, CHEN Fuhu, et al. Horizontal well fracturing channeling cause analysis and channeling prevention countermeasures in Honghe oilfield[J]. Reservoir Evaluation and Development, 2013, 3(4):56-61.
[22]	DANESHY A. Analysis of horizontal well fracture interactions,and completion steps for reducing the resulting production interference[R]. Dallas,Texas,USA: SPE Annual Technical Conference and Exhibition, 2018.
[23]	AGRAWAL S, SHARMA M. Impact of pore pressure depletion on stress reorientation and its implications on the growth of child well fractures[R]. Houston,Texas,USA: SPE/AAPG/SEG Unconventional Resources Technology Conference, 2018.
[24]	REZAEI A, DINDORUK B, SOLIMAN M Y. On parameters affecting the propagation of hydraulic fractures from infill wells[R]. San Antonio,Texas,USA: SPE Annual Technical Conference and Exhibition, 2017.
[25]	郎晓玲, 郭召杰. 基于DFN离散裂缝网络模型的裂缝性储层建模方法[J]. 北京大学学报(自然科学版), 2013, 49(6):964-972.
	LANG Xiaoling, GUO Zhaojie. Fractured reservoir modeling method based on discrete fracture network model[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2013, 49(6):964-972.
[26]	李亚龙, 刘先贵, 胡志明, 等. 页岩储层压裂缝网模拟研究进展[J]. 石油地球物理勘探, 2019, 54(2):480-492.
	LI Yalong, LIU Xiangui, HU Zhiming, et al. Research progress on fracture network simulation in shale reservoirs[J]. Oil Geophysical Prospecting, 2019, 54(2):480-492.
[27]	梁兴, 徐政语, 张介辉, 等. 浅层页岩气高效勘探开发关键技术:以昭通国家级页岩气示范区太阳背斜区为例[J]. 石油学报, 2020, 41(9):1033-1048. doi: 10.7623/syxb202009001
	LIANG Xing, XU Zhengyu, ZHANG Jiehui, et al. Key efficient exploration and development technoloiges of shallow shale gas:A case study of Taiyang anticline area of Zhaotong National Shale Gas Demonstration Zone[J]. Acta Petrolei Sinica, 2020, 41(9):1033-1048. doi: 10.7623/syxb202009001
[28]	侯冰, 常智, 武安安, 等. 吉木萨尔凹陷页岩油密切割压裂多簇裂缝竞争扩展模拟[J]. 石油学报, 2022, 43(1):75-90. doi: 10.7623/syxb202201007
	HOU Bing, CHANG Zhi, WU An’an, et al. Simulation of competitive propagation of multi-fractures on shale oil reservoir multi-clustered fracturing in Jimsar sag[J]. Acta Petrolei Sinica, 2022, 43(1):75-90. doi: 10.7623/syxb202201007
[29]	黄静. 芦草沟致密油储层水平井体积压裂簇间距优化研究[D]. 成都: 西南石油大学, 2016.
	HUANG Jing. Optimization of cluster spacing of horizontal well volume fracturing in Lucaogou tight oil reservoir[D]. Chengdu: Southwest Petroleum University, 2016.

水平应力差/MPa	A井		B井		相接裂缝半长/m
水平应力差/MPa	所在段	所在簇	所在段	所在簇	相接裂缝半长/m
0	1	3	1	4	320
0	5	2	6	1	321
7	1	3	2	1	451
7	2	4	3	3	456
15	3	4	4	2	564
15	4	4	5	3	568
