Optimization of AICD Well Completion Technology in Horizontal Wells in Gas Reservoirs With Bottom Water

doi:10.7657/XJPG20200409

Abstract

Abstract:

Autonomous Inflow Control Device (AICD) well completion technology has been applied in water control of oil reservoirs. However, the research on the application of AICD well completion technology in gas reservoirs is still lacking. Therefore, the water control mechanism and the flow characteristic of a new channel-type AICD well completion technology suitable for gas reservoirs are analyzed, and a dynamic reservoir-wellbore coupling model for the new channel-type AICD well completion technology is established for the gas reservoirs with bottom water in Tahe oilfield. The structure parameters of the new channel-type AICD well completion technology are optimized by using orthogonal tests and the water control effect of the new technology is analyzed. The results show that compared with the perforation completion, the new channel-type AICD well completion technology causes little bottom hole pressure loss and has little impact on condensate oil production, and the application of the new channel-type AICD well completion technology can prolong the low watercut gas production period by about 365 days. It is predicted that the cumulative water production with the new channel-type AICD well completion technology will decrease by about 27% at the end of the 20th year and the water saturation in the near-wellbore area will decrease, too, indicating a good water control effect. The new channel-type AICD well completion technology can be used for the development of gas reservoirs with bottom water, and water control and steady gas production can be achieved in this kind of reservoirs.

Key words: gas reservoir with bottom water, horizontal well production, water control completion, AICD, numerical simulation, optimization

CLC Number:

TE257

ZHOU Chao, ZHAO Xu, YAO Zhiliang, DANG Sisi, KOU Xiangrong. Optimization of AICD Well Completion Technology in Horizontal Wells in Gas Reservoirs With Bottom Water[J]. Xinjiang Petroleum Geology, 2020, 41(4): 444-449.

Figures/Tables 10

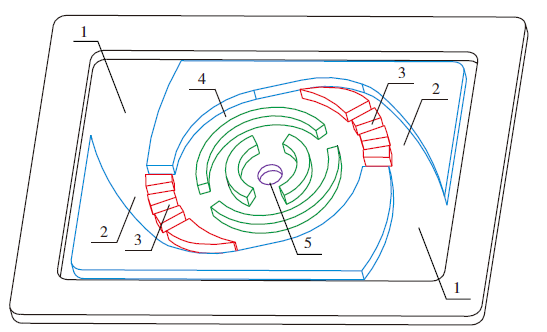

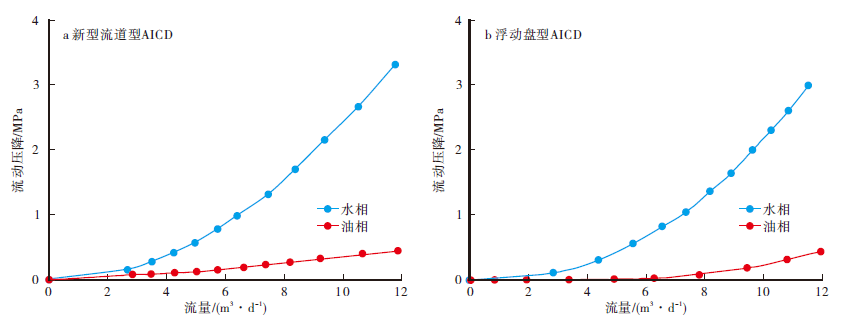

Fig. 1.

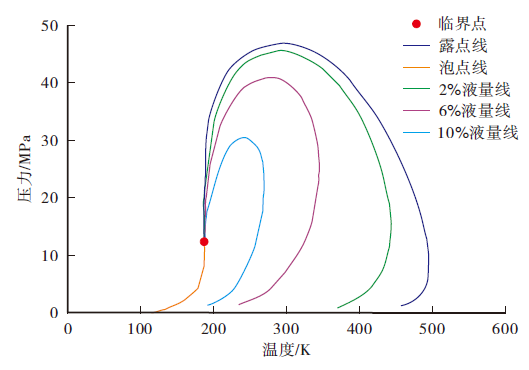

Fig. 2.

Table 1

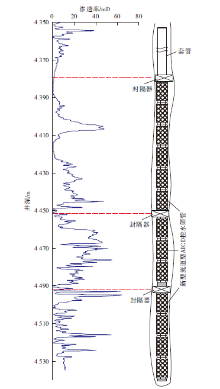

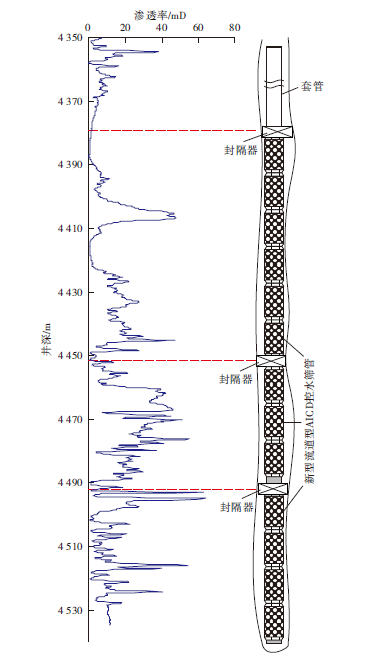

Fig. 3.

Fig. 4.

Table 2

Table 3

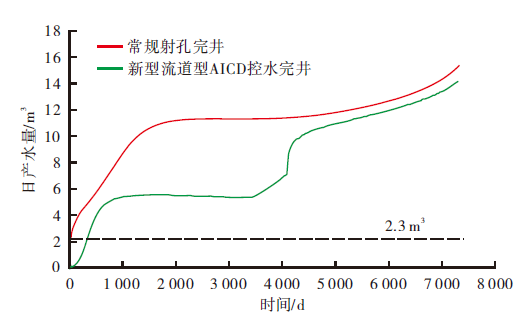

Fig. 5.

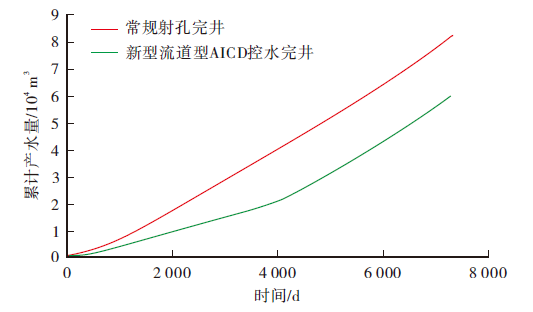

Fig. 6.

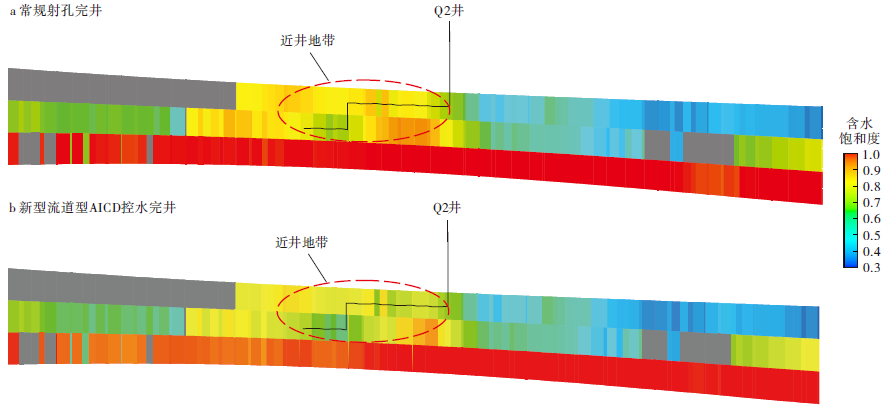

Fig. 7.

References 18

[1]	吴永平, 杨敏, 李明, 等. 克拉2 气田水侵规律及模式[J]. 新疆石油地质, 2019,40(6):302-306.
	WU Yongping, YANG Min, LI Ming, et al. Laws and models of water invasion in Kela 2 gas field[J]. Xinjiang Petroleum Geology, 2019,40(6):302-306.
[2]	郭长永, 熊启勇, 邓伟兵, 等. 底水油藏水平井水平段动用状况预测方法[J]. 新疆石油地质, 2019,40(4):468-472.
	GUO Changyong, XIONG Qiyong, DENG Weibing, et al. Methods to predict horizontal section producing status of horizontal wells in reservoirs with bottom water[J]. Xinjiang Petroleum Geology, 2019,40(4):468-472.
[3]	FRIPP M, ZHAO L, LEAST B. The theory of a fluidic diode autonomous inflow control device[R]. Dubai:SPE Middle East Intelligent Energy Conference and Exhibition, 2013.
[4]	HALVORSEN M, ELSETH G, NAEVDAL O M. Increased oil production at Troll by autonomous inflow control with RCP valves[R]. Texas:SPE Annual Technical Conference and Exhibition, 2012.
[5]	MATHIESEN V, AAKRE H, WERSWICK B, et al. The autonomous RCP valve:new technology for inflow control in horizontal wells[R]. Aberdeen:SPE Offshore Europe Oil and Gas Conference and Exhibition, 2011.
[6]	LEAST B, BONNER A, REGULACION R, et al. Autonomous ICD installation success in Ecuador heavy oil:a case study[R]. Louisiana:SPE Annual Technical Conference and Exhibition, 2013.
[7]	ELTAHER E, SEFAT M H, MURADOV K. Performance of autonomous inflow control completion in heavy oil reservoirs[R]. Kuala Lumpur:International Petroleum Technology Conference, 2014.
[8]	NUGRAHA I, ALBASSAM T K, GALLELLI A, et al. Optimizing reservoir performance through utilization of autonomous inflow control valve-lessons learnt from the world’s first installation[R]. Saudi Arabia:SPE Kingdom of Saudi Arabia Annual Technical Symposium and Exhibition, 2016.
[9]	VOLLB A, ISMAIL I M, OGUCHE I. Sustaining production by limiting water cut and gas break through with autonomous inflow control technology[R]. Moscow:SPE Russian Oil and Gas Exploration and Production Technical Conference and Exhibition, 2014.
[10]	赵崇镇. 水平井自适应调流控水装置研制与应用[J]. 石油钻探技术, 2016,44(3):95-100.
	ZHAO Chongzhen. Development and application of an autonomous inflow control device in horizontal wells[J]. Petroleum Drilling Techniques, 2016,44(3):95-100.
[11]	赵旭, 龙武, 姚志良, 等. 水平井砾石充填调流控水筛管完井技术[J]. 石油钻探技术, 2017,45(4):65-70.
	ZHAO Xu, LONG Wu, YAO Zhiliang, et al. Completion techniques involving gravel-packing inflow-control screens in horizontal wells[J]. Petroleum Drilling Techniques, 2017,45(4):65-70.
[12]	AL KHELAIWI F T, DAVIES D R. Advanced sand-face completion design and application in gas and gas-condensate fields[R]. Brisbane:SPE Asia Pacific Oil & Gas Conference and Exhibition, 2010.
[13]	文军红, 刘雄伟, 李宗宇, 等. 雅克拉—大涝坝凝析气田开发理论与实践[M]. 北京: 中国石化出版社, 2012.
	WEN Junhong, LIU Xiongwei, LI Zongyu, et al. Theory and practice of the Yakela-Dalaoba condensate gas filed development[M]. Beijing: China Petrochemical Press, 2012.
[14]	袁士义, 叶继根, 孙志道. 凝析气藏高效开发理论与实践[M]. 北京: 石油工业出版社, 2003.
	YUAN Shiyi, YE Jigen, SUN Zhidao. Theory and practice of efficient development of condensate gas fields[M]. Beijing: Petroleum Industry Press, 2003.
[15]	李士伦. 天然气工程:第二版[M]. 北京: 石油工业出版社, 2008.
	LI Shilun. Natural gas engineering:second edition[M]. Beijing: Petroleum Industry Press, 2008.
[16]	HOLMES J A, BARKVE T, LUND O. Application of a multisegment well model to simulate flow in advanced wells[R]. Hague: SPE European Petroleum Conference, 1998.
[17]	蔺学军. 油藏数值模拟入门指南[M]. 北京: 石油工业出版社, 2015.
	LIN Xuejun. Getting started guide for reservoir numerical simulation[M]. Beijing: Petroleum Industry Press, 2015.
[18]	任露泉. 试验优化设计与分析:第二版[M]. 北京: 高等教育出版社, 2003.
	REN Luquan. Optimum design and analysis of experiments:second edition[M]. Beijing: Higher Education Press, 2003.

参数	值	参数	值
气藏中部深度/m	3 950	气藏中部深度处压力/MPa	43.21
露点压力/MPa	43.02	气藏中部深度处温度/℃	94.8
岩石压缩系数/10^-4MPa^-1	0.25	凝析油密度（/ kg·m^-3）	768.2
天然气相对密度	0.77	地层水密度（/ kg·m^-3）	1 153
水平井筒直径/mm	215.9	新型流道型AICD控水完井长度/m	159
新型流道型AICD控水筛管外径/mm	180	新型流道型AICD控水筛管内径/mm	121.4
避水高度/m	6.3	气体偏差系数	1.04

试验编号	低渗段新型流道型 AICD强度系数	流量指数	黏度指数
1	0.000 1	1.0	0.1
2	0.000 1	1.2	0.2
3	0.000 1	1.5	0.5
4	0.000 2	1.0	0.2
5	0.000 2	1.2	0.5
6	0.000 2	1.5	0.1
7	0.000 4	1.0	0.5
8	0.000 4	1.2	0.1
9	0.000 4	1.5	0.2

试验编号	低产水采气期/d	累计产水量变化幅度/%	试验编号	低产水采气期/d	累计产水量变化幅度/%
1	305	-28	6	365	-27
2	245	-24	7	30	82
3			8	25	23
4	0	-4	9	20	121
5	110	2
