Inversion of Fracture Parameters and Formation Pressure for Fractured Horizontal Wells in Shale Oil Reservoir Based on Soaking Pressure

doi:10.7657/XJPG20220517

Abstract

Abstract:

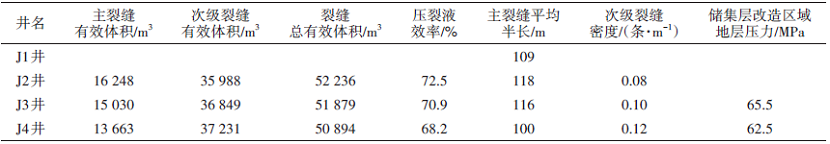

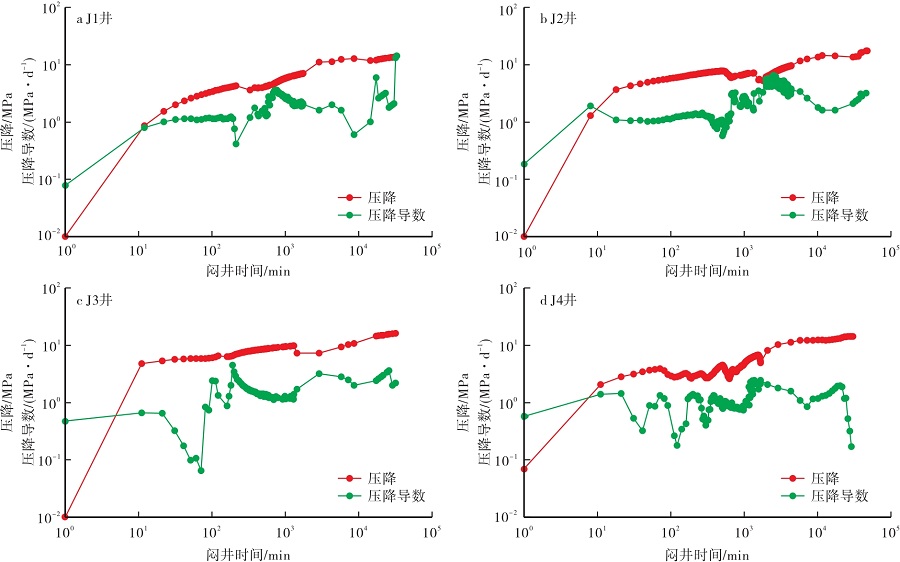

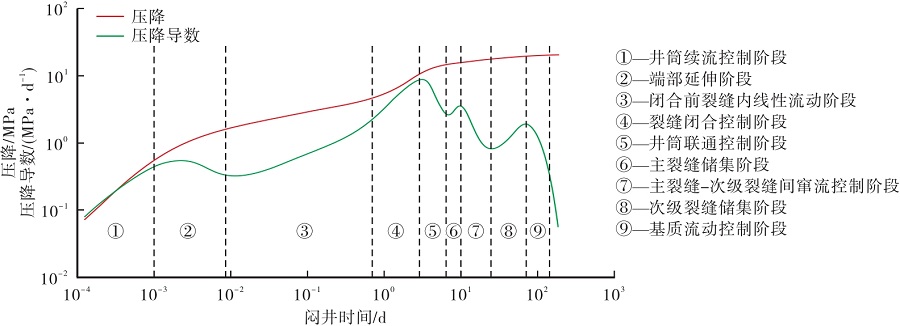

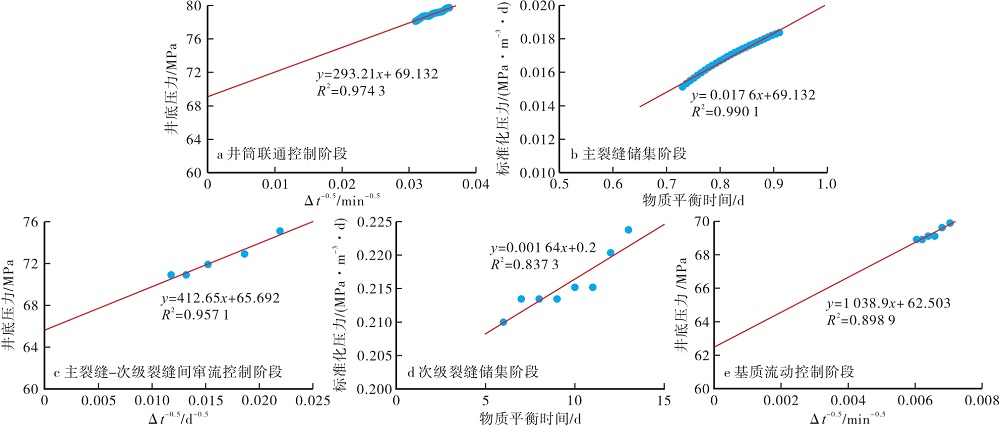

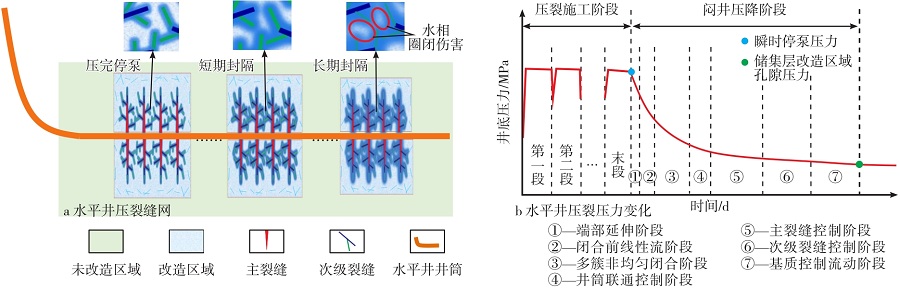

A fractured horizontal well in shale oil reservoir should be soaked before it is put into production. In order to quickly evaluate the effect of volume fracturing, a post-frac evaluation method based on the data of soaking pressure of shale oil reservoirs was proposed. Through numerical simulation of well soaking, the pressure diffusion and fluid migration in the stimulation area controlled by the fractured horizontal well were characterized, and a post-closure linear flow calculation model and a fracture storage control calculation model were established. Then a calculation method for inverting fracture parameters and formation pressure was formed. The results show that after pump is stopped, the stimulation area goes through 9 flow stages such as flows controlled by fractures in end section of wellbore, by fractures in the whole wellbore and by reservoir matrix, and the pressure drop derivatives appear as multiple straight-line segments with different slopes in log-log coordinates. This method has been applied to four typical shale oil horizontal wells in Jimsar sag, which proves that the data of soaking pressure can be used for the inversion of fracture parameters and formation pressure, and also verifies the applicability of the proposed method. The study results provide a reference for evaluating fracturing effect and optimizing well spacing.

Key words: Jimsar sag, shale oil, horizontal well, volume fracturing, well soaking, pressure drop, formation pressure, numerical simulation

CLC Number:

TE357

WANG Fei, WU Baocheng, LIAO Kai, SHI Shanzhi, ZHANG Shicheng, LI Jianmin, SUO Jielin. Inversion of Fracture Parameters and Formation Pressure for Fractured Horizontal Wells in Shale Oil Reservoir Based on Soaking Pressure[J]. Xinjiang Petroleum Geology, 2022, 43(5): 624-629.

Figures/Tables 5

References 23

[1]	杨智, 侯连华, 林森虎, 等. 吉木萨尔凹陷芦草沟组致密油、页岩油地质特征与勘探潜力[J]. 中国石油勘探, 2018, 23(4):76-85. doi: 10.3969/j.issn.1672-7703.2018.04.009
	YANG Zhi, HOU Lianhua, LIN Senhu, et al. Geological characteristics and exploration potential of tight oil and shale oil in Lucaogou formation in Jimusar sag[J]. China Petroleum Exploration, 2018, 23(4):76-85.
[2]	孟庆民, 张士诚, 王莉, 等. 数据挖掘技术在气田压裂效果评价中的应用[J]. 中国石油大学学报(自然科学版), 2008, 32(5):165-169.
	MENG Qingmin, ZHANG Shicheng, WANG Li, et al. Application of data mining to postfracture response evaluation in gas field[J]. Journal of China University of Petroleum(Natural Science Edition), 2008, 32(5):165-169.
[3]	SONG Bo, EHLIG C. Rate-normalized pressure analysis for determination of shale gas well performance[R]. SPE 144031, 2011.
[4]	SOLIMAN M Y. Analysis of buildup tests with short producing time[J]. SPE Formation Evaluation, 1986, 1(4):363-371. doi: 10.2118/11083-PA
[5]	SOLIMAN M Y, AZARI M, ANSAH J, et al. Review and application of short-term pressure transient testing of wells[R]. SPE 93560, 2005.
[6]	BOURDET D, AYOUB J A, PIRARD Y M. Use of pressure derivative in well-test interpretation[J]. SPE Formation Evaluation, 1989, 4(2):293-302. doi: 10.2118/12777-PA
[7]	MOHAMED I M, NASRALLA R A, SAYAD M A, et al. Evaluation of after-closure analysis techniques for tight and shale gas formations[R]. SPE 140136, 2011.
[8]	BACHMAN R C, WALTERS D A, HAWKES R A, et al. Reappraisal of the G time concept in mini-frac analysis[R]. SPE 160169, 2012.
[9]	王飞, 张士诚, 蔡久杰. 一种简便的测试压裂压力递减分析方法[J]. 西南石油大学学报(自然科学版), 2014, 36(3):115-120.
	WANG Fei, ZHANG Shicheng, CAI Jiujie. Fast pressure decline analysis of fracture calibration tests[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2014, 36(3):115-120.
[10]	ZANGANEH B, CLARKSON C R, JONES J R. Reinterpretation of flow patterns during DFITs based on dynamic fracture geometry,leakoff and afterflow[R]. SPE 189840, 2018.
[11]	WANG Fei, LI Baoman, CHEN Qiaoyun, et al. Simulation of proppant distribution in hydraulically fractured shale network during shut-in periods[J]. Journal of Petroleum Science and Engineering, 2019, 178:467-474. doi: 10.1016/j.petrol.2019.03.046
[12]	曹元婷, 潘晓慧, 李菁, 等. 关于吉木萨尔凹陷页岩油的思考[J]. 新疆石油地质, 2020, 41(5):622-630.
	CAO Yuanting, PAN Xiaohui, LI Jing, et al. Discussion on shale oil in Jimsar sag,Junggar basin[J]. Xinjiang Petroleum Geology, 2020, 41(5):622-630.
[13]	苏玉亮, 陈征, 唐梅荣, 等. 致密储层不同驱替方式下超临界CO₂蓄能返排效果实验研究[J]. 油气地质与采收率, 2020, 27(5):79-85.
	SU Yuliang, CHEN Zheng, TANG Meirong, et al. Experimental study of supercritical CO₂ storage and flowback under different displacement methods in tight reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(5):79-85.
[14]	马明伟, 祝健, 李嘉成, 等. 吉木萨尔凹陷芦草沟组页岩油储集层渗吸规律[J]. 新疆石油地质, 2021, 42(6):702-708.
	MA Mingwei, ZHU Jian, LI Jiacheng, et al. Imbibition law of shale oil reservoirs in the Lucaogou formation in Jimsar sag[J]. Xinjiang Petroleum Geology, 2021, 42(6):702-708.
[15]	王飞, 阮颖琪, 陈巧韵, 等. 考虑压裂液渗吸换油效应的压裂焖井压降模型[J]. 石油勘探与开发, 2021, 48(6):1 250-1 257.
	WANG Fei, RUAN Yingqi, CHEN Qiaoyun, et al. A pressure drop model of post-fracturing shut-in considering the effect of fracturing-fluid imbibition and oil replacement[J]. Petroleum Exploration and Development, 2021, 48(6):1 250-1 257.
[16]	LIAO Kai, ZHANG Shicheng, MA Xinfang, et al. Numerical investigation of fracture compressibility and uncertainty on water-loss and production performance in tight oil reservoirs[J]. Energies, 2019, 12(7):1 189. doi: 10.3390/en12071189
[17]	WANG Fei, CHEN Qiaoyun, ZHANG Jingchen, et al. Numerical investigation of oil-water exchange behaviors in shale during post-fracturing soaking periods[J]. Frontiers in Earth Science, 2021, 9:1-10.
[18]	WANG Hanyi, ELLIOTT B, SHARMA M. Pressure decline analysis in fractured horizontal wells:comparison between diagnostic fracture injection test,flowback,and main stage falloff[J]. SPE Drilling & Completion, 2021, 36(3):717-729.
[19]	ABBASI M A, EZULIKE D O, DEHGHANPOUR H, et al. A comparative study of flowback rate and pressure transient behavior in multifractured horizontal wells completed in tight gas and oil reservoirs[J]. Journal of Natural Gas Science and Engineering, 2014, 17:82-93. doi: 10.1016/j.jngse.2013.12.007
[20]	吴宝成, 李建民, 邬元月, 等. 准噶尔盆地吉木萨尔凹陷芦草沟组页岩油上甜点地质工程一体化开发实践[J]. 中国石油勘探, 2019, 24(5):679-690. doi: 10.3969/j.issn.1672-7703.2019.05.014
	WU Baocheng, LI Jianmin, WU Yuanyue, et al. Development practices of geology-engineering integration on upper sweet spots of Lucaogou formation shale oil in Jimsar sag,Junggar basin[J]. China Petroleum Exploration, 2019, 24(5):679-690. doi: 10.3969/j.issn.1672-7703.2019.05.014
[21]	王小军, 杨智峰, 郭旭光, 等. 准噶尔盆地吉木萨尔凹陷页岩油勘探实践与展望[J]. 新疆石油地质, 2019, 40(4):402-413.
	WANG Xiaojun, YANG Zhifeng, GUO Xuguang, et al. Practices and prospects of shale oil exploration in Jimsar sag of Junggar basin[J]. Xinjiang Petroleum Geology, 2019, 40(4):402-413.
[22]	冯其红, 李东杰, 时贤, 等. 基于扩展有限元的水平井改进拉链式压裂数值模拟[J]. 中国石油大学学报(自然科学版), 2019, 43(2):105-112.
	FENG Qihong, LI Dongjie, SHI Xian, et al. Numerical simulation of modified zipper-type hydraulic fracture propagation in horizontal wells based on extended finite element method[J]. Journal of China University of Petroleum(Natural Science Edition), 2019, 43(2):105-112.
[23]	FU Yingkun, DEHGHANPOUR H, EZULIKE D, et al. Estimating effective fracture pore volume from flowback data and evaluating its relationship to design parameters of multistage-fracture completion[J]. SPE Production & Operations, 2017, 32(4):423-439.
