Proppant Migration Law in Fractures of Conglomerate Reservoirs of Wuerhe Formation in Mahu Sag

doi:10.7657/XJPG20210507

Abstract

Abstract:

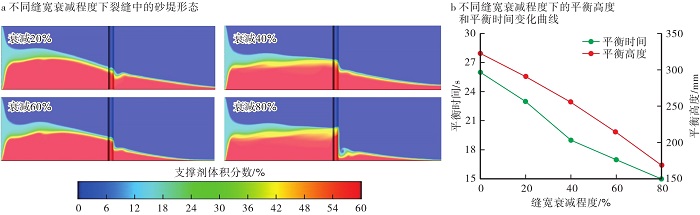

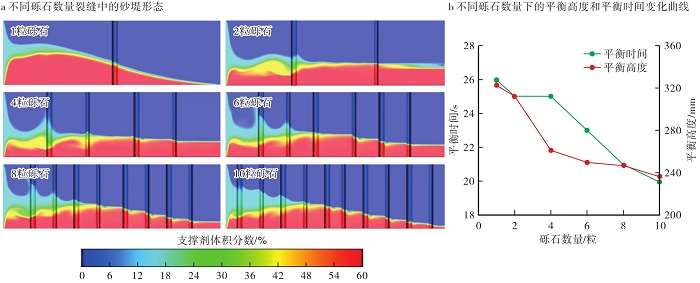

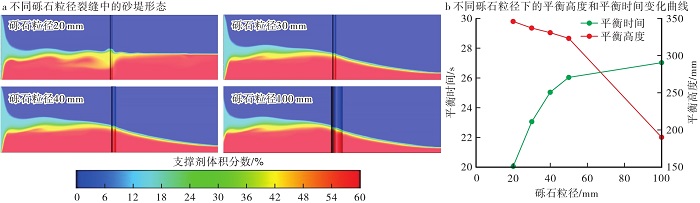

Fractures induced by volume fracturing stimulation to tight conglomerate reservoirs of the Wuerhe formation in Mahu sag are very complex, so that the migration and distribution laws of proppants are not clear, which seriously influences the fracturing effect. Based on 3D reconstruction of fracture shapes and considering the interaction between proppants and rough fracture surface, the influences of gravel size, gravel concentration and width attenuation of the fractures around gravels on proppant migration and distribution were investigated by using a Fluent two-phase flowing model. The results show that gravel size has obvious impacts on proppant migration, and it is negatively correlated to balanced height of proppant bank and positively correlated to balanced time of proppant bank; gravel concentration has weak impacts on proppant migration, and it is negatively correlated to balanced time and balanced height of proppant bank; width attenuation of the fractures around gravels has great influences on proppant migration, and both balanced time and balanced height of proppant bank decrease with the increase of the fracture width attenuation degree around gravels.

Key words: Junggar basin, Mahu sag, Wuerhe formation, conglomerate, tight reservoir, hydraulic fractuing, tortuous fracture, proppant migration

CLC Number:

TE357.12

CHEN Chaofeng, WANG Jia, YU Tianxi, LI Yi, ZOU Yushi, MA Xinfang, LIU Li. Proppant Migration Law in Fractures of Conglomerate Reservoirs of Wuerhe Formation in Mahu Sag[J]. Xinjiang Petroleum Geology, 2021, 42(5): 559-564.

Figures/Tables 8

Fig. 1.

Fig. 2.

Table 1

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

References 23

[1]	匡立春, 唐勇, 雷德文, 等. 准噶尔盆地玛湖凹陷斜坡区三叠系百口泉组扇控大面积岩性油藏勘探实践[J]. 中国石油勘探, 2014, 19(6):14-23.
	KUANG Lichun, TANG Yong, LEI Dewen, et al. Exploration of fan-controlled lithologic oil reservoris of Trassic Baikouquan formation in slope zone of Mahu depression in Junggar basin[J]. China Petroleum Exploration, 2014, 19(6):14-23.
[2]	雷德文, 陈刚强, 刘海磊, 等. 准噶尔盆地玛湖凹陷大油(气)区形成条件与勘探方向研究[J]. 地质学报, 2017, 91(7):1 604-1 619.
	LEI Dewen, CHEN Gangqiang, LIU Hailei, et al. Study on formation conditions and exploration fields of the Mahu giant oil(gas)province,Junggar basin[J]. Acta Geologica Sinica, 2017, 91(7):1 604-1 619.
[3]	章敬, 罗兆, 徐明强, 等. 新疆油田致密油地质工程一体化实践与思考[J]. 中国石油勘探, 2017, 22(1):12-20.
	ZHANG Jing, LUO Zhao, XU Mingqiang, et al. Application of geology-engineering integration in development of tight oil in Xinjiang oilfield[J]. China Petroleum Exploration, 2017, 22(1):12-20.
[4]	杜成良, 姬长生, 罗天雨, 等. 水力压裂多裂缝产生机理及影响因素[J]. 特种油气藏, 2006, 13(5):19-21.
	DU Chengliang, JI Changsheng, LUO Tianyu, et al. Forming mechanism and influencing factors of multiple-hydraulic fractures[J]. Special Oil and Gas Reservoir, 2006, 13(5):19-21.
[5]	昝灵, 王顺华, 张枝焕, 等. 砂砾岩储层研究现状[J]. 长江大学学报(自然科学版), 2011, 8(3):63-66.
	ZAN Ling, WANG Shunhua, ZHANG Zhihuan, et al. Research status of sandy conglomerates reservoir[J]. Journal of Yangtze University (Natural Science Edition), 2011, 8(3):63-66.
[6]	李升芳, 李太伟, 王进涛, 等. 砂砾岩储层裂缝摩阻测试及应用[J]. 科学技术与工程, 2015, 15(19):127-130.
	LI Shengfang, LI Taiwei, WANG Jintao, et al. The performance test and application of the fracture fiction in glutenite reservoir[J]. Science Technology and Engineering, 2015, 15(19):127-130.
[7]	付育武, 马飞, 杨逸, 等. 致密砂砾岩气藏储层改造关键技术研究[J]. 石油地质与工程, 2011, 25(1):134-136.
	FU Yuwu, MA Fei, YANG Yi, et al. Key technology studies on tight sand-conglomerate reservoir reconstruction of gas reservoirs[J]. Petroleum Geology and Engineering, 2011, 25(1):134-136.
[8]	王硕, 覃建华, 杨新平, 等. 玛湖地区致密砾岩人工裂缝垂向延伸机理应力模拟[J]. 新疆石油地质, 2020, 41(2):193-198.
	WANG Shuo, QIN Jianhua, YANG Xinping, et al. Stress simulation of vetical hydraulic fracture propagation mechanism in tight conglomorate reseriors of Mahu area[J]. Xinjiang Petroleum Geology, 2020, 41(2):193-198.
[9]	李宁, 张士诚, 马新仿, 等. 砂砾岩储层水力裂缝扩展规律试验研究[J]. 岩石力学与工程学报, 2017, 36(10):2 383-2 392.
	LI Ning, ZHANG Shicheng, MA Xinfang, et al. Experimental study on the propagation mechanism of hydraulic fracture in glutenite formations[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36(10):2 383-2 392.
[10]	何小东, 马俊修, 刘刚, 等. 玛湖油田砾岩储集层岩石力学分析及缝网评价[J]. 新疆石油地质, 2019, 40(6):701-707.
	HE Xiaodong, MA Junxiu, LIU Gang, et al. Analysis of rock mechanics and assessments of hydraulic fracture network in conglomerate reservoirs of Mahu oilfield[J]. Xinjiang Petroleum Geology, 2019, 40(6):701-707.
[11]	黄兴龙, 徐阳, 曾彦强, 等. 玛131井区低渗透砂砾岩油藏水平井优化设计研究[J]. 特种油气藏, 2018, 25(3):97-101.
	HUANG Xinglong, XU Yang, ZENG Yanqiang, et al. Horizontal well optimization and design of low-permeability glutenite reservoir in wellblock Ma131[J]. Special Oil & Gas Reservoirs, 2018, 25(3):97-101.
[12]	孟庆民, 张士诚, 郭先敏, 等. 砂砾岩水力裂缝扩展规律初探[J]. 石油天然气学报(江汉石油学院学报), 2010, 32(4):119-123.
	MENG Qingmin, ZHANG Shicheng, GUO Xianmin, et al. A primary investigation on propagation mechanism for hydraulic fractures in glutenite formation[J]. Journal of Oil and Gas Technology(Journal of Jianghan Petroleum Institute), 2010, 32(4):119-123.
[13]	李连崇, 李根, 孟庆民, 等. 砂砾岩水力压裂裂缝扩展规律的数值模拟分析[J]. 岩土力学, 2013, 34(5):1 501-1 507.
	LI Lianchong, LI Gen, MENG Qingmin, et al. Numerical simulation of propagation of hydraulic fractures in glutenite formation[J]. Rock and Soil Mechanics, 2013, 34(5):1 501-1 507.
[14]	TONG S, MOHANTY K K. Proppant transport study in fractures with intersections[J]. Fuel, 2016, 181:463-477. doi: 10.1016/j.fuel.2016.04.144
[15]	温庆志, 罗明良, 李加娜, 等. 压裂支撑剂在裂缝中的沉降规律[J]. 油气地质与采收率, 2009, 16(3):100-103.
	WEN Qingzhi, LUO Mingliang, LI Jiana, et al. Principle of proppant settlement in fracture[J]. Petroleum Geology and Recovery Efficiency, 2009, 16(3):100-103.
[16]	王松, 杨兆中, 卢华, 等. 水力压裂中支撑剂输送的数值模拟研究[J]. 石油天然气学报(江汉石油学院学报), 2009, 31(5):380-383.
	WANG Song, YANG Zhaozhong, LU Hua, et al. Numerical simulation research of proppant transportation in hydraulic fracturing[J]. Journal of Oil and Gas Technology(Journal of Jianghan Petroleum Institute), 2009, 31(5):380-383.
[17]	葛强, 马新仿, 张士诚, 等. 复杂裂缝中CO₂流体携砂规律的数值模拟[J]. 西安石油大学学报(自然科学版), 2019, 34(3):41-48.
	GE Qiang, MA Xinfang, ZHANG Shicheng, et al. Numerical simulation of proppant carrying law of CO₂ fluid in complex fractures[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2019, 34(3):41-48.
[18]	朱红钧. FLUENT CFD工程仿真实战指南[M]. 北京: 人民邮电出版社, 2014:40-74.
	ZHU Hongjun. Fluent CFD engineering simulation practice guide[M]. Beijing: People’s Posts and Telecommunications Press, 2014:40-74.
[19]	ANDERSON T B, JACKSON R. A fluid mechanical description of fluidized beds[J]. Industrial & Engineering Chemistry Fundamentals, 1967, 6(4):527-539.
[20]	ISHII M, MISHIMA K. Two-fluid model and hydrodynamic constitutive relations[J]. Nuclear Engineering and Design, 1984, 82(2/3):107-126. doi: 10.1016/0029-5493(84)90207-3
[21]	GIDASPOW D. Multiphase flow and fluidization:continuum and kinetic theory descriptions[M]. Boston: Academic Press, 1994:457-467.
[22]	奚定平. 贝塞尔函数[M]. 北京: 高等教育出版社, 1998:29-32.
	XI Dingping. Bessel function[M]. Beijing: Higher Education Press, 1998:29-32.
[23]	BENYAHIA S, SYAMLAL M, O’BRIEN T J. Evaluation of boundary conditions used to model dilute,turbulent gas /solids flows in a pipe[J]. Powder Technology, 2005, 156(2):62-72. doi: 10.1016/j.powtec.2005.04.002
