延长石油探区延长组页岩总含气量综合预测模型

doi:10.7657/XJPG20200303

摘要/Abstract

摘要：

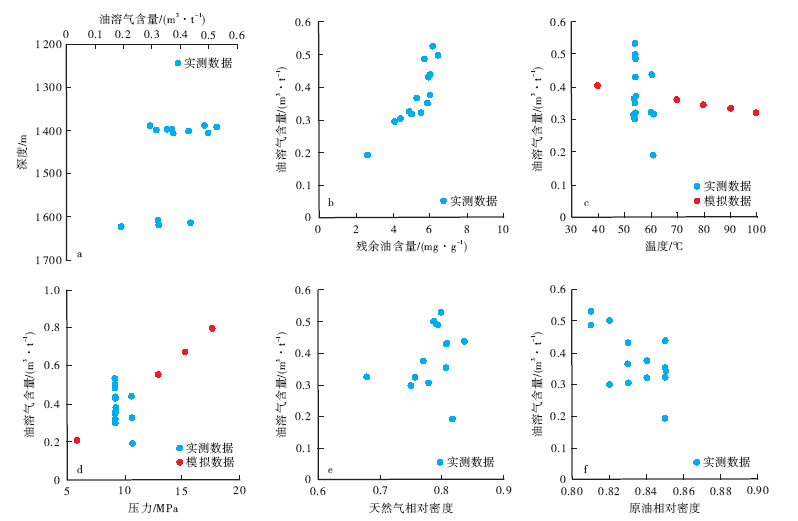

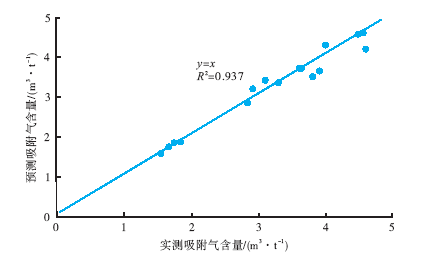

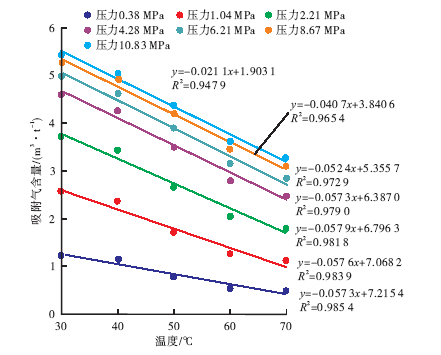

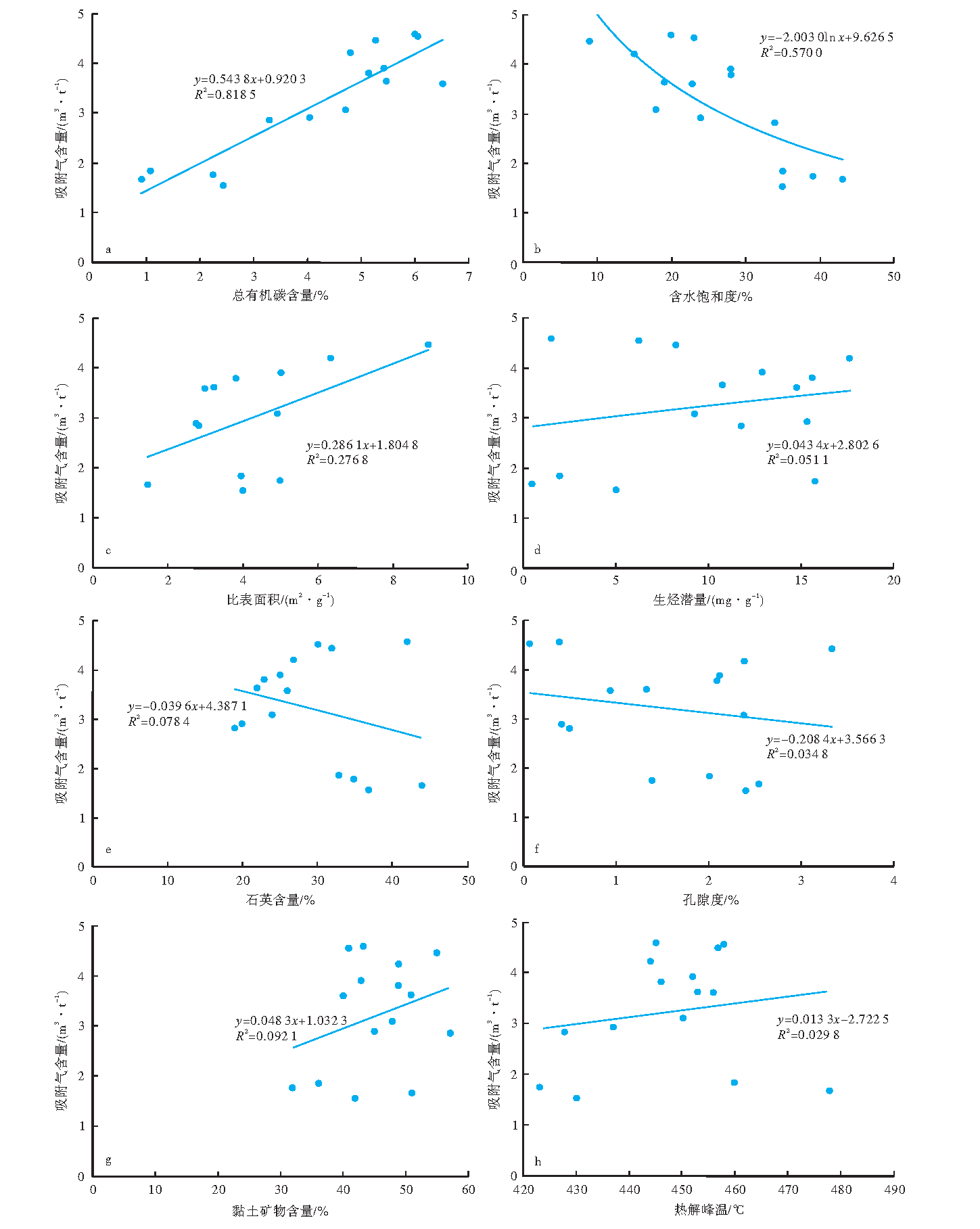

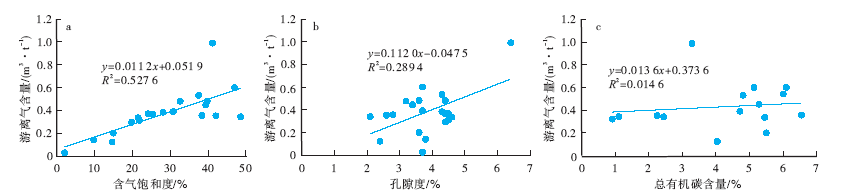

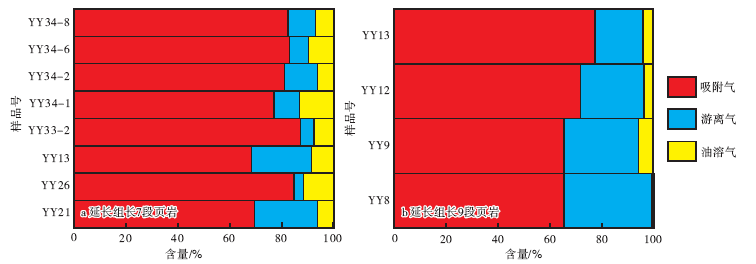

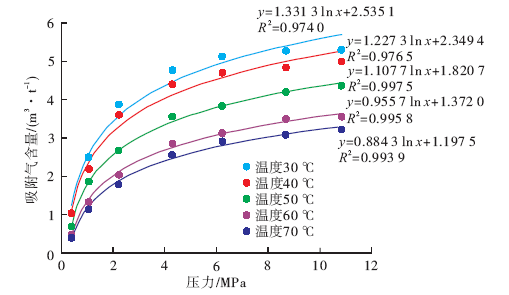

通过页岩样品的等温吸附实验,计算了延长组页岩的吸附气含量,通过建立公式和测井综合解释计算了延长组页岩的游离气含量和溶解气含量,结果表明延长石油探区延长组页岩总含气量为2.25~5.08 m ³/t,其中吸附气含量为1.75~4.21 m ³/t,游离气含量为0.20~0.60 m ³/t,溶解气含量为0.05~0.52 m ³/t.通过不同赋存状态页岩气与多个地质因素的相关性分析,认为吸附气含量主要受控于温度、压力、总有机碳含量和含水饱和度,游离气含量主要受控于孔隙度和含气饱和度,溶解气含量主要受控于残余油含量、温度、压力、天然气相对密度和原油相对密度。建立了延长石油探区不同赋存状态页岩气总含气量综合预测模型,用现场解吸法获得的总含气量的实测值进行检验,证实页岩总含气量综合预测模型可靠性较高。

关键词: 延长组, 页岩, 吸附气, 游离气, 溶解气, 主控因素, 含气量, 综合预测模型

Abstract:

Based on isothermal adsorption experiments of shale samples, the content of adsorbed gas in the shale of Yanchang formation is calculated, and the contents of free gas and dissolved gas in the shale of Yanchang formation are calculated by establishing formulas and logging interpretation. The calculation results show that the total gas content of the shale of Yanchang formation in Yanchang petroleum exploration area is 2.25~5.08 m ³/t, among which the content of the adsorbed gas is 1.75~4.21 m ³/t, the free gas content is 0.20~0.60 m ³/t, the dissolved gas content is 0.05~0.52 m ³/t. Based on the analysis of the correlation between shale gas in different occurrence states and geological factors, it is considered that the content of the adsorbed gas is mainly controlled by temperature, pressure, TOC and water saturation, the content of the free gas is mainly controlled by porosity and gas saturation, and the content of the dissolved gas is mainly constrained by residual oil content, temperature, pressure and relative densities of natural gas and crude oil. A comprehensive prediction model of total shale gas content in different occurrence states is established for Yanchang petroleum exploration area. The measured values of the total shale gas content obtained with in-situ desorption method are used to verify the comprehensive prediction model and the results show that the model is highly reliable.

Key words: Yanchang formation, shale, adsorbed gas, free gas, dissolved gas, main controlling factor, gas content, comprehensive predicion model

中图分类号:

TE125.2

邓长生, 张毅, 谢小飞, 米伟伟, 强娟, 宋珈萱. 延长石油探区延长组页岩总含气量综合预测模型[J]. 新疆石油地质, 2020, 41(3): 269-277.

DENG Changsheng, ZHANG Yi, XIE Xiaofei, MI Weiwei, QIANG Juan, SONG Jiaxuan. Comprehensive Prediction Model of Total Gas Content in the Shale of Yanchang Formation in Yanchang Petroleum Exploration Area[J]. Xinjiang Petroleum Geology, 2020, 41(3): 269-277.

图/表 13

图1

图2

图3

图4

图5

图6

图7

Table 5

图8

参考文献 21

[1]	王进, 包汉勇, 陆亚秋 , 等. 涪陵焦石坝地区页岩气赋存特征定量表征及其主控因素[J]. 地球科学, 2019,44(3):1 001-1 011.
	WANG Jin, BAO Hanyong, LU Yaqiu , et al. Quantitative characterization and main controlling factors of shale gas occurrence in Jiaoshiba area,Fuling[J]. Earth Science, 2019,44(3):1 001-1 011.
[2]	郭天旭, 任收麦, 包书景 , 等. 柴达木盆地北缘中侏罗统大煤沟组泥页岩吸附特征及其影响因素[J]. 地质科技情报, 2018,37(6):181-187.
	GUO Tianxu, REN Shoumai, BAO Shujing , et al. Adsorption characteristics and influence factors of Middle Jurassic Dameigou formation shale in northern Qaidam basin[J]. Geological Science and Technology Information, 2018,37(6):181-187.
[3]	冀昆, 余春昊, 郭瑛 , 等. 页岩吸附气含量测井计算模型及其在昭通A井的应用[J]. 测井技术, 2018,42(5):535-541.
	JI Kun, YU Chunhao, GUO Ying , et al. Calculation model of shale adsorption gas content and its application in Well Zhaotong A[J]. Well Logging Technology, 2018,42(5):535-541.
[4]	刘学珍, 杨迎春, 周翔 . 鄂尔多斯盆地代家坪地区延长组原油成因及成藏期次[J]. 新疆石油地质, 2019,40(4):414-421.
	LIU Xuezhen, YANG Yingchun, ZHOU Xiang . Genesis and accumulation periods of oil in Yanchang formation of Daijiaping area,Ordos basin[J]. Xinjiang Petroleum Geology, 2019,40(4):414-421.
[5]	黎盼, 孙卫, 李长政 . 鄂尔多斯盆地华庆油田长6₃储集层成岩相特征[J]. 新疆石油地质, 2018,39(5):517-523.
	LI Pan, SUN Wei, LI Changzheng . Diagenetic facies characteristics of Chang 6₃ reservoir in Huaqing oilfield,Ordos basin[J]. Xinjiang Petroleum Geology, 2018,39(5):517-523.
[6]	余川, 周洵, 方光建 , 等. 地层温压条件下页岩吸附性能变化特征[J]. 岩性油气藏, 2018,30(6):10-17.
	YU Chuan, ZHOU Xun, FANG Guangjian , et al. Adsorptivity of shale under the formation temperature and pressure[J]. Lithologic Reservoirs, 2018,30(6):10-17.
[7]	李英杰, 左建平, 姚茂宏 , 等. 页岩气超临界等温吸附模型及储量计算优化[J]. 中国矿业大学学报, 2019,38(2):321-332.
	LI Yingjie, ZUO Jianping, YAO Maohong , et al. Improved shale gas supercritical isothermal adsorption model and calculation method of geological reserve[J]. Journal of China University of Mining and Technology, 2019,38(2):321-332.
[8]	程超, 白小军, 林海宇 , 等. 川南龙马溪组深层页岩气储层吸附气含量计算方法研究[J]. 特种油气藏, 2018,25(4):1-6.
	CHENG Chao, BAI Xiaojun, LIN Haiyu , et al. Study on the calculation of adsorption gas content of Longmaxi formation deep shale reservoir in southern Sichuan basin[J]. Special Oil & Gas Reservoirs, 2018,25(4):1-6.
[9]	沈瑞, 郭和坤, 胡志明 , 等. 页岩气高压吸附特征及其对储采规律的影响[J]. 地学前缘, 2018,25(2):204-209.
	SHEN Rui, GUO Hekun, HU Zhiming , et al. High pressure adsorption characteristics of shale gas and their impact on the law of reserve-production[J]. Earth Science Frontiers, 2018,25(2):204-209.
[10]	郭平, 张伟, 李赟 , 等. 鄂尔多斯盆地陆相页岩吸附规律研究[J]. 地质科技情报, 2017,36(5):54-59.
	GUO Ping, ZHANG Wei, LI Yun , et al. Rules of continental shale adsorption in Ordos basin[J]. Geological Science and Technology Information, 2017,36(5):54-59.
[11]	杨文新, 李继庆, 苟群芳 . 四川盆地焦石坝地区页岩吸附特征室内实验[J]. 天然气地球科学, 2017,28(9):1 350-1 355.
	YANG Wenxin, LI Jiqing, GOU Qunfang . Experiment study on shale adsorption properties for Jiaoshiba shale,Sichuan basin[J]. Natural Gas Geoscience, 2017,28(9):1 350-1 355.
[12]	孙彩蓉, 唐书恒, 张松航 , 等. 页岩等温吸附特征及吸附异常原因[J]. 大庆石油地质与开发, 2017,36(5):155-163.
	SUN Cairong, TANG Shuheng, ZHANG Songhang , et al. Characteristics of the shale isothermal adsorption and causes of the abnormal adsorption[J]. Petroleum Geology & Oilfield Development in Daqing, 2017,36(5):155-163.
[13]	赵金洲, 沈骋, 任岚 , 等. 页岩储层不同赋存状态气体含气量定量预测[J]. 天然气工业, 2017,37(4):27-33.
	ZHAO Jinzhou, SHEN Cheng, REN Lan , et al. Quantitative prediction of gas contents in different occurrence states of shale reservoirs[J]. Natural Gas Industry, 2017,37(4):27-33.
[14]	方静, 龙建辉, 赵邦强 . 多因素的页岩吸附气含量计算及影响因素效应分析[J]. 中国矿业, 2017,26(1):141-145.
	FANG Jing, LONG Jianhui, ZHAO Bangqiang . Calculation and its influence effect analysis of shale gas adsorption[J]. China Mining Magazine, 2017,26(1):141-145.
[15]	赵金洲, 任岚, 沈骋 , 等. 页岩气储层缝网压裂理论与技术研究新进展[J]. 天然气工业, 2018,38(3):1-14.
	ZHAO Jinzhou, REN Lan, SHEN Cheng , et al. Latest research progresses in network fracturing theories and technologies for shale gas reservoirs[J]. Natural Gas Industry, 2018,38(3):1-14.
[16]	郭怀志, 潘保芝, 张丽华 , 等. 页岩吸附模型及吸附气含气量计算方法进展[J]. 地球物理学进展, 2016,31(3):1 080-1 087.
	GUO Huaizhi, PAN Baozhi, ZHANG Lihua , et al. Progress in adsorption model and calculation method of absorbed gas content of shale[J]. Progress in Geophysics, 2016,31(3):1 080-1 087.
[17]	薛培, 张丽霞, 梁全胜 , 等. 陆相页岩吸附CH₄的热力学特征:以鄂尔多斯盆地延长气田上三叠统延长组页岩为例[J]. 天然气工业, 2019,39(11):64-73.
	XUE Pei, ZHANG Lixia, LIANG Quansheng , et al. Thermodynamic characteristics of CH₄ adsorption by continental shale: a case study of the Upper Triassic Yanchang shale in the Yanchang gasfield,Ordos basin[J]. Natural Gas Industry, 2019,39(11):64-73.
[18]	游声刚, 郭茜, 耿小烬 , 等. 页岩含气量的影响因素分析及含气量测试方法[J]. 中国矿业, 2015,24(12):80-85.
	YOU Shenggang, GUO Qian, GENG Xiaojin , et al. Factors affecting the shale gas content and gas content testing methods[J]. China Mining Magazine, 2015,24(12):80-85.
[19]	张作清, 孙建孟, 龚劲松 , 等. 页岩气储层含气量计算模型研究[J]. 岩性油气藏, 2015,27(6):5-14.
	ZHANG Zuoqing, SUN Jianmeng, GONG Jinsong , et al. Gas content calculation model of shale gas reservoir[J]. Lithologic Reservoirs , 2015,27(6):5-14.
[20]	DONSON C R, STANDING M B . Pressure-volume-temperature and solubility relations for natural-gas-water mixtures[M]. New York:Drilling and Production Practice, 1944.
[21]	VAZQUES M, BEGGS H D . Correlations for fluid physical property prediction[J]. Journal Petroleum Technology, 1980,32(6):968-970.
