鄂尔多斯盆地伊陕斜坡长9烃源岩特征与生烃潜力

doi:10.7657/XJPG20220304

摘要/Abstract

摘要：

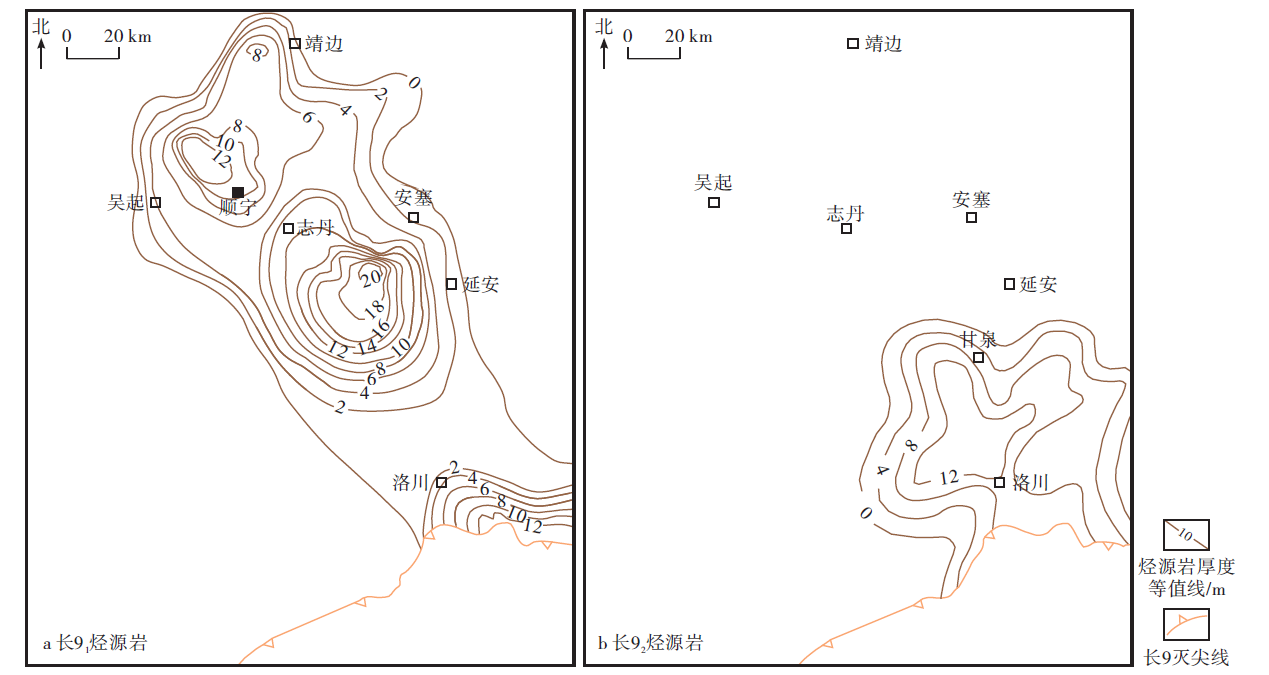

鄂尔多斯盆地伊陕斜坡发现多个长9烃源岩邻近的下组合含油有利区,为推进该区下组合石油勘探,亟需深化长9烃源岩特征及生烃潜力研究。利用测井、录井和岩心资料,分析研究区长9烃源岩分布特征。应用岩石热解、总有机碳、干酪根显微组分分析及饱和烃色谱-质谱生物标志化合物分析等方法,研究长9烃源岩地球化学特征与生烃潜力。结果表明,长9₁烃源岩在吴起、靖边、志丹、安塞等地区均有分布,厚度最大超20 m。长9₂烃源岩主要发育在甘泉—洛川地区,厚度最大超12 m。长9烃源岩有机质丰度较高,有机质来源于低等水生生物和陆源高等植物。有机质类型以Ⅰ型和Ⅱ₁型为主,处于成熟阶段,烃源岩生烃转化率高、生烃能力较强的区域主要为志丹—安塞地区。长9烃源岩多数为较好—好烃源岩,少数为优质烃源岩,具备较强的生烃能力和排烃能力,为伊陕斜坡延长组下组合石油聚集成藏提供了物质基础。

关键词: 鄂尔多斯盆地, 伊陕斜坡, 延长组, 长9烃源岩, 地球化学, 生烃潜力, 油源对比, 下组合

Abstract:

A number of favorable oil-bearing areas have been discovered in the lower assemblage adjacent to the Chang 9 source rocks on Yishaan slope, Ordos basin. In order to promote the petroleum exploration of the lower assemblage in this area, it is urgent to deepen the research on the characteristics and hydrocarbon generation potential of the Chang 9 source rocks. The distribution of the Chang 9 source rocks were analyzed using well logging, mud logging and core data. The geochemical characteristics and hydrocarbon generation potential of the Chang 9 source rocks were studied by various methods such as rock pyrolysis analysis, total organic carbon analysis, kerogen maceral analysis, and biomarker analysis by saturated hydrocarbon gas chromatography-mass spectrometry. The results show that the Chang 9₁ source rocks are distributed in Wuqi, Jingbian, Zhidan, Ansai and other areas, with the maximum thickness of over 20 m, and the Chang 9₂ source rocks are mainly developed in Ganquan-Luochuan area, with the maximum thickness of over 12 m. The Chang 9 source rocks hold a high abundance of organic matters that were originated from lower aquatic organisms and terrestrial higher plants. With Type Ⅰ and Ⅱ₁ organic matters in dominance, which are in the mature stage, the Chang 9 source rocks exhibit high hydrocarbon conversion rate and especially strong hydrocarbon generation capability in Zhidan-Ansai area. The Chang 9 source rocks are mostly good and locally high-quality rocks with strong hydrocarbon generation and expulsion capacities, which provides a material basis for hydrocarbon accumulation in the lower assemblage of Yanchang formation on Yishaan slope.

Key words: Ordos basin, Yishaan slope, Yanchang formation, Chang 9 source rocks, geochemistry, hydrocarbon generation potential, oil-source correlation, lower assemblage

中图分类号:

TE122.1

罗丽荣, 李剑锋, 杨伟伟, 马军, 李欢, 吴凯. 鄂尔多斯盆地伊陕斜坡长9烃源岩特征与生烃潜力[J]. 新疆石油地质, 2022, 43(3): 278-284.

LUO Lirong, LI Jianfeng, YANG Weiwei, MA Jun, LI Huan, WU Kai. Characteristics and Hydrocarbon Generation Potential of Chang 9 Source Rocks on Yishaan Slope, Ordos Basin[J]. Xinjiang Petroleum Geology, 2022, 43(3): 278-284.

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 26

[1]	张文正, 杨华, 李善鹏. 鄂尔多斯盆地长9¹湖相优质烃源岩成藏意义[J]. 石油勘探与开发, 2008,35(5):557-568.
	ZHANG Wenzheng, YANG Hua, LI Shanpeng. Hydrocarbon accumulation significance of Chang9¹ high-quality lacustrine source rocks of Yanchang formation,Ordos basin[J]. Petroleum Exploration and Development, 2008,35(5):557-568. doi: 10.1016/S1876-3804(09)60088-4
[2]	胡春桥, 任来义, 贺永红, 等. 鄂尔多斯盆地延长探区油气勘探历程与启示[J]. 新疆石油地质, 2021,42(3):312-318.
	HU Chunqiao, REN Laiyi, HE Yonghong, et al. Petroleum exploration history and enlightenment of Yanchang exploration area in Ordos basin[J]. Xinjiang Petroleum Geology, 2021,42(3):312-318.
[3]	杨亚南, 周世新, 李靖, 等. 鄂尔多斯盆地南缘延长组烃源岩地球化学特征及油源对比[J]. 天然气地球科学, 2017,28(4):550-565.
	YANG Yanan, ZHOU Shixin, LI Jing, et al. Geochemical characteristics of source rocks and oil-source correlation of Yanchang formation in sourthern Ordos basin,China[J]. Natural Gas Geoscience, 2017,28(4):550-565.
[4]	赵阳, 姚泾利, 段毅, 等. 鄂尔多斯盆地陇东地区长9油层组油源分析[J]. 沉积学报, 2015,33(5):1 023-1 032.
	ZHAO Yang, YAO Jingli, DUAN Yi, et al. Oil-source analysis for Chang-9 subsection (Upper Triassic) of eastern Gansu province in Ordos basin[J]. Acta Sedimentologica Sinica, 2015,33(5):1 023-1 032.
[5]	白薷, 吴春燕, 杜炜, 等. 致密砂岩储层特征及控制因素:以鄂尔多斯盆地陕北地区长7和长10储层为例[J]. 西北大学学报(自然科学版), 2021,51(1):95-108.
	BAI Ru, WU Chunyan, DU Wei, et al. Characteristics and controlling factors of tight sandstone reservoirs:a case study of the Triassic Chang 7 and Chang 10 reservoirs in the Shanbei area,Ordos basin[J]. Journal of Northwest University(Natural Science Edition), 2021,51(1):95-108.
[6]	张海林, 邓南涛, 张枝焕, 等. 鄂尔多斯盆地南部中生界原油地球化学特征及油源分析[J]. 高校地质学报, 2014,20(2):309-316.
	ZHANG Hailin, DENG Nantao, ZHANG Zhihuan, et al. Geochemical characteristics and oil-source correlation of the Mesozoic crude oils in the southern Ordos basin[J]. Geological Journal of China Universities, 2014,20(2):309-316.
[7]	王香增, 贺永红, 张立宽, 等. 鄂尔多斯盆地吴起-志丹地区长10烃源岩特征与生烃潜力[J]. 天然气地球科学, 2013,24(3):461-469.
	WANG Xiangzeng, HE Yonghong, ZHANG Likuan, et al. Geochemical characteristics and hydrocarbon generation potentials of Chang 10 source rock in Wuqi-Zhidan area,Ordos basin[J]. Natural Gas Geoscience, 2013,24(3):461-469.
[8]	马瑶, 李文厚, 刘哲, 等. 鄂尔多斯盆地志靖-安塞地区延长组首次湖侵期沉积特征及其石油地质意义[J]. 地质通报, 2015,34(5):972-982.
	MA YAO, LI Wenhou, LIU Zhe, et al. Sedimentary characteristics and petroleum geological implications of the first lacustrine transgression period of Yanchang formation in Zhijing-Ansai area of Ordos basin[J]. Geological Bulletin of China, 2015,34(5):972-982.
[9]	白玉彬, 高振东, 李忠锋, 等. 鄂尔多斯盆地杏子川油田延长组原油地球化学特征与油源探讨[J]. 石油实验地质, 2013,35(5):552-558.
	BAI Yubin, GAO Zhendong, LI Zhongfeng, et al. Geochemical characteristics of crude oil and oil-source correlation in Yanchang formation in Xinzichuan oilfield, Ordos basin[J]. Petroleum Geology & Experiment, 2013,35(5):552-558.
[10]	师磊, 卢双舫, 李吉君, 等. 鄂尔多斯盆地长9烃源岩评价[J]. 科学技术与工程, 2011,11(20):4 756-4 761.
	SHI Lei, LU Shuangfang, LI Jijun, et al. Evaluation of source rock of Chang 9 member,Yanchang formation,Ordos basin[J]. Science Technology and Engineering, 2011,11(20):4 756-4 761.
[11]	杨华, 张文正, 彭平安, 等. 鄂尔多斯盆地中生界湖相油型油的精细划分与油源对比[J]. 地球科学与环境学报, 2016,38(2):196-205.
	YANG Hua, ZHANG Wenzheng, PENG Ping'an, et al. Oil detailed classification and oil-source correlation of Mesozoic lacustrine oil in Ordos basin[J]. Journal of Earth Science and Environment, 2016,38(2):196-205.
[12]	李士祥, 刘显阳, 韩天佑, 等. 陕北地区延长组长10油层组成藏特征[J]. 石油与天然气地质, 2011,32(5):698-709.
	LI Shixiang, LIU Xianyang, HAN Tianyou, et al. Characteristics of hydrocarbon pooling in Chang-10 interval of the Yanchang formation in the northern Shaanxi province[J]. Oil & Gas Geology, 2011,32(5):698-709.
[13]	时保宏, 姚泾利, 张艳, 等. 鄂尔多斯盆地延长组长9油层组成藏地质条件[J]. 石油与天然气地质, 2013,34(3):294-300.
	SHI Baohong, YAO Jingli, ZHANG Yan, et al. Geologic conditions for hydrocarbon accumulation in Chang-9 oil reservoir of the Yanchang formation,Ordos basin[J]. Oil & Gas Geology, 2013,34(3):294-300.
[14]	张才利, 刘新社, 杨亚娟, 等. 鄂尔多斯盆地长庆油田油气勘探历程与启示[J]. 新疆石油地质, 2021,42(3):253-263.
	ZHANG Caili, LIU Xinshe, YANG Yajuan, et al. Petroleum exploration history and enlightenment of Changqing oilfield in Ordos basin[J]. Xinjiang Petroleum Geology, 2021,42(3):253-263.
[15]	姚泾利, 赵彦德, 刘广林, 等. 鄂尔多斯盆地三叠系长9段多源成藏模式[J]. 石油勘探与开发, 2018,45(3):373-384.
	YAO Jingli, ZHAO Yande, LIU Guanglin, et al. Formation patterns of Chang 9 oil reservoir in Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2018,45(3):373-384.
[16]	张文正, 杨华, 李剑锋, 等. 论鄂尔多斯盆地长7段优质油源岩在低渗透油气成藏富集中的主导作用:强生排烃特征及机理分析[J]. 石油勘探与开发, 2006,33(3):289-293.
	ZHANG Wenzheng, YANG Hua, LI Jianfeng, et al. Leading effect of high-class source rock of Chang 7 in Ordos basin on enrichment of low permeability oil-gas accumulation:hydrocarbon generation and expulsion mechanism[J]. Petroleum Exploration and Development, 2006,33(3):289-293.
[17]	王铁冠, 钟宁宁, 熊波, 等. 烃源岩生烃潜力的有机岩石学评价方法[J]. 石油学报, 1994,15(4):9-16.
	WANG Tieguan, ZHONG Ningning, XIONG Bo, et al. Organic petrologic methodology for evalution of hydrocarbon generation potential in source rocks[J]. Acta Petrolei Sinica, 1994,15(4):9-16.
[18]	杨华, 牛小兵, 徐黎明, 等. 鄂尔多斯盆地三叠系长7段页岩油勘探潜力[J]. 石油勘探与开发, 2016,43(4):511-520.
	YANG Hua, NIU Xiaobing, XU Liming, et al. Exploration potential of shale oil in Chang 7 member,Upper Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2016,43(4):511-520.
[19]	宋兴沛, 刘洛夫, 徐正建, 等. 鄂尔多斯盆地中西部长7段烃源岩及致密油潜力评价[J]. 新疆石油地质, 2017,38(5):553-558.
	SONG Xingpei, LIU Luofu, XU Zhengjian, et al. Evaluation of source rocks and tight oil exploration potential of Chang-7 member in central and western Ordos basin[J]. Xinjiang Petroleum Geology, 2017,38(5):553-558.
[20]	付金华, 李士祥, 牛小兵, 等. 鄂尔多斯盆地三叠系长7段页岩油地质特征与勘探实践[J]. 石油勘探与开发, 2020,47(5):870-883.
	FU Jinhua, LI Shixiang, NIU Xiaobing, et al. Geological characteristics and exploration of shale oil in Chang 7 member of Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2020,47(5):870-883.
[21]	邹贤利, 陈世加, 路俊刚, 等. 鄂尔多斯盆地延长组烃源岩17α(H)-重排藿烷的组成及分布研究[J]. 地球化学, 2017,46(3):252-261.
	ZOU Xianli, CHEN Shijia, LU Jungang, et al. Composition and distribution of 17α(H)-diahopane in the Yanchang formation source rocks,Ordos basin[J]. Geochimica, 2017,46(3):252-261.
[22]	杜江民, 王青春, 赵彦德, 等. 鄂尔多斯盆地陕北地区延长组长6原油地球化学特征及油源分析[J]. 西北大学学报(自然科学版), 2018,48(2):246-254.
	DU Jiangmin, WANG Qingchun, ZHAO Yande, et al. Geochemical characteristics and source analyis of the Chang 6 crude oil in the Shanbei area,Ordos basin[J]. Journal of Northwest University(Natural Science Edition), 2018,48(2):246-254.
[23]	赵靖舟, 孟选刚, 韩载华. 近源成藏:来自鄂尔多斯盆地延长组湖盆东部“边缘”延长组6段原油的地球化学证据[J]. 石油学报, 2020,41(12):1 513-1 526.
	ZHAO Jingzhou, MENG Xuangang, HAN Zaihua, et al. Near-source hydrocarbon accumulation:geochemical evidence of lacustrine crude oil from the Member 6 of Yanchang formation,eastern margin of Ordos basin[J]. Acta Petrolei Sinica, 2020,41(12):1 513-1 526.
[24]	王钊, 周新平, 李树同, 等. 鄂尔多斯盆地吴起地区长9段和长10段原油地球化学特征对比[J]. 天然气地球科学, 2017,28(9):1 385-1 395.
	WANG Zhao, ZHOU Xinping, LI Shutong, et al. Comparative study on geochemical characteristics of Chang 9 and Chang 10 crude oils in the Wuqi oilfield,Ordos basin[J]. Natural Gas Geoscience, 2017,28(9):1 385-1 395.
[25]	任战利. 鄂尔多斯盆地热演化史与油气关系的研究[J]. 石油学报, 1996,17(1):17-24.
	REN Zhanli. Research on the relations between geothermal history and oil-gas accumulation in the Ordos basin[J]. Acta Petrolei Sinica, 1996,17(1):17-24.
[26]	吴保祥, 何金先, 张晓丽, 等. 鄂尔多斯盆地地层埋藏演化与油气成藏分析[J]. 东北石油大学学报, 2012,36(6):8-13.
	WU Baoxiang, HE Jinxian, ZHANG Xiaoli, et al. Analysis of burial evolution of stratum and oil-gas reservoirs formation in Ordos basin[J]. Journal of Northeast Petroleum University, 2012,36(6):8-13.
