多尺度多元约束的断控岩溶储集体建模

doi:10.7657/XJPG20240611

摘要/Abstract

摘要：

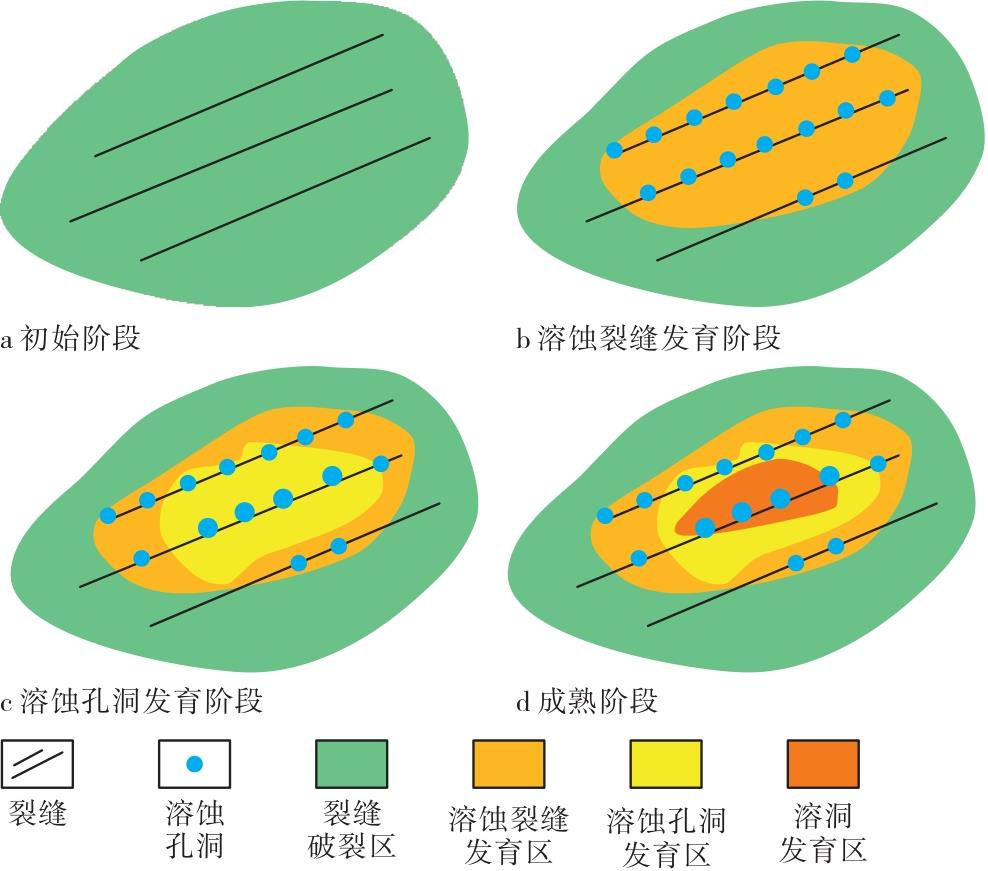

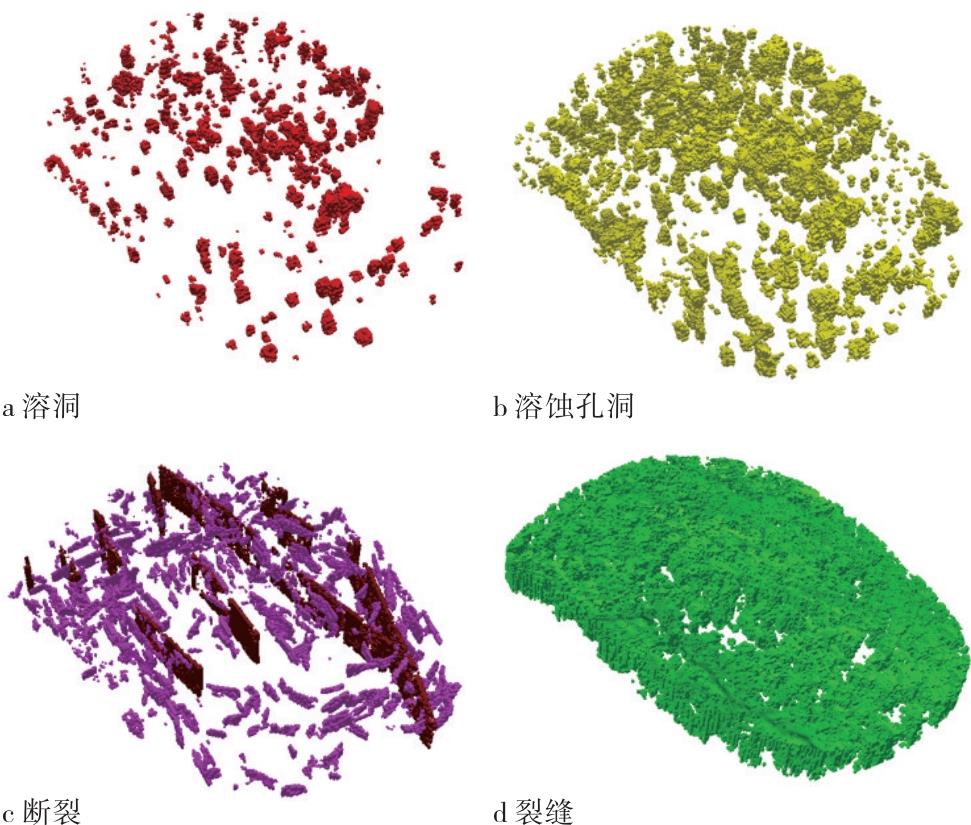

断控岩溶缝洞型油藏断裂系统发育，储集空间复杂，离散性和非均质性极强，油藏断裂系统建模困难。以断控岩溶储集体发育成因规律为指导，提出多尺度、多元约束相结合的方法建立断控岩溶储集体模型。依据断控岩溶成因，将储集体发育划分为4个阶段，以成熟阶段的储集体模式为指导，将断控岩溶储集体划分为溶洞相、溶蚀孔洞相和溶蚀裂缝相；采用蚂蚁体重采样、断距模型和裂缝参数表征的多元约束，建立裂缝发育概率体，采用基于目标的模拟算法，生成北西—南东向和北东—南西向2组小尺度裂缝，建立断控岩溶的裂缝模型，最大程度上体现断控岩溶裂缝发育特征，降低裂缝预测的不确定性，形成断控岩溶储集体预测新方法；2口井验证模型可靠性强，可支持后续开发研究。

关键词: 塔河油田, 碳酸盐岩, 缝洞型油藏, 断控岩溶, 地质建模, 裂缝表征

Abstract:

Fault-controlled karst fractured-vuggy reservoirs that are characterized by well-developed fault systems exhibit complex reservoir spaces with significant discreteness and heterogeneity, posing great challenges to fault system modeling and description. Guided by the developmental and genetic patterns of fault-controlled karst reservoirs, a multi-scale and multi-constraint geological model of fault-controlled karst reservoir was established. Depending on the genesis of fault-controlled karst, the development of these reservoirs was divided into four stages (Ⅰ-Ⅳ). Based on the reservoir model of Stage Ⅳ, the fault-controlled karst reservoirs were divided into karst cave facies, dissolution pore facies, and dissolution fracture facies. A fracture development probability cube was constructed with multiple constraints which include ant weight sampling, fault displacement model, and fracture parameter characterization, and two groups of small-scale fractures of NW-SE and NE-SW trending were generated by applying a goal-oriented simulation algorithm. A fracture model of fault-controlled karst was established to reflect the development characteristics of the fractures in fault-controlled karst to the greatest extent, for reducing the uncertainty in fracture prediction. Thus, a new method for predicting fractures in fault-controlled karst reservoirs was formed. The reliability of the proposed model has been validated by the application in two wells, which may support subsequent development research.

Key words: Tahe oilfield, carbonate rock, fractured-vuggy reservoir, fault-controlled karst, geological modeling, fracture characterization

中图分类号:

P618.13

李吉康, 曾清勇, 郭臣, 李青, 朱乐乐. 多尺度多元约束的断控岩溶储集体建模[J]. 新疆石油地质, 2024, 45(6): 719-724.

LI Jikang, ZENG Qingyong, GUO Chen, LI Qing, ZHU Lele. Multi-Scale and Multi-Constraint Geological Modeling of Fault-Controlled Karst Reservoirs[J]. Xinjiang Petroleum Geology, 2024, 45(6): 719-724.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 19
