Application of Vertical P-Wave Slownesses in Porosity Evaluation of Shale Gas Reservoirs in Highly Deviated or Horizontal Wells

doi:10.7657/XJPG20210513

Abstract

Abstract:

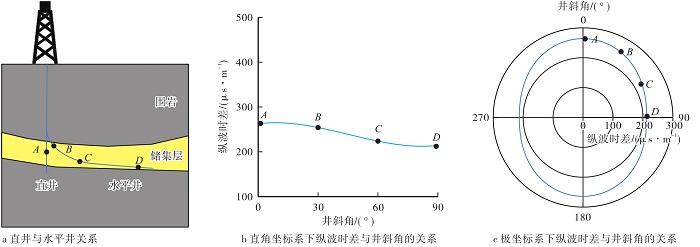

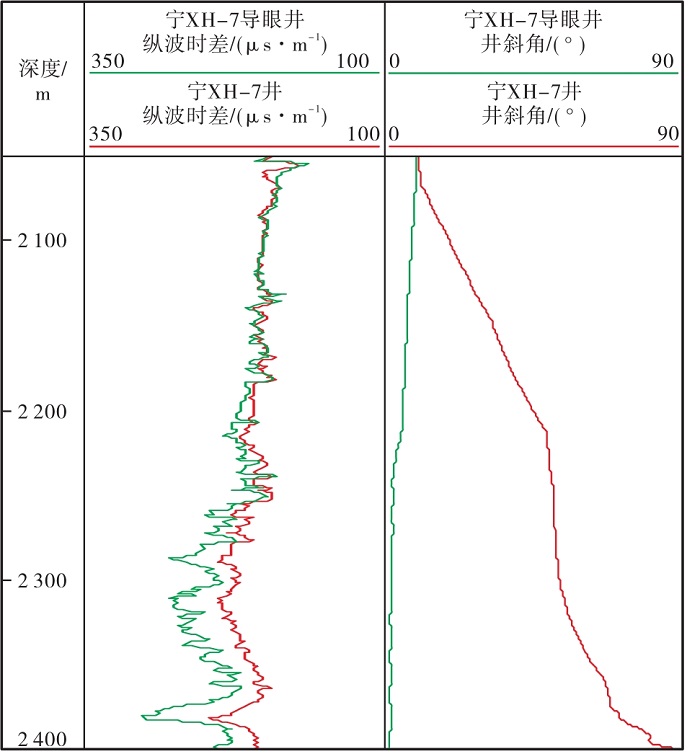

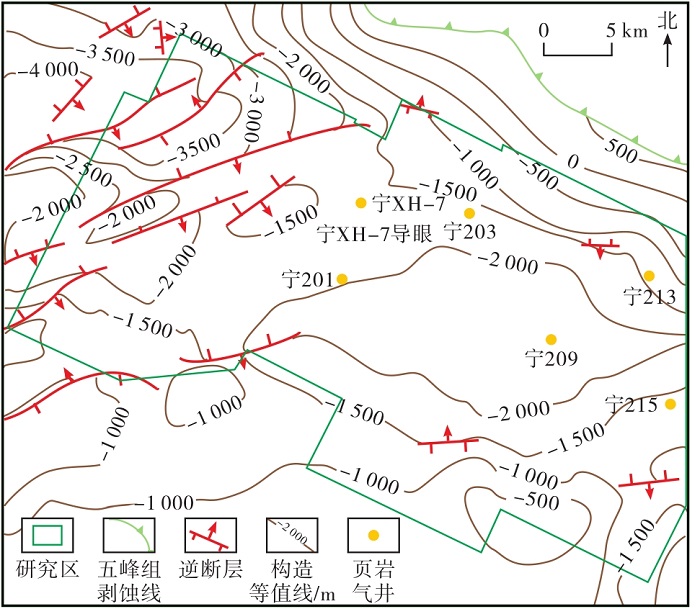

In Changning Shale Gas Pilot Development Area of Sichuan basin and based on vertical wells, a parameter model is built by using density, neutron, P-wave slowness, GR and resistivity logging data and core porosity and saturation to evaluate the resources. Horizontal well is used to develop the shale gas in the area. A parameter model is established with the same logging data from horizontal wells and core porosity and saturation from vertical wells to evaluate reservoirs in horizontal wells. P-wave slowness is the basic data for building the porosity and rock mechanical parameter model. The results show that the P-wave slowness measured in vertical wells is greater than those measured in highly deviated wells and horizontal wells in the Changning shale gas area. The P-wave slowness is greatly affected by well deviation, and the larger the well deviation, the greater the influence because of obvious velocity anisotropy in vertical and horizontal directions. In the same horizon and the same well interval, the porosity calculated from the model in highly deviated or horizontal wells is significantly different from the core porosity. In this study, we analyzed the relationships between P-wave slowness and well deviation in the same interval of the vertical, highly deviated and horizontal wells in the study area, and compared the P-wave slowness and porosities calculated by direct fitting method and anisotropic elliptic model method. It is considered that both of the two methods can reduce the influences of anisotropy and the anisotropic elliptic model method works better. Finally, the anisotropic elliptic model method has been widely used in porosity evaluation of shale reservoirs and good results have been gained in the study area.

Key words: Sichuan basin, Changning Shale Gas Pilot Development Area, shale gas, highly deviated well, horizontal well, anisotropy, vertical P-wave slowness, porosity

CLC Number:

TE112.24

ZHENG Jian, FU Yongqiang, CHEN Man, JING Cui, ZHANG Jing, ZHOU Hao, ZHANG Jiahao. Application of Vertical P-Wave Slownesses in Porosity Evaluation of Shale Gas Reservoirs in Highly Deviated or Horizontal Wells[J]. Xinjiang Petroleum Geology, 2021, 42(5): 598-604.

Figures/Tables 7

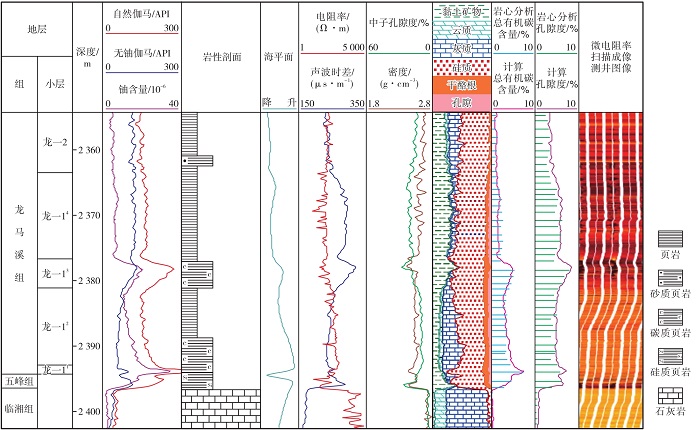

Fig. 1.

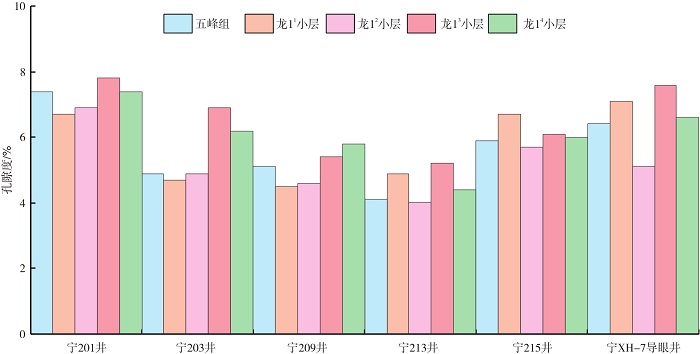

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

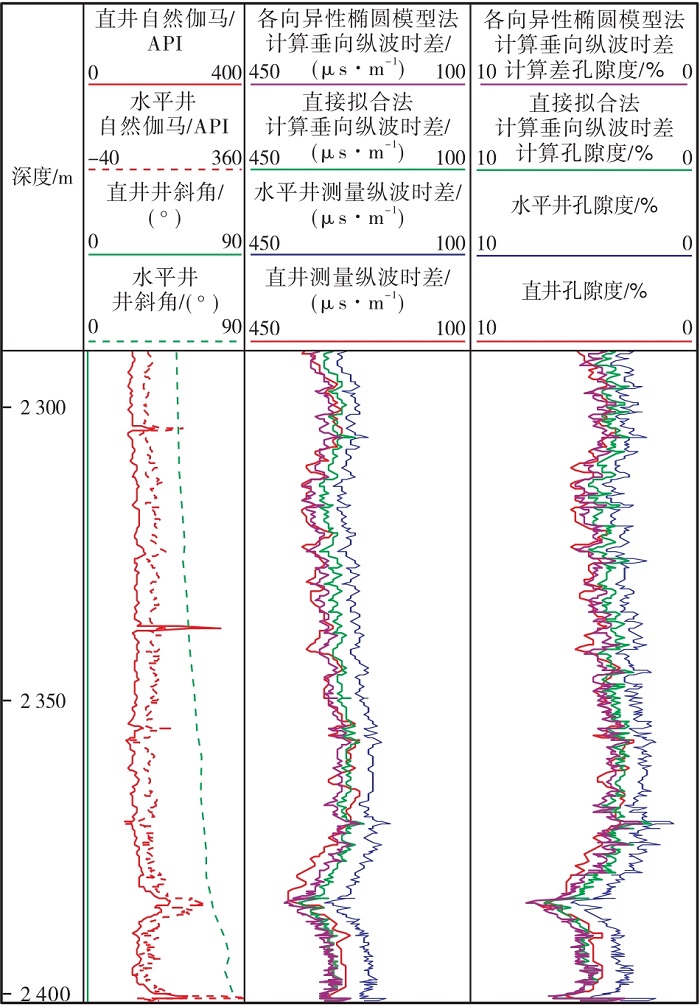

Fig. 6.

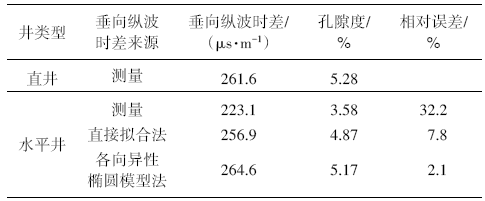

Table 1

References 21

[1]	徐政语, 梁兴, 鲁慧丽, 等. 四川盆地南缘昭通页岩气示范区构造变形特征及页岩气保存条件[J]. 天然气工业, 2019, 39(10):22-31.
	XU Zhengyu, LIANG Xing, LU Huili, et al. Structural deformation characteristics and shale gas preservation conditions in the Zhaotong National Shale Gas Demonstration Area along the southern margin of the Sichuan basin[J]. Natural Gas Industry, 2019, 39(10):22-31.
[2]	陈孔全, 李君军, 唐协华, 等. 中扬子地区五峰组—龙马溪组页岩气成藏关键地质因素[J]. 天然气工业, 2020, 40(6):18-30.
	CHEN Kongquan, LI Junjun, TANG Xiehua, et al. Key geological factors for shale gas accumulation in the Wufeng-Longmaxi Fms in the central Yangtze area[J]. Natural Gas Industry, 2020, 40(6):18-30.
[3]	王濡岳, 丁文龙, 王哲, 等. 页岩气储层地球物理测井评价研究现状[J]. 地球物理学进展, 2015, 30(1):228-241.
	WANG Ruyue, DING Wenlong, WANG Zhe, et al. Progress of geophysical well logging in shale gas reservoir evaluation[J]. Progress in Geophysics, 2015, 30(1):228-241.
[4]	李明波, 吴志伟, 张金武. 威远页岩储层特征对测试产量的影响[J]. 中国石油勘探, 2019, 24(4):539-546.
	LI Mingbo, WU Zhiwei, ZHANG Jinwu. Influences of shale reservoir characteristics on production test in Weiyuan block[J]. China Petroleum Exploration, 2019, 24(4):539-546.
[5]	李华阳, 周灿灿, 李长喜, 等. 致密砂岩脆性指数测井评价方法:以鄂尔多斯盆地陇东地区长7段致密砂岩储集层为例[J]. 新疆石油地质, 2014, 35(5):593-597.
	LI Huayang, ZHOU Cancan, LI Changxi, et al. Logging evaluation and application of brittleness index in tight sandstone reservoir:a case study of Chang-7 tight sandstone reservoir in Longdong area of Ordos basin[J]. Xinjiang Petroleum Geology, 2014, 35(5):593-597.
[6]	邹才能, 赵群, 丛连铸, 等. 中国页岩气开发进展、潜力及前景[J]. 天然气工业, 2021, 41(1):1-14.
	ZOU Caineng, ZHAO Qun, CONG Lianzhu, et al. Development progress,potential and prospect of shale gas in China[J]. Natural Gas Industry, 2021, 41(1):1-14.
[7]	钟光海, 陈丽清, 廖茂杰, 等. 页岩气储层品质测井综合评价[J]. 天然气工业, 2020, 40(2):54-60.
	ZHONG Guanghai, CHEN Liqing, LIAO Maojie, et al. A comprehensive logging evaluation method of shale gas reservoir quality[J]. Natural Gas Industry, 2020, 40(2):54-60.
[8]	赵冰. 利用核测井资料预测海相页岩储集层总有机碳含量[J]. 新疆石油地质, 2019, 40(4):499-504.
	ZHAO Bing. Predicting total organic carbon content in marine shale reservoirs with nuclear logging data[J]. Xinjiang Petroleum Geology, 2019, 40(4):499-504.
[9]	BACKUS G E . Long-wave elastic anisotropy produced by horizontal layering[J]. Journal of Geophysical Research, 1962, 67(11):4 427-4 440. doi: 10.1029/JZ067i011p04427
[10]	BERRYMAN, JAMES G. Long-wave elastic anisotropy in transversely isotropic media[J]. Geophysics, 1979, 44(5):896-917. doi: 10.1190/1.1440984
[11]	THOMSEN, LEON. Weak elastic anisotropy[J]. Geophysics, 1986, 51(10):1 954-1 966. doi: 10.1190/1.1442051
[12]	VERNIK L, LIU Xingzhou. Velocity anisotropy in shales:a petrophysical study[J]. Geophysics, 1997, 62(2):521-532. doi: 10.1190/1.1444162
[13]	MILLER D E, HORNE S A, WALSH J. Precise inversion of logged slownesses for elastic parameters in a gas shale formation[J]. Geophysics, 2012, 77(4):197-206.
[14]	HORNE S, WALSH J, MILLER D. Elastic anisotropy in the Haynesville shale from dipole sonic data[J]. First Break, 2012, 30(2):37-41.
[15]	LIU He, WANG Bing, GUO Tao, et al. Study on the simulation of acoustic logging measurements in horizontal and deviated wells[J]. Applied Geophysics, 2017, 14(3):337-350. doi: 10.1007/s11770-017-0637-6
[16]	余杰, 秦瑞宝, 刘春成, 等. 页岩气储层测井评价与产量“甜点”识别:以美国鹰潭页岩气储层为例[J]. 中国石油勘探, 2017, 22(3):104-112.
	YU Jie, QIN Ruibao, LIU Chuncheng, et al. Logging evaluation and production “sweet spot” identification of shale play:a case study on Eagle Ford shale play in the USA[J]. China Petroleum Exploration, 2017, 22(3):104-112.
[17]	杨洪志, 张小涛, 陈满, 等. 四川盆地长宁区块页岩气水平井地质目标关键技术参数优化[J]. 天然气工业, 2016, 36(8):60-65.
	YANG Hongzhi, ZHANG Xiaotao, CHEN Man, et al. Optimization on the key parameters of geologic target of shale-gas horizontal wells in Changning block,Sichuan basin[J]. Natural Gas Industry, 2016, 36(8):60-65.
[18]	赵圣贤, 杨跃明, 张鉴, 等. 四川盆地下志留统龙马溪组页岩小层划分与储层精细对比[J]. 天然气地球科学, 2016, 27(3):470-487.
	ZHAO Shengxian, YANG Yueming, ZHANG Jian, et al. Micro-layers division and fine reservoirs contrast of Lower Silurian Longmaxi formation shale,Sichuan basin,SW China[J]. Natural Gas Geoscience, 2016, 27(3):470-487.
[19]	马新华, 谢军. 川南地区页岩气勘探开发进展及发展前景[J]. 石油勘探与开发, 2018, 45(1):161-169.
	MA Xinhua, XIE Jun. The progress and prospects of shale gas exploration and exploitation in southern Sichuan basin,NW China[J]. Petroleum Exploration and Development, 2018, 45(1):161-169.
[20]	邓长生, 张毅, 谢小飞, 等. 延长石油探区延长组页岩总含气量综合预测模型[J]. 新疆石油地质, 2020, 41(3):269-277.
	DENG Changsheng, ZHANG Yi, XIE Xiaofei, et al. Comprehensive prediction model of total gas content in the shale of Yanchang formation in Yanchang petroleum exploration area[J]. Xinjiang Petroleum Geology, 2020, 41(3):269-277.
[21]	钟光海, 谢冰, 周肖, 等. 四川盆地页岩气储层含气量的测井评价方法[J]. 天然气工业, 2016, 36(8):43-51.
	ZHONG Guanghai, XIE Bing, ZHOU Xiao, et al. A logging evaluation method for gas content of shale gas reservoirs in the Sichuan basin[J]. Natural Gas Industry, 2016, 36(8):43-51.
