Optimization of Key Fracturing Parameters for Profitable Development of Horizontal Wells in Mahu Conglomerate Reservoirs

doi:10.7657/XJPG20230208

Abstract

Abstract:

In the process of transforming the Mahu conglomerate reservoirs in the Junggar basin from large-scale development to profitable development，it is particularly important to select reasonable fracturing parameters under the premise of considering economic benefits. In order to realize the optimization of key fracturing parameters for the Mahu conglomerate reservoirs，an equivalent KGD fracture propagation model was established to realize the rapid estimation of fracture shape. By using the heuristic particle swarm optimization algorithm and taking the rate of return as the objective function，a combined optimization on fracturing scale, cluster number and displacement was carried out for pay zones in the Mahu conglomerate reservoirs. The optimization results show that with the increase of the iteration number，the high-cost development plan finally converges to a combined optimization plan with the best comprehensive development effect，thus enabling the optimization of fracturing parameters for Ma 131 block.

Key words: Junggar basin, Mahu conglomerate reservoir, horizontal well fracturing, fracturing parameter, optimization, particle swarm optimization algorithm, rate of return, profitable development

CLC Number:

TE323

ZHANG Jing, HU Dandan, QIN Jianhua, WANG Yingwei, TANG Huiying. Optimization of Key Fracturing Parameters for Profitable Development of Horizontal Wells in Mahu Conglomerate Reservoirs[J]. Xinjiang Petroleum Geology, 2023, 44(2): 184-194.

Figures/Tables 17

Fig. 1.

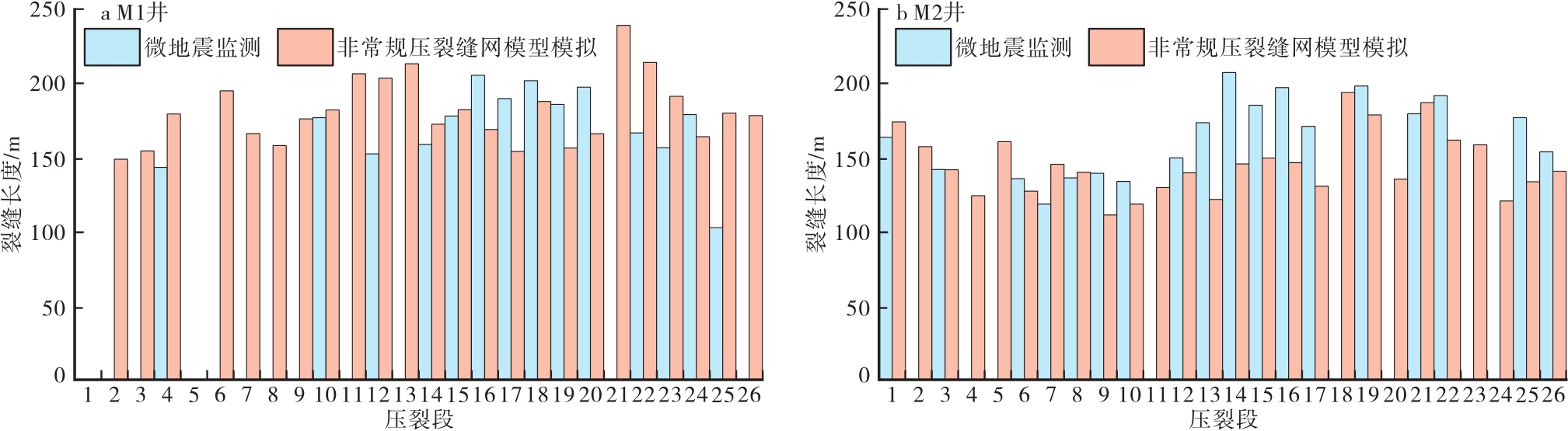

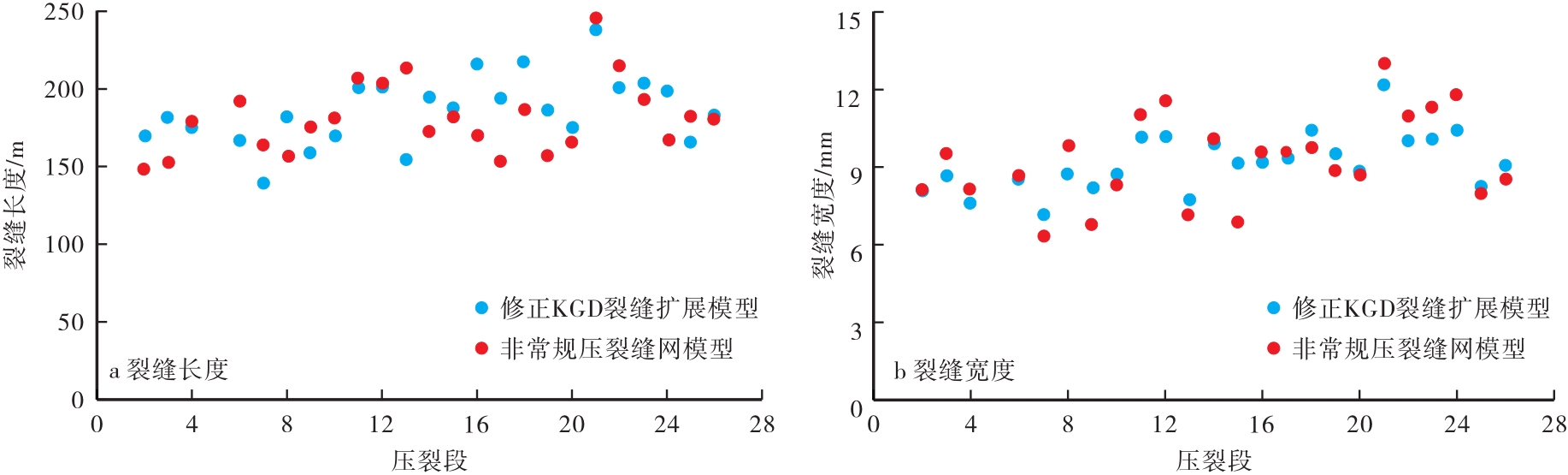

Fig. 2.

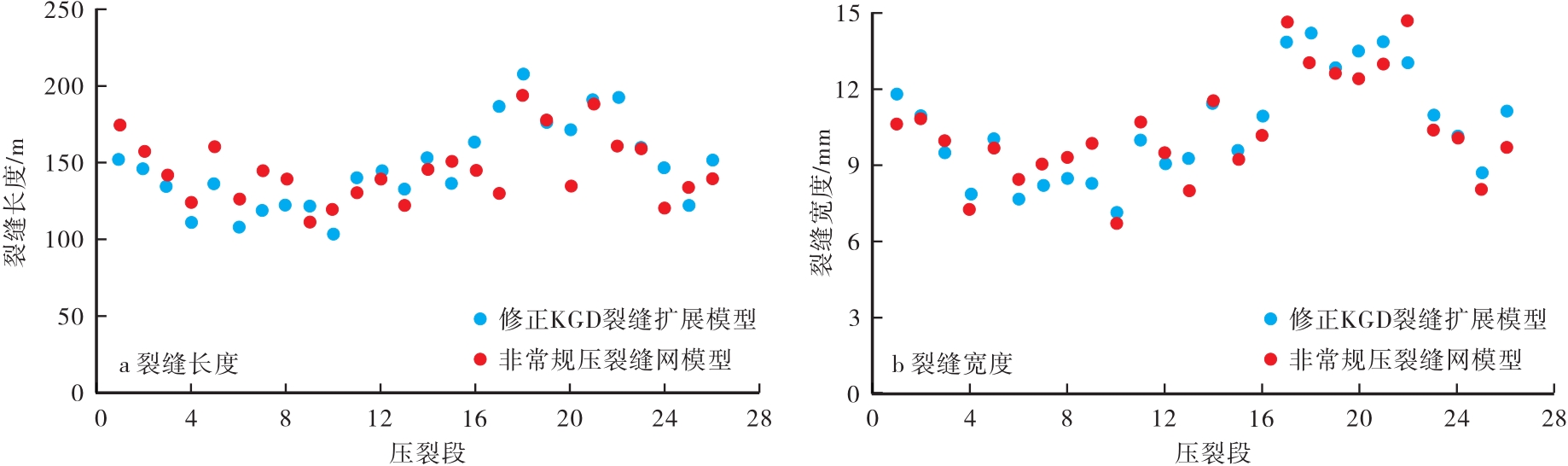

Fig. 3.

Table 1.

Table 2.

Table 3.

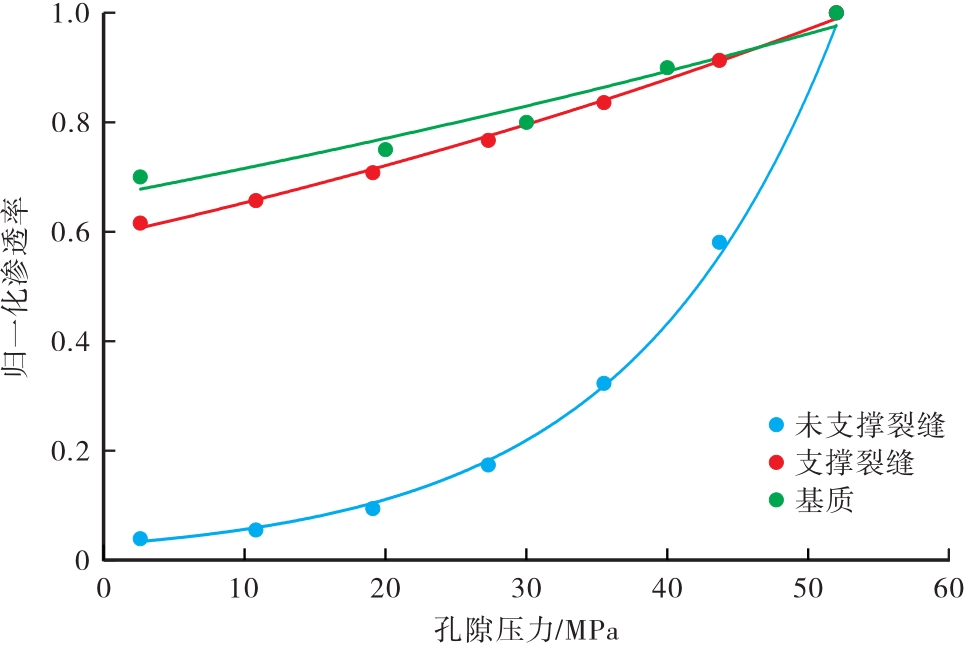

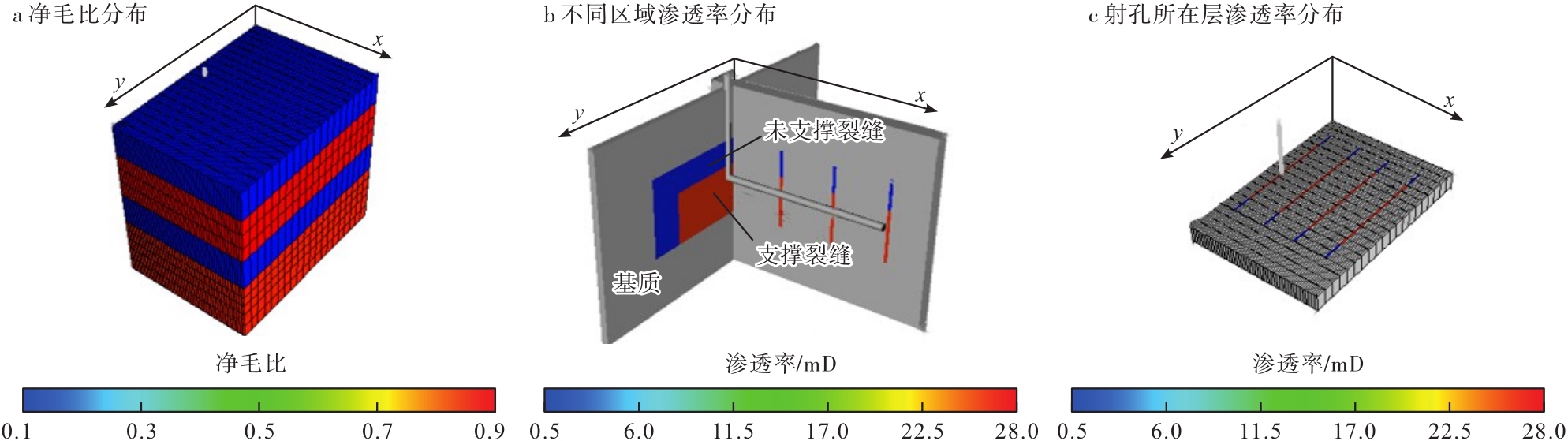

Fig. 4.

Fig. 5.

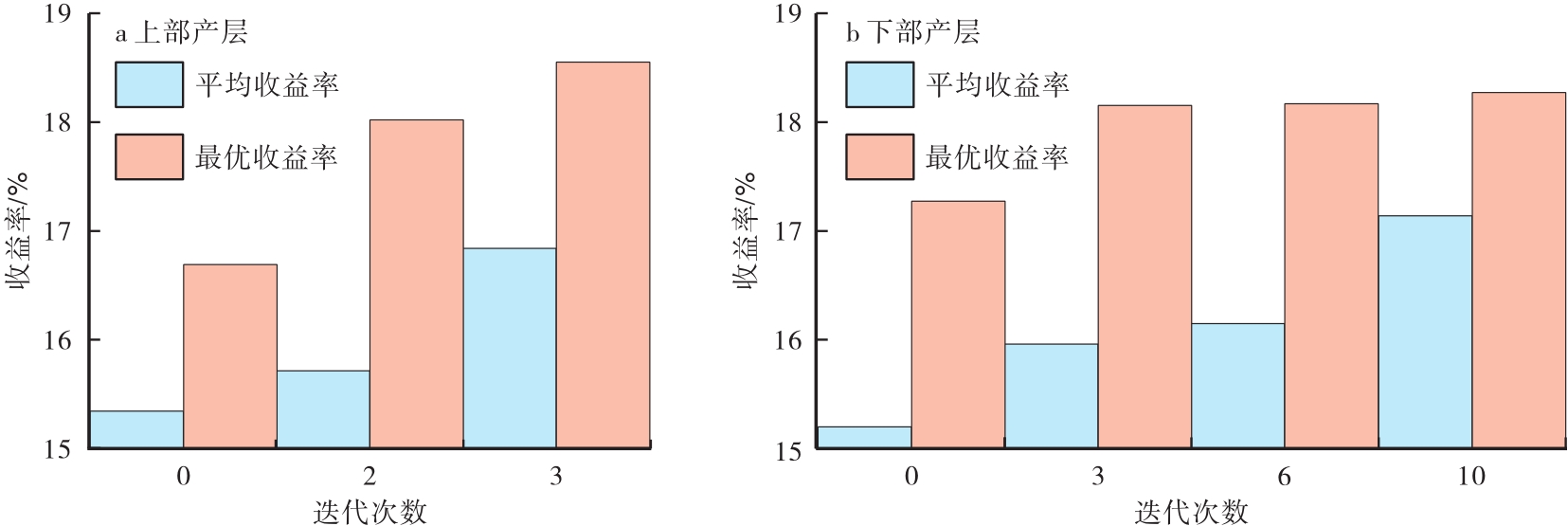

Fig. 6.

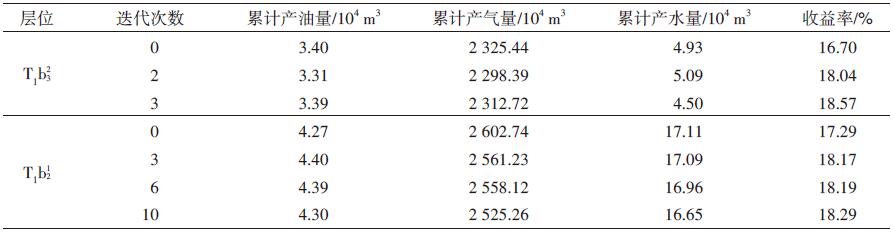

Table 4.

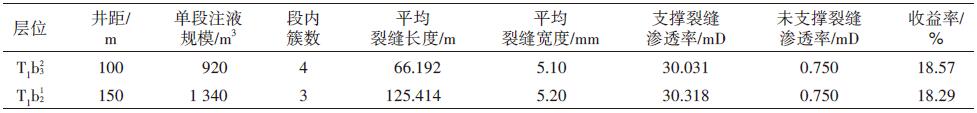

Table 5.

Fig. 7.

Fig. 8.

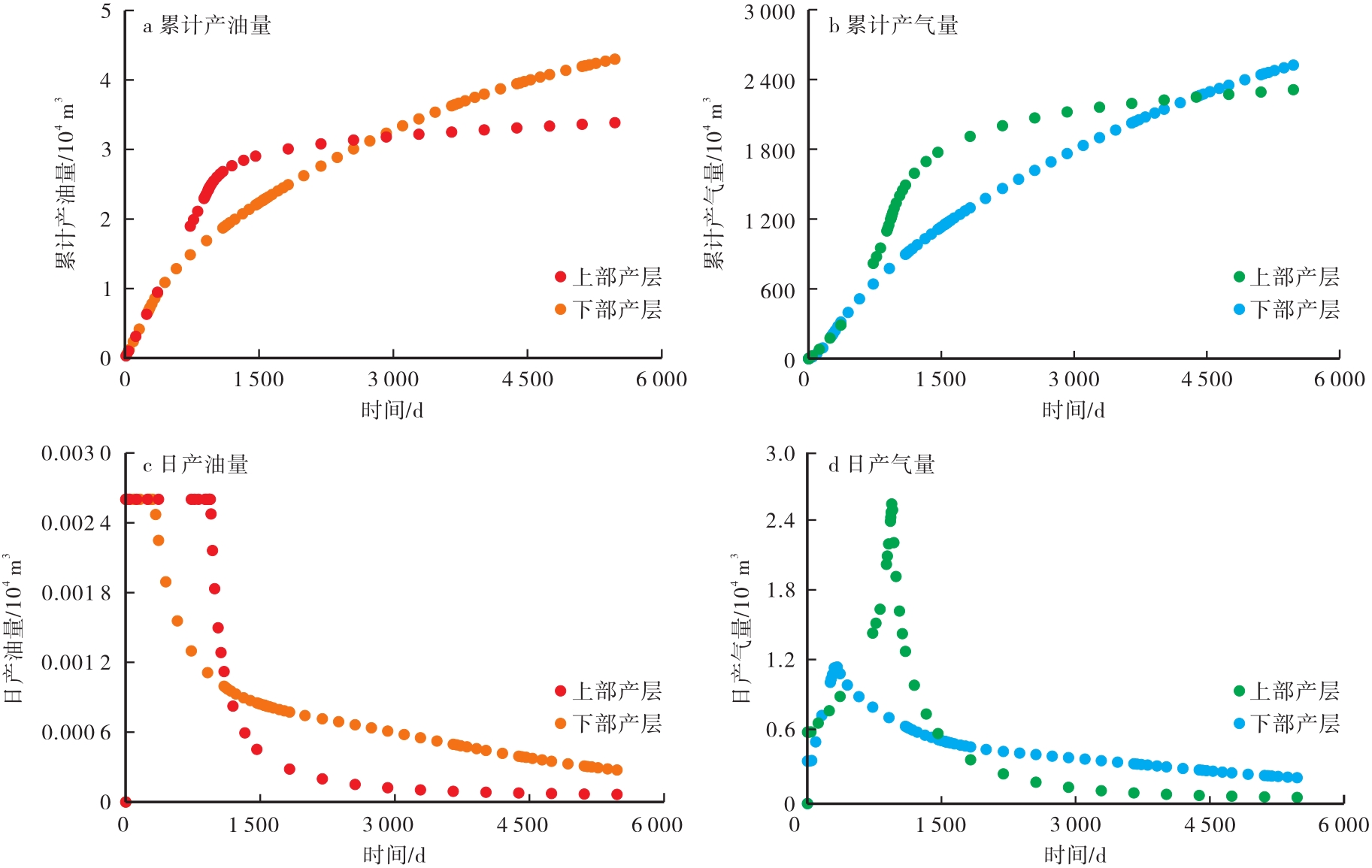

Fig. 9.

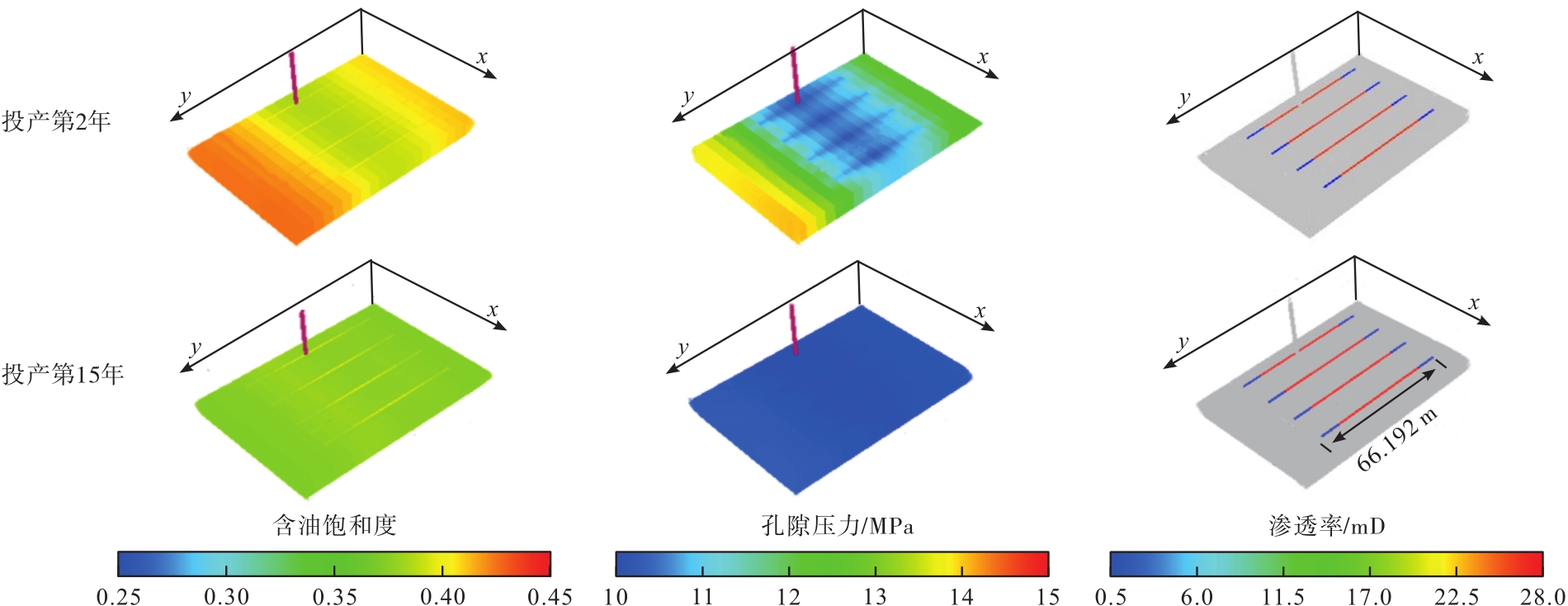

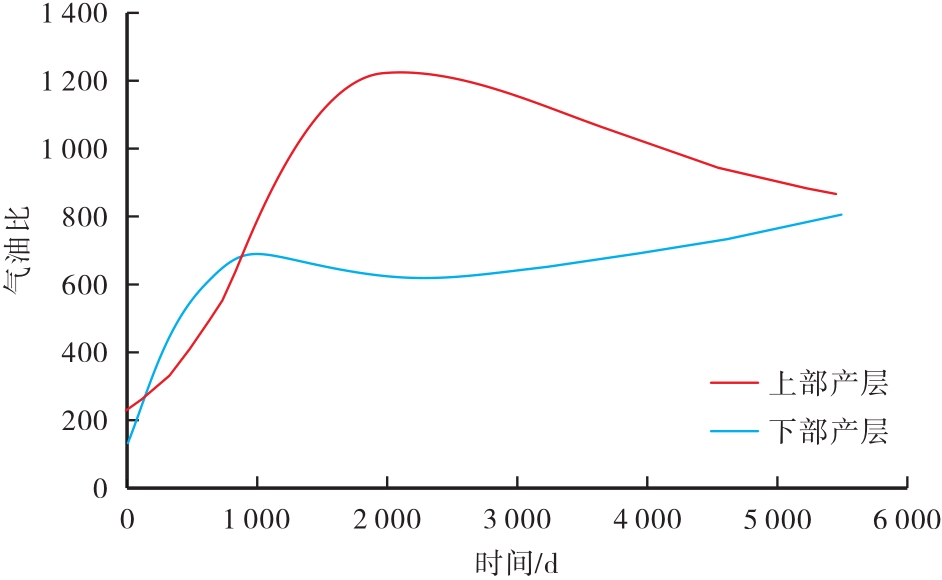

Fig. 10.

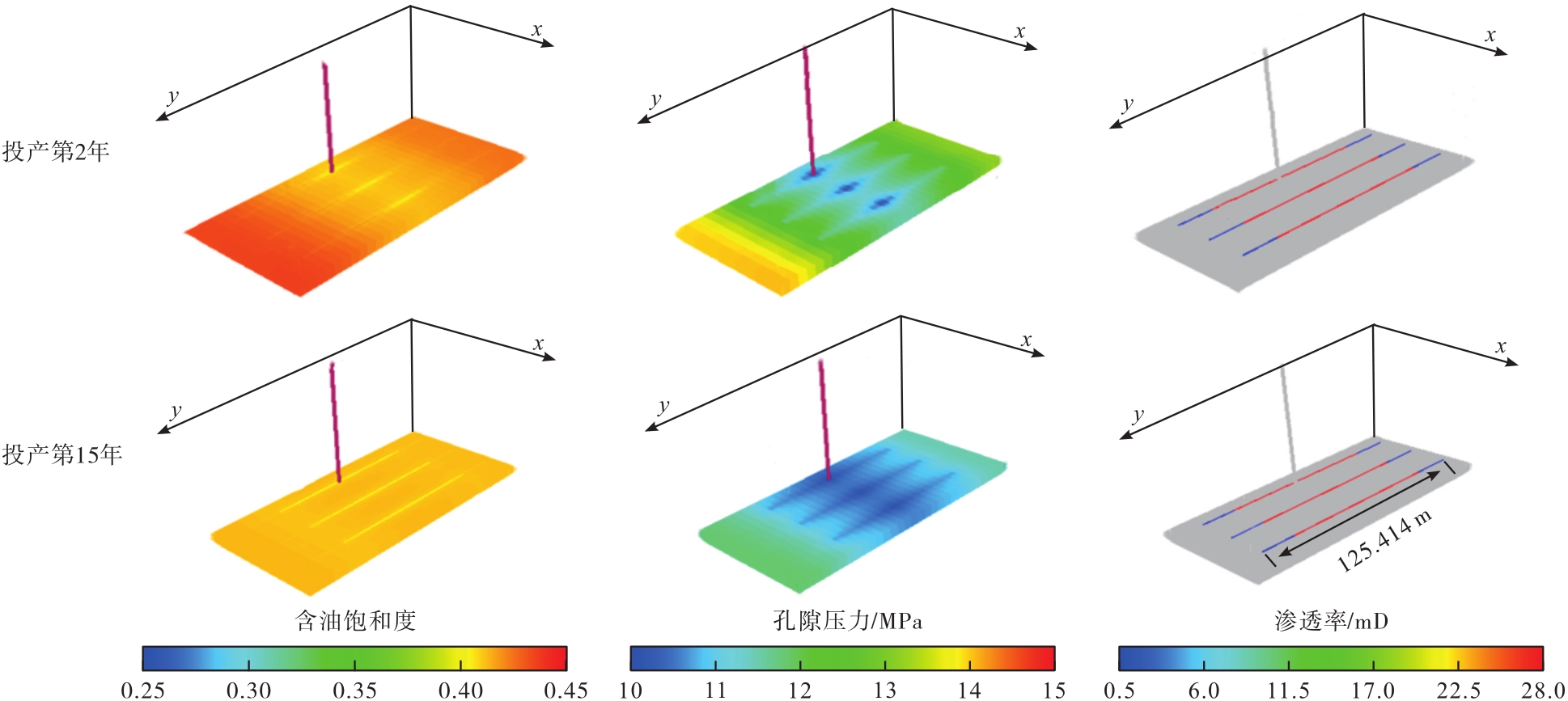

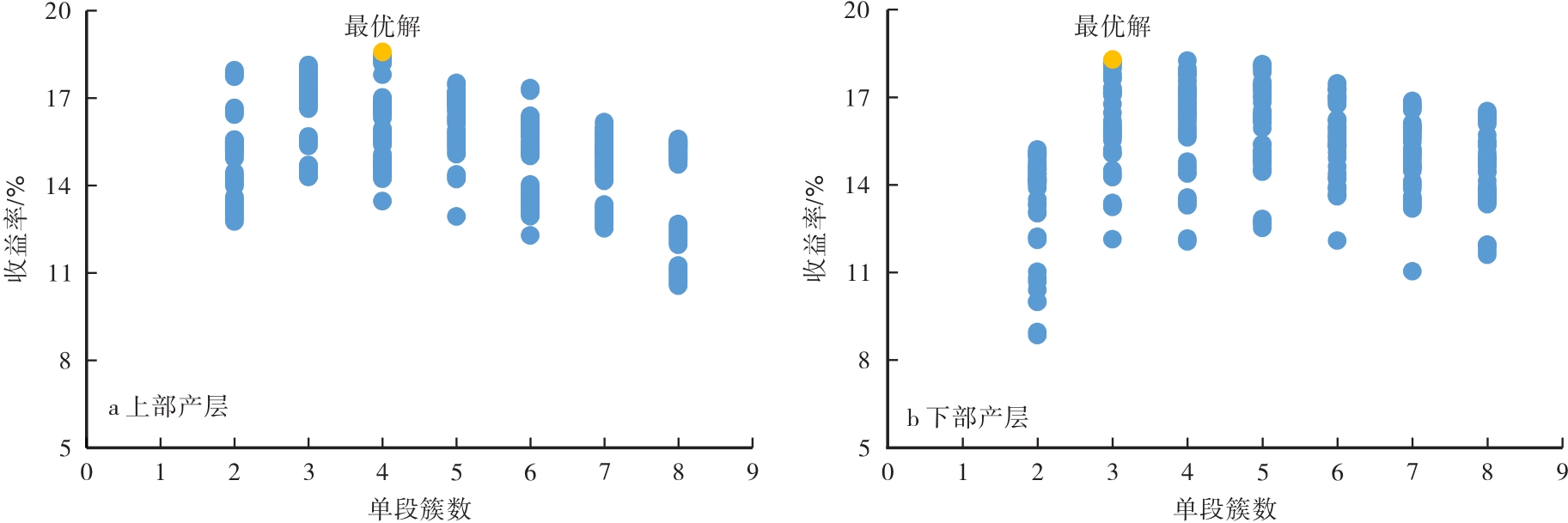

Fig. 11.

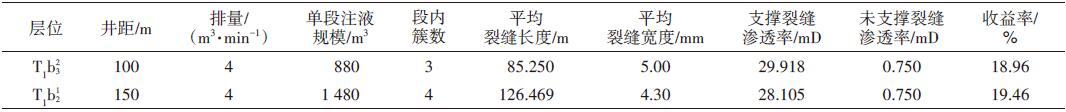

Table 6.

References 37

[1]	李国欣, 覃建华, 鲜成钢, 等. 致密砾岩油田高效开发理论认识、关键技术与实践:以准噶尔盆地玛湖油田为例[J]. 石油勘探与开发, 2020, 47(6):1 185-1 197.
	LI Guoxin, QIN Jianhua, XIAN Chenggang, et al. Theoretical understandings,key technologies and practices of tight conglomerate oilfield efficient development:a case study of the Mahu oilfield,Junggar basin,NW China[J]. Petroleum Exploration and Development, 2020, 47(6):1 185-1 197.
[2]	杜洪凌, 许江文, 李峋, 等. 新疆油田致密砂砾岩油藏效益开发的发展与深化:地质工程一体化在玛湖地区的实践与思考[J]. 中国石油勘探, 2018, 23(2):15-26. doi: 10.3969/j.issn.1672-7703.2018.02.003
	DU Hongling, XU Jiangwen, LI Xun, et al. Development and deepening of profitable development of tight glutenite oil reservoirs in Xinjiang oilfield:application of geology-engineering integration in Mahu area and its enlightenment[J]. China Petroleum Exploration, 2018, 23(2):15-26. doi: 10.3969/j.issn.1672-7703.2018.02.003
[3]	陈志明, 赵鹏飞, 曹耐, 等. 页岩油藏压裂水平井压—闷—采参数优化研究[J]. 石油钻探技术, 2022, 50(2):30-37.
	CHEN Zhiming, ZHAO Pengfei, CAO Nai, et al. Fracturing parameters optimization of horizontal wells in shale reservoirs during “well killing-soaking-producing”[J]. Petroleum Drilling Techniques, 2022, 50(2):30-37.
[4]	曹炜, 鲜成钢, 吴宝成, 等. 玛湖致密砾岩油藏水平井生产动态分析及产能预测:以玛131小井距立体开发平台为例[J]. 新疆石油地质, 2022, 43(4):440-449.
	CAO Wei, XIAN Chenggang, WU Baocheng, et al. Production performance analysis and productivity prediction of horizontal wells in Mahu tight conglomerate reservoirs:a case of Ma 131 dense-spacing 3D development pad[J]. Xinjiang Petroleum Geology, 2022, 43(4):440-449.
[5]	承宁, 郭旭洋, 魏璞, 等. 水平井分段分簇压裂缝间干扰和段间干扰建模:以昌吉油田吉7井区八道湾组油藏为例[J]. 新疆石油地质, 2021, 42(4):437-443.
	CHENG Ning, GUO Xuyang, WEI Pu, et al. Inter-fracture and inter-section interference modeling for staged and clustered fracturing stimulation in horizontal wells:a case study on reservoirs of Badaowan formation in Wellblock Ji 7 in Changji oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(4):437-443.
[6]	姚旭. 致密油水平井分段压裂裂缝延伸规律数值模拟[J]. 大庆石油地质与开发, 2019, 38(6):162-168.
	YAO Xu. Numerical simulation of the fracture extension law for the staged fracturing in the tight-oil horizontal well[J]. Petroleum Geology & Oilfield Development in Daqing, 2019, 38(6):162-168.
[7]	SCHOFIELD J, RODRIGUEZ H A, GARCIA T X. Optimization of well pad & completion design for hydraulic fracture stimulation in unconventional reservoirs[C]. Madrid: Society of Petroleum Engineers, 2015.
[8]	LIU Xiaoqiang, RASOULI V, GUO Tiankui, et al. Numerical simulation of stress shadow in multiple cluster hydraulic fracturing in horizontal wells based on lattice modelling[J]. Engineering Fracture Mechanics, 2020, 238:107 278.
[9]	裴艳丽, 姜汉桥, 李俊键, 等. 页岩气新井压裂规模优化设计.[J]. 断块油气田, 2016, 23(2):265-268.
	PEI Yanli, JIANG Hanqiao, LI Junjian, et al. Fracturing scale optimization design for new shale gas well[J]. Fault-Block Oil & Gas Field, 2016, 23(2):265-268.
[10]	LI Mingzhong, TANG Shukai, GUO Tiankui, et al. Numerical investigation of hydraulic fracture propagation in the glutenite reservoir[J]. Journal of Geophysics and Engineering, 2018, 15:2 124-2 138. doi: 10.1088/1742-2140/aaba27
[11]	SHENTU Junjie, LIN Botao, DONG Jingnan, et al. Investigation of hydraulic fracture propagation in conglomerate reservoirs using discrete element method[C]. Beijing: ARMA-CUPB Geothermal International Conference, 2019.
[12]	ZHANG Guodong, SUN Shuangshuang, CHAO Kun, et al. Investigation of the nucleation,propagation and coalescence of hydraulic fractures in glutenite reservoirs using a coupled fluid flow-DEM approach[J]. Powder Technology, 2019, 354:301-313. doi: 10.1016/j.powtec.2019.05.073
[13]	刘鹏. 砂砾岩水压致裂机理的实验与数值模拟研究[D]. 北京: 中国矿业大学(北京), 2017.
	LIU Peng. Experimental and numerical simulating studies on hydrofracturing mechanism of glutenite[D]. Beijing: China University of Mining & Technology(Beijing), 2017.
[14]	彭鹏, 杨兆中, 梅永贵, 等. 煤层气体积压裂施工参数优化[J]. 油气藏评价与开发, 2015, 5(6):68-72.
	PENG Peng, YANG Zhaozhong, MEI Yonggui, et al. Construction parameter optimization of coalbed methane volume fracturing[J]. Reservoir Evaluation and Development, 2015, 5(6):68-72.
[15]	蔡萌, 唐鹏飞, 魏旭, 等. 松辽盆地古龙页岩油复合体积压裂技术优化[J]. 大庆石油地质与开发, 2022, 41(3):156-164.
	CAI Meng, TANG Pengfei, WEI Xu, et al. Optimization of composite volume fracturing technology for Gulong shale oil[J]. Petroleum Geology & Oilfield Development in Daqing, 2022, 41(3):156-164.
[16]	WANG Shuhua, CHEN Shengnan. Integrated well placement and fracture design optimization for multi-well pad development in tight oil reservoirs[J]. Computational Geosciences, 2019, 23:471-493. doi: 10.1007/s10596-018-9795-8
[17]	姚军, 李志豪, 孙海. 基于代理辅助分层粒子群算法的页岩气藏压裂参数优化[J]. 中国石油大学学报(自然科学版), 2020, 44(4):12-19.
	YAO Jun, LI Zhihao, SUN Hai. Optimization of fracturing parameters for shale gas reservoir based on a surrogate-assisted hierarchical particle swarm optimization algorithm[J]. Journal of China University of Petroleum(Edition of Natural Science), 2020, 44(4):12-19.
[18]	宋丽阳, 王纪伟, 刘长印. 基于BP-GA算法的水平井智能压裂设计方法[J]. 断块油气田, 2022, 29(3):417-421.
	SONG Liyang, WANG Jiwei, LIU Changyin. BP-GA algorithm assisted intelligent horizontal well fracturing design[J]. Fault-Block Oil & Gas Field, 2022, 29(3):417-421.
[19]	任佳伟, 张先敏, 王贤君, 等. 致密砂岩油藏水平井密切割压裂改造参数优化[J]. 断块油气田, 2021, 28(6):859-864.
	REN Jiawei, ZHANG Xianmin, WANG Xianjun, et al. Optimization of parameters of close cutting fracturing for horizontal well in tight sandstone reservoir[J]. Fault-Block Oil & Gas Field, 2021, 28(6):859-864.
[20]	COHEN C E, ABAD C, WENG X, et al. Analysis on the impact of fracturing treatment design and reservoir properties on production from shale gas reservoirs[C]. Beijing: International Petroleum Technology Conference, 2013.
[21]	ZHANG Liang, LI Zhiping, LAI Fengpeng, et al. Integrated optimization design for horizontal well placement and fracturing in tight oil reservoirs[J]. Journal of Petroleum Science and Engineering, 2019, 178:82-96. doi: 10.1016/j.petrol.2019.03.006
[22]	郭大立, 唐乙芳, 李曙光, 等. 基于BP-PSO的致密气压裂施工参数优化[J]. 科学技术与工程, 2022, 22(19):8 304-8 312.
	GUO Dali, TANG Yifang, LI Shuguang, et al. Optimization of tight gas fracturing operation parameters based on BP-PSO[J]. Science Technology and Engineering, 2022, 22(19):8 304-8 312.
[23]	ZHANG Ruxin, HOU Bing, HAN Huifen, et al. Experimental investigation on fracture morphology in laminated shale formation by hydraulic fracturing[J]. Journal of Petroleum Science and Engineering, 2019, 177:442-451. doi: 10.1016/j.petrol.2019.02.056
[24]	MA Xinfang, ZOU Yushi, LI Ning, et al. Experimental study on the mechanism of hydraulic fracture growth in a glutenite reservoir[J]. Journal of Structural Geology, 2017, 97:37-47. doi: 10.1016/j.jsg.2017.02.012
[25]	LIU Peng, JU Yang, RANJITH P G, et al. Experimental investigation of the effects of heterogeneity and geostress difference on the 3D growth and distribution of hydrofracturing cracks in unconventional reservoir rocks[J]. Journal of Natural Gas Science and Engineering, 2016, 35:541-554. doi: 10.1016/j.jngse.2016.08.071
[26]	何小东, 马俊修, 刘刚, 等. 玛湖油田砾岩储集层岩石力学分析及缝网评价[J]. 新疆石油地质, 2019, 40(6):701-707.
	HE Xiaodong, MA Junxiu, LIU Gang, et al. Analysis of rock mechanics and assessments of hydraulic fracture network in conglomerate reservoirs of Mahu oilfield[J]. Xinjiang Petroleum Geology, 2019, 40(6):701-707.
[27]	唐慧莹, 梁海鹏, 张烈辉, 等. 砾岩储层水力裂缝扩展形态及影响因素[J]. 石油学报, 2022, 43(6):871-884. doi: 10.7623/syxb202206011
	TANG Huiying, LIANG Haipeng, ZHANG Liehui, et al. Hydraulic fracture extension patterns of conglomerate reservoirs and relevant influencing factors[J]. Acta Petrolei Sinica, 2022, 43(6):871-884. doi: 10.7623/syxb202206011
[28]	LI Lianchong, MENG Qingmin, WANG Shanyong, et al. A numerical investigation of the hydraulic fracturing behavior of conglomerate in glutenite formation[J]. Acta Geotechnica, 2013, 8:597-618. doi: 10.1007/s11440-013-0209-8
[29]	LIANG Haiping, TANG Huiying, QIN Jianhua, et al. Multi-scale investigations on the geometries of hydraulic fractures in conglomerate reservoirs[C]. Riyadh: International Petroleum Technology Conference, 2022.
[30]	QIU Fangda, PORCU M M, XU Jian, et al. Simulation study of zipper fracturing using an unconventional fracture model[C]. Alberta: Society of Petroleum Engineers, 2015.
[31]	WENG X, KERSSE O, COHEN C, et al. Modeling of hydraulic-fracture-network propagation in a naturally fractured formation[J]. SPE Production & Operations, 2011, 26:368-380.
[32]	游敬熙, 翁晓卫. 水力压裂力学[M]. 北京: 石油工业出版社, 2019.
	YOU Jingxi, WENG Xiaowei. Hydraulic fracturing mechanics[M]. Beijing: Petroleum Industry Press, 2019.
[33]	KENNEDY J, EBERHART R. Particle swarm optimization[C]. Indianapolis: International Conference on Neural Networks, 1995:1 942-1 948.
[34]	刘细平, 胡卫平, 邹永玲, 等. 改进粒子群算法的永磁同步电机多参数辨识[J]. 电机与控制学报, 2020, 24(7):112-120.
	LIU Xiping, HU Weiping, ZOU Yongling, et al. Multi-parameter identification of permanent magnet synchronous motor based on improved particle swarm optimization[J]. Electric Machines and Control, 2020, 24(7):112-120.
[35]	邓浩, 李均利, 胡凯, 等. 学习邻域参数的粒子群算法[J]. 小型微型计算机系统, 2021, 42(5):996-1 002.
	DENG Hao, LI Junli, HU Kai, et al. Particle swarm optimization with learning neighborhood parameter[J]. Journal of Chinese Computer Systems, 2021, 42(5):996-1 002.
[36]	李传亮, 叶明泉. 岩石应力敏感曲线机制分析[J]. 西南石油大学学报(自然科学版), 2008, 30(1):170-173.
	LI Chuanliang, YE Mingquan. The mechanism of stress sensitivity curve of rock[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2008, 30(1):170-173.
[37]	黄勇, 董长银, 周玉刚, 等. 基于渗透率损失规律分析的稠油井割缝筛管割缝宽度优化[J]. 石油钻采工艺, 2021, 43(1):116-122.
	HUANG Yong, DONG Changyin, ZHOU Yugang, et al. Optimization study on the slot width of slotted screen in heavy oil wells based on permeability loss law analysis[J]. Oil Drilling & Production Technology, 2021, 43(1):116-122.

参数	取值
基准折现率/%	10.50
天然气售价/（元·10^-3 m^-3）	820
天然气商品率/%	95
原油售价/（元·t^-1）	2 560（2019年—2021年） 2 805（2022年—2034年）
原油商品率/%	99.10
钻井成本/（元·m^-1）	4 061
与注液量有关的完井成本/（元·m^-3）	60
压裂服务费/（元/段）	190 000
其他完井成本/元	7 496 583
其他初期投资/元	9 500 000
资源税/%	6
增值税/%	6
单井维护总成本/元	500 000
天然气开采成本/（元·10^-3 m^-3）	143
原油开采成本/（元·t^-1）	290
水处理成本/（元·m^-3）	22.50

井名		支撑裂缝占比/%	层位	井距/m	段数	段内簇数	单段压裂规模/m³	收益率/%
M1247井	文献计算值		$T_{1}b_{3}^{2}$	100	30	3	733	10.80
	本文计算值	50	$T_{1}b_{3}^{2}$	100	30	3	733	8.77
		70	$T_{1}b_{3}^{2}$	100	30	3	733	10.44
		90	$T_{1}b_{3}^{2}$	100	30	3	733	14.27
M1242井	文献计算值		$T_{1}b_{2}^{1}$	150	30	3	1 300	11.30
	本文计算值	50	$T_{1}b_{2}^{1}$	150	30	3	1 300	7.41
		70	$T_{1}b_{2}^{1}$	150	30	3	1 300	11.46
		90	$T_{1}b_{2}^{1}$	150	30	3	1 300	14.57

层位	孔隙压力/ MPa	含水饱和度/ %	孔隙度/ %	气测渗透率/mD	液测渗透率/mD	气油比	饱和压力/ MPa	杨氏模量/ GPa	泊松比
$T_{1}b_{3}^{1}$	36.56	97	6	0.09	0.004	235	34.66	29.10	0.25
$T_{1}b_{3}^{2}$	36.84	46	10	2.23	0.111
$T_{1}b_{3}^{3}$	37.29	80	9	1.74	0.087
$T_{1}b_{2}^{1}$	37.29	52	11	2.48	0.120	140	23.97	29.10	0.22
$T_{1}b_{2}^{2}$	37.77	87	11	1.48	0.074	140	23.97	29.10	0.22
