Horizontal Well Infilling and Water Flooding Tracking Adjustment for Production Increase in Low Permeability Reservoirs in X Oilfield

doi:10.7657/XJPG20230509

Abstract

Abstract:

In X oilfield, the reservoirs exhibit poor physical properties, a small number of layers vertically, and the presence of small faults in complex distribution, which lead to poor effect of vertical well development and ineffecient displacement of the existing well pattern. Based on the successful development of pre-existing horizontal wells and infilled horizontal wells in the pilot test in 2014, a study was conducted on horizontal well infilling and tracking adjustment techniques in the areas with inefficient waterflooding by vertical wells and in the unswept areas near fault zones. Through logging-seismic combination and comprehensive dynamic-static analysis, the areas with stable reservoirs, low water-out risk, and enriched remaining oil were identified for well infilling. By optimizing the orientation and horizontal section length of horizontal wells, the fracturing density and fracture length were optimized to enhance the productivity of horizontal wells. The injection-production process was optimized by implementing the waterflooding tracking adjustment strategy of early-stage intermittent water injection and weak injection via the injector in an adjacent row + strong injection via the injector in a row apart. Following these approaches, a total of 19 infilling horizontal wells were drilled in the X oilfield in 2019, achieving a sandstone-encountered rate of 83.0%. The initial daily oil production per well reached 7.4 t, with a comprehensive water cut of 28.8%. An effective displacement system was established, resulting in an increase in the oilfield’s production rate from 0.8% to 1.5%, and improving the overall development effect of X oilfield.

Key words: low permeability reservoir, fine description, remaining oil, logging-seismic combination, dynamic-static analysis, infilling horizontal well, fracturing, water injection adjustment

CLC Number:

TE341

ZHOU Jiamei. Horizontal Well Infilling and Water Flooding Tracking Adjustment for Production Increase in Low Permeability Reservoirs in X Oilfield[J]. Xinjiang Petroleum Geology, 2023, 44(5): 577-582.

Figures/Tables 6

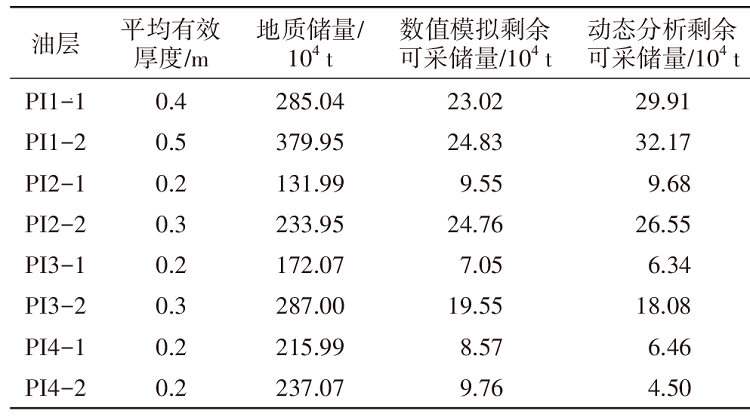

Table 1.

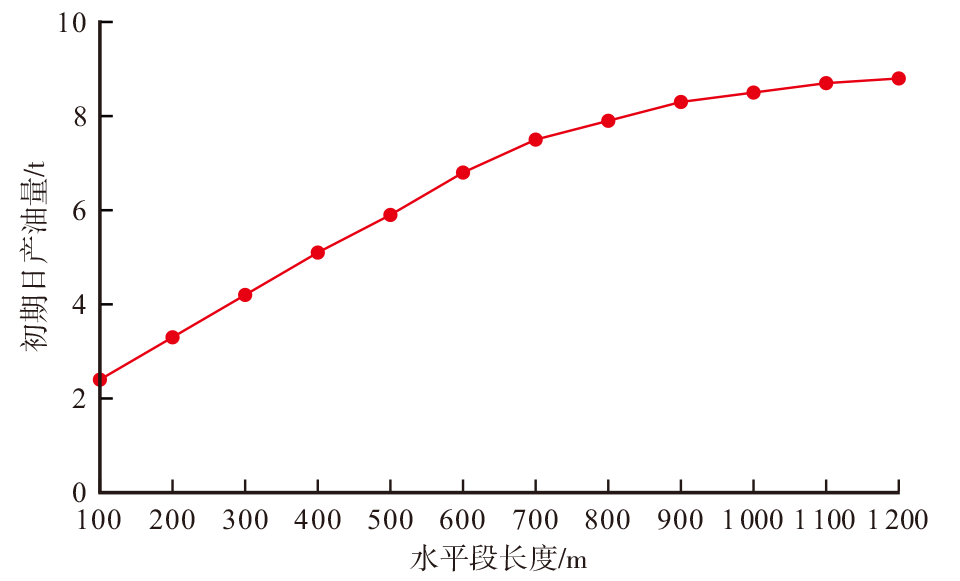

Fig. 1.

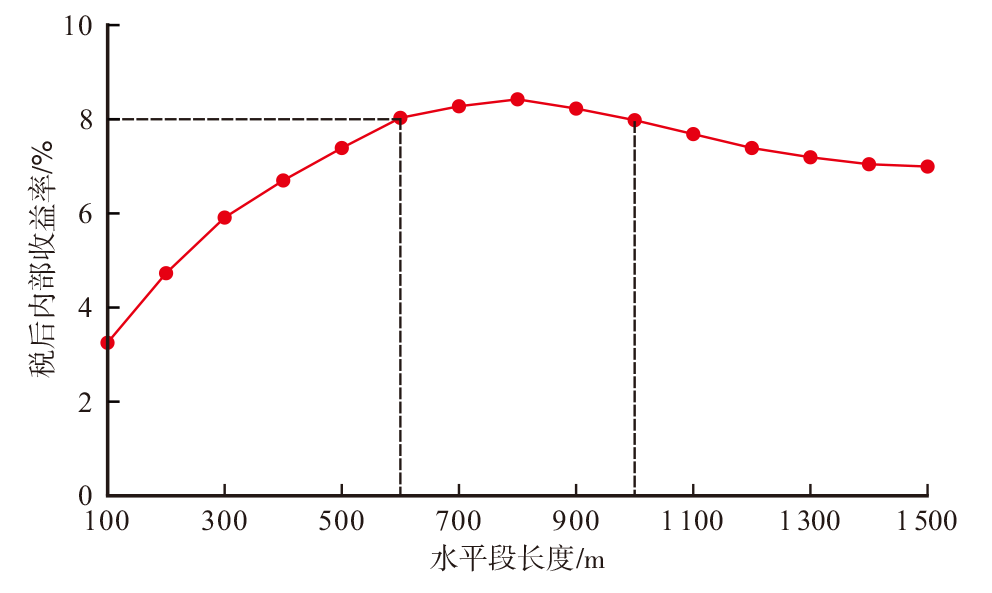

Fig. 2.

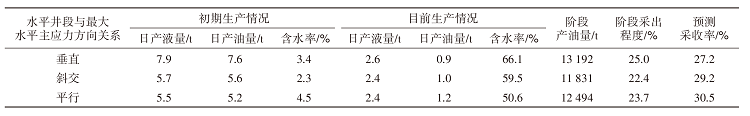

Table 2.

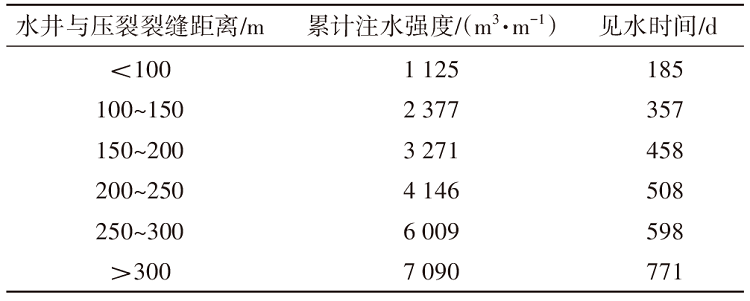

Table 3.

Table 4.

References 24

[1]	张树森. 低渗透AN油田加密水平井现场应用及效果评价[D]. 黑龙江大庆: 东北石油大学, 2018.
	ZHANG Shusen. Application and effect evaluation of infill horizontal wells in low-permeability AN oilfields[D]. Daqing,Heilongjiang: Northeast Petroleum University, 2018.
[2]	GIGER F M. Low-permeability reservoir development using horizontal wells[R]. SPE 16406, 1987.
[3]	JOSHI S D. Augmentation of well productivity with slant and horizontal wells[J]. Journal of Petroleum Technology, 1988, 40(6):729-739. doi: 10.2118/15375-PA
[4]	陈民锋, 尹承哲, 王振鹏, 等. 直井-水平井组合井网平面井间动用规律[J]. 深圳大学学报(理工版), 2018, 35(4):368-376.
	CHEN Minfeng, YIN Chengzhe, WANG Zhenpeng, et al. Inter-well oil recovery in horizontal-vertical composed well pattern[J]. Journal of Shenzhen University(Science and Engineering), 2018, 35(4):368-376.
[5]	王桂芳, 王硕亮, 许学健, 等. KS油田高含水后期调剖堵水选井[J]. 新疆石油地质, 2022, 43(1):122-126.
	WANG Guifang, WANG Shuoliang, XU Xuejian, et al. Selection of wells for profile control and water plugging in late high-water cut stage in KS oilfield[J]. Xinjiang Petroleum Geology, 2022, 43(1):122-126.
[6]	郭蒲, 黄战卫, 刘波, 等. 安塞油田加密水平井储层改造工艺研究与优化[J]. 工艺技术, 2020, 12(2):208-210.
	GUO Pu, HUANG Zhanwei, LIU Bo, et al. Research and optimization of reservoir reconstruction technology for infill horizontal wells in Ansai oilfield[J]. Process Technology, 2020, 12(2):208-210.
[7]	朱新佳. 利用水平井井间加密提高苏10区块开发效果[J]. 天然气勘探与开发, 2011, 34(1):44-46.
	ZHU Xinjia. Using crosswell infilling by horizontal wells to enhance development of Su-10 block[J]. Natural Gas Exploration & Development, 2011, 34(1):44-46.
[8]	蔡冬梅, 韩阳. 大庆长垣油田密井网区井震结合储层描述方法[J]. 大庆石油地质与开发, 2015, 34(2):148-153.
	CAI Dongmei, HAN Yang. Reservoir characterizing method for the dense well pattern region by the well and seismic integration in Daqing Placanticline oil fields[J]. Petroleum Geology & Oilfield Development in Daqing, 2015, 34(2):148-153.
[9]	苏杨鑫. 两步建模与数值模拟方法在加密水平井设计中的应用[J]. 长江大学学报(自然科学版), 2014, 11(14):37-40.
	SU Yangxin. Application of two step modeling and numerical simulation method in infill horizontal well design[J]. Journal of Yangtze University(Natural Science Edition), 2014, 11(14):37-40.
[10]	高月刚, 刘新菊, 王学生, 等. 安塞特低渗透油田水平井加密动用剩余油研究及实践[J]. 石油化工高等学校学报, 2018, 31(2):42-47.
	GAO Yuegang, LIU Xinju, WANG Xuesheng, et al. Research and practice on remaining oil of horizonatal well encryption of Ansai special low permeability reservoir[J]. Journal of Petrochemical Universities, 2018, 31(2):42-47.
[11]	张玉伟. 敖南油田薄差储层水平井优化设计研究[D]. 黑龙江大庆: 东北石油大学, 2012.
	ZHANG Yuwei. Research on optimal design of horizontal wells in thin and poor reservoirs in AN oilfield[D]. Daqing,Heilongjiang: Northeast Petroleum University, 2012.
[12]	孙岩. 锦45-32-18块水平井部署可行性研究[D]. 黑龙江大庆: 大庆石油学院, 2003.
	SUN Yan. Jin45-32-18 block development scheme design and economic estimate[D]. Daqing,Heilongjiang: Daqing Petroleum Institute, 2003.
[13]	范子菲, 方宏长, 俞国凡. 水平井水平段最优长度设计方法研究[J]. 石油学报, 1997, 18(1):57-64.
	FAN Zifei, FANG Hongchang, YU Guofan. Study on the optimal length design method of horizontal well horizontal section[J]. Acta Petrolei Sinica, 1997, 18(1):57-64.
[14]	李芳玉, 程时清, 雷启鸿, 等. 特低渗透油藏水平井开发效果评价指标和分类评价方法[J]. 大庆石油地质与开发, 2017, 36(1):55-60.
	LI Fangyu, CHENG Shiqing, LEI Qihong, et al. Development effect evaluation index and classification evaluation method of horizontal wells in ultra low permeability reservoir[J]. Petroleum Geology & Oilfield Development in Daqing, 2017, 36(1):55-60.
[15]	屈雪峰, 王选茹, 雷启鸿, 等. 低渗透油藏压裂水平井井网形式研究[J]. 科学技术与工程, 2013, 13(35):78-82.
	QU Xuefeng, WANG Xuanru, LEI Qihong, et al. Study on well pattern of fractured horizontal wells in low permeability reservoir[J]. Science Technology and Engineering, 2013, 13(35):78-82.
[16]	郑忠博, 刘月田, 张海茹, 等. 特低渗透油藏压裂水平井和直井联合井网形式研究[J]. 陕西科技大学学报, 2014, 32(5):105-109.
	ZHENG Zhongbo, LIU Yuetian, ZHANG Hairu, et al. Study on fracture horizintal and vertical wells pattern in ultra-low permeability reservoir[J]. Journal of Shaanxi University of Science & Technology, 2014, 32(5):105-109.
[17]	宁正福, 韩树刚, 程林松, 等. 低渗透油气藏压裂水平井产能计算方法[J]. 石油学报, 2002, 23(2):68-71. doi: 10.7623/syxb200202015
	NING Zhengfu, HAN Shugang, CHENG Linsong, et al. Productivity calculation method of fractured horizontal wells in low permeability reservoirs[J]. Acta Petrolei Sinica, 2002, 23(2):68-71. doi: 10.7623/syxb200202015
[18]	邹易. 水平井分段压裂裂缝参数优化研究:以苏里格气田为例[D]. 西安: 西安石油大学, 2018.
	ZOU Yi. The optimization of fracture paramerers for fractured horizontal wells:In the case of Sulige gas field[D]. Xi’an: Xi’an Shiyou University, 2018.
[19]	蔡晖, 屈丹, 陈民锋. 组合井网储量动用规律及水平井加密合理技术策略:以渤海HD油田为例[J]. 岩性油气藏, 2021, 33(4):147-155.
	CAI Hui, QU Dan, CHEN Minfeng. Reserve producing law of combined well pattern and technology strategy of horizontal well infilling:A case study from HD oilfield in Bohai sea[J]. Lithologic Reservoirs, 2021, 33(4):147-155.
[20]	陈民锋, 屈丹, 秦立, 等. 基于储量有效动用规律确定水平井加密调整策略[J]. 中国海上油气, 2021, 33(4):70-77.
	CHEN Minfeng, QU Dan, QIN Li, et al. Determination of infill adjustment strategy for horizontal wells based on the law of effective producing reserves[J]. China Offshore Oil and Gas, 2021, 33(4):70-77.
[21]	阴国锋, 徐怀民, 叶双江, 等. 水平井注采井网条件下加密水平井产能评价模型[J]. 中国石油大学学报(自然科学版), 2011, 35(4):93-97.
	YIN Guofeng, XU Huaimin, YE Shuangjiang, et al. Productivity evaluation model for infill horizontal well in horizontal injection and production pattern[J]. Journal of China University of Petroleum(Edition of Natural Science), 2011, 35(4):93-97.
[22]	宋俊强, 李晓山, 王硕, 等. 致密油藏压裂水平井产量预测[J]. 新疆石油地质, 2022, 43(5):580-586.
	SONG Junqiang, LI Xiaoshan, WANG Shuo, et al. Production prediction of fractured horizontal wells in tight oil reservoirs[J]. Xinjiang Petroleum Geology, 2022, 43(5):580-586.
[23]	周艳东. 敖南油田水平井区精细注水调整技术研究[D]. 黑龙江大庆: 东北石油大学, 2016.
	ZHOU Yandong. Research on fine water injection adjustment technology in horizontal well area of Aonan oilfield[D]. Daqing,Heilongjiang: Northeast Petroleum University, 2016.
[24]	凌宗发, 胡永乐, 李保柱, 等. 水平井注采井网优化[J]. 石油勘探与开发, 2007, 34(1):65-72.
	LING Zhongfa, HU Yongle, LI Baozhu, et al. Optimization of horizontal well injection and production wells[J]. Petroleum Exploration and Development, 2007, 34(1):65-72.

位置	风险级别	水驱前缘与裂缝距离/m	累计注水强度/（m³·m^-1）	注水周期	配注强度/ （m³·d^-1·m^-1）
邻排	高风险区	<100	>1 000	间注关井
	次高风险区	100~150	>2 000	开7天关30天	1.0~1.2
	中风险区	150~200	>3 000	开1个月关3个月	1.2~1.4
	低风险区	其他范围	其他范围	开1个月关2个月	1.4~1.6
隔排	次高风险区	200~250	>4 000	开2个月关1个月	1.6~1.7
	中风险区	250~300	>6 000	开3个月关1个月	1.7~1.9
	低风险区	>300	>7 000	开6个月关1个月	1.9~2.1
	无风险区	其他范围	其他范围	连续注水	2.1~2.3
