Differences in Natural Fracture Development in Ultra-Deep Carbonate Reservoirs: A Case Study of YUEM Area in Tarim Basin

doi:10.7657/XJPG20250203

Abstract

Abstract:

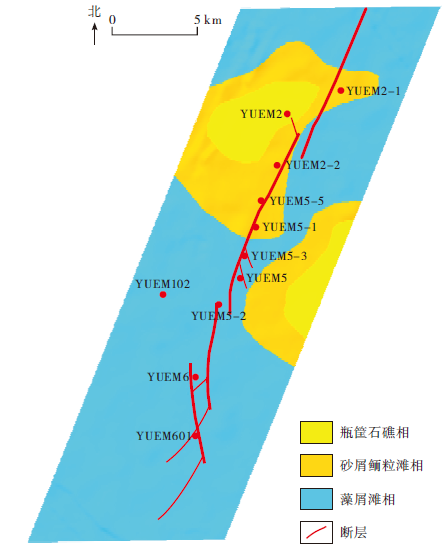

The carbonate reservoirs in the YUEM area of Tarim Basin show differences in natural fracture development. Using the data of outcrop, core, thin section, logging, seismic, and production performance, the differences of natural fractures in development characteristics, formation periods, genesis, and spatial distribution were clarified through fracture parameter statistics, sensitivity analysis of seismic attributes, and numerical simulation of tectonic stress field. Three types of fractures, i.e. diagenetic fractures, tectonic fractures, and composite fractures, corresponding to three development periods are found in the study area. The development of these fractures is controlled by the coupling of tectonics, sedimentation, and karstification. Favorable fracture development zones are identified in oblique-overlap zones, intersections of major and secondary faults, fault tips, algal reef facies belts, and tops and bottoms of karst caves.

Key words: Tarim Basin, carbonate rock, natural fracture, difference, tectonics, sedimentation, karstification

CLC Number:

TE122.2

LI Hui, NING Yaxin. Differences in Natural Fracture Development in Ultra-Deep Carbonate Reservoirs: A Case Study of YUEM Area in Tarim Basin[J]. Xinjiang Petroleum Geology, 2025, 46(2): 144-153.

Figures/Tables 12

Fig. 1.

Fig. 2.

Fig. 3.

Fig. 4.

Fig. 5.

Fig. 6.

Fig. 7.

Fig. 8.

Fig. 9.

Fig. 10.

Table 1.

Table 2.

References 17

[1]	YANG Haijun, WU Guanghui, NICOAL S, et al. Characterization of reservoirs,fluids,and productions from the Ordovician carbonate condensate field in the Tarim Basin,northwestern China[J]. AAPG Bulletin, 2020, 104(7):1567-1592. doi: 10.1306/02242018060
[2]	宁超众, 孙龙德, 胡素云, 等. 塔里木盆地哈拉哈塘油田奥陶系缝洞型碳酸盐岩储层岩溶类型及特征[J]. 石油学报, 2021, 42(1):15-32. doi: 10.7623/syxb202101002
	NING Chaozhong, SUN Longde, HU Suyun, et al. Karst types and characteristics of the Ordovician fracture-cavity type carbonate reservoirs in Halahatang oilfield,Tarim Basin[J]. Acta Petrolei Sinica, 2021, 42(1):15-32. doi: 10.7623/syxb202101002
[3]	ZHU Guangyou, MILKOV A V, ZHANG Zhiyao, et al. Formation and preservation of a giant petroleum accumulation in superdeep carbonate reservoirs in the southern Halahatang oil field area,Tarim Basin,China[J]. AAPG Bulletin, 2019, 103(7):1703-1743. doi: 10.1306/11211817132
[4]	能源, 杨海军, 邓兴梁. 塔中古隆起碳酸盐岩断裂破碎带构造样式及其石油地质意义[J]. 石油勘探与开发, 2018, 45(1):40-50. doi: 10.11698/PED.2018.01.04
	NENG Yuan, YANG Haijun, DENG Xingliang. Structural patterns of fault broken zones in carbonate rocks and their influences on petroleum accumulation in Tazhong paleo-uplift,Tarim Basin,NW China[J]. Petroleum Exploration and Development, 2018, 45(1):40-50. doi: 10.11698/PED.2018.01.04
[5]	高计县, 唐俊伟, 张学丰, 等. 塔北哈拉哈塘地区奥陶系一间房组碳酸盐岩岩心裂缝类型及期次[J]. 石油学报, 2012, 33(1):64-73. doi: 10.7623/syxb201201008
	GAO Jixian, TANG Junwei, ZHANG Xuefeng, et al. Types and episodes of fractures in carbonate cores from the Ordovician Yijianfang formation in the Halahatang area,northern Tarim Basin[J]. Acta Petrolei Sinica, 2012, 33(1):64-73.
[6]	张鼐, 余小庆, 凡闪, 等. 哈拉哈塘地区奥陶系构造裂缝期次及成藏意义[J]. 矿物学报, 2013, 33(增刊2):992.
	ZHANG Nai, YU Xiaoqing, FAN Shan, et al. Periods and significance of Ordovician tectonic fractures in the Halahatang area for reservoir formation[J]. Acta Mineralogica Sinica, 2013, 33(Supp.2):992.
[7]	石书缘, 刘伟, 姜华, 等. 塔北哈拉哈塘地区古生代断裂-裂缝系统特征及其与奥陶系岩溶储层关系[J]. 中南大学学报(自然科学版), 2015, 46(12):4568-4577.
	SHI Shuyuan, LIU Wei, JIANG Hua, et al. Characteristics of Paleocene fault-fracture system and their relationship with Ordivician paleokarst reservoirs in Halahatang area,north Tarim Basin[J]. Journal of Central South University (Science and Technology), 2015, 46(12):4568-4577.
[8]	吴国强, 张丽娟, 杨振周, 等. 塔里木盆地哈拉哈塘地区奥陶系储层古岩溶作用及其与裂缝的关系[J]. 石油实验地质, 2017, 39(6):790-796.
	WU Guoqiang, ZHANG Lijuan, YANG Zhenzhou, et al. Paleo-karstification of the Ordovician carbonate reservoirs and the relationship with fractures in the Halahatang area of Tarim Basin[J]. Petroleum Geology & Experiment, 2017, 39(6):790-796.
[9]	韩剑发, 苏洲, 陈利新, 等. 塔里木盆地台盆区走滑断裂控储控藏作用及勘探潜力[J]. 石油学报, 2019, 40(11):1296-1310. doi: 10.7623/syxb201911002
	HAN Jianfa, SU Zhou, CHEN Lixin, et al. Reservoir-controlling and accumulation-controlling of strike-slip faults and exploration potential in the platform of Tarim Basin[J]. Acta Petrolei Sinica, 2019, 40(11):1296-1310. doi: 10.7623/syxb201911002
[10]	赫俊民, 王小垚, 孙建芳, 等. 塔里木盆地塔河地区中-下奥陶统碳酸盐岩储层天然裂缝发育特征及主控因素[J]. 石油与天然气地质, 2019, 40(5):1022-1030.
	HAO Junmin, WANG Xiaoyao, SUN Jianfang, et al. Characteristics and main controlling factors of natural fractures in the Lower-to-Middle Ordovician carbonate reservoirs in Tahe area,northern Tarim Basin[J]. Oil & Gas Geology, 2019, 40(5):1022-1030.
[11]	张继标, 刘士林, 戴俊生, 等. 塔里木盆地玉北地区奥陶系储层构造裂缝定量预测[J]. 地质力学学报, 2019, 25(2):177-186.
	ZHANG Jibiao, LIU Shilin, DAI Junsheng, et al. The quantitative prediction of structural fractures in Ordovician reservoir in Yu-Bei area,Tarim Basin[J]. Journal of Geomechanics, 2019, 25(2):177-186.
[12]	邬光辉, 马兵山, 韩剑发, 等. 塔里木克拉通盆地中部走滑断裂形成与发育机制[J]. 石油勘探与开发, 2021, 48(3):510-520. doi: 10.11698/PED.2021.03.07
	WU Guanghui, MA Bingshan, HAN Jianfa, et al. Origin and growth mechanisms of strike-slip faults in the central Tarim cratonic Basin,NW China[J]. Petroleum Exploration and Development, 2021, 48(3):510-520.
[13]	张长建, 吕艳萍, 马海陇, 等. 塔河油田岩溶峡谷区伏流坍塌型古暗河缝洞系统[J]. 新疆石油地质, 2023, 44(1):9-17.
	ZHANG Changjian, LYU Yanping, MA Hailong, et al. Fracture-cave system in collapsed underground paleo-river with subterranean flow in karst canyon area,Tahe oilfield[J]. Xinjiang Petroleum Geology, 2023, 44(1):9-17.
[14]	鲁新便, 胡文革, 汪彦, 等. 塔河地区碳酸盐岩断溶体油藏特征与开发实践[J]. 石油与天然气地质, 2015, 36(3):347-355.
	LU Xinbian, HU Wenge, WANG Yan, et al. Characteristics and development practice of fault-karst carbonate reservoirs in Tahe area,Tarim Basin[J]. Oil & Gas Geology, 2015, 36(3):347-355.
[15]	张骥跃, 康志宏, 陈华鑫, 等. 碳酸盐岩储集层岩溶洞穴垮塌的力学机制[J]. 新疆石油地质, 2023, 44(5):618-625.
	ZHANG Jiyue, KANG Zhihong, CHEN Huaxin, et al. Mechanical mechanism of karst cave collapse in carbonate reservoirs[J]. Xinjiang Petroleum Geology, 2023, 44(5):618-625.
[16]	张文彪, 张亚雄, 段太忠, 等. 塔里木盆地塔河油田托甫台区奥陶系碳酸盐岩断溶体系层次建模方法[J]. 石油与天然气地质, 2022, 43(1):207-218.
	ZHANG Wenbiao, ZHANG Yaxiong, DUAN Taizhong, et al. Hierarchy modeling of the Ordovician fault-karst carbonate reservoir in Tuoputai area,Tahe oilfield,Tarim Basin,NW China[J]. Oil & Gas Geology, 2022, 43(1):207-218.
[17]	杨昕睿, 尹艳树, 王立鑫, 等. 塔里木盆地A地区奥陶系断控体内幕精细表征[J]. 油气地质与采收率, 2023, 30(6):45-53.
	YANG Xinrui, YIN Yanshu, WANG Lixin, et al. Fine characterization of Ordovician inner fault-controlled bodies in area A of Tarim Basin[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(6):45-53.

与断层面距离/m	油井数/ 口	初期平均日产油量/t	初期日产油量大于30 t井占比/%	平均单井累计产油量/10⁴ t
<1 000	129	60.5	89	1.85
>1 000	72	41.1	11	0.84

井名	裂缝发育分区	累计产油量 /10⁴ t	累计产气量 /10⁸ m³
YUEM2-1井	裂缝密集发育区	10.70	0.46
YUEM5井	裂缝密集发育区	13.57	0.70
YUEM5-5井	裂缝密集发育区	9.68	0.47
YUEM6井	裂缝有利发育区	3.54	0.22
YUEM5-1井	裂缝有利发育区	5.94	0.25
YUEM2井	裂缝较发育区	1.61	0.01
