天山南北复杂构造成像技术进展及应用效果

doi:10.7657/XJPG20200114

新疆石油地质 ›› 2020, Vol. 41 ›› Issue (1): 114-119.doi: 10.7657/XJPG20200114

天山南北复杂构造成像技术进展及应用效果

黄丽娟, 罗文山, 方勇, 董玉文, 吴新星, 李光鹏

中国石油集团东方地球物理公司研究院,河北涿州 072750

收稿日期:2019-10-29 修回日期:2019-11-27 出版日期:2020-02-01 发布日期:2020-03-31
作者简介:黄丽娟（1986-），女，江苏泰州人，工程师，地震资料处理，（Tel）18631762912（E-mail）huanglijuan01@cnpc.com.cn
基金资助:
国家科技重大专项(2017ZX05018-003);中国石油科技重大专项(2017E-0411)

Progress and Application of Imaging Technology for Complex Structures in the Southern and Northern Tianshan Mountains

HUANG Lijuan, LUO Wenshan, FANG Yong, DONG Yuwen, WU Xinxing, LI Guangpeng

Research Institute of Geology, BGP, CNPC, Zhuozhou, Hebei 072750, China

Received:2019-10-29 Revised:2019-11-27 Online:2020-02-01 Published:2020-03-31

摘要/Abstract

摘要：

由于天山南北前陆冲断带复杂构造具有地表及地下双复杂特性,获得地下准确成像困难,采用“真”地表TTI叠前深度偏移速度建模及成像技术序列能够较好地解决该问题。目前形成的“真”地表TTI叠前深度偏移速度建模及成像技术序列,主要包含适应叠前深度偏移的配套静校正技术、叠前体去噪技术、TTI各向异性速度建模与深度偏移技术等,将静校正、去噪与速度建模有机结合,这种全层系速度建模思路为叠前深度偏移提供了准确的速度模型,改善了复杂构造成像品质,提高了复杂构造成像的精度,钻井吻合率逐年上升,有力支撑了天山南北前陆冲断带的井位部署与油气勘探。

关键词: 天山, 前陆冲断带, 复杂构造, 低信噪比, 叠前深度偏移, 速度建模, 成像技术

Abstract:

It is very difficult to obtain the accurate images of the underground complex structures in the foreland thrust belts of the northern and southern Tianshan Mountains because the structures are very complicated both at the surface and underground, and the velocity modeling of TTI prestack depth migration and imaging technology can be used to solve the problem. At present, the velocity modeling of TTI prestack depth migration and imaging technology mainly include the static correction technology matched with prestack depth migration, prestack denoising technology and TTI anisotropic velocity modeling and depth migration technology, which can integrate static correction, denoising and velocity modeling technologies and provide an accurate velocity model for prestack depth migration. Finally, the imaging quality and precision of the complex structures are improved and the drilling consistency rises year by year, which proves that the technology can provide support to well allocation and petroleum exploration in the foreland thrust belts of the northern and southern Tianshan Mountains.

Key words: Tianshan Mountains, foreland thrust belt, complex structure, low signal-to-noise ratio, prestack depth migration, velocity modeling, imaging technology

中图分类号:

P631.443

黄丽娟, 罗文山, 方勇, 董玉文, 吴新星, 李光鹏. 天山南北复杂构造成像技术进展及应用效果[J]. 新疆石油地质, 2020, 41(1): 114-119.

HUANG Lijuan, LUO Wenshan, FANG Yong, DONG Yuwen, WU Xinxing, LI Guangpeng. Progress and Application of Imaging Technology for Complex Structures in the Southern and Northern Tianshan Mountains[J]. Xinjiang Petroleum Geology, 2020, 41(1): 114-119.

图/表 8

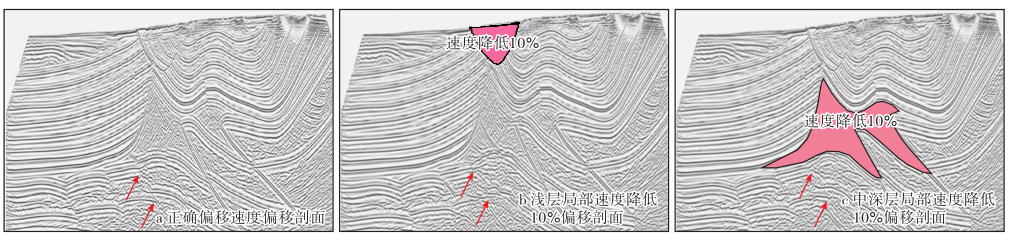

图1

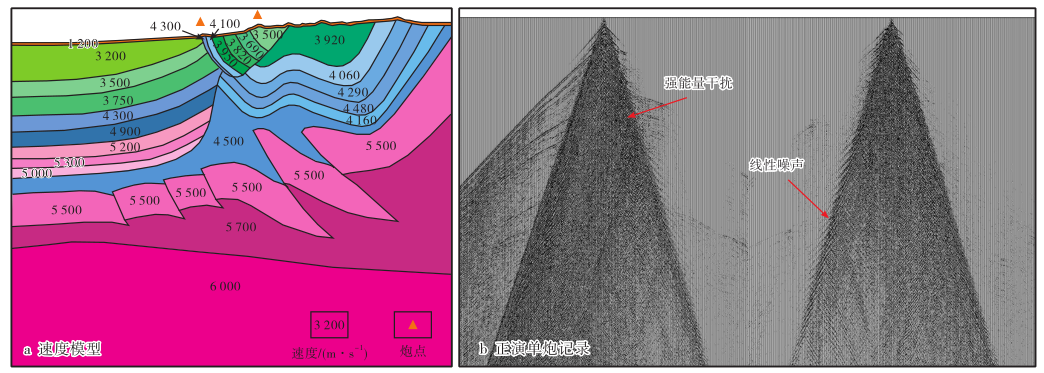

图2

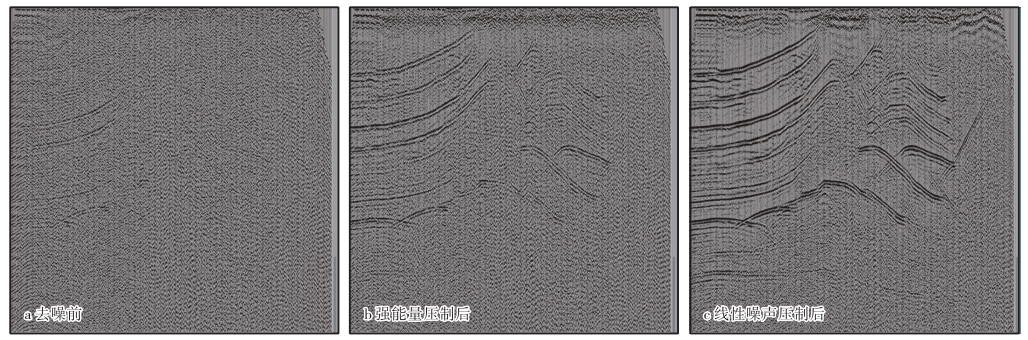

图3

图4

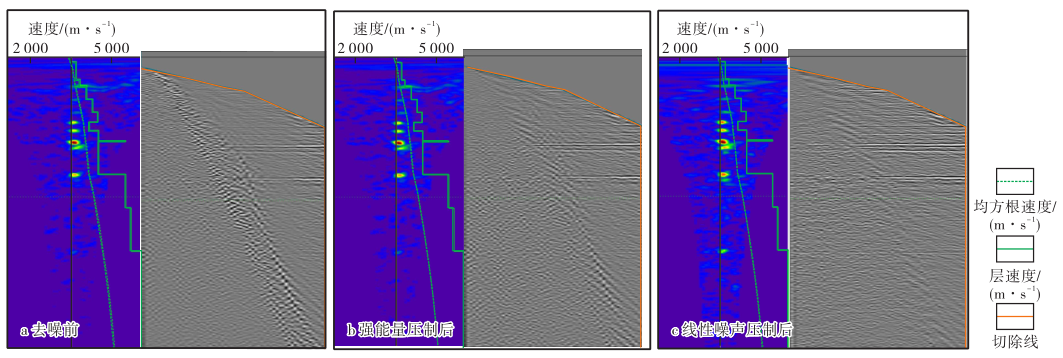

图5

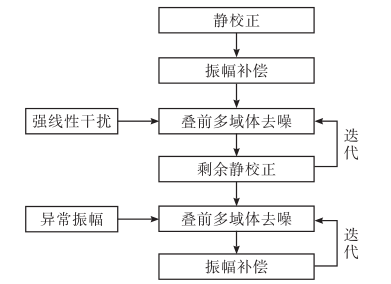

图6

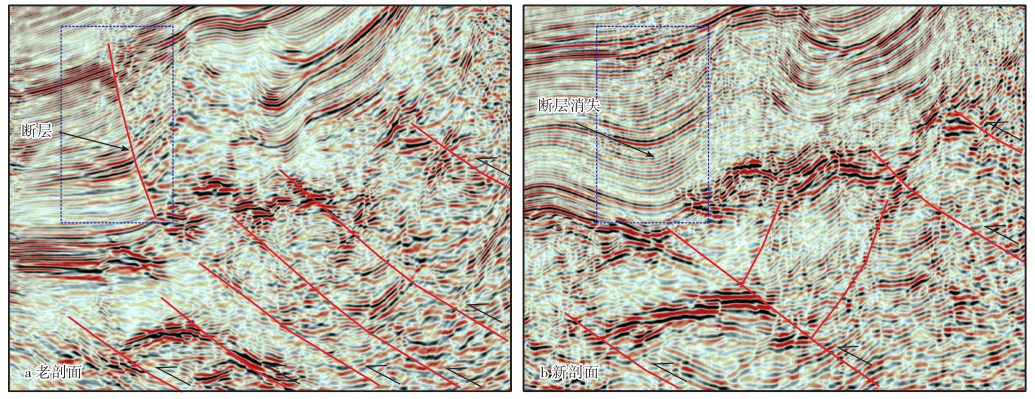

图7

图8

参考文献 16

[1]	渥·伊尔马滋 . 地震数据处理[M]. 黄绪德, 袁明德,译. 北京:石油工业出版社, 1994.
	YILMAZ O. Seismic data processing[M]. Translated by HUANG Xude, YUAN Mingde. Beijing:Petroleum Industry Press, 1994.
[2]	AI-YAHYA K . Velocity analysis by iterative profile migration[J]. Geophysics, 1989,54(6):718-729.
[3]	DEREGOWSKI S M . Common-offset migrations and velocity analysis[J]. First Break, 1990,8(6):225-234.
[4]	邓起东, 冯先岳, 张培震 , 等. 天山活动构造[M]. 北京: 地震出版社, 2000.
	DENG Qidong, FENG Xianyue, ZHANG Peizhen , et al. Tianshan active structure[M]. Beijing: Seismological Press, 2000.
[5]	MIKE C. 反射波地震勘探静校正技术[M]. 李培明, 柯本喜,译. 北京:石油工业出版社, 2004.
	MIKE C. Static corrections for seismic reflection surveys[M]. Translated by LI Peiming, KE Benxi. Beijing:Petroleum Industry Press, 2004.
[6]	穆蜀生, 宴伟, 蔡东底 , 等. GeoEast静校正处理技术[J]. 石油工业计算机应用, 2016,24(4):25-34.
	MU Shusheng, YAN Wei, CAI Dongdi , et al. GeoEast static correction processing technique[J]. Computer Applications of Petroleum, 2016,24(4):25-34.
[7]	郭惠英, 王伟, 黄少卿 , 等. GeoEast复杂地表三维连片地震资料连片处理技术[J]. 石油地球物理勘探, 2014,49(增刊1):35-40.
	GUO Huiying, WANG Wei, HUANG Shaoqing , et al. Merging processing of 3D seismic data acquired in complex surfaces with GeoEast[J]. Oil Geophysical Prospecting, 2014,49(Supp.1):35-40.
[8]	蔡希玲 . 声波和强能量干扰的分频自适应检测与压制方法[J]. 石油地球物理勘探, 1999,34(4):373-380.
	CAI Xiling . An effective method to suppress acoustic wave and high energy noise frequency-divisionally and adaptively[J]. Oil Geophysical Prospecting, 1999,34(4):373-380.
[9]	吴超, 许安明, 尚江伟 , 等 . TTI各向异性叠前深度偏移技术在库车复杂山地的应用[J]. 新疆石油地质, 2019,40(1):103-107.
	WU Chao, XU Anming, SHANG Jiangwei , et al. Application of TTI anisotropic prestack depth migration technology in complex mountain areas of Kuqa depression[J]. Xinjiang Petroleum Geology, 2019,40(1):103-107.
[10]	温铁民, 罗晓霞, 吴新星 , 等. 三维地震区井资料不符原因及解决方案:以北三台凸起西地2井三维地震区为例[J]. 新疆石油地质, 2016,37(1):78-82.
	WEN Tiemin, LUO Xiaoxia, WU Xinxing , et al. Reason analysis and solution for log-seismic data discrepancy in 3D seismic area:a case study of well Xidi-2 3D seismic area in Beisantai swell,Junnggar basin[J]. Xinjiang Petroleum Geology, 2016,37(1):78-82.
[11]	田彦灿, 曾华会, 鲁烈琴 , 等. 各向异性叠前偏移技术及应用[J]. 新疆石油地质, 2011,32(5):533-536.
	TIAN Yancan, ZENG Huahui, LU Lieqin , et al. Technique and application of anisotropic prestack migration[J]. Xinjiang Petroleum Geology, 2011,32(5):533-536.
[12]	钱荣钧 . 复杂地表区时深转换和深度偏移中的基准面问题[J]. 石油地球物理勘探, 1999,34(6):690-695.
	QIAN Rongjun . The datum probleum of time-depth conversion and depth migration in complicated-surface area[J]. Oil Geophysical Prospecting, 1999,34(6):690-695.
[13]	THOMSEN L . Weak elastic anisotropy[J]. Geophysics, 1986,51(10):1 954-1 966.
[14]	夏常亮, 王永明, 夏密丽 , 等. VTI 介质克希霍夫叠前深度偏移及其应用[J]. 新疆石油地质, 2018,39(6):732-736.
	XIA Changliang, WANG Yongming, XIA Mili , et al. VTI media kirchhoff pre-stack depth migration technology and its application[J]. Xinjiang Petroleum Geology, 2018,39(6):732-736.
[15]	GRECHKA V, TSVANKIN I . 3-D description of normal-moveout in anisotropic inhomogeneous media[J]. Geophysics, 2012,63(3):1 079-1 092.
[16]	VESTRUM R W . Imaging structures below dipping TI media[J]. Geophysics, 2012,64(4):1 239-1 246.
